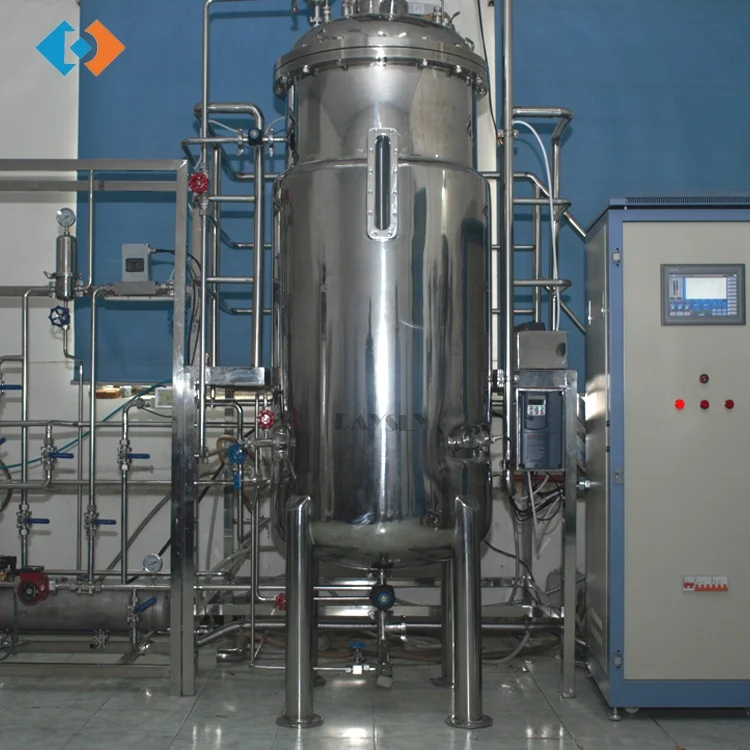

1000L Industrial Microbiology Fermenter Stainless steel Bioreactor Prices Yeast Enzymes fermenting vessel
- Category: >>>
- Supplier: Wenzhou Daysly Technology Co. Ltd.
Share on (1600435840548):
Product Overview
Description
Product Description
Stainless steel fermenter / Enzyme bioreactor
Feature:
1.Fermentors can be sterilized easily by sterilizable -in -place
2.Large 10.4" colourful simens touch screen simplifier entering set points and provides displays of parameter.
3. Advanced software to make it easy for operation and understanding.
4.Stainless steel vessel, piping and control cabinet has long life
5.Excellent stability and convenient to operate
6.Modular design provide system flexibility
7.Small footprint to minimize space requirement
8.Opening piping frame with plenty of space between valves and piping, make it easy for operation and maintenance.
Application:
DAYSLY offers fermentors for microbial culture Applications. It is ideal system for production of bacteria, yeast, enzyme, and fungi, etc in aerobic and anaerobic cultures. This series of products suits for various kinds of microbiology lab, pilot and industrial scale fermentation. User can choose appreciate model according to Client s detail requirement. Lab scale:5L,10L,20L,30L,40L,50L, 60L,70L,80L,90L,100L,150L Pilot scale:200L,300L,400L,500L,600L, 700L,800L,900L,1000L,1500L,2500L, 3000L,4000L Industrial scale:5000L,6000L,7000L,8000L, 9000L,10000L…20000L Special product can be made according to special requirements.
Model | DSL-FM | |
Total volume | 5-20000L | |
Working capacity | 65-75% | |
Material | Parts contact with material are SS316L, and others are SS304. | |
Surface finish | Internal roughness less than 0.4μm, polished | |
Pressure | Different according to different capacity, can also be customized | |
Agitator | 1. SEW motor 2.Top / bottom mechanical stirring, magnetic stirring 3. Mechanical seal : single or double mechanical seal 4.Speed range: depending on capacity, can also be customized | |
Structure | Floor-type One fermentor vessel with one control system (Siemens PLC and HMI) | |
Operating panel | Chinese and English version | |
Main components and controls of system | ||
pH | 1. On-line check and measure, and digitization fully automatic control; 2. Peristaltic pump automatically adjust to feed acid and base; 3. Control range 2-12pH, measure precision±0.01 pH, control precision±0.02 pH; 4. Auto alarm. 5. pH sensor and signal transmission line, HAMILTON/METTLER originally imported. | |
DO | 1. On-line check and measure, cascade with rpm; digital display.; 2. Range 0-100% or 0-200%, precision ±1%; 3. Auto alarm; 4. DO sensor and signal transmission line, HAMILTON/METTLER originally imported. | |
Anti-foam | 1. Automatically control and alarm; 2. Stainless steel electrode check, peristaltic pump automatically add defoamer. | |
Feed | 1. Automatically control and alarm; 2.Stainless steel electrode check, peristaltic pump automatically feeding. | |
Temperature | 1.PID fully digitization signal processing, digitization control settings 2.Circulating water automatically control temperature 3.Measure range 0-150°C, control range T+6-60°C,control precision±0.2°C 4.PT100 temperature sensor 5. Electrical heater to control the temp inside vessel 6. Circulating pump, GRUNDFOS (Denmark) 7. Solenoid valve to control | |
Speed | 1. Automatically control, with auto alarm function 2. Siemens frequency converter to adjust the speed. | |
Pressure | 1. Manually adjusting with pressure gauge and manual valve (standard system) 2. Automatically adjusting with pressure transmitter and PID valve and pneumatic valves (optional) | |
Airflow | 1.Manually adjusting with rotor meter and manual valve (standard system) 2.Automatically adjusting with mass-flow meter and pneumatic valves (optional) 3.Air inlet filter, air outlet filter, accuracy: 0.2μm | |
Sterilization | 1. SIP (automatic sterlization) (optional) 2. Manually control with manual valve | |
Control | Siemens PLC, and MCGSE 7"/10" LCD touch screen(HMI) and Daysly program | |
PC | 1.PC with Kingview software for recording function (optional) 2.PC with Siemens remote control and Kingview recording function (optional) 3.printer (optional) | |
Specification
Aseptic Sample valve
Brand: DAYSLY
Original: CHINA
Taking sample manually from the sampling port. User can
proceed independent sterilization in-site at anytime.
Process nozzles
National standard for PH, DO, Temperature,
anti-foam, liquid level port, inoculation port, material
feeding port, cleaning port,etc.
It can also be customized according to your detailed requirement.

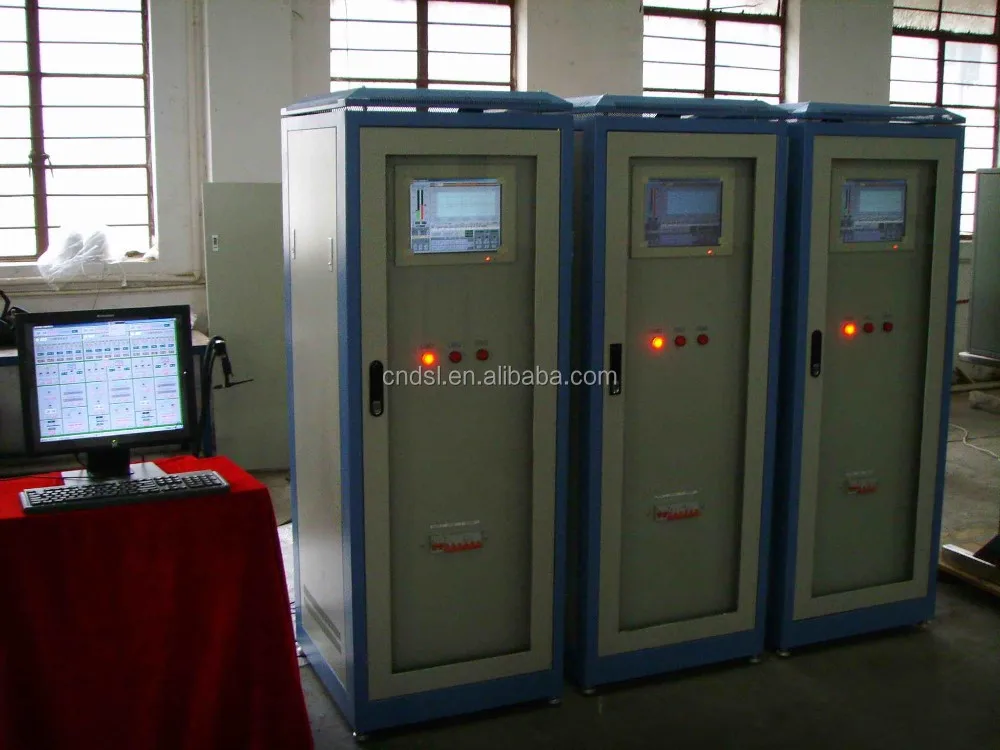

Vertical electric automatic control system
PLC: SIEMENS (Optional)
All data will be analyzed by synthesis and report form is created automatically, with intuitive control interface, the operating condition and parameter of each actuator can be displayed directly on touch screen. Port with standard MODBUS protocol strengthens the expansibility and compatibility of this system. The electric box can also be stainless steel (optional).
Company Profile
WENZHOU DAYSLY TECHNOLOGY CO.,LTD is located in Binhai, a science and technology park of WENZHOU, CHINA. The company was set up in 1996 to fulfill the needs of the local and oversea Food, Beverage, Pharmaceutical and Chemical industries. This was in line with the strong economic growth in China and the increasing demand for Stainless Steel Sanitary products.
The management's commitment to ongoing improvement in quality and capacity, has been supported by the use of innovative and new manufacturing technology. This has led to new product development to support its production process and maintain a high level of quality. Stainless Steel Sanitary products manufactured by the company are now exported to other Asian countries as well as Middle East, Australia,Europe, Canada and the United States of America. Also with the support of management and its ability to anticipate change and react accordingly the company has managed to use the addition of new products as a vehicle to grow the company business.
The management's commitment to ongoing improvement in quality and capacity, has been supported by the use of innovative and new manufacturing technology. This has led to new product development to support its production process and maintain a high level of quality. Stainless Steel Sanitary products manufactured by the company are now exported to other Asian countries as well as Middle East, Australia,Europe, Canada and the United States of America. Also with the support of management and its ability to anticipate change and react accordingly the company has managed to use the addition of new products as a vehicle to grow the company business.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing details
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2011,sell to Southeast Asia(28.00%),North America(10.60%),Mid East(8.60%),Eastern Europe(8.00%),Eastern Asia(6.00%),Domestic Market(5.20%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Bio-engineering equipment,Brewery equipment,Evaporator and concentrator,Food and beverage equipment,Stainless steel tank
4. why should you buy from us not from other suppliers?
DAYSLY is a leading manufacturer in China, specialized in the research, manufacture, and sale of a wide range of food, beverage, pharmaceutical, biological equipment, with professional quality management to achieve continuous improvement.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,AUD,GBP,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Zhejiang, China, start from 2011,sell to Southeast Asia(28.00%),North America(10.60%),Mid East(8.60%),Eastern Europe(8.00%),Eastern Asia(6.00%),Domestic Market(5.20%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Bio-engineering equipment,Brewery equipment,Evaporator and concentrator,Food and beverage equipment,Stainless steel tank
4. why should you buy from us not from other suppliers?
DAYSLY is a leading manufacturer in China, specialized in the research, manufacture, and sale of a wide range of food, beverage, pharmaceutical, biological equipment, with professional quality management to achieve continuous improvement.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,AUD,GBP,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
PAYMENT TERM
Our service
Global distribution
Currently we are not only serving dometic customers but also exporting to customers in 20 different countires.
