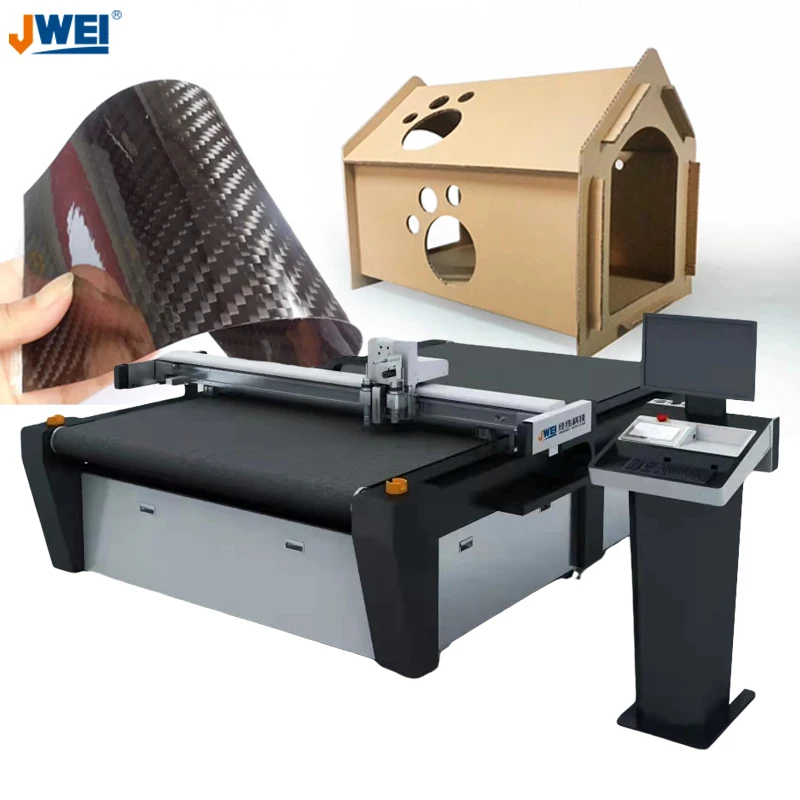

JWEI factory direct Sale composites digital cutter plotter with oscillating cutting tool for cutting carbon fiber glass fiber

Product Overview

Description

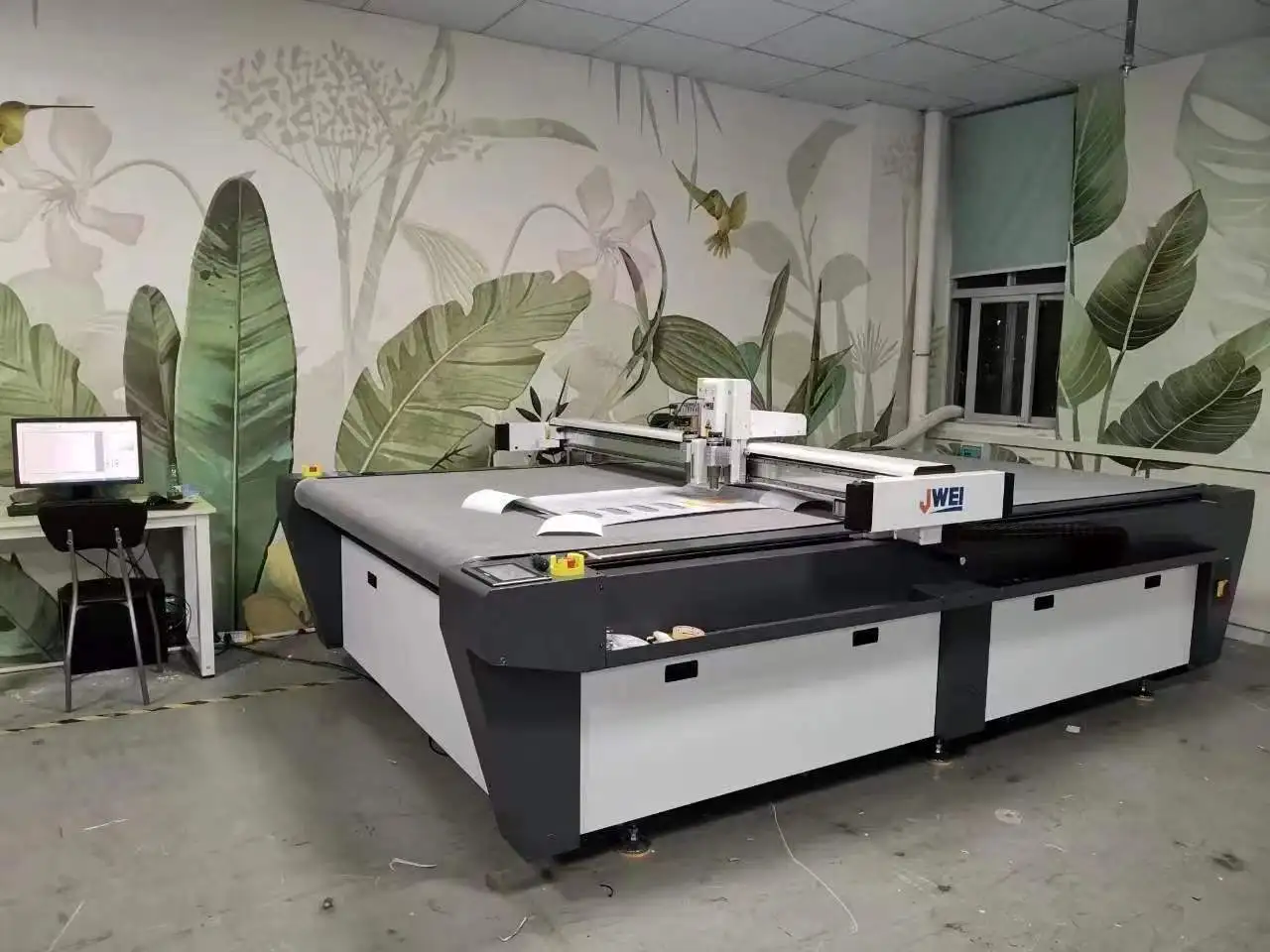

Factory Direct Sale JWEI Digital Cutter Plotter

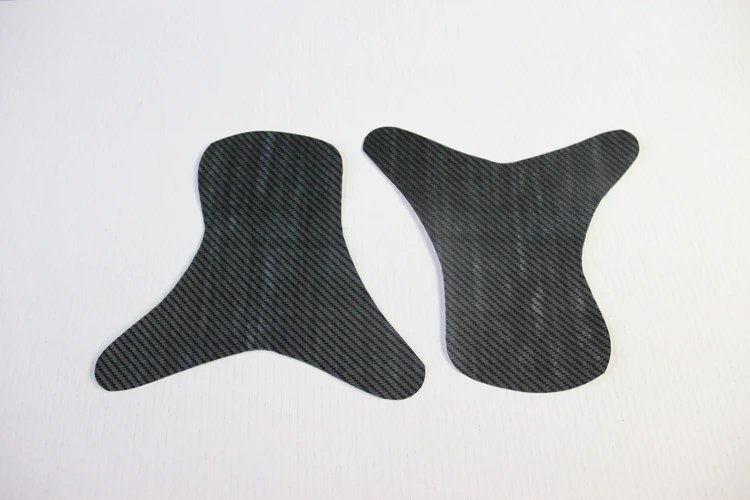

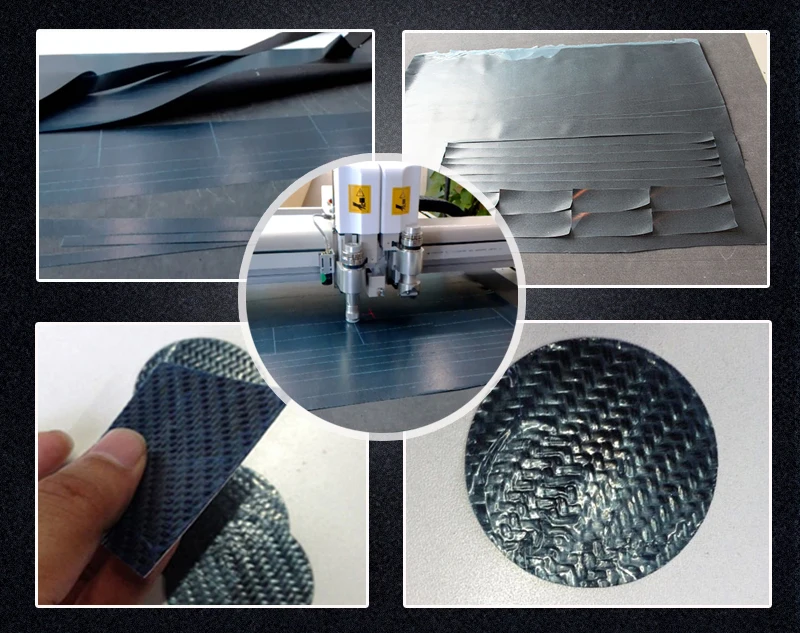

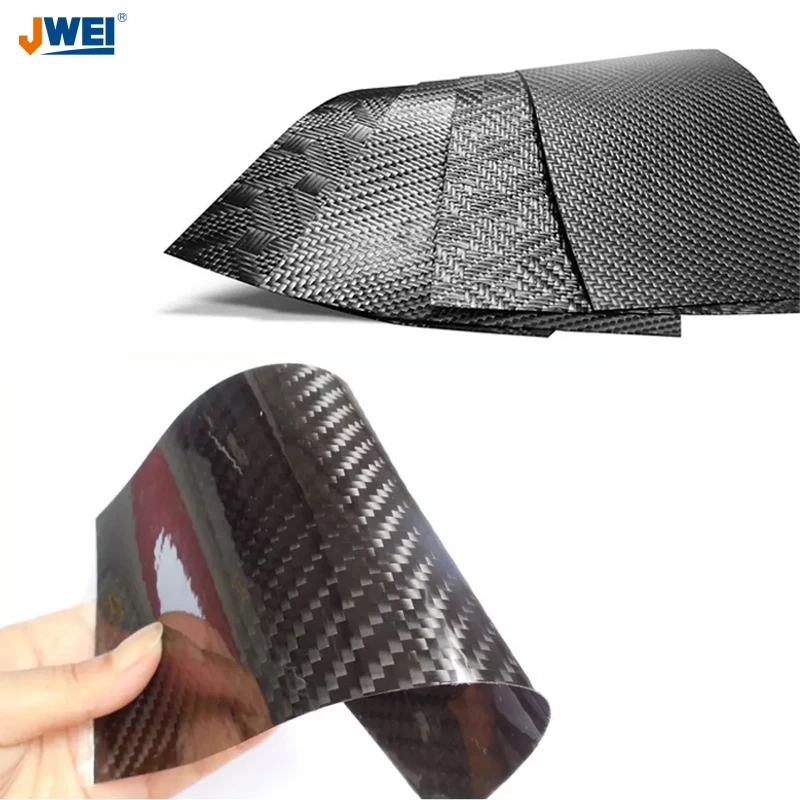

CB Digital Cutter Plotter supported by oscillating cutting, pneumatic cutting technology are suitable for cutting carbon fiber, composite prepregs, glass fiber and other types of industrial fabrics commonly used in diverse industries, including aerospace, defense, armor, transportation and infrastructure.

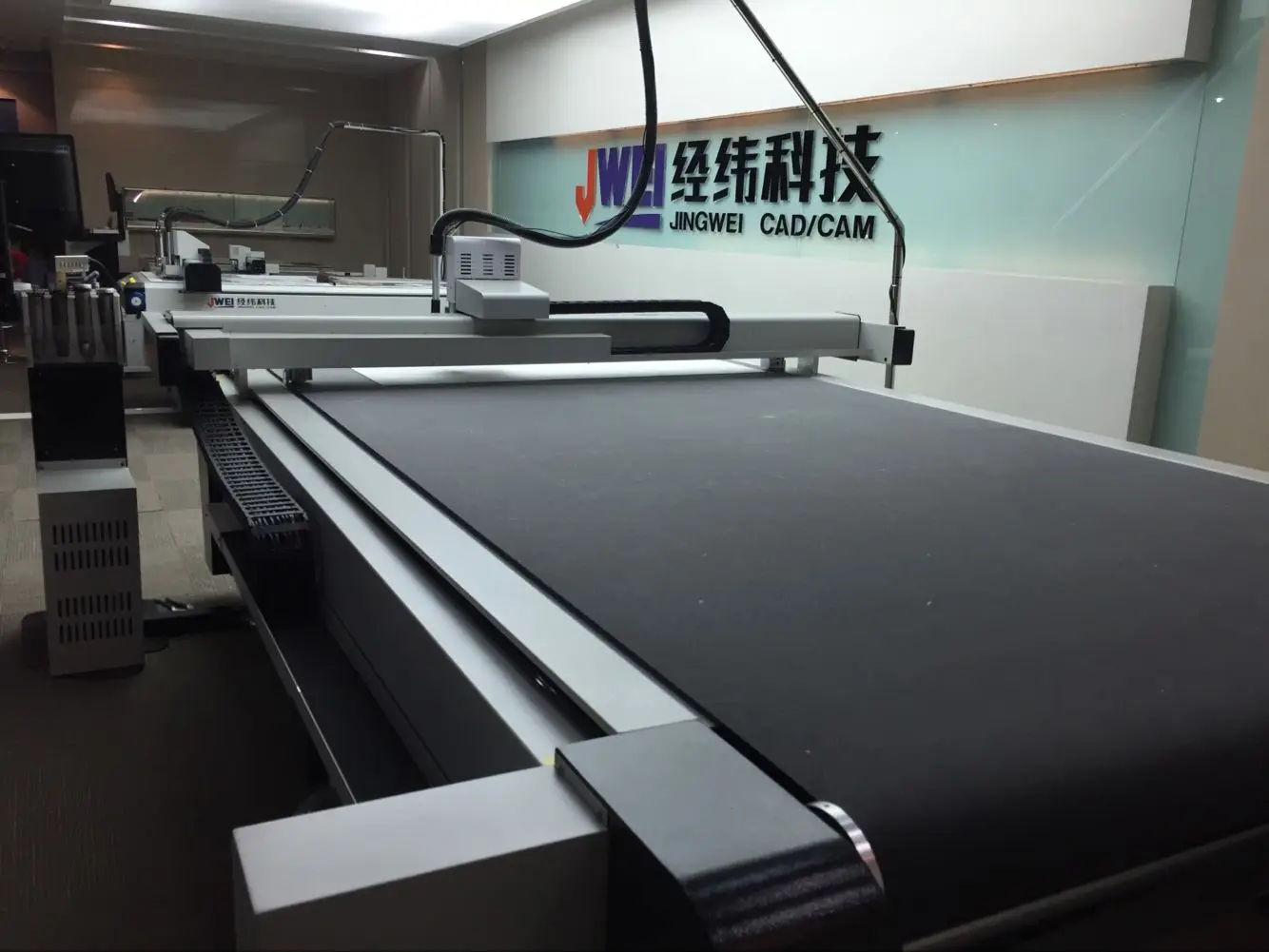

Conveyor tables can be custom made for delivering long materials in rolls and realize a fully automatic workflow. Composites are a great revolution for industries. Our composites digital cutting system furthers the success of higher efficiency and lager productivity.









Digital Cutter Plotter



Description

With a multi-functional tool head and pneumatic cutting system, the Jingwei CB series digital cutter is your best price and performance rate choice for precision cutting in folding cartons, POS&POS, gaskets, reflective sheets, and the composite material industry. In its transmission system, the Jingwei CB series digital cutter uses an advanced servo motor and synchronous belt to enable superior speed and accuracy. The DSP controller enhances the work stability and lowers maintenance, which will reduce your cost and increase your profit in the workshop.



Features

1. The CB Series digital cutter has a touch screen with both English and Chinese language, making it easy to understand and operate.
2. The CB Series digital cutter has an SD memory card with massive storage capacity and a 2G buffer enabling the digital cutter to realize quick transmission time.
3. The CB Series digital cutter has a strong compatible function enabling connection with any CAD software.



Application

CB Series digital cutter is suitable for cutting various different materials. It is designed for production with small quantities and can save on costs while maintaining speed and accuracy. This kind of digital cutter is used in many industries including packaging, printing, padding and composite materials.









Model No.	CB03II-2513RM       CB03II-2516RM      CB03II-1113      CB03II-1816

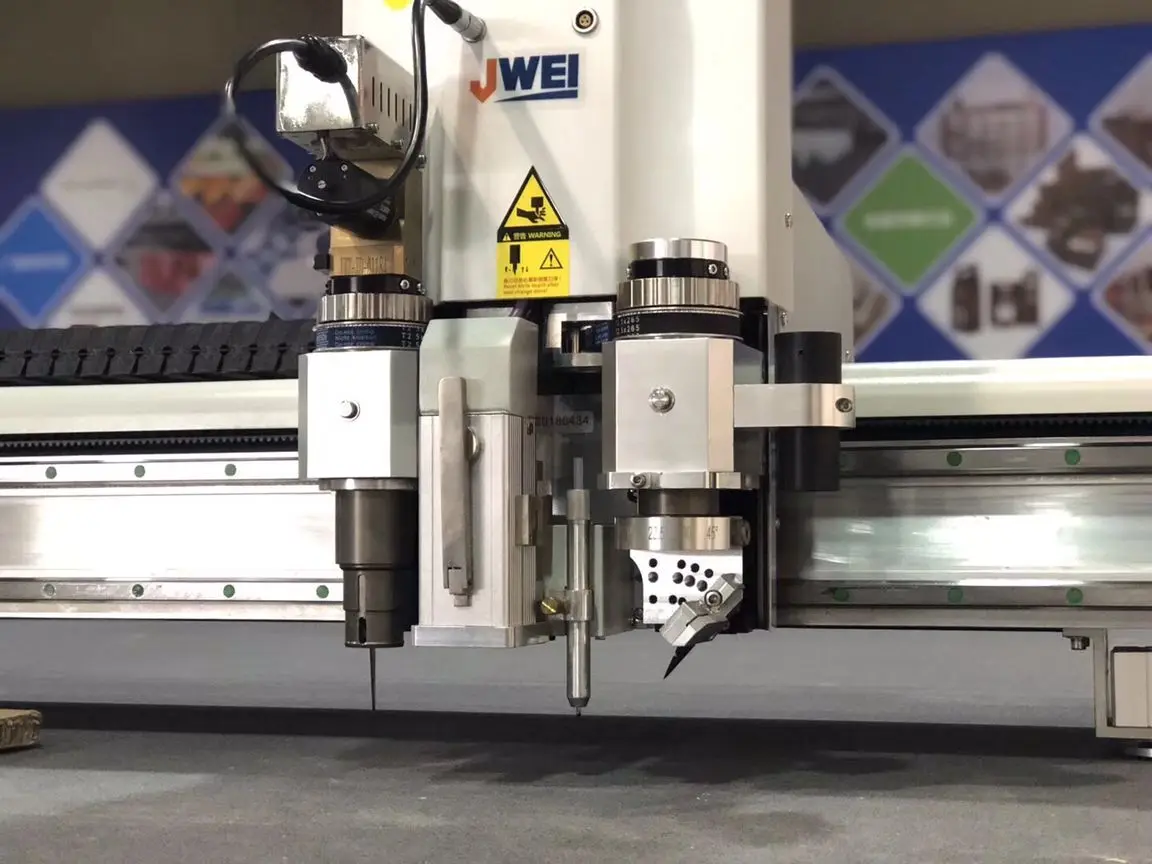

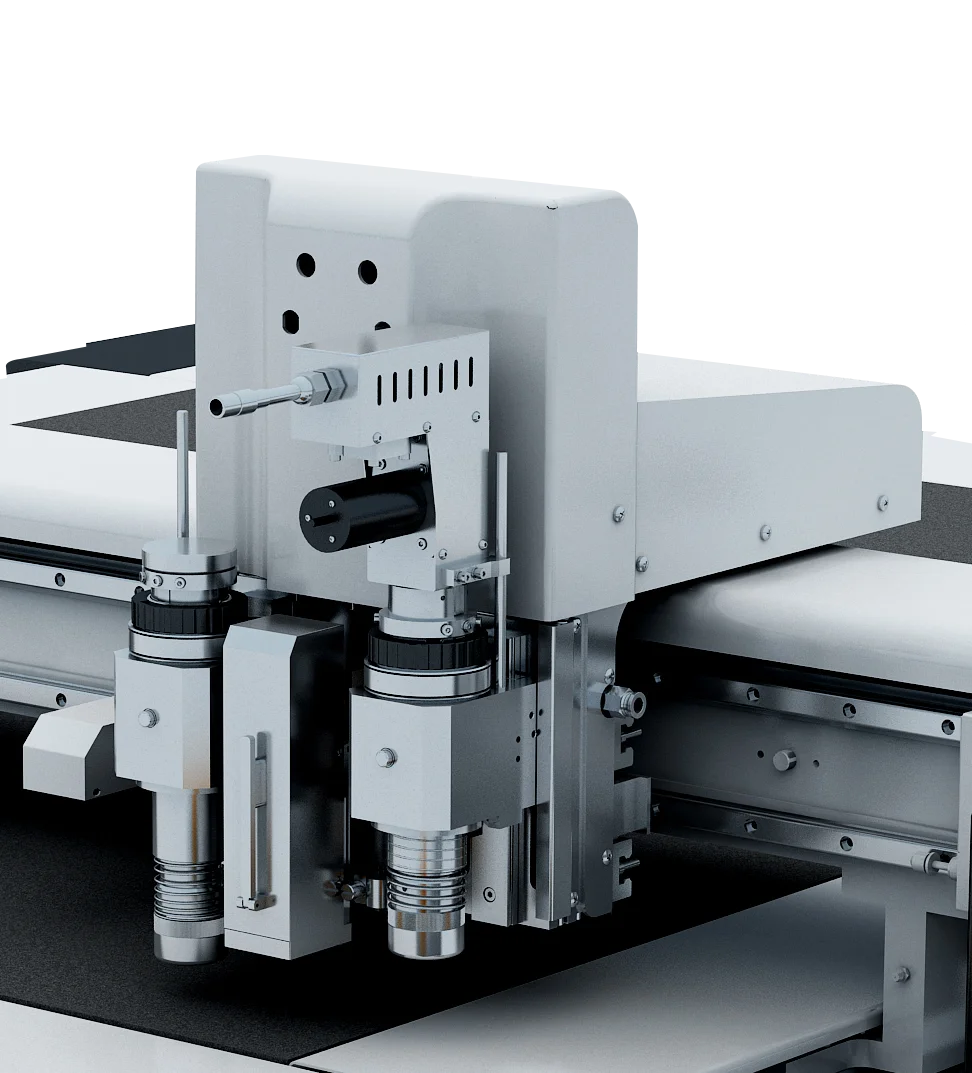

Multifunctional head	Easy to change different tools. Engraving and router. Oscillating thorough cutting/ Kiss cutting/ Creasing/ Plotting/ Laser positioning, and   precise camera registration.
Tools	Various kinds of cutting blades, different size of creasing wheels

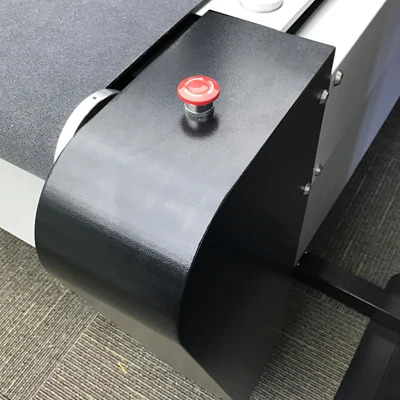

Safety device	Infrared sensor, responsive, safe and reliable
Max. Speed	Up to 1500 mm/s
Cutting speed	Up to 1200 mm/s(Depends on different materials)
Cutting thickness	Up to 50mm(Depends on different materials)

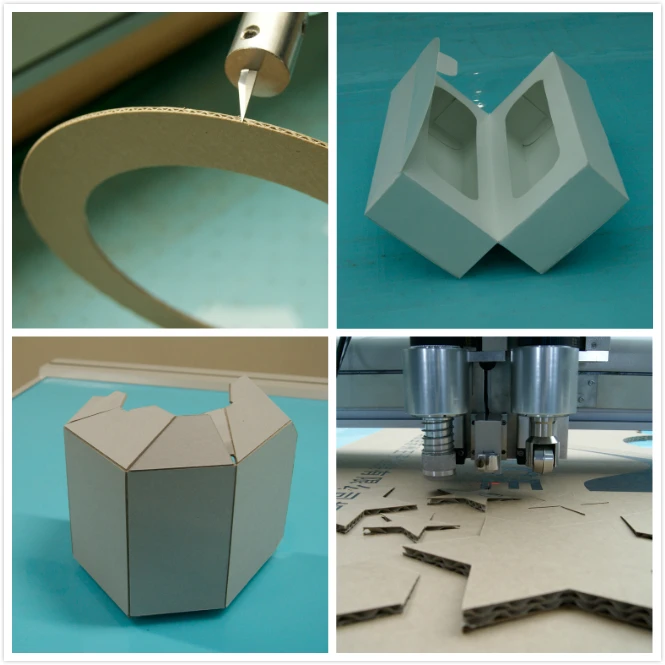

Cutting material	All kinds of corrugated paper, grey cardboard, KT board, PVC expansion sheet, honey  comb plate,  light slide,  PP gum, car sticker, flag       fabric, EPE foam, foam, arcylic  etc.
Repeatability	Up to 0.05 mm
Repeat Precision	Up to 0.01 mm
Buffer memory	2GB
Interface	Ethernet port
Work command	HP-GL compliant format
Transmission distance	Up to 350m

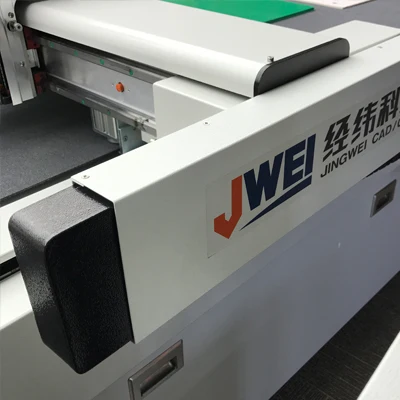

Transmission system	Digital servo driver, straight rail, synchronous  belt, guide screw
Numerical control panel	EN LED Touch screen
Power Supply	AC 380V/220V±10% , 50HZ/60HZ
Working Environment	Temperature 0-35 degree; Humidity 60% - 80%
Effective Cutting Area	2500mm*1300mm  2500mm*1600mm 1100mm*1300mm  1800mm*1600mm



Specification



JINGWEI is a China-based composites cutting table manufacturer and supplier. We offer composites cutting tables, paper cutters, and leather cutting machines. Our high quality products are offered at competitive prices. Our company can supply the full chain of manufacturing die making machines and sample making machines right here in China. Our lower manufacturing cost saves your purchasing cost. More details of each product are shown on the description page.
