Высокоскоростная автоматическая подача гофрированной коробки JWEI, машина для прототипирования картонных коробок

Product Overview

Description

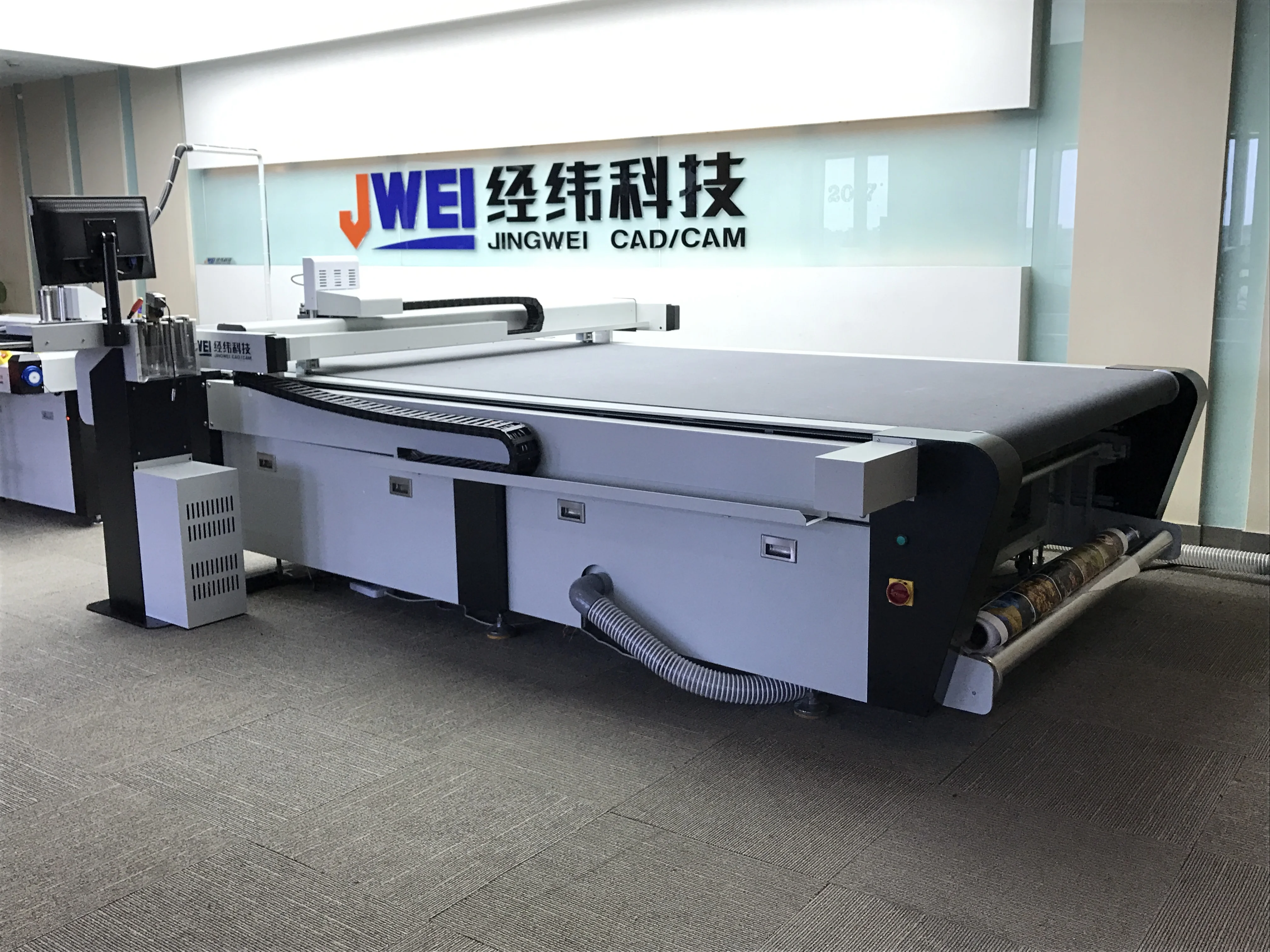

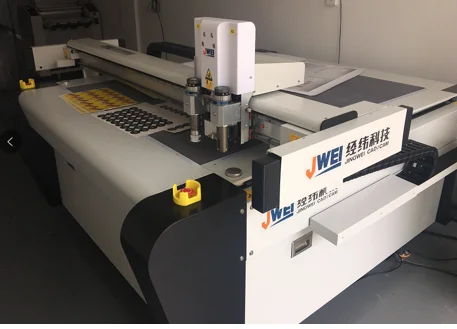

Easy operation corrugated paper cut plotter



Advantage

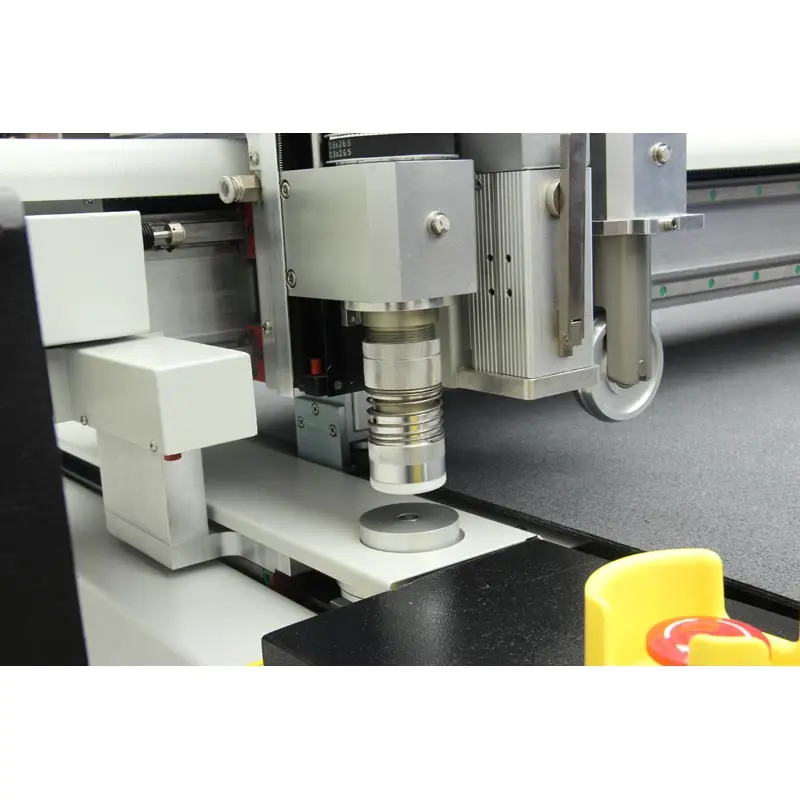

1. The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting. 2. The high precision JWEI corrugated paper cut plotter can induce draft separately and easily cuts small pieces. 3. The anti-collision and the built-in auto-sensing devices ensure the security of thecorrugated paper cut plotter. 4. High efficiency can be realized without making a high-cost knife model. 5. The high precision corrugated paper cut plotter is designed for production with small quantities and can save on costs while maintaining speed and accuracy. The CB Series Digital Cutter is a multi-functional digital cutter that meets a variety of needs. Multi-functional Digital Cutter that can be quickly changed to adapt to different materials.

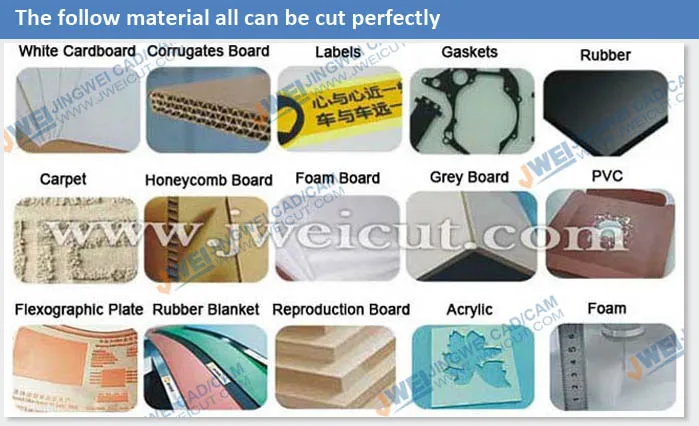

Except corrugated paper, JWEI CNC cutting machine can also cut many materials.



6 questions get you to know the JWEI oscillating knife cutting machine at speedly



1. what is used for the oscillating knife cutting machine ? which materials it is cutting ?

The oscillating knife cutting machine is uesed for gasket, mat, garment sample, carton box ,polyester fiber board, pet fiber board, car foot mat, leather, composite materials and other production, and it can cut asbestos gasket, carpet and mat, homeycomb board, cardboar, pp plate sheet,PVC sheet,EVA foam,EPE foam,fabric, leather,KT board ,corugatted board and other non-metallic flexilbe materials.



2. How much is the cutting precision of oscillating knife cutting machine ?

The oscillating knife cutting machine is equiped with high-end digital servo motor,Imported linear guide,synchronous belt, lead screw drive and other Legacy System, its repeatability accuracy is up to 0.05mm, and it can cut the diameter 3mm of the cirle.



3.How much is the cutting speed of oscillating knife cutting machine ?

The oscillating knife cutting machine can be devided into low, midium and high three type of produce,the cutting speed is 1200mm/s,1500mm/s,1800mm/s,which is meet the sample and short time produce, and the cutting speed is depend on different material and the complexity of cutting pattern.



4.Is it easy to operate ?

The operation of oscillating knife cutting machine seem to be complicated, but in fact it is simple, you only design the cutting pattern of you needs in CAD software, and set up relevat data on the machine that you can quickly complete the cutting of you designed pattern. if you buy the oscillating knife cutting machine from JWEI ,we will arange the Professional technicians to installating, directting ,training for you. Generally, as long as you know how to use the cad software , you only cost two hours to learn the operation of oscillating knife cutting machine.



5.How long is the warranty period of oscillating knife cutting machine ?

According to national machinery industry practice, the warranty period of oscillating knife cutting machine is 12 months,excluding the artificial damage, consumables: such as table panel, blade, etc., lifetime maintenance, system free upgrade.



6.what is the different about the oscillating knife cutting machine and laser cutting machine ?

The oscillating knife cutting machine cut all kinds of material with oscillating tool up and down oscillating,the edge of cutting materilas is smooth,the size of the cutting sample is the same, It is to meet environmental needs. the laser cutting machine cut materilas by laser cutting,It gives off an unpleasant smell, and the edge of cutting materilas will turn black.

Technical Parameters

Model No.	CB03II-1113	CB03II-1816	CB03II-2513	CB03II-2516-RM

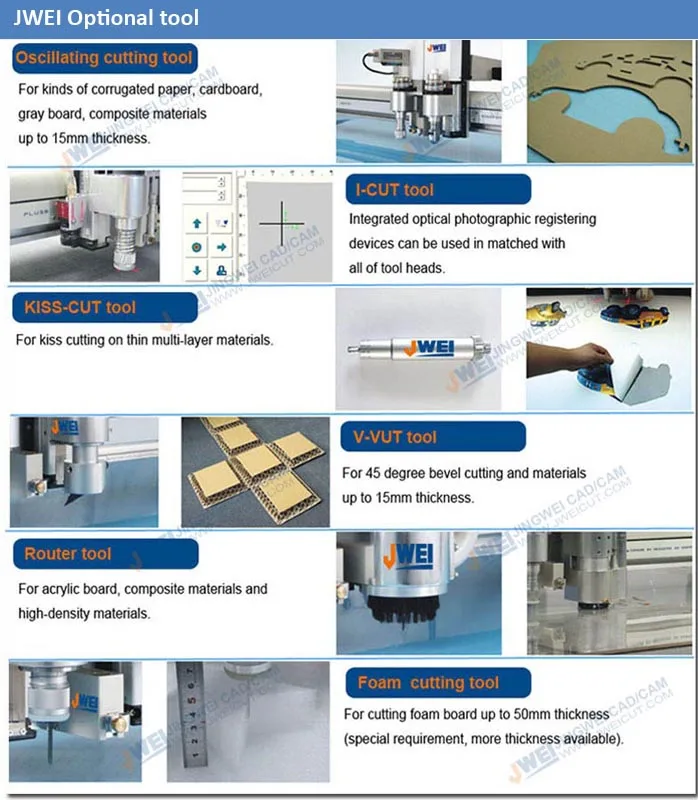

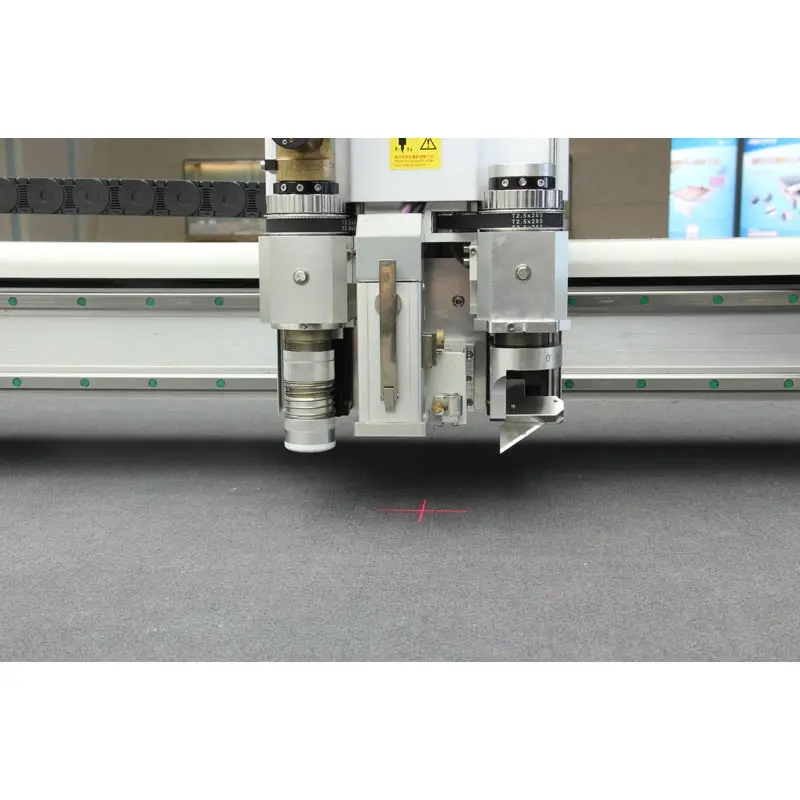

Multi-functional Tool Head	Thorough cutting/Kiss cutting/Creasing/Plotting/Lasor Locating/Automatic Table-level measuring, etc.
Max. cutting speed	1200mm/s (Depending on different material type)
Cutting Media	Corrugated paper, cardboard, grey cardboard, Plastic board, Foam, EVA foam, rubber, composite material, etc.
Pen/Blade/Wheel	Gel-ink pen /Cutting blades of different type/ Creasing wheel of different size
Repeat Precision	≤0.1mm
Programmable Resolution	0.025 / 0.01 / 0.1 available
Interface	Ethernet port
Data transfer rate	2GB
Command Mode	HP-GL compatible format
Control Panel	Touch screen
Transmission System	Digital servo driver straight rail synchronous belt
Power Supply	AC 220V/380V±10% 50HZ / 7.5KW~11KW
Working Environment	10 to 35 deg.C
Cutting Area	1100mm*1300 mm	1800mm*1600 mm	2500mm*1300 mm	2500mm*1600 mm




JWEI = Guaranteed!

Over 10 years researching and developing,JWEI has cooperated with many customers throughout the world. We have exported to more than 20 countries.

We make the solid wood case by special experienced workers. The machine is packaged well by waterproof material protection.

About JWEI

JINGWEI is a digital cutter manufacturer based China. We offer digital cutters, leather cutting systems, cutting plotters, etc. We provide high quality products at competitive prices. Our company can supply the full chain of manufacturing flatbed cutting plotters and shoe sample makers right here in China. Our lower manufacturing cost saves your purchasing cost.

Pre-sale service
How to find us?

- By alibaba.	//jingweicadcam.en.alibaba.com
- By Google.	www.jweicut.com
- By Exhibition.	Focus on our latest news on our homepage.
- By Youtube.	www.youtube.com/watch?v=HsxXjeY6vNI
- By Dailymotion.	www.dailymotion.com/jweicut
- By Facebook.	www.facebook.com/jweicut
- By Twitter.	https://twitter.com/jweicut

How to contact us?

Check our website: jweicut.com - Welcome to visit us here in Ningbo,China.   You can have a close encounter with our cutting machine working condition and functions.

On-sale service

we treat every customer sincerely, enthusiastically and equally. No matter who you are, once you need us help, our dedicated salesman and professional technicians will support at once.

After-sale service

First, warmly welcome you to our head office to have a professional training and observation. We can also dispatch our technician to your place, offer training and help solve your any questions about our cutting machine. If you need help, you can send email to us or contact us by skype or MSN online chatting tools. We offer 24h online service.
