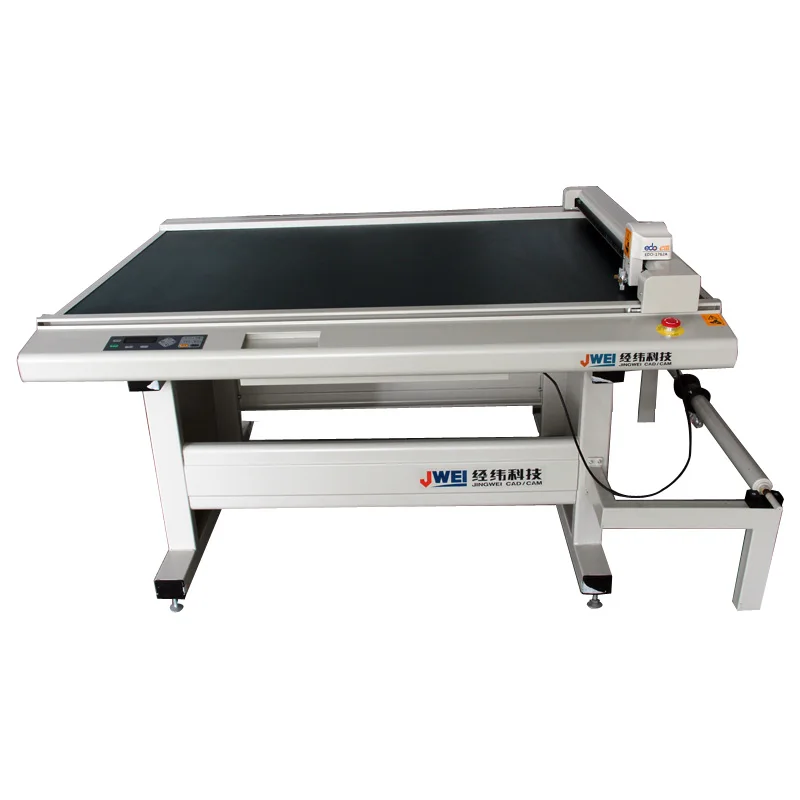

JWEI Fast speed accurate Small flatbed Shoe pattern cutter

Product Overview

Description

EDO-2A Series Shoe CAD Pattern Cutter Plotter



EDO-1762R video show:
https://youtu.be/eNXsOcHviak

With its simple structure and high cutting precision and according to China's apparel market demand, Jingwei produces the economic machine type-EDO-2A Series shoe cad cutter plotter. When the EDO-2A series  shoe cad cutter plotter is connected with any CAD software it can cut and draw a full set of garment patterns automatically and precisely. Compared with the traditional process, it improves the work efficiency and saves dramatically on labor costs.



 The Jingwei EDO-2A series  shoe cad cutter plotters that are stable, safe and reliable, making them very popular with our customers. The digital panel is easy to operate and its LCD screen has a clear display. It features standard 1/0 interface, HP-GL format and can be connected with any CAD software.


Application
The Jingwei  cad cutter plotters are used for image symbolization and in the clothing, shoemaking, suitcase, trimming, padding and blade modeling industries.

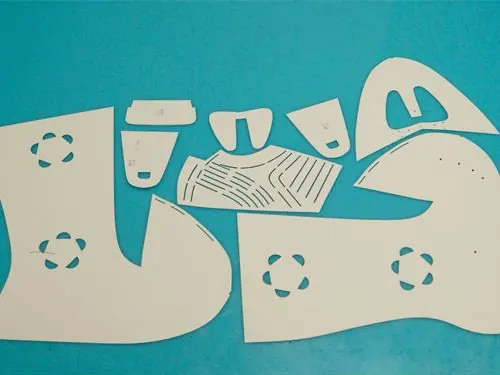

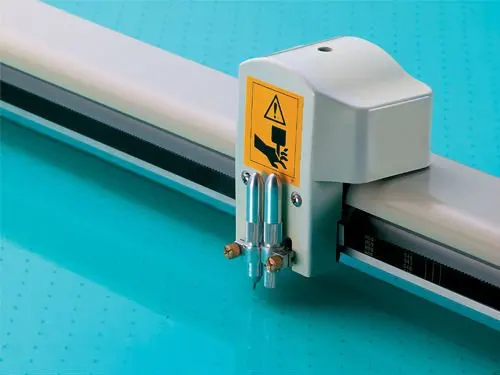

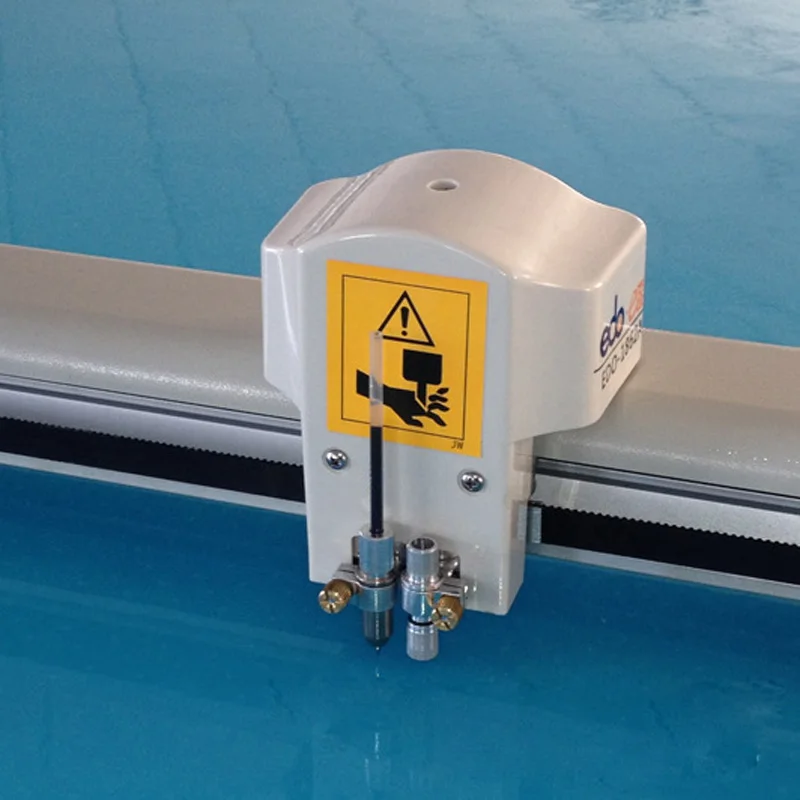

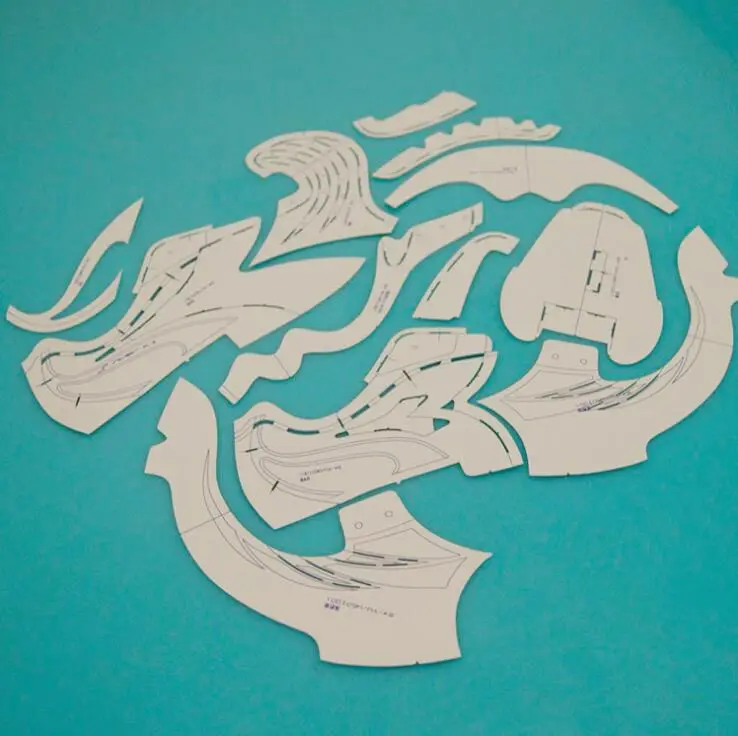

 Dual-head tool                                                                       Sample Show



Specification

Model No.	EDO-1762A	EDO-1862A	EDO-1872A
Cutting Media	Kinds of cardboard, kraft paper, PVC board, fibrous cardboard, rubber sheet and marking film etc.
Pen & Blade Type	Gel-ink pen, ball pen / Special tungsten carbide blade
Programmable Resolution	0.025 / 0.01 / 0.1 available
Interface	Serial port and parallel port
Buffer Memory	1G
Command Mode	HP-GL compatible format
Max. Speed	Up to 900mm/s
Max. Cutting Depth	2mm
Media Fixture Method	Vacuum suction
Repeat Precision	≤0.1mm
Control Panel	Liquid crystal display panel with push contacts
Transmission System	Stepper motor driver; synchronous belt
Power Supply	AC 220V ±10%, 50HZ / 2 KW
Fuse	2A 30A
Working Environment	10 to 35 deg.C
Effective Cutting Area	1200mm*900 mm	1500mm*900mm	1500mm*1200mm







 JINGWEI cutting machine patent:

JWEI shoe CAD Pattern Cutter Plotter quality is guaranteed.
We not only have CE, ISO9001 certification,
but also have design patent certification,
core technology patent certification,
software copyright certification.
Except above certifications,
JWEI company has many honor certifications
awarded by China authority organization.
Such as
Superstar Enterprise,
TOP 10 Innovative Enterprise,
Municipal Key Software Enterprise.

After-sale Service:

12 Months Guarantee and Life-long Maintenance.
Full life-time Remote service support.
Free training.

About JWEI:

JINGWEI is a China-based digital cutting plotter manufacturer and supplier.
We offer Sticker Cutting Plotter, digital cutters, CAD plotters, and packaging cutting tables, etc.
Our high quality products are offered at competitive prices.
Our company can supply the full chain of “Print to cut” solution.
JWEI machine have win market on stable performance, also good price.

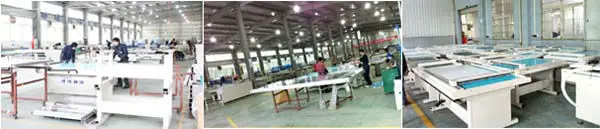

JWEI factory:
