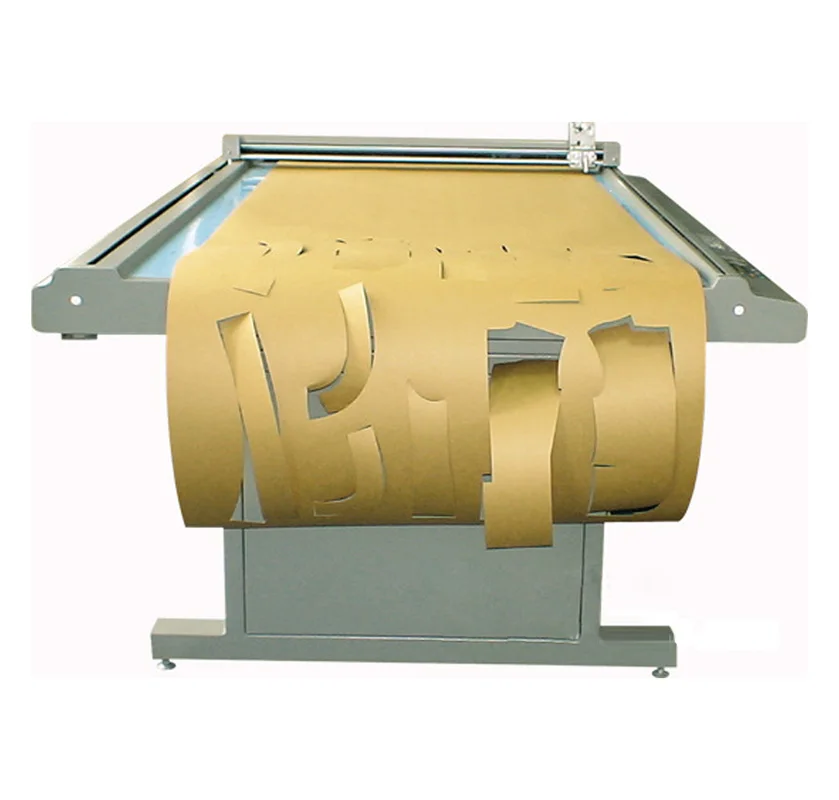

JWEI Fast Speed Digital Apparel Paper Pattern plotting Cutter
- Category: >>>
- Supplier: Ningbo Jingwei Systemtechnik Ltd.
Share on (1600435880841):
Product Overview
Description

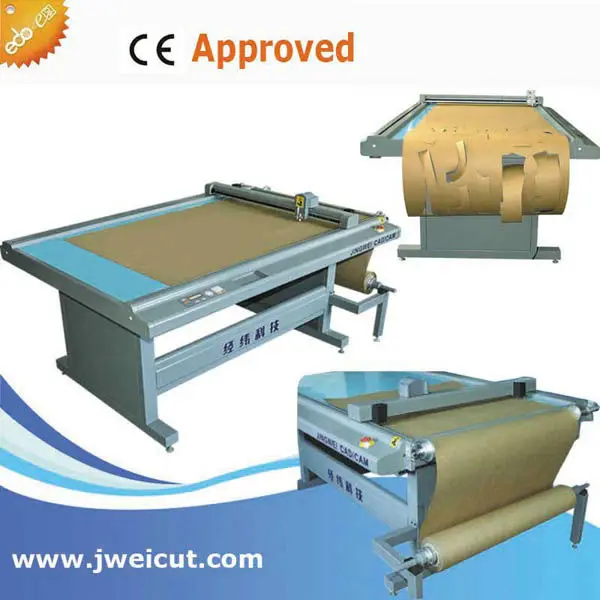

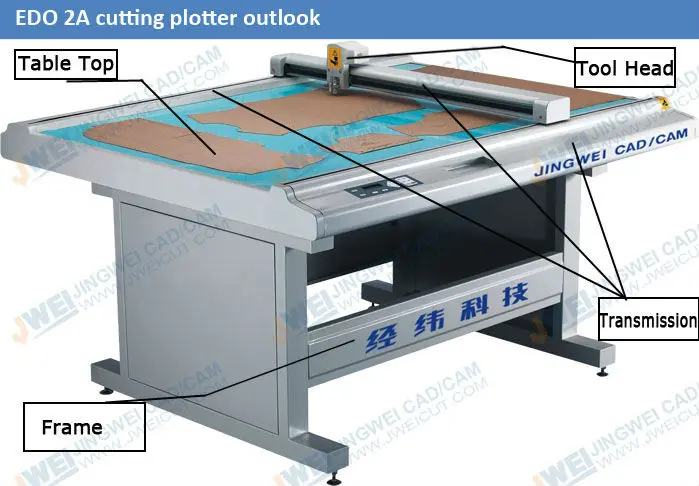

JWEI Easy Operation Fast Speed Digital Apparel Paper Pattern Cutter
Features
|
Model and size:
| Model Name | EDO-1762A | EDO-1862A | EDO-1872A |
| Characteristics | work with computer synchronously transmit speedilyfeed paper automaticallywork consecutively | ||
| Max.Speed | Up to 1000mm/s | ||
| Max. Cutting Depth | 2mm | ||
| Cutting Media | Kinds of cardboard, kraft paper, PVC board, fibrous cardboard, rubber sheet and marking film etc. | ||
| Pen & Blade Type | Gel-ink pen, ball pen/special tungsten carbide blade | ||
| Fixing Method | Vacuum suction | ||
| Repeat Precision | ≤0.1mm | ||
| Programmable Resolution | 0.025/0.01/0.1 available | ||
| Interface | Ethernet port | ||
| Buffer Memory | 1G | ||
| Command Mode | HP-GL compatible format | ||
| Transmission System | Stepper motor driver synchronous belt | ||
| Power Supply | AC 220V ±10%, 50HZ / 2 KW | ||
| Fuse | 2A 30A | ||
| Operating Environment | 10 to 35 deg.C | ||
| Effective Cutting Area | 1200mmx900 mm | 1500mmx900 mm | 1500mmx1200 mm |
Technical Parameters:
| Pen & Blade Types | Gel-ink pen, oil pen, ball pen / special tungsten carbide blade | |||
| Programmable Resolution | 0.025 / 0.01 / 0.1 available | |||
| Interface | Serial Port and Ethernet Port | |||
| Command Mode | HP-GL compatible format | |||
| Max. Speed | Up to 1000mm/s | |||
| Max. Cutting Depth | 2mm | |||
| Media Fixture Method | Vacuum suction | |||
| Repeat Precision | ≤0.05mm | |||
| Buffer Memory | 1G | |||
| Operational Panel | Touch screen | |||
| Transmission System | Digital servo driver synchronous belt straight rail | |||
| Power Supply | AC 220V ±10%, 50HZ / 2 KW | |||
| Fuse | 6A,30A | |||
| Working Environment | 10 to 35 deg.C | |||
Application
| Cutting Media: Kinds of cardboard, kraft paper, plastic board, fibrous cardboard, rubber sheet and marking film etc. |
JWEI Digital Apparel Paper Pattern Cutter quality is guaranteed.
We not only have CE, ISO9001 certification,
but also have design patent certification,
core technology patent certification,
software copyright certification.
Except above certifications,
JWEI company has many honor certifications awarded by China authority organization.
Such as Superstar Enterprise,TOP 10 Innovative Enterprise, Municipal Key Software Enterprise.
| Over 10 years researching and developing,JWEI has cooperated with many customers throughout the world. We have exported to more than 20 countries. |
| Jingwei Systemtechnik Ltd was established in 1993, is a specialized manufacturer of flatbed cutting plotter and digital cutters. |
| Every year, we attend almost the famous exhibitions related to our cutting machine industry at home and abroad. |
