Best price high precision jewelry laser welding machine for hot sale
- Category: Laser Welders >>>
- Supplier: Huizhou Yunchuang Laser Technology Co. Ltd.
Share on (1600435903086):
Product Overview
Description
Product Description
Features:
1. Jewelry laser welder can be used for jewelry or dental soldering, also, it can work with filled wire to repair jewelry or
watch.
2. The energy, pulse width, frequency and light spot size can be adjusted in a large range to realize different welding effects.
3. Use the most advanced light shielding system to eliminate the irritation to eyes by light during working.
4. It is able to work 24 hours continuously, stable performance.
5. Human-based design accords with ergonomics, no fatigue after long time working.
Applicable material: gold, stainless steel, silver, platinum, titanium and other metals alloys.
Advantage: Fast welding speed, small heat effected zone,Low power consumption, precision positioning welding.
1. Jewelry laser welder can be used for jewelry or dental soldering, also, it can work with filled wire to repair jewelry or
watch.
2. The energy, pulse width, frequency and light spot size can be adjusted in a large range to realize different welding effects.
3. Use the most advanced light shielding system to eliminate the irritation to eyes by light during working.
4. It is able to work 24 hours continuously, stable performance.
5. Human-based design accords with ergonomics, no fatigue after long time working.
Applicable material: gold, stainless steel, silver, platinum, titanium and other metals alloys.
Advantage: Fast welding speed, small heat effected zone,Low power consumption, precision positioning welding.
Technical parameters
Machine | Jewelry laser welding machine |
Power Supply | AC220V / 50Hz |
Frequency | 1-50Hz |
Pulse Width | 0.1-20.0ms |
Spot Size | 0.6- 3.0mm |
Power | 200w |
Pulse Energy | 100J |
Power Consumption | 5.5Kw |
Working Temperature | 30℃ |
Cooling method | Water Cooling |
Operation method | Touch control panel |
Wavelength | 1064nm |
Machine Dimension | 100*60*110cm |
Net Weight | 90KG |
Detail Introduction

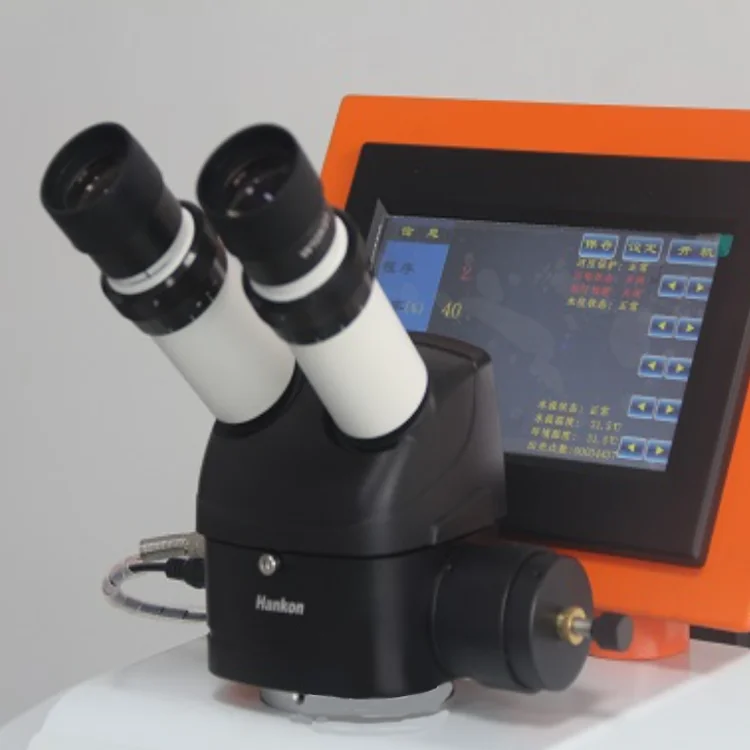

Microscope
With HD 10 times microscope, you can help you clearly observe welding effects and welding positions.

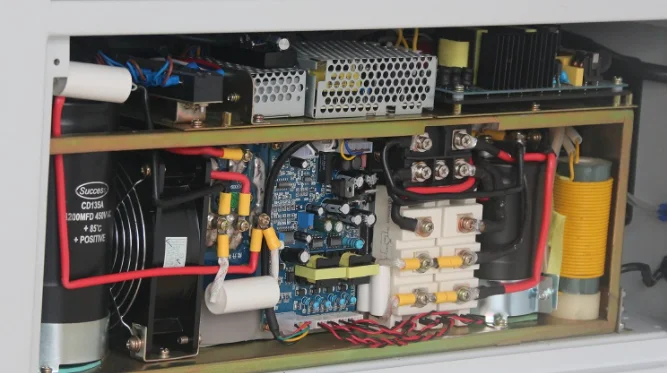

Laser Power Supply
1.We use imported capacitance, energy storage is stable.
2. Boost control, high peak power.
3.IGBT part imported from Germany,it is responsive, safe and reliable.
3.IGBT part imported from Germany,it is responsive, safe and reliable.

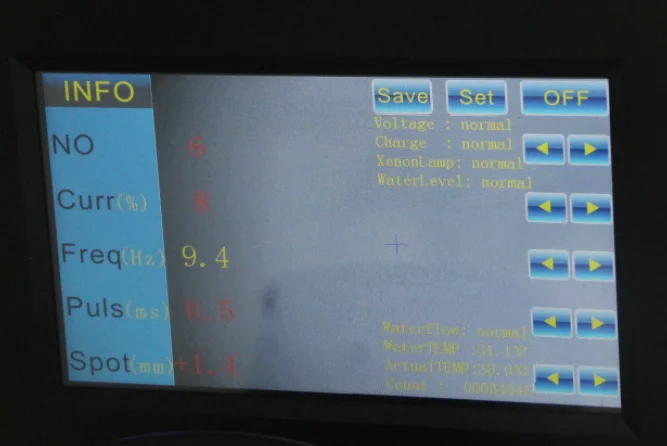

HD CCD Monitor
Machine have water level detection, water temperature detection, hydruaulic pressure detection, environment detection and xenon
lamp working situation detection function.
lamp working situation detection function.

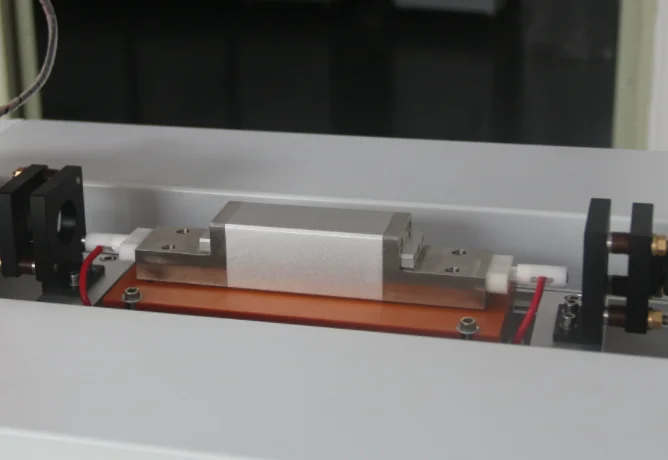

Ceramic cavity
1. short cavity design, high power
2.Use butterfly shape disphragm frame, it is more stable and convenient.
3. Water cooling system, can reduce thermal lens effect.
2.Use butterfly shape disphragm frame, it is more stable and convenient.
3. Water cooling system, can reduce thermal lens effect.

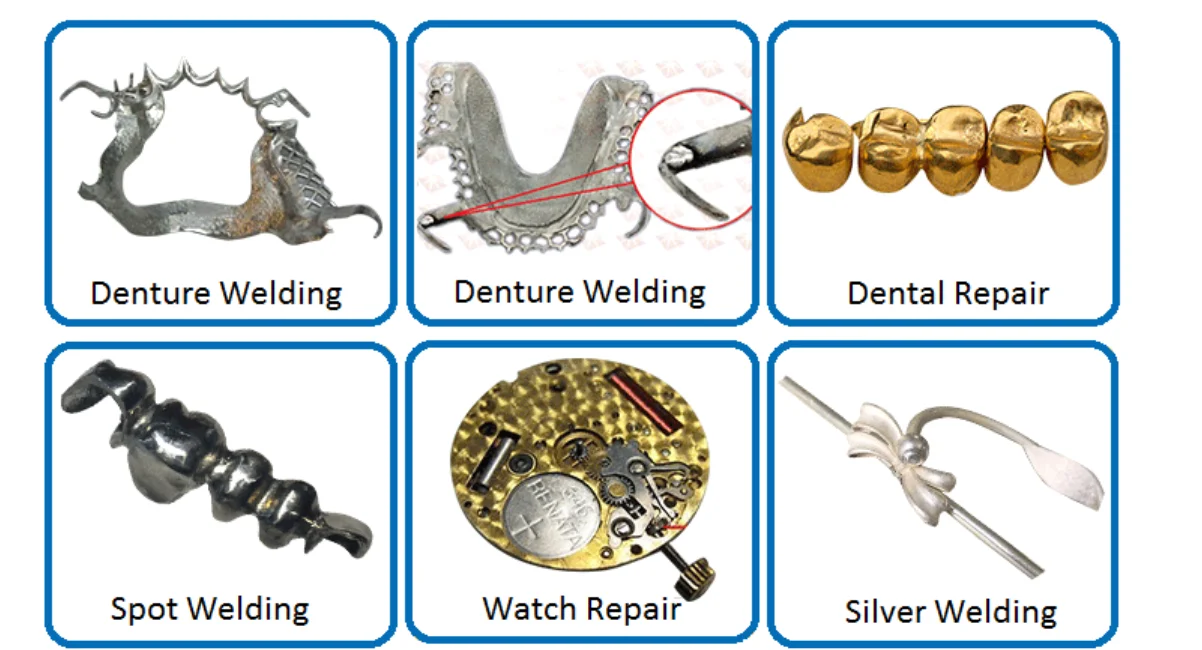

Welding Sample
Application
Applicable materials:gold,silver,platinum,stainless steel,titanium, and other metals and their alloys.Widely used in gold
andsilver jewelry,rings,pendants,bracelets,necklaces,holes,spot welding brazing,repair seams and the welding of claw parts ofthemosaic parts,tec..It can also be applied to artificial teech sand and small precision parts(such as:inheritance circuitlead,clockspring,kinescope,electron gun assembly,etc.
Applicable materials:gold,silver,platinum,stainless steel,titanium, and other metals and their alloys.Widely used in gold
andsilver jewelry,rings,pendants,bracelets,necklaces,holes,spot welding brazing,repair seams and the welding of claw parts ofthemosaic parts,tec..It can also be applied to artificial teech sand and small precision parts(such as:inheritance circuitlead,clockspring,kinescope,electron gun assembly,etc.

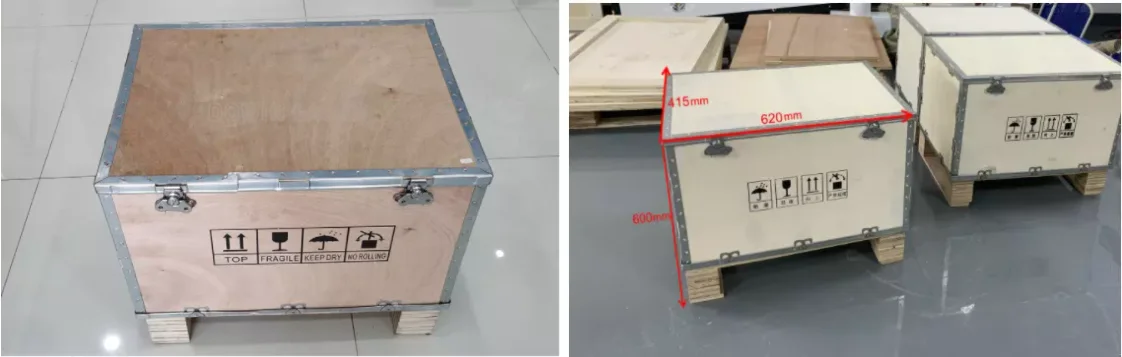

Packing & Delivery
Standard transport wooden box, internal filling sponge to protect equipment
Packing Size:110*75*135cm
Net Weight:90KG
Gross Weight:120KG
All equipment before delivery, after 100% aging test, ensure the function, reliable, security and durability of the product, to
ensure product quality!
Net Weight:90KG
Gross Weight:120KG
All equipment before delivery, after 100% aging test, ensure the function, reliable, security and durability of the product, to
ensure product quality!
FAQ
Q: What is the guarantee period?
A: Generally, the YAG laser welder warranty is one year, warranty period can be extend by
discussion. We provide free broken partswithin guarantee period. After warranty period, we still provide you free service, and wecharge broken parts cost and shippingcost only.
Q: How to use the machine?
A: Operation video and manual book will be sent to you after we get your order. If you still confused about the machine operation,we provide video call training online also, teach you how to use the machine step by step.
Q: How can I do if machine goes wrong?
A: Please take some photos and videos to show us the machine problem, we will solve your machine problem within 24 hours.
Q: What is your terms of payment?
A: 50% T/T in advance, the balance be collected before shipment. Also, you can order in Alibaba and pay in credit card.
Q: How long is your delivery time?
A: When the order is confirmed, 3 working days for the small order, 10-15 days for the bulk order.
Q: Why choose your company?
A: Huizhou Yunchuang Laser is a professional laser equipment manufacturer. We can quickly provide you with quality machine,professional services and technical support. If you choose us, we will not let you down!
discussion. We provide free broken partswithin guarantee period. After warranty period, we still provide you free service, and wecharge broken parts cost and shippingcost only.
Q: How to use the machine?
A: Operation video and manual book will be sent to you after we get your order. If you still confused about the machine operation,we provide video call training online also, teach you how to use the machine step by step.
Q: How can I do if machine goes wrong?
A: Please take some photos and videos to show us the machine problem, we will solve your machine problem within 24 hours.
Q: What is your terms of payment?
A: 50% T/T in advance, the balance be collected before shipment. Also, you can order in Alibaba and pay in credit card.
Q: How long is your delivery time?
A: When the order is confirmed, 3 working days for the small order, 10-15 days for the bulk order.
Q: Why choose your company?
A: Huizhou Yunchuang Laser is a professional laser equipment manufacturer. We can quickly provide you with quality machine,professional services and technical support. If you choose us, we will not let you down!
