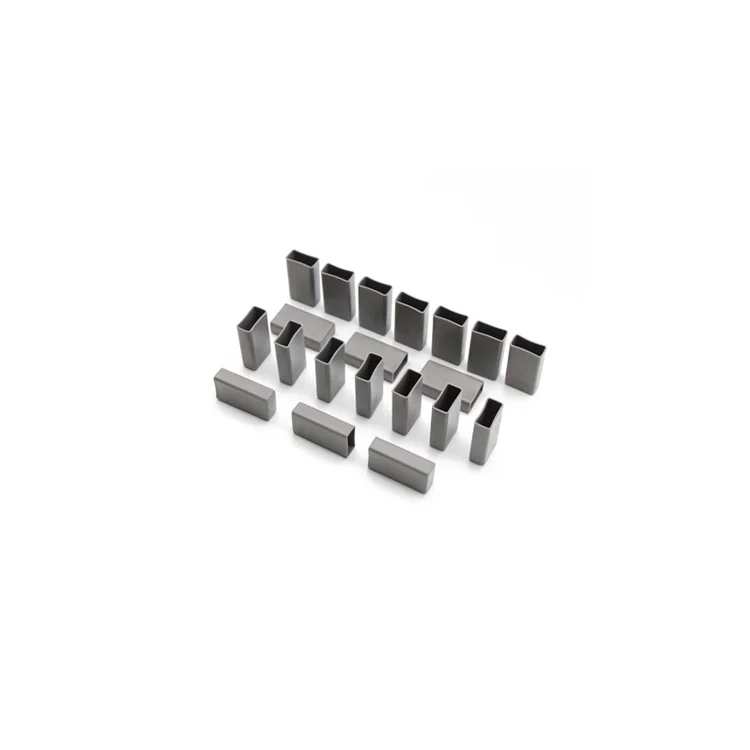

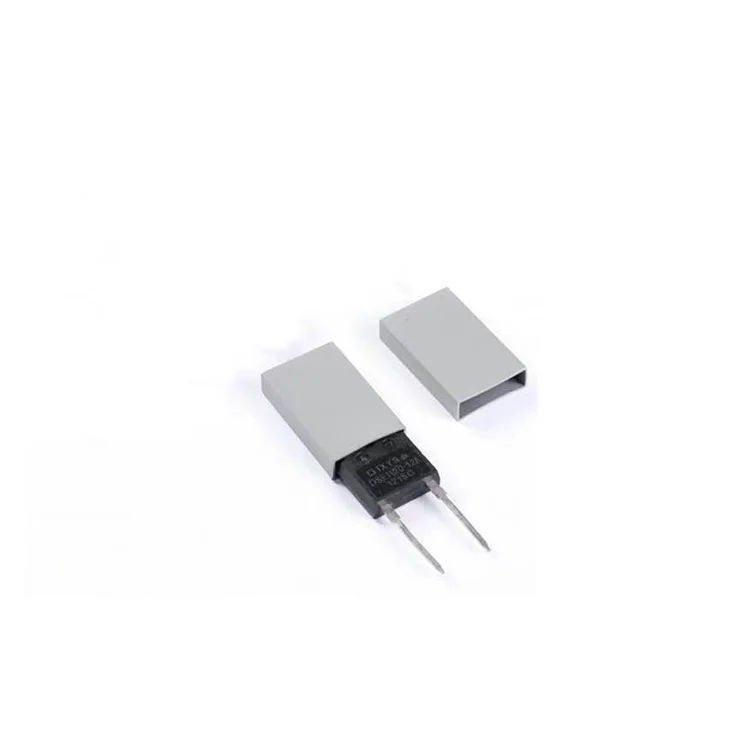

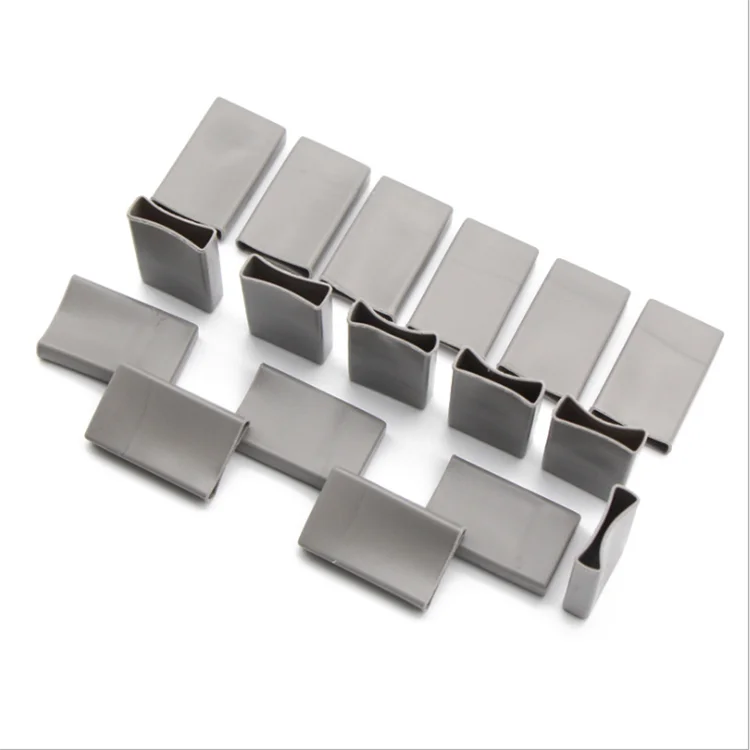

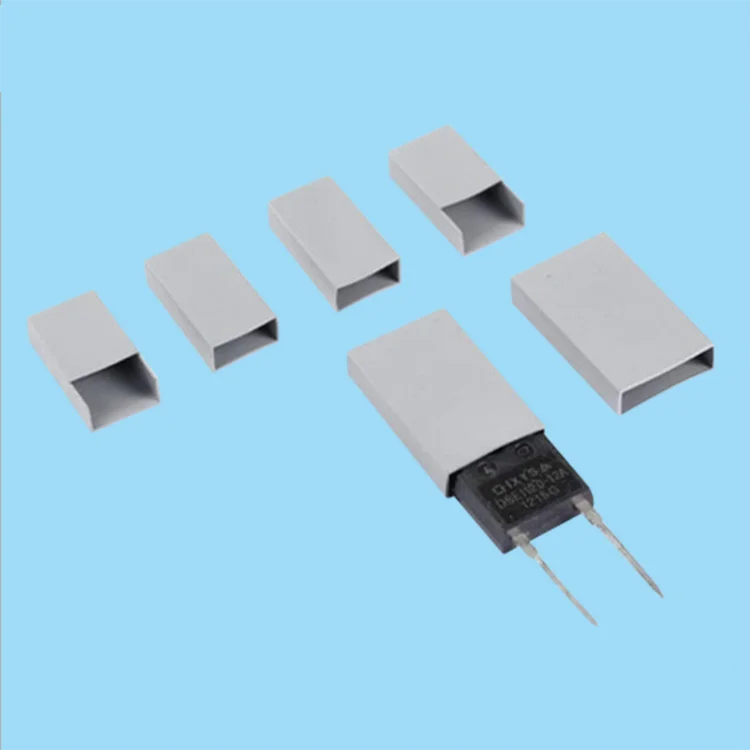

TO 220 A B C Soft thermal Insulation Scope Silicone rubber Cap for Diode Triode Transistor
- Category: >>>
- Supplier: Shenzhen Xinyin Environmental Rubber Product Co. Ltd.
Share on (1600435918188):
Product Overview
Description
SP-001-T080
| Product Parameter | ||||||
| ITEM NAME | UNIT | SP-001-T080 | SP-001-T10 | SP-001-T16 | TESTING STANDARD | |
| Raw Material | / | Silicone+Ceramic Powder | / | |||
| Color | / | Grey | Blue | Red | Yellow | Visual |
| Density | g/cm³ | 1.8 | 1.8 | 2.1 | 21 | ASTM D792 |
| Hardness | Shore C | 75±5 | ASTM D2240 | |||
| Tensile Strength | KN/m | 25-30 | D412 | |||
| Weight Damnify | % | <0.3 | 240℃,240H | |||
| Continuous USE Temperature | ℃ | -40-200 | EN344 | |||
| Dielectric Breakdown Voltage | Kv/mm | ≥4 | ASTM D149 | |||
| Thermal Conductivity | W/m.k | 0.8 | 1.0 | 1.2 | 1.6 | ASTM D5470 |
| UL Flame resistant level | / | V-0 | UL 94 | |||

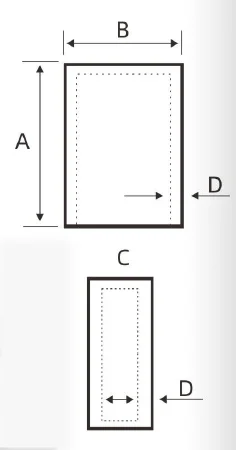

| Size table |
ITEM NAME | A | B | C | D |  |
| TO-220-A | 21.5±0.3 | 11.5±0.25 | 5.9±0.2 | 0.5±0.05 | |
| TO-220-B | 16±0.3 | 11.5±0.25 | 5.9±0.2 | 0.5±0.05 | |
| TO-220-C | 21.8±0.3 | 12.1±0.25 | 6.5±0.2 | 0.8±0.08 | |
| TO-3P-A | 28.5±0.4 | 17.5±0.3 | 5.9±0.2 | 0.5±0.05 | |
| TO-3P-B | 28.8±0.4 | 18.2±0.3 | 6.6±0.2 | 0.8±0.08 | |
| TO-3P-C | 22.0±0.3 | 17.5±0.3 | 5.9±0.2 | 0.5±0.05 |

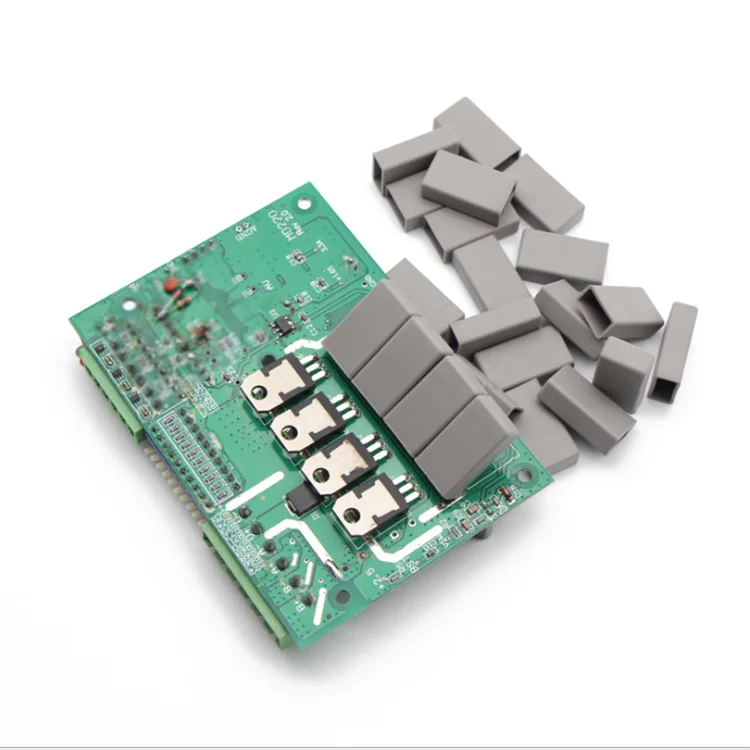

Product show
Why choose us
Main Products:
Thermally conductive silicone pad & Others Functional Silicone Sheet;Natural Silicone Sheet;Silicone foaming Sheet;Silicone tube;Silicone Moulding Products
Technical team:
10 years experienced workers, 13 years experienced engineers.
Sales Team:
Professional sales Dept. ,the inquiry will be replied within 3 hours.
Facilities:
2 coating gel production line,3 calendaring production line,1 extrusion production line,3 moulding press production line,and many experienced workers!
Technology:
Products are using the latest research and development of silicone polymer high temperature foaming molding process and antibacterial formula technology and using the unique physical properties of foam materials: one side is smooth(with smooth surface adsorption function) One side is frosted delicate surface (with functions of antiskid), soft, light quality
Quality control:
100% inspection before shipment;
Certificate:
ISO 9001,SGS,SST,Rohs,LGFB;
