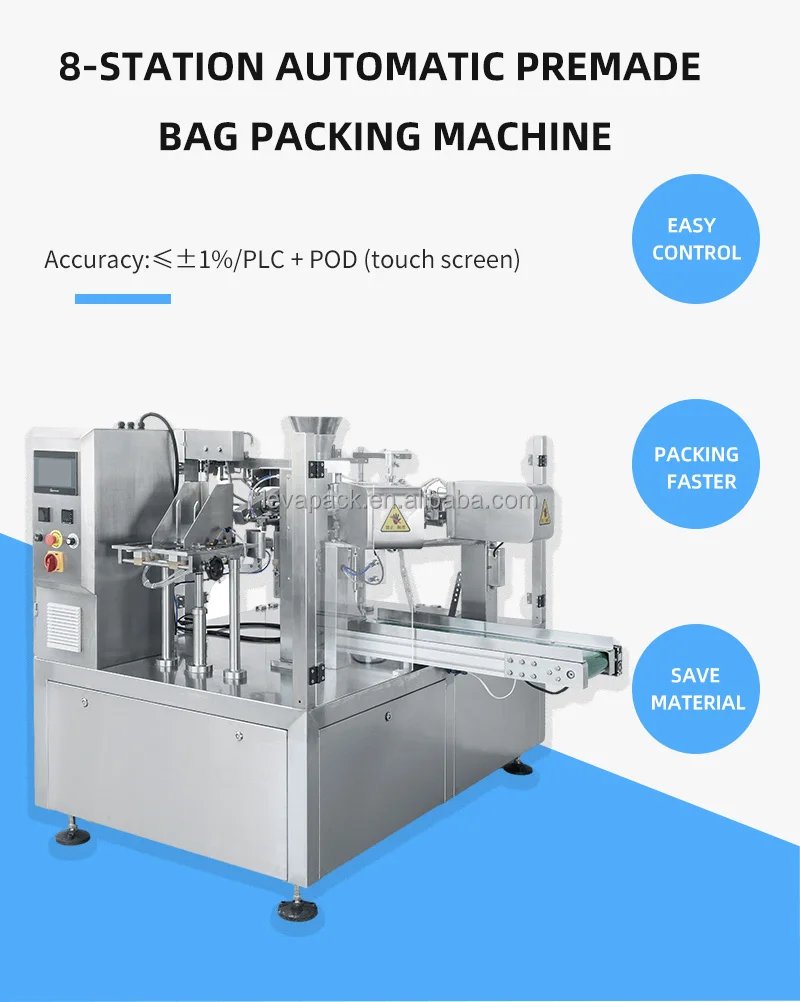

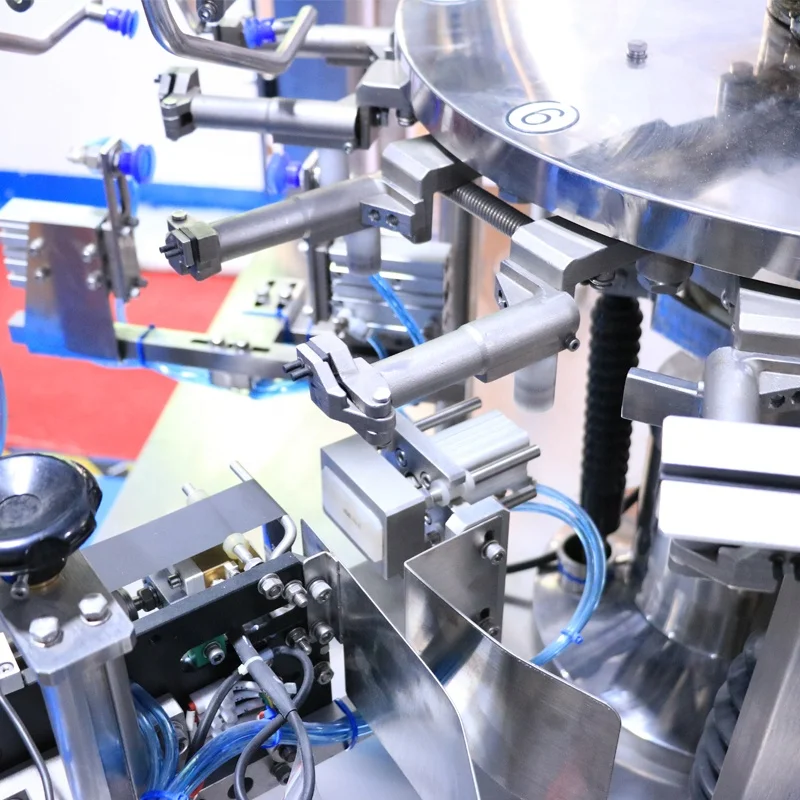

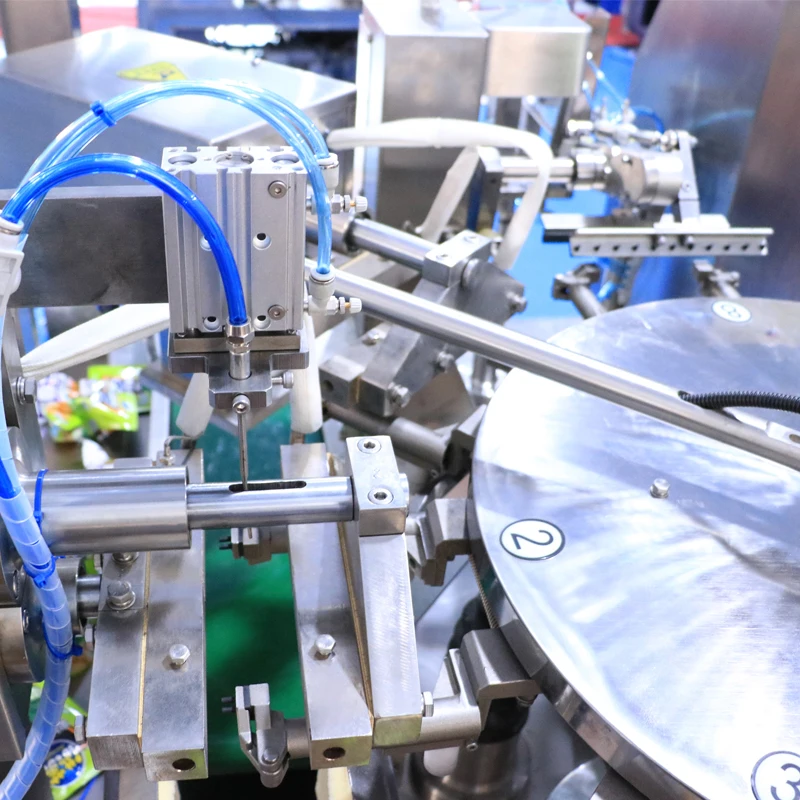

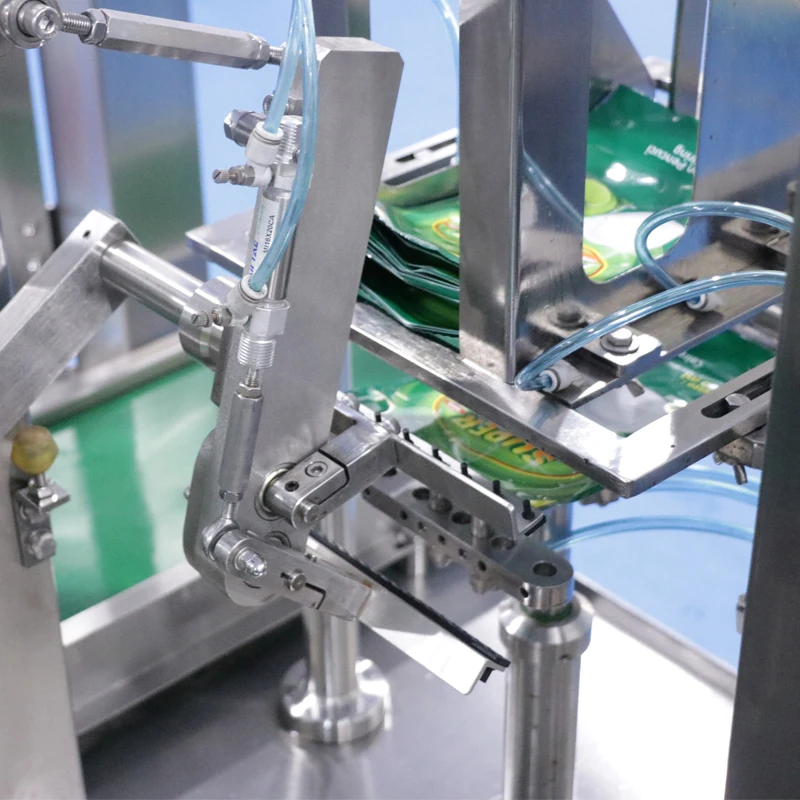

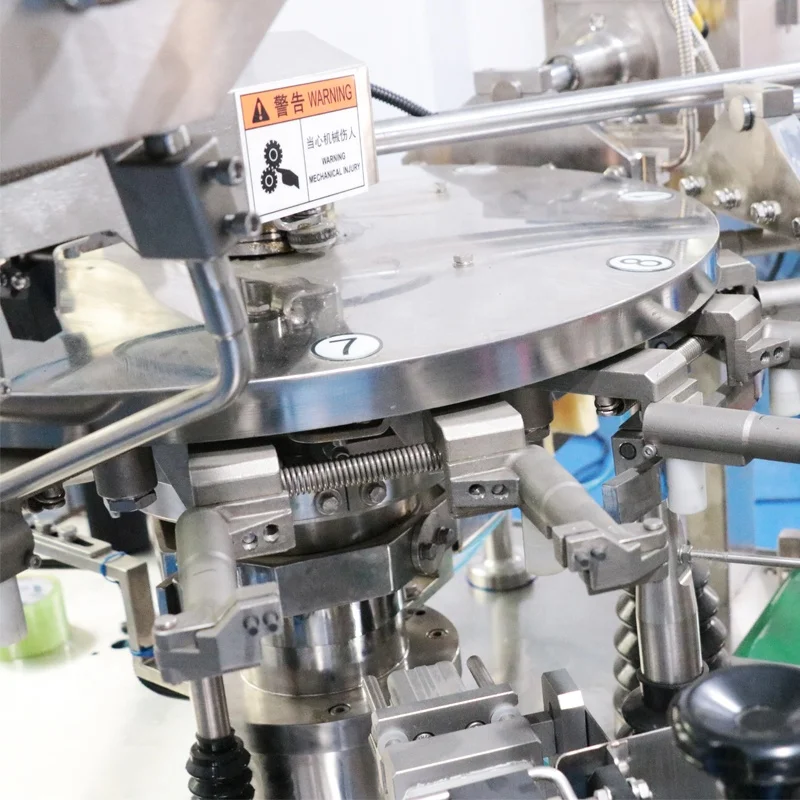

Fully automatic pet food packaging machine 8 station zipper bag filling sealing machine
Fully automatic pet food packaging machine 8 station zipper bag filling sealing machine
Fully automatic pet food packaging machine 8 station zipper bag filling sealing machine
Fully automatic pet food packaging machine 8 station zipper bag filling sealing machine
Fully automatic pet food packaging machine 8 station zipper bag filling sealing machine
Fully automatic pet food packaging machine 8 station zipper bag filling sealing machine
Fully automatic pet food packaging machine 8 station zipper bag filling sealing machine

Fully automatic pet food packaging machine 8 station zipper bag filling sealing machine

Share on (1600435922665):


Price:$18,000.00 - $22,000.00

Quantity:


Product Overview

Description













M shape bag
M shape zipper bag
Zipper stand up bag


Four-side sealing bag
side sealing zipper bag
Stand-up bag


Main parameters：
Machine position
Eight position
Pouch material
Laminated film\\PP\\PE etc.
Packing speed
*20~60 bags/min, depend on the measuring equipment, materials, product’s weight & packing film’ material.
Accuracy
*≤±1%, depending on the measuring equipment & materials.
Bag size
(L)100-300mm (W) 70-200mm
Filling Volume
10-1000g
Bag type
Preformed bag: Zipper bag, Stand-up pouch, 3/4-side-seal pouch, four edge-sealing bag, special bag etc.
Air consumption
0.6m3/min(supply by user)
Power
2.5KW 3P 380V 50/60Hz
Dimension
(L)1900 * (W)1570 * (H)1700
Work flow
Giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product







Applicable scope
1. Block material: bean curd cake, fish, eggs, candy, red jujube, cereal, chocolate, biscuit, peanut, etc
2.Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds,
nut, pesticide, fertilizer
3. Powder type: milk powder, glucose, monosodium glutamate, seasoning, washing powder, chemical materials, fine white sugar,
pesticide, fertilizer, etc
4. Liquid/paste type: detergent, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam,
chili sauce, bean paste
5. Class of pickles, pickled cabbage, kimchi, pickled cabbage, radish, etc
6.Other bagging materials
Main standard parts

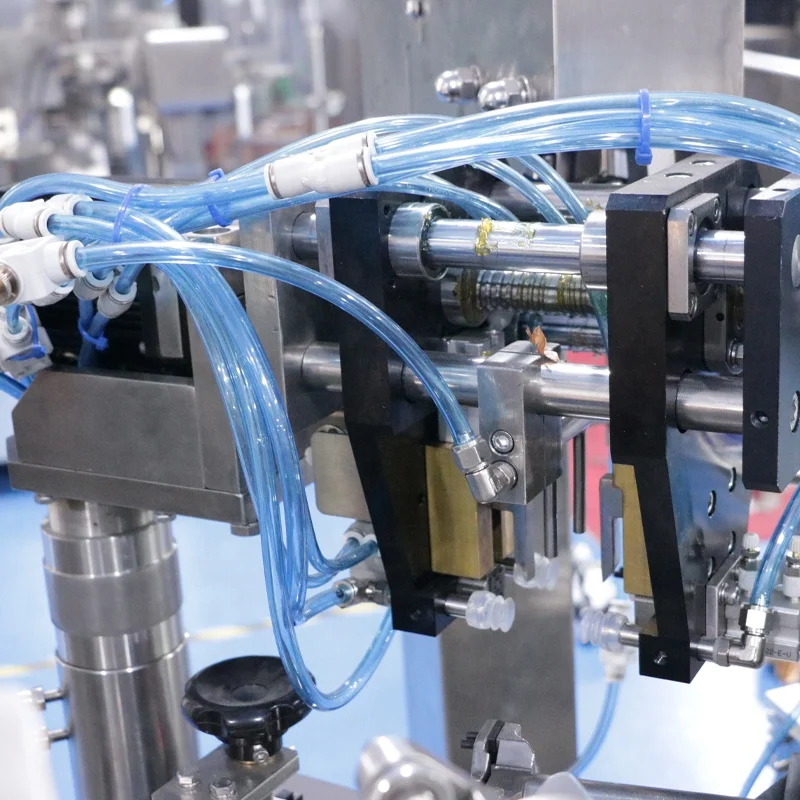

1.Code printer 2. PLC control system  3. Bag opening device 4. Vibration device  5. Cylinder  6.Electromagnetic valve7. Temperature controller  8. Vacuum pump 9. Inverter 10. Output system




















Each machine will be inspected before shipment, and a PE film is covered on the outside to ensure that the surface of the machine is not scratched
Each machine will be surrounded by a wooden box to ensure that the machine is dust-proof, moisture-proof and insect-proof
We will transport to your designated location by container to ensure that the goods will not be lost in the middle




Can I visit your factory?

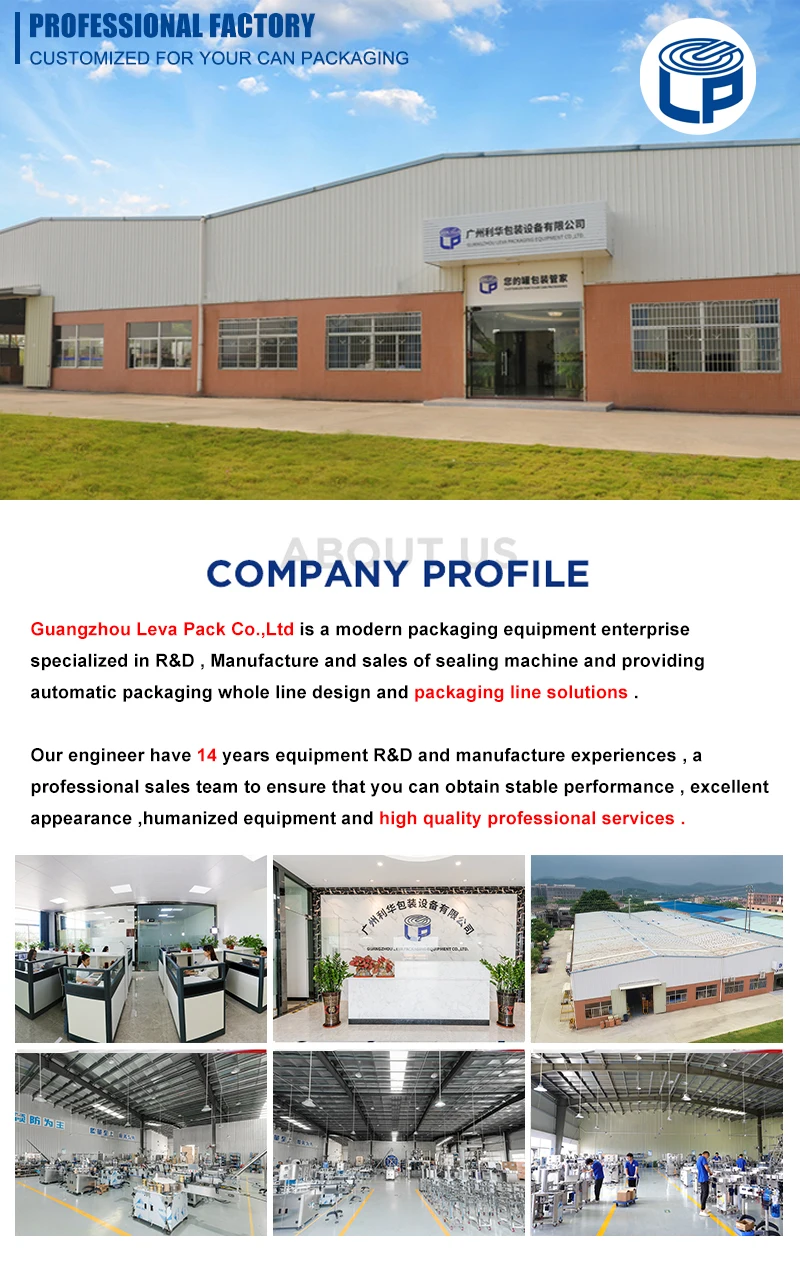

-Yes, we welcome to visit our 2000 ㎡ factory

Can your engineers provide installation services?
-Yes, in order to save your cost, we will send you a video with detailed information about the machine installation and provide assist you till the end.

If we have very special request for the production line,could you help me to do the design?
-We have more than 15 years of experience, we have a professional engineer and installation team to meet your packaging needs.

How to ensure the quality of my machine?
-Before delivery, we will send you the pictures and videos for you to check the machine quality.And also you can arrange for quality checking by yourself or by your contacts in China.

Do you provide wearing parts for me to replace?
-When there is a problem with your machine, please contact us as soon as possible.
