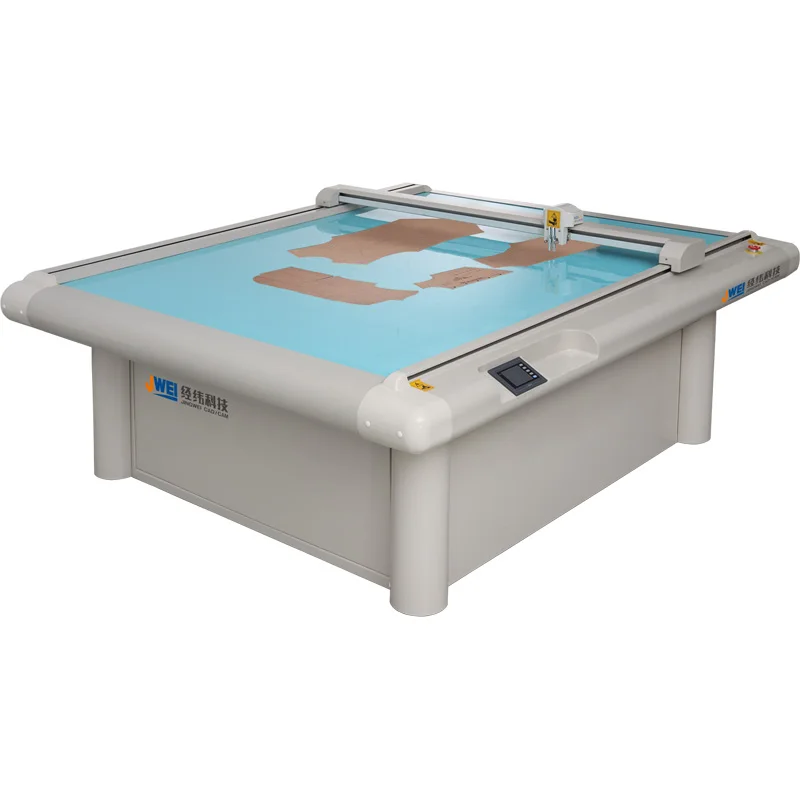

JWEI easy operation flatbed shoes paper pattern cutting plotter

Share on (1600435946460):


Price:

Quantity:


Product Overview

Description

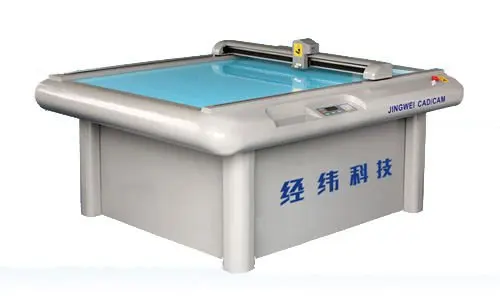

    Flatbed Shoes Pattern Cutting Plotter

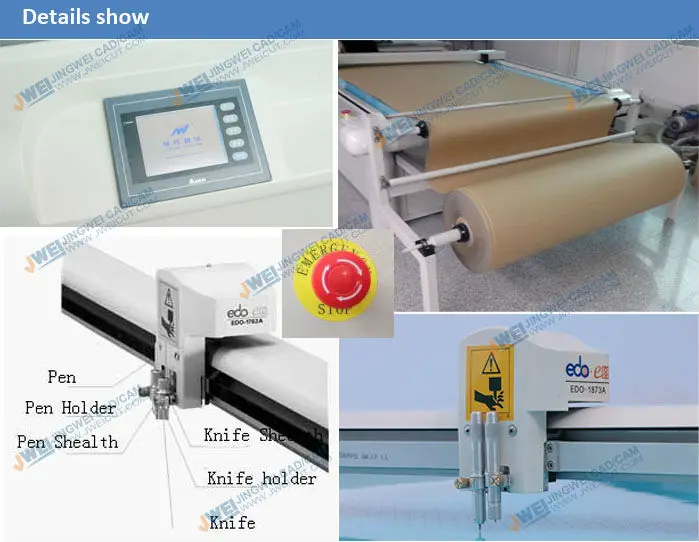

Features










  • The application of an English port makes Flatbed Shoes Pattern Cutting Plotter fast and convenient.

  • High performance is guaranteed with the integrated circuit plate.

  • The linear guide of Flatbed Shoes Pattern Cutting Plotter ensures high speed and few errors.

  • JWEI Flatbed Shoes Pattern Cutting Plotter feature imported digital servo drivers and their SD cards offer mass storage.

  • The powerful compatible function enables connection with any kind of CAD software.

  • JWEI Flatbed Shoes Pattern Cutting Plotter have an LCD touch screen in both English and Chinese.

  • JWEI Flatbed Shoes Pattern Cutting Plotter feature intellective order printing.


      Flatbed Shoes Pattern Cutting Plotter
Model and size



















Model No. EDO-1652A EDO-1653A
Effective Cutting Area 900mm*600mm 9mm*600mm


Technical Parameters

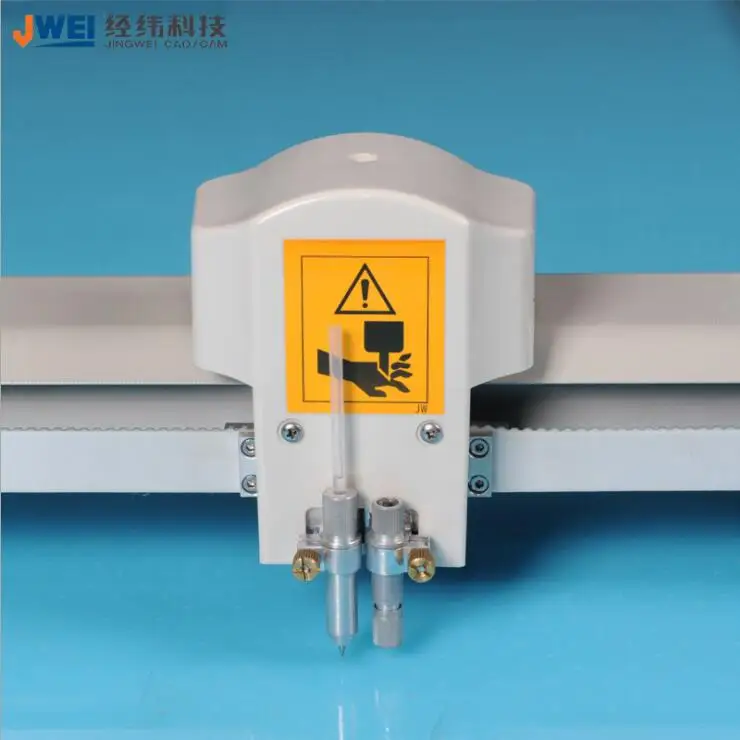

Pen & Blade Types Gel-ink pen, oil pen, ball pen / special tungsten carbide blade
Programmable Resolution 0.025 / 0.01 / 0.1 available
Interface Serial Port and Ethernet Port
Command Mode HP-GL compatible format
Max. Speed Up to 1200mm/s
Max. Cutting Depth 2mm
Media Fixture Method Vacuum suction
Repeat Precision ≤0.05mm
Buffer Memory 1G
Operational Panel Touch screen
Transmission System Digital servo driver synchronous belt straight rail
Power Supply AC 220V ±10%, 50HZ / 3 KW
Fuse 6A,30A
Working Environment 10 to 35 deg.C

 PS: If you cut paper, we have optional automatic paper roll for your choice.
Flatbed Shoes Pattern Cutting Plotter


Application

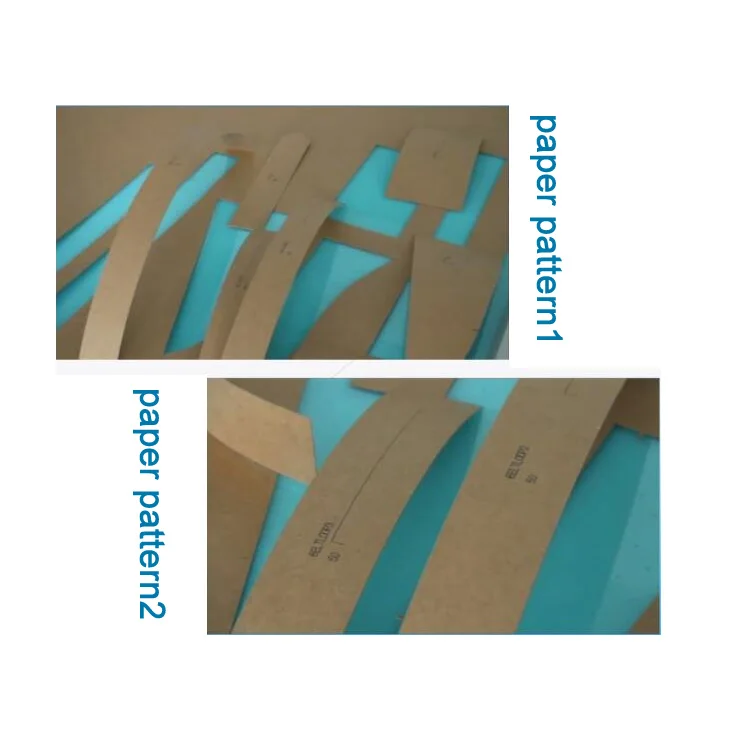

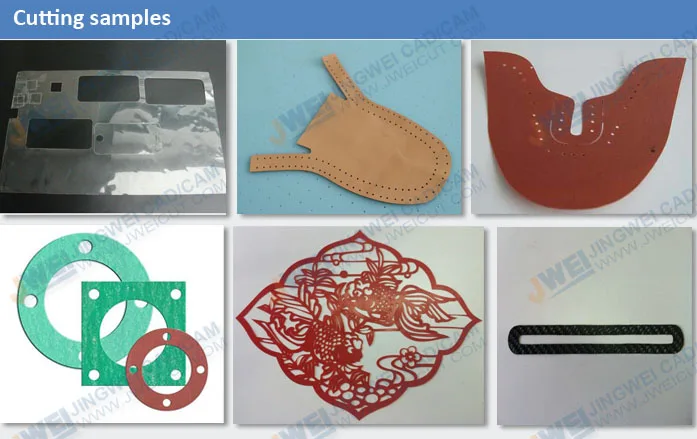

Cutting Media: Kinds of cardboard, kraft paper, plastic board, fibrous cardboard, rubber sheet and marking film etc.

Flatbed Shoes Pattern Cutting Plotter

JWEI Flatbed Shoes Pattern Cutting Plotter quality is guaranteed.
We not only have CE, ISO9001 certification,
but also have design patent certification,
core technology patent certification,
software copyright certification.
Except above certifications,
JWEI company has many honor certifications awarded by China authority organization.
Such as Superstar Enterprise,
TOP 10 Innovative Enterprise,
Municipal Key Software Enterprise.

Flatbed Shoes Pattern Cutting Plotter








Over 10 years researching and developing,JWEI has cooperated with many customers throughout the world. We have exported to more than 20 countries.

Flatbed Shoes Pattern Cutting Plotter

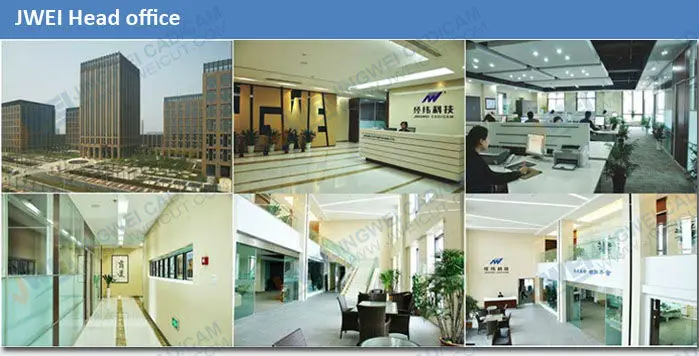

Jingwei Systemtechnik Ltd was established in 1993, is a specialized manufacturer of flatbed cutting plotter and digital cutters.

Flatbed Shoes Pattern Cutting Plotter
Flatbed Shoes Pattern Cutting Plotter
Flatbed Shoes Pattern Cutting Plotter








Every year, we attend almost the famous exhibitions related to our cutting machine industry at home and abroad.

Flatbed Shoes Pattern Cutting Plotter

Pre-sale service
How to find us?

































- By alibaba. //jingweicadcam.en.alibaba.com
- By Google. www.jweicut.com / www.jwcutterplotter.com
- By Exhibition. Focus on our latest news on our homepage.
- By Youtube.
www.youtube.com/watch?v=HsxXjeY6vNI
- By Dailymotion. www.dailymotion.com/jweicut
- By Facebook. www.facebook.com/jweicut
- By Twitter. https://twitter.com/jweicut







How to contact us?

- By E-mail.
- By Skype: jweicut
- Welcome to visit us here in Ningbo,China.

  You can have a close encounter with our cutting machine working condition and functions.

On-sale service
we treat every customer sincerely, enthusiastically and equally. No matter who you are, once you need us help, our dedicated salesman and professional technicians will support at once.

After-sale service
First, warmly welcome you to our head office to have a professional training and observation.
We can also dispatch our technician to your place, offer training and help solve your any questions about our cutting machine.
If you need help, you can send email to us or contact us by skype or MSN online chatting tools.

We offer 24h online service.
