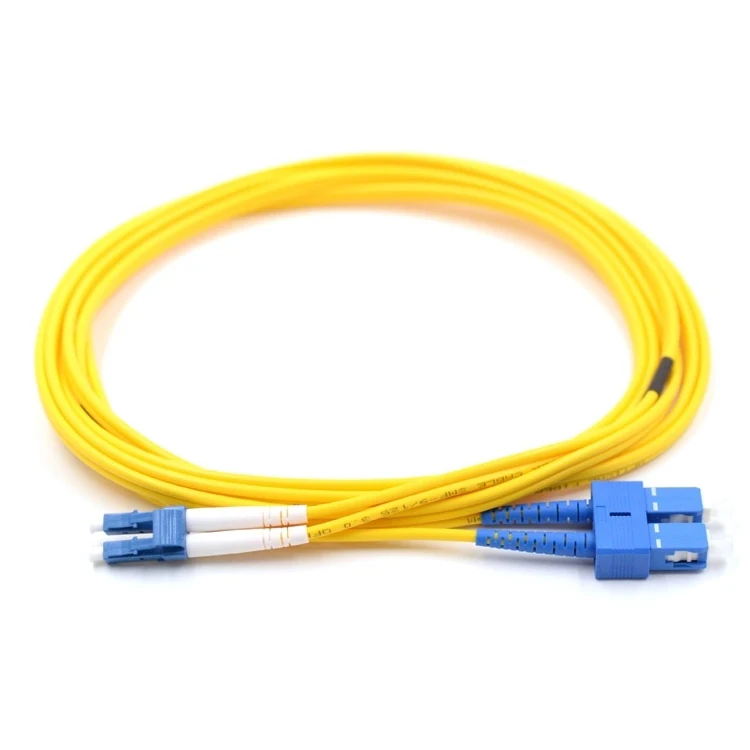

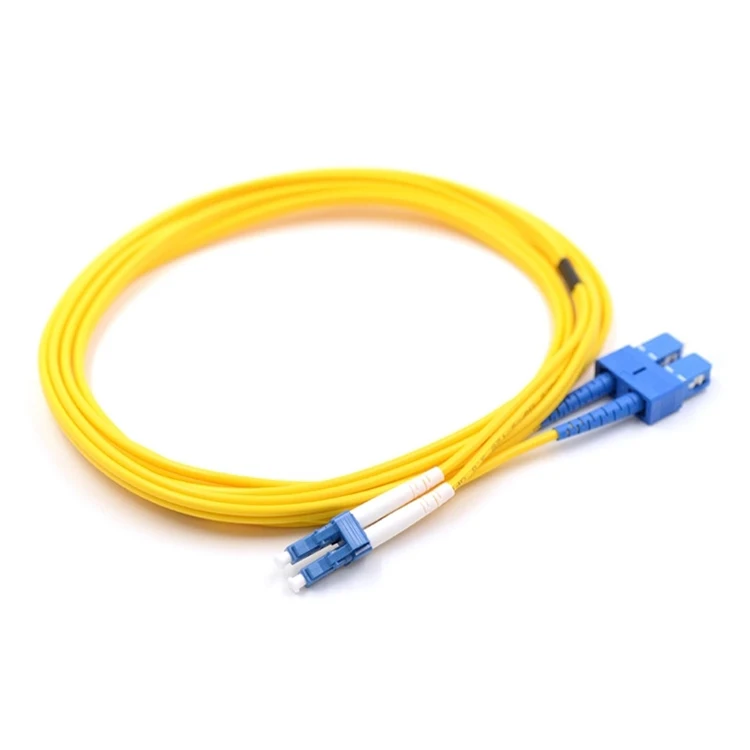

Blue Connector Yellow Cable SMF Duplex 3.0mm SC UPC to LC UPC Fiber Patch Cord
- Category: >>>
- Supplier: Shenzhen CREDEK Technology Co. LTD
Share on (1600435953709):
Product Overview
Description
Female to Female MPO-MPO Trunk Cable, 12 Fibers, OM3, LSZH, 3.0mm, Type B
Descriptions:
CREDEK’s patch cords are manufactured using Corning or YOFC optical fiber and are 100% factory tested to ensure performance to TIA/EIA standards.
Hybrid patch cord are available in both multimode (62.5/125µm and 50/125µm)and single mode(9/125µm) cable-types, in duplex and simplex versions.

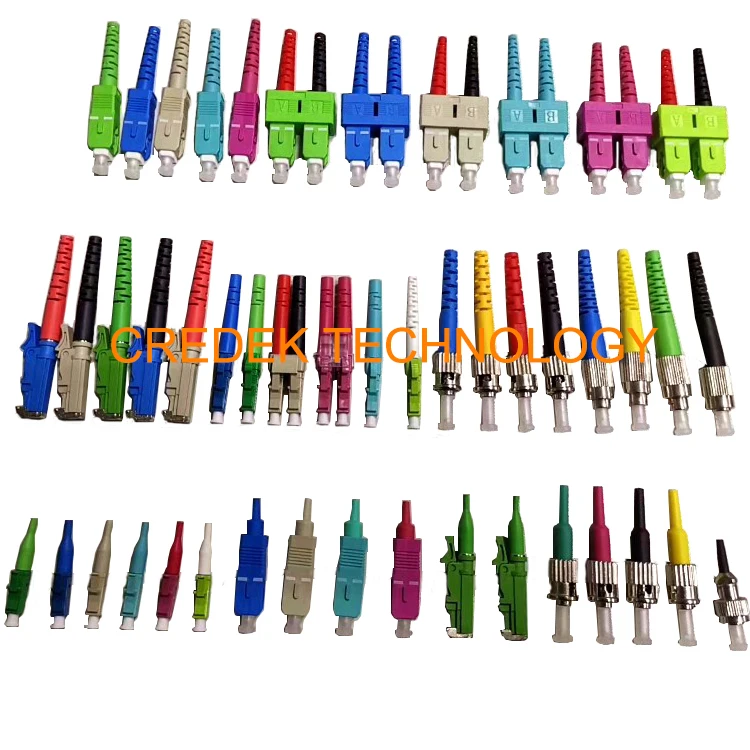

Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP
Polishing Options: PC/UPC/APC
Fiber Cable Options: OS2(9/125) OM1(62.5/125) OM2 OM3 OM4 OM5
Color Options: Yellow, Orange, Aqua, Purple, Pink, White, Black….
Length Options: 0.5 1m, 2m, 3m 5m, 10m…..c
CREDEK’s patch cords are manufactured using Corning or YOFC optical fiber and are 100% factory tested to ensure performance to TIA/EIA standards.
Hybrid patch cord are available in both multimode (62.5/125µm and 50/125µm)and single mode(9/125µm) cable-types, in duplex and simplex versions.
Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP
Polishing Options: PC/UPC/APC
Fiber Cable Options: OS2(9/125) OM1(62.5/125) OM2 OM3 OM4 OM5
Color Options: Yellow, Orange, Aqua, Purple, Pink, White, Black….
Length Options: 0.5 1m, 2m, 3m 5m, 10m…..c
Jacket: PVC, LSZH, OFNR
Product Paramenters
Parameter | FC, LC,SC, ST, MU, D4, DIN4 | MTRJ | E2000 | ||||||||||||||
SM | MM | SM | MM | SM | |||||||||||||
PC | UPC | APC | PC | PC | UPC | PC | PC | APC | |||||||||
Insertion loss(typical) | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.2 | ≤0.3 | ||||||||
Return loss(dB) | ≥45 | ≥50 | ≥60 | ≥35 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 | ||||||||
Exchangeability(dB) | ≤0.2 | ||||||||||||||||
Vibration(dB) | ≤0.2 | ||||||||||||||||
Operating temperature(℃) | -40~75 | ||||||||||||||||
Storage temperature(℃) | -45~85 | ||||||||||||||||

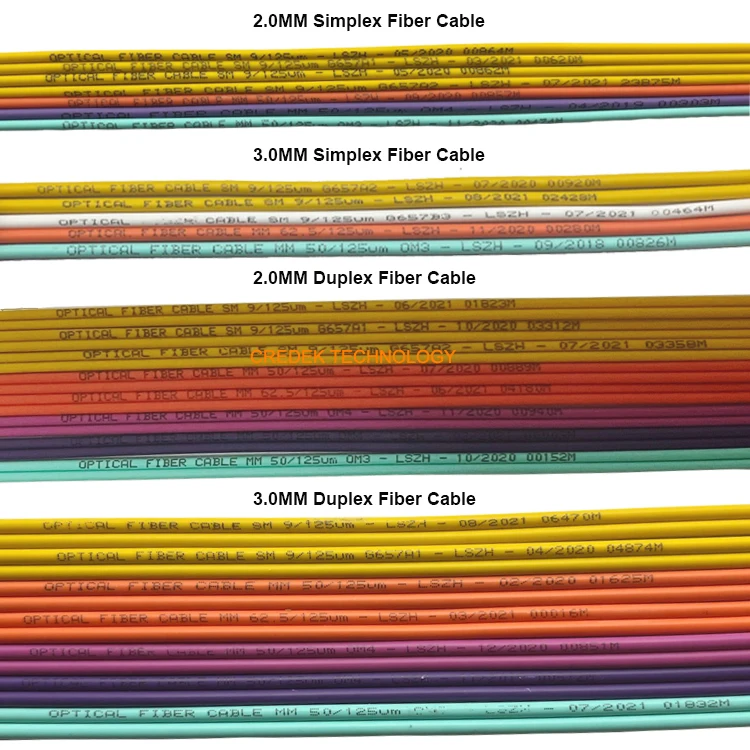

Cable diameter(mm) | 3.0mm, 2.0mm, 0.9mm(customizes) | ||||||||||||||||
Fiber Type | 9/125 SMF-28 (Singlemode) OS2 OS1 (G652D, G657A1, G657A2, G657B1, G657B2, G657B3...) | ||||||||||||||||
OM2, (50/125), OM1(62.5/125) (Multimode) | |||||||||||||||||
OM3 (50/125), (Multimode) , 10G 25G 40G | |||||||||||||||||
OM4 OM5 (50/125), (Multi Mode), 40G 100G 200G... | |||||||||||||||||
Connector Options: | FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP | ||||||||||||||||
Polishing Options: | PC/UPC/APC | ||||||||||||||||
Jacket Material: | PVC(typical), LSZH, OFNR….. | ||||||||||||||||
Color Options: | Yellow, Orange, Aqua, Purple, Pink, White, Black | ||||||||||||||||
Length Options: | 0.5 1m, 2m, 3m 5m, 10m…..c | ||||||||||||||||
