hot sale socket 478 ddr400 motherboards with 3 ISA slot and 2 Gbe LAN run winxp win98 dos 6.22 linux system model M 845EG
- Category: >>>
- Supplier: Shenzhen Immediate Technology Co. Limited
Share on (1600436004396):
Product Overview
Description
item | value |
Item Condition | Used |
Package | Yes |
Ports | AGP 4X, PS2, USB 2.0, VGA |
With CPU | No |
Memory Bank | 2 DDR DIMM |
CPU Type | Pentium 4, Celeron 4 |
Chipset | INTEL 845GV |
Maximum Ram Capacity | <2 GB |
Memory channel | Single |
Launch Date | 2004 |
Products Status | Used, New |
Application | industy motherboard |
Chipset Manufacturer | Intel |
Socket Type | Socket 478 |
Form Factor | ATX |
Memory Type | DDR |
Graphics Card Type | Integrated |
Hard Drive Interface | IDE |
FSB / HT | FSB 533 |
Brand Name | IIT |
Place of Origin | China |
Guangdong | |
Name | M-845EG |
Other name | 3 ISA motherboards |
Type | Motherboard with 3 ISA |
Operating Temperature | 0~50°C |
Operating Humidity | 0% ~ 93% (relative humidity; non-condensing) |
Chipset | Intel |
Ethernet | 1 x 10/100Mbps fastEthernet Realtek RLT8100C |
IDE | 2 X UltraDMA 133/100/66 Connetors |
Package | 20 pcs/box |
Port | any port of China |
IMI845GV-ISACPUSupport Socket 478 processors with 400/533MHz FSB(INTEL Pentium 4/Celeron 4,Max 3.0Ghz)ChipsetIntel 845GV North
BridgeIntel FW828010B South BridgeMemoryThe motherboard accommodates 2.5V DDR configuratios2 x unbuffered 184-pin slot with DDR
266/333 DIMM up to 2GB memory sizeVGAIntegrated Intel IGX celeratorMemory Size: Max.up to 64MB frame buffer sharing system memory
Output Interface: VGA port Expansion Interface4 X PCI expansion slot 3 X ISA expansion slotIDE2 X UltraDMA 133/100/66 Connetors
Ethernet1 x 10/100Mbps fastEthernet Realtek RLT8100CSoundRealtek alc655Compliant with AC'97 2.3 specification18-bit stereo
full-duplex CODEC with independent and variable sampling rate3.3V digital, 5V analog power supplyIOThe motherboard has a full set

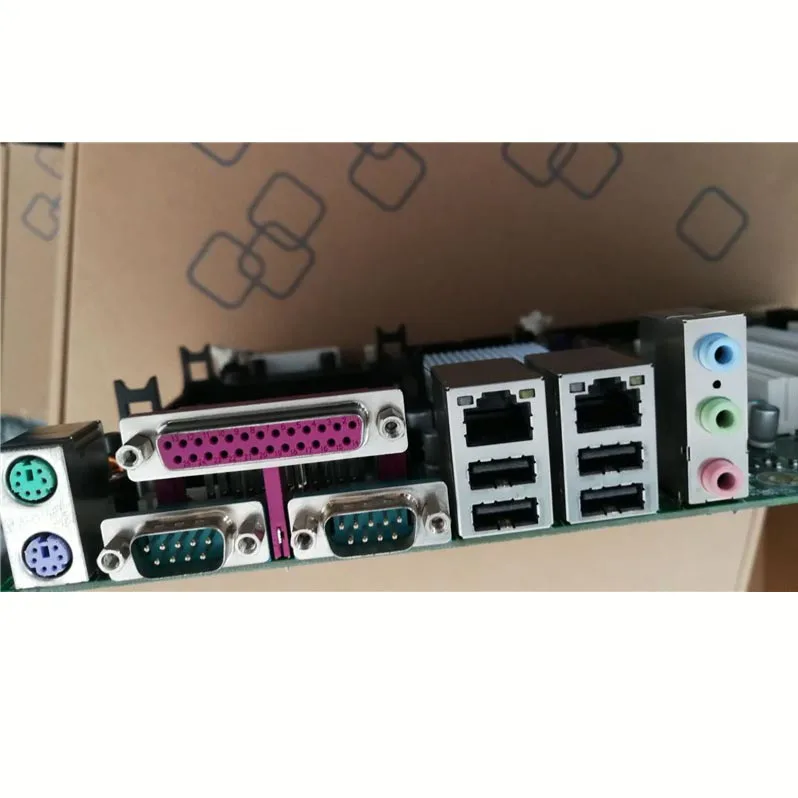

of I/O ports and connectors:2 X PS/2 ports for mouse and keyboard1 X serial port1 X VGA port1 X parallel port1 X LAN port6 X USB
2.0 port(2 x USB header)3 X Audio jacks for microphone,line-in and line-outATX power connector+ 12V(4PIN)BIOSAward BIOS4/8Mbit
flash memorySYSTEM control CPU voltage monitoringWake-on-LAN, Keyboard Power-on, Timer Power-onSystem power managementAC power
failure recoveryOperating Temperature0~50°COperating Humidity0% ~ 93% (relative humidity; non-condensing)SizeMacro-ATX180 mm(W) X
330 mm(L)
BridgeIntel FW828010B South BridgeMemoryThe motherboard accommodates 2.5V DDR configuratios2 x unbuffered 184-pin slot with DDR
266/333 DIMM up to 2GB memory sizeVGAIntegrated Intel IGX celeratorMemory Size: Max.up to 64MB frame buffer sharing system memory
Output Interface: VGA port Expansion Interface4 X PCI expansion slot 3 X ISA expansion slotIDE2 X UltraDMA 133/100/66 Connetors
Ethernet1 x 10/100Mbps fastEthernet Realtek RLT8100CSoundRealtek alc655Compliant with AC'97 2.3 specification18-bit stereo
full-duplex CODEC with independent and variable sampling rate3.3V digital, 5V analog power supplyIOThe motherboard has a full set
of I/O ports and connectors:2 X PS/2 ports for mouse and keyboard1 X serial port1 X VGA port1 X parallel port1 X LAN port6 X USB
2.0 port(2 x USB header)3 X Audio jacks for microphone,line-in and line-outATX power connector+ 12V(4PIN)BIOSAward BIOS4/8Mbit
flash memorySYSTEM control CPU voltage monitoringWake-on-LAN, Keyboard Power-on, Timer Power-onSystem power managementAC power
failure recoveryOperating Temperature0~50°COperating Humidity0% ~ 93% (relative humidity; non-condensing)SizeMacro-ATX180 mm(W) X
330 mm(L)
