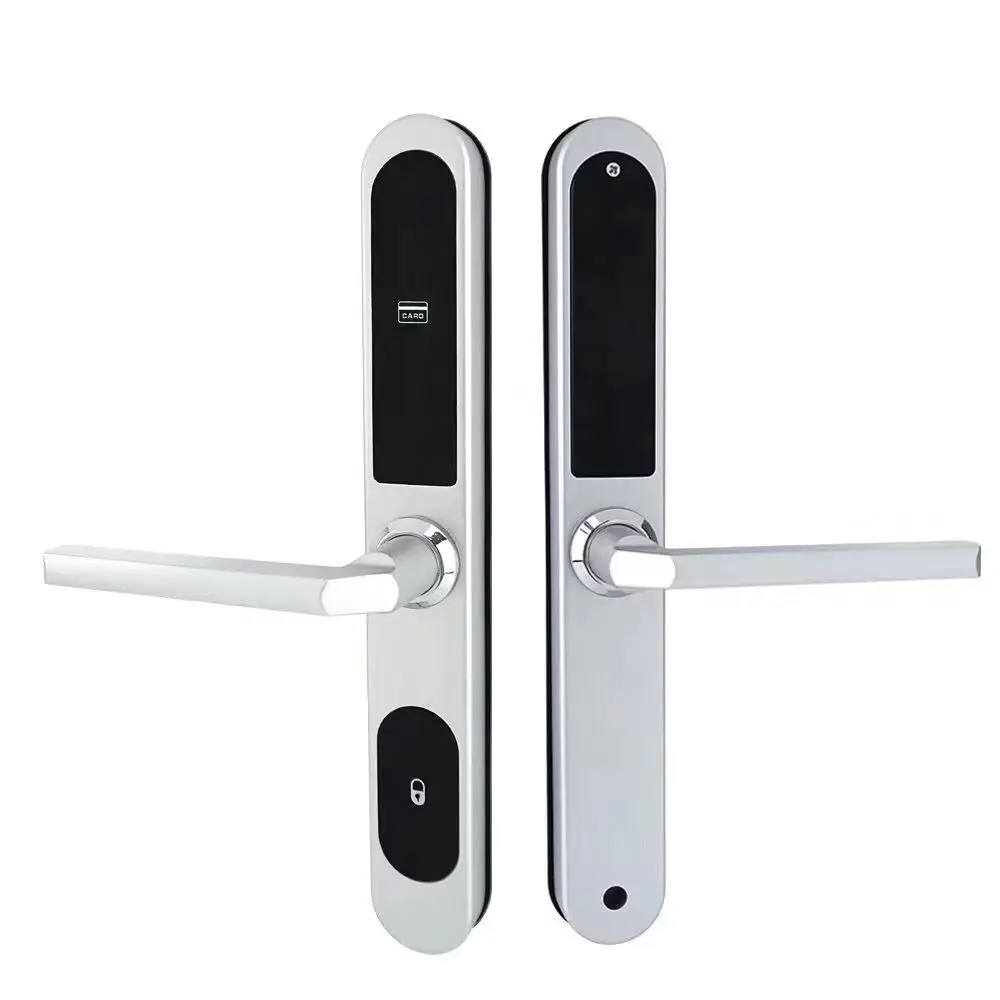

EU hotel lock with EU standard mortise slim hotel door lock with Euro style design and Euro 304 stainless steel mortise

Product Overview

Description



RFID hotel key card electronic door lock system, CE, FCC,certificates;EURO style with 10 years warranty !!!

US/Euro standard mortise;
M1 or Temic system;
Master card/Manager card/Building card/floor card/cleaner card/maintainance card......and 2 Emergency mechanical keys for each lock.
SDK , PMS available and provide interface for free,can work with most of the PMS system.

Model:SWRL641Y

Material: Aviation aluminum alloy,Anti-rust,anti-oxidation, moisture/damp proof; Suitable for dry regions or Seaside hotels.,,Euro style mortise hotel lock;

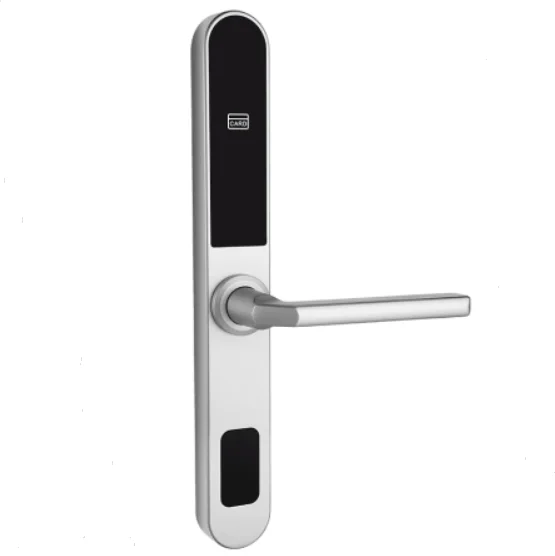

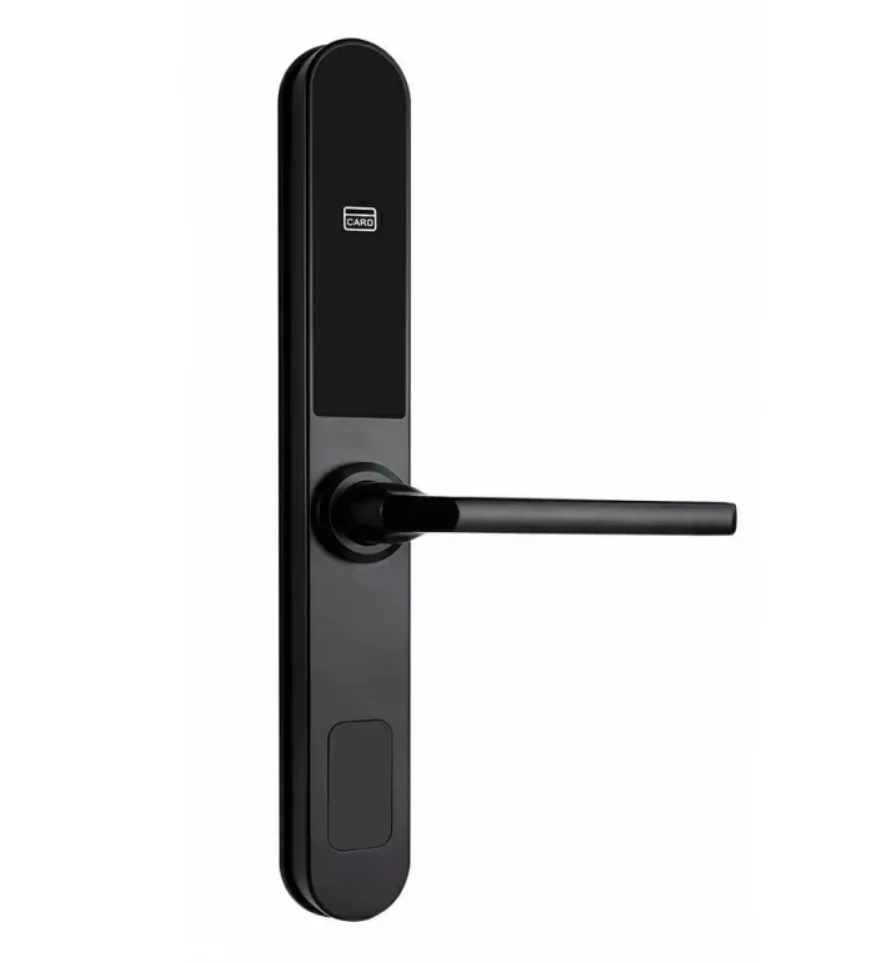

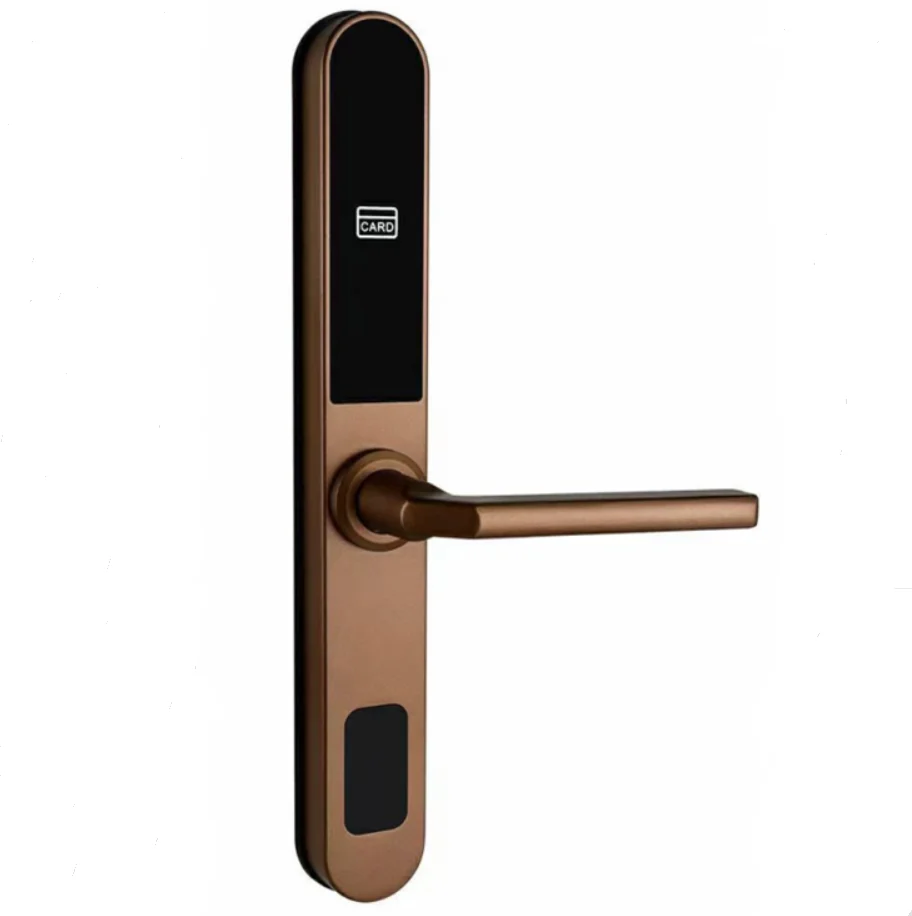

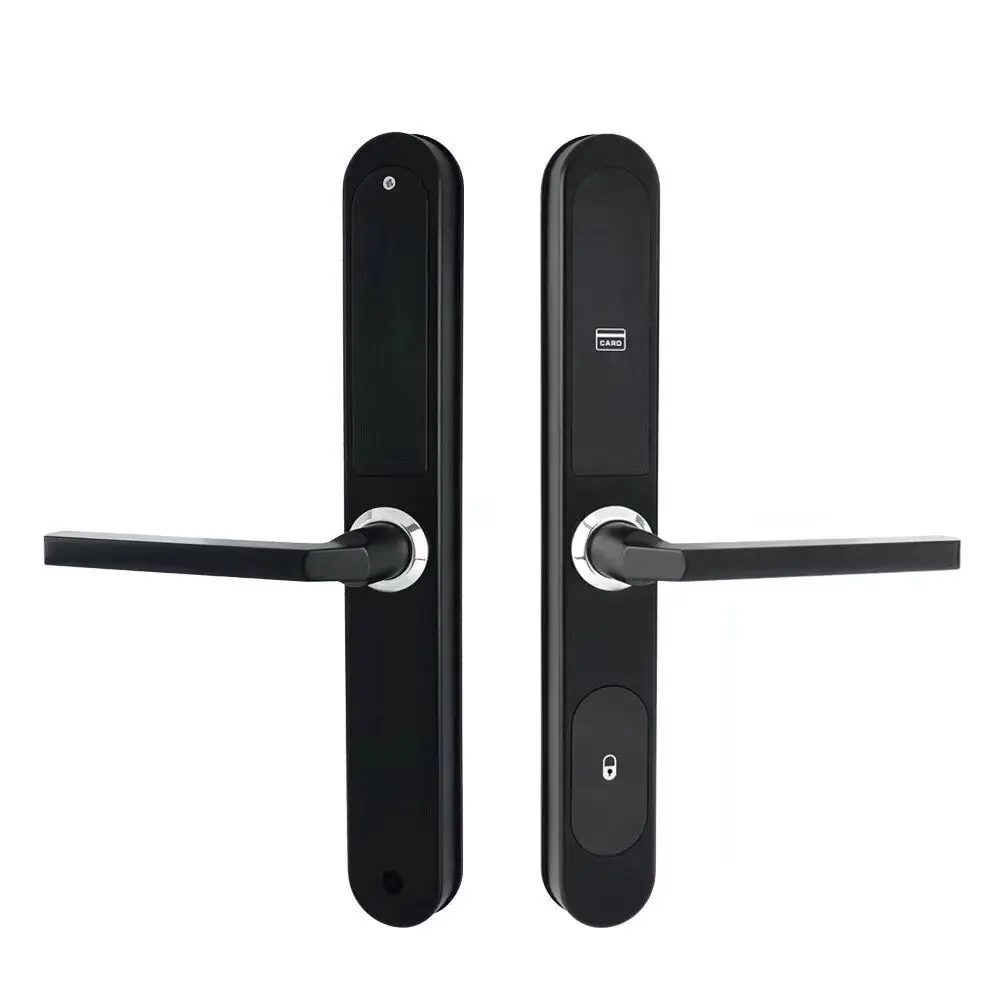

Available color: Coffee brown/Silver /Black     (Euro style slim hotel lock with Euro standard mortise)

Material: Aviation aluminum alloy with solid 304 stainless steel mortise; 28*85mm; 35*85mm; 45*85mm; 60*85mm;

1. Metal structure, solid and durable;
2. Adopt Japan MABUCHI micro-motors which ensure 500,000 running times without problem;
3. Using Holland PHILIPS or America ATMEL chips for PCB, stable and durable;
4. International standard five latches lock which pass the testing of 300,000 times.
5. Anti-technology opening cylinder and computer keys endow door lock with higher burglarproof ability;
6. Hotel lock management software can be connected with the reception desk of management system of Germany Fidelio company;
7. Current latest 992 pcs unlocking records can be stored in the chip of door lock, even the mechanical keys opening record without exception;
8. Normal-open state can be set for meeting.
9.Perfect key card management and clear authority. There are Master Card, Building card,Floor Card, Guest card, Emergency card. Hotel managers can modify the authority of each card according to actual need at any time.

2.Technical parameters:
1. Power supply DC4.5V-6.5V, 4 standard 1.5V AA alkaline batteries;
2. Battery life Over 15000 times normal unlocking;
3. Static current < 20 uA;
4. Dynamic current <150 mA;
5. Storage temperature -20 - + 85;
6. Storage humidity 10-98% RH;
7. Working temperature 0 - + 60;
8. Working humidity 15-95% RH;
9. Card reading distance 0-5cm;
10.Reading & writing time <0.5s;
11.Data keeping Over 10 years;
12.Applicable chip Mifare-1 card(13.56MHz), Temic 5557 card or EM card (100KHz-150KHz);
13.Reading & writing wayNon-touched closer induction;
14.Opening time Turning the handle one time to open the door in valid, if dont open the door, it will be locked automatically in 6s;
15.Reliable opening The success rate of opening is 100% in normal punching;
16.Low voltage alarm When voltage lower than 4.8V, there has acousto-optic warning but it still can be opened 100 times;
17.Mechanical key Equipped with spare mechanical key make sure the door unlocking in emergency; It can be made into one key for one door or one key for all doors;
18.Installation size Make sure the door thickness between 38 and 55 mm (Please mark specially if over 55mm).45mm is the best thickness. If the door surface is decorated, the distance between the decorative edge and edge of door must be over 130mm.

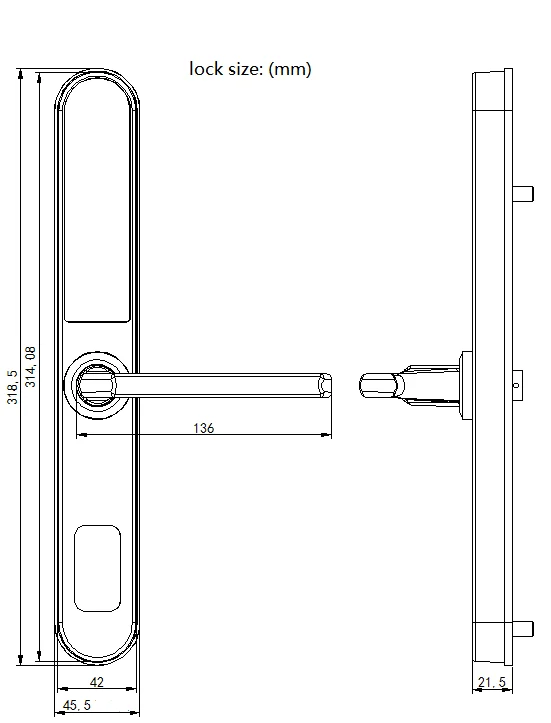

3.Specifications:

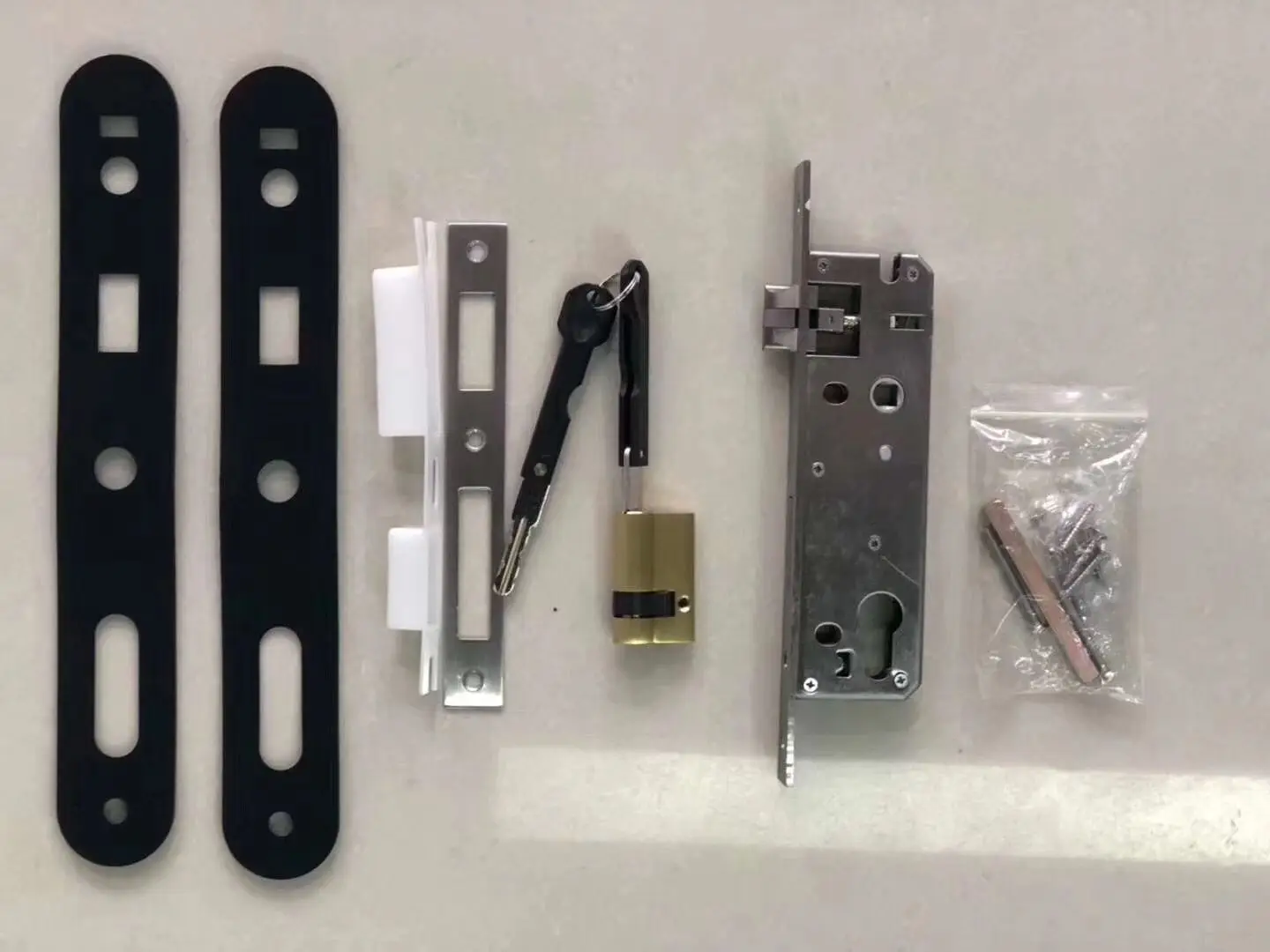

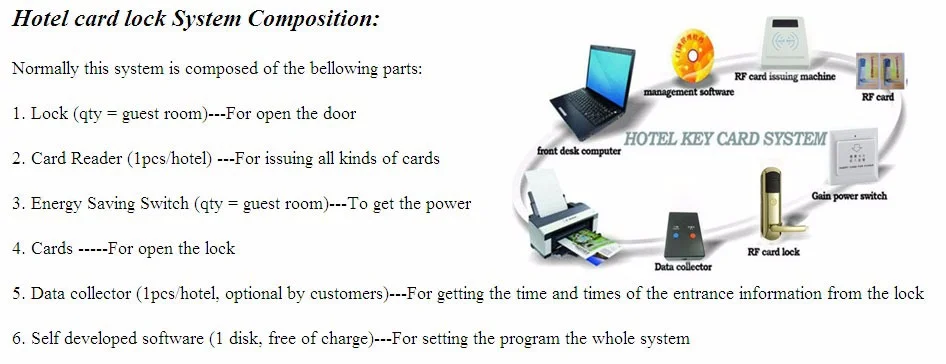

4.Hotel lock whole system:

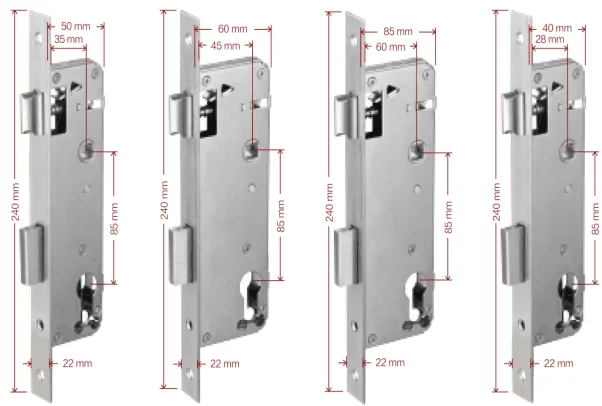

5.Euro standard 304 stainless steel mortise:





7.Installation:

We provide hard paper template stick on door to make holes,latch can be adjusted for left or right open easily, no need open mortise.



8.Our part customers hotel lock printed cards for reference:



9.FAQ:

How does the lock get powered and how long can it last?

The lock is powered with 4 AA battery,use 4 new brand battery can open more than 10,000 times.last about 18 months.

What should do when battery is run out?

The lock will beep to prompt when power is lower than 3.5V,please change the battery when it alarm. You can still use the card open about 200 times when it prompt. If the battery is not work,you can use backup key to open the door.

How to open the lock if the card is not work or there is something wrong with the electronic part?

Each lock are equipped with 2 mechanical keys,you can open door with those keys.

If OEM OR ODM orders accepted ?

Yes, we are accept OEM or ODM orders .

What's the MOQ and if can send sample to have a test?

Without MOQ request. It is available to offer the sample for your checking first.

What 's the door thickness required for those mortise?

Our lock mortise is suitable for the door thinkness with 25~60mm.

How about your software, is the PMS possible?

We have made  the software upgrade according to the  hotel's need. It is very intelligent and convenient.We can offer you SDK, PMS support. Also we have registered the Fideo/Opera !

What's the delivery time?

Samples should be within 3 workdays,quantity order takes about 3-10 days.

Are your factory is experienced in this field?

We have more than 10 years experience in this field.

What certification do you have?

CE, FCC, , ISO , ROHS

When something wrong happened with your goods beyong our control , how should do ?

Contact our  Professional Service Sector, they will offer you the help instantly.

Do you have any branches at home and abroad?

For now, we have a big factory with 3,000 square meters in Shenzhen, Guangdong. An office in South Korea, Also have the agents in most countries round the world.

Any other questions?  Please feel free to contact  me !
