silent sweep DCF radio controlled clock movement German clock

Product Overview

Description

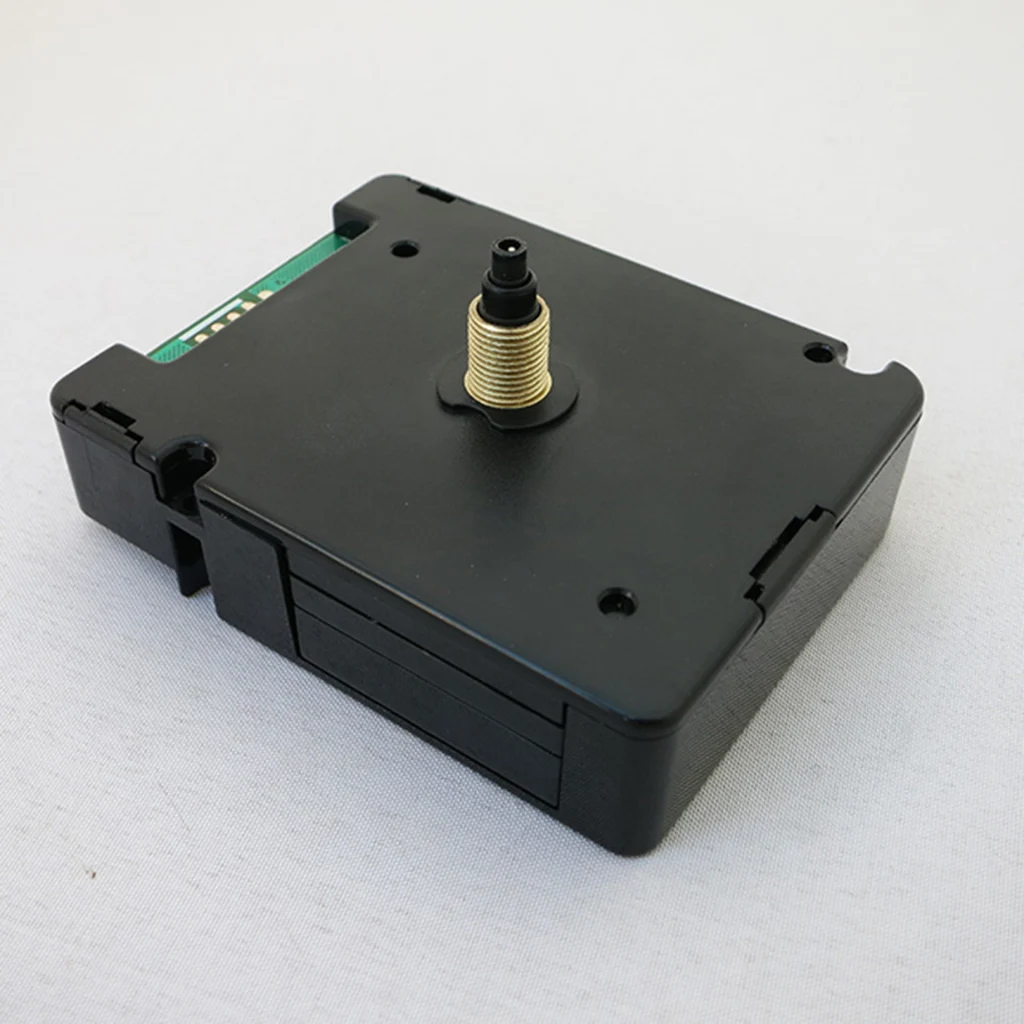

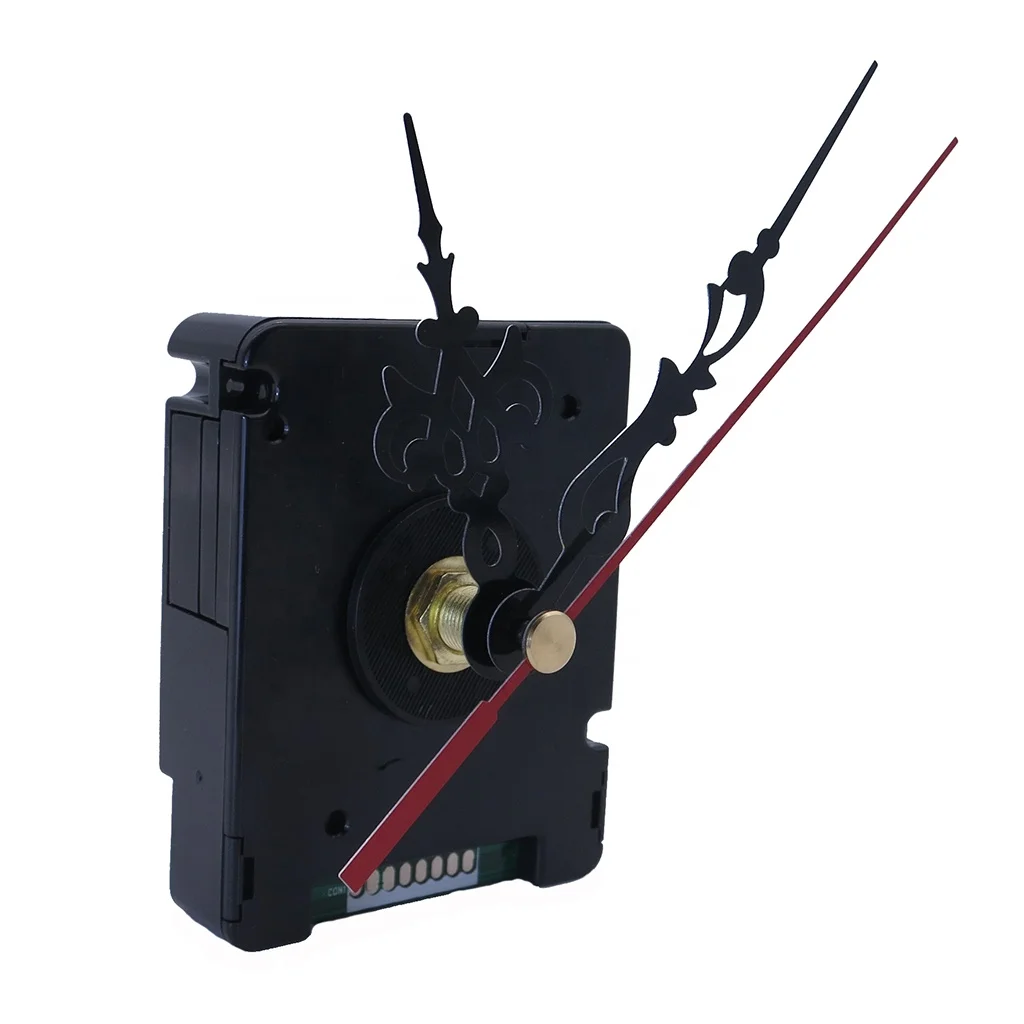

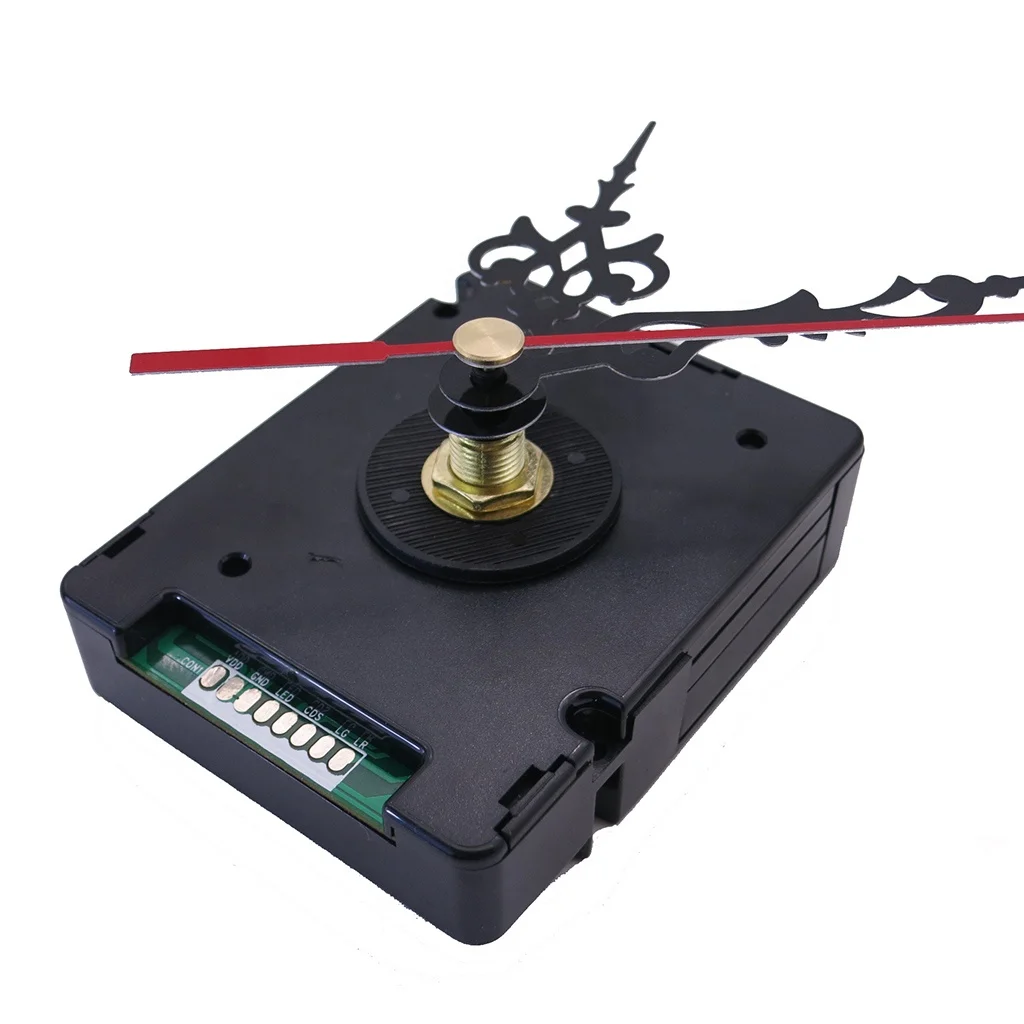

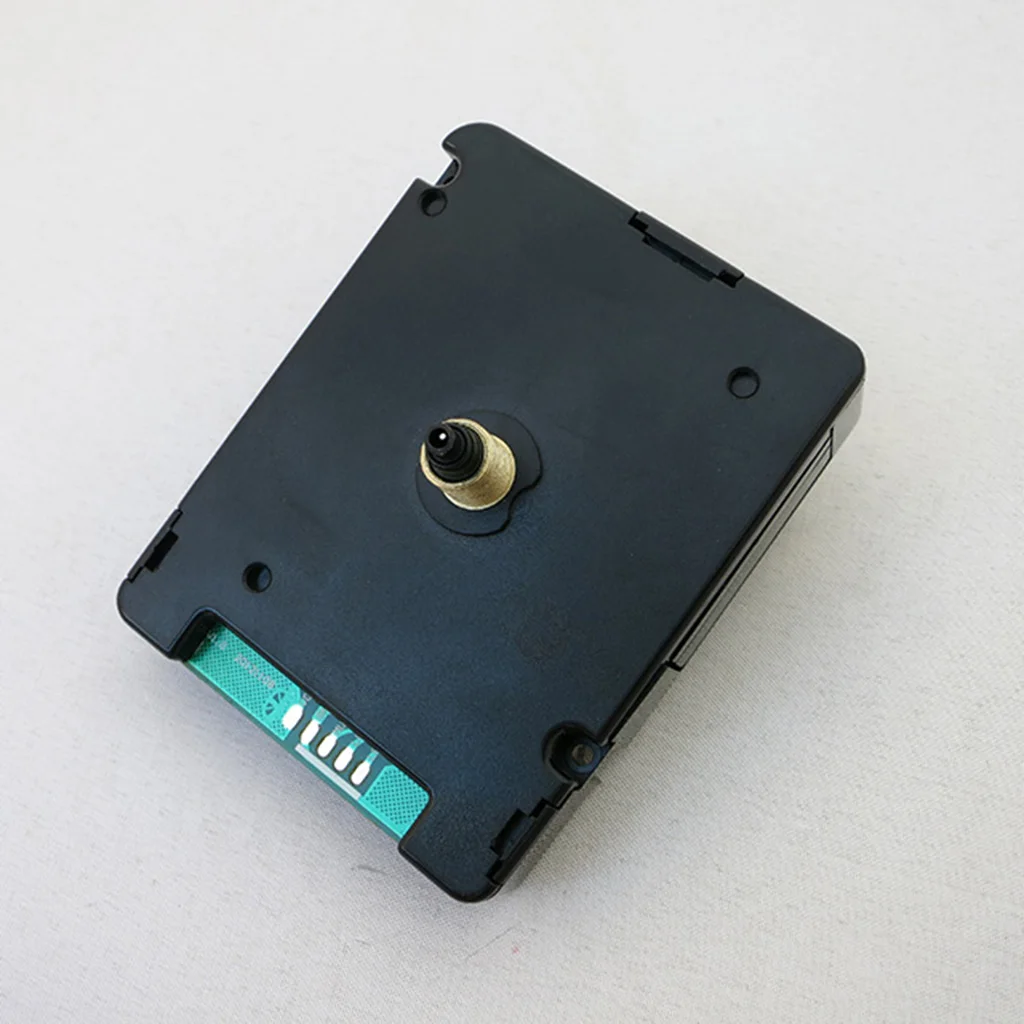

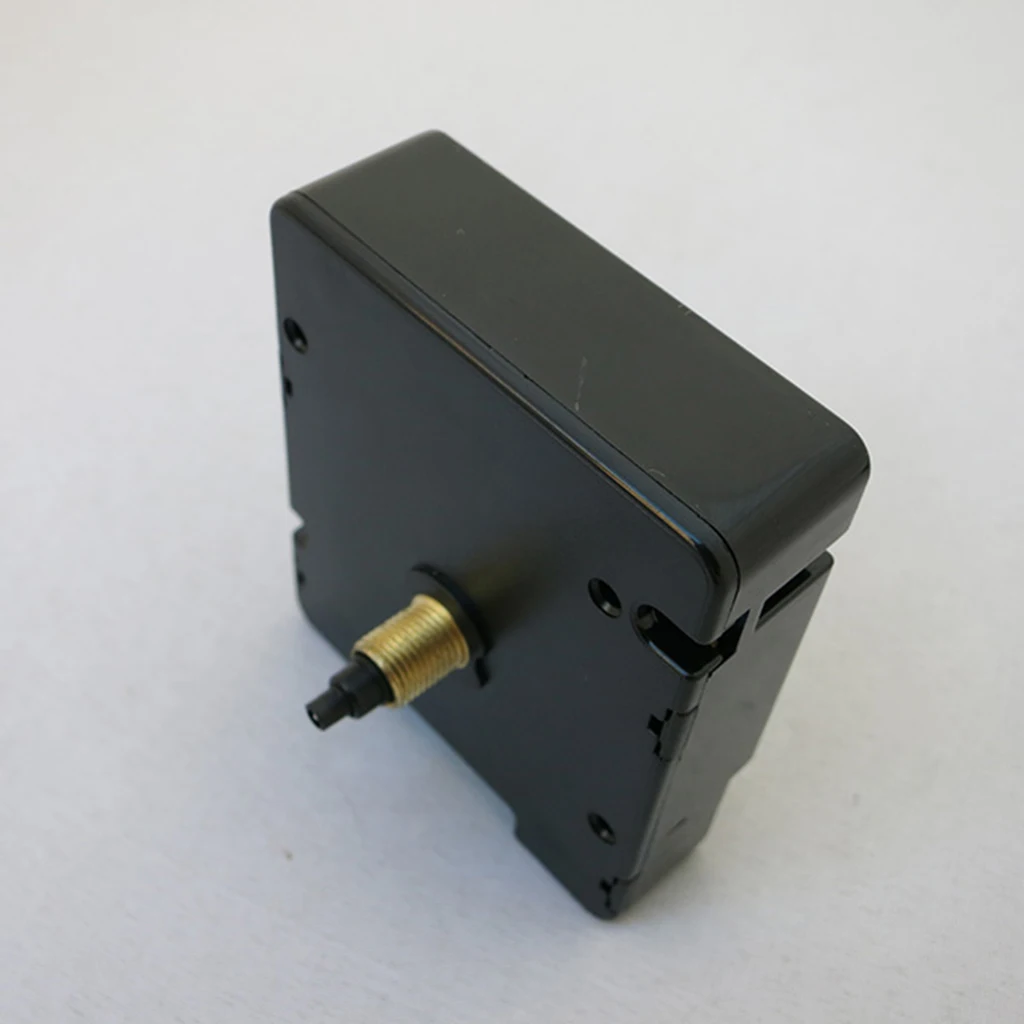

silent sweep DCF radio controlled clock movement German clock

Radio controlled movement/RC movement

Version:DCF

Shaft length:17mm

Receiving frequency : 77.5KHz(DCF) 60KHz(MSF) 40/60KHz(JJY)

Battery size : LR6/AA

Battery life : approx 1 year

operating voltage :1.25V~1.7V

Quartz adjustment: : ±1s / d

Operating temperature :-5℃~+55 ℃

Storage temperature :-20℃~+70 ℃

Current consumption normal: Less than 175 μA

Receiving time :3~12 min(DCF / MSF)   3-16min(JJY)

Receiving current :≤105 μA

Setting time after reception : max. 4min

Antenna:Ferrite core internal

Reception:12x/day

Sensitivity : Less than 80μV/m

Second torque(1.5V) : ≤150 μNm

Second hand torque(1.5V) : ≥ 150μNm



radio controlled quartz clock movement use for living room clock

radio controlled quartz clock movement use for ceramic wall clock

radio controlled quartz clock movement use for aluminum clock

radio controlled quartz clock movement use for stainless steel wall clock

radio controlled quartz clock movement use for plastic wall clock

radio controlled quartz clock movement use for resin wall clock

radio controlled quartz clock movement use for metal wall clock

radio controlled quartz clock movement use for acrylic wall clock

radio controlled quartz clock movement use for glass wall clock

radio controlled quartz clock movement use for DIY wall clock

radio controlled quartz clock movement use for wooden wall clock

radio controlled quartz clock movement use for stone wall clock

radio controlled quartz clock movement use for desk clock

good quality radio controlled quartz clock movement



radio controlled quartz clock movement,hengrong certificate.
