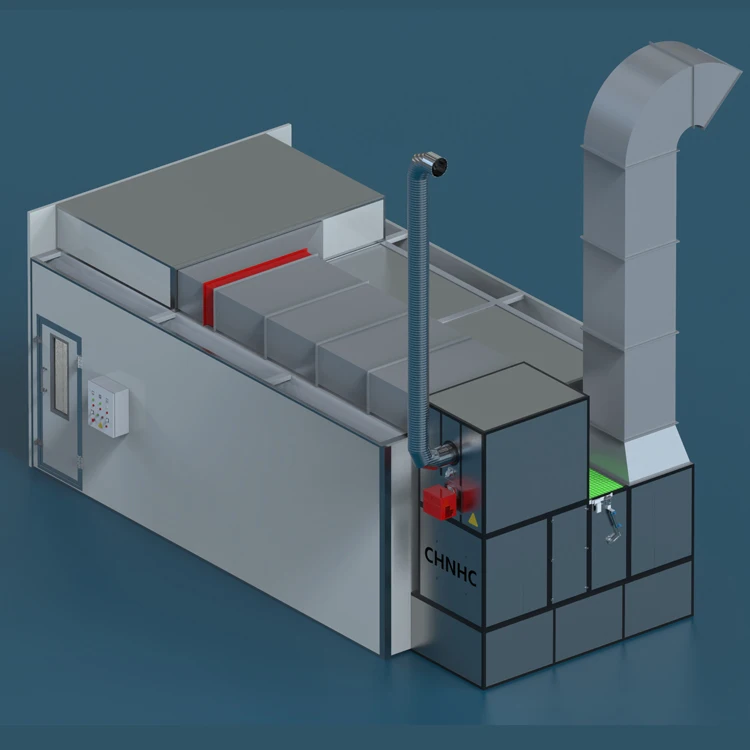

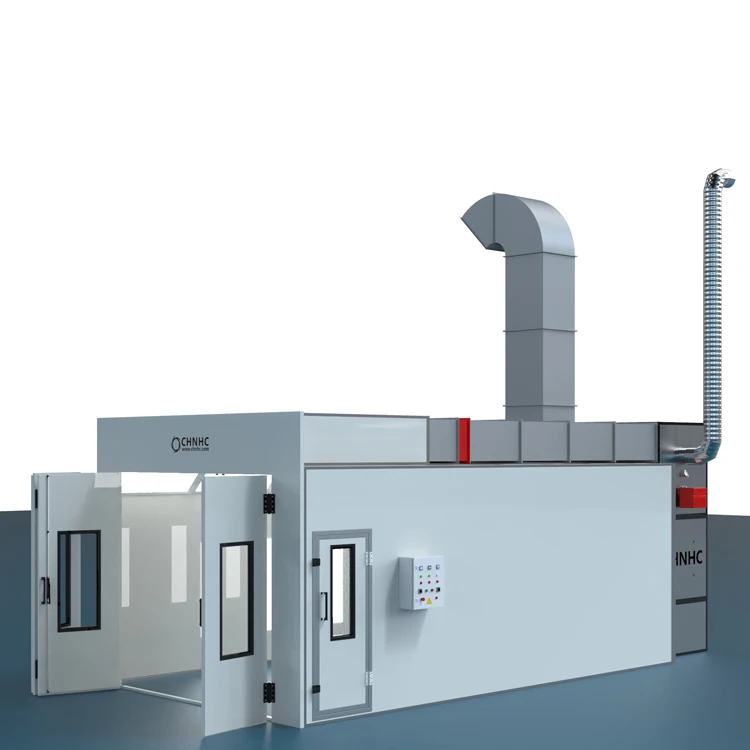

Factory price champ portable paint and prep station mobile car spray booth
- Category: Spray Booths >>>
- Supplier: Guangzhou,Chnhc,Co.,Ltd.
Share on:
Product Overview
Description
Specification
Semi downdraught spray booth E604 | ||||
Size (L x W x H) | Inside Size | 6900 x 4000 x 2800mm | ||
Outside Size | 8500 x 4110 x 3460mm | |||
Foundation and Floor | Foundation | No metal foundation, back draft | ||
Wall and Door | Wallboard | Adopt high quality double construction fireproof insulation EPS panel, thickness: 50mm (rock wool panel as option) | ||
Roof Panel | Adopt high quality double construction fireproof insulation EPS panel, thickness: 50mm (rock wool panel as option) | |||
Entrance Door | Door with steel frame, 1 set, size: 3100 x 2700mm (W x H), tempering glass observation window | |||
Personnel Door | 1 set, size: 800 x 2000mm (W x H),tempering glass observation window | |||
Light System | Ceiling Lighting | 8 units, each 4 x 16w, adopt LED energy saving light, tempering glass | ||
Side Lighting | 8 units, each 2 x 16w, adopt LED energy saving light, tempering glass | |||
Brightness | ≥1000 LUX | |||
Filtration System | Pre-filters | Grade G2 plate type fiber glass filter (EU3 grade pocket filter as option) | ||
Ceiling Filters | Adopt high efficient adhesive filter, which can capture the dust who is more than 4μm, its filtering rate reaches 98% | |||
Air cabin filter | Fibreglass paint-stop filter | |||
Exhaust Filters | Fibreglass paint-stop filter | |||
Ventilation System | Inlet Fan | Adopt big impeller turbo fan 1 x 7.5KW , Three-phase, 6 pole motor, 380V, 960RPM, 50HZ (SIEMENS motor as option) | ||
Outlet Fan | Adopt big impeller turbo fan 1 x 7.5KW , Three-phase, 6 pole motor, 380V, 960RPM, 50HZ (SIEMENS motor as option) | |||
Total Fan Capacity | 25,000m³/h | |||
Air Flow Speed in Cabin | 0.35-0.5m/s in loaded booth | |||
Painting and Baking Exchange System | Solenoid valve+ pressure adjustment control cylinder driven damper exchange | |||
Air flow adjust | Manual air damper to adjust to pressure of booth | |||
Manometer | Yes, to indicate the pressure of booth | |||
Duct | Straight pipe: 8 meters, bending pipe: 2 units, reducing pipe: 2 units, soft connection: 1 unit, flange connection (air inlet pipe as option) | |||
Flue | Galvanized pipe: 3 meters, bending pipe: 2 units (stainless steel pipe as option) | |||
Heating System | Heating Exchanger | Adopt high efficient heat-resistant (SUS304) stainless steel as cycling heat exchanger | ||
Burner Model | Adopt 1 set RIELLO diesel burner G20, each heating capacity 180.000kcal/h (gas burner or infrared light heater as option) | |||
Heating Time | 4－6 minutes (from 20 to 60ºС) under baking status, max baking temperature is 80°C | |||
Control Box | Control System | Standard control system | ||
More options | PCL control, touch screen control, inverter control | |||
Function | Painting, warm painting, baking, lighting, emergency stop switch, baking time setting, temperature setting, over-temperature alarm indication, baking delay stop protection, temperature limiter , burner error alarm, motor error alarm | |||
Total Power | 17KW | |||
Option voltage | Three-phase 208/220/240/380/400/415/440/480V, 50/60Hz | |||
Products Description
Q1: Are you a factory?
A1 :Yes.CHNHC is a professional manufacturer of coating and automobile，specializing in the
production of various paint booth。car lifts and car bench.
Q2: How do you control your quality?
A2: We have our own QA and QC team. They will check on site and finished products to ensure
all details to meet our highest standard and the customer's requirements.
Q3: What is your payment terms?
A3: We accept T/T. LC. Alipay.etc.
Q4: How long is your lead time?
A4: For stock or regular products, our lead time is 7 to 10 days. For custom-made products, our
lead time is 15 to 20 days.
Q5: What is your warranty?
A5: Our warranty is 12 months. Parts have free replacement excluding artificial damage in
Warranty. During warranty period, shipping cost of replacement products or parts are our
responsibility.Beyond the warranty period. we provide spare parts to customers at factory cost.
Q6: How about visiting your company?
A6: We welcome your visit at any time. Our factory locates in guangzhou, China.we are near to
Guangzhou Baiyun International Airport.We are warmly welcome customers from all over the
world to our factory.
Q7: Do you have a certificate for your product?
A7 :Yes,We have CE certificate of paint booth and car lifts.
Q8: Does the cost include freight?
A8 : Because of the different distance, the freight is also different. We have cooperation with
shipping company. if you need, we can check the freight for you.
Q9: What about the packing?
A9: We use wooden box.ron frame and cartons to protect the goods from damage during
transportation.
Q10: Have you exported to our country?
A10: From now on, we have did business with foreign friends from 128 countries. such as USA.
Canada. France. Australia,UAE. Norway, Sweden. India. Philppines and so on.
Q11: Can you supply OEM service?
A11: Yes, we can.Some client prefer that use their Logo, their color. And we are glad to help
them open their market.
Q12: Can you provide the whole workshop automotive equipment?
A12: Yes. we can. And we have help many customers to start their body shops, some client from
UAE,.Thailand, Pakistan,etc.
A1 :Yes.CHNHC is a professional manufacturer of coating and automobile，specializing in the
production of various paint booth。car lifts and car bench.
Q2: How do you control your quality?
A2: We have our own QA and QC team. They will check on site and finished products to ensure
all details to meet our highest standard and the customer's requirements.
Q3: What is your payment terms?
A3: We accept T/T. LC. Alipay.etc.
Q4: How long is your lead time?
A4: For stock or regular products, our lead time is 7 to 10 days. For custom-made products, our
lead time is 15 to 20 days.
Q5: What is your warranty?
A5: Our warranty is 12 months. Parts have free replacement excluding artificial damage in
Warranty. During warranty period, shipping cost of replacement products or parts are our
responsibility.Beyond the warranty period. we provide spare parts to customers at factory cost.
Q6: How about visiting your company?
A6: We welcome your visit at any time. Our factory locates in guangzhou, China.we are near to
Guangzhou Baiyun International Airport.We are warmly welcome customers from all over the
world to our factory.
Q7: Do you have a certificate for your product?
A7 :Yes,We have CE certificate of paint booth and car lifts.
Q8: Does the cost include freight?
A8 : Because of the different distance, the freight is also different. We have cooperation with
shipping company. if you need, we can check the freight for you.
Q9: What about the packing?
A9: We use wooden box.ron frame and cartons to protect the goods from damage during
transportation.
Q10: Have you exported to our country?
A10: From now on, we have did business with foreign friends from 128 countries. such as USA.
Canada. France. Australia,UAE. Norway, Sweden. India. Philppines and so on.
Q11: Can you supply OEM service?
A11: Yes, we can.Some client prefer that use their Logo, their color. And we are glad to help
them open their market.
Q12: Can you provide the whole workshop automotive equipment?
A12: Yes. we can. And we have help many customers to start their body shops, some client from
UAE,.Thailand, Pakistan,etc.
