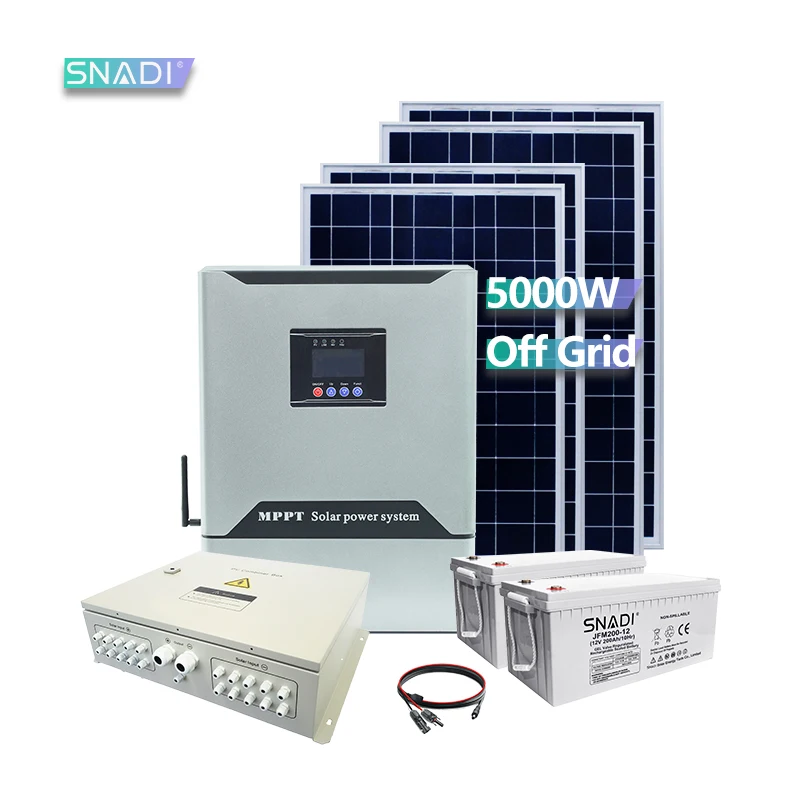

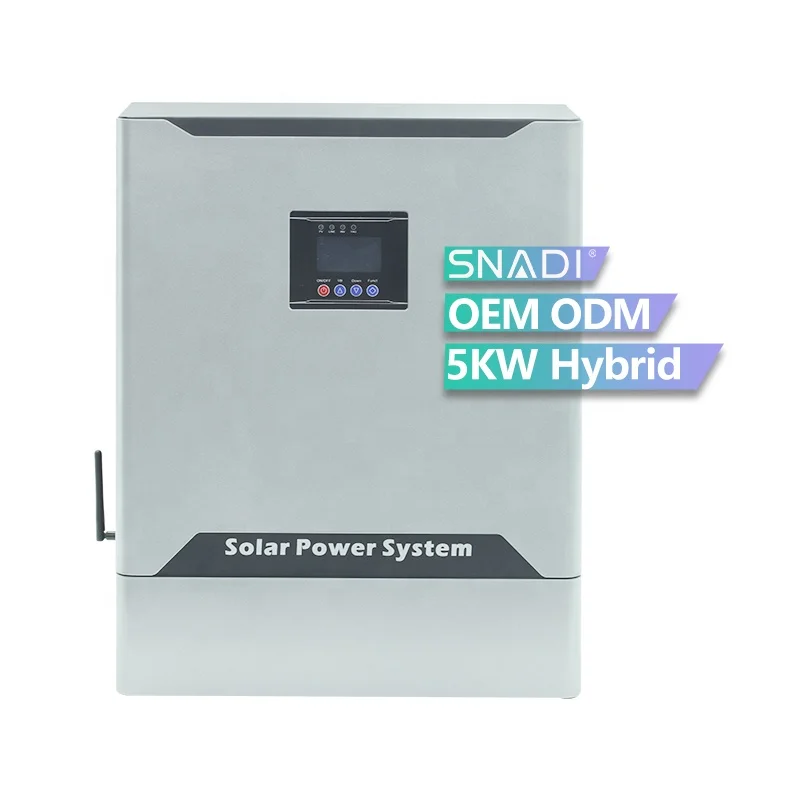

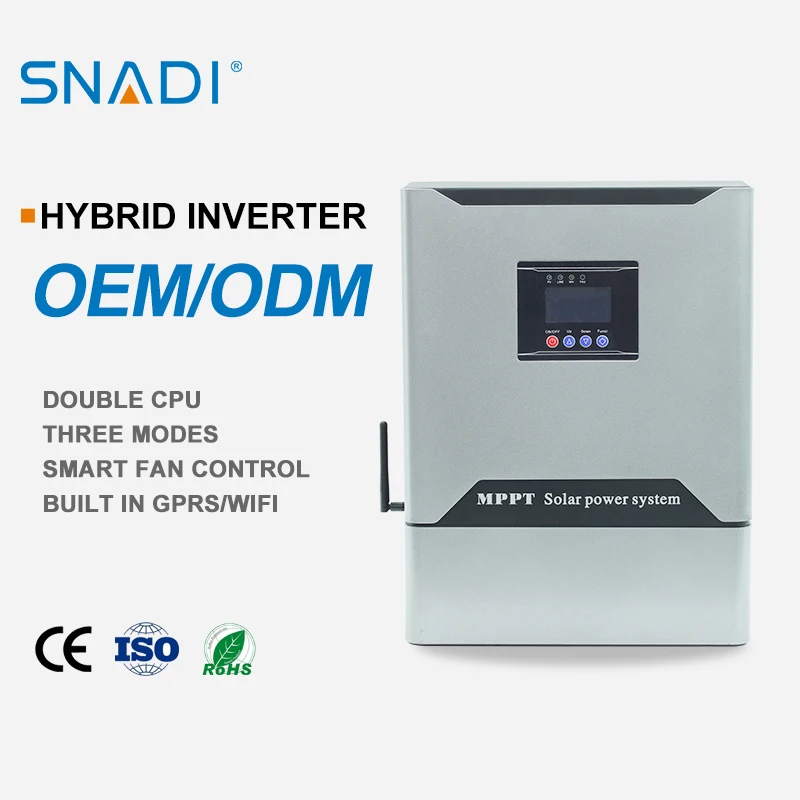

SNADI Hybrid Solar Inverter MPPT Solar Charge Controller 48V 5KW 80A with Wifi Function off grid solar inverter
- Category: >>>
- Supplier: Foshan Snat Energy Electrical Technology Co. Ltd.
Share on (1600436109907):
Product Overview
Description
Product overview
SNADI Hybrid Solar Inverter MPPT Solar Charge Controller 48V 5KW 80A with Wifi Function off grid solar inverter

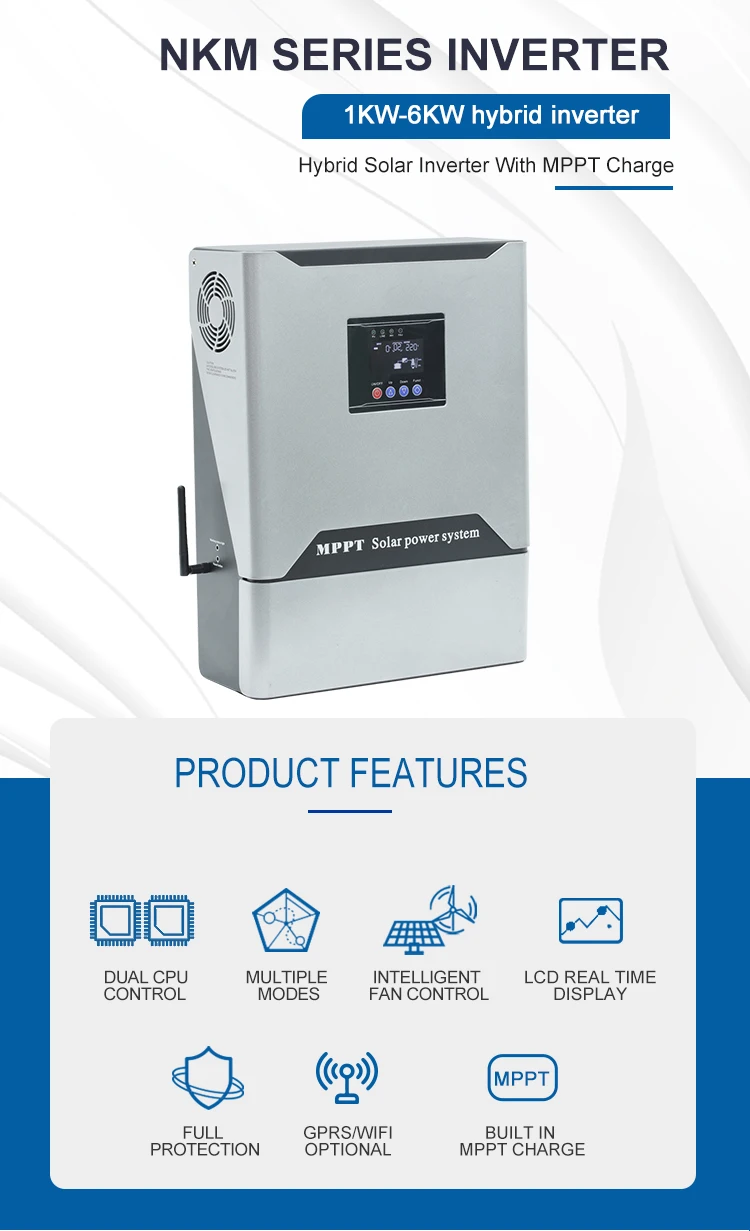

MULTIPLE ANGLES
Understanding the product from multiple angles

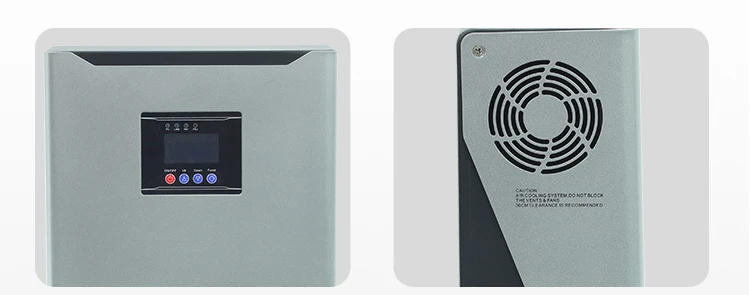

The LCD real-time display device Fan (Cooling function)
parameters
parameters

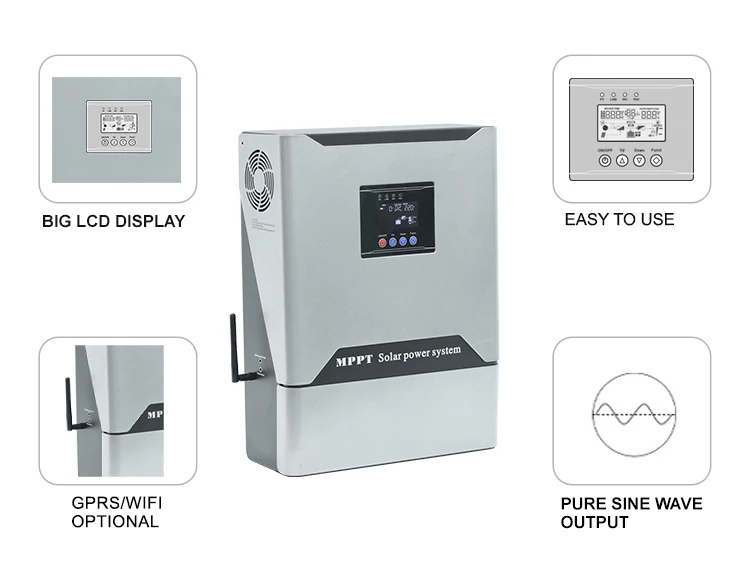

Build-in GPRS/WIFI wireless network MPPT controller+pure sine wave inverter
module

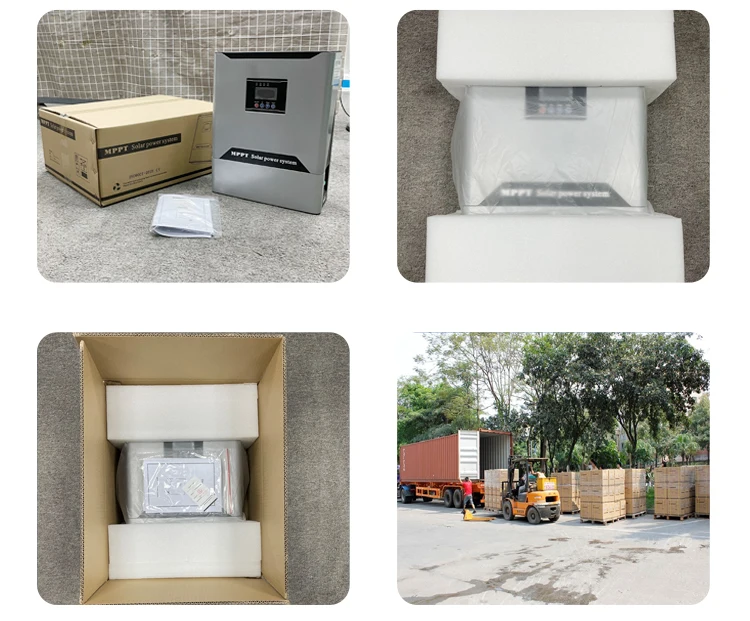

PACKAGING & ACCESSORIES
Ensure that the goods are not damaged
①Open the package, inspect product accessories,including:1 host,1 piece user manual
②Inspect whether the machine have been damaged during the transport or not, If it have some damage, don’t start the machine, please contact us.
②Inspect whether the machine have been damaged during the transport or not, If it have some damage, don’t start the machine, please contact us.
Product Description

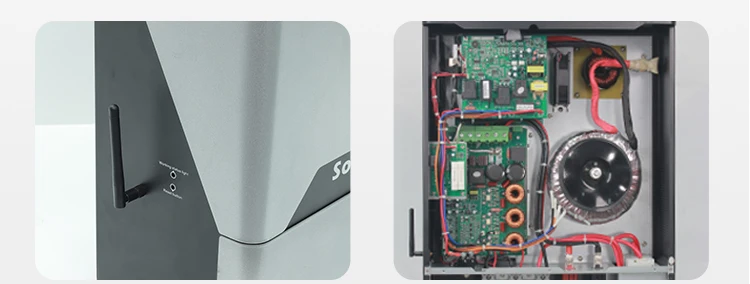

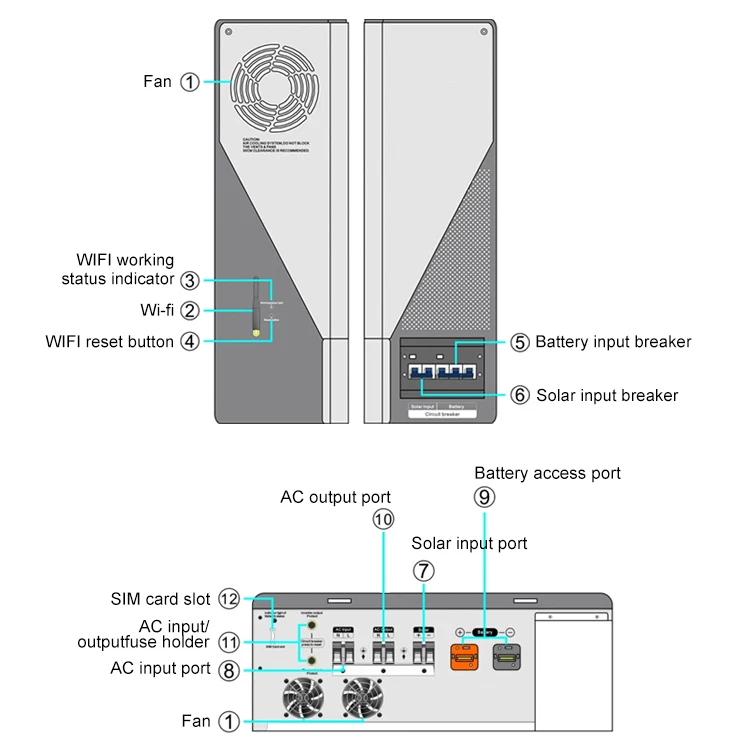

EXTERNAL DETAILS
Support appearance customization
PRODUCT DETAIL
Functions are more practical
· HELP YOU CONTROL EVERY DETAIL

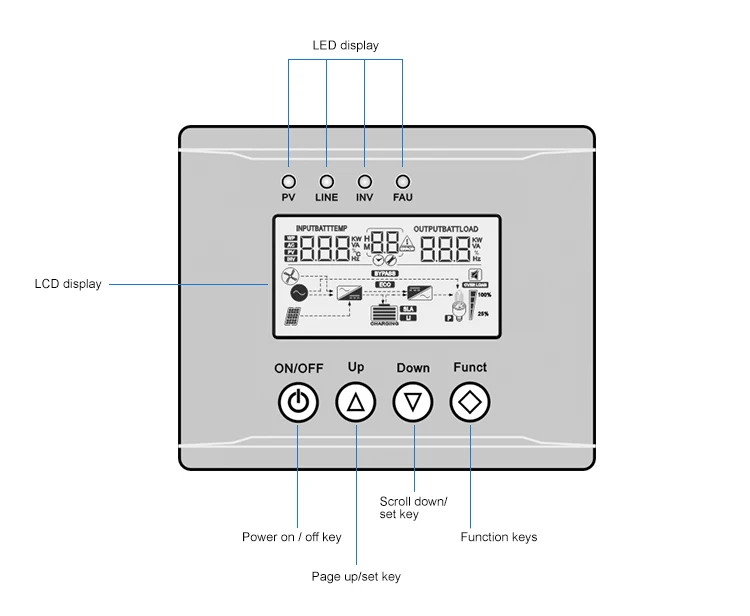

The front panel display illustration
· FRONT PANEL INSTRUCTIONS
LCD display and function key operation interface, can display the working status of the equipment, such as: Input / output voltage, frequency, mains mode, the inverter mode, battery capacity, charge current, charge the total load capacity, warning tips.
PRODUCT PARAMETER
1-6kw can be selected, built in MPPT charge controller
Model: MPPT | 0.3-1KW | 1.5-6KW | |||||||||
power rating(w) | 300 | 700 | 1500 | 3000 | 5000 | ||||||
500 | 1000 | 2000 | 4000 | 6000 | |||||||
Battery | rated voltage(VDC) | 12/24 | 12/24/48 | 24/48 | 48/96 | ||||||
Charge Current | 10A MAX | 30A MAX | |||||||||
Battery Type | Can be set | ||||||||||
Input | Voltage Range | 85-138VAC/170-275VAC | |||||||||
frequency | 45-65Hz | ||||||||||
Output | Voltage Range | 110VAC/220VAC; ±5%( Inverter mode) | |||||||||
frequency | 50/60Hz±1%( Inverter mode) | ||||||||||
Output wave | Pure Sine Wave | ||||||||||
Change time | ＜10ms(Typical load) | ||||||||||
Efficiency | ＞85%（80% Resistive load） | ||||||||||
overload | 110-120%/30S；＞160%/300ms； | ||||||||||
Protection function | Battery over-voltage and low-voltage protection, overload protection, short circuit protection, over-temperature protection | ||||||||||
Solar Controller | MPPT Voltage Range | 12VDC:15V~150VDC;24VDC:30V~150VDC;48VDC:60V~150VDC；120V~150VDC | |||||||||
PV Power | 12VDC-30A(400W); 24VDC-30A(800W) | 12VDC-60A(800W); 24VDC-60A(1600W); 48VDC-60A(3200W) 96VDC-60A（6400W） | |||||||||
Rated charge current | 30A(Max) | 60A(Max) | |||||||||
MPPT efficiency | ≥99% | ||||||||||
Average charging voltage(lead acid battery | 12V/14.2VDC;24V/28.4VDC;48V/56.8VDC | ||||||||||
Floating charge voltage | 12V/13.75VDC;24V/27.5VDC;48V/55VDC | ||||||||||
Operating ambient temperature | -15-+50℃ | ||||||||||
Storage ambient temperature | -20 - +50℃ | ||||||||||
Operating / storage environment | 0-90% No Condensation | ||||||||||
Dimensions:W * D * H (mm) | 420*320*122 | 520*420*222 | |||||||||
Packing size: W * D * H (mm) | 535*435*172 | 635*535*252 | |||||||||
Product instructions
PRODUCT INSTRUCTIONS
More convenient to use
It’s comprehensive LCD display offers user-configurable and easy-accessible button operation suchas battery charging current, AC/solar charger priority, and acceptable input voltage based on different application.

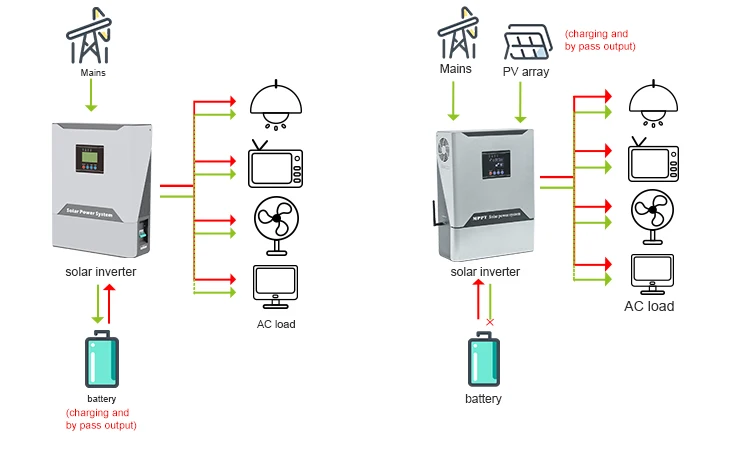

· TWO MODES CAN BE SET
① THE GRID PREFERRED MODE ② BATTERY PREFERRED MODE

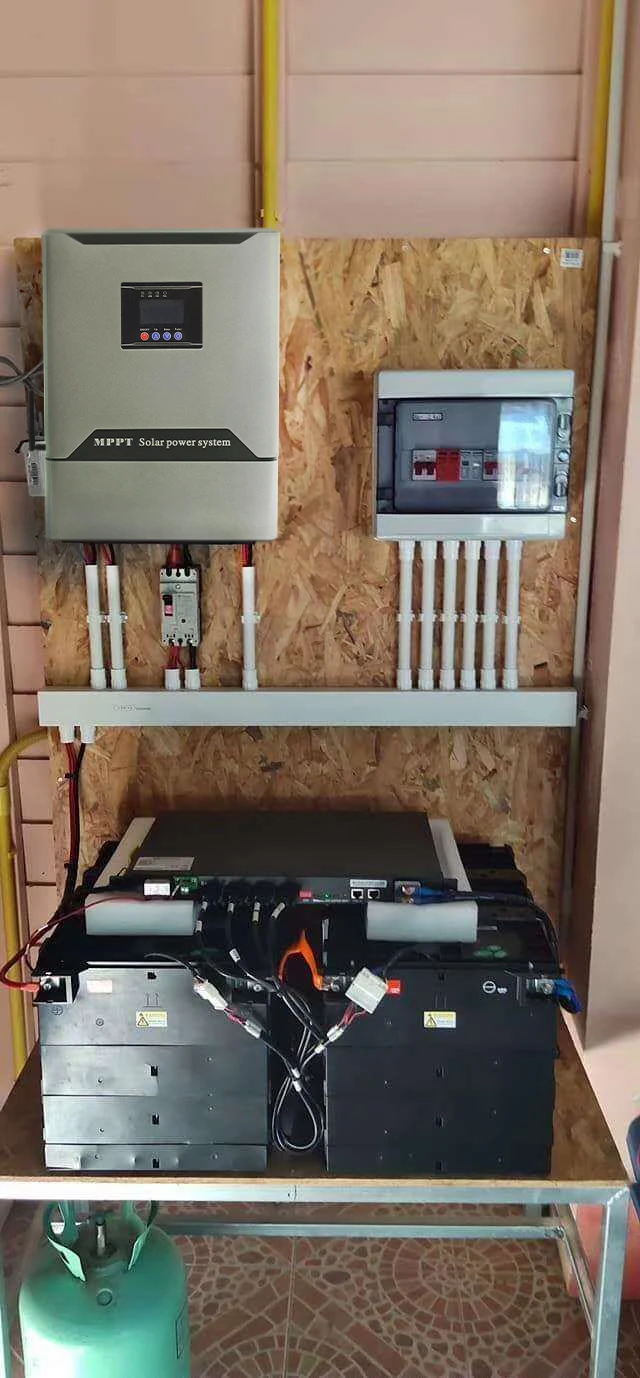

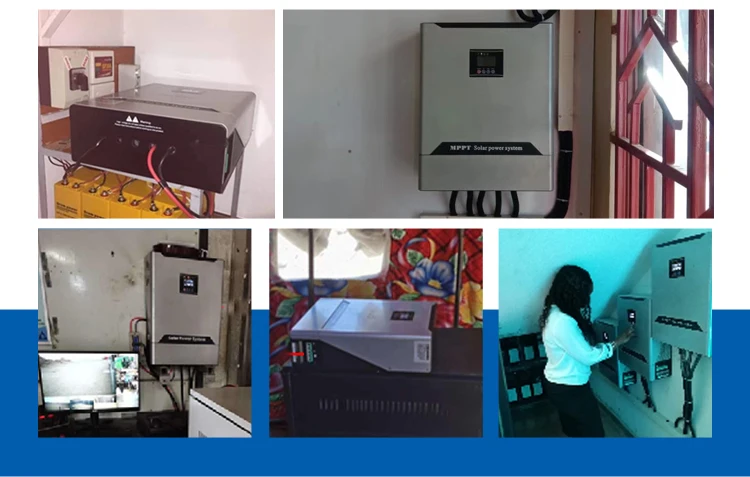

CUSTOMER REAL SHOT
Customer praise constantly

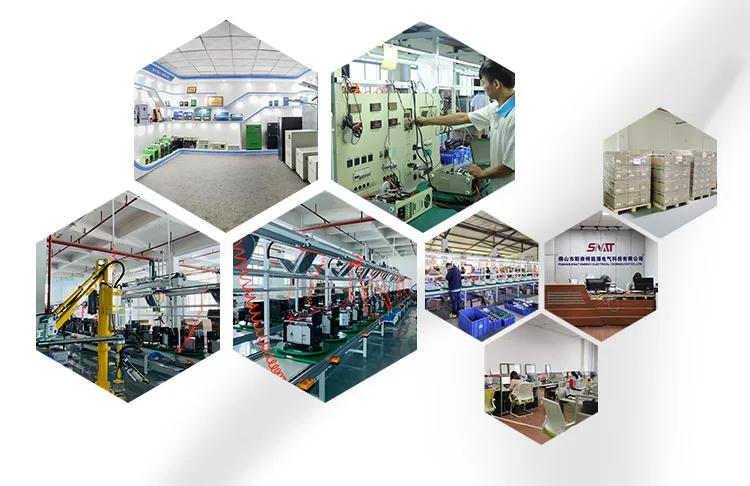

Company information
