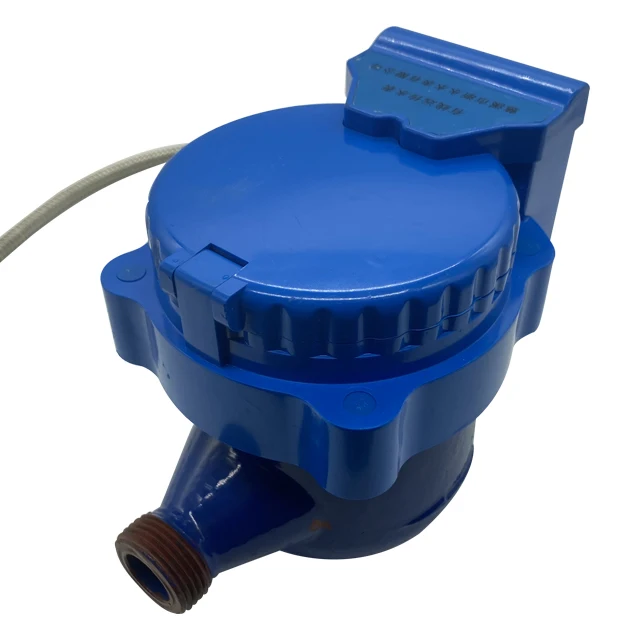

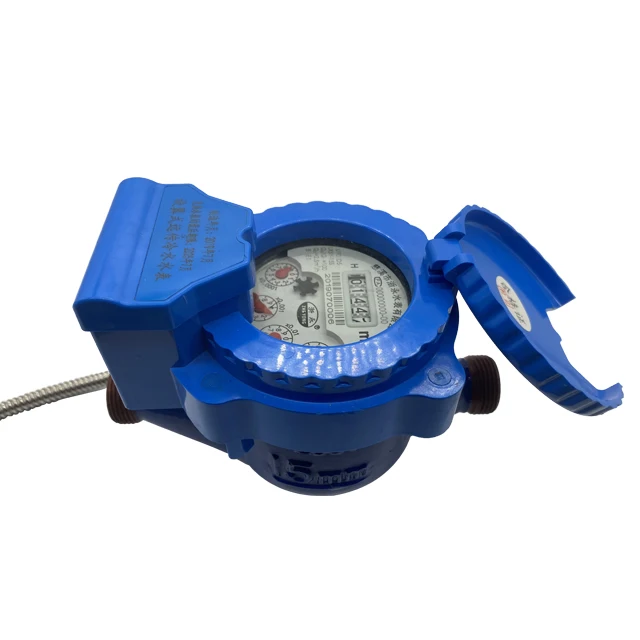

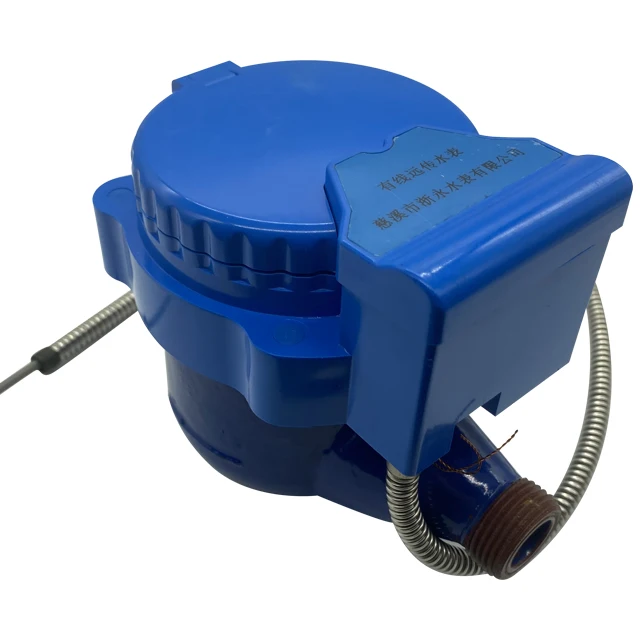

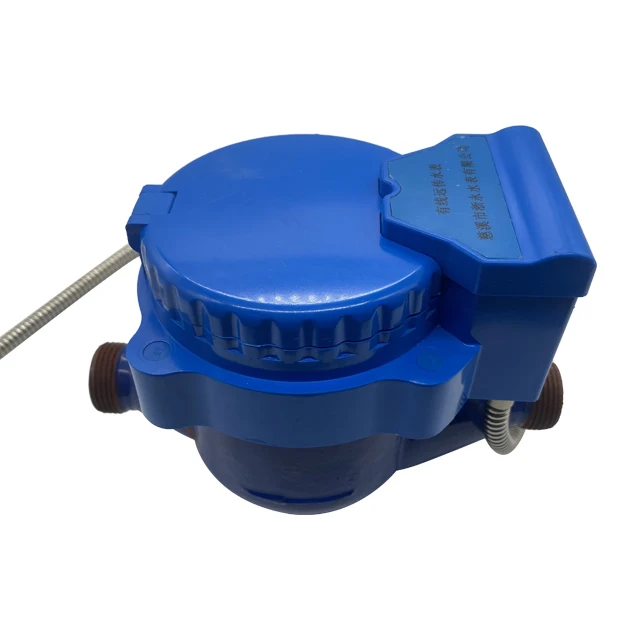

Digitize Wired Remote Photoelectric Direct read RS485 Flow Flowmeter Well Level Smart Prepaid Water Meters With Software
- Category: Water Meters >>>
- Supplier: Cixi Zheyong Water Meter Co. Ltd.
Share on (1600436125581):
Product Overview
Description
Home
Products Description
DESCRIPTION
The magnetic needle pulse of the water meter is collected by the reluctance sensor and converted into the water consumption of the water meter, which is transmitted to the collector through the wired network(M-BUS or RS485). The collector is transmitted to the management background through GPRS to realize the measurement and remote transmission of water consumption information.
WORKING CONDITION
Cold Water temperature:≤30°C
Hot Water temperature:≤90°C
Working pressure:≤10 Bar
The magnetic needle pulse of the water meter is collected by the reluctance sensor and converted into the water consumption of the water meter, which is transmitted to the collector through the wired network(M-BUS or RS485). The collector is transmitted to the management background through GPRS to realize the measurement and remote transmission of water consumption information.
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate(qs)WORKING CONDITION
Cold Water temperature:≤30°C
Hot Water temperature:≤90°C
Working pressure:≤10 Bar
MAIN TECHNICAL DATA
DN | Q3/Q1 | Q4 | Q3 | Q2 | Q1 | Min | Max | |||
mm | —— | m3/h | L/h | m3 | ||||||
15 | 80 | 3.125 | 2.5 | 50 | 31.25 | 0.0001 | 99999 | |||
100 | 40 | 25 | ||||||||
20 | 80 | 5 | 4 | 80 | 50 | |||||
100 | 64 | 40 | ||||||||
25 | 80 | 7.785 | 6.3 | 126 | 78.75 | |||||
100 | 100.8 | 63 | ||||||||
DIMENSIONS AND WEIGHT
DN | L | B | H | D | |||||
mm | |||||||||
15 | 165 | 89 | 140 | R1/2 | G3/4 | ||||
20 | 195 | 91 | 140 | R3/4 | G1 | ||||
25 | 225 | 91 | 140 | R1 | G1 1/4 | ||||

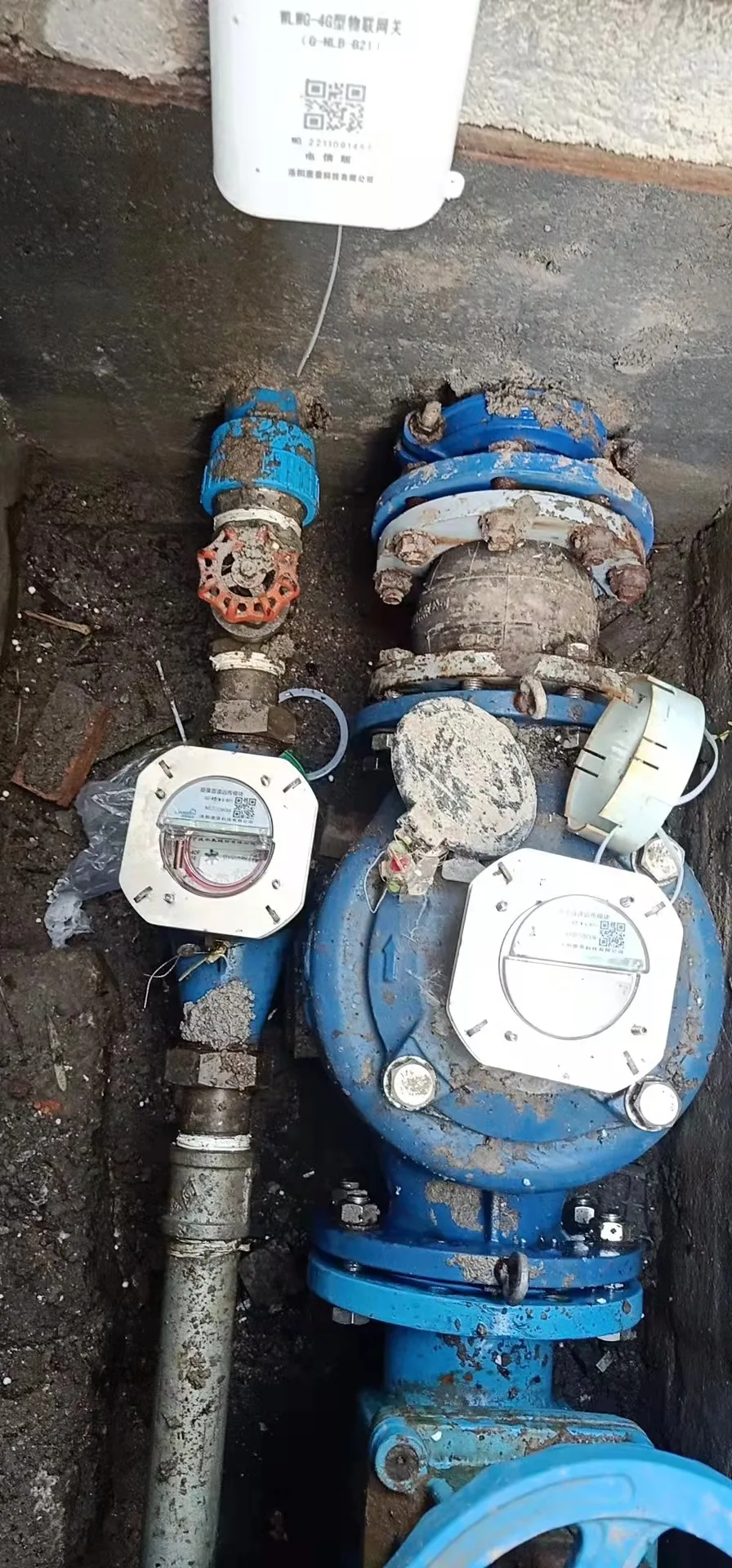

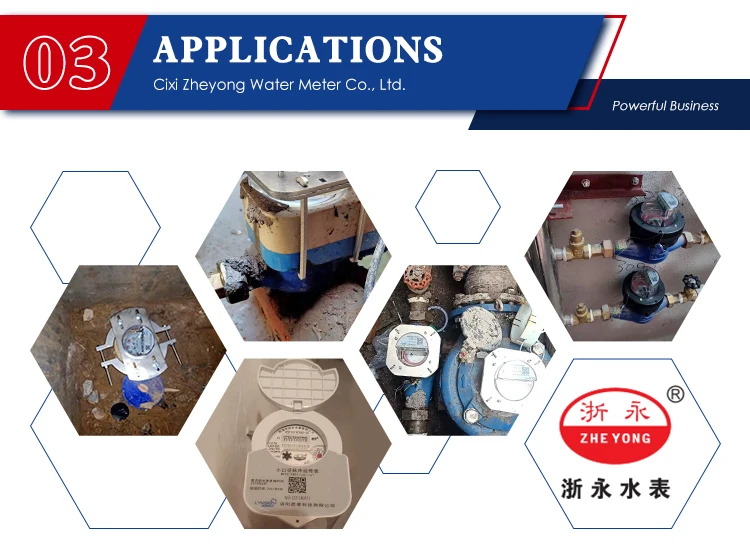

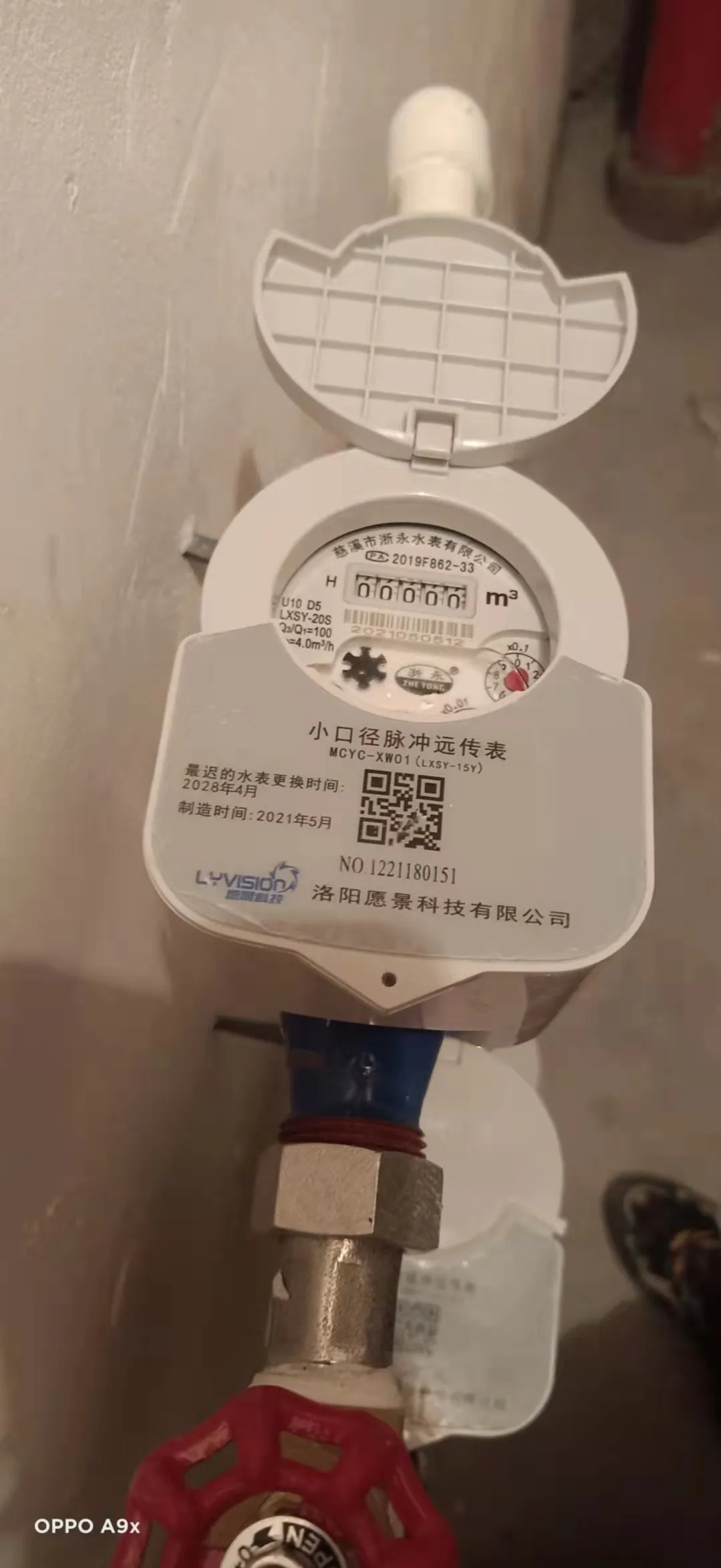

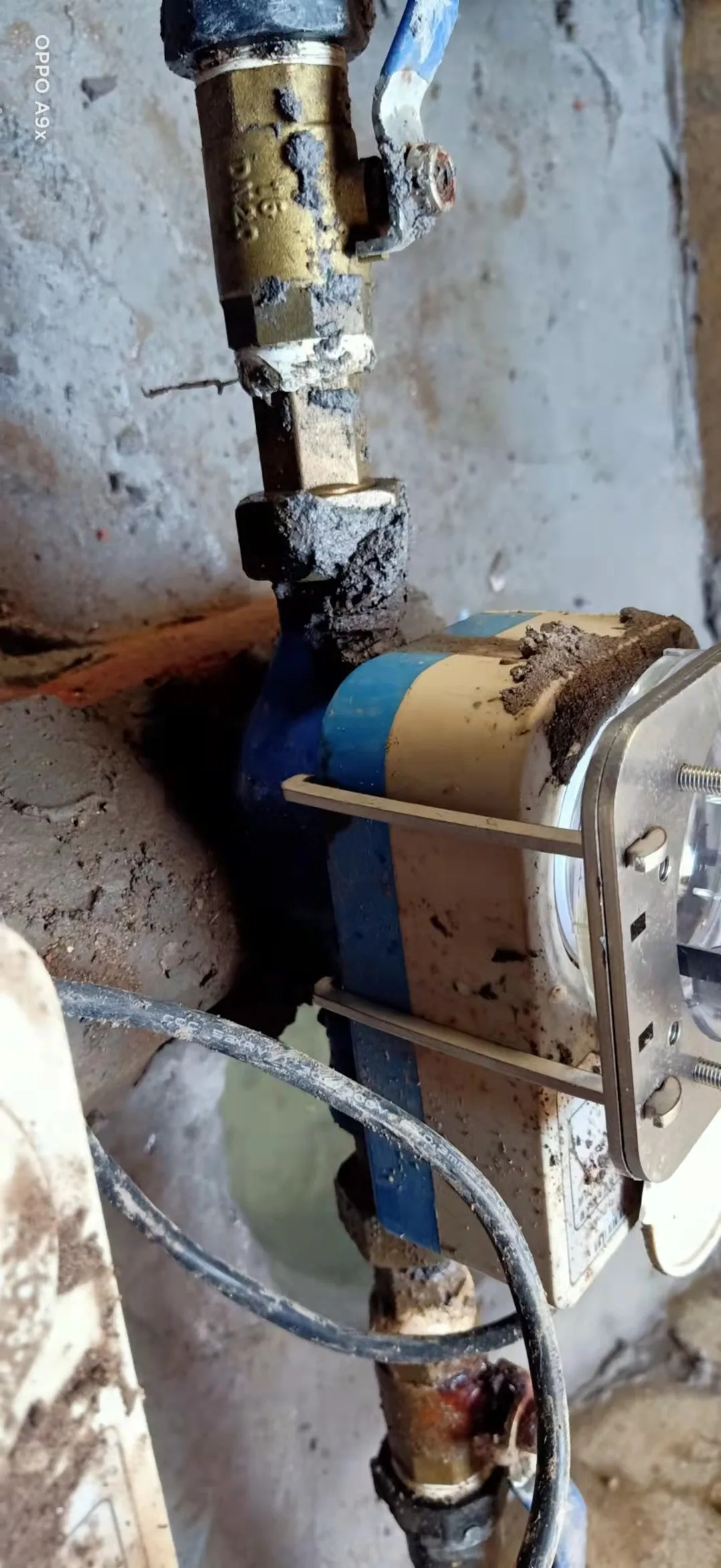

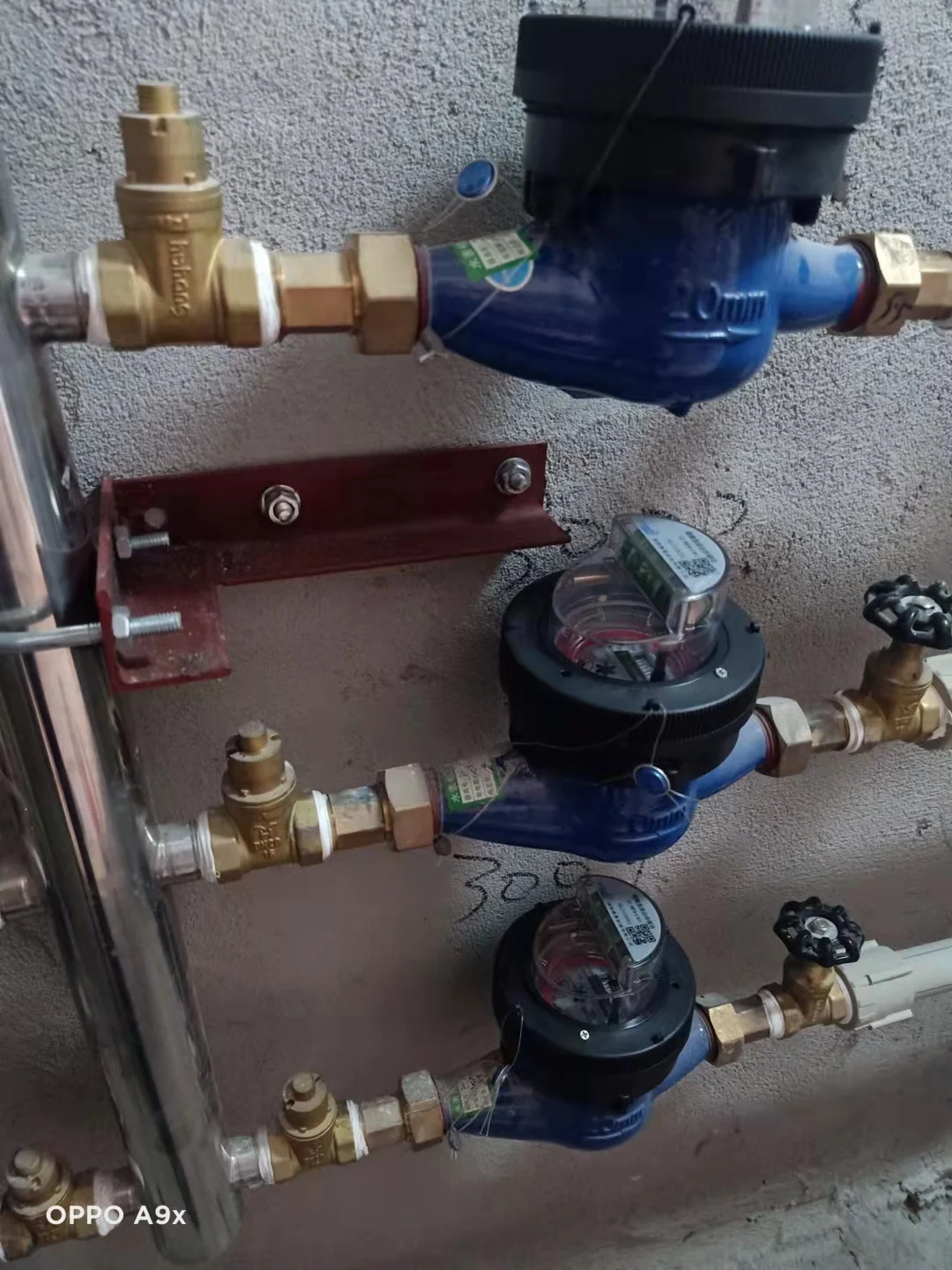

Installation site
Our Advantages
Company Profile
Certifications
Packing & Shipping
FAQ
1.Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.
2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.
6. Which price terms could accepted?
A: FOB.
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.
2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.
6. Which price terms could accepted?
A: FOB.
