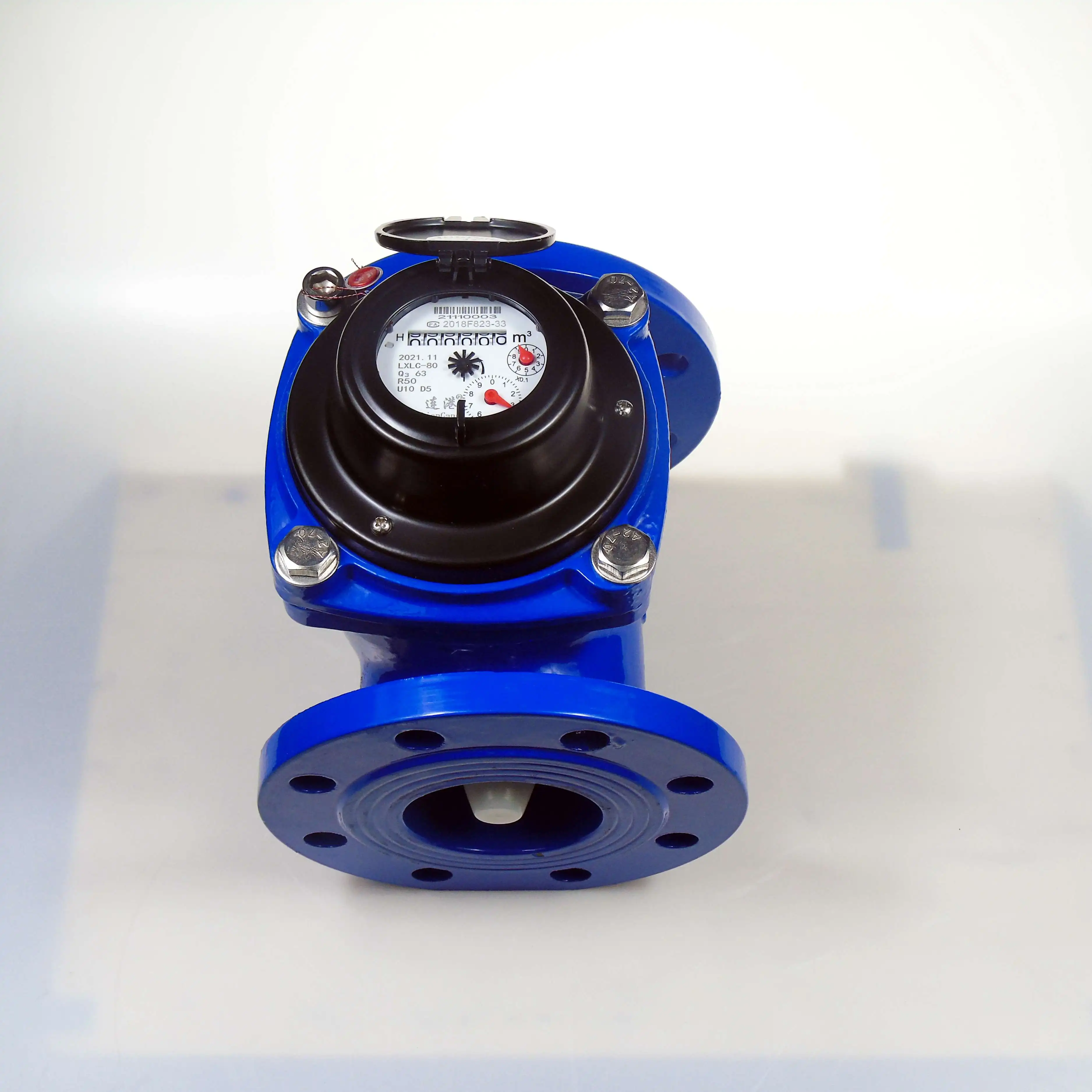

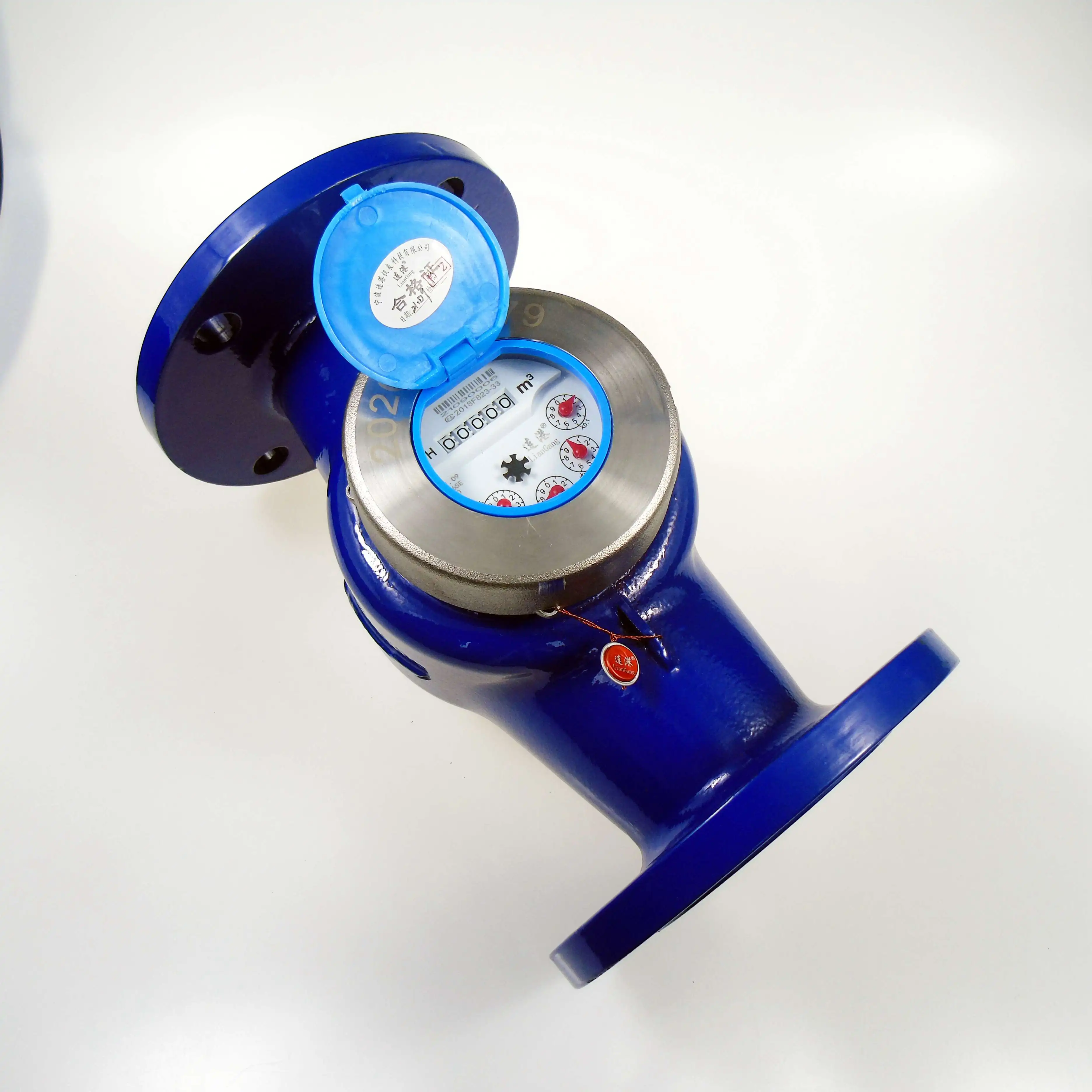

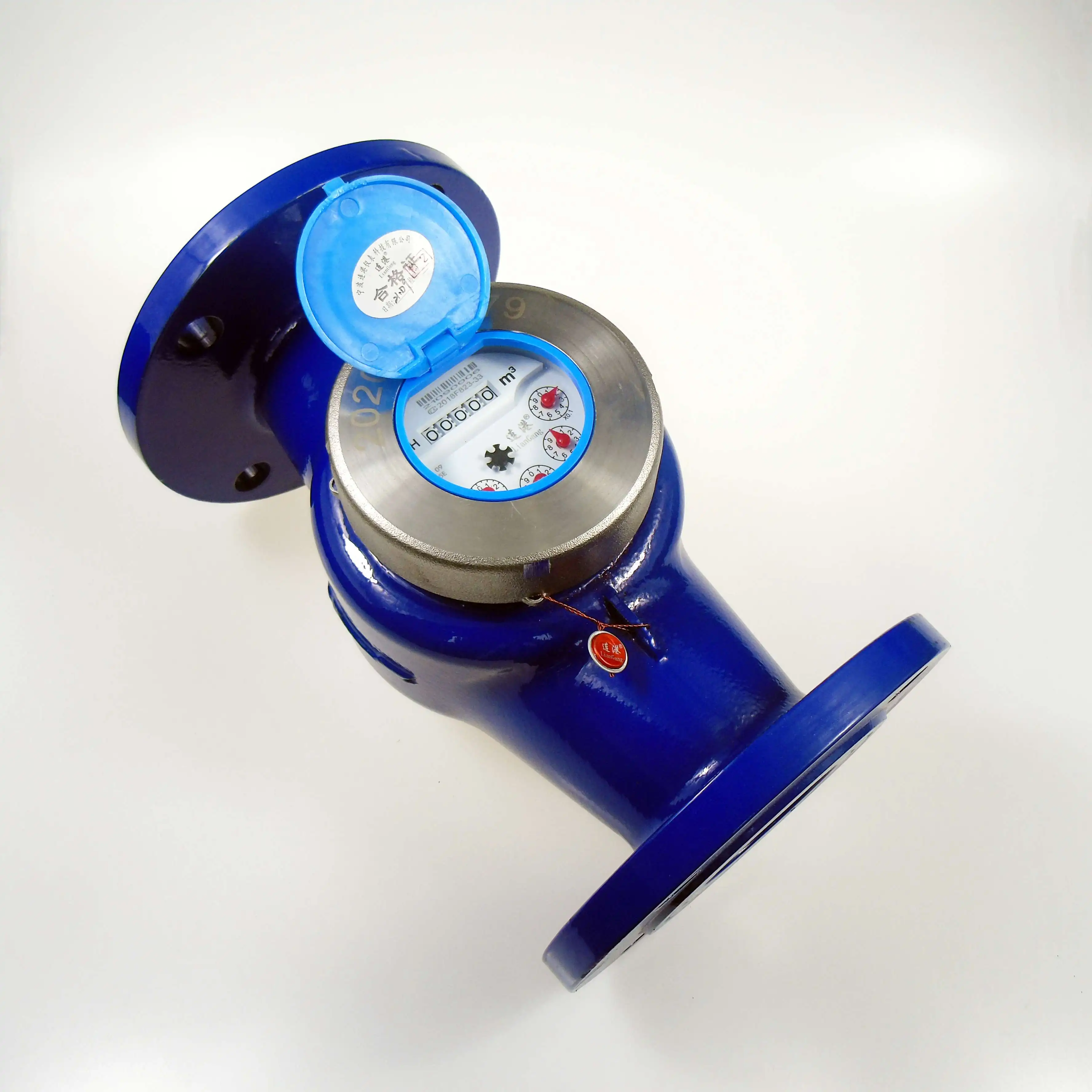

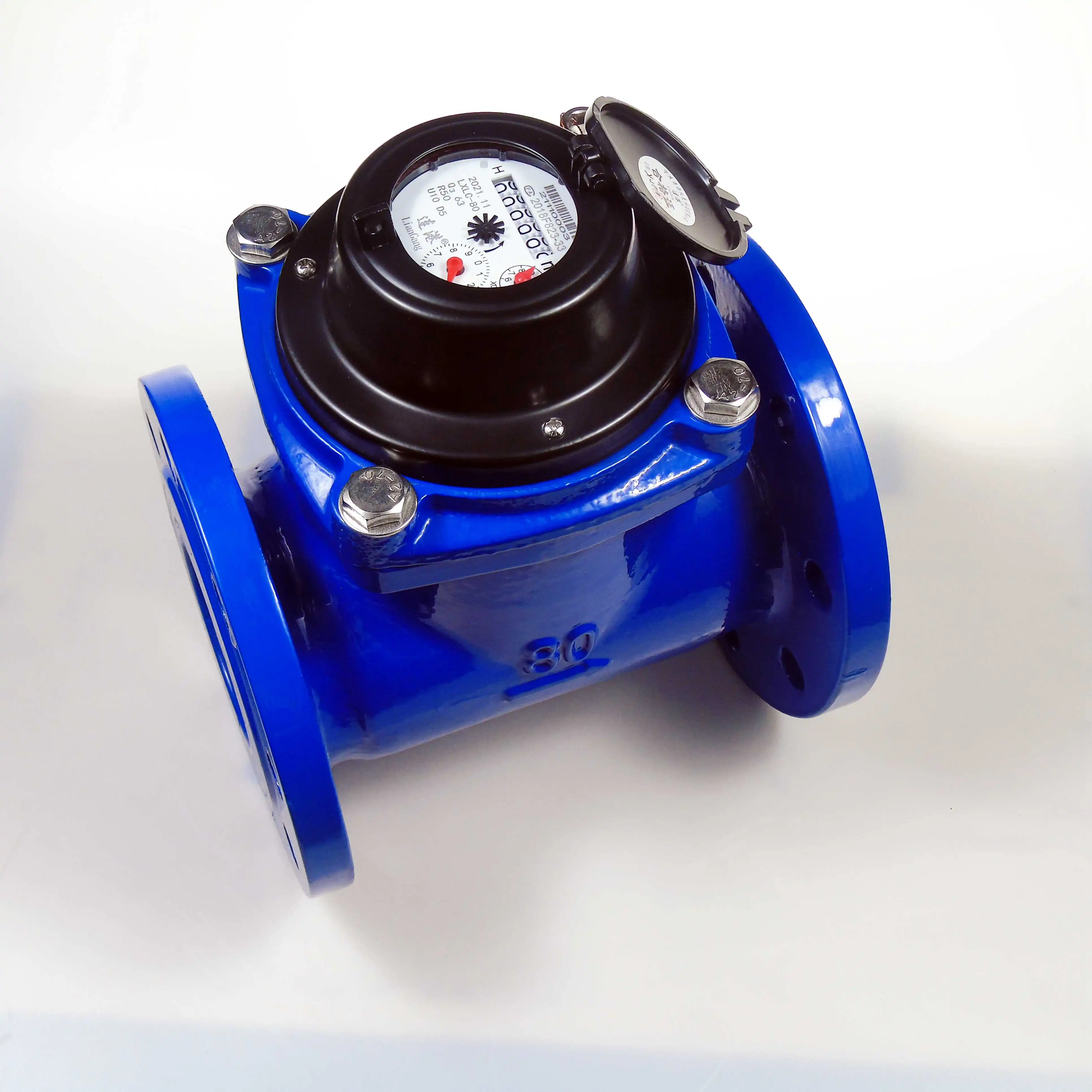

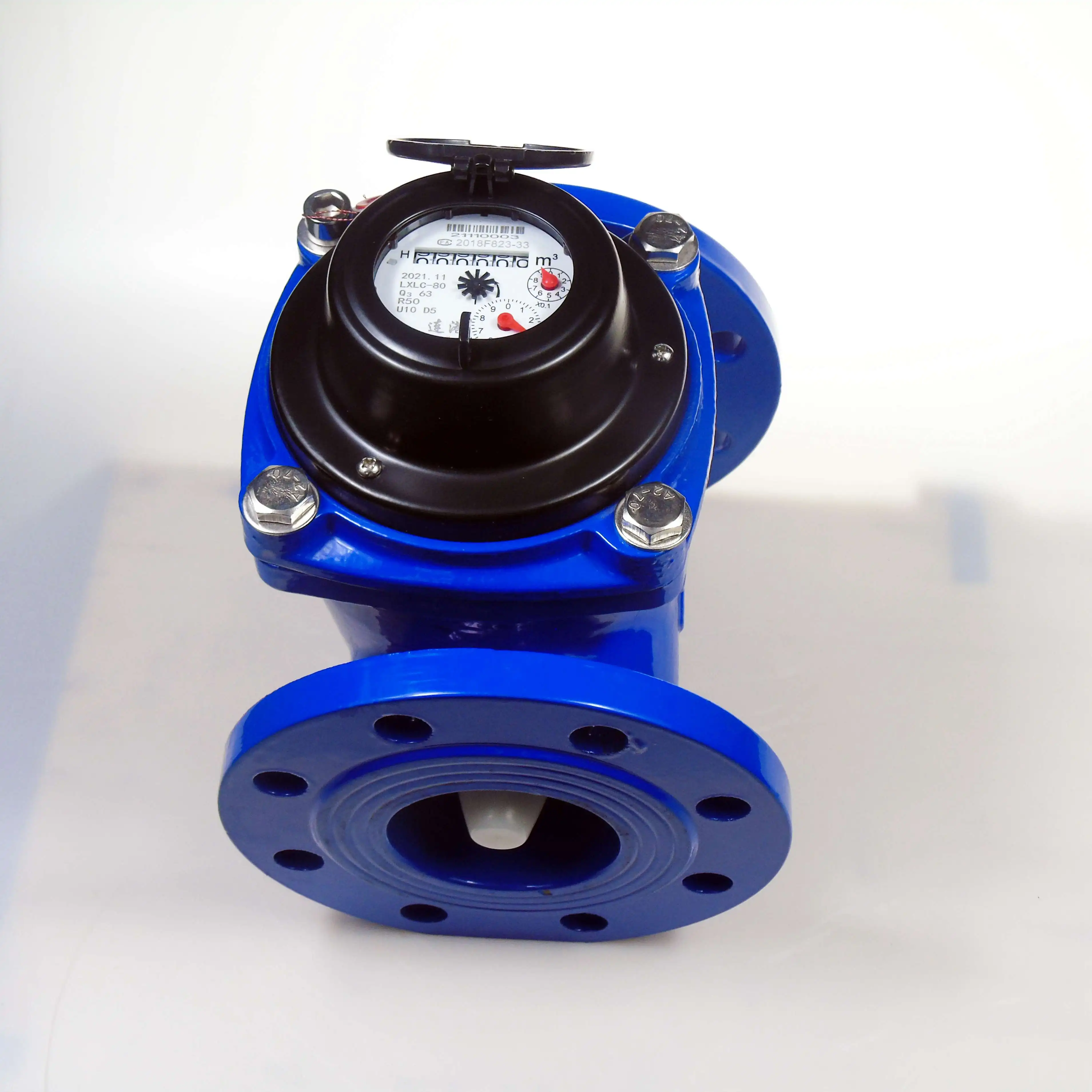

Agricultural China Manufacturer Bulk Woltman 3 Inch Water Meter
- Category: >>>
- Supplier: Cixi Zheyong Water Meter Co. Ltd.
Share on (1600436132552):
Product Overview
Description
Home
Products Description
DESCRIPTION
This range of water meter is used to measure the total quantity of cold water which consumed in industrial enterprise & mining,passing through the pipeline.
FEATURE
1.Dry-dial,Magnetic drive
2.Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
3.Selected high quality materials for steady & reliable characteristic
4.Measuring accuracy conform to ISO 4064 class B Standard
5.Low head loss
6.Register for universal use within this range detachable without removing the meter from the pipeline for a easy maintenance and replacement
7.Material: Cast iron
WORKING CONDITION
Water temperature of cold water meter:≤30℃
Water temperature of hot water meter: ≤90℃
Working pressure:≤10 Bar
This range of water meter is used to measure the total quantity of cold water which consumed in industrial enterprise & mining,passing through the pipeline.
FEATURE
1.Dry-dial,Magnetic drive
2.Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
3.Selected high quality materials for steady & reliable characteristic
4.Measuring accuracy conform to ISO 4064 class B Standard
5.Low head loss
6.Register for universal use within this range detachable without removing the meter from the pipeline for a easy maintenance and replacement
7.Material: Cast iron
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs) exclusive boundaryWORKING CONDITION
Water temperature of cold water meter:≤30℃
Water temperature of hot water meter: ≤90℃
Working pressure:≤10 Bar
MAIN TECHNICAL DATA
Meter size | Measuring | Overload flow | Nominal flow | Transitional flow | Min flow | Starting flow | Min reading | Max reading | ||||
(mm) | class | m3/h | 1/h | m3 | ||||||||
50 | B | 30 | 15 | 3 | 0.45 | 150 | 0.01 | 9999999 | ||||
65 | B | 50 | 25 | 5 | 0.75 | 170 | 0.01 | 9999999 | ||||
80 | B | 80 | 40 | 8 | 1.2 | 280 | 0.01 | 9999999 | ||||
100 | B | 120 | 60 | 12 | 1.8 | 400 | 0.01 | 9999999 | ||||
125 | B | 200 | 100 | 20 | 3 | 800 | 0.01 | 9999999 | ||||
150 | B | 300 | 150 | 30 | 4.5 | 1200 | 0.01 | 9999999 | ||||
200 | B | 500 | 250 | 50 | 7.5 | 2250 | 0.01 | 9999999 | ||||
DIMENSIONS AND WEIGHT
Meter size | Length L | Width B | Height H | Connecting thread | Weight | ||||||
mm | |||||||||||
mm | D | Bolt circle dia D1 | ConnectingBolt dia | KG | |||||||
50 | 200 | 175 | 250 | 165 | 125 | 4×M16 | 12 | ||||
65 | 200 | 185 | 255 | 185 | 145 | 4×M16 | 13 | ||||
80 | 225 | 200 | 265 | 200 | 160 | 8×M16 | 15 | ||||
100 | 250 | 220 | 275 | 220 | 180 | 8×M16 | 19 | ||||
125 | 250 | 245 | 285 | 245 | 210 | 8×M16 | 22 | ||||
150 | 300 | 285 | 375 | 285 | 240 | 8×M20 | 47 | ||||
200 | 350 | 345 | 400 | 340 | 295 | 8×M20 | 48 | ||||
