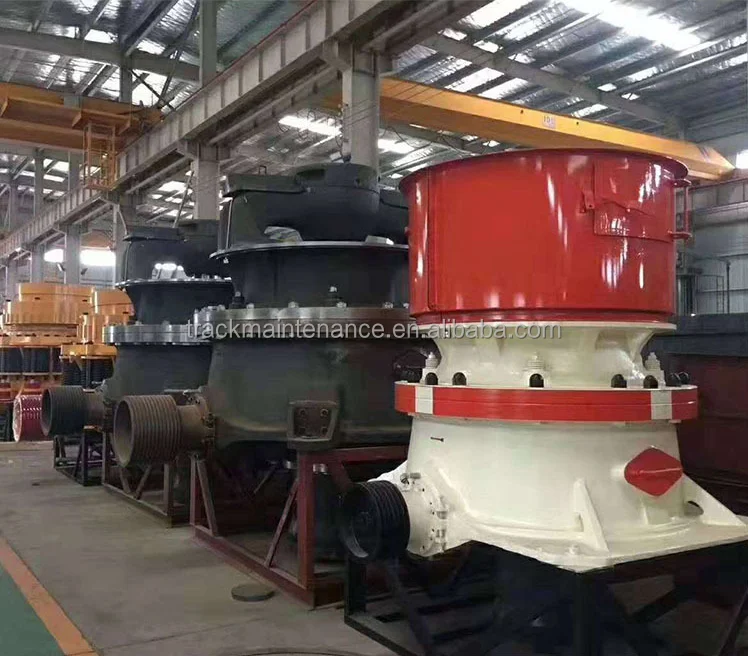

Allis Chalmers Hydraulique Cone Crusher China Compound Cone Crusher Symons For Granite/Basalt/Crushing Plant
- Category: >>>
- Supplier: Henan Qiangli Machinery Co. Ltd.
Share on (1600436144973):
Product Overview
Description
Product Description

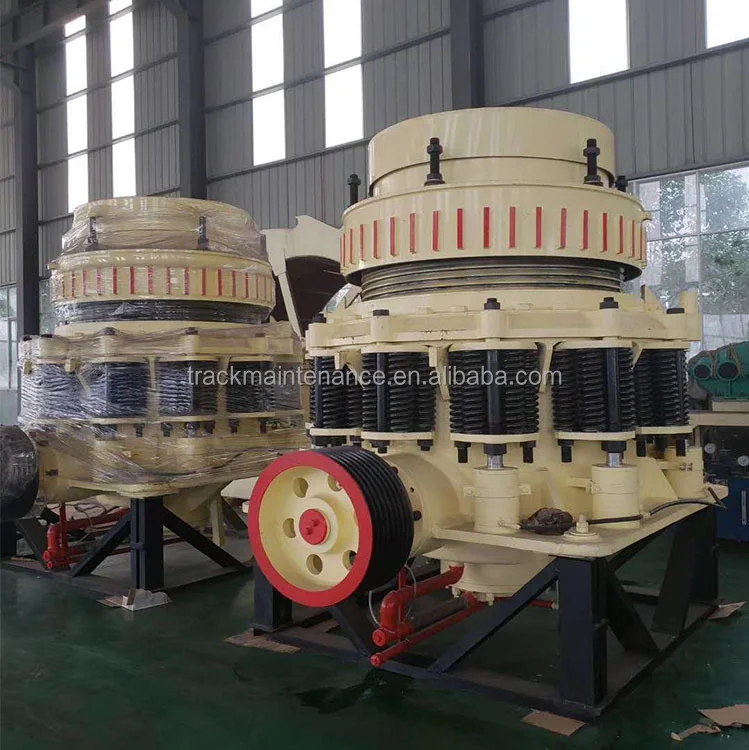

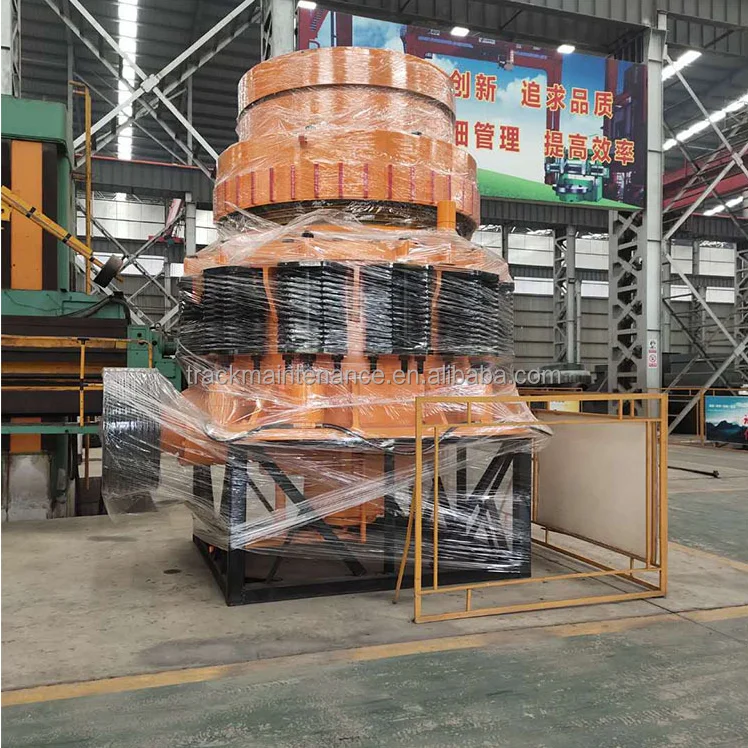

High efficiency cone crusher
It is suitable for crushing various ores and rocks with medium hardness or above. Cone crusher has the characteristics of reliable structure, high production efficiency, convenient adjustment and economic use.The spring safety system of cone crusher is an overload protection device, which can make metal foreign matters pass through the crushing chamber without endangering the machine. Two sealing forms of dry oil or water are adopted to isolate the stone powder from the lubricating oil and ensure reliable operation. The type of crushing chamber is determined by the use of ore, and the standard type is suitable for medium crushing; Medium, suitable for fine crushing; The short head type is suitable for ultra-fine crushing.

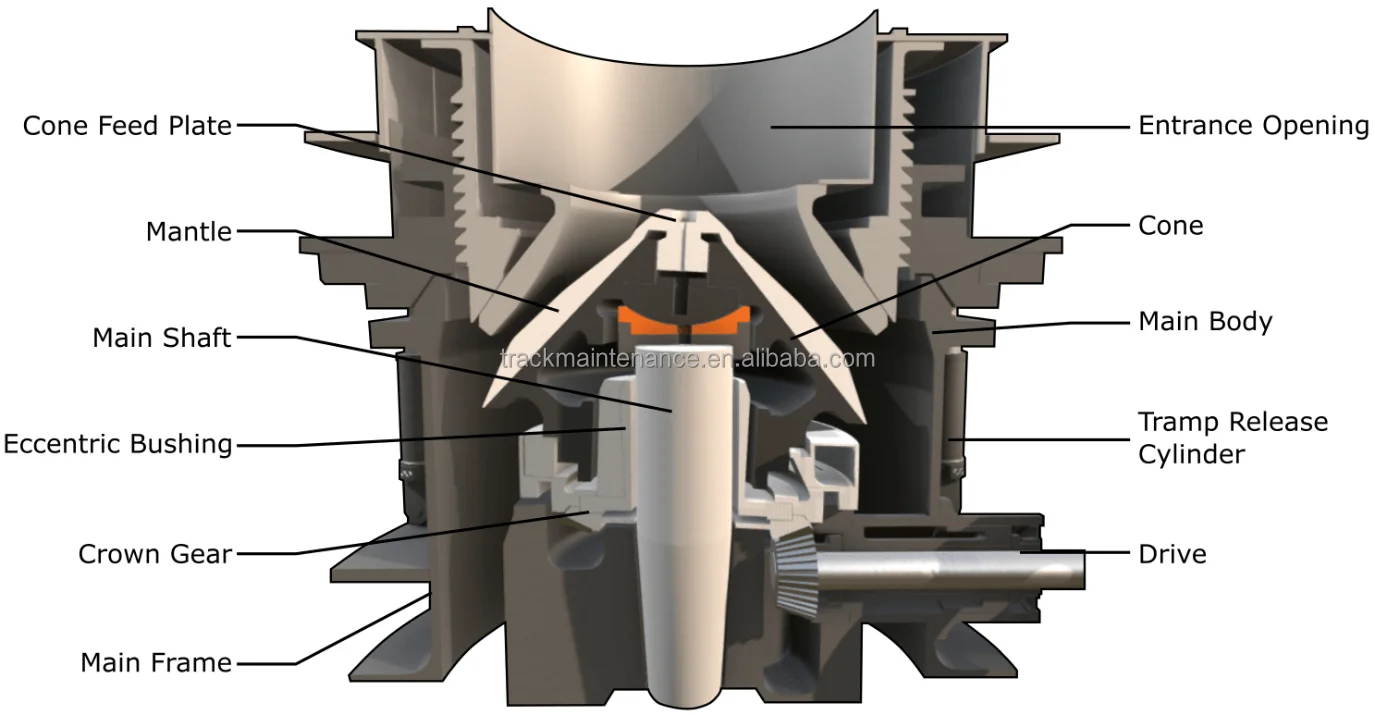

Working principle
The working part of the cone crusher is two truncated cones, one is the fixed cone 2 (also known as the outer cone) and the other is the moving cone 1 (also known as the inner cone), as shown in the figure. The fixed cone 2 is stationary and a part of the frame. The moving cone 1 is hinged at point O, and its lower end is movably inserted into the eccentric bushing. Therefore, the central axis OO 'of the fixed cone intersects with the central axis oo1 of the moving cone at an oblique angle. When oo1 rotates around OO ', the moving cone makes a partial rotation movement along the inner surface of the fixed cone. In the section where the moving cone approaches the fixed cone, the material is squeezed, impacted and bent by the moving cone to become a crushing chamber; Where the moving cone deviates from the fixed cone, the crushed materials are unloaded from the cone bottom under the action of self weight.
Our Advantages
1. Strong mobility: the length of the tire mobile crushing station is short. Different crushing equipment are installed on independent movable chassis, with short wheelbase and small turning radius. It can drive flexibly on ordinary roads and in the operation area.
2. Integrated complete unit: the installation form of integrated unit equipment eliminates the complex site infrastructure installation of split components and reduces the consumption of materials and man hours. The reasonable and compact space layout of the unit improves the flexibility of site stationing.
3. Reduce material transportation cost: the mobile crushing station can process materials on site without moving them away from the site for reprocessing, which greatly reduces the transportation cost of materials.
4. Direct and effective operation function: the integrated series of mobile crushing stations can be used independently, or provide more flexible process configuration according to customers' requirements for material types and products in the process, so as to meet users' requirements for mobile crushing and mobile screening, so as to make the generation organization and logistics transfer more direct and effective, and greatly reduce the cost.
5. Flexible combination and strong adaptability: the tire mobile crushing station can form "crushing before screening" or "screening before crushing" process according to different crushing process requirements. The crushing station can be combined into two-stage crushing and screening system of coarse crushing and fine crushing according to actual needs, or three-stage crushing and screening system of coarse crushing, medium crushing and fine crushing, which can also operate independently, It has great flexibility.
2. Integrated complete unit: the installation form of integrated unit equipment eliminates the complex site infrastructure installation of split components and reduces the consumption of materials and man hours. The reasonable and compact space layout of the unit improves the flexibility of site stationing.
3. Reduce material transportation cost: the mobile crushing station can process materials on site without moving them away from the site for reprocessing, which greatly reduces the transportation cost of materials.
4. Direct and effective operation function: the integrated series of mobile crushing stations can be used independently, or provide more flexible process configuration according to customers' requirements for material types and products in the process, so as to meet users' requirements for mobile crushing and mobile screening, so as to make the generation organization and logistics transfer more direct and effective, and greatly reduce the cost.
5. Flexible combination and strong adaptability: the tire mobile crushing station can form "crushing before screening" or "screening before crushing" process according to different crushing process requirements. The crushing station can be combined into two-stage crushing and screening system of coarse crushing and fine crushing according to actual needs, or three-stage crushing and screening system of coarse crushing, medium crushing and fine crushing, which can also operate independently, It has great flexibility.
Specification
Model | Cavity Type | Max.Feed Size（mm） | Adjusting Range of Output（mm） | Capacity（t/h） | PC1200*1000 |
PSGB0910 | Standard Fine | 85 | 9-22 | 45-91 | 1200 |
PAGB0917 | Standard Coarse | 150 | 13-38 | 59-163 | 1000 |
PSGD0907 | Short Head Coarse | 70 | 6-19 | 59-129 | 650 |
PSGB1313 | Standard Fine | 115 | 13-31 | 109-181 | <400 |
PSGB1324 | Standard Coarse | 205 | 19-51 | 172-349 | 5-25 |
PSGB1308 | Short Head Medium | 76 | 6-19 | 82-163 | 100-200 |
PSGB1620 | Standard Fine | 178 | 16-38 | 181-327 | 110-132 |
PSGB1626 | Standard Coarse | 228 | 25-64 | 299-635 | 18 |
PSGB1608 | Short Head Medium | 76 | 6-19 | 136-281 | 1900*2025*2155 |
When the cone crusher works, the motor rotates through the belt pulley or coupling, the transmission shaft of the cone crusher and the cone part of the cone crusher to swing around a fixed point under the force of the eccentric sleeve. Thus, the crushing wall of the crushing cone sometimes approaches and sometimes leaves the surface of the rolling mortar wall fixed on the adjusting sleeve, so that the ore is continuously impacted, extruded and bent in the crushing cavity to realize the crushing of the ore. The motor drives the eccentric sleeve to rotate through the bevel gear to make the crushing cone swing. The crushing cone sometimes approaches and sometimes leaves the fixed cone to complete crushing and discharging. The connection between the support sleeve and the frame body is pressed by the spring. When the crusher falls into non breakable objects such as metal blocks, the spring will produce compression deformation and discharge foreign matters, so as to realize insurance and prevent the machine from damage.

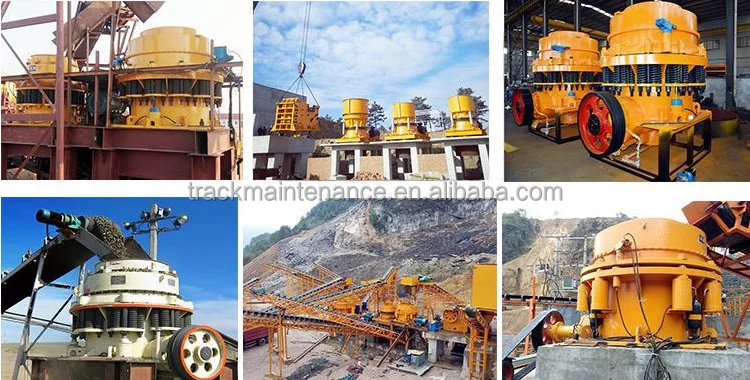

Application
Mainly used in cement, chemical, electric power, metallurgy and other industrial sectors broken medium hardness materials. Suitable for crushing limestone, coal gangue, gypsum, shale and other kinds of medium and hard brittle materials with compressive strength up to 180MPa Coarse, medium and fine operation.
Product Process

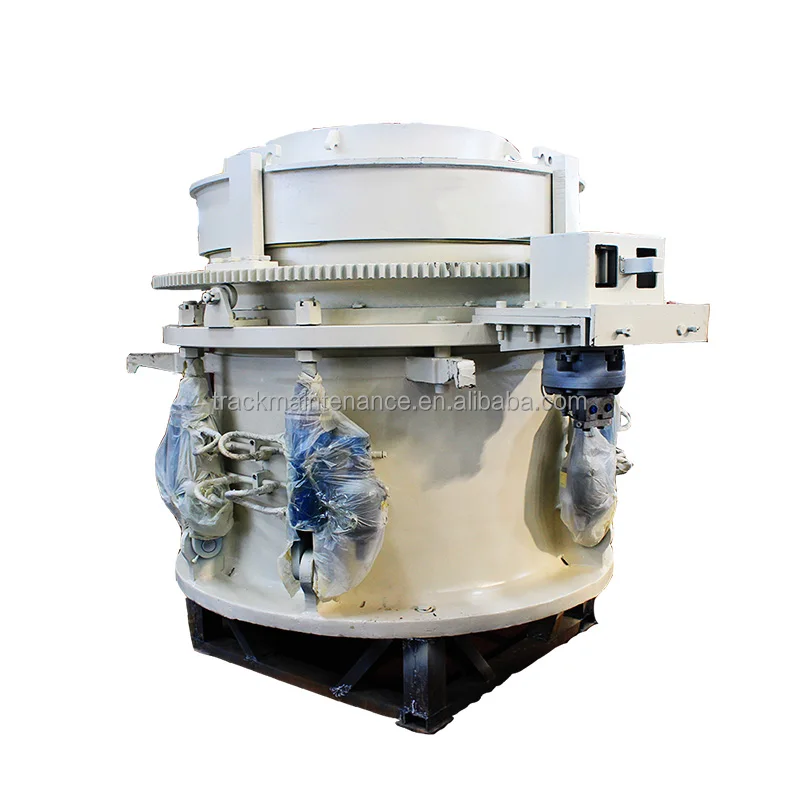

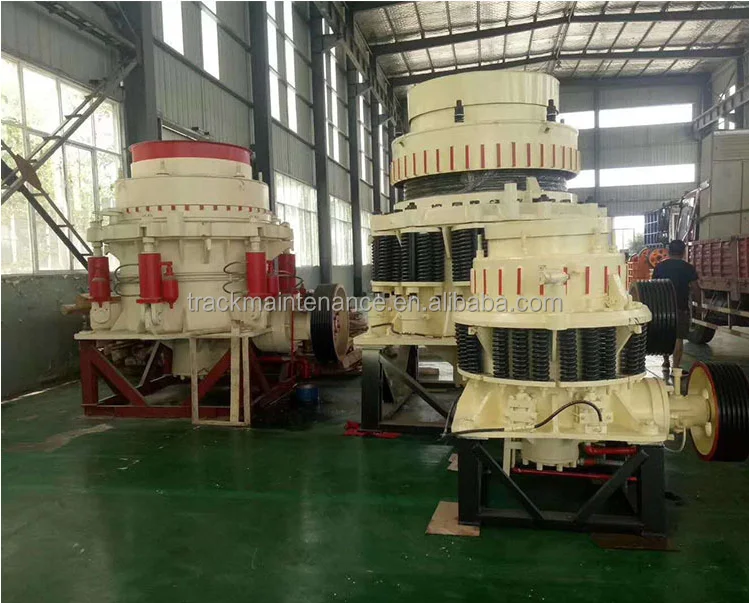

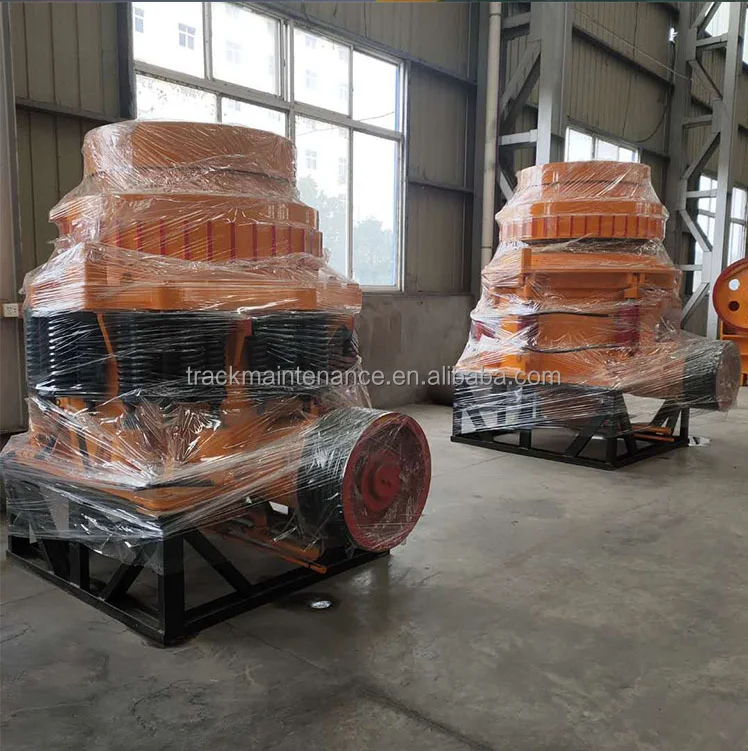

Details Images
Company Profile
FAQ
Question 1: What’s the delivery time after I pay the deposit ?
Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.
Question 2: Is mineral samples analysis available?
Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.
Question 3: Do you have client in my country?
Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan, Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc
Question 4: How long of your machine quality guarantee terms ?
Answer: Quality guarantee time is one year(wearing parts excluded).
