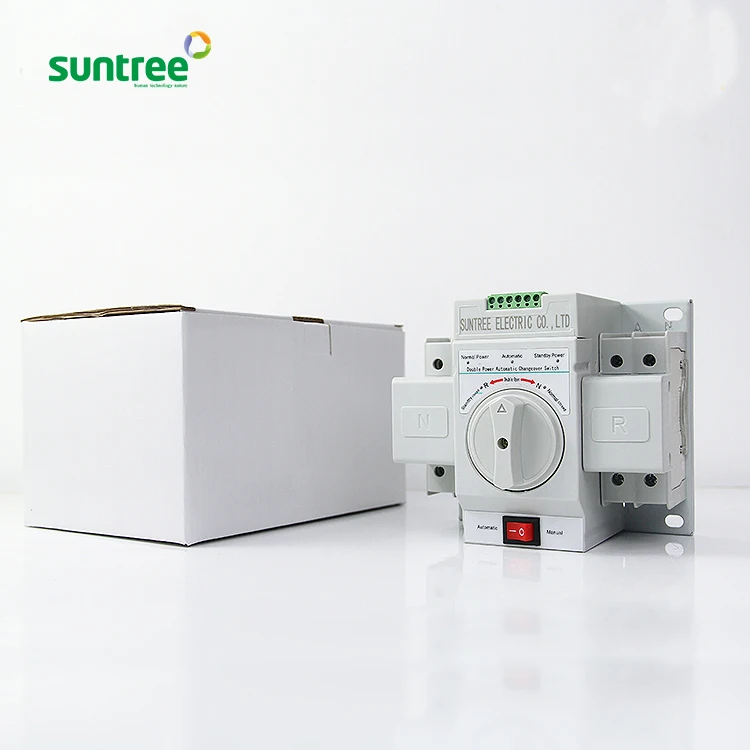

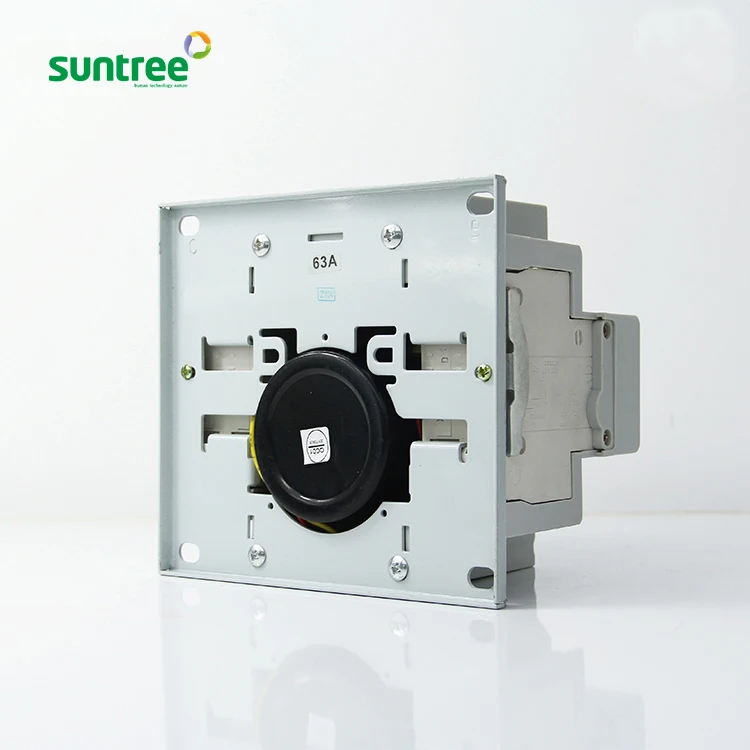

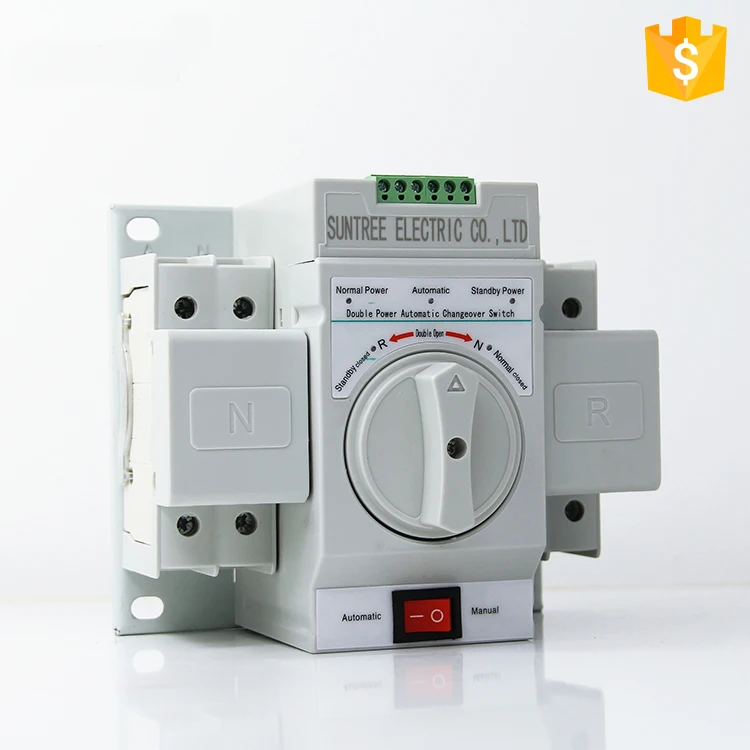

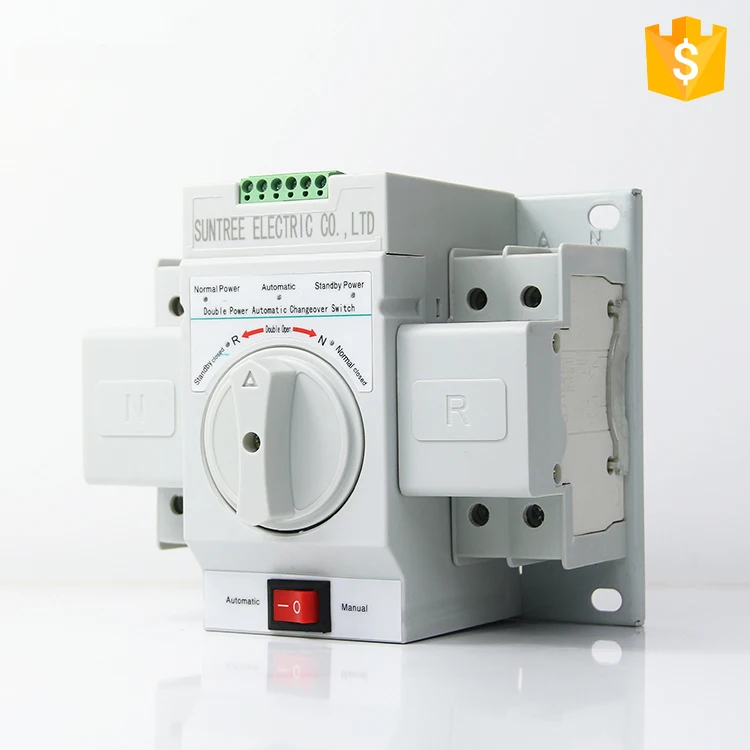

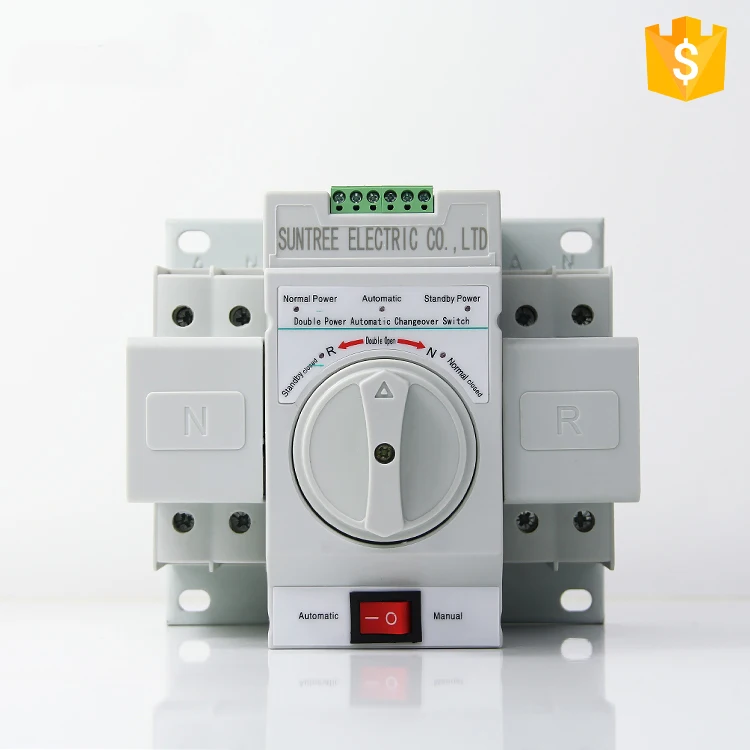

Factory Price ATS Automatic Change Over Switch 100A Automatic Transfer Switch ATS for Diesel Generator
- Category: Electrical Equipment & Supplies >>>
- Supplier: Wenzhou Xinchi International Trade Co. Ltd.
Share on (1600436167400):
Product Overview
Description
Products Description
SQ3W series automatic transfer switch is designed and developed by our company according to universal customers' requirements.
This switch uses DZ47(C45=CB2) miniature circuit breaker(improved type) as the actating element, is equipped with the new type control mechanism.
With the smallest volume among the similar products, it also has the functions like the fire control and power generation, and it is specially usded in the important power supply locations where the power failure is not allowed.
This switch uses DZ47(C45=CB2) miniature circuit breaker(improved type) as the actating element, is equipped with the new type control mechanism.
With the smallest volume among the similar products, it also has the functions like the fire control and power generation, and it is specially usded in the important power supply locations where the power failure is not allowed.
Product Paramenters
Product type | Automatic transfer switch |
Type | SQ3W |

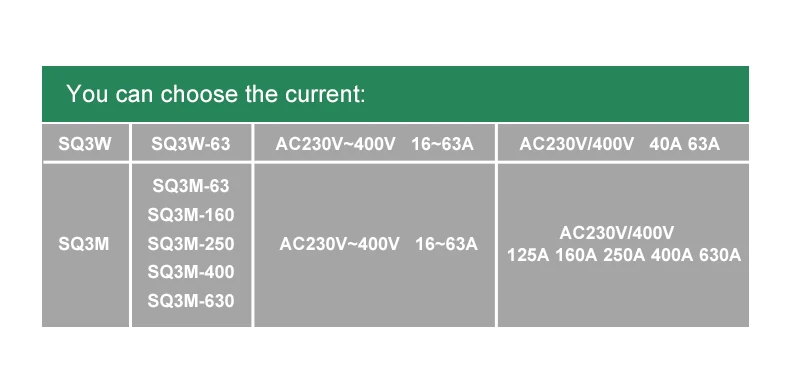

Specification current Ie(A) | 6/10/16/20/25/32/40/50/63 |
Rated operating voltage, Ue (V) | AC230V/AC400V |
Rated insulating voltage Ui (V) | AC 690V |
Rated impulse withstand voltage (KV) | 4KV |
Rated short circuit making capacity Icm | 6KA |
Rated short circuit breaking capacity Icn | 4.5KA |
Service life | 5000 times |
Electric equipment grade | CB Class |
Controller | Type A(basic type) |
Rated control supply voltage,Us(V) | 230V 50Hz |
Operating transfer time (no time delay) | ≤3s |
Product Details
Company Information
Wenzhou Xinchi International Trade Co., Ltd is a group company,There are four branch companies subordinate to it. Registered trademark is "suntree".
Main Products:DC-Fuse, Solar system parts,Solar Panel/Inverter/Cable/Connector, AC&DC Circuit Breakers, MCCB, ATS auto transfer switch, Isolator switch, Waterproof distribution box,DC combiner box, etc.
Quality &Standards:Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT, CCC etc.Main markets:Australia,New Zealand,&other worldwide markets.
Business strategies &Characristic:Stability, expertise and technological innovation are the corner stones of our company's business strategy.
We are trying to develop XinChi into a world-class Electrical manufactures
Main Products:DC-Fuse, Solar system parts,Solar Panel/Inverter/Cable/Connector, AC&DC Circuit Breakers, MCCB, ATS auto transfer switch, Isolator switch, Waterproof distribution box,DC combiner box, etc.
Quality &Standards:Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT, CCC etc.Main markets:Australia,New Zealand,&other worldwide markets.
Business strategies &Characristic:Stability, expertise and technological innovation are the corner stones of our company's business strategy.
We are trying to develop XinChi into a world-class Electrical manufactures
FAQ
Q:When I can receive quotation and detail information after send the enquiry?
A: Reply will be sent in 24hours.
Q:What's the difference between you and other suppliers?
A: We have our own design box with PC/ABS material.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:Can I get a sample for test before place order?
A:Of course!
Q:How's the delivery?Because I really need them is urgently?
A: Samples cost 5-7 days. Bulk order cost 12-15 days.
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C, Trade Assurance.
A: Reply will be sent in 24hours.
Q:What's the difference between you and other suppliers?
A: We have our own design box with PC/ABS material.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:Can I get a sample for test before place order?
A:Of course!
Q:How's the delivery?Because I really need them is urgently?
A: Samples cost 5-7 days. Bulk order cost 12-15 days.
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C, Trade Assurance.
