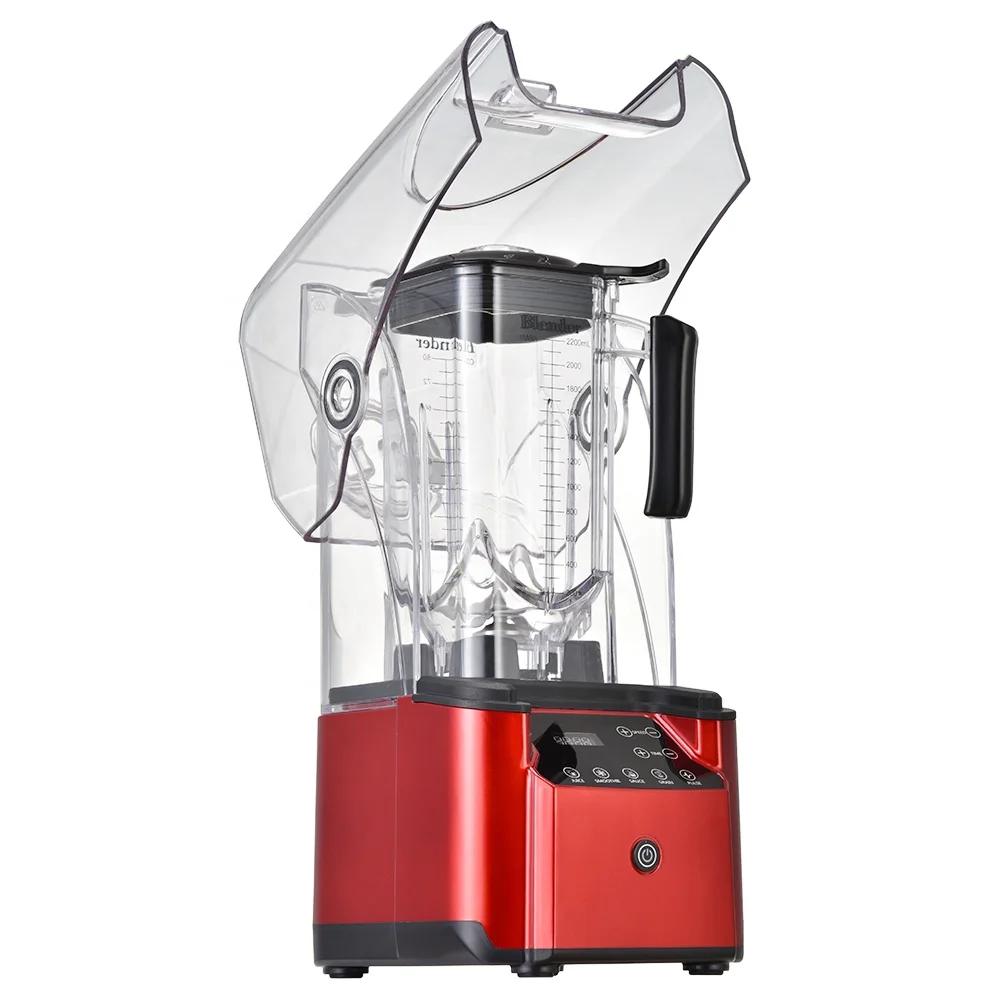

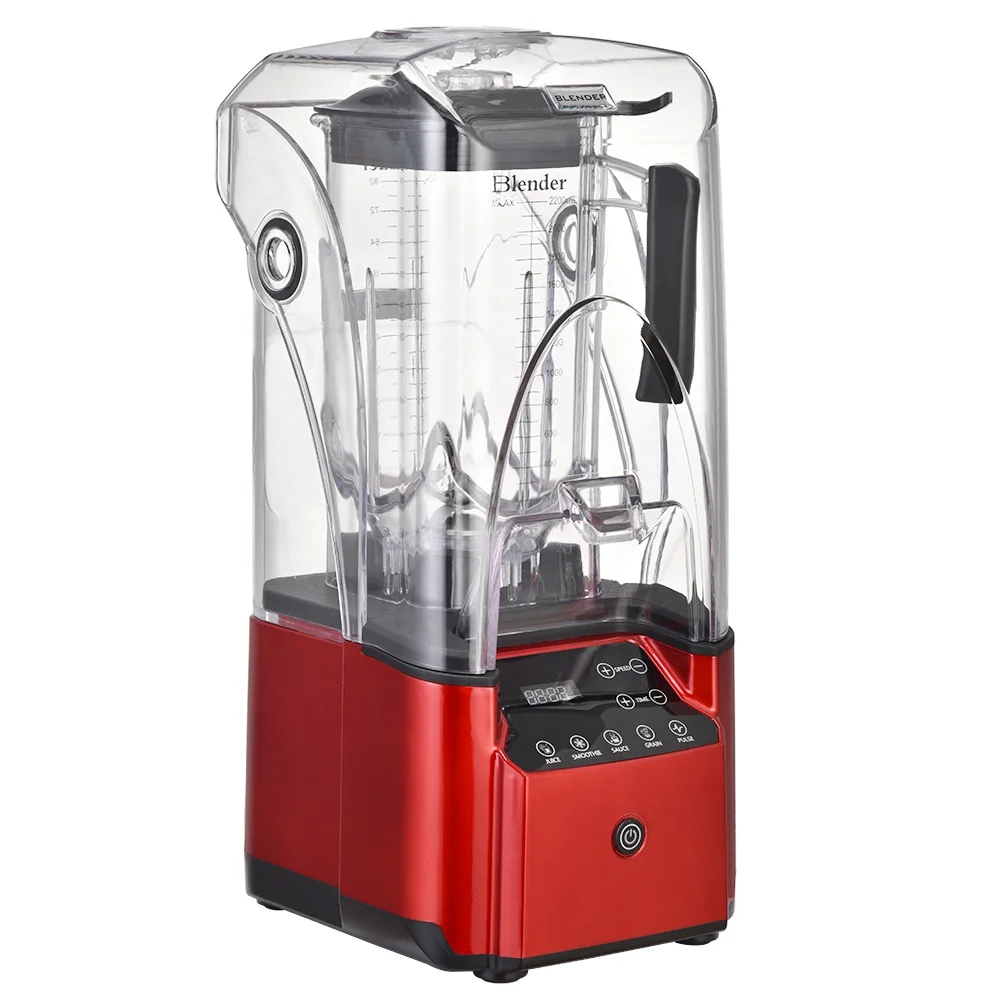

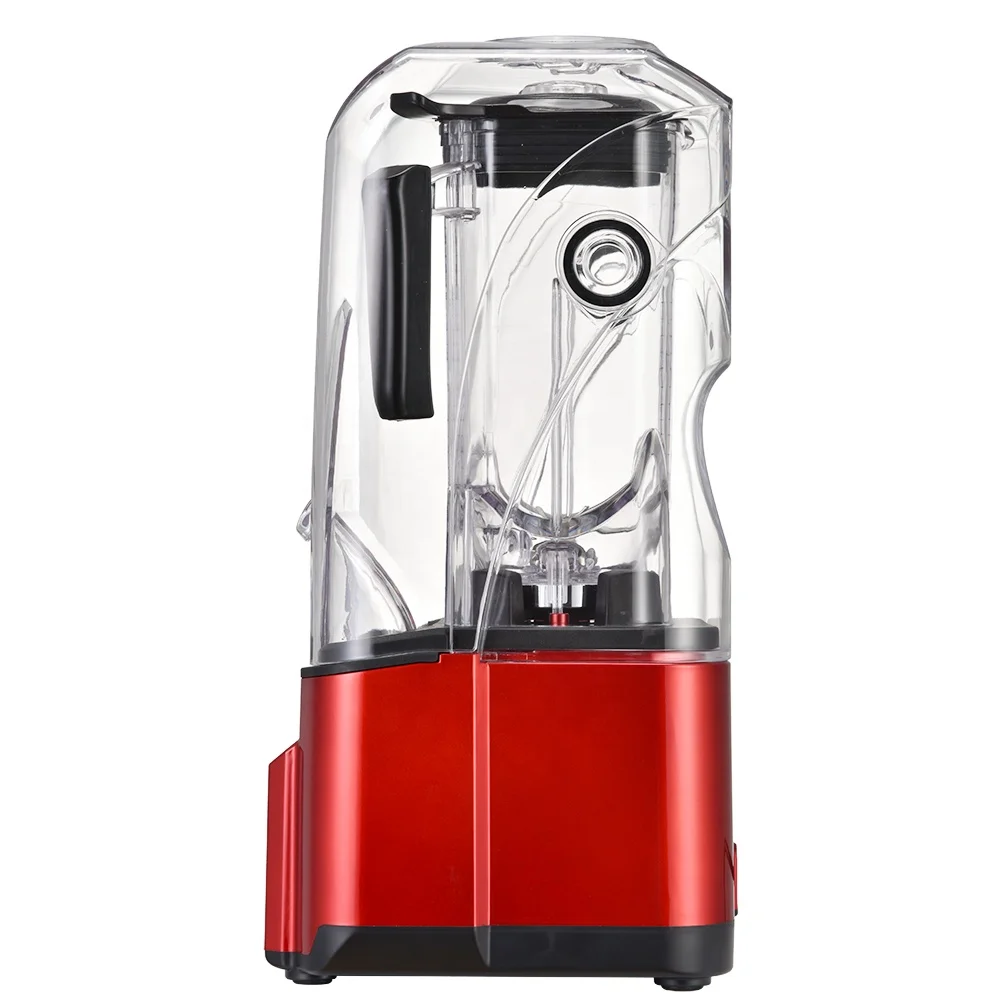

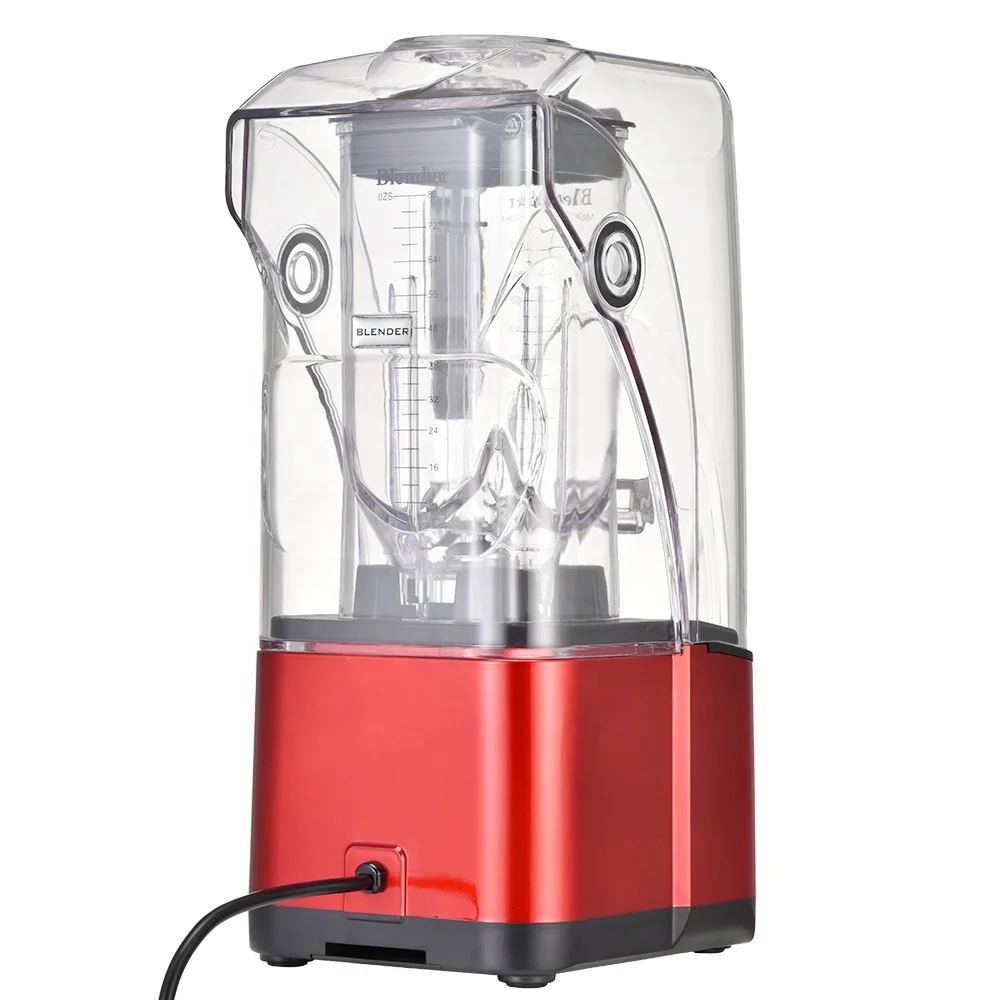

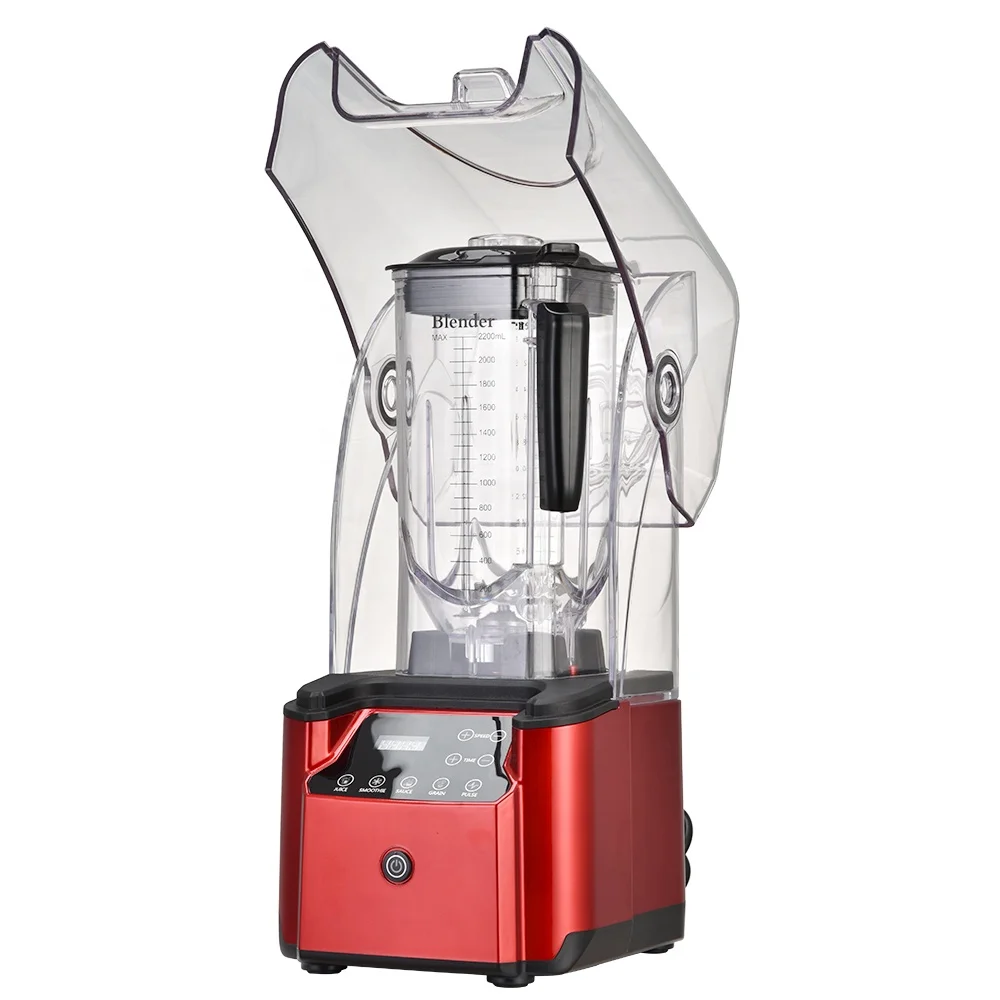

Ideagree 1.5L Commercial Silent Sound Proof Cover Enclosure Blender With Sound Cover
- Category: >>>
- Supplier: Zhongshan Ideamay Electrical Appliance Co. Ltd.
Share on (1600436204362):
Product Overview
Description
How to get last price?
Please offer following information to us:
1. Which model you need?
2. Requirements of parameter, such as motor model,
3. Usage scenarios, such as for commercial or home.
4. Share your purchasing plan, such as trial order and bulk order quantity.
5. Which country will import to.
6. Requirements of certification.
Product Paramenters
Model: | IDM-9106 |
MOQ: | OEM color gift box(500pcs); OEM sticker(200pcs); No OEM free MOQ |
Motor Lock Power: | MAX 2500W |
Motor Model: | #9840 (Optional #9845-1800w /9545-2000w /9535-1500w) |
Motor Material: | 100% pure copper ( Rotor and stator are pure copper, Third party testing ) |
Capacity: | 2.2L |
Container(Jar) Material: | Food Grade PC, unbreakable |
Blade Material: | S.S. 420J blade, 304 S.S. housing, Hardened >40HRC shaft |
Housing: | Hard ABS |
Speed(RPM): | 35000RPM (MAX 42000RPM) |
Functions: | Smoothie ice, Juice, Pound Yam, Dry Grinding, Soybean Milk, |
Motor Heat Dissipation Design: | Yes, Separation of cold and hot air design |
Motor Temperature Protect: | Yes, 125degree |
Color: | Black, Red, White (More than 500pcs can customize any color) |
OEM: | Logo, color gift box and label(sticker) |
Packing: | Color gift box, Surround Foam, PP bags; 4pcs/ctn, 5 layers carton |
Loading: | 20" 600pcs, 40" 1200pcs, 40"HQ 1380pcs |
Products Description
Product Details

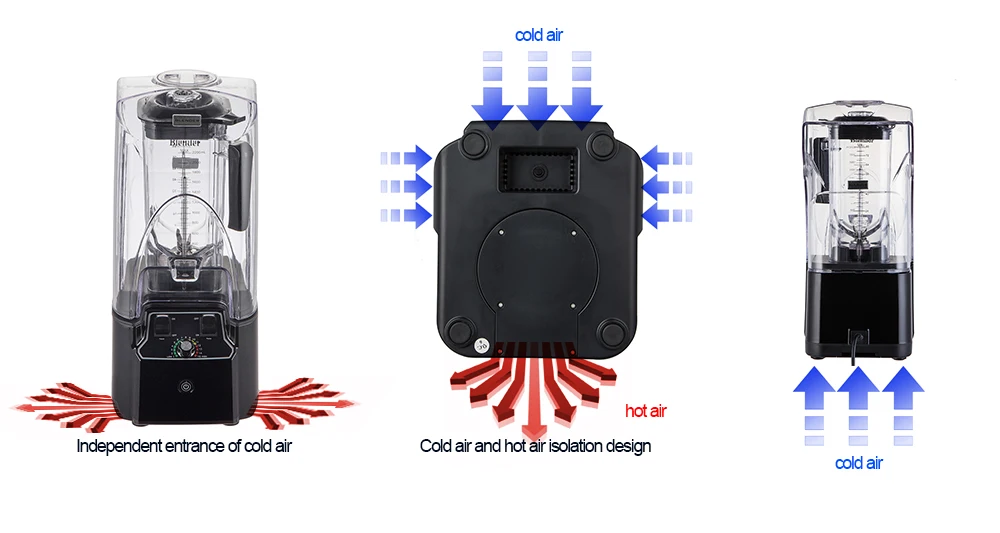

Heat Dissipation Design, 7*24 houres continuous working
We use the design of cold air suction and hot air removal. Let the blender motor and circuit board work at a lower temperature to improve the stability of the motor and circuit board. Therefore, the blender machine can be better performance and durability, so as to reach the commercial level.
Due to the better heat dissipation design, the blender can work continuously for 24 hours under the working environment of woke 3 mins and stop 1 min.
Moror.
The stator and rotor of blender motor are made of 100% pure copper, high-quality and durable carbon brush and high temperature resistant bearing. Make sure the motor can work from 400-500 hours.
#9850 (Default use)
The max power motor used in blender.
Locked power can reach 2500-2800w.
1.High quality 4117 carbon brush
2.100% pure copper
3.High temperature resistant bearing
4.High load RPM speed stability.
#9545
The high power motor used in blender.Locked power can reach 2300-2500w.
1.High quality 4117 carbon brush
2.100% pure copper
3.High temperature resistant bearing
1.High quality 4117 carbon brush
2.100% pure copper
3.High temperature resistant bearing
#9840
The high power motor used in blender.Locked power can reach 2100-2300w.
1.High quality 4117 carbon brush
2.100% pure copper
3.High temperature resistant bearing
1.High quality 4117 carbon brush
2.100% pure copper
3.High temperature resistant bearing
Warm Prompt:
So many blender show power 1500w, but it just use #9525 even #8825 motor, that is false power.
If want to check real power, please check motor model inside blender.
Don't know how to check motor model? Try to contact us.
Reference Information:(heavy load)
#9525 800-1000w; #9530 1000w-1200w; #9535 1300w-1500w; #9540 1500w-1800w; #9545 1500w-1800w;
#9550 2000w-2200w;#9840 1900w-2000w; #9845 2000w-2200w; #9850 2200w-2400w;
PCB.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Thyristor | BTA |
Control | Microcomputer IC chip |
Maximum load power | 2800w |
Maximum load current | 16A |
Service time | 3-5 years |
Blade.
There are all kinds of blender blade design, so that different needs of customers can be met.
Blade material: 420J stainless steel, High hardness and toughness.
Housing: 304 stainless steel, food grade material.
All round waterproof design makes the blender blade set more durable.
Water proof bottom design
.Experience shows that most of the damage of the cutter set starts from the bearing at the bottom.
Good bottom protection can improve the service life.
Good bottom protection can improve the service life.
608 thermostability bearing
Thermostability temperature 160-180 centigrade degree.
Low noise and shock: ZV3/ZV4
16TF oil seal
Our oil seal with Strengthen and harden the surface treatment.
Water resistance and wear resistance have been significantly improved.

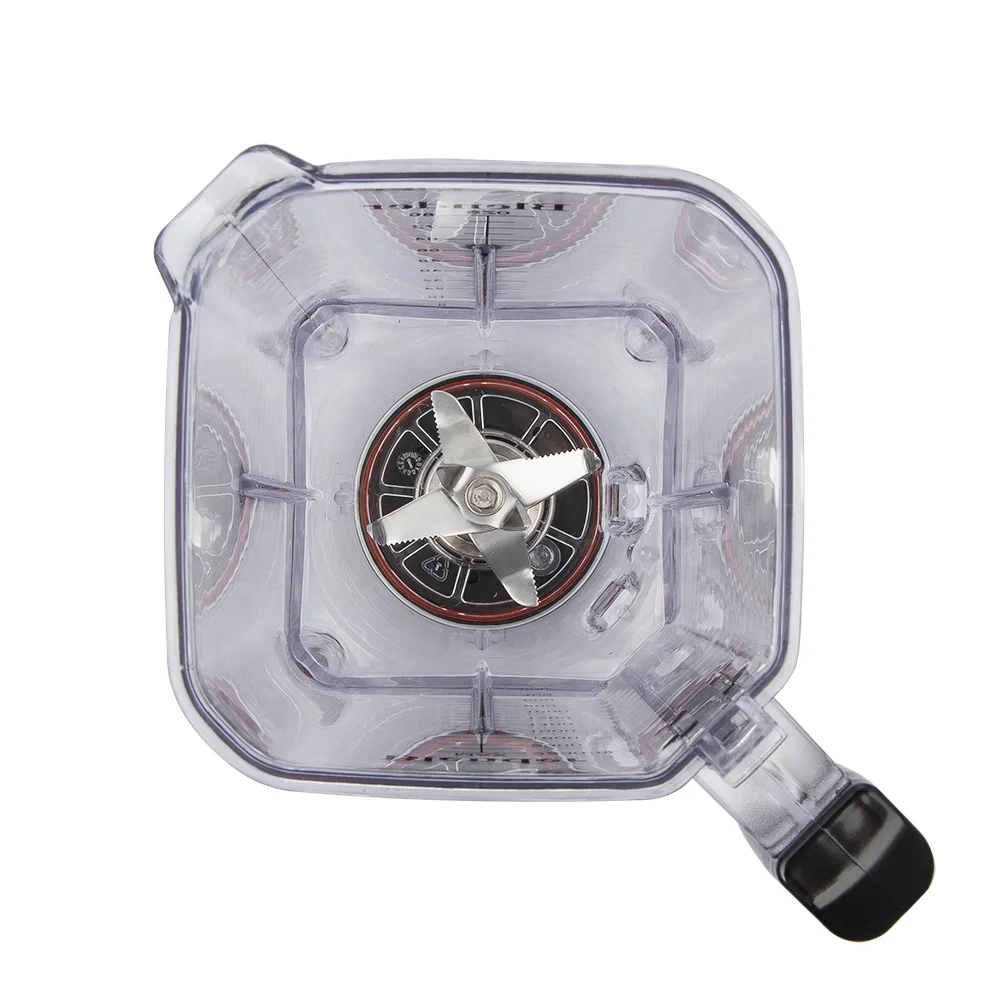

Jar.
Four-dimensional Turbulence Design.
Make the mixing speed faster and the effect more delicate.
Material | Unbreakable PC (food grade) |
Capacity | 2.2L |
Lid | PP+PC |
Temperature Resistance | -40 to 125 Centigrade |
Durability | Unbreakable. Explosion protection and crack prevention |
Net weight | 540g Not including lid and blade set. |
Product Size and Weight
Recommend Products
Spare Parts
SKD, CKD service for manufacturer.
We have spare parts factory, injection molding factory, can provide services. Meet all kinds of production requirements.
Blade
More than 50 blender blade designs meet different needs.
Mushroom/Driver/Coupler
The Coupler is made of nylon and fiber, and the interior is made of stainless steel, with high hardness, strong toughness and durability.
Retainer nut/Fixing plate/Screw nut
Material: aluminium alloy
Model: 45g/65g/100g
Motor
Imported 4117 Carbon brush.
100% copper for rotor and stator.
Jar
Unbreakable PC
Food grade material
High temperature resistant material
PCB
BTA/BTB 16A/26A
High voltage resistance, High current resistance, High load stability.
View....More spare parts
QC
IQC
Confirm and check the quality of the purchased raw materials, parts or products, that is, inspect the products by sampling when the suppliers send the raw materials or parts, and finally determine whether the batch of products are received or returned.
IPQC
IPQC adopts the inspection method of patrol inspection among all processes in the production process. The general method adopted by IPQC is sampling inspection. The inspection contents are generally divided into sampling inspection of product quality of each process, inspection of operation methods and methods of operators of each process, and spot inspection of content in control plan.
FQC
FQC is the final guarantee to verify that the products fully meet the requirements of customers. We will test 5% of the machines according to the normal use environment to ensure that the machines can work normally and persistently.
Packing and Loading
PP bag cover all machine's parts, make sure it would don't be scratched.
The product is wrapped with foam to ensure that there will be no damage to the transportation process.
5 layers color gift box. Exquisite packaging design makes the product more attractive. 1pcs/CTN

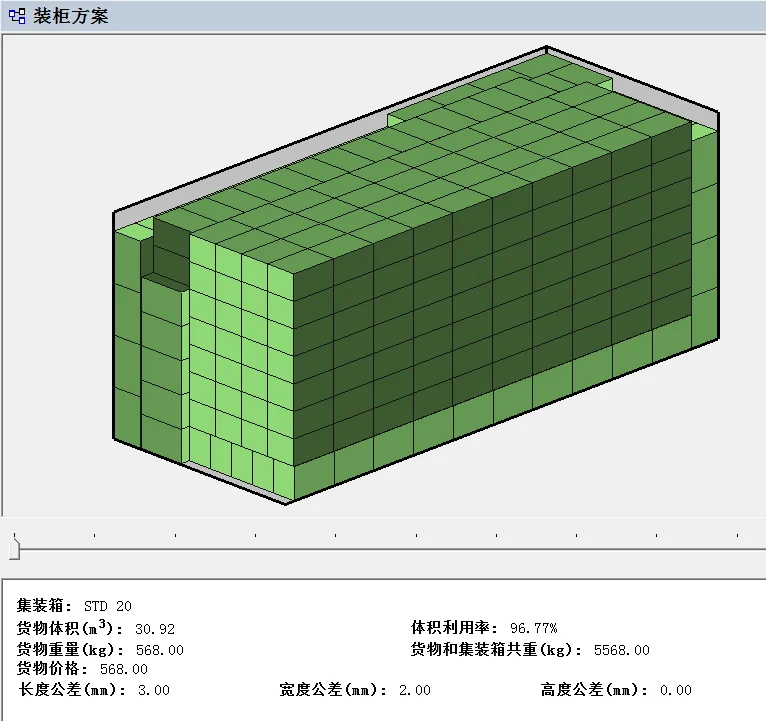

Loading information
Carton size: 355x285x538mm
20"GP container: 568ctns, 568Pcs40"GP container: 1181ctns, 1181Pcs
40"HQ container: 1328ctns, 1328Pcs
