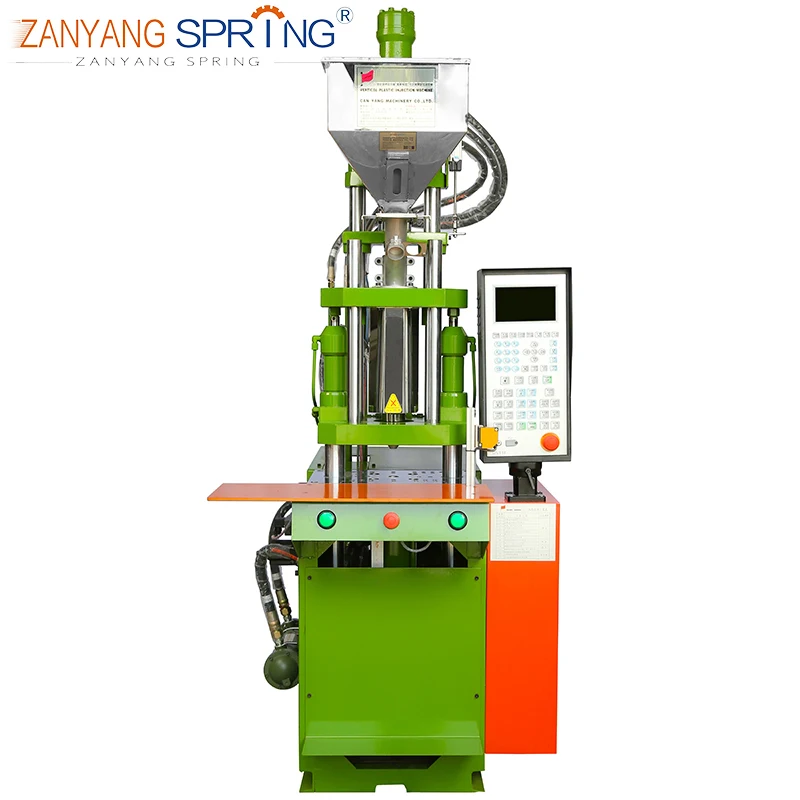

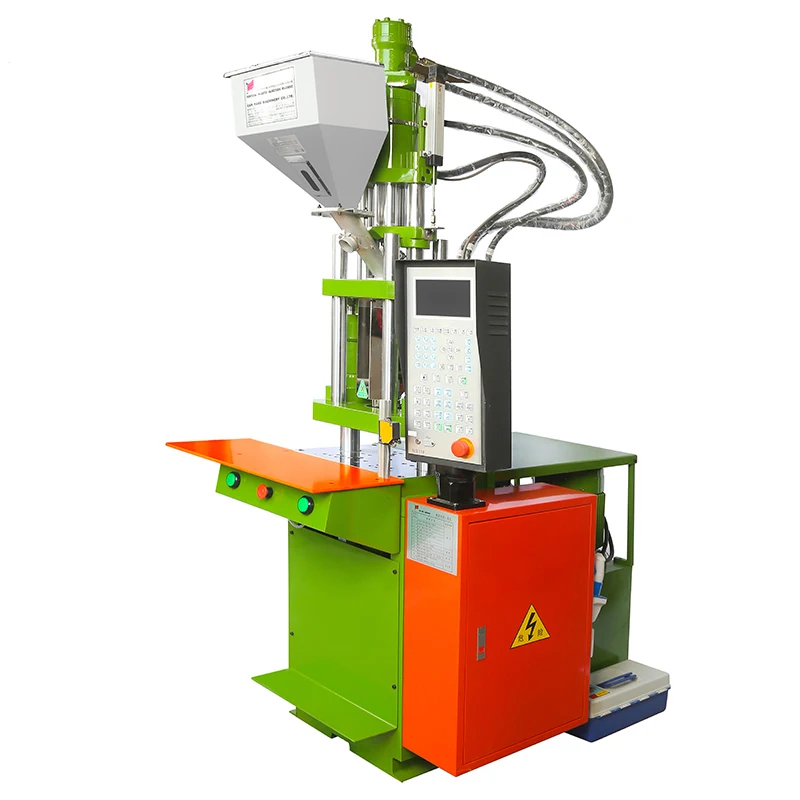

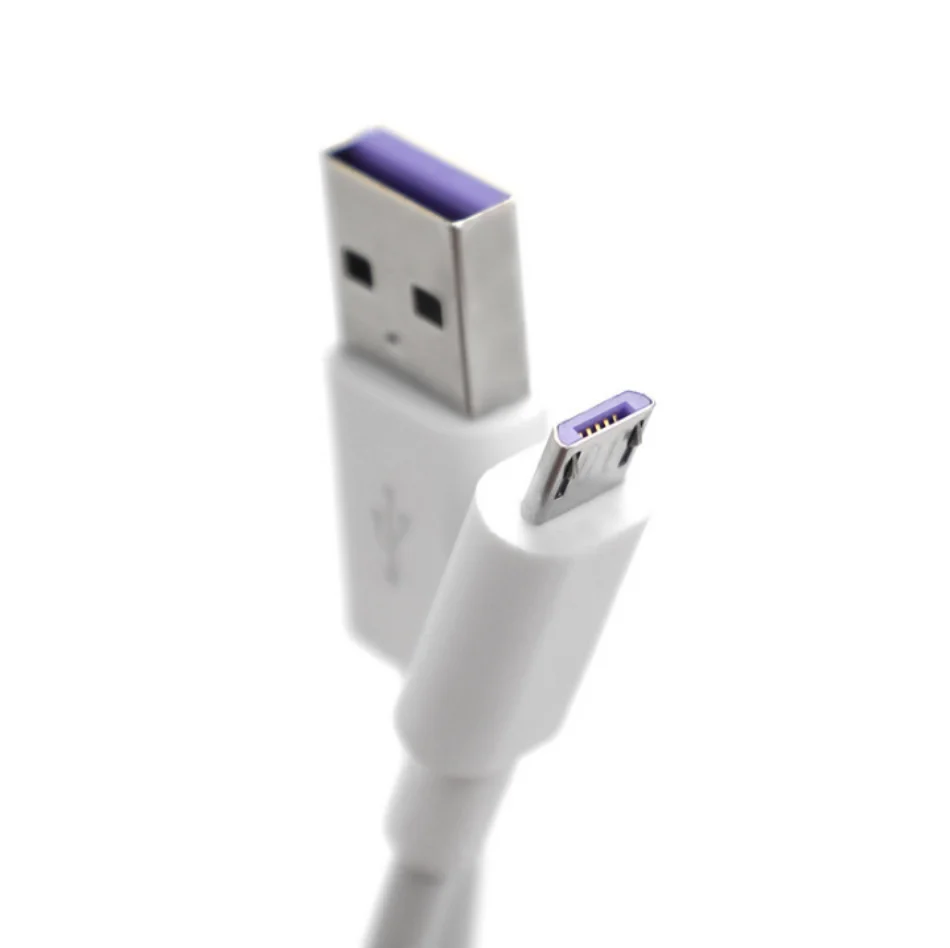

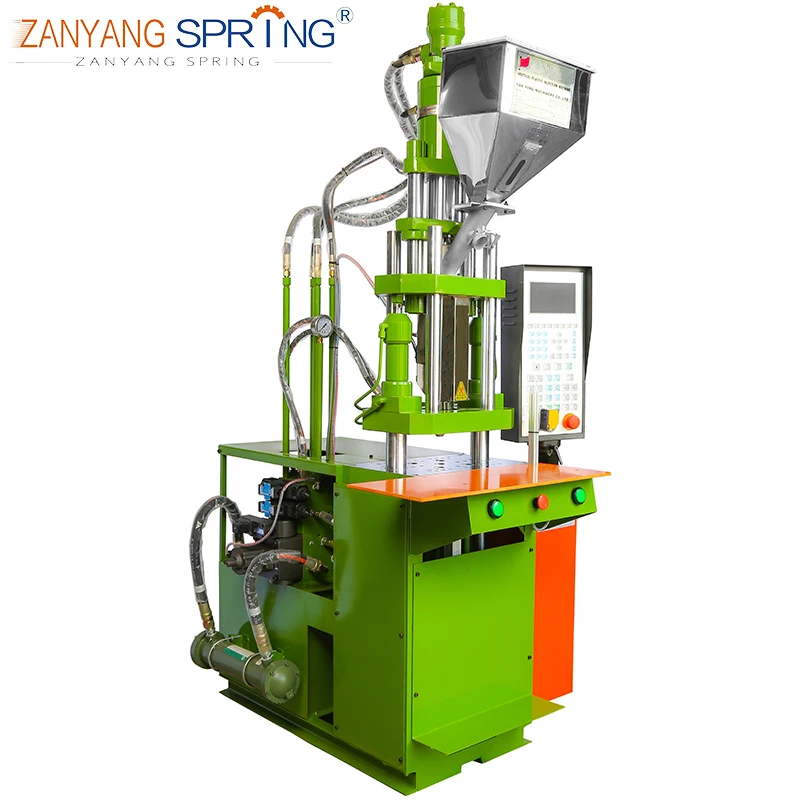

Data cable fast charging power cable connector manufacturing machine

Product Overview

Description

	MODEL	UNIT	CY-160ST-PP
INJECTION UNIT	Screw Diameter	Mm	26	28
	lnjection Pressure	kg/cm²	1183	1019
	Theoretical Shot Volume	cm	55.7	64.6
	Max.Shot Weight(Ps)	g	50	58
	Safe Shot Weight(Ps)	oz	1.7	2
	Max.Shot Weight(PS)	cm³/sec	34.6	40
	Injection Rate	mm	105
	screw Speed Max.	rpm	0-215
	Nozzle Comtact Force	tons	4.45
	Nozzle Retraction Stroke	mm	130
	Number of Temperature Control		2
CLAMPING UNIT	Clamping Force	tons	15

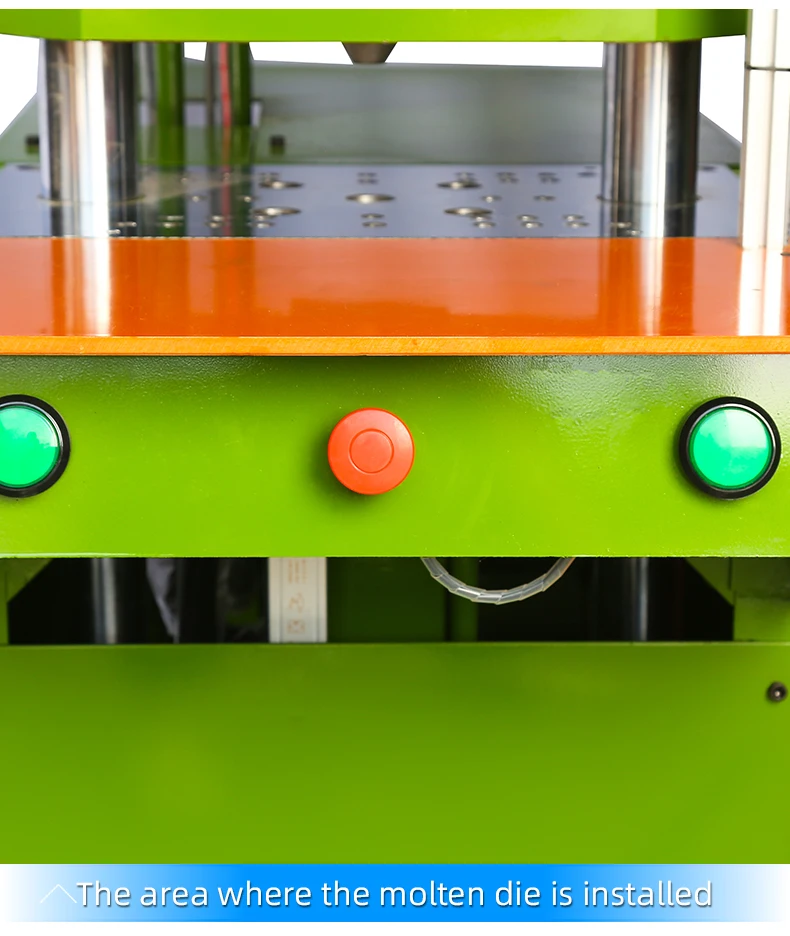

	Platen Size	mm	450×280
	Distance Between Tie Bere	mm	265
	Min.Mold Height	mm	100/25
	pening Stroke	mm	190
	Max.Open daylight	mm	290/215
	Ejetor Force	tons	1.3
	Ejetor Stoke	mm	35
POWER/HEADING UNIT	Max.Hydaulic Pressure	kg/cm'	140
	Pump output	l/min	17.5
	Oil Resservoir Capacity	l	80
	Cooling waer Consumption	l/hr	400~600
	Pump Motor Power	kW/HP	2.2/3HP

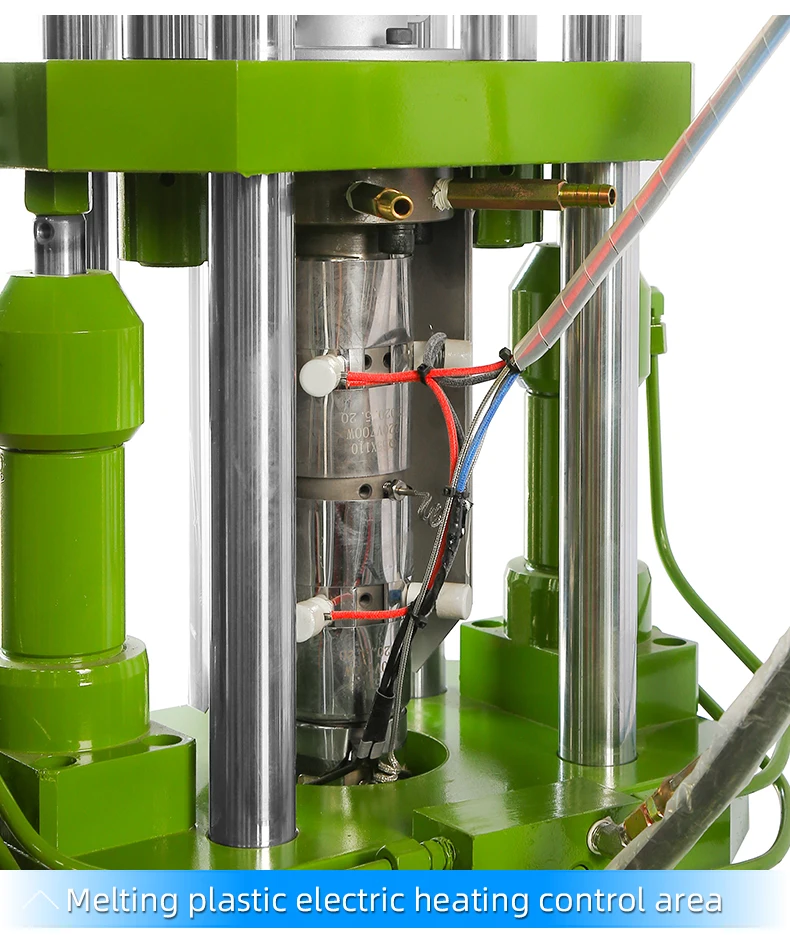

	BerrelHeating Power	kW	1.8
	Total Weight	kW	4.2
OTHER	Machine Weight	tons	0.95
	Machine Dimensions(LxWxH)	m	1.25x0.85 x2.3
	Shipping weight	tons	1
	Shipping Measurements(LxWxH)	m	1.6×1.0× 2.23





Q1:Are you a trading company or a manufactory?

A1:We are a manufactory,can give u best service and low price.



Q2:What's your guarantee or the warranty of the quality if we buy your machines?

A2:We offer you high quality machines with 1 year warranty .



Q3:When can I get my machine after I paid?

A3:We will deliver the machines on time as the date we agreed both side.
