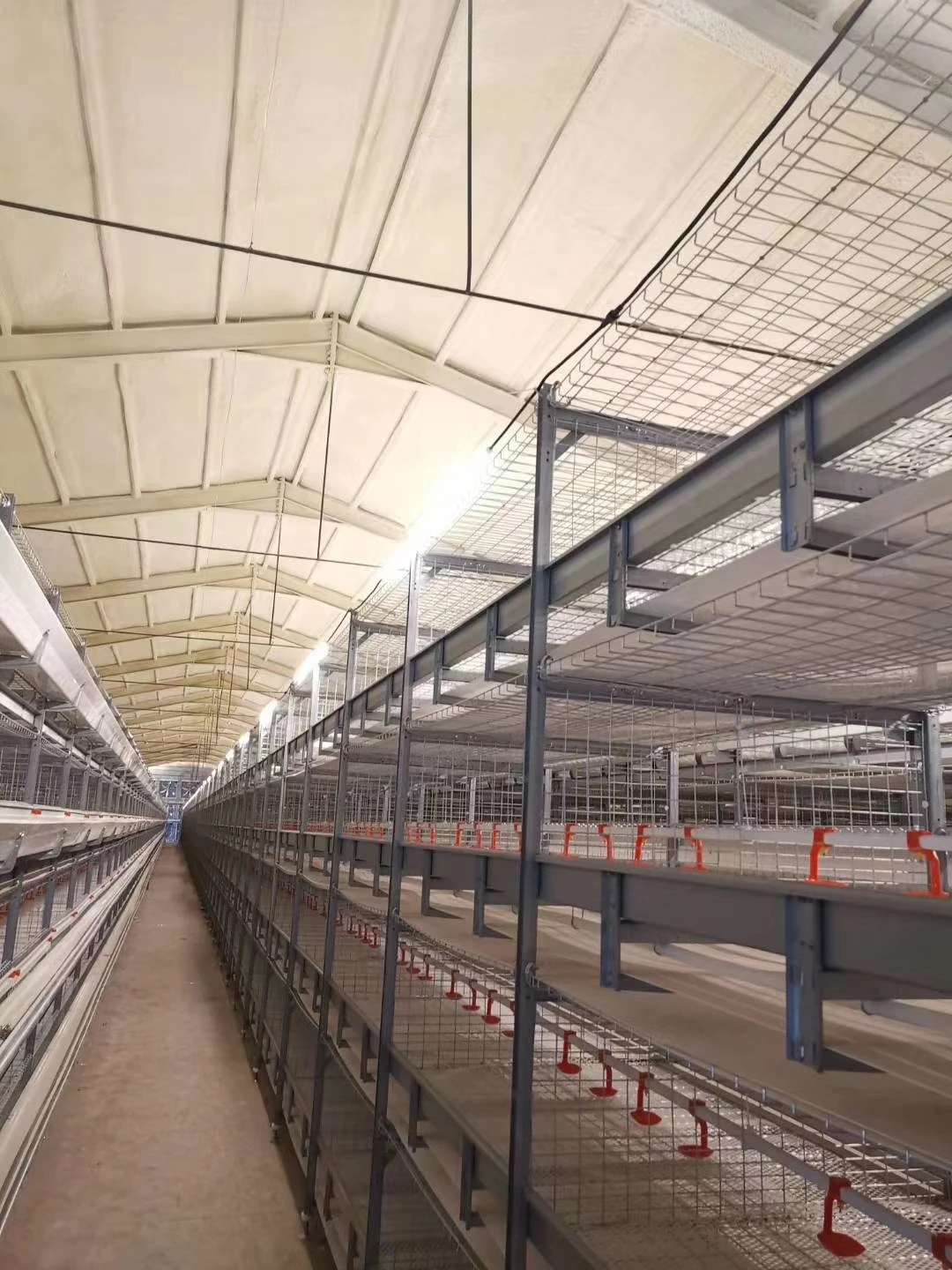

Chicken cage for broilers roosters cage
- Category: >>>
- Supplier: Qingzhou Fubo Kaiyuan Industry Co. Ltd.
Share on (1600436222144):
Product Overview
Description
Product Description

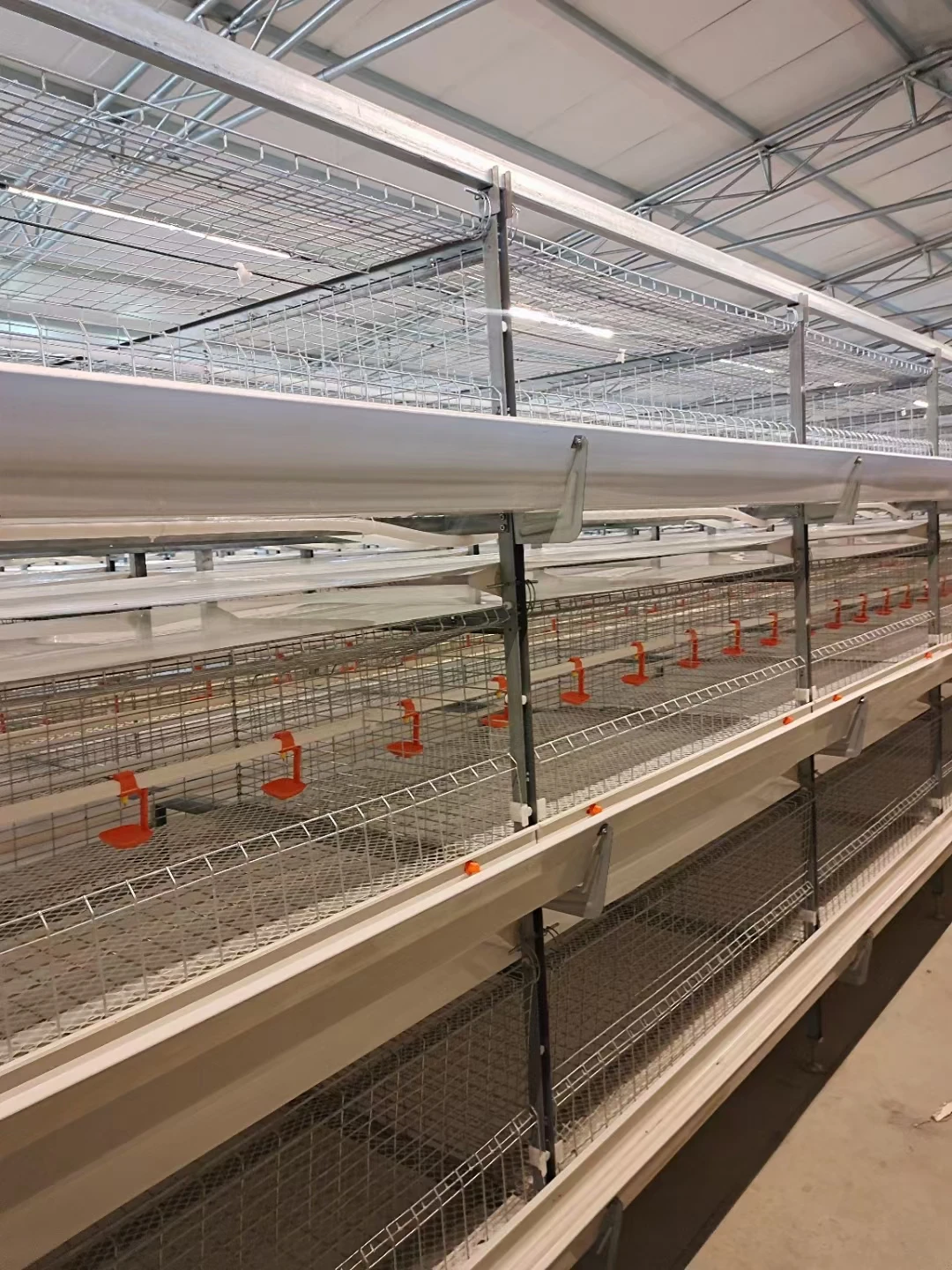

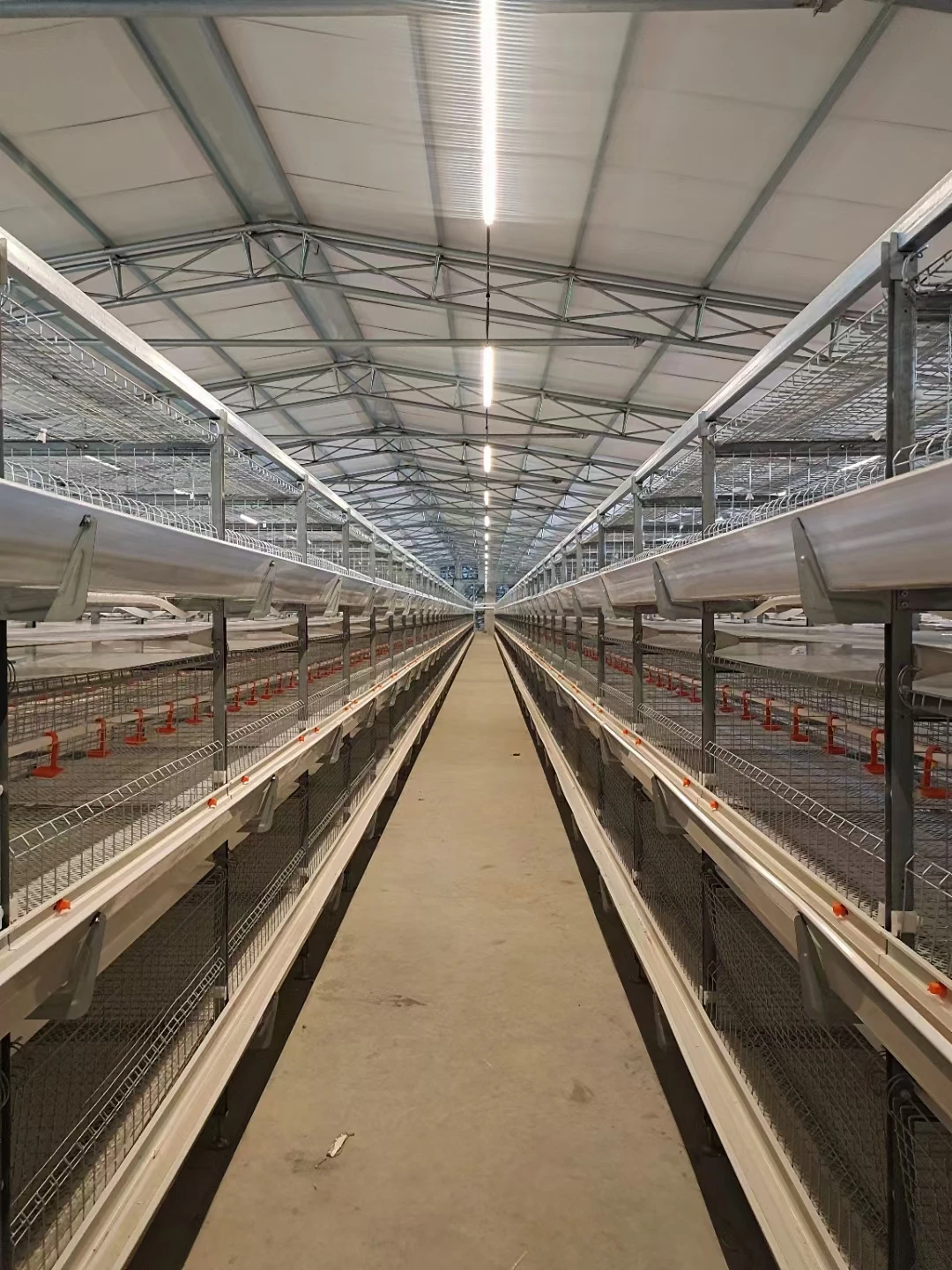

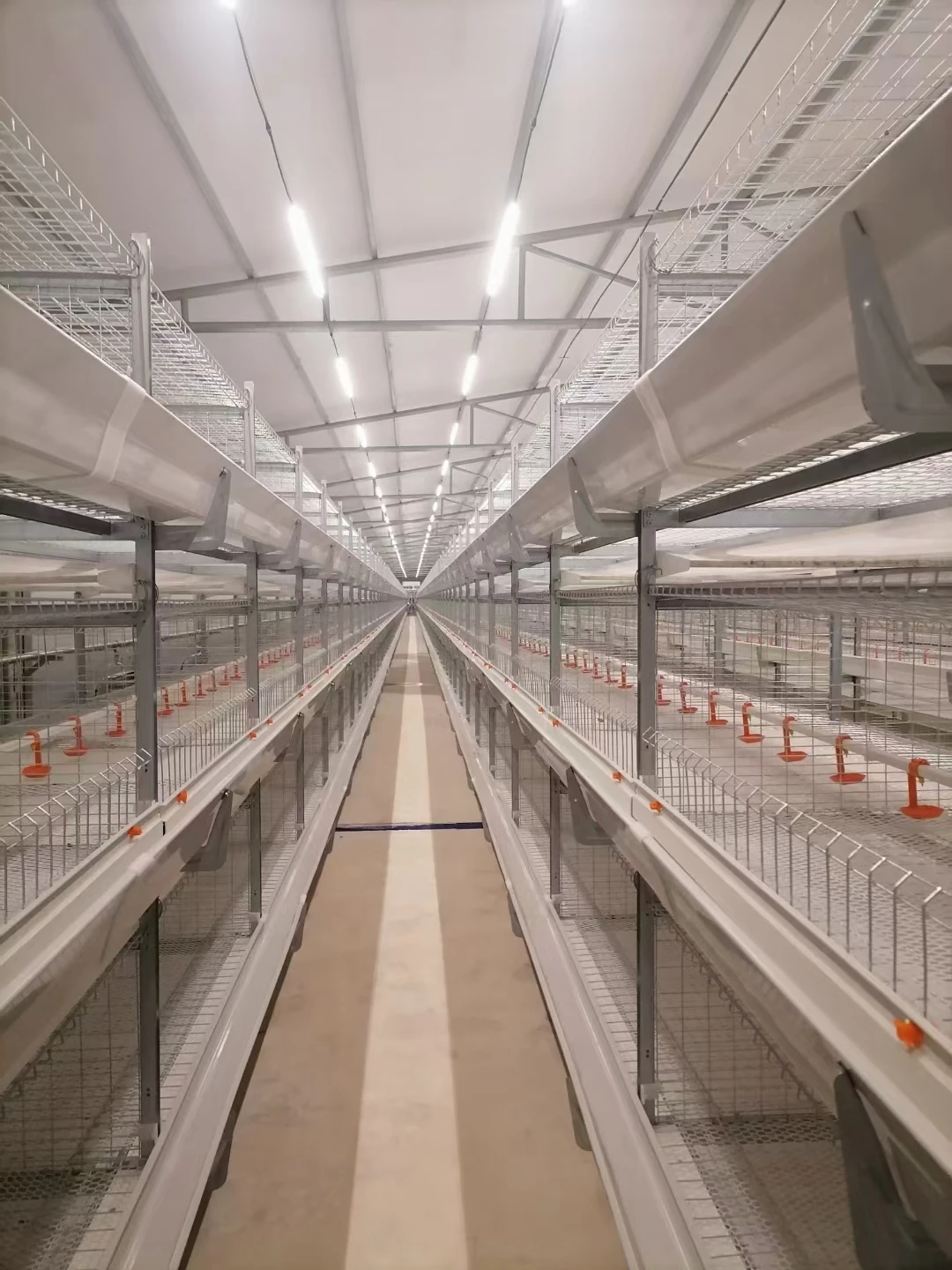

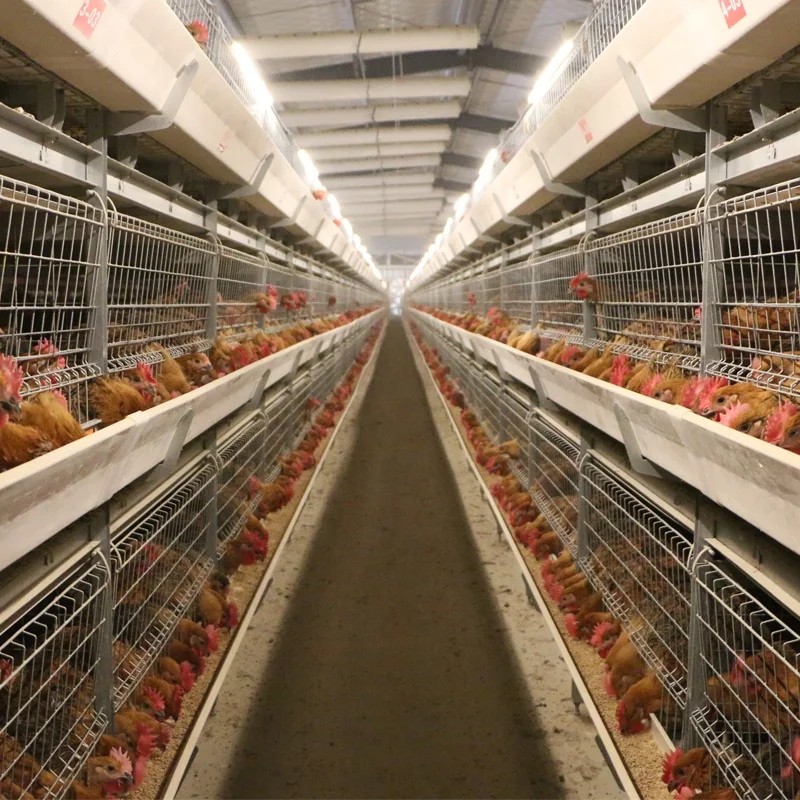

FUBO BRAND H-TYPE AUTOMATIC BROILER CAGE RAISING SYSTEM
Automatic broiler cage raising system is suitable for large-scale chicken farms. High-density raising, cage culture saves more
than 50% of land use compared with free culture, the investment cost is greatly saved.
than 50% of land use compared with free culture, the investment cost is greatly saved.
Intensive management and automated control. Achieve automatic feeding, drinking, manure cleaning, it can help to improve working efficiency and save labor cost.
The chicken manure and the chickens are completely isolated, the automatic manure cleaning system can clean the chicken feces in time, making the chicken house environment more hygienic and clean, and reducing the incidence rate and mortality of chickens.
Product Name | Single row broiler cage | Double row broiler cage | |
Material | hot dip galvanized steel | hot dip galvanized steel | |
Tier | 3/4 tiers | 3/4 tiers | |
Dimension | 1250*1000*450 mm | 1250*800*450 mm | |
Capacity | 75/100 chickens | 120/160 chickens | |
Support system | Automatic Feeding System,Automatic Drinking System,Automatic Manure Cleaning System, Environment Control System | ||
Frame And Cage
1.Punching from the hot dip galvanized steel panels, zinc coating 275 g/m2, no welding, all fixed by screws.
2.Surface treatment of cage wire mesh are hot dip galvanized, the thickness of the Zn-coat is about 400 um, and the corrosion resistance is 3-4 times of usual surface treatment.
2.Surface treatment of cage wire mesh are hot dip galvanized, the thickness of the Zn-coat is about 400 um, and the corrosion resistance is 3-4 times of usual surface treatment.
Automatic Feeding System
1.Main feed transport pipe connected with silo
The material of the pipe: PPR pipe
The diameter of the pipe: Ф90 mm
The material of the pipe: PPR pipe
The diameter of the pipe: Ф90 mm
Auger: import from South Africa
2.Feeding trolley
2.Feeding trolley
The material of the feeding trolley is hot dip galvanized steel to ensure no rust.

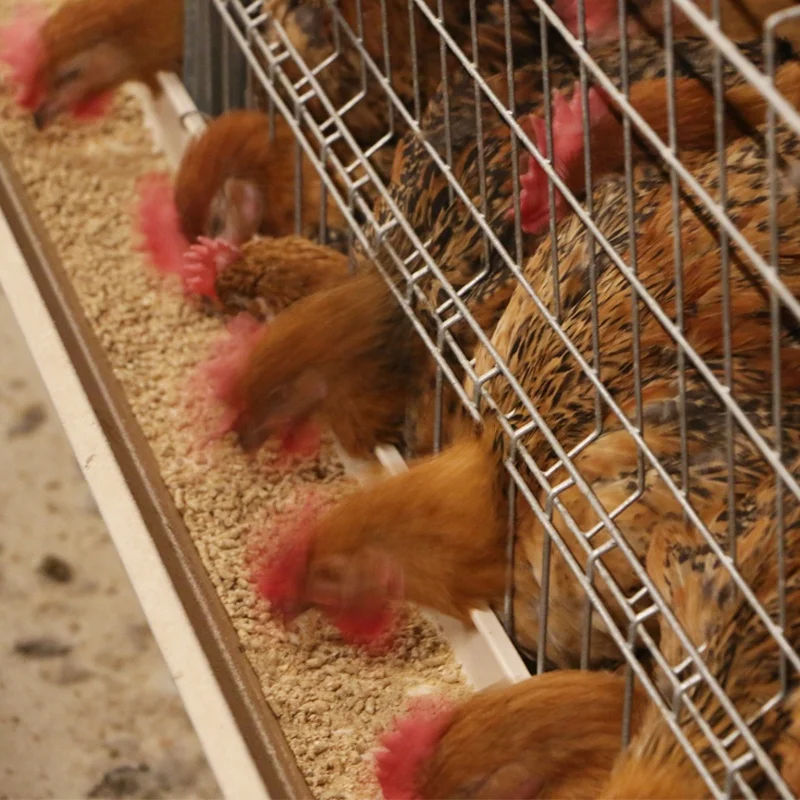

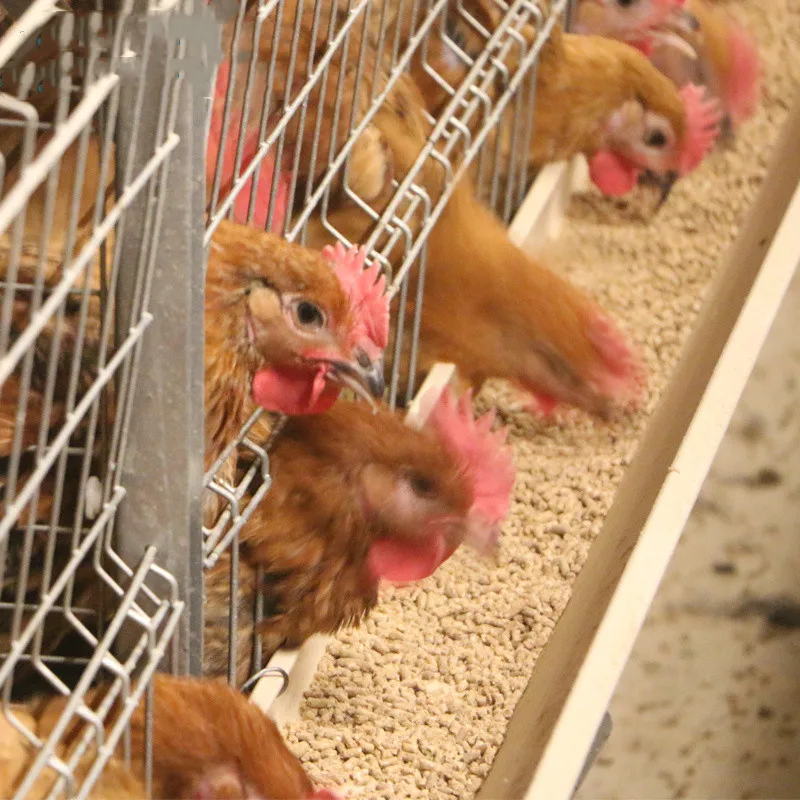

3.Feeding trough
Two kinds of raw materials for feeding trough are available: PVC or galvanized steel.
Automatic Drinking System
Drinking system Includes square pipe, nipple, water pressure regulator, drip cup and installation accessories.
The nipple drinking system provides fully enclosed water supply, eliminates external environmental pollution, and greatly reduces
the breeding and transmission of virus. It can provide fresh and clean water for poultry which is crucial for the good growth of poultry.
the breeding and transmission of virus. It can provide fresh and clean water for poultry which is crucial for the good growth of poultry.

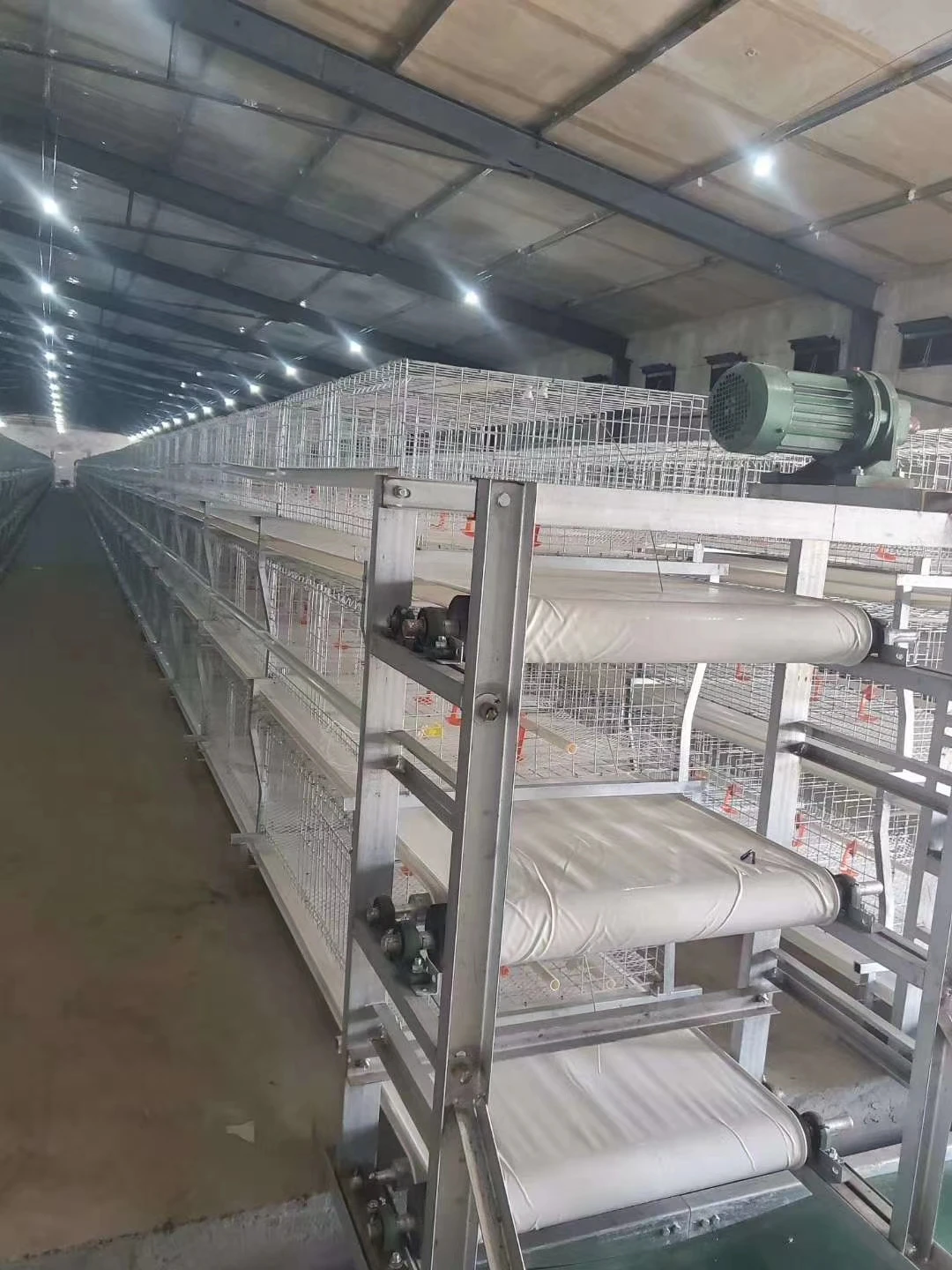

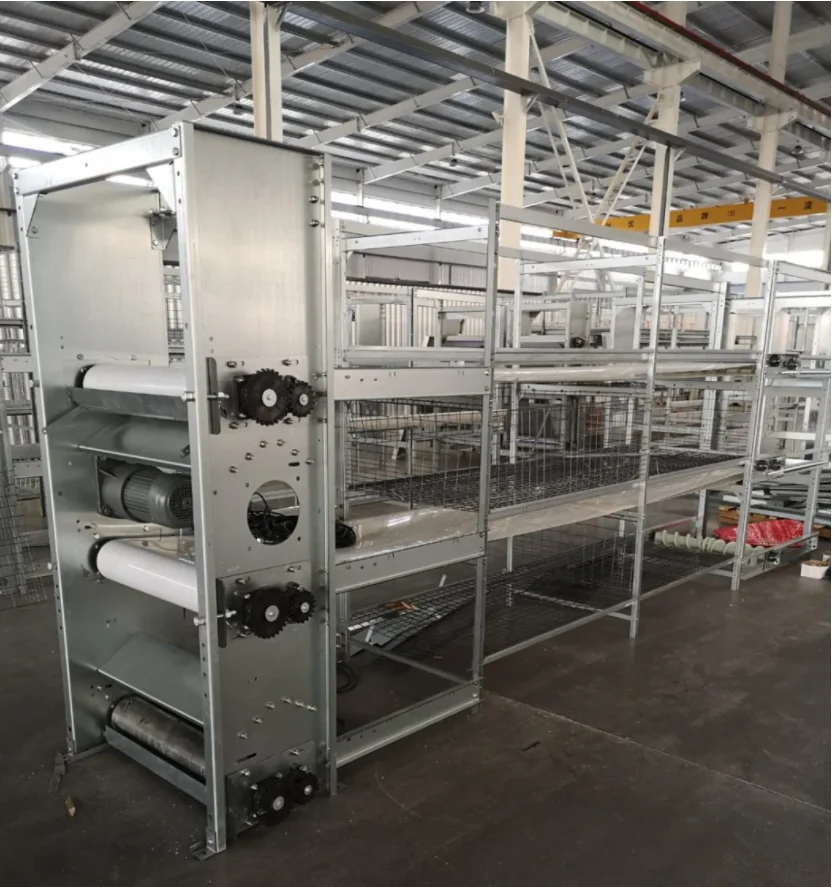

Automatic Manure Removing System
1.The system adopts belt type horizontal transmission of chicken manure. It can convey manure out of chicken house and to truck automatically.
2.The manure conveying belt is made of high strength PP composite with friction resistance and corrosion resistance. It has long lifespan which is not easy to be deformed.
3.The width of the chicken manure conveying
2.The manure conveying belt is made of high strength PP composite with friction resistance and corrosion resistance. It has long lifespan which is not easy to be deformed.
3.The width of the chicken manure conveying
belt is 44 cm.
FAQ
1.Is your company a manufacturer or trading company?
We are professional manufacturer of chicken cage, ventilation fan, cooling pad and heating equipment for poultry farm in China.
2.Can you do our logo or brand on the fan?
Yes, OEM & ODM are all available.
3.What's the delivery time?
Normally, it will take 10-20 days .
4.Can I order some samples at first to see the quality?
Yes, of course.
5.Do you have the products in stock?
Yes. There is some series products in stock.
We are professional manufacturer of chicken cage, ventilation fan, cooling pad and heating equipment for poultry farm in China.
2.Can you do our logo or brand on the fan?
Yes, OEM & ODM are all available.
3.What's the delivery time?
Normally, it will take 10-20 days .
4.Can I order some samples at first to see the quality?
Yes, of course.
5.Do you have the products in stock?
Yes. There is some series products in stock.
