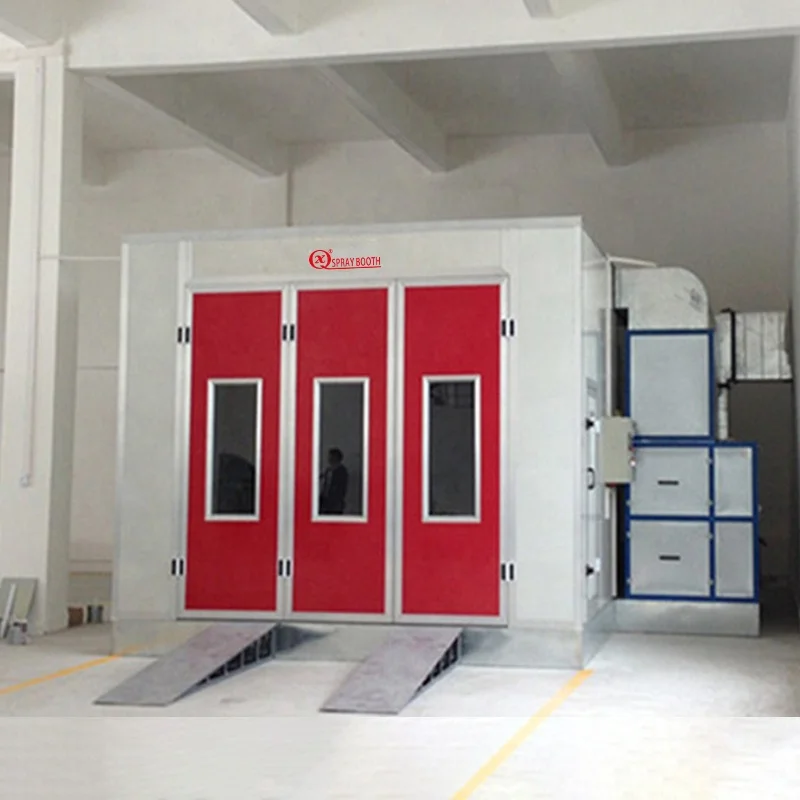

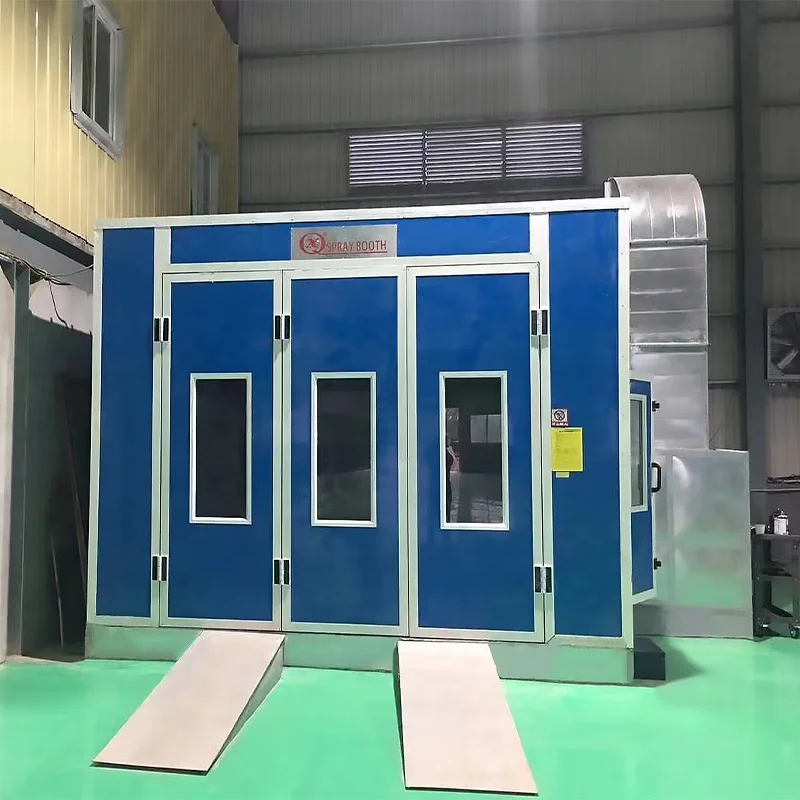

Cheap price auto dry painting booth car spraying oven for ghana
- Category: >>>
- Supplier: Guangzhou Qiangxin Environmental Protection Electromechanical Equipment Co. Ltd.
Share on (1600436228015):
Product Overview
Description
GZ QIANGXIN ELECTROMECHANICAL EQUIPMENT CO., LTD.
Products Description

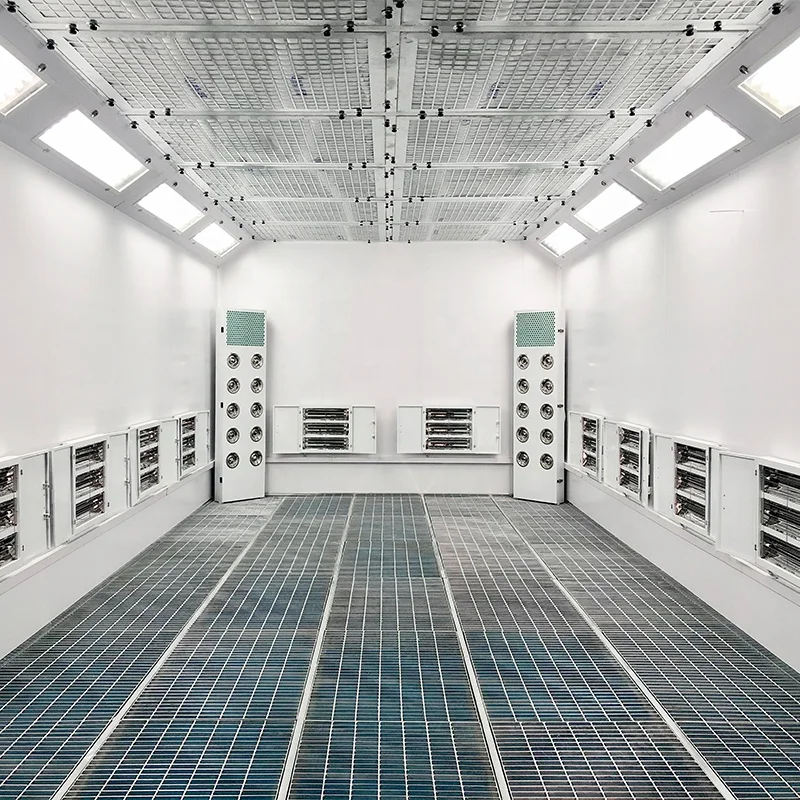

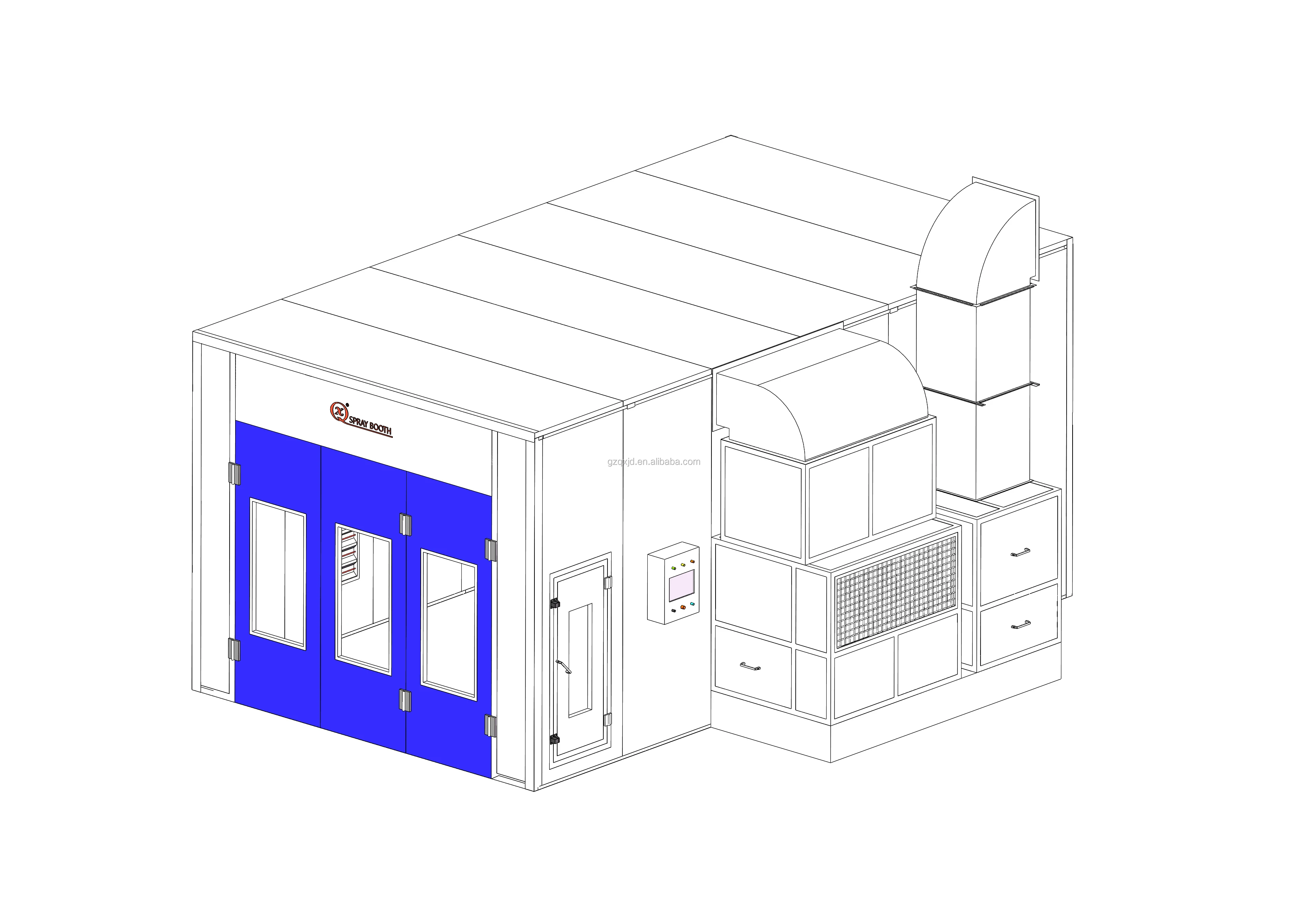

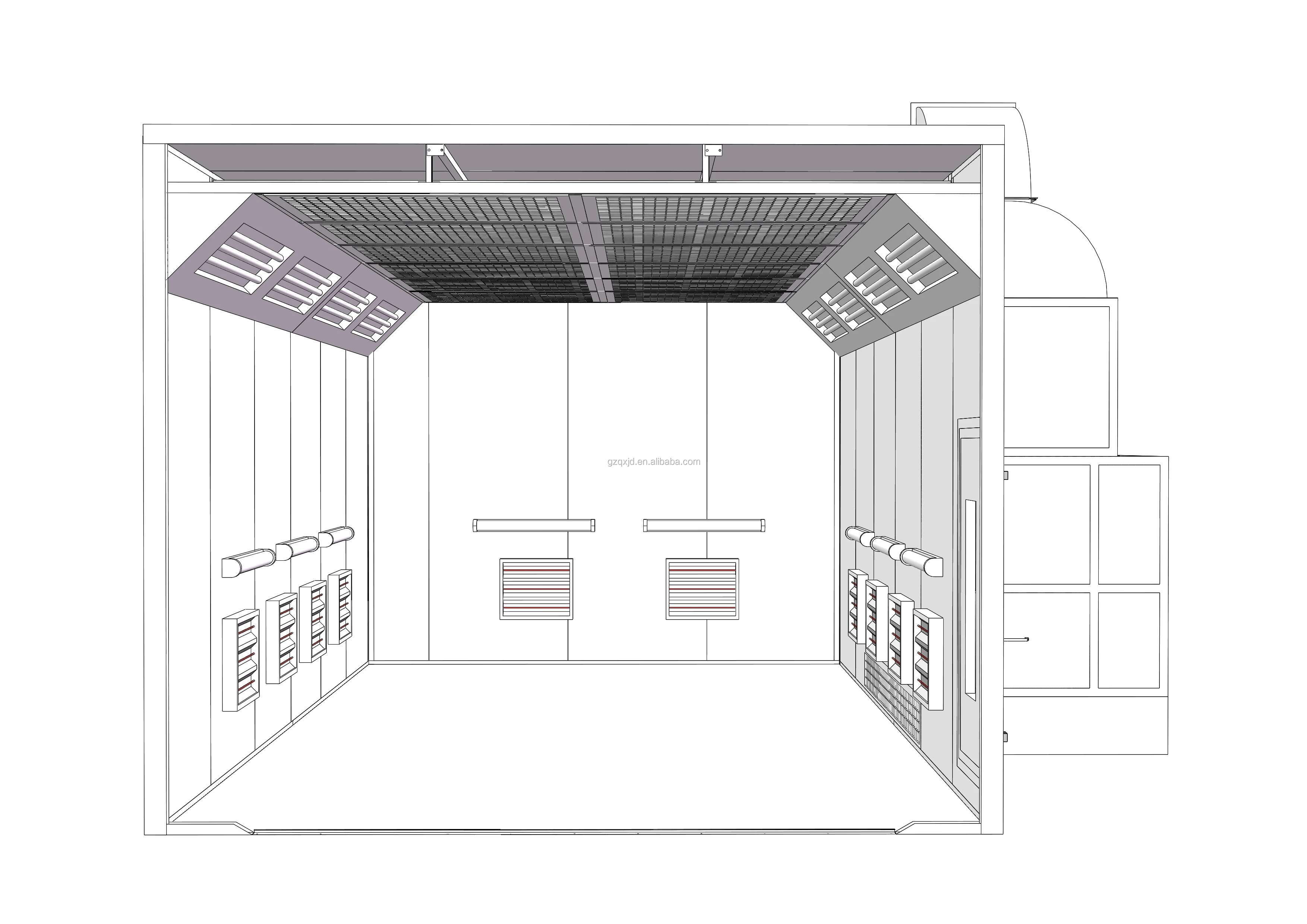

Luxury Infrared Lamp Heating Spray Booth
Description for car spray booth | ||||||
Outside Dimensions(mm) | 7000*5500*3300(L*W*H) | Inside Dimensions(mm) | 6900*3900*2650(L*W*H) | |||
Entrance Door Door(mm) | Aluminum alloy binding framework(thickness:1.8mm),1 set folding door size:2830*2600(mm)(W*H) | Personal Door(mm) | Size is 700×1700mm(W×H), with tempered glass embedded into square frame. Equipped with Handle & Anti-Explosion Lock | |||
Total Power | 44KW | Voltage | 380V/50 or 60Hz/3Ph, etc. | |||
Wall Panel | 50mm EPS with colorful steel skin board, anti-flame and heat-insulation, steel sheet thickness: 0. 476mm | 50mm Rock-wool with colorful steel skin board, anti-flame and heat-insulation, steel sheet thickness: 0. 476mm | ||||
Basement | customize | 0.8mm Galvanized Steel Sheet | ||||
Air Make-up System | Air-Intake Fan System | 2*4kw turbo fan installed with centrifugal copper motor; air capacity:25000m3/h | ||||
Air-Exhaust Fan System | 1*5.5kw centrifugual copper motor fan; air capacity: 15000m3/h | |||||
Air Capacity | 25000m³/h | |||||
Air Flowing Speed | 0.25m/s | |||||
Purification System | Air intake Filter/Prefilter | Air inlet with prefilter: dust holding capacity 400g/㎡; class G4; Filtration precision ≥5μm; Flammability (GB/T1759-2006) F1; Temp.resistant <100 | ||||
High efficient Filter | Ceiling equipped with CC-G650 type high-efficiency filter: dust holding capacity 600g/㎡; class F5; Filtration precision ≥1μm; Flammability (GB/T1759-2006) F1; Temp.resistant<100 | |||||
Air-Exhaust Filter | Outlet with filter cotton: dust holding capacity 550g/㎡; Class according(DIN en779) G2、G3、G4; Filtration precision ≥5μm; Temp.resistant<100 | |||||

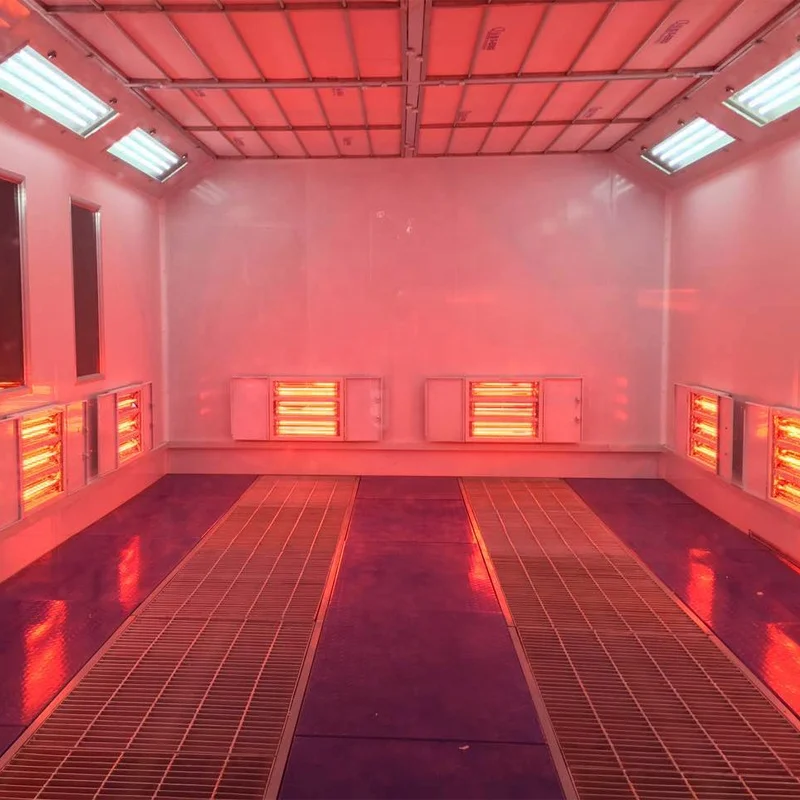

Heating System (options) | infrared lamp | 30pcs | ||||
diesel burner | Italy brand | |||||
Max. Heating Temperature:75℃ | ||||||
Lighting System | Ceiling Light | 8 Units, 8*4=32 pcs, 18w LED lamp, with Light Fixtures, anti-explosion designed | ||||
Illumination | ≥1000LUX | |||||
Control System | Switched Control Panel | Button type control box, with main switch Spraying & baking switch, lighting switch, emergency stop, Breakdown alarm, temperature timer, time accumulator etc. | ||||

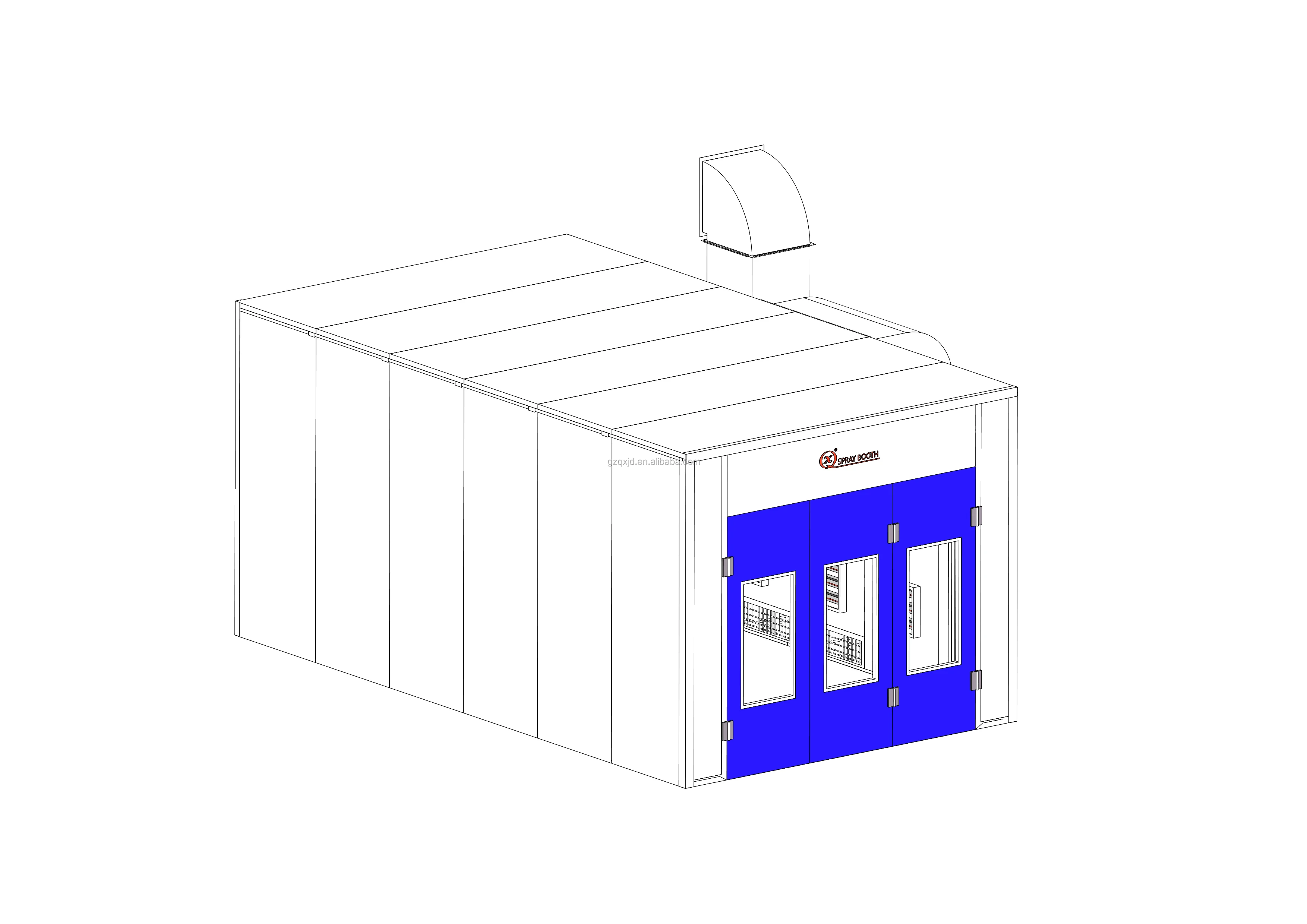

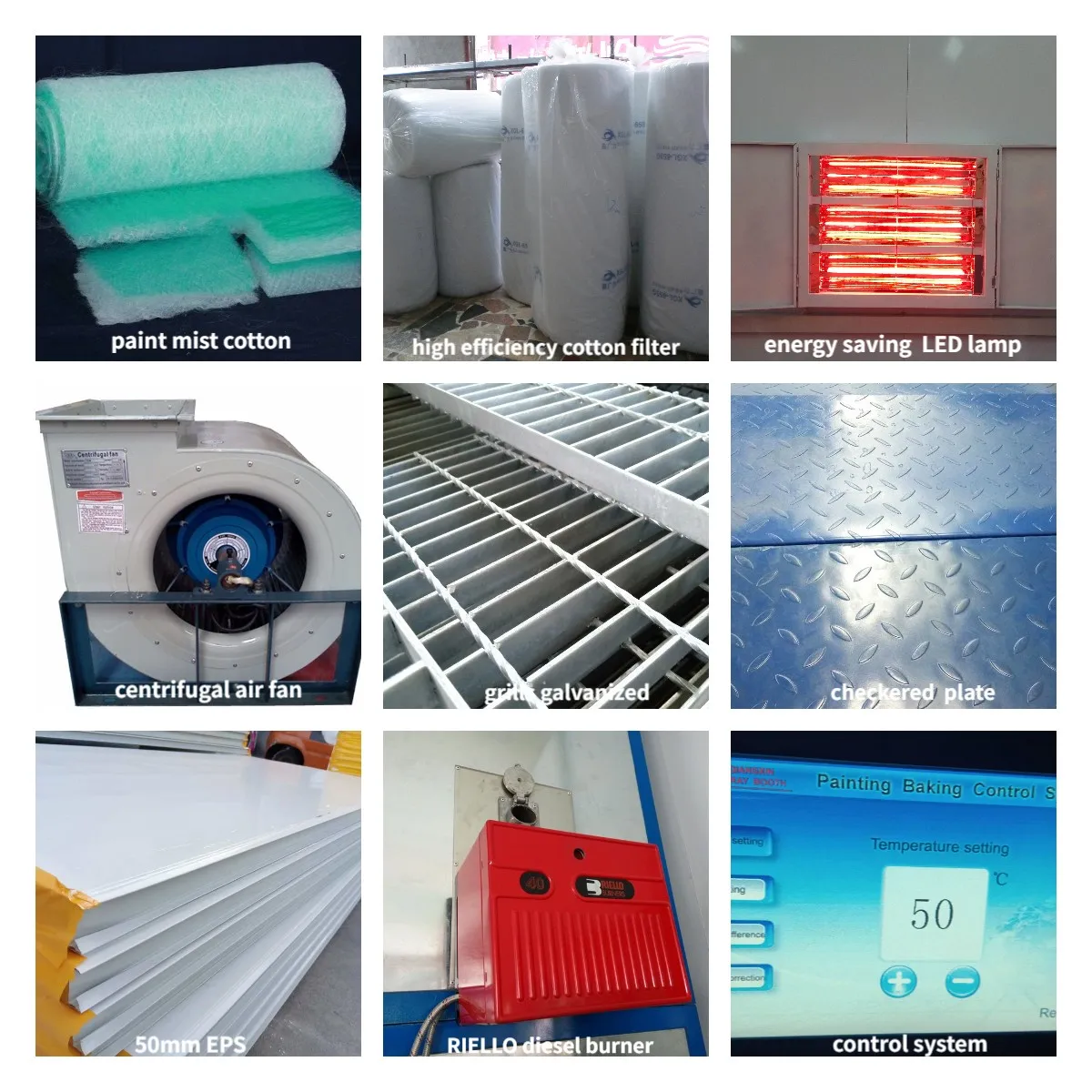

Product Details
Package&Shipping
One set car spray booth with 21-22CBM 3 Tons can be loaded in 20 feet container.
Company Profile
China Leading Professional Factory
Our company was founded in 2009,is a pressional manufacturer of spray booths, industrial equipment,enviromental protection
equipment,a utomobile maintenance equipment and other equipment. Be equipped with the world's leading production equipment. We have 13 years of industry experience, professional engineering team average of more than 7 years of experience.
equipment,a utomobile maintenance equipment and other equipment. Be equipped with the world's leading production equipment. We have 13 years of industry experience, professional engineering team average of more than 7 years of experience.
Exported Countries
2.Our products have been exported to Australia,Germany,
Norway,Russian Federation,Singapore,Korea,etc.
Company Purpose
1.Our purpose are Quality First, Credit First And After-service First
2.Provide the best quality pre-sales and after-sales service on the service
3.Strict quality control, all our products are 100% inspected before shipment
4.We are not only a good supplier,but also an excellent solution provider and problem solver.
2.Provide the best quality pre-sales and after-sales service on the service
3.Strict quality control, all our products are 100% inspected before shipment
4.We are not only a good supplier,but also an excellent solution provider and problem solver.

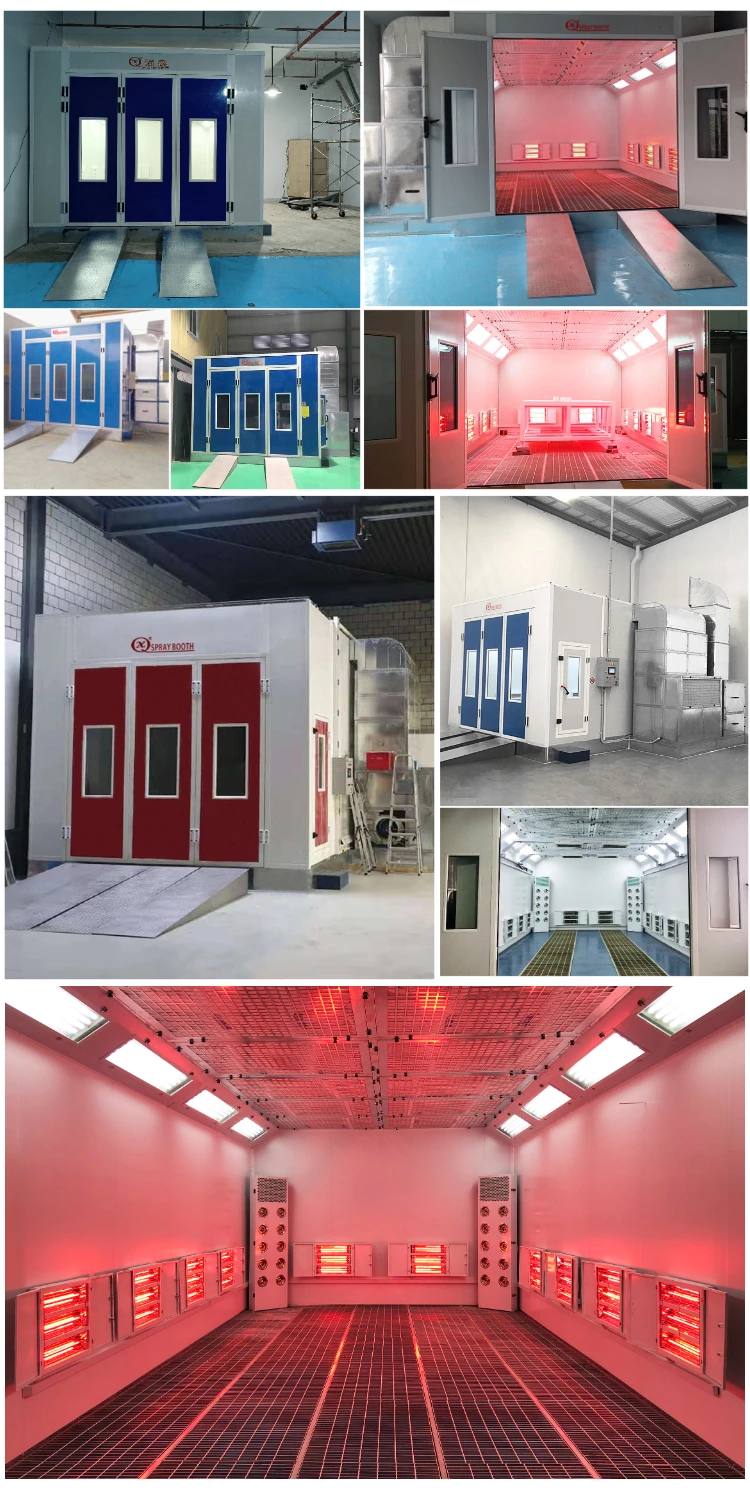

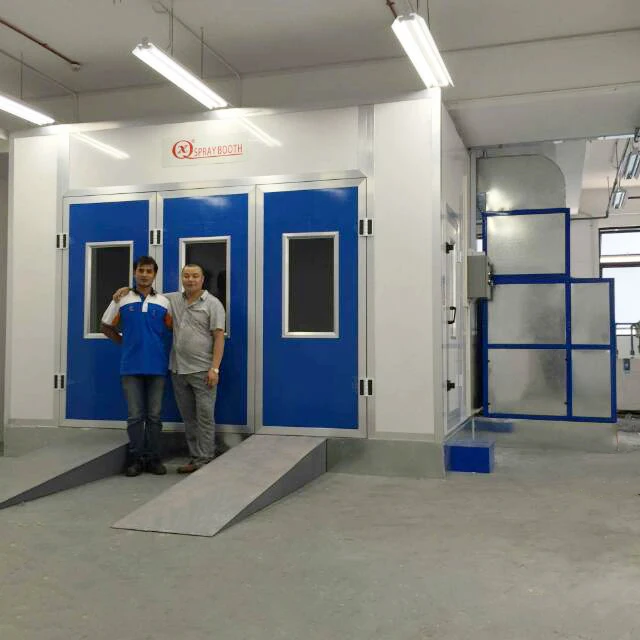

Customer Photos
FAQ
Q: Are you a directly factory?
A: Qiangxin is a directly factory specialized in manufacturing car spray booths, furniture spray booth high temperature baking oven etc.
Q: How do you control your products quality?
A. Our factory is pass ISO certified. We have our own QA and QC team. They will check on site and finished products to ensure all
details to meet our highest standard and the customer’s requirements.
Q: What is your payment terms?
A. We accept T/T, L/C, Western Union, Alibaba Trade Assurance, etc.
Q: How long is your lead time?
A.For standard spray booth need 7 days.For customized products, need 15 to 20 days
Q:Can I have a visit to your company before placing an order?
A: Sure, welcome to visit Qiangxin. Our factories locates in Baiyun District Guangzhou city,China. Near the Baiyun Air port.
Q: How do you control your products quality?
A. Our factory is pass ISO certified. We have our own QA and QC team. They will check on site and finished products to ensure all
details to meet our highest standard and the customer’s requirements.
Q: What is your payment terms?
A. We accept T/T, L/C, Western Union, Alibaba Trade Assurance, etc.
Q: How long is your lead time?
A.For standard spray booth need 7 days.For customized products, need 15 to 20 days
Q:Can I have a visit to your company before placing an order?
A: Sure, welcome to visit Qiangxin. Our factories locates in Baiyun District Guangzhou city,China. Near the Baiyun Air port.
