Conventional Lathe Price C6256e Lathe Machine Manual Lathes For Metal

Product Overview

Description

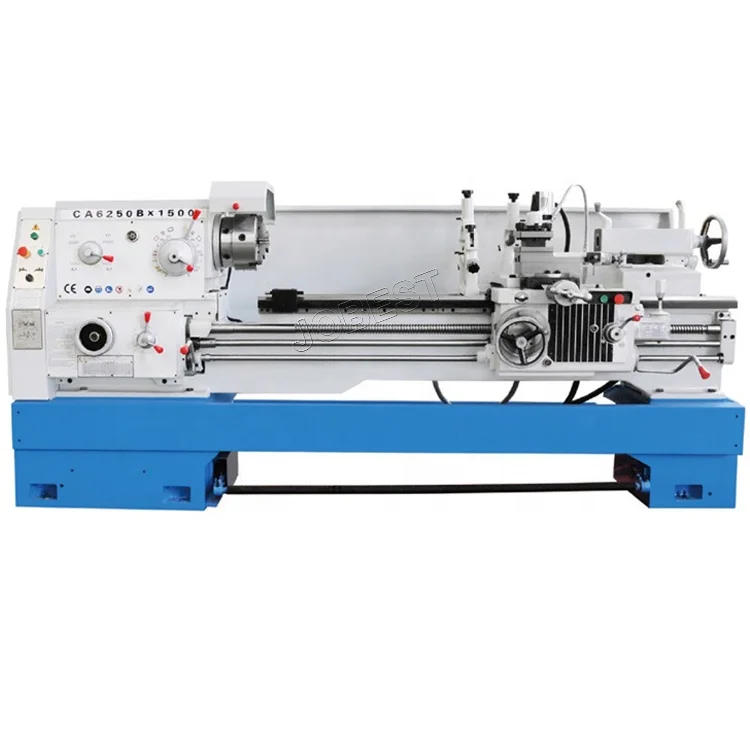

Conventional Lathe Price C6256e Lathe Machine Manual Lathes For Metal

♦ Taper turning attach fitted to saddle is optional for C6256e Universal metal lathe machine.

♦ Triple bearings supporting headstock spindle

♦ Adjustable taper roller bearings providing spindle accuracy

♦ Precision 'V'-beds & headstock gears are all hardened & ground

♦ C6256 Universal lathe machine for sale with one piece cast iron base increases rigidity

♦ Overload protection on drive motor and coolant system

♦ Universal enclosed gearbox incorporating metric & imperial thread capabilities

♦ Inching button incorporated on the control panel for convenient spindle speed selection

♦ Foot operated spindle brake with safety cut out switch

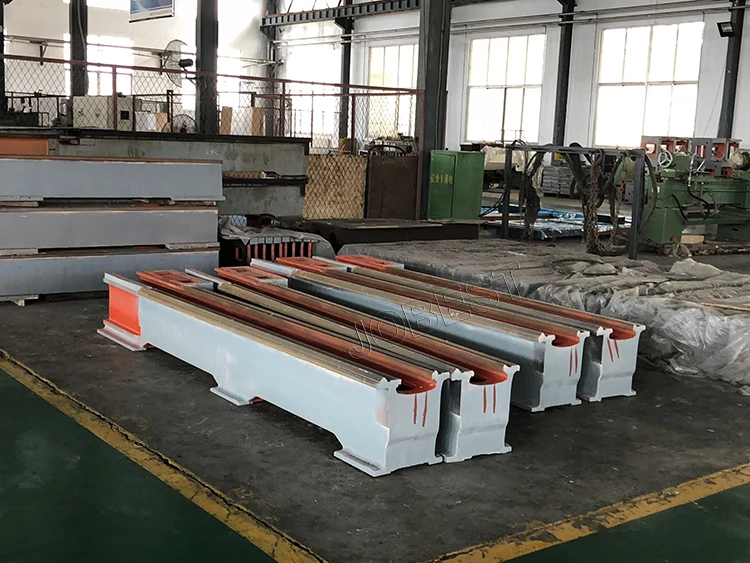

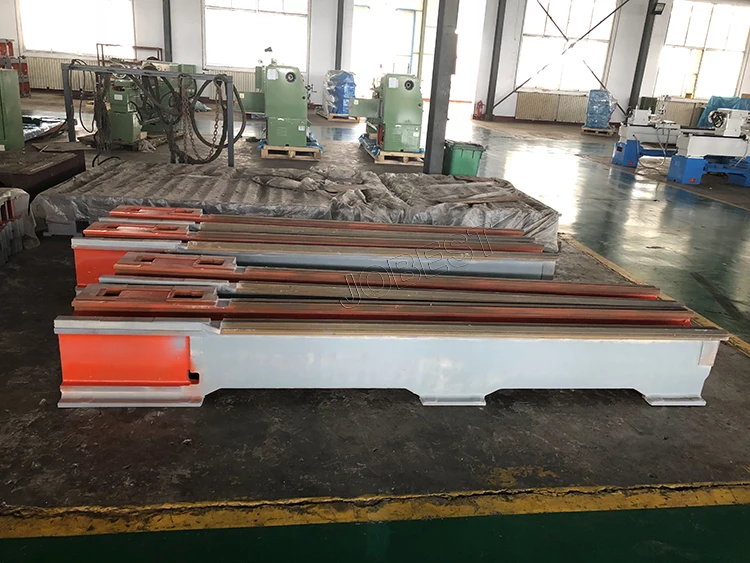

♦ 300mm wide induction hardened heavy duty cast iron bed

♦ Removable gap bed allowing work piece to swing up to 690mm

♦ Chuck guard fitted with safety micro switch

♦ Powered longitudinal and cross feeds

♦ Adjustable 4 position length-stop mechanism for accurate repetitive operation

♦ Micro adjustable saddle stop

Conventional Lathe Price C6256e Lathe Machine Manual Lathes For Metal

Specification	Units	C6251	C6256	C6256E
Max Swing diameter over bed	mm	510(20")	560(22")	560(22")
Max Swing diameter over cross slide	mm	305(12')	355(14“)	355(14”)
Max Swing diameter over gap	mm	735(28-7/8“)	785(30-7/8")	785(30-7/8")
Gap Length	mm	170(6-11/16")	170(6-11/16")	170(6-11/16")
Distance between centers	mm	1000(40')1500(60")2000(80")
Width of bed	mm	350(13-13/16")
Spindle nose type		D1-8
Spindle bore diameter	mm	80(3-1/8")		105(4-1/8")
Spindle bore taper		MT7		113(1:20)
Spindle speed range	rpm	25-2000		25-1500
Top tool post travel	mm	130(5-1/8")
Cross slide travel	mm	316(12-7/16")
Tool size	mm	25*25(1"*1")
Lead screw threads	T.P.L	6mm or 4T.P.I
Longitudinal feeds range	mm/r	35kinds, 0.059-1.646 (0.0022"-0.0612")
Cross feeds range	mm/r	42kinds, 0.020-0.573(0.00048"-0.01354")
Kinds of metric threads	kinds	47		41
Range of metric threads	mm	0.2-14
Kinds of  inch threads	kinds	60
Range of inch threads	T.P.I	2-112
Kinds of  pitch threads	Kinds	50
Range of pitch threads	D.P	4-112
Kinds of module threads	kinds	34
Range of module threads	M.P	0-1.7
Tailstock quill diameter	mm	75(2-15/16")
Tailstock quill travel	mm	180(7-1/16")
Main motor power	kw	7.5(10HP)
Coolant motor power	kw	0.1(1/8HP)
Weight for 1000	kg	2460	2600	2600
Weight for 1500	kg	2550	2690	2690
Weight for 2000	kg	2840	2980	2980
Weight for 3000	kg	3270	3410	3410
Dimension for 1000	mm	2450*1190*1740	2450*1190*1740	2450*1190*1740
Dimension for 1500	mm	2900*1190*1740	2900*1190*1740	2900*1190*1740
Dimension for 2000	mm	3400*1190*1740	3400*1190*1740	3400*1190*1740
Dimension for 3000	mm	4400*1190*1740	4400*1190*1740	4400*1190*1740











1. How to choose Lathe machine?

According following informtaion to choose Lathe machine:
Pls give your wanted Lathe machine Working max diameter and table sizes



2. Do you provide training to operation Lathe Machine ?
1). Will provide operatiing video and manual book with our lathe machine.
2). Welcome your operators to our factory, we'll arrange everything at our factory.

3. What about your Lathe Machine warranty?
One year warranty after machine reached customer's workshop.
And use famous brand components for long working lifespan.

3. What certificate for Lathe Machine ?
We have ISO certificate for our factory and CE Certification for our machine.

4. What delivery time milling machine?
Within 28 working days after received advanced payment.
