low price automatic mineral drinking water bottling plant 3 in 1 bottle washing filling capping machine processing line for sale
- Category: >>>
- Supplier: Zhangjiagang City Nan Cheng Machinery Co. Ltd.
Share on (1600436287926):
Product Overview
Description
Water Lines.
Success in water beverage production requires focus on maximum output and efficiency, with commitment to hygiene, food safety and cost optimisation. Whether you're producing still or sparkling water, our unmatched expertise helps you achieve more with extensive technical knowledge and packaging capabilities.
With over 20 years of experience in designing and implementing customised complete PET line solutions for water, we can help you reach your production targets. Over the years, we have significantly reduced the weight of water bottles while retaining their durability and expanding design opportunities.
With over 20 years of experience in designing and implementing customised complete PET line solutions for water, we can help you reach your production targets. Over the years, we have significantly reduced the weight of water bottles while retaining their durability and expanding design opportunities.
Product Description
One partner for all your needs.
A complete water line solution from Nancheng Machine leverages our knowledge of the entire water bottling process, from minimising waste of resources, to ensuring that your bottle is durable and attractive to consumers. With everything centred around one supplier, you get wide-ranging expertise, line equipment and ongoing services. This ensures high quality and efficiency from packaging to equipment, fast ramp-up and beyond.
Details Images
control system | ||||||
S/N | Name | Brand | Country | |||
1 | Main motor | ABB | Switzerland | |||
2 | Inverter | MITSUBISHI | Japan | |||
3 | PLC | OMRON | Japan | |||
4 | Touch screen | MITSUBISHI | Japan | |||
5 | Contactor | SCHNEIDER | France | |||
6 | Thermo- relay | SCHNEIDER | France | |||
7 | Air-break switch | SCHNEIDER | France | |||
8 | Proximity switch | TURCK | USA | |||
9 | Photoelectric switch | BANNER | USA | |||
10 | Air circuit system | SMC | Japan | |||
11 | Water pump | Southern | China | |||

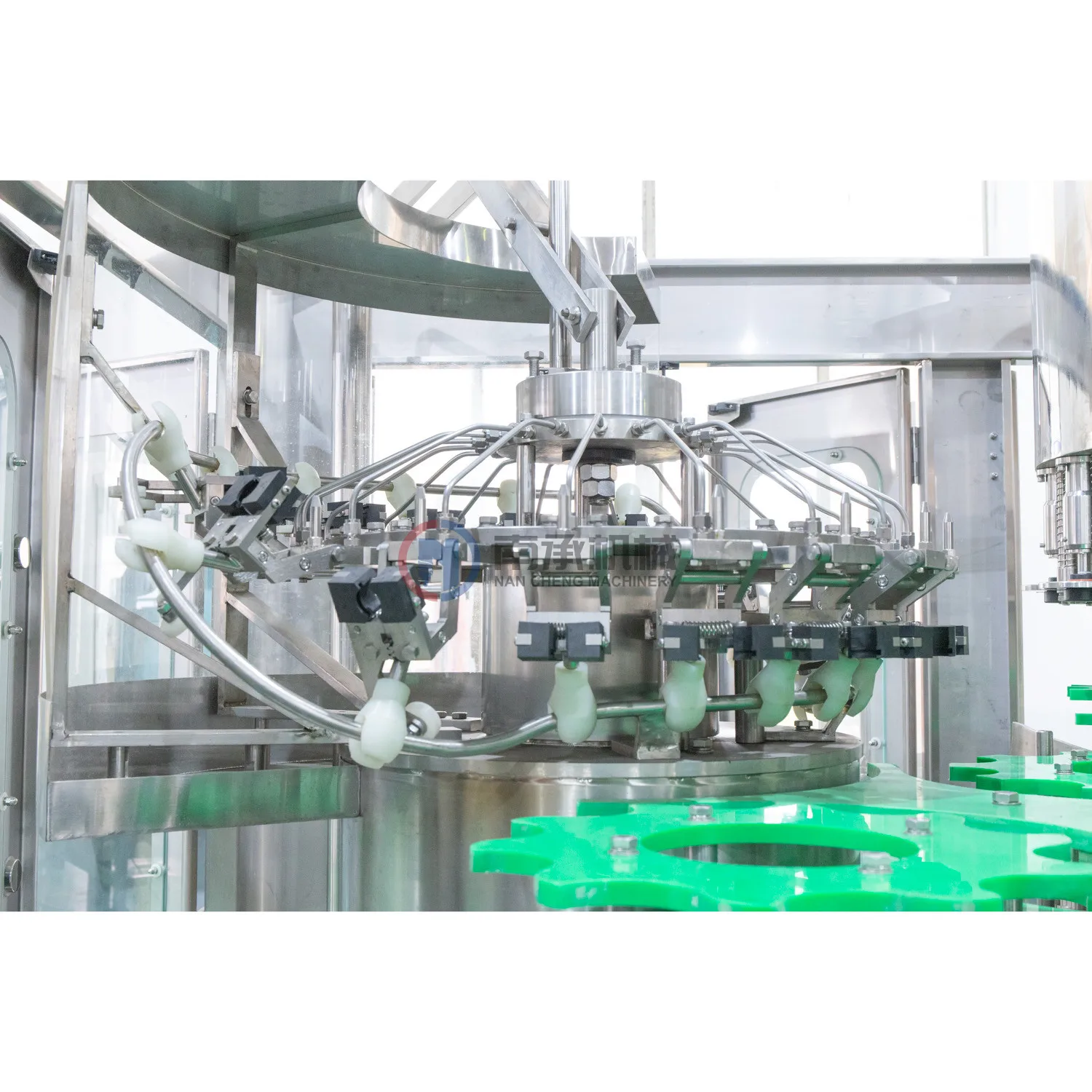

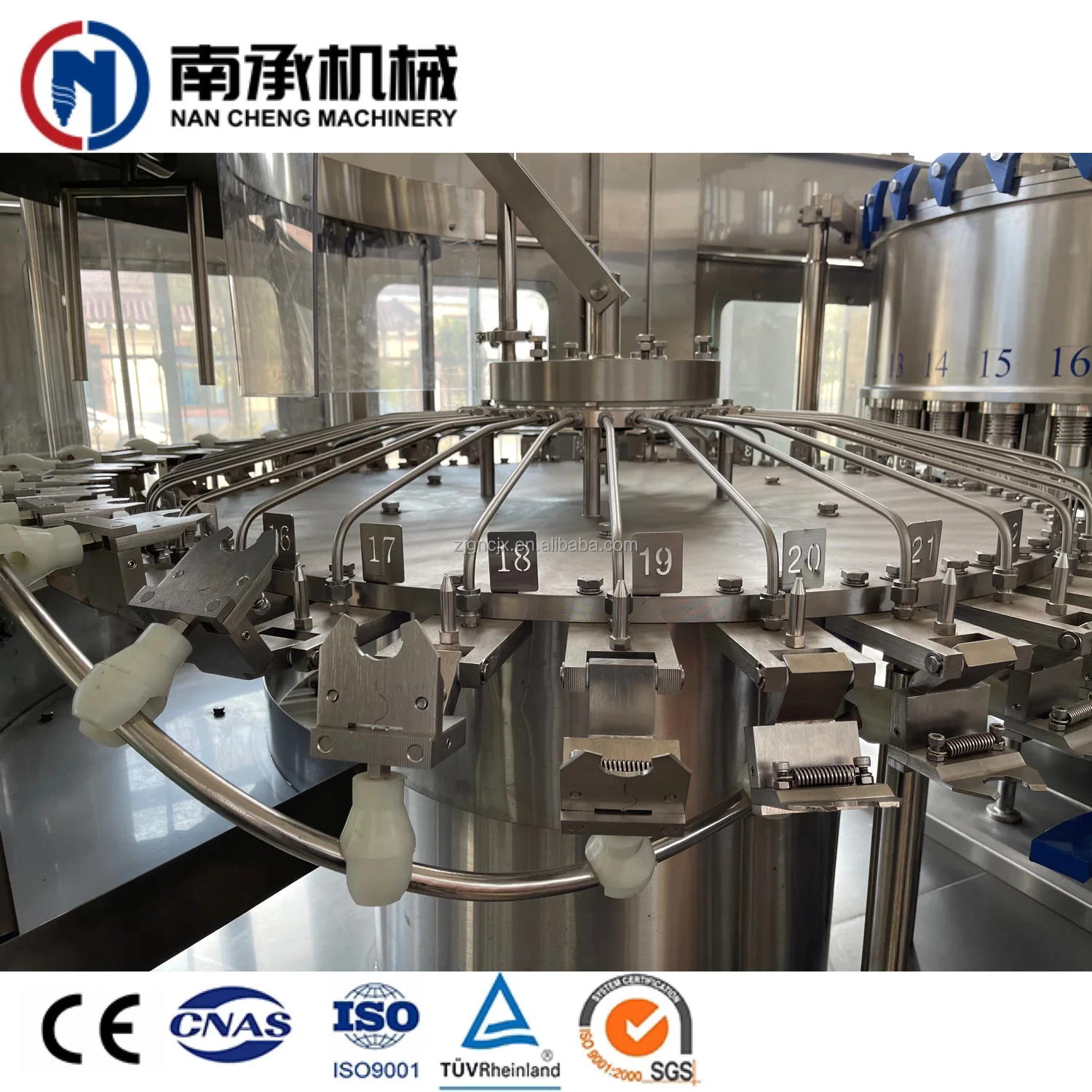

Washing Heads
1.The rinsing head is made of 304/316 stainless steel with a spray injection design.The whole process is more water efficient and cleaner.
2.The cleaning process is equipped with a 304/316 stainless steel gripper and plastic pad to ensure minimal bottle impact
3. The washing pump is made of 304/316 stainless steel
2.The cleaning process is equipped with a 304/316 stainless steel gripper and plastic pad to ensure minimal bottle impact
3. The washing pump is made of 304/316 stainless steel

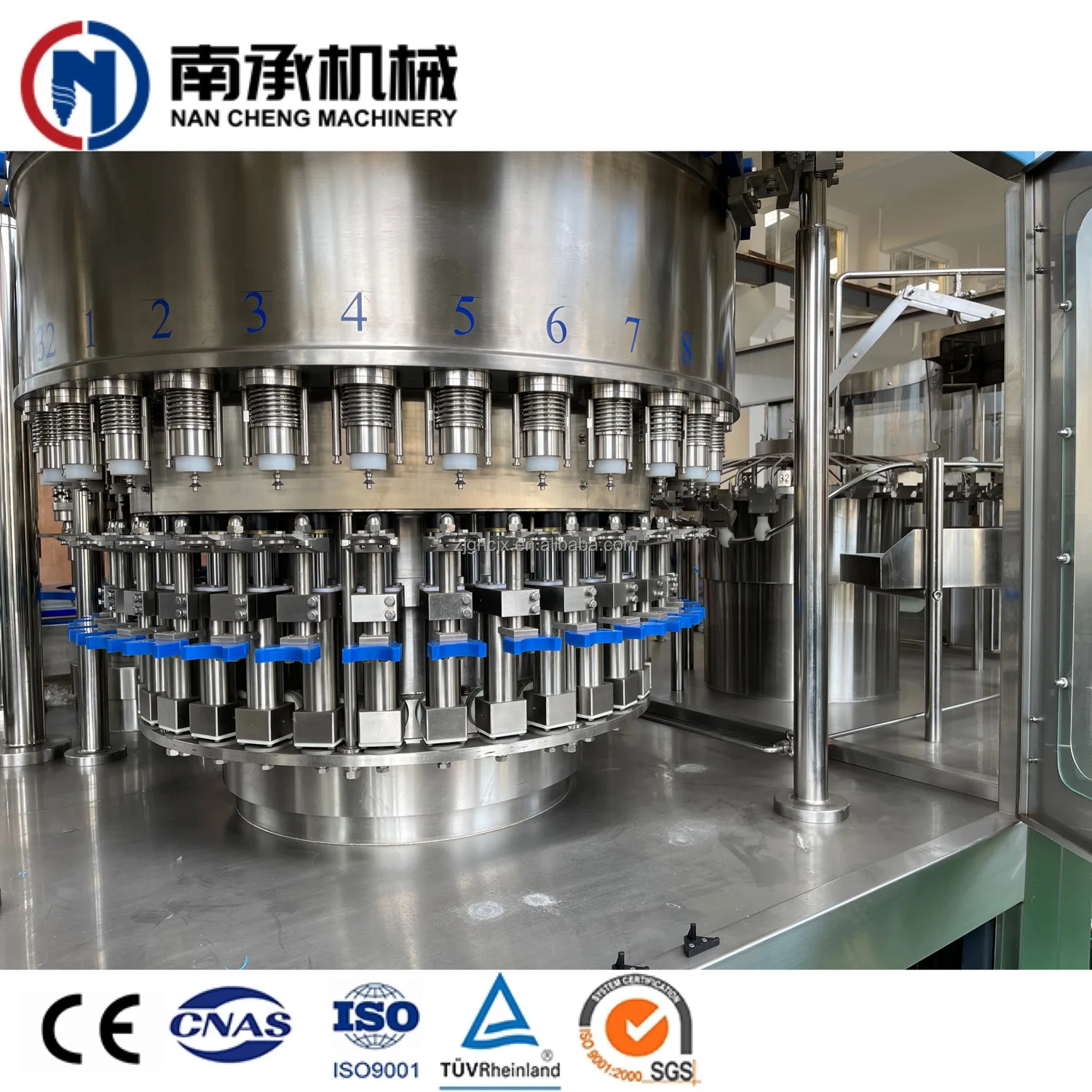

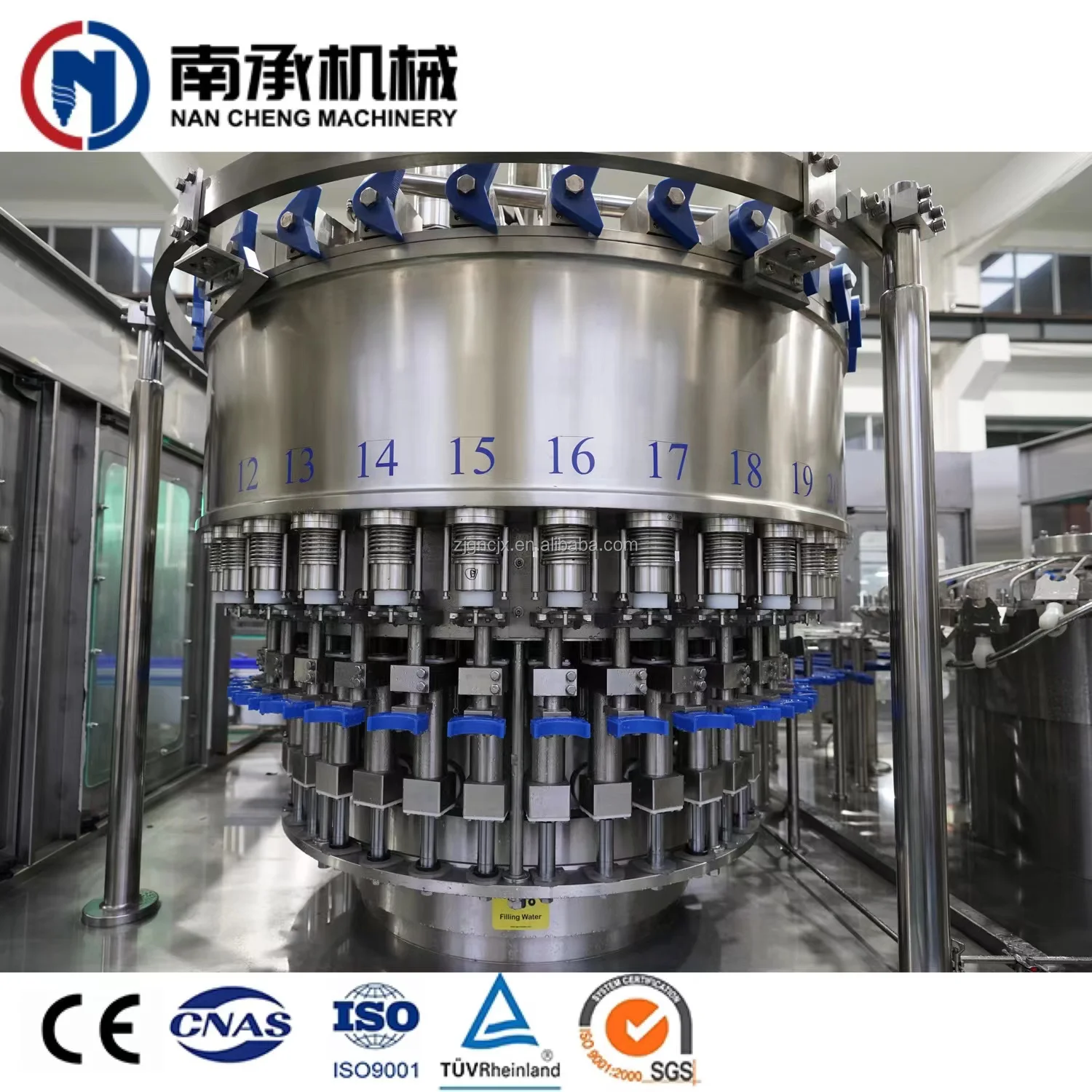

Filling Heads
1.304/316 Stainless steel high precision filling nozzle
2. Filling volume adjustable in fine rank, same liquid level after filling
3. All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
4.304/316 stainless steel filling pump
2. Filling volume adjustable in fine rank, same liquid level after filling
3. All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
4.304/316 stainless steel filling pump

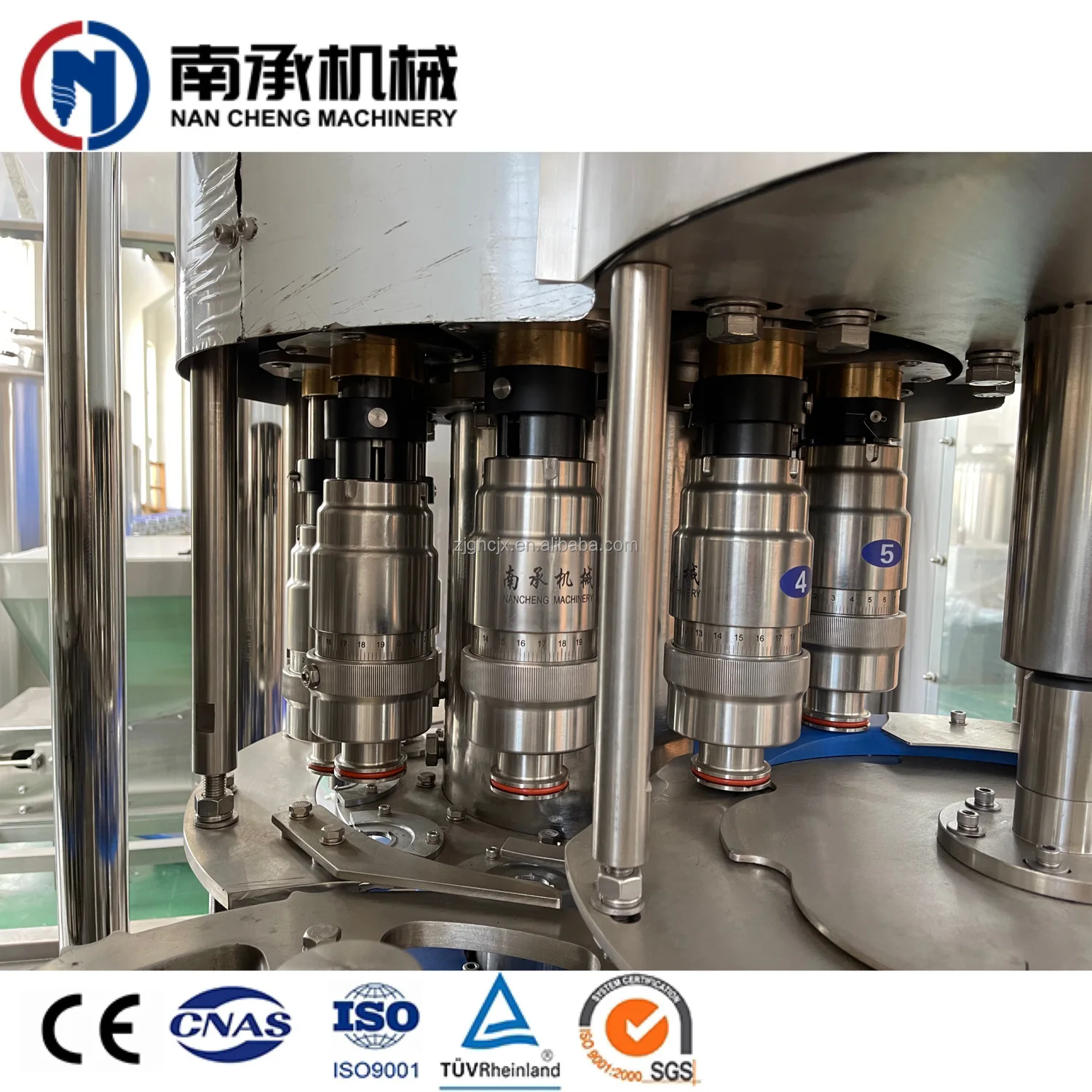

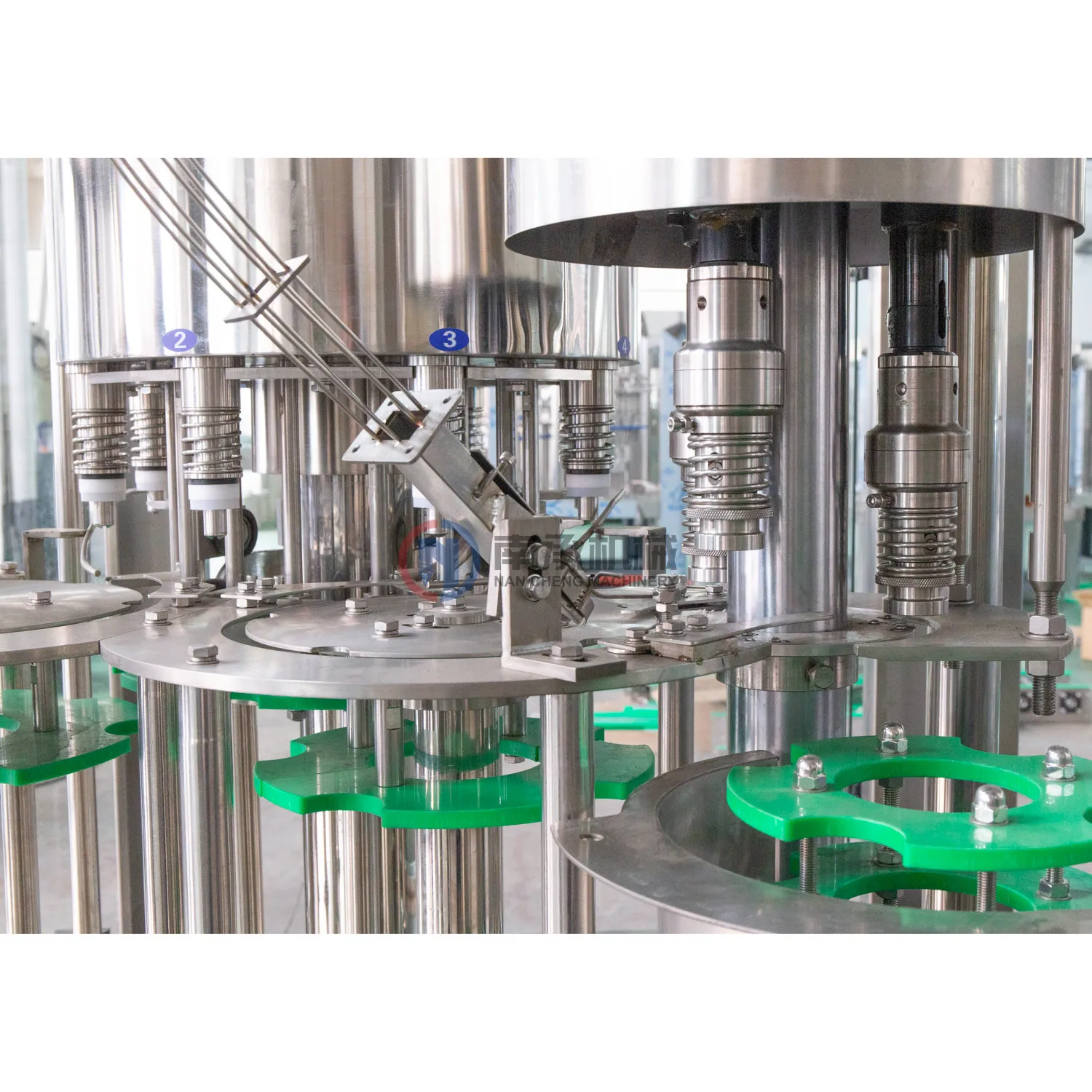

Capping Heads
1. Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
2. All 304/316 stainless steel construction
3.No bottle no capping
4. Automatic stop when lack of bottle
2. All 304/316 stainless steel construction
3.No bottle no capping
4. Automatic stop when lack of bottle
Main Features
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2.Filling way useing the gravity or micro pressure filling,make the speef is faster and more efficient.
3. The machine is easy to change the shape of the bottles,which can be done by changing the thumb wheel without adjusting the height of the machine .The filling water machine case and the parts contacting with the materials are made of stainless steel which ensures the good external look and easy washing.
4. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
5. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
6. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
7. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
2.Filling way useing the gravity or micro pressure filling,make the speef is faster and more efficient.
3. The machine is easy to change the shape of the bottles,which can be done by changing the thumb wheel without adjusting the height of the machine .The filling water machine case and the parts contacting with the materials are made of stainless steel which ensures the good external look and easy washing.
4. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
5. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
6. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
7. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

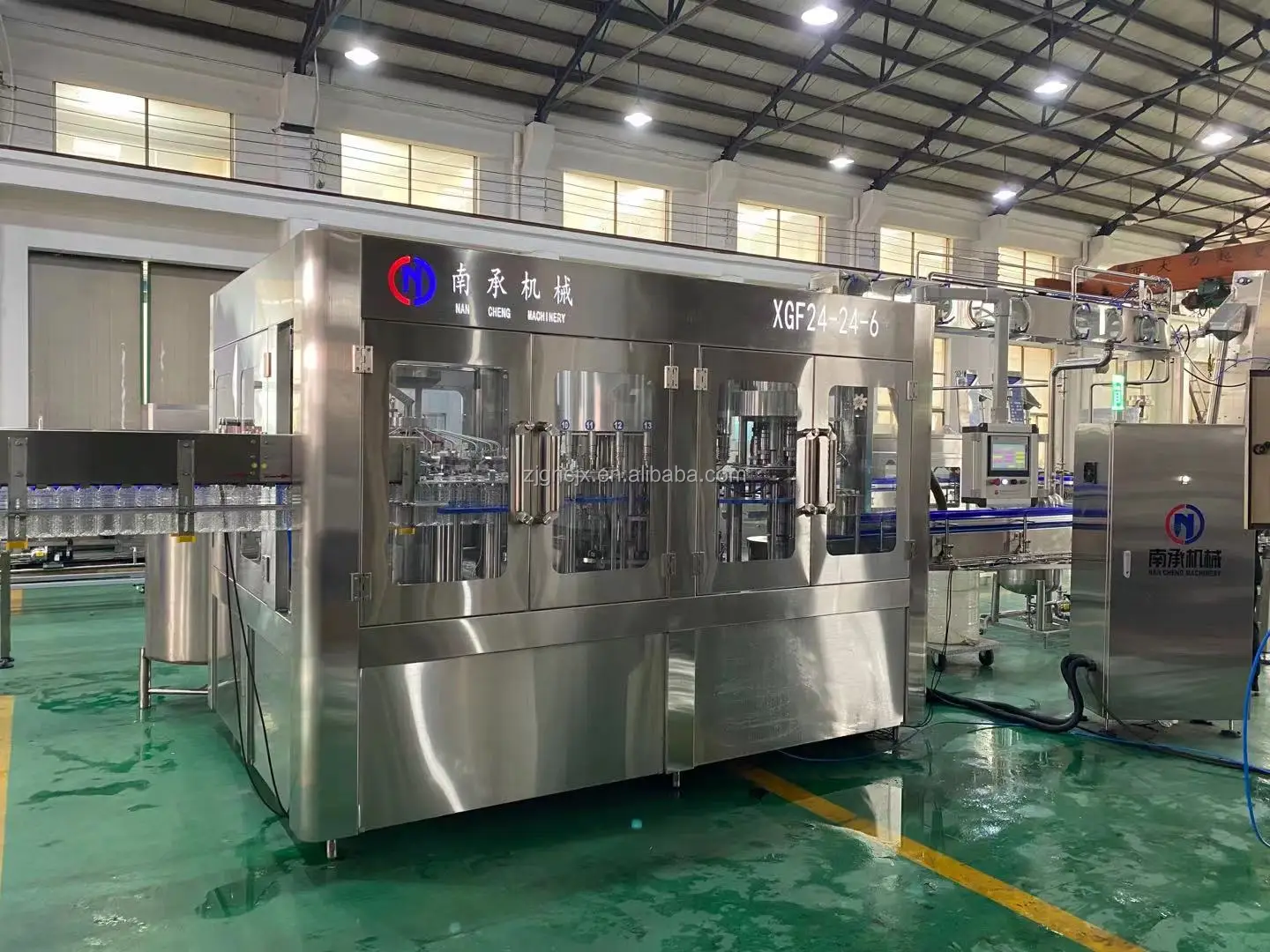

Technical Parameters
technical parameters | ||||||||||||
Model | CGF8-8-3plus | CGF14-12-5 | CGF16-16-5 | CGF24-24-6 | CGF32-32-8 | CGF40-40-10 | ||||||
Capacity | 5000PBH (500ML) | 5000PBH (500ML) | 8000PBH (500ML) | 12000PBH (500ML) | 15000PBH (500ML) | 18000PBH (500ML) | ||||||
Washing heads | 8 | 14 | 16 | 24 | 32 | 40 | ||||||
Filling heads | 8 | 12 | 16 | 24 | 32 | 40 | ||||||
Capping heads | 3 | 5 | 5 | 6 | 8 | 10 | ||||||
suitable bottle | PET bottle,plastic bottle | |||||||||||
Diameter of bottle | 55-110mm | |||||||||||
Height of bottle | 150-310mm | |||||||||||
Suitable cap | Plastic screw cap | |||||||||||
Weight | 1800kg | 2000kg | 4000kg | 4500kg | 6000kg | 7800kg | ||||||
Main motor power | 1.2kw | 1.5kw | 3kw | 3kw | 3kw | 5.5kw | ||||||

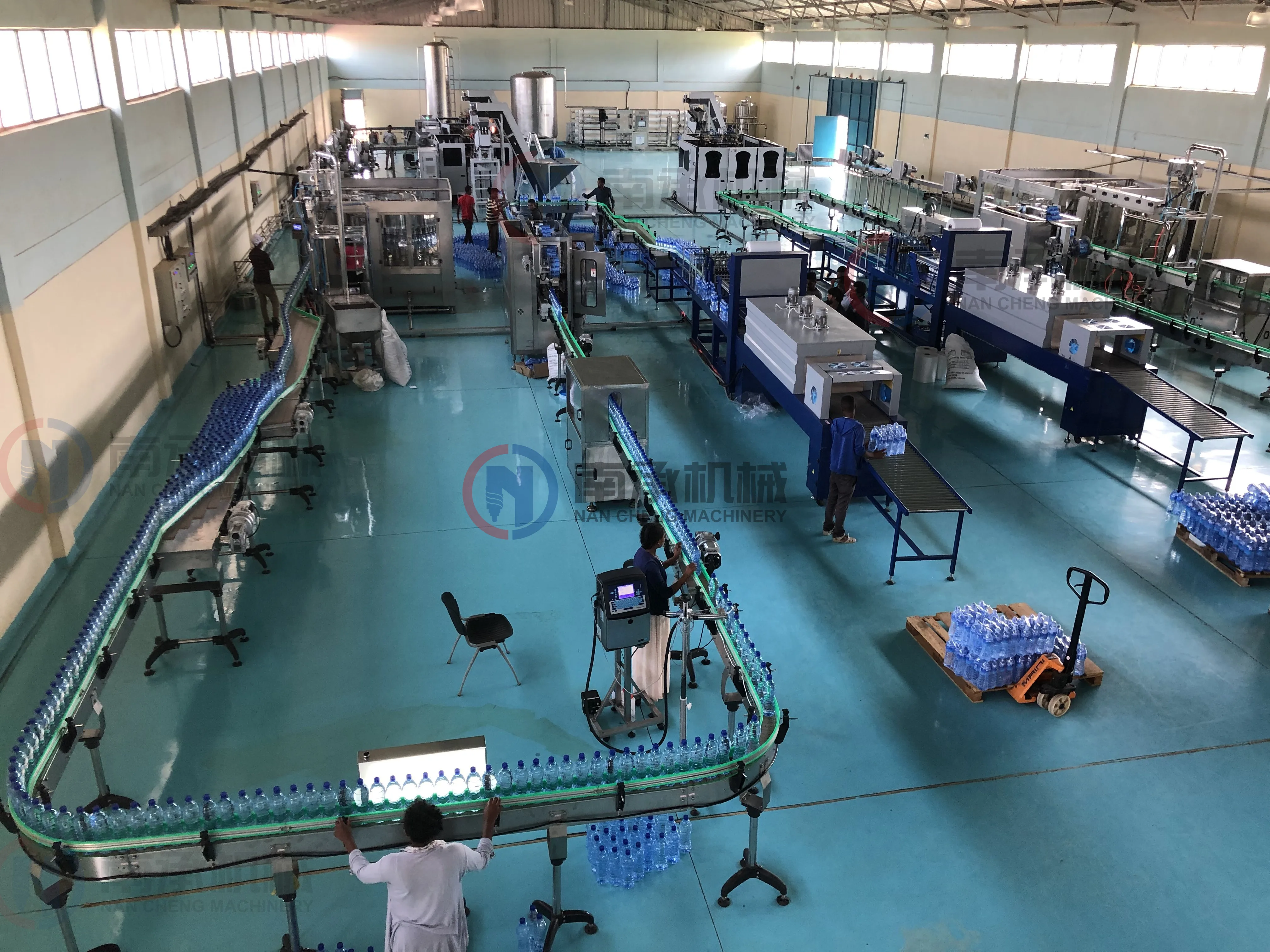

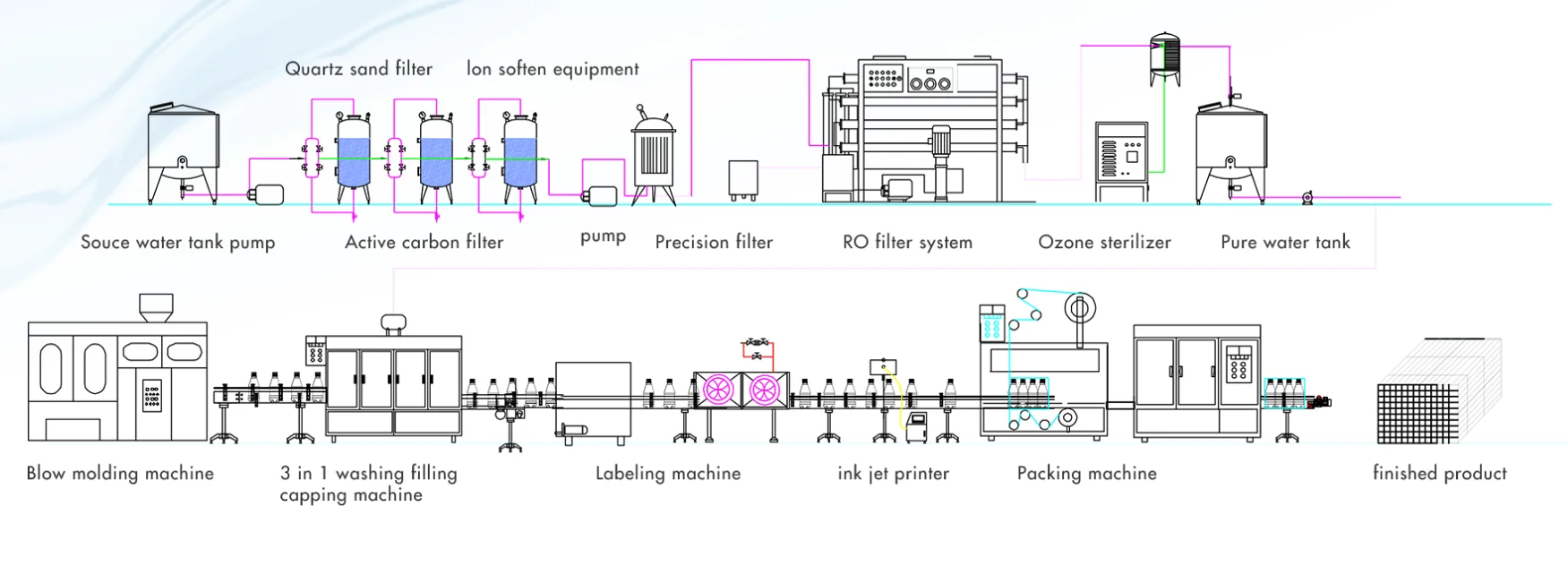

Production Process
1-Water Treatment.
1 Raw water tank + Raw water pump
2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3 Reverse Osmosis (one level)
4 UV sterilizer
5 Finished water tank + Pure water pump
2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3 Reverse Osmosis (one level)
4 UV sterilizer
5 Finished water tank + Pure water pump
Benfits.
1/Stainless steel high pressure film shell
2/All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
3/Online type pressure auto self-protection device
4/Online type electricity indicator (with stable compensation)
5/System safe protecting and alarm system
6/System frame
2/All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
3/Online type pressure auto self-protection device
4/Online type electricity indicator (with stable compensation)
5/System safe protecting and alarm system
6/System frame

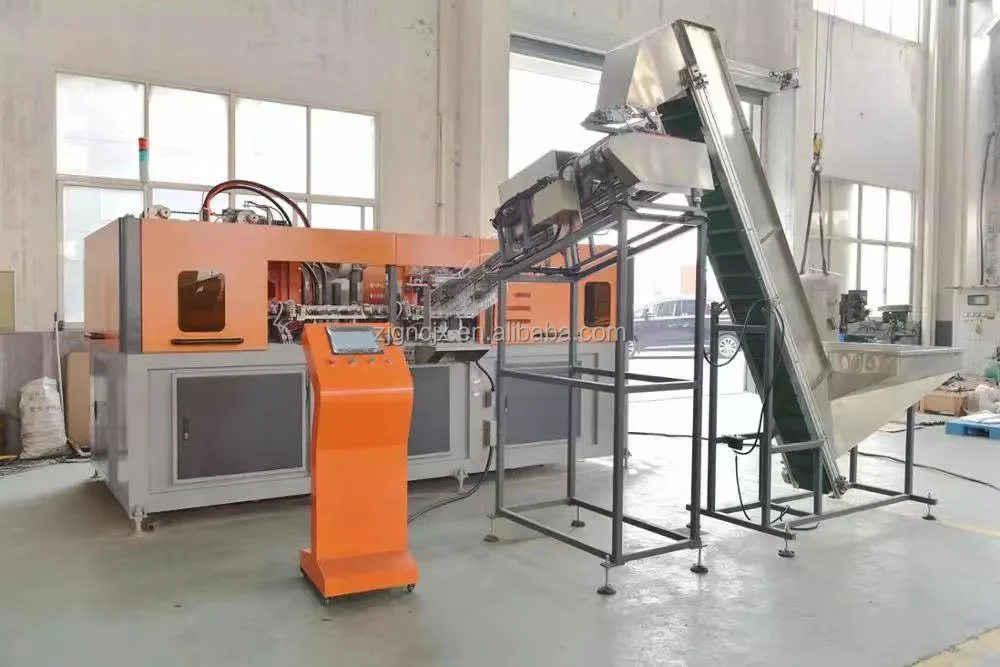

2-Blow Molding Machine.
1 / Blower : Industry-leading blower performance with patented control and self-regulation systems for repeatable and consistently high bottle quality
2 / Production flexibility: Up to 200 different equipment size configurations from one platform
3 / Top quality: Electrical stretching for bottle integrity, full material distribution control and performance
4 / Fast output: Boosted uptime and speed (up to 2,400 bottles/mould/hour)
5 / Efficient consumption: Up to 45 % less electricity and 35 % less compressed air
2 / Production flexibility: Up to 200 different equipment size configurations from one platform
3 / Top quality: Electrical stretching for bottle integrity, full material distribution control and performance
4 / Fast output: Boosted uptime and speed (up to 2,400 bottles/mould/hour)
5 / Efficient consumption: Up to 45 % less electricity and 35 % less compressed air

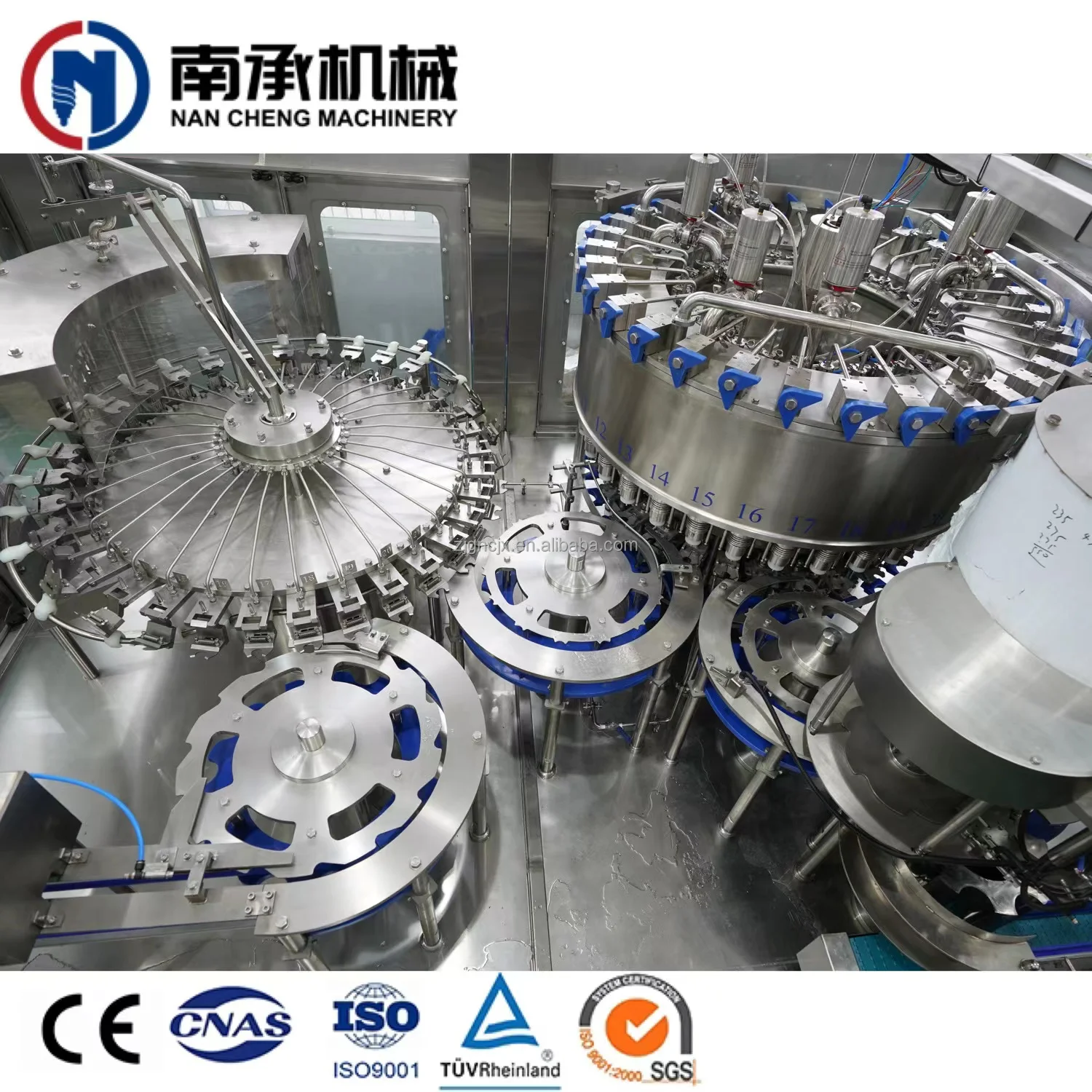

3 - CGF Water Filling Machine [ Washing Filling Capping 3 in 1 type ].
1 / Enhanced food safety: Stainless steel 304/316L for all components in contact with your beverage
2 / Optimum uptime: 30 % reduction in changeover and maintenance downtime
3 / Sustainable solution: Reduced filler enclosure and servomotors reduce resource consumption
4 / Hygiene improvement through volume control and contactless filling
5 / Automatic dummy bottles: Safer, easier cleaning procedures
6 / Automatic bottle changeover improves uptime
2 / Optimum uptime: 30 % reduction in changeover and maintenance downtime
3 / Sustainable solution: Reduced filler enclosure and servomotors reduce resource consumption
4 / Hygiene improvement through volume control and contactless filling
5 / Automatic dummy bottles: Safer, easier cleaning procedures
6 / Automatic bottle changeover improves uptime
Equipment Type | Automatic | ||||
Bottle Type | PET round or square bottle Volume 200 - 2000ml Bottle diameter 50-115mm Bottle height 160-320mm | ||||
Output | up to 72,000 bph | ||||
Your product | mineral water/pure water/non-gas wine drink and so on. | ||||
Certificates | CE / SGS / ISO 9001 | ||||
4-Labeling Machine.
Boasting four carousel sizes, up to three labelling stations and 24 configurations, can generate outputs of up to 72,000 containers per hour, when standalone, at an efficiency rate of 98%.
Benefits
1 / Greater performance and ergonomics
2 / Boasted production uptime
3 / Sustainable and quality production
Benefits
1 / Greater performance and ergonomics
2 / Boasted production uptime
3 / Sustainable and quality production
5 -Packing Machine.
Once your beverage product has been filled and the bottle has been labelled, the primary package is gently transferred using conveyors to its secondary packaging process. The final result is the package the customer sees at the point of sale, so it needs to grab their attention. These packs ensure protection from elements such as weather, pressure and temperature changes. Whether you choose shrink-printed film, nested packs or wraparound cartons, King Machine packers gently feed bottles to ensure durable and cost-effective packs.
Benfits.
1 / Pack consistency and quality
2 / Gentle and precise infeed configuration
3 / Flexible handling of multiple SKUs
4 / Automatic pack and raw material changeovers
5 / Heat, glue, carton and film optimisation
Benfits.
1 / Pack consistency and quality
2 / Gentle and precise infeed configuration
3 / Flexible handling of multiple SKUs
4 / Automatic pack and raw material changeovers
5 / Heat, glue, carton and film optimisation
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Zhangjiagang Nancheng Machine Co.,Ltd
1 / Standardized workshop of total 20,000 square meters.
2 / The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline,and pneumatic, electrical and mechnical stability.
3 / Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
2 / The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline,and pneumatic, electrical and mechnical stability.
3 / Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
Certifications
FAQ
Q1:Do you have any reference project?
>> A1:We have reference project in most countries, and you can visit their factories if we get the permission of the customer.
Q2:What's your guarantee or the warranty of the quality if we buy your machines?
>>A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years.
Q3: Do you provide customized service?
>> A3: We will customize the machine according to your needs, materil ,power,filling type,the kinds of the bottles and so on.
Q4:When can I get my machine after I paid?
>> A4:We will deliver the machines on time as the date we agreed both side.
Q5:How can I install my machine when it arrives?
>> A5:We will send our engineer to your side as soon as you get all your machines ready, for testing and teaching your technicians how to run the machines.
>> A1:We have reference project in most countries, and you can visit their factories if we get the permission of the customer.
Q2:What's your guarantee or the warranty of the quality if we buy your machines?
>>A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years.
Q3: Do you provide customized service?
>> A3: We will customize the machine according to your needs, materil ,power,filling type,the kinds of the bottles and so on.
Q4:When can I get my machine after I paid?
>> A4:We will deliver the machines on time as the date we agreed both side.
Q5:How can I install my machine when it arrives?
>> A5:We will send our engineer to your side as soon as you get all your machines ready, for testing and teaching your technicians how to run the machines.
welcome to mail me,if you have any questions.
