2024 wall clock machine watch accessories 1688 quartz movement mechanism for home decor
- Category: >>>
- Supplier: Dongguan Heng-Rong Hardware Electronic Technology Co. Ltd.
Share on (1600436290116):
Product Overview
Description

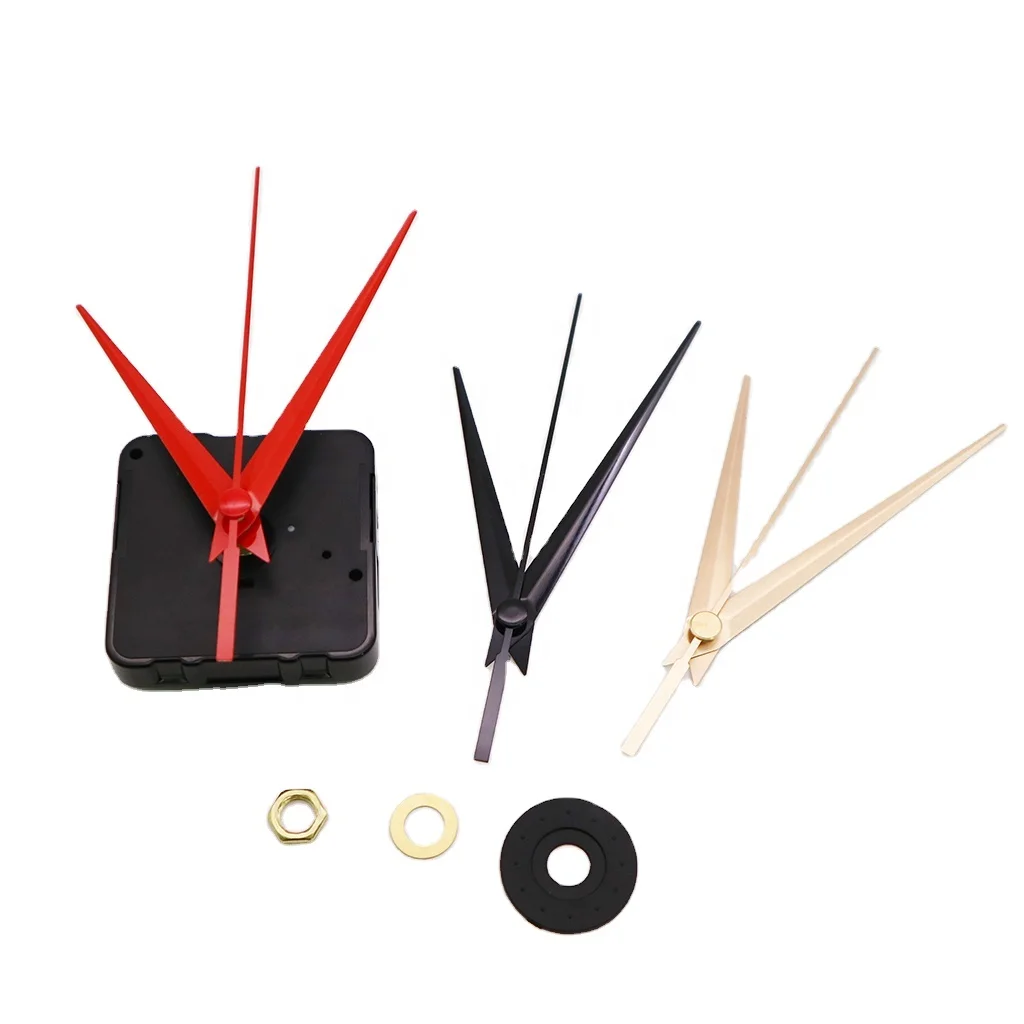

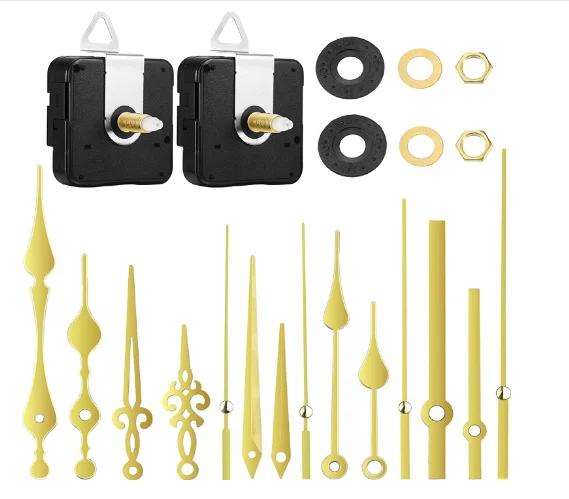

2024 wall clock machine watch accessories 1688 quartz movement mechanism
DIY clock parts
Clock parts in wall clock
Clock mechanism and hands
Quartz clock movement
Mechanical clock movement
HR1688 step clock machine
Youngtown clockwork motor
1688 clock movement mechanism
Ticking clock machine
Mechanical clock movement
DIY wall clock parts & accessories
High quality clockwork
HR1688 clock motor
Clock parts in wall clock
Clock mechanism and hands
Quartz clock movement
Mechanical clock movement
HR1688 step clock machine
Youngtown clockwork motor
1688 clock movement mechanism
Ticking clock machine
Mechanical clock movement
DIY wall clock parts & accessories
High quality clockwork
HR1688 clock motor
Product Paramenters
Certification | CE RoHS FCC |
Operating Voltage | 1.25V~1.7V |
Average Consumption Current | ≤140μ at 1.5V |
Normal Torque | 180μ~240μ |
Average time keeping | ±1 sec/day |
Battery | LR6/AA,1.5V X1PC (Excluded) |
Operating Temperature range | -10°C to 50°C |

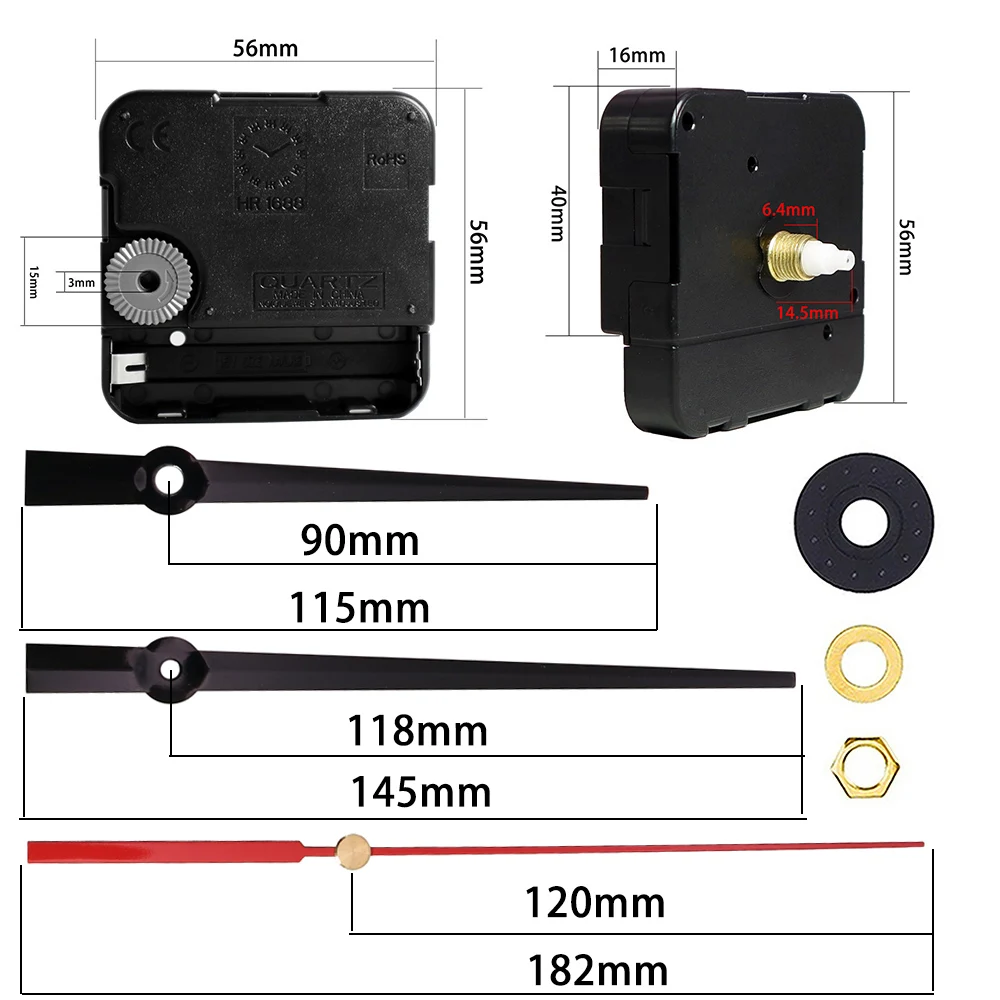

Shaft Length | 8, 13, 15, 17, 20, 22.5, 28, 32mm are available |
Different shaft length for option
Model No. | Shaft length (mm) | Thread length (mm) | Fit to the thickness of clock board/ clock face/ clock panel |
HR1688S-8 | 8mm | Fit to 1mm thick clock panel | |
HR1688S-13 | 13mm | 5.2mm | Fit to 1-2mm thick clock panel |
HR1688S-15 | 15mm | 6.7mm | Fit to 2-3mm thick clock panel |
HR1688S-17 | 17mm | 9mm | Fit to 4-6mm thick clock panel |
HR1688S-20 | 20mm | 11.7mm | Fit to 6-8mm thick clock panel |
HR1688S-22.5 | 22.5mm | 15mm | Fit to 9-12mm thick clock panel |
HR1688S-28 | 28mm | 20.5mm | Fit to 13-17mm thick clock panel |
HR1688S-32 | 32mm | 25.5mm | Fit to 18-22mm thick clock panel |
HR1688S-8
Shaft length 8mm
Fit to 1mm thick clock panel
HR1688S-13
Shaft length 13mm
Fit to 1-2mm thick clock panel
HR1688S-15
Shaft length 15mm
Fit to 2-3mm thick clock panel
HR1688S-17
Shaft length 17mm
Fit to 4-6mm thick clock panel
HR1688S-20
Shaft length 20mm
Fit to 6-8mm thick clock panel
HR1688S-22.5
Shaft length 22.5mm
Fit to 9-12mm thick clock panel
HR1688S-28
Shaft length 28mm
Fit to 13-17mm thick clock panel
HR1688S-32
Shaft length 32mm
Fit to 18-22mm thick clock panel
Products Description

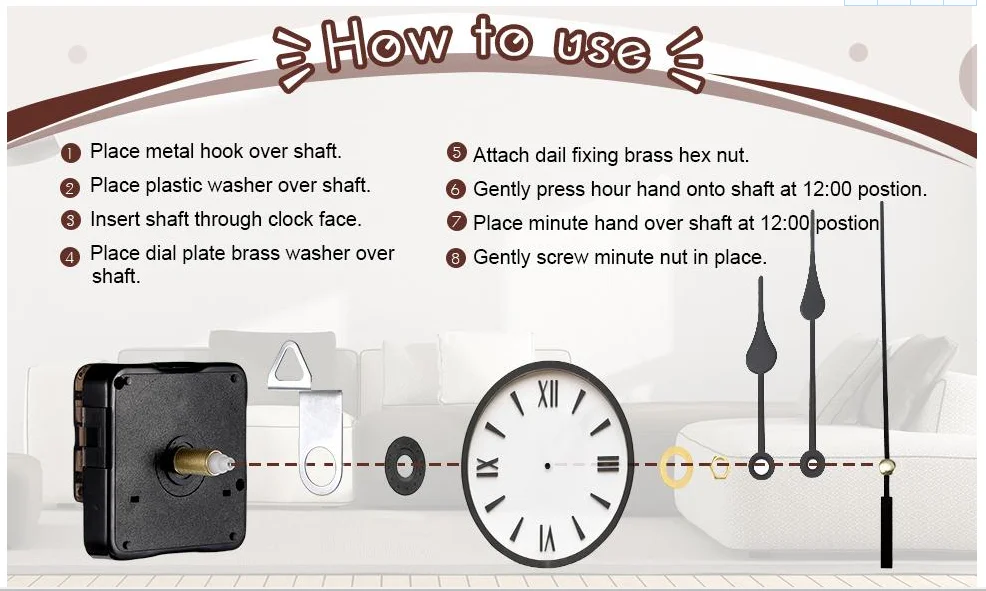

Install Details
Beside HR1688 step clock machine, we also have other kinds of clock mechanism, for example:
1. HR1688 High torque clock movement
2. HR1688 Silent clock movement
3. HR1688 24 hours clock movement
4. HR1688 Reversed (Counterclockwise) clock movement
5. HR1688 Transparent clock movement
6. HR1688 Pendulum clock movement
7. HR1688 clock movement with plastic hanger
8. HR1688 Tide clock movement
9 . HR1688 Moon clock movement
10. HR1688 Week clock movement
11. HD1688 radio controlled clock movement
12. LONGWAVE/ ZD-9688 radio controlled clockwork
13. Automatic WIFI Clock Movement
14. 12888 clock clock movement
15. 5168S/ 6168S sangtai clock movement
Please see the below photos of different kinds of clock movements:
1. HR1688 High torque clock movement
2. HR1688 Silent clock movement
3. HR1688 24 hours clock movement
4. HR1688 Reversed (Counterclockwise) clock movement
5. HR1688 Transparent clock movement
6. HR1688 Pendulum clock movement
7. HR1688 clock movement with plastic hanger
8. HR1688 Tide clock movement
9 . HR1688 Moon clock movement
10. HR1688 Week clock movement
11. HD1688 radio controlled clock movement
12. LONGWAVE/ ZD-9688 radio controlled clockwork
13. Automatic WIFI Clock Movement
14. 12888 clock clock movement
15. 5168S/ 6168S sangtai clock movement
Please see the below photos of different kinds of clock movements:

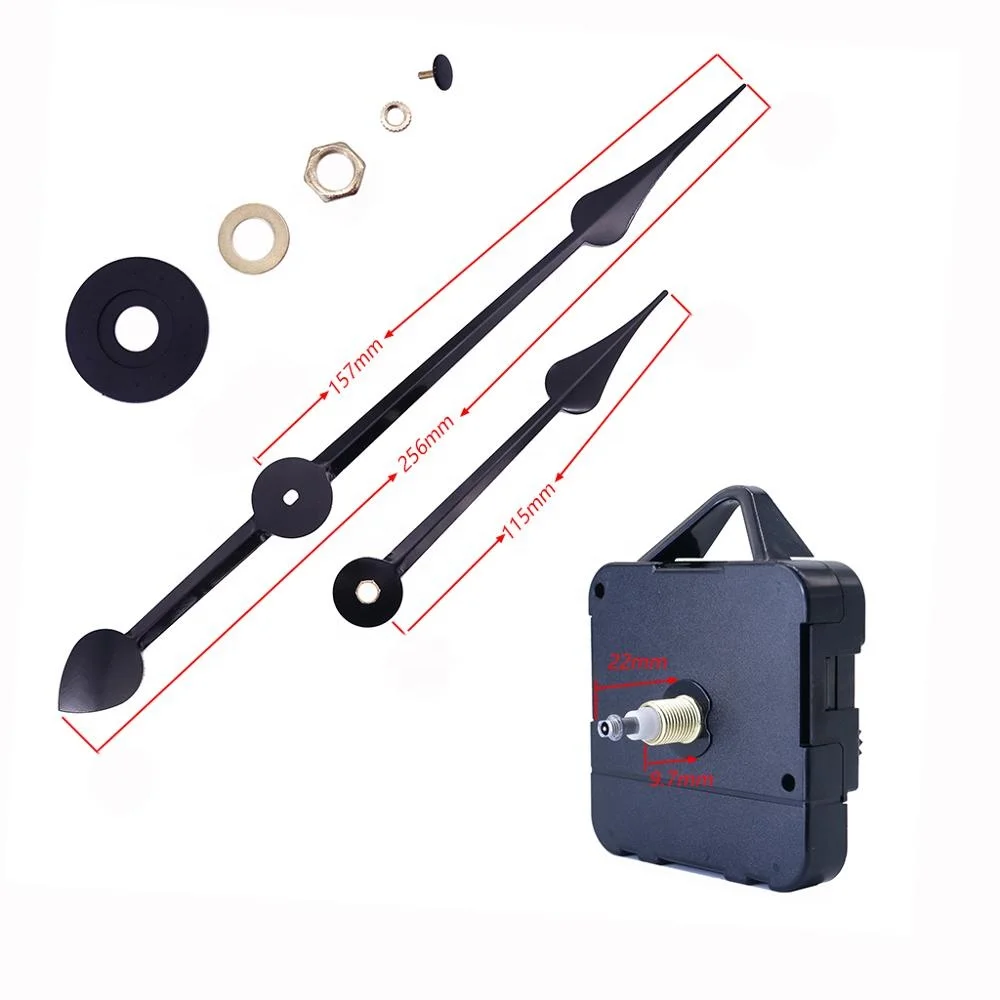

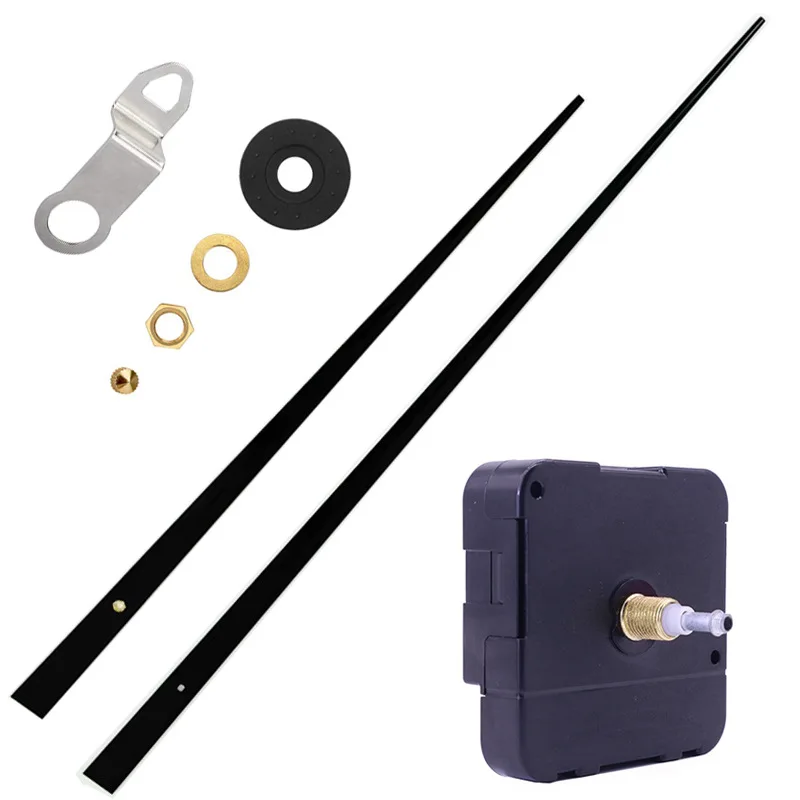

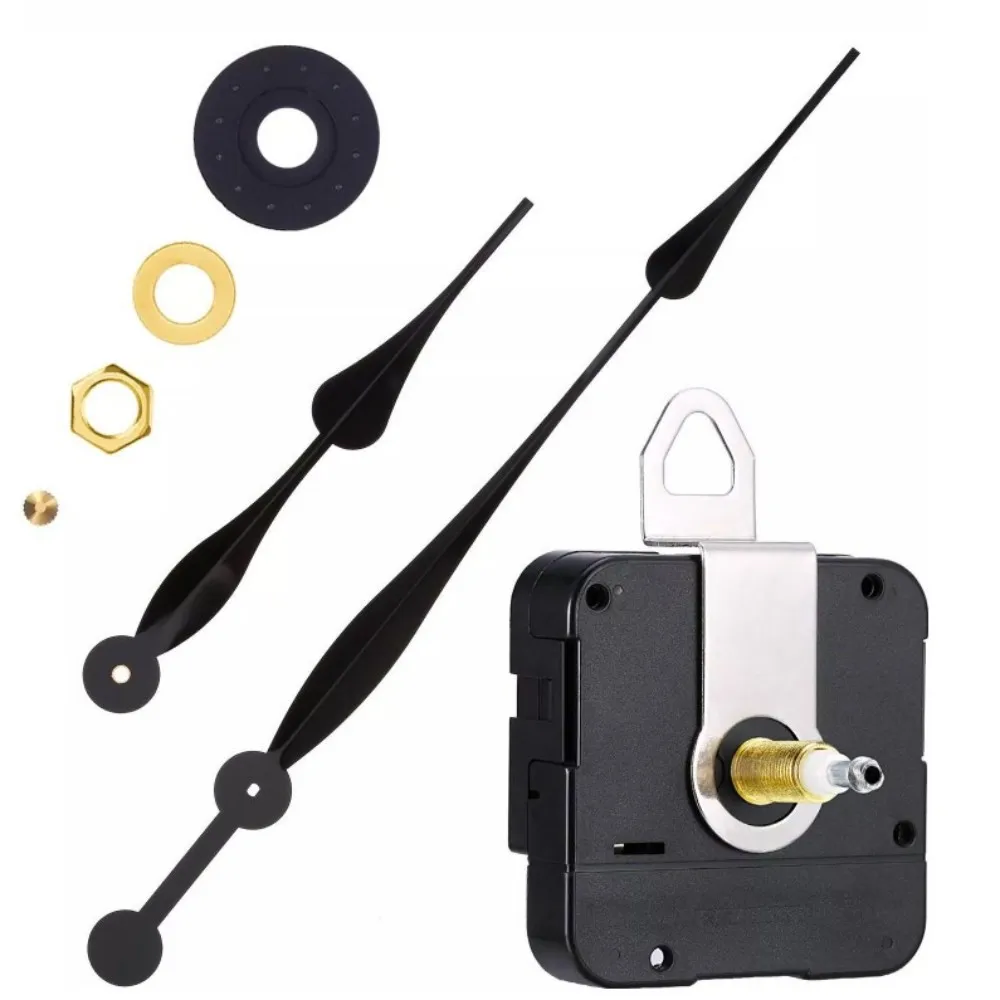

HR1688 high torque I shaft clock movement with large clock hands

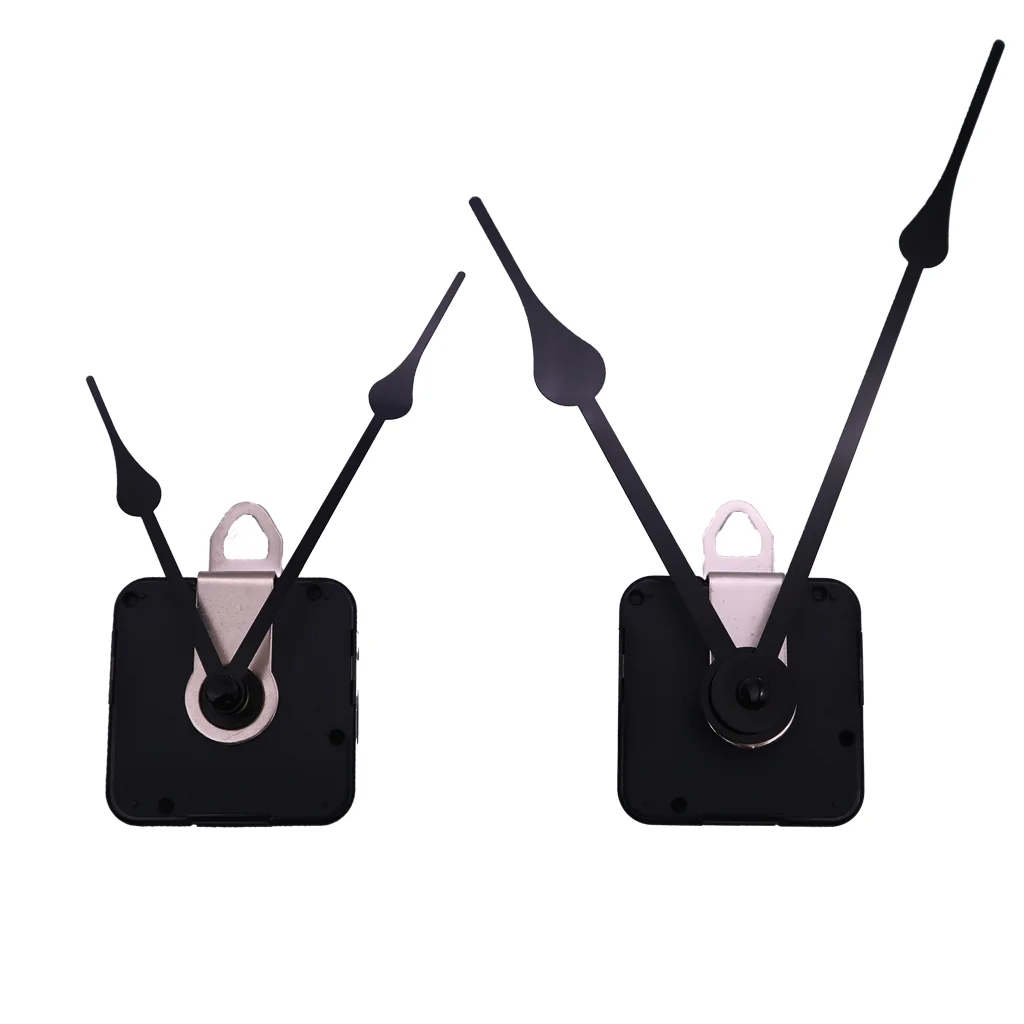

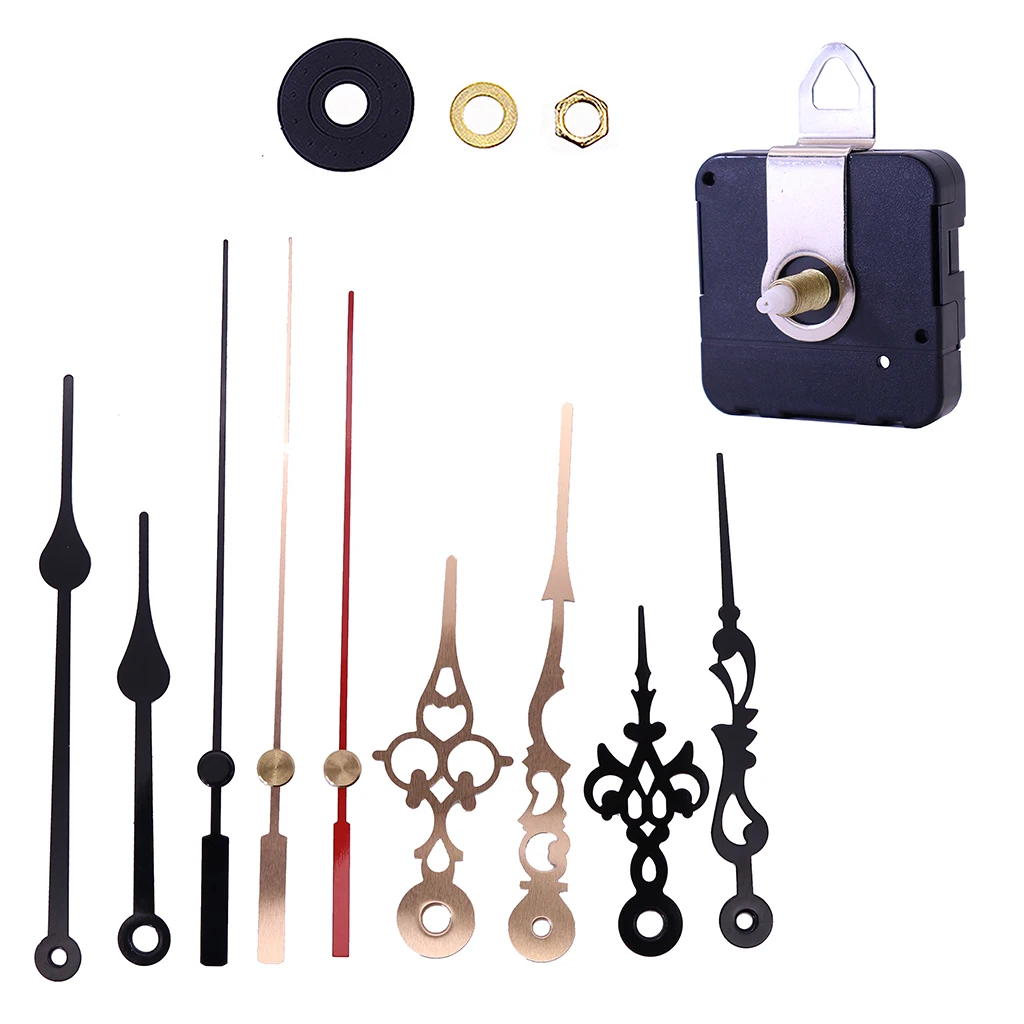

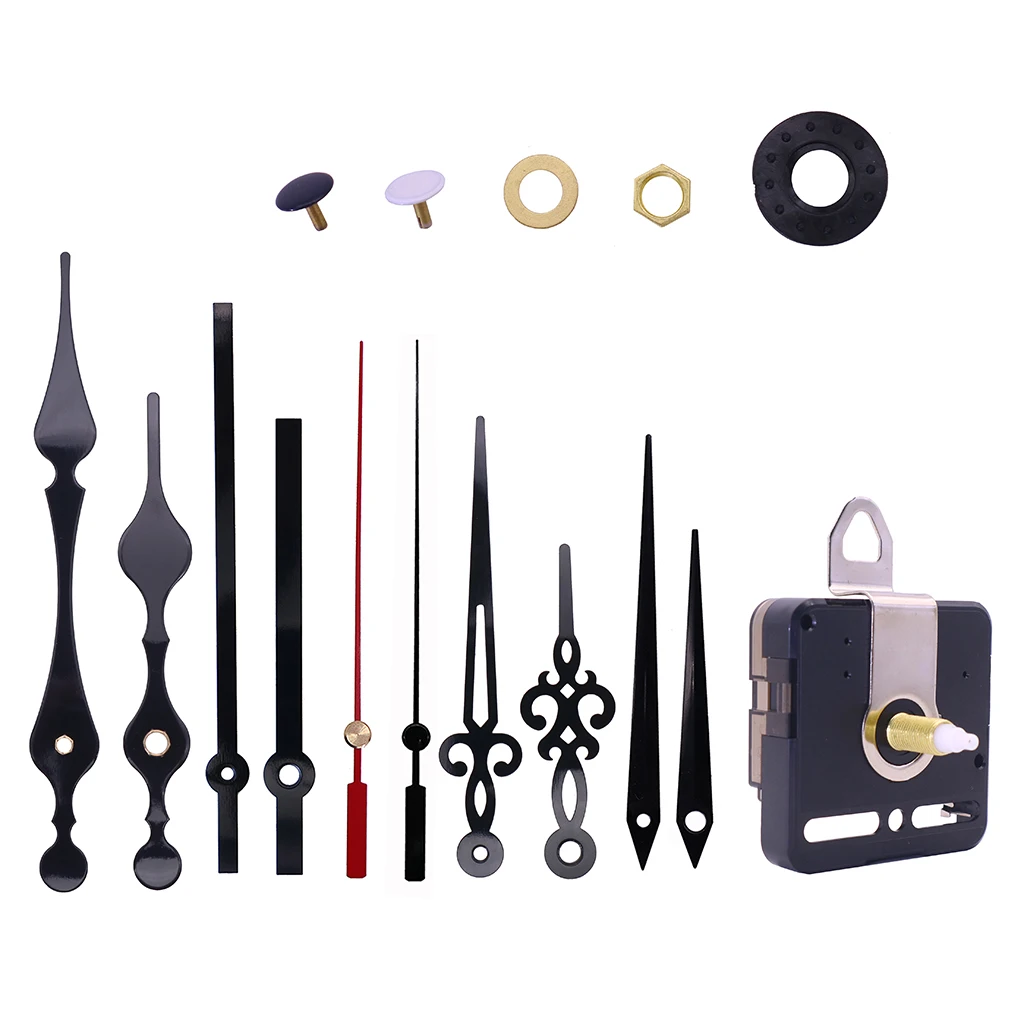

HR1688 silent clock mechanism with many designs clock needles
HR1688 24 hours clock movement with clock pointers

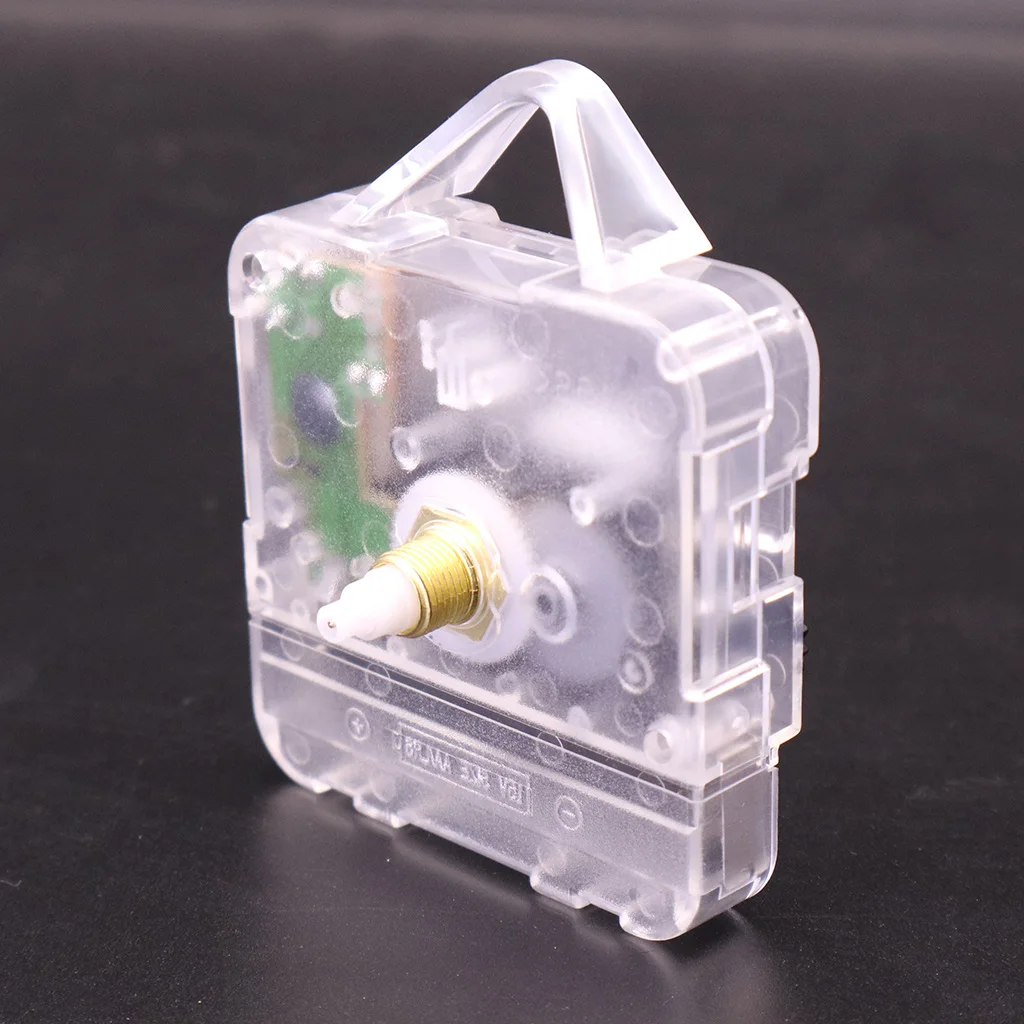

HR1688 Transparent clock movement

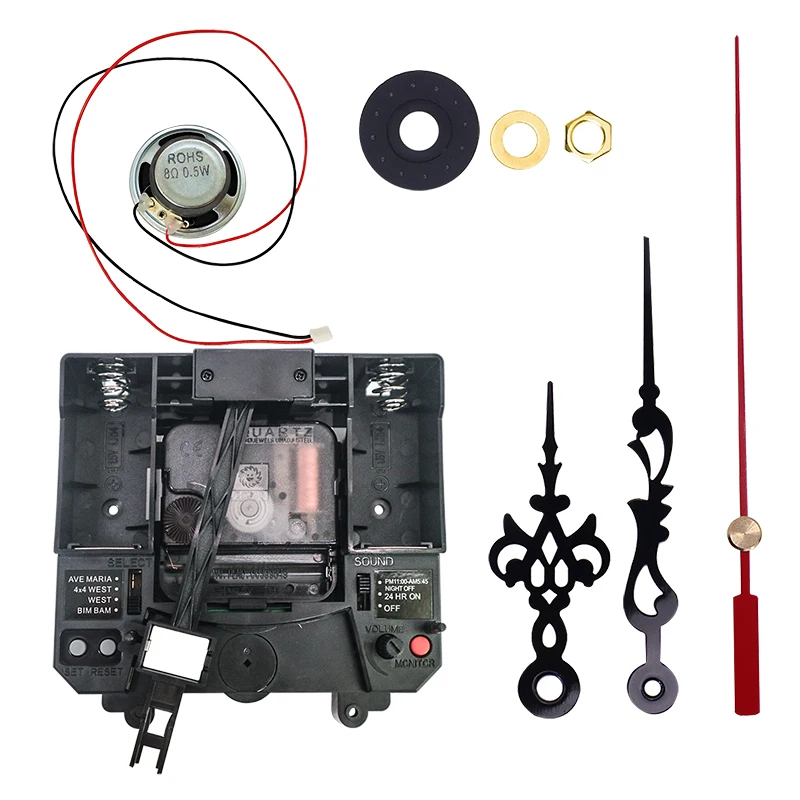

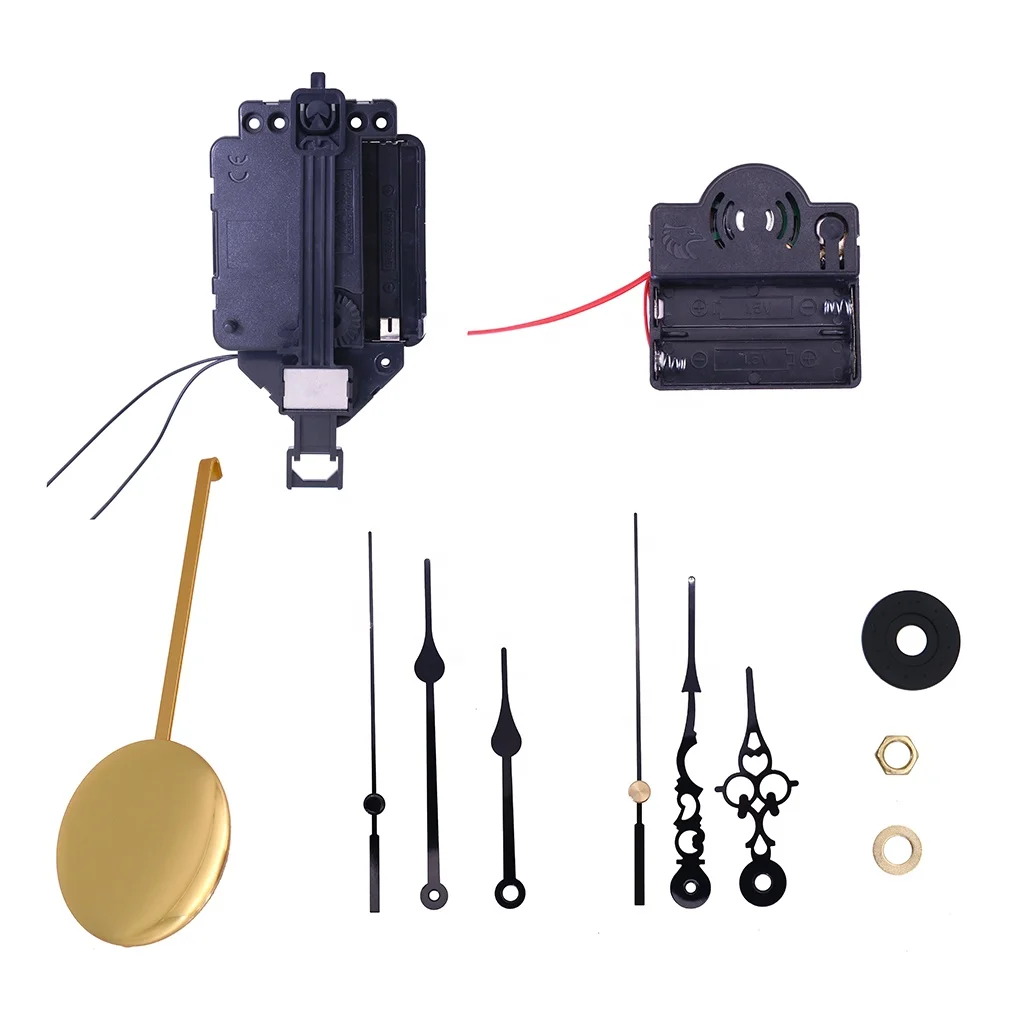

HR1688 Pendulum clock movement with needles and pendulum bob and westminster music box

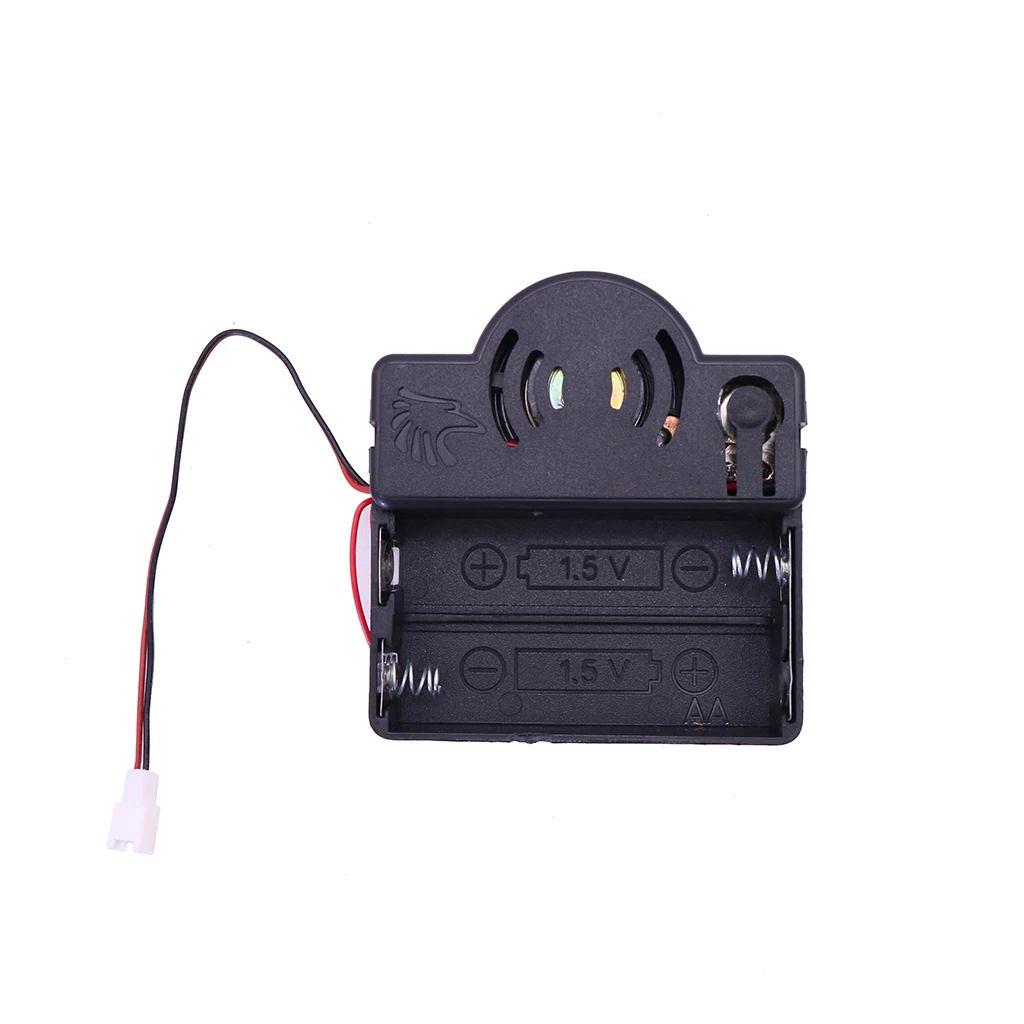

Westminster music box

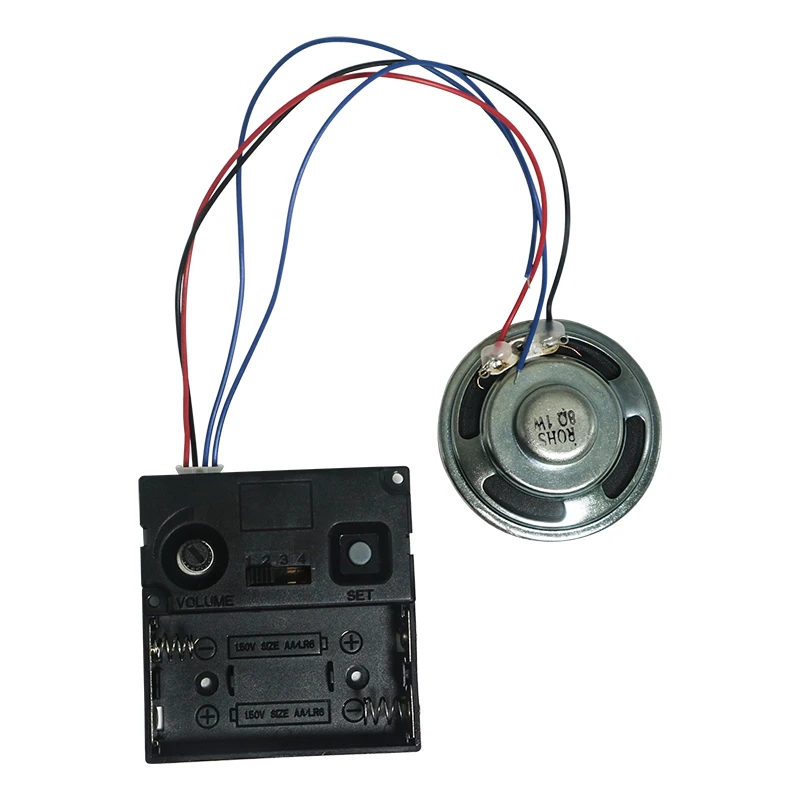

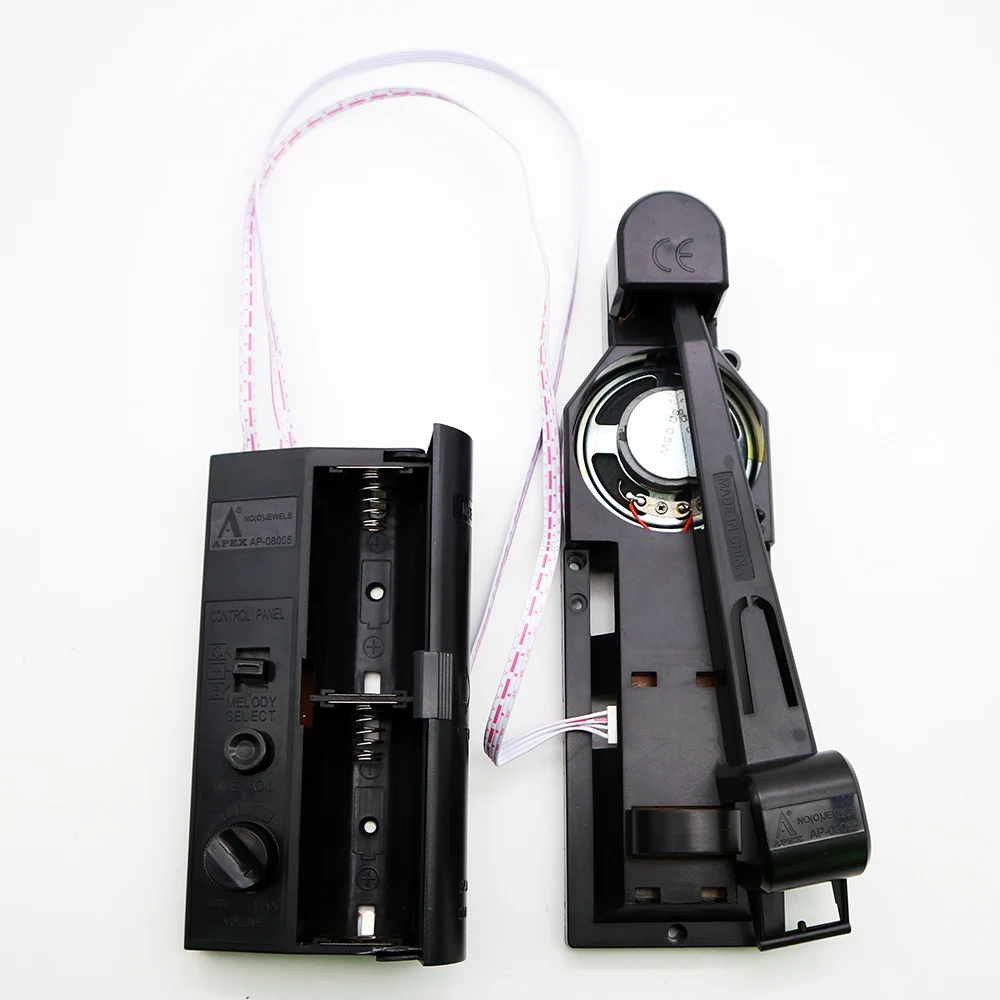

4*4 (4 options melody) music box with loudspeaker
12888 youngtown trigger clock movement with 4*4 westminster music box

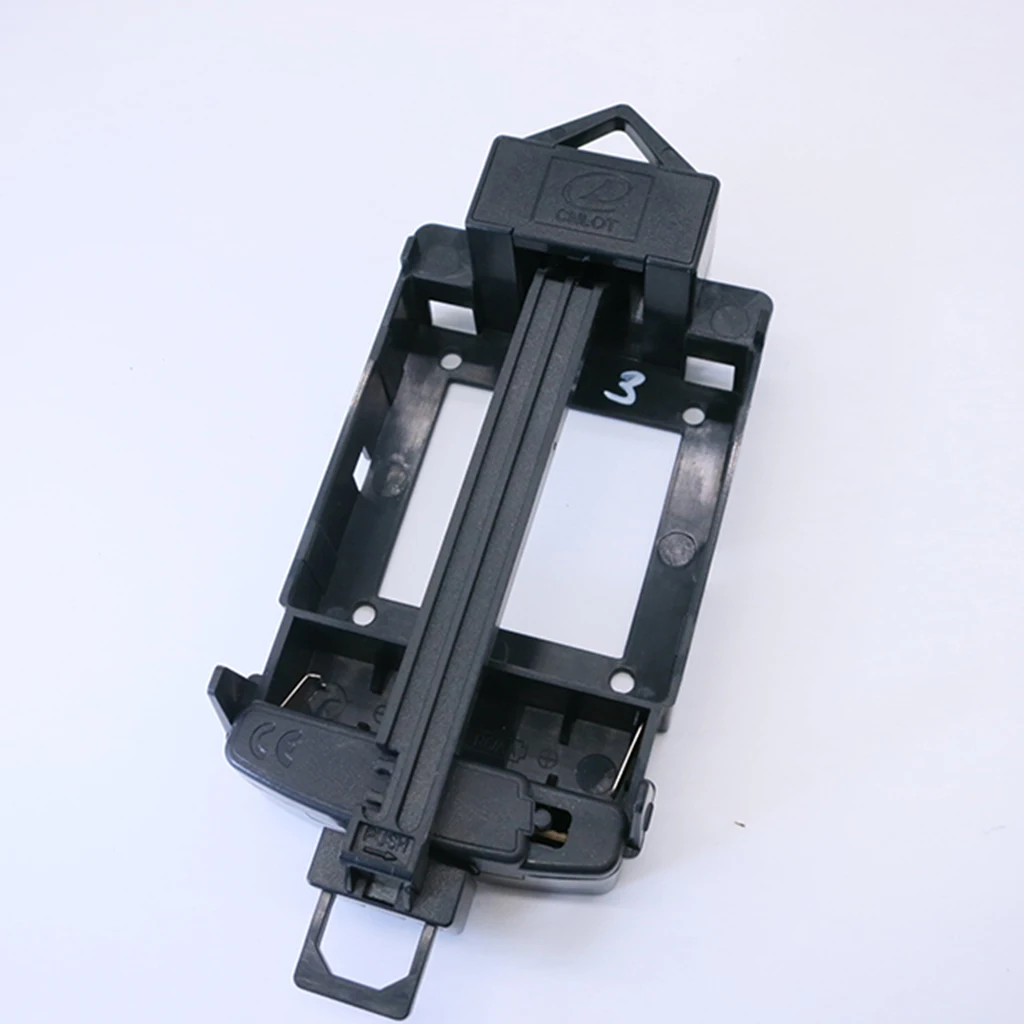

Different model pendulum drivers

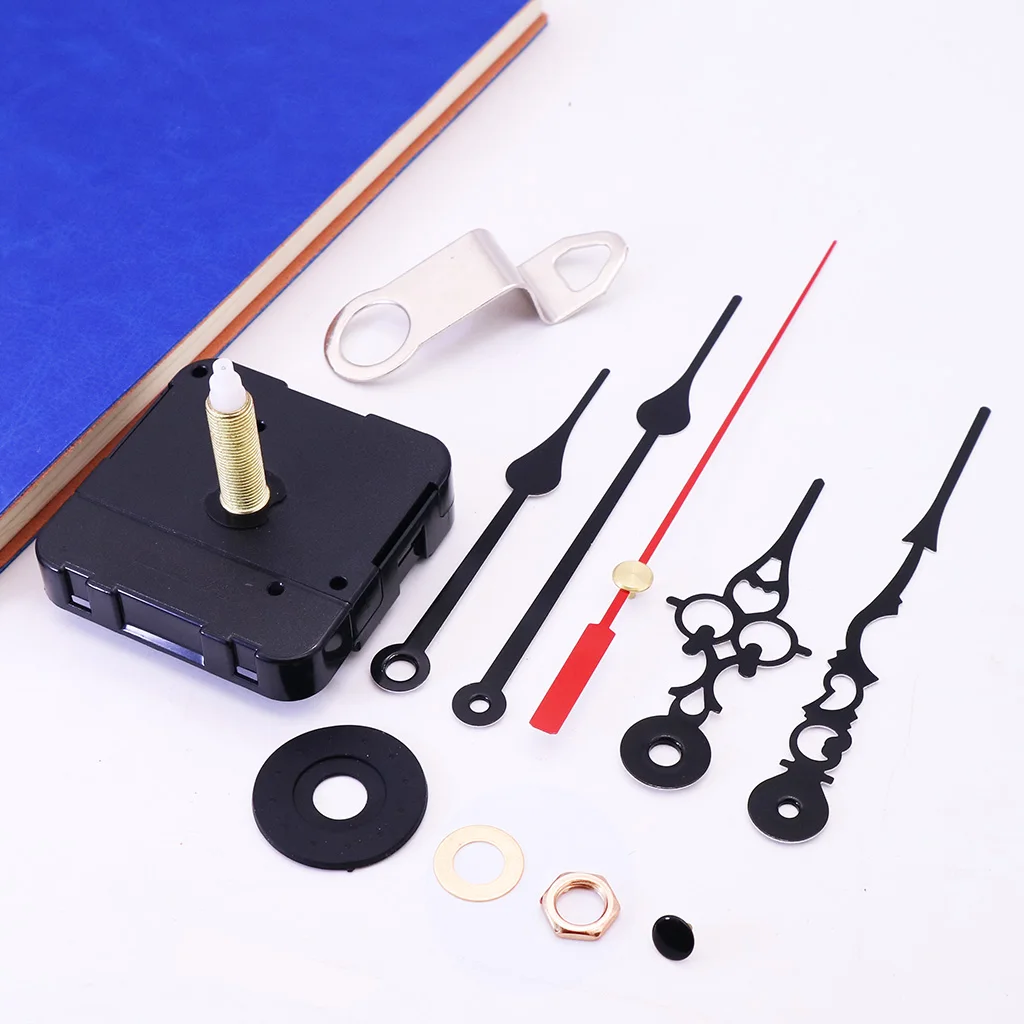

HR1688 clock movement with plastic hanger and black hands

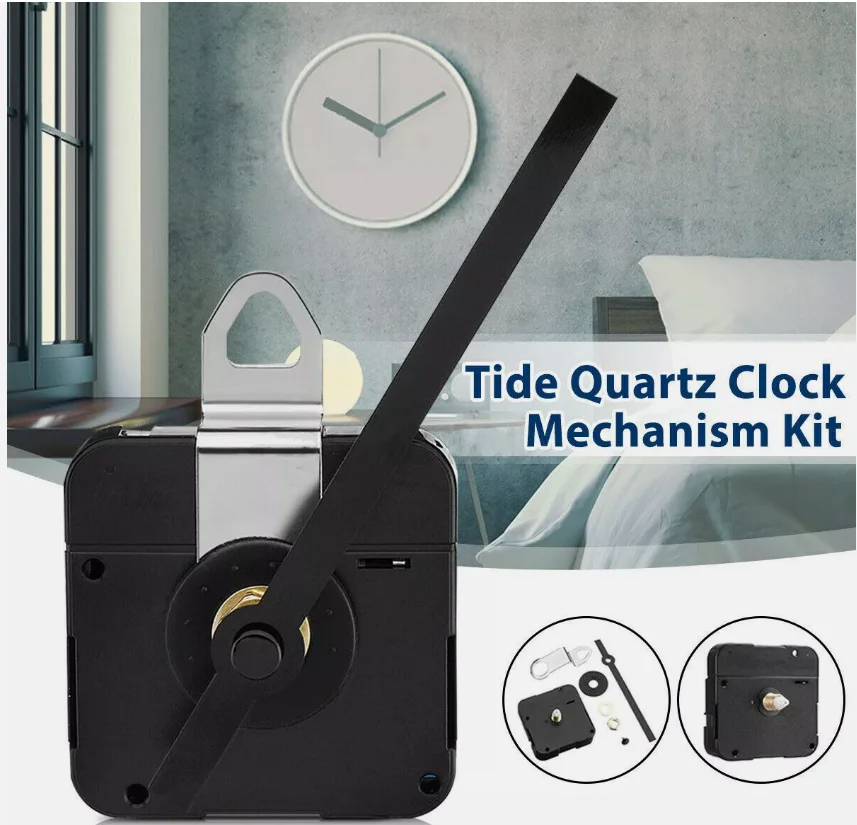

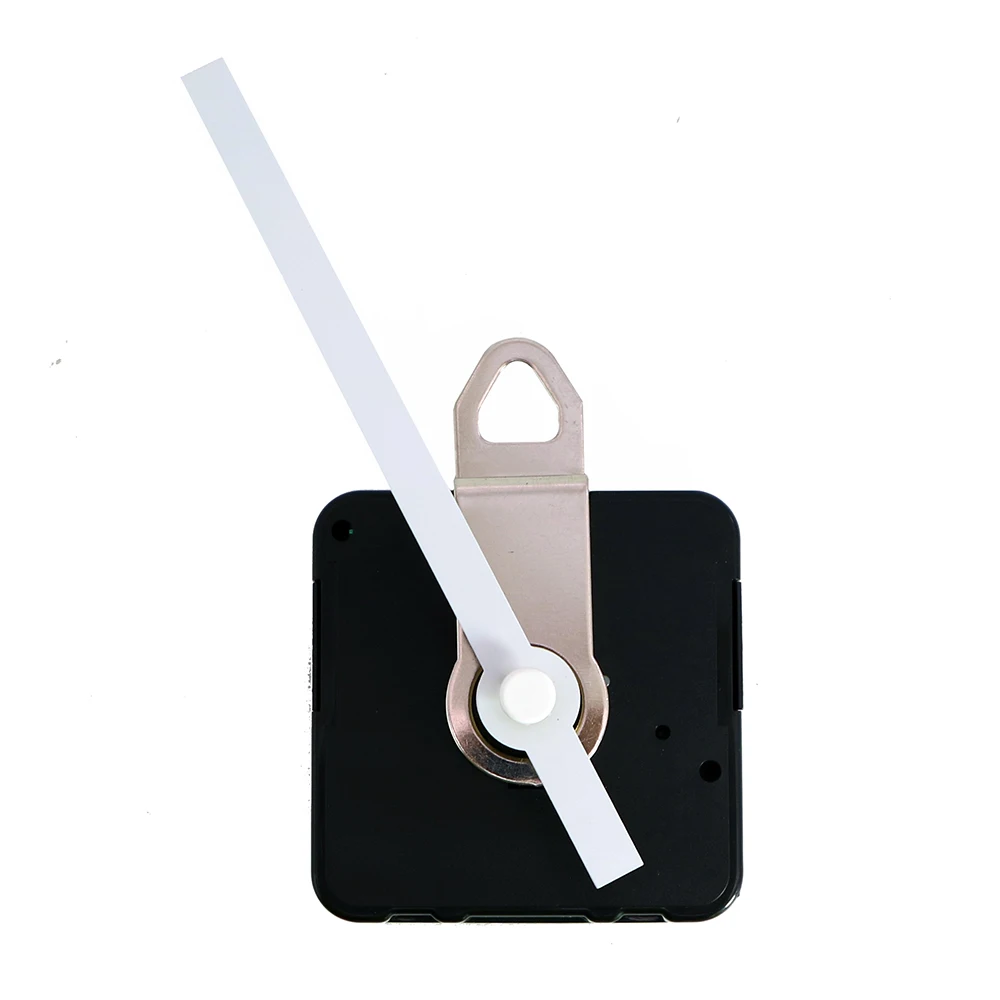

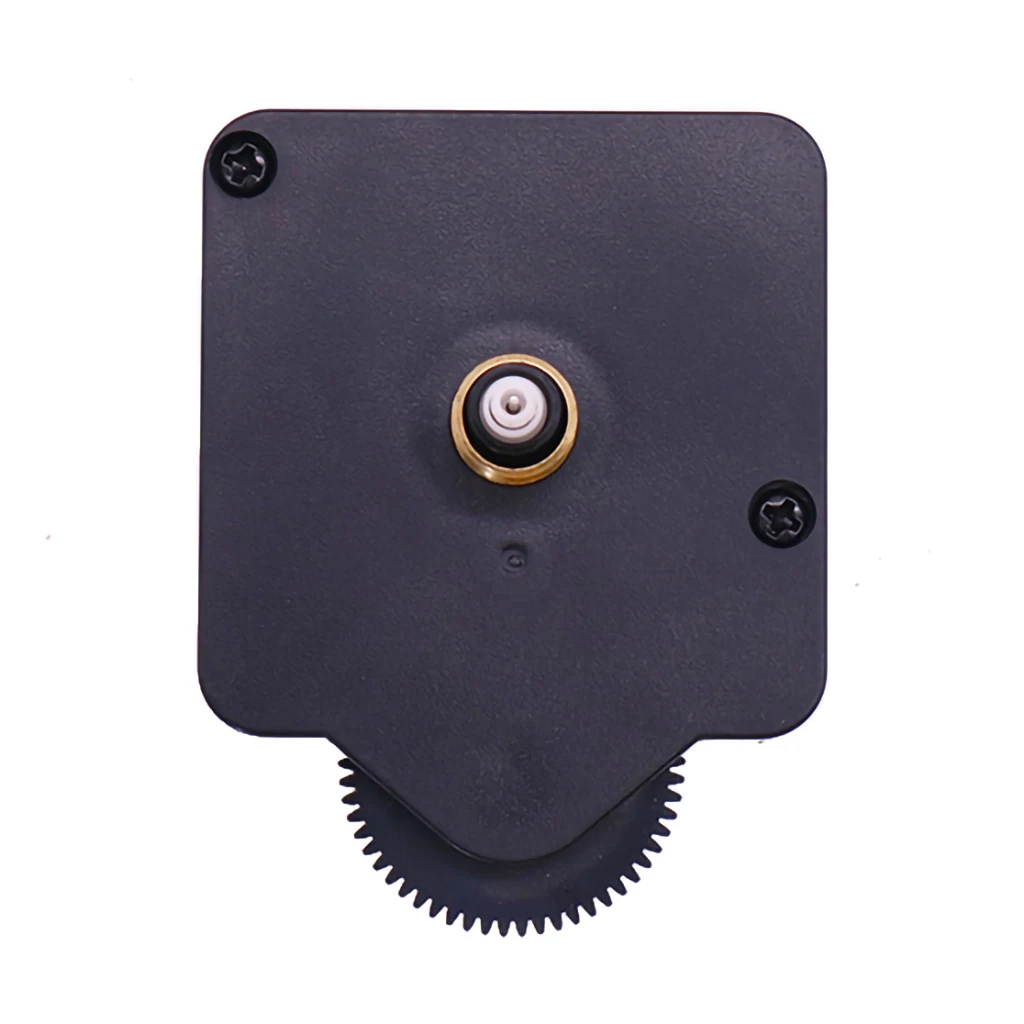

HR1688 Tide clock movement with clock hands
HR1688 Tide and time clock movement (carry 4 handles)

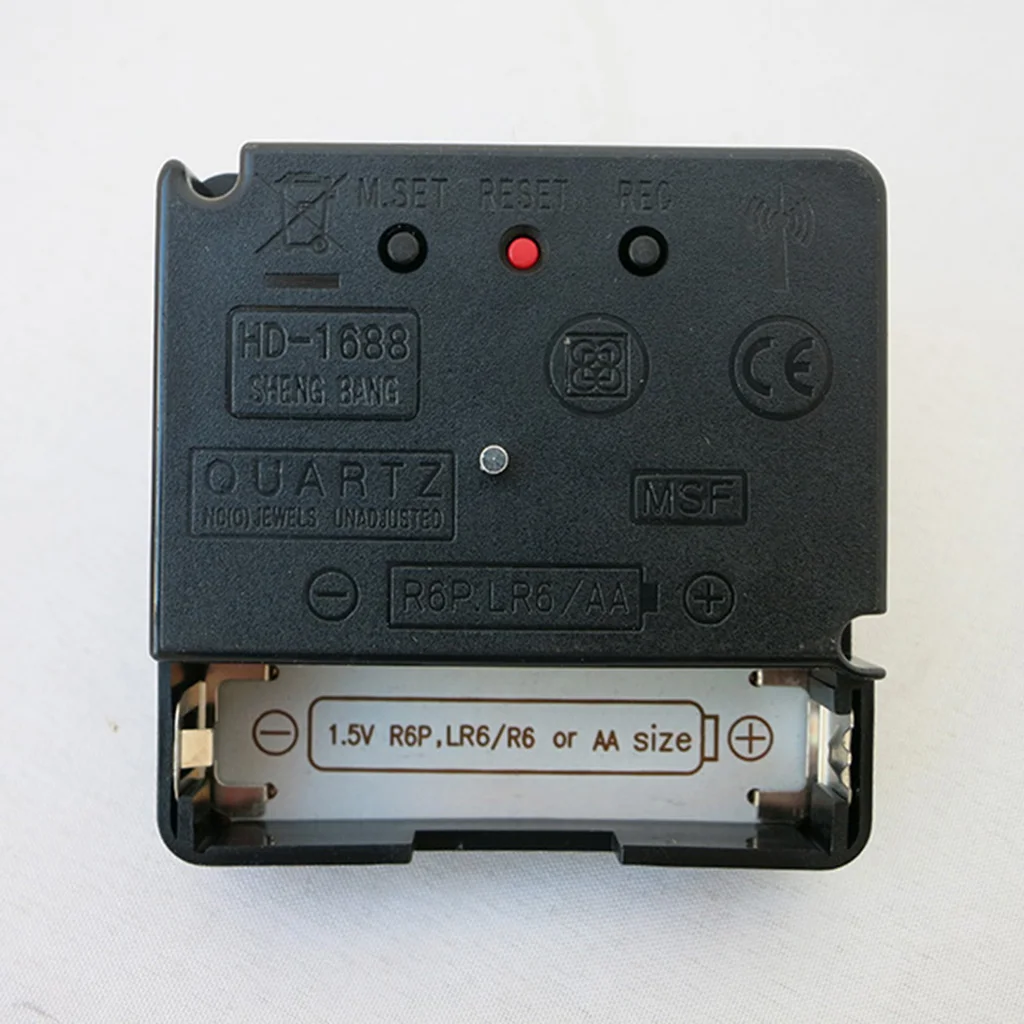

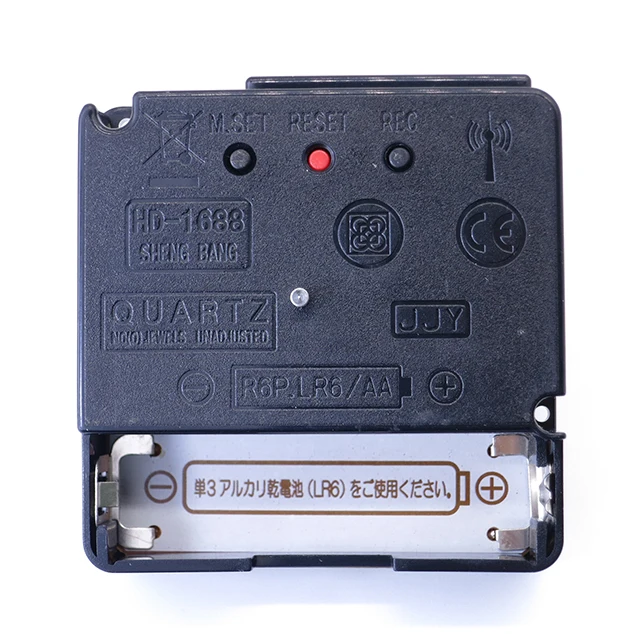

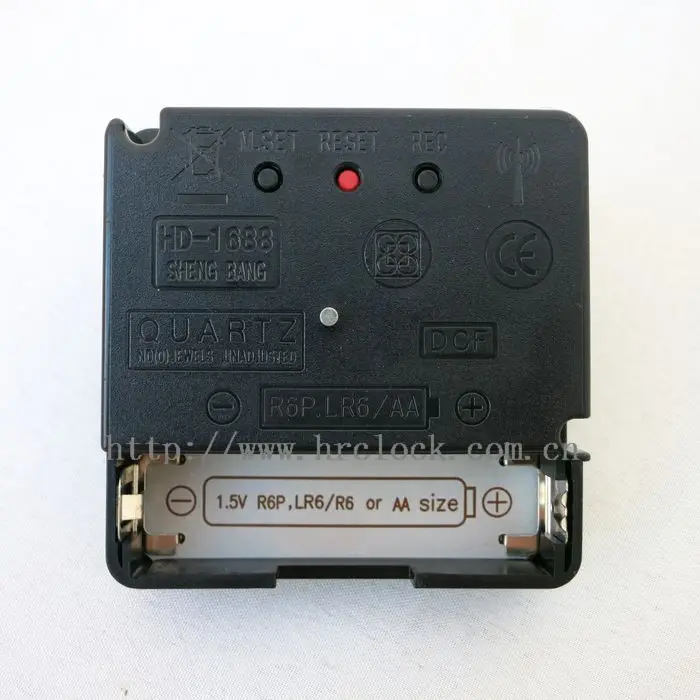

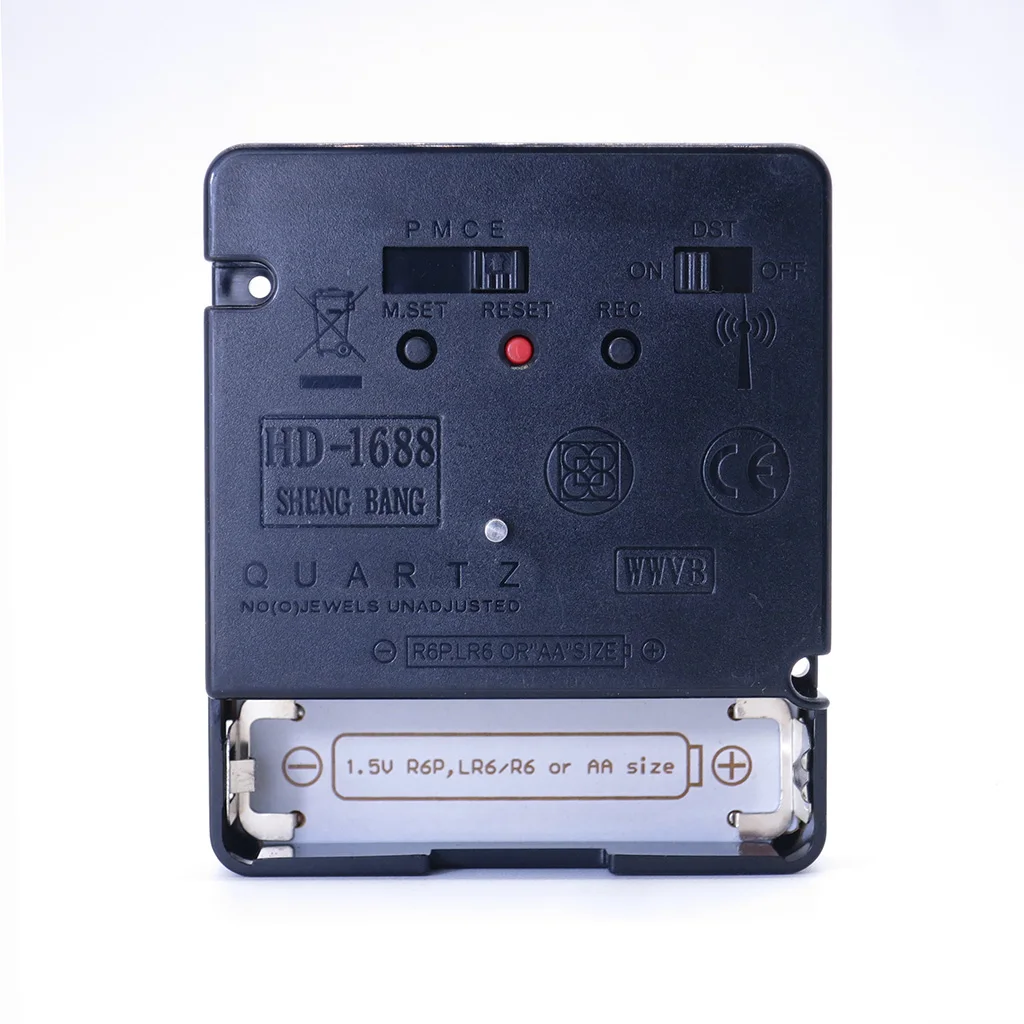

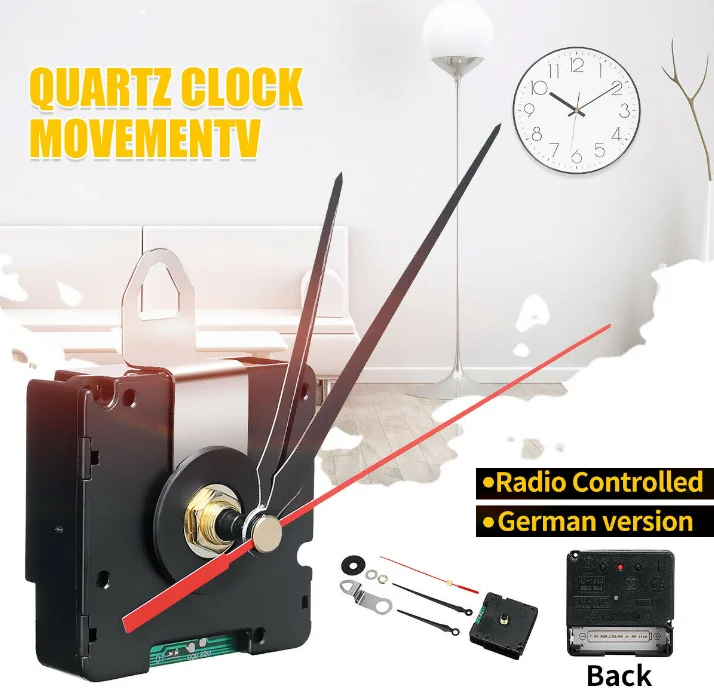

HD1688 radio controlled clock movement with clock hands
DCF/ MSF/ JJY/ WWVB version

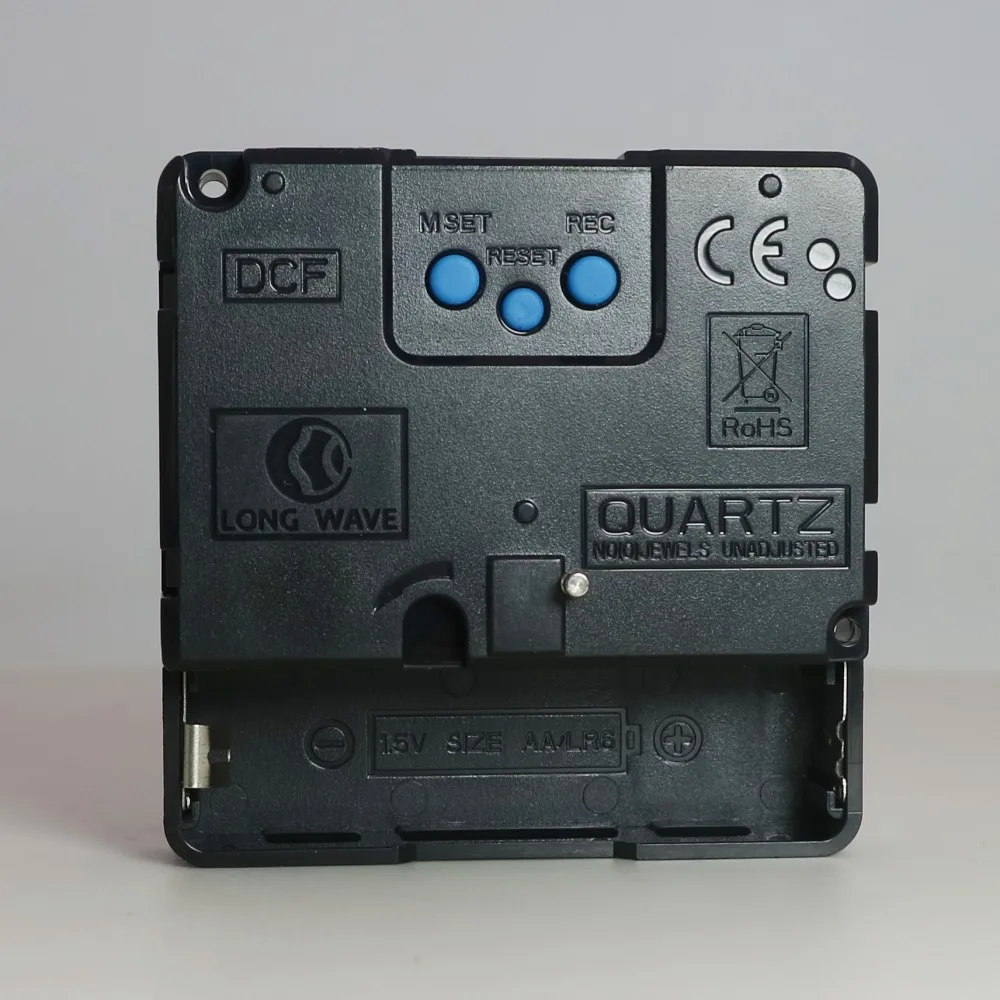

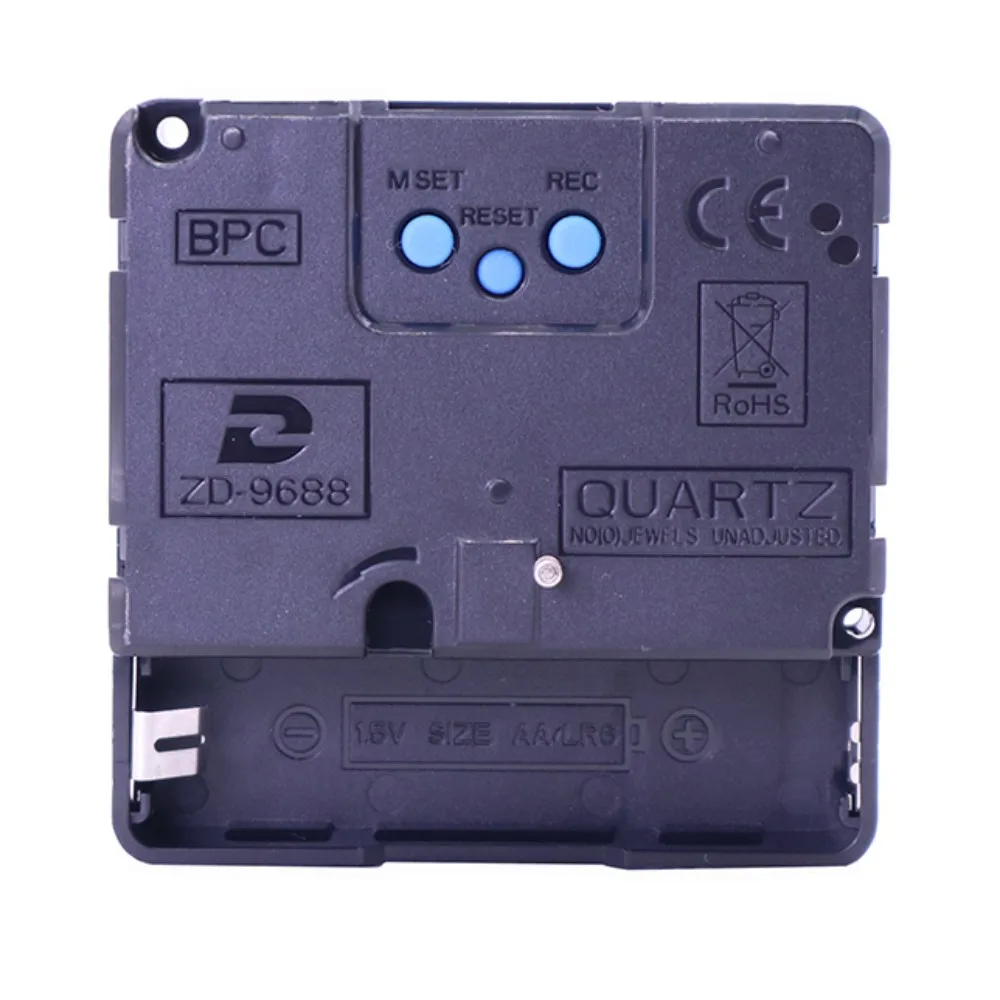

LONGWAVE/ ZD-9688 radio controlled clockwork
DCF/ MSF/ JJY/ WWVB / BPC version

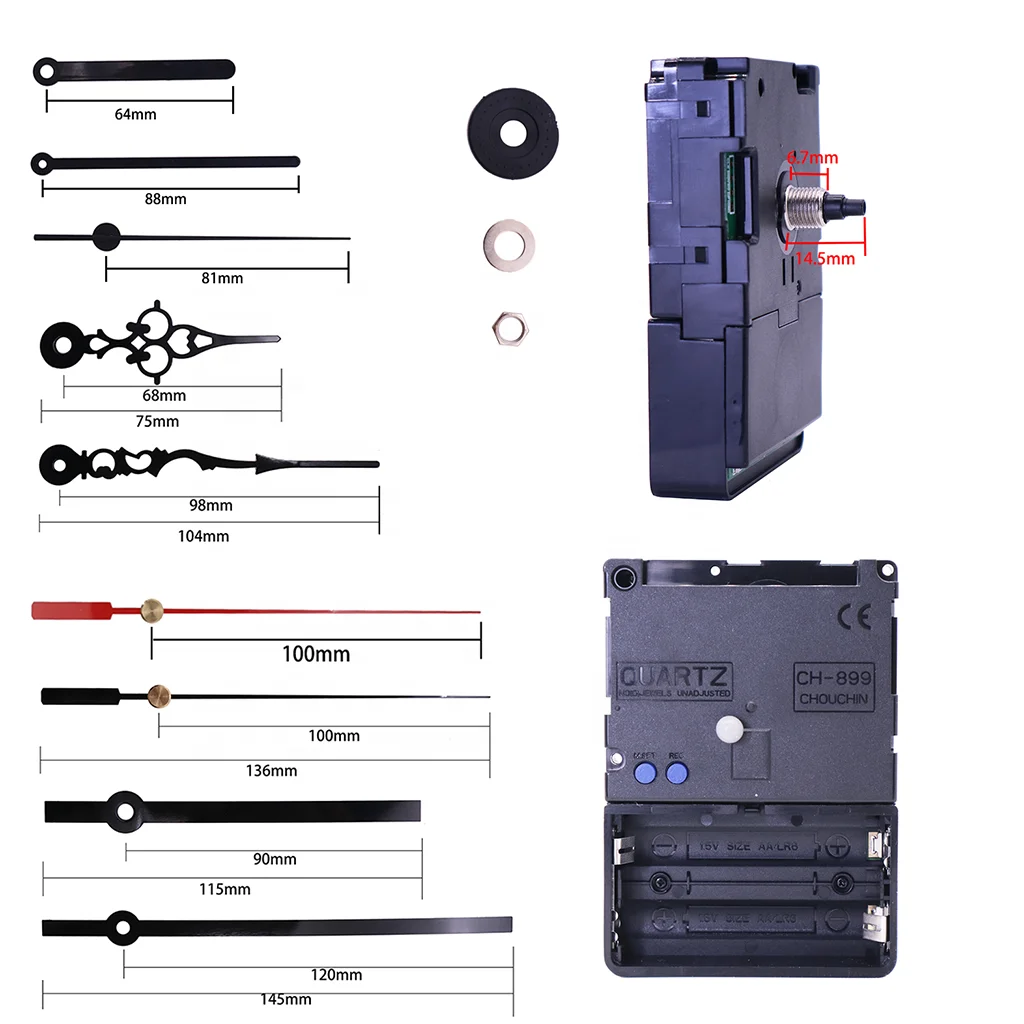

CH-899 Automatic WIFI Clock Movement with clock hands

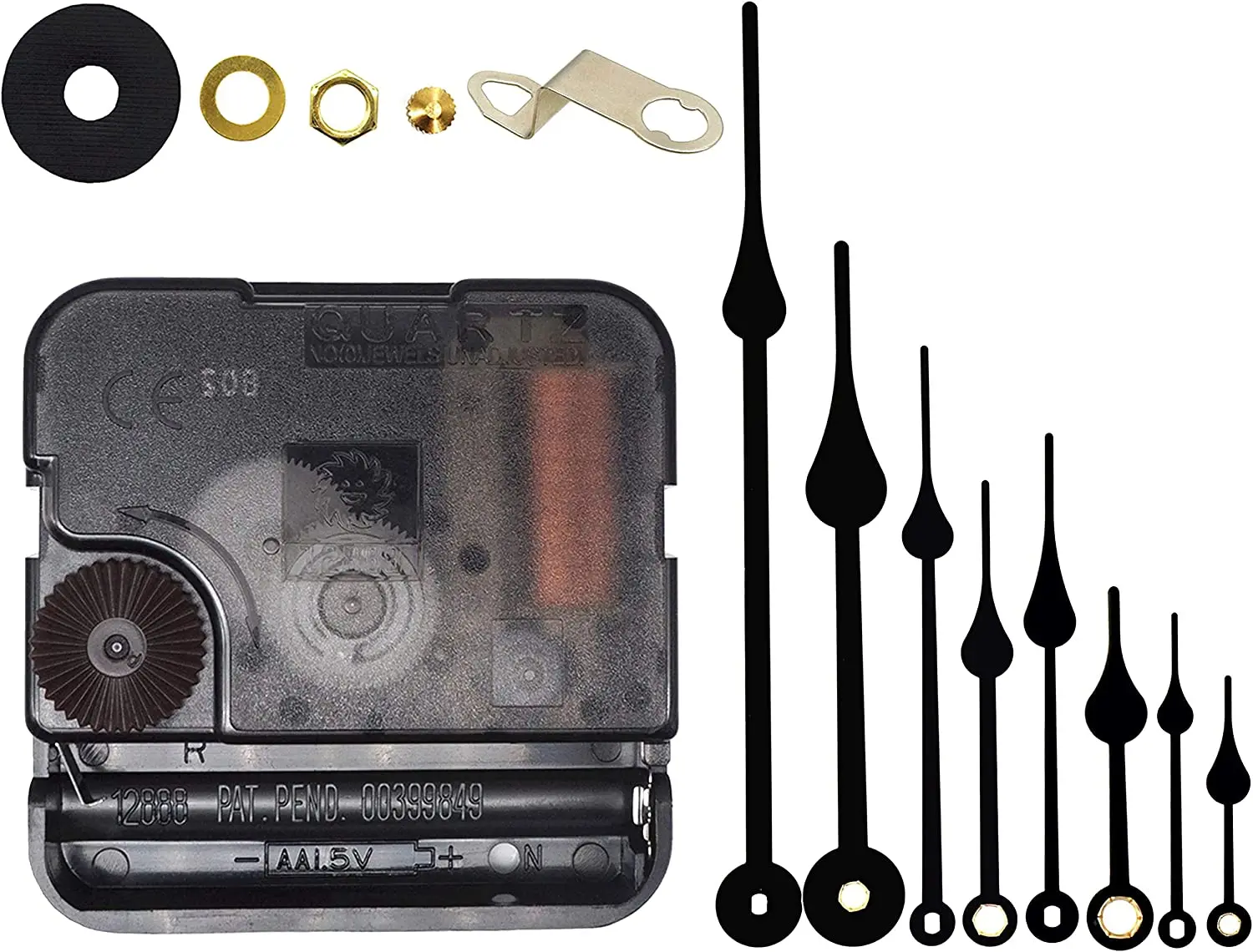

Youngtown 12888 clock clock movement

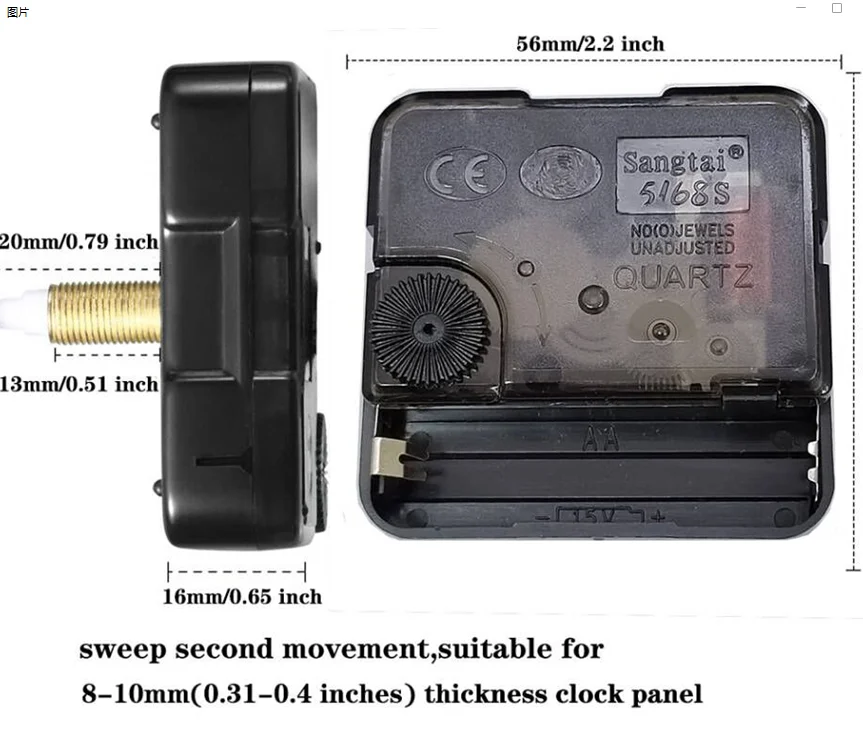

5168S/ 6168S sangtai silent clock movement
