802.11AX 2x2 Outdoor Base Station
- Category: >>>
- Supplier: WIS NETWORKS LIMITED
Share on (1600436344983):
Product Overview
Description
Products Description
WIS-S1200AX is a robust outdoor wireless base station featuring 802.11 ax technology for
high end wireless coverage and point to point connections. Featuring 11 ax high power
wireless technology, the WIS-S1200AX is ideal for WISP optimizing their network with both
backhaul and coverage ability by using together with Wisnetworks antennas.
high end wireless coverage and point to point connections. Featuring 11 ax high power
wireless technology, the WIS-S1200AX is ideal for WISP optimizing their network with both
backhaul and coverage ability by using together with Wisnetworks antennas.
Features
Extremely High Speed Connectivity

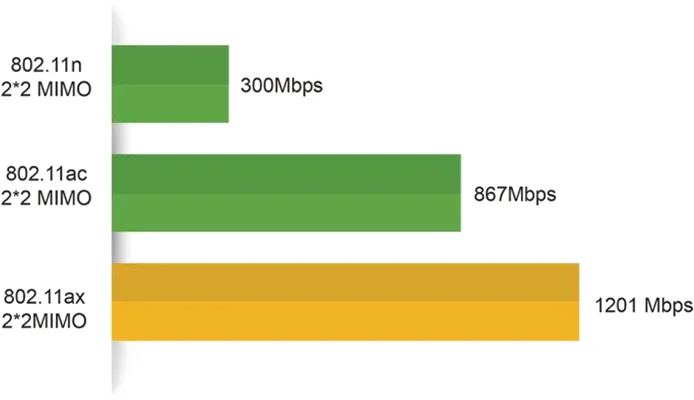

● 4x speed than 802.11 n devices
● Wireless Speed up to 1201Mbps
● Gigabit LAN port
● Ultra-Fast Wi-Fi 6 Speeds
● 4x speed than 802.11 n devices
● Wireless Speed up to 1201Mbps
● Gigabit LAN port
Amazing r Outdoor Performanc
● 10km+ availability backhaul
● Up to 26dBm tx power
● MU-MIMO
● Fully work with WIS antenna
● Up to 26dBm tx power
● MU-MIMO
● Fully work with WIS antenna
Hardware:
● Qualcomm chip
● 512MB DDR
● 32MB Flash
● 24V Gigabit poe
● 512MB DDR
● 32MB Flash
● 24V Gigabit poe
Features and Benefifits
-4× increased capacity to connect more devices simultaneously.
-Compliant with 802.11ax/ac/n/a, speed up to 1201Mbps
-Gigabit LAN port helps get maximum wireless performance
-High output transmission power and receive sensitivity optimized
-24V Passive PoE for convenient deployment and installation.

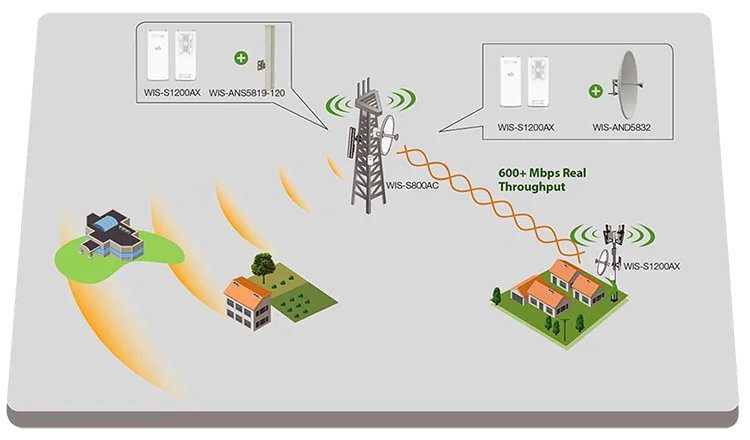

Network Diagram
Product Paramenters
Radio | - 802.11ax radio - Wireless Speed up to1201Mbps - Frequency Range: - 5.150-5.250GHz - 5.250-5.350GHz（Support DFS） - 5.470-5.725GHz(Support DFS) - 5.725-5.825GHz - Tx Power up to 26dBm - Rx Sensitivity - 300M:-71dBm@10% PER - 54M:-75dBm@10% PER |
Antenna | -2* RP-SMA antenna connectors |
Physical Parameters | - Dimension: 214*92*32mm - Wight: 0.5kg - Enclosure: Weatherproof ASA - ESD Protection: 16kV - Lightning Protection: 2kV - Working Temp:-30 ~ 60°C - Storage Temp: -40 ~70°C - Working Humidity: 10%~95% non-condensing |
Security | - Integrated Firewall - WPA/WPA2;WPA-PSK/WPA2-PSK(AES/TKIP) - Encryption;64/128-bit WEP |
Interfaces | - 1x 10/100/1000 Base-T Ethernet (Gigabit LAN with Passive PoE) - Reset |
LED | - Power：On/Off - LAN:On/Off/Flashing - WLAN:On/Off/Flashing - RSSI Signal:1,2,3 |
Power | - 24VDC, 0.75A - Power Consuption: 12W |
Certifification | - CE, RoHS |
Package content | - WIS-S1200AX - Quick Setup Guide - Power Adapter with Passive PoE - Mounting kits |
