mini type automatic hot fix dmc rhinestone making machinery 24by16 round jewelry metal cap rhinestone machine template sleeve

Product name

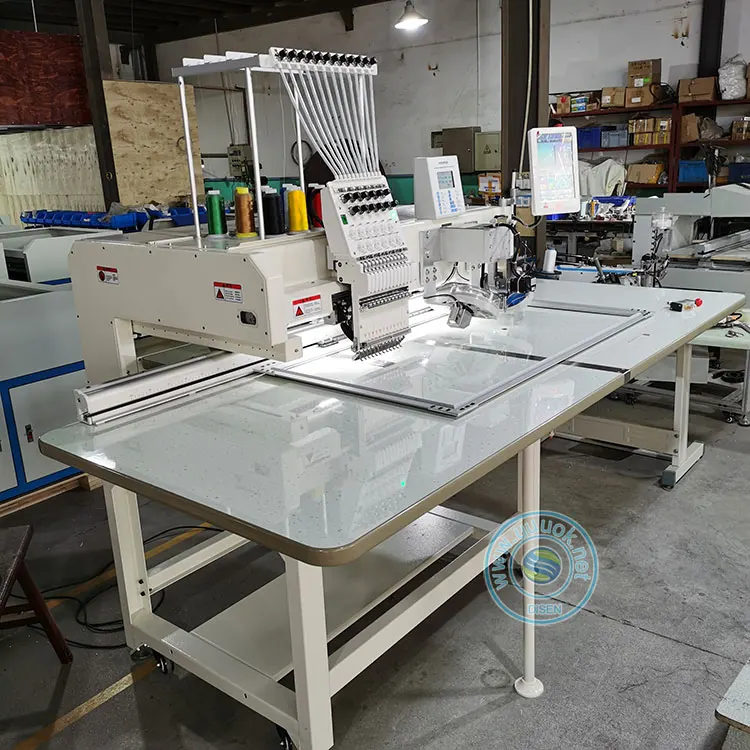

embroidery &rhinestone machine

working size

40*100cm

embroidery

12 needles(optional 9/15 needles)

Head

single head

embroidery speed

900-1000rmp

rhinestone size

ss6-ss20

Hot drilling speed

120pcs /min

Voltage

220V 50/60HZ

Power

1500W

Weight

300kg with packing

Machine size

2.1*1.2*1.1m with packing

Applicable materials: velvet, denim, knitted fabric, PU leather, genuine leather, other synthetic leather.
Applications: shoes, clothing, handbags, leather, accessories, hats.
Optional specifications: 1 head with 2 plates, 1 head with 4 plates, 2 heads with 2 plates, 4 heads with 2 plates, 6 heads with 2 plates

The automatic hot-stamping machine uses ultrasonic waves to fix hot-stamping on the material immediately. It is suitable for velvet, denim, knitted fabric, Pu leather, genuine leather and other synthetic leather. It is widely used in clothing, T-shirts,embroidered patterns, leather, handbags, etc. Hats and other accessories.

Working principle: Convert 220V/50Hz alternating current to 35KHZ alternating current through the electronic circuit system of this machine, and then convert it into mechanical energy vibration through the transducer. First press the diamond on the ultrasonic welding head, and then the welding head produces mechanical energy vibration. After the diamond pressed on the top undergoes the mechanical vibration below, the hot melt glue on the top is melted to make the diamond stick to the cloth or leather.

The automatic hot drilling machine uses ultrasonic waves to fix the hot drilling on the material immediately.
The processing efficiency is high, 220-250 grains per minute, the double-counting drilling machine can complete the point drilling of two colors of diamonds at the same time.
Acrylic shield is added to the bead plate to prevent the diamonds from jumping out of the bead plate and scattered.ultrasonic single head 2 disc rhinestone hotfix motif making machine automated rhinestone machine on fabric clothes.
