Yushun Factory Easy To Clean Sand Mill With Disk Type For Paint Pigment Kaolin Grinding Equipment
- Category: >>>
- Supplier: Qinhuangdao Yushun Intelligent Technology Co. Ltd.
Share on (1600436351839):
Product Overview
Description
Yushun High Efficiency Ceramic Bead Mill Horizontal Nano Sand Mill Grinding Machine
Product Description
Nano fineness grinding machinery
Nano-scale sand mill adopts European sand mill design standards, with large flow rate, good temperature control ability and high energy conversion rate, The particle size distribution range is narrow, especially optimized for the use of small grinding beads, from flexible dispersion to ultra-high energy research.
The mill can work efficiently.
The mill can work efficiently.

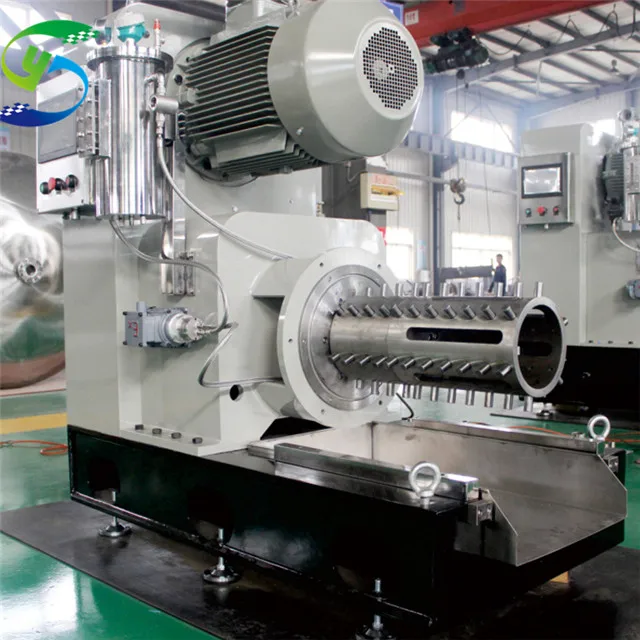

Horizontal Stainless Steel Nano Mill Grinding Mill Beads Mill
This Pin type efficient Nano mill adopts advanced grinding technology to grind products to super fineness, high grinding efficiency, large production capacity, low energy consumption, etc.
Product Features
* Compact and stable welding structure rack, useful and mice appearance.
* Easy replaced high wear-resistant inner grinding chamber and dispersing parts, Alloy steel, ceramic, high polymer material, stainless steel etc for choice.
* Screw type for water cycle passageway, multiple positions cooling water setting, excellent cooling performance.
* Screw type for water cycle passageway, multiple positions cooling water setting, excellent cooling performance.

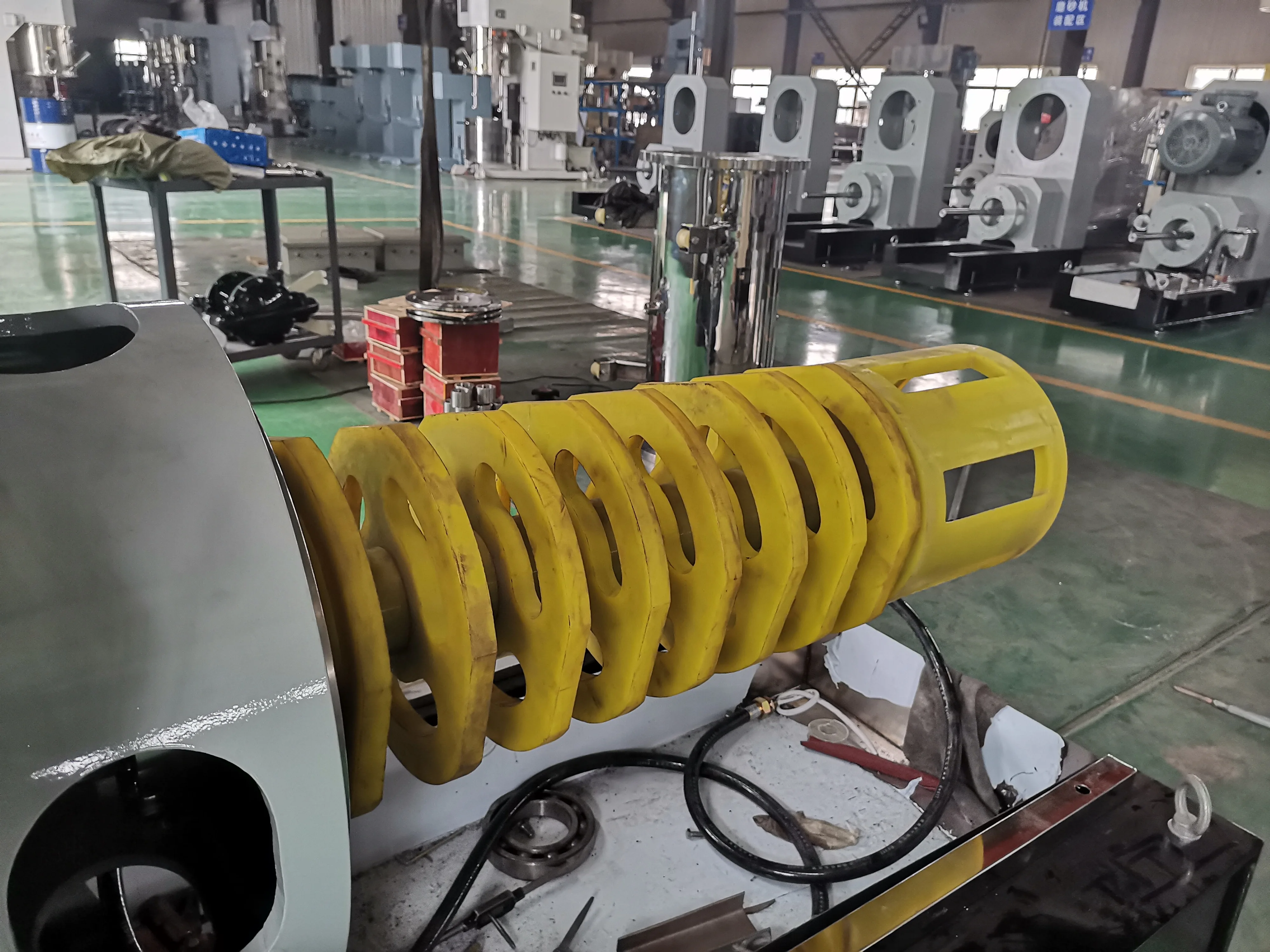

* Well-designed discs and pin combine dispersing system, strong energy exchange between grinding beads and material, therebyreaching super fitness grinding.
* Advanced large flow separating screen, ensure high efficient production, no block up.
* Integrated double mechanical seal, allowed choosing lubricant according to product character.
* Advanced large flow separating screen, ensure high efficient production, no block up.
* Integrated double mechanical seal, allowed choosing lubricant according to product character.
* Full Ex buttons control and scientific PCL touch screen control for choice.
* Feeding Pressure, Output Temperature, Mechanical seal lubricant oil level etc multiple safety control.
* Feeding Pressure, Output Temperature, Mechanical seal lubricant oil level etc multiple safety control.

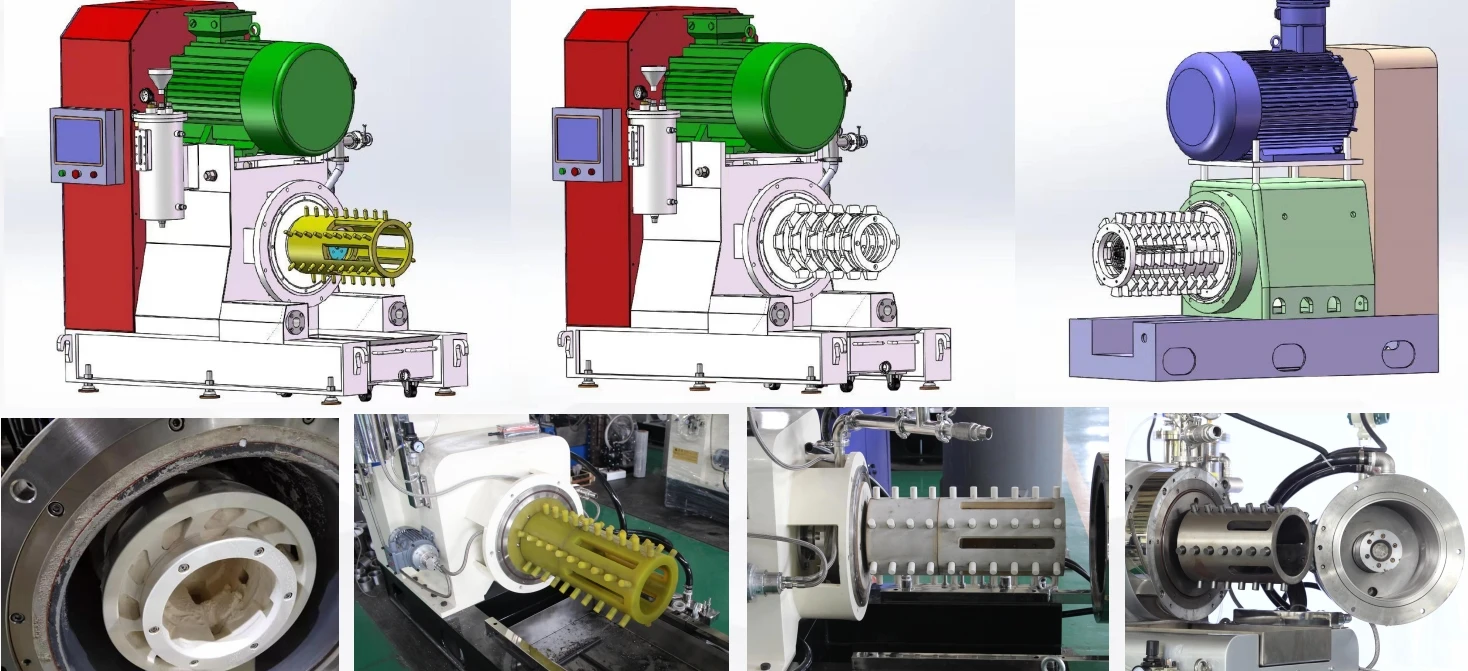

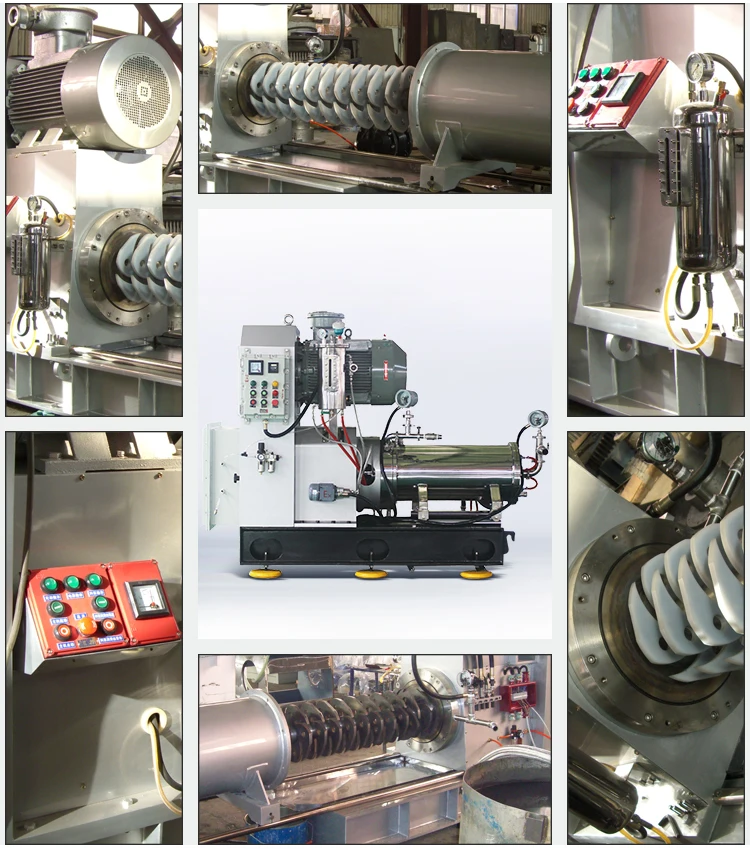

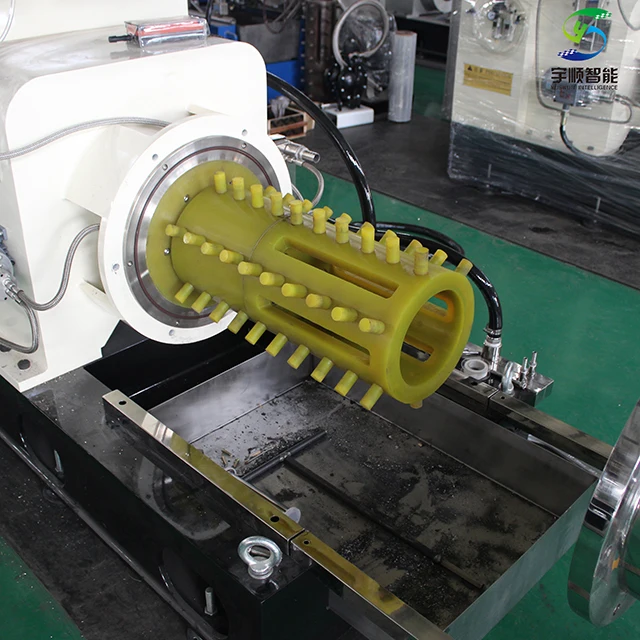

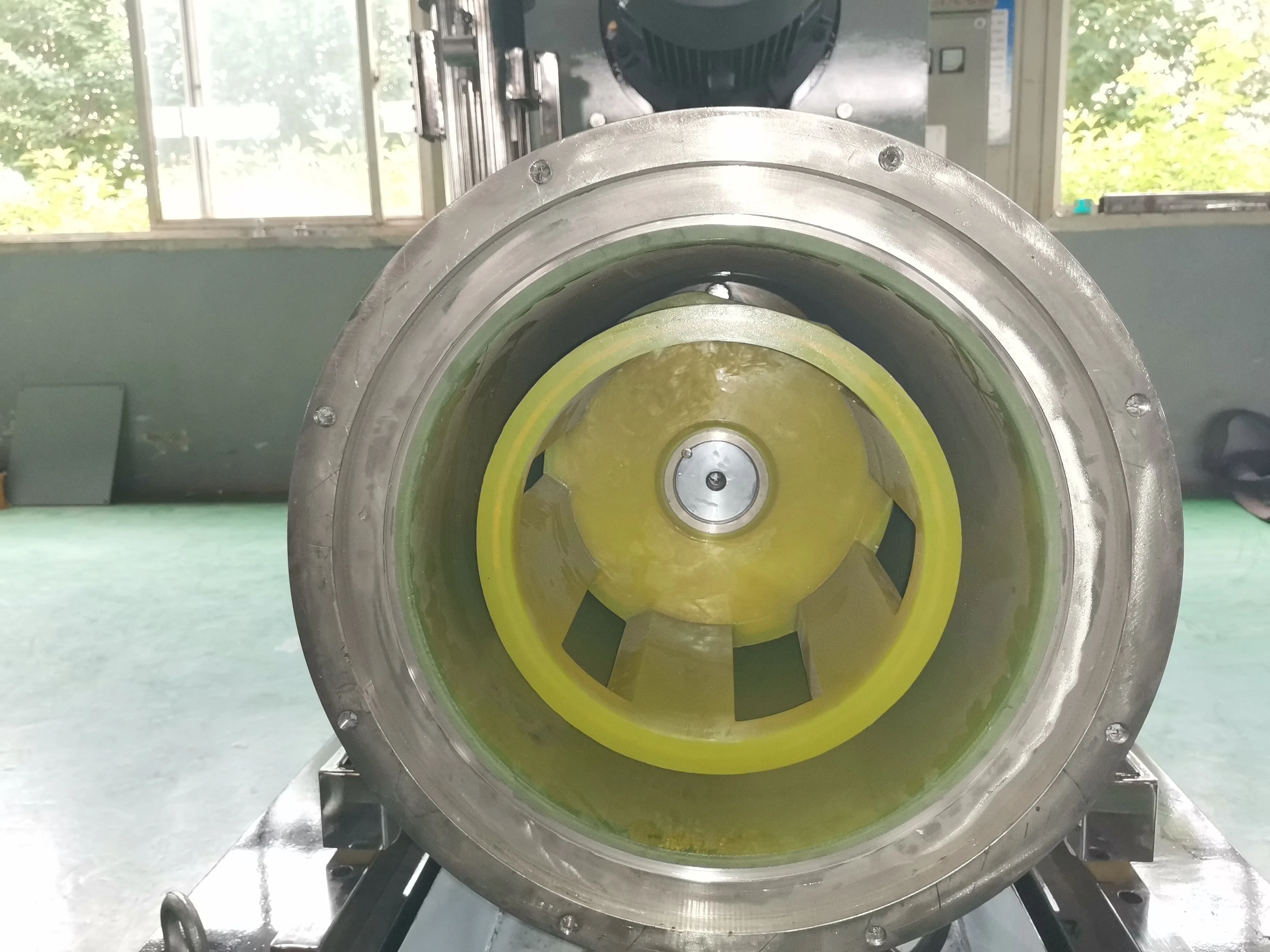

Details Images
Configuration Table
♦ Standard/◊Optional | ||||||||
Full Ex-Proof | ♦ | |||||||
A3 | ♦ | |||||||
Polyurethane | ◊ | |||||||
Silicon Carbide | ◊ | |||||||
Cemented carbide | ♦ | |||||||
Gear Pump | ◊ | |||||||
Pneumatic Diaphragm Pump | ♦ | |||||||
Siemens | ◊ | |||||||
Domestic | ♦ | |||||||
Product Paramenters
Model | BS-5 | BS-10 | BS-20 | BS-30 | BSBS-60 | BS-100 | |||||
Tank effective volume(L) | 4.8 | 9.2 | 20 | 29 | 58 | 98 | |||||
Main motor power(KW) | 5.5 | 11 | 30 | 37 | 45-55 | 75 | |||||
Main Shaft Speed(r/min) | 1440 | 1273 | 1120 | 838 | 694 | 533 | |||||
Material Viscosity(pa.s) | ≤30 | ||||||||||
Grinding Media Quantity (L) | 2.7-3.3 | 3.9-5.5 | 10-13.5 | 14.4-20.5 | 23-32.6 | 44.7-63.37 | |||||
Grinding Media Dia.(mm) | 0.6-1.5 | 0.8-2.5 | 0.8-2.5 | 0.8-2.5 | 0.8-2.5 | 0.8-2.5 | |||||
Productive Capacity(Kg/h) | 10-100 | 30-300 | 40-400 | 50-500 | 70-700 | 120-1200 | |||||
Air consumption(m3/h) | 0-0.3 | 0-0.4 | 0-0.5 | 0-0.6 | 0-0.6 | 0-1.5 | |||||
Water Conumption(m3/h) | 0.5 | 0.8 | 1.2 | 1.5 | 2 | 2.5 | |||||
Feed tube diameter | G3/4" | G3/4" | G 1" | G 1" | G1 1/2" | G1 1/2" | |||||
Discharge tube diameter | G1" | G 1" | G 1" | G1 1/2" | G2" | G2" | |||||
Cooling tube diameter | G3/8" | G3/8" | G 1/2" | G1/2" | G1/2" | G1/2" | |||||
Weight (T) | about 1 | about 1.2 | about 1.3 | about 2 | about 2.6 | about 3 | |||||
Mearsurement(LxWxH) | 900*700*950mm | 1250*800*1350mm | 1460*860*1580mm | 1560*900*1420mm | 1620*1000*1550mm | 2000*1200*1850mm | |||||
Application
Widely used in functional ceramics, printing inkjet, TFT\\LCD color filter dispersion, lithium battery materials, Thermal paper, CMP, ceramic ink, nano powder, nano color paste, food additives and other nano grinding fields.
Company Profile
YuShun Intelligent Technology Co., Ltd. is located in the Qinhuangdao Economic and Technological Development Zone on the beautiful coast of Bohai Sea. It is a professional manufacturer with lithium automation equipment as its core, and it is a modern enterprise integrating scientific research, production and operation.
Over the years, we have been leading the same industry with product technology content, stable and reliable product quality. The company has a group of high-quality professional talents and a capable team of employees. It is based on strong technical strength, continuously improves product performance and core technologies, resolves pain points in the industry, reduces costs and expands the market, and customizes various lithium batteries for customers. Automation equipment complete production line.
The company's products have been exported to the United States, Russia, India, Australia, Egypt, Sri Lanka, Ukraine, Thailand, Brazil, Malaysia, Vietnam and other countries, with its excellent quality and good service, has been widely recognized by domestic and foreign customers.
Our goal is "to first-class products, first-class service, to create a first-class brand." YuSHun Company, with sincerity,
innovation, efficiency, and forging ahead, is willing to join hands with you to create a brilliant future.
Our goal is "to first-class products, first-class service, to create a first-class brand." YuSHun Company, with sincerity,
innovation, efficiency, and forging ahead, is willing to join hands with you to create a brilliant future.
FAQ
Q 1: Payment terms capacity?
A : T/T, cash, Alibaba trade assurance;
Q 2: Trade terms?
A : In according with Incoterms 2010, normally with EXW, FOB Tianjin, CFR, CIP, CIF ;
Q 3: Validity of quotation?
A : Within 30 days;
Q 4: Modes of shipment?
A : By sea, by railway, by air and by express;
Q 5: Warranty?
A : One year and lifelong service provided at cost;
Q 6: Installation and training?
A : use. tel or online guidance for installation, for production line, paid overseas engineering service provided.
A : T/T, cash, Alibaba trade assurance;
Q 2: Trade terms?
A : In according with Incoterms 2010, normally with EXW, FOB Tianjin, CFR, CIP, CIF ;
Q 3: Validity of quotation?
A : Within 30 days;
Q 4: Modes of shipment?
A : By sea, by railway, by air and by express;
Q 5: Warranty?
A : One year and lifelong service provided at cost;
Q 6: Installation and training?
A : use. tel or online guidance for installation, for production line, paid overseas engineering service provided.
