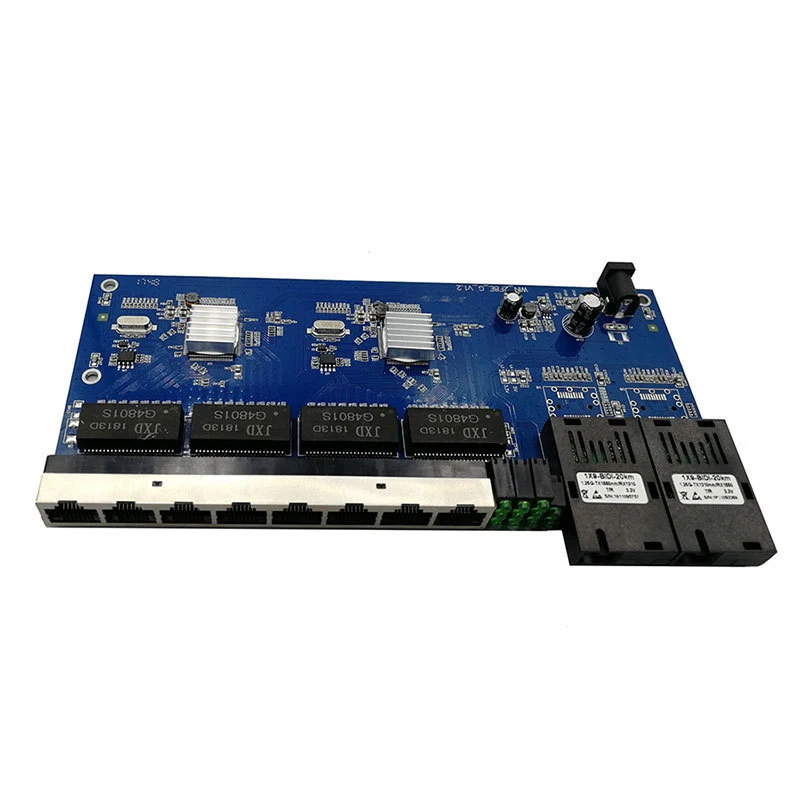

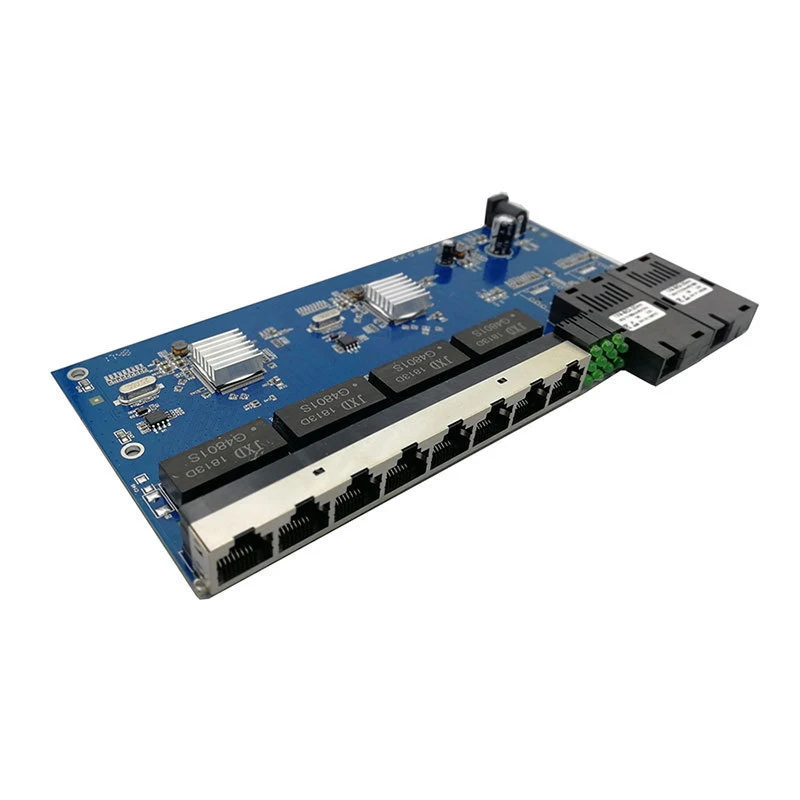

Media Converter Fiber Optical Gigabit Ethernet switch PCBA 8 RJ45 UTP and 2 SC fiber Port 10/100/1000M Board PCB
- Category: >>>
- Supplier: Hefei Equilateral Communication Equipment Co. Ltd.
Share on (1600436406190):
Product Overview
Description
Products Description
The Gigabit 2G8FE is an Ethernet Fiber Switch which is specially designed for network monitoring. It
has eight 10/100/1000Mbps Ethernet ports and two 1.25Gbps fiber ports. It adopts Marvell chips to ensure low power consumption and high stability. It extends the transmission distance of a network from 100m to 120km via copper cables. It can extend the transmission distance; there are also many other advantages such as isolation protection, good data security, working stability and easy maintenance.
has eight 10/100/1000Mbps Ethernet ports and two 1.25Gbps fiber ports. It adopts Marvell chips to ensure low power consumption and high stability. It extends the transmission distance of a network from 100m to 120km via copper cables. It can extend the transmission distance; there are also many other advantages such as isolation protection, good data security, working stability and easy maintenance.
Features
Support the switch between 10/100/1000Base-TX and 1000Base-SX/LX
2*1.25Gbps full-duplex fiber ports and 8*100M Ethernet ports with auto-negotiation function
Support 1000M speed rate, MDI/MDIX and half/full-duplex with auto-negotiation function
Each port has the complete LED Indicator light
Support single mode single fiber,single mode dual fiber ,multi-mode dual fiber and SFP slot
Support IEEE802.1d Spanning Tree
Support high performance QoS function on each port
Support 5-12V voltage input
Support IEEE 802.3x flow control and back pressure control
Require no configuration and will instantly operate as soon as you power it up
Low power consumption chip with heat sink built in to ensure longtime efficient operation
Images
Product Paramenters
Standards | IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3z 1000Base-SX/LX IEEE802.3x Flow control IEEE802.1p QoS IEEE802.1d Spanning Tree | |||
Ethernet Port | Connector: RJ45 Data Rate:10/100M or 10/100/1000M Distance: 100m UTP Type: UTP-5E or higher level | |||
Fiber Port | Connector: SC/FC/ST/SFP slot Data Rate:155M or1.25Gbps Optical Wavelength: 850nm/1310nm/1490nm/1550nm Distance: 550m～120km | |||
Performance | Processing Type: Store and Forward MAC Table Size:4K/6K/8K Buffer Space:500kbs/1Mbit/2Mbit Jumbo Packet: 1518 bytes Back bandwidth:3.8G/5.6G/7.2G Time Delay: ＜150μs | |||
Power | Power type: external power supply Input Voltage: AC100V～240V 50/60Hz Connector: DC Socket Working Voltage: 5-12V Power Consumption: 2.2W～3.5W | |||
Transmissin Distance | Twisted Pair: 100m (CAT5e, CAT6 cables) Muti-mode: 2km Single-mode:3/20/40/60/80/100km | |||
MTBF | 100, 000 hours | |||
Warranty | 1 year | |||
Environment | Storage Temperature: -40～70℃ Operating Temperature: -10～55℃ Relative Humidity: 5-90% ( no condensation) |
