China Supplier M12 X Code Male Straight Connector 8 Pin Molded with Cat 6A S/FTP Ethernet Cable Shielded 1m 2m 3m 5m 10m 15m
- Category: >>>
- Supplier: Dongguan Cableforce Connector Co. Limited.
Share on (1600436407328):
Product Overview
Description
Products Description

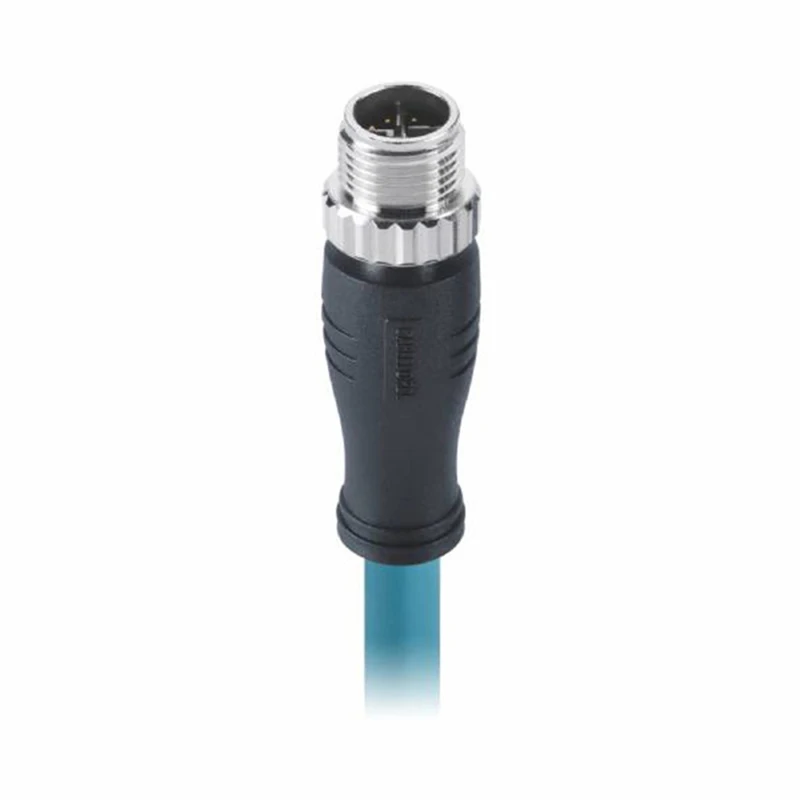

China Supplier M12 X Code Male Straight Connector 8 Pin Molded with Cat 6A S/FTP Ethernet Cable Shielded 1m 2m 3m 5m 10m 15m
Contacts poles | 8Pin | Reference standard | IEC 61076-2-109 |
Rated current | 0.5A | Rated voltage | 50V AC, 60V DC |
Wire gauge | 0.14mm²(AWG 26) | Rated temperature | -40℃ ~ +80℃ |
Insulation resistance | ≥100MΩ | Contact resistance | ≤5mΩ |
Over-molding | TPU | Contact carrier | PA66+GF |
Screw nut | Brass, CNC, Nickel-plated | Contact | Brass |
Contacts plating | Au(Gold) | O-ring | FKM, Silicon |
Protection degree | IP65, IP67 | Pollution degree | 3 |
● Wire length options: 1, 2, 3, 5, 10, 15 meter or as your requests
● All the connectors can be customized, please Click Here to contact us to get what you need~
More Details
Sufficient raw materials, short production time, fast delivery
With UL, RoHS, IP67, CE certificate, ourproducts can be trusted
Title goes here.
PVC cable, PUR halogen free cable are available
China factory supplier directly sales, accept small orders
