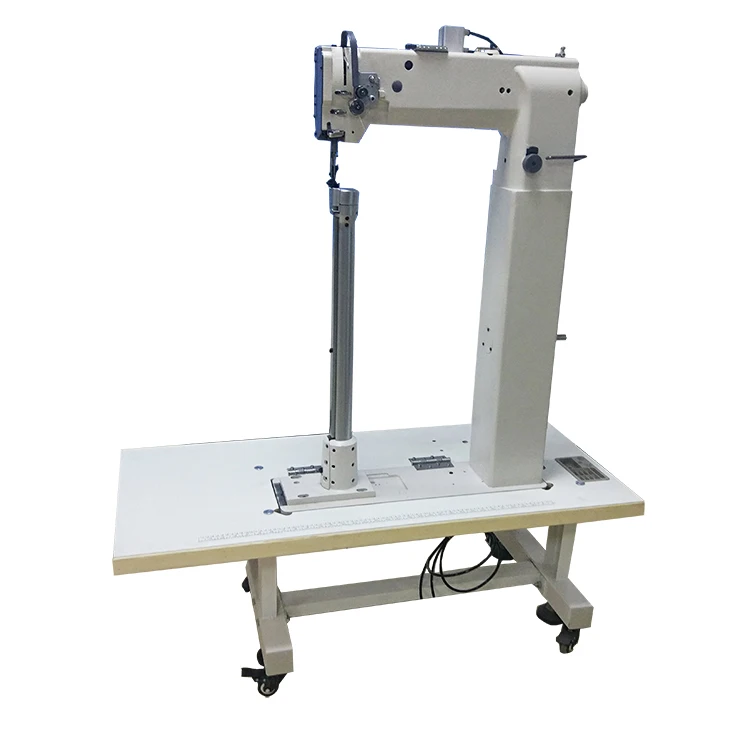

Single needle 8703B unison feed post long arm cylinder bed industrial sewing machine.






Product Description


 This series of models are specially made for thick material and PC rubber suitcase. Adopt up and down feeding mode and column type seaming platform. According to the customer's requirements, we use different sizes, width from 250mm to 520mm, height from 178mm to 1000mm, three-dimensional column, cylinder, left and right seaming table are available. To meet the different needs of customers. Compared with the same model, the machine features low noise, anti fatigue and good stability.








Technical data

























































































Condition



New



Brand Name



Good Time



Type



Industrial sewing machine



Model



GT-8703B Left kettle canister



Place of Origin



Guangzhou, China (Mainland)



Stitch Formation



Lock stitch



Mechanical Configuration



post-bed



Max Sewing Speed



1600-2500r.p.m /min



Height of Presser Foot



15mm



Stitch Length



0-8mm



Canister reactor diameter



45mm



Motor power



750W



Height of the kettle canister



703mm



Width of the kettle canister base



430mm



Dimensions



122*52*59cm



Feed Mechanism



Compound feed



Certification



CE Energy saving motor



Color



White



Needle



DP x 17 (#20-#25)



Gross Weight



90KG












Detail Image


 8703B post bed 5

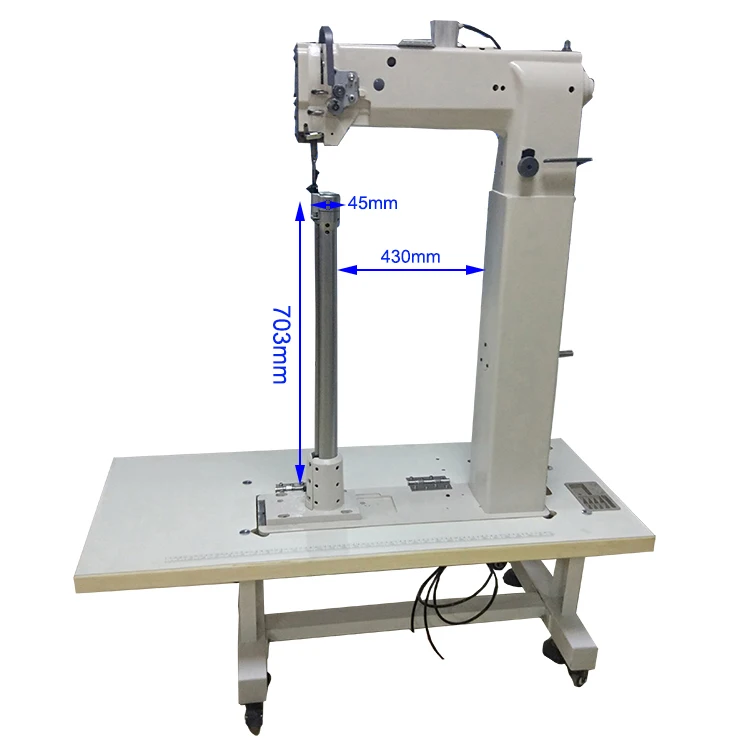

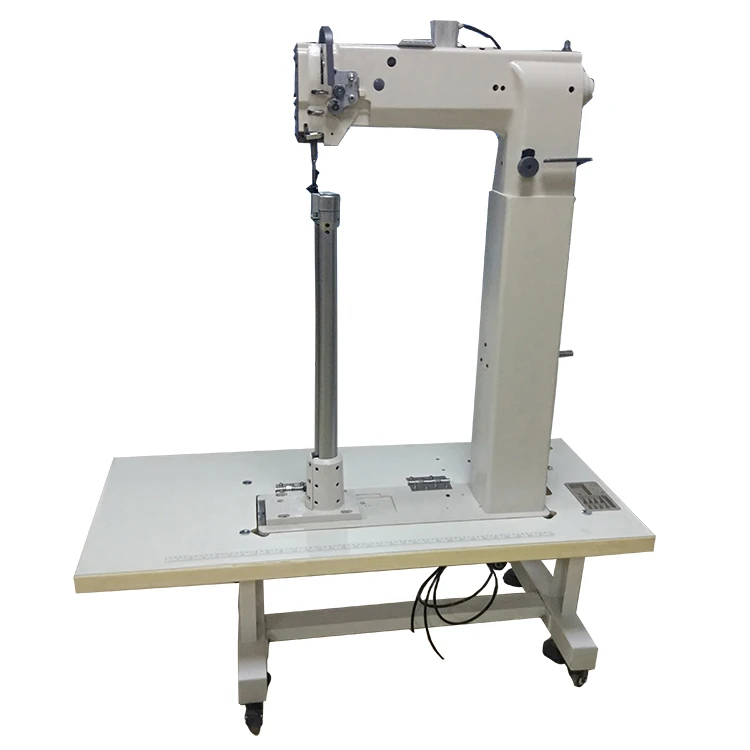

The vertical long design of the cauldron base (the height of the kettle canister is 703mm, the width of the kettle canister base is 430mm), which can be made of extra thick material and leather, with beautiful and efficient sewing.





8703B post bed 1

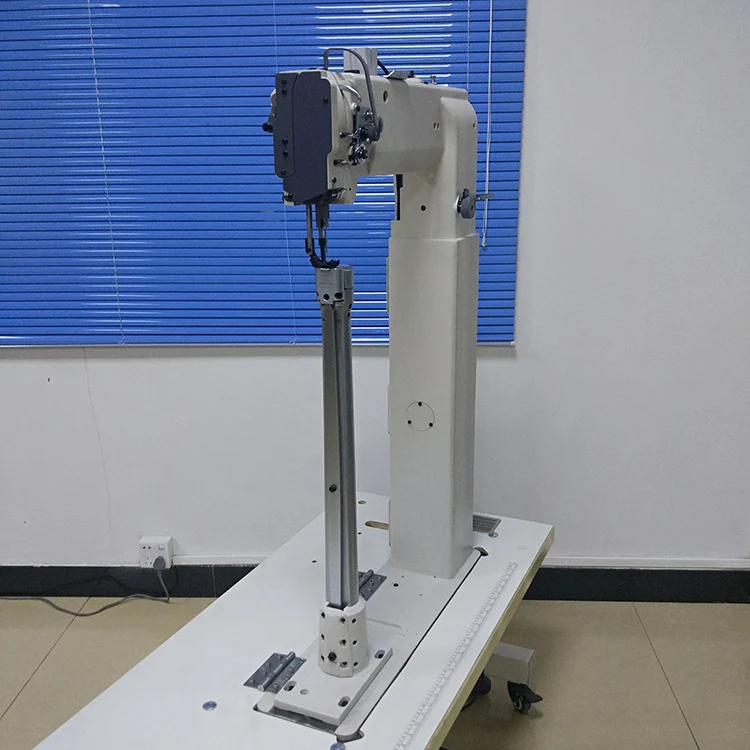

The high of the canister have many size : 17.8cm, 25cm, 30.5cm, 35cm, 44.3cm &52cm; and the width of the canister also have many size, from 17.8cm to 100cm, customer can choose the suitable size as you like or customized is acceptable.


8703B post bed 14

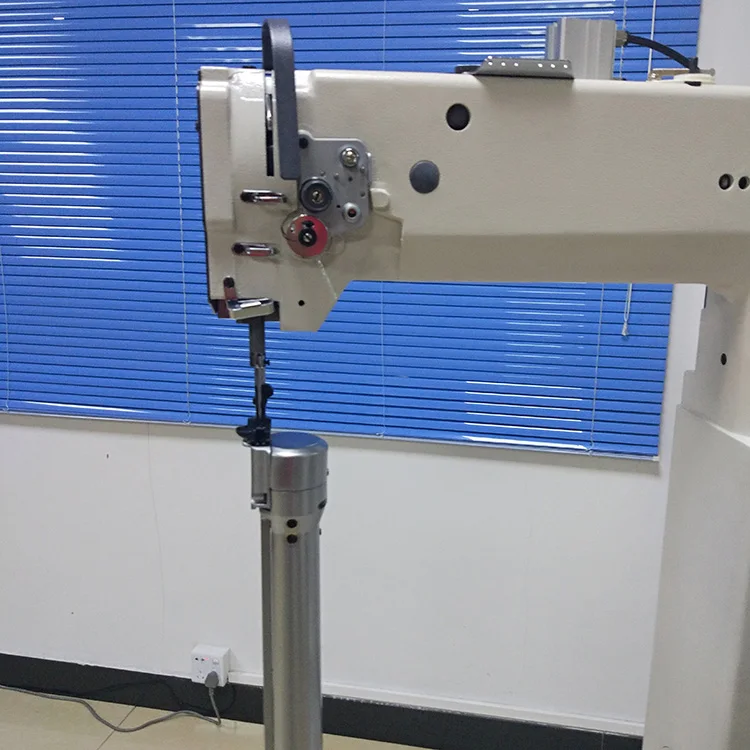

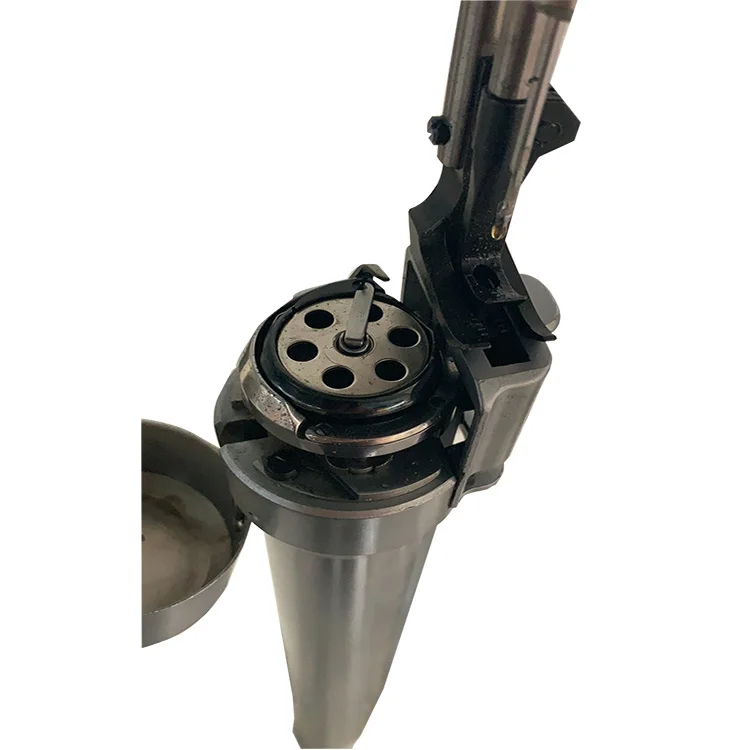

The diameter of the kettle canister is 45mm.


8703B post bed 7

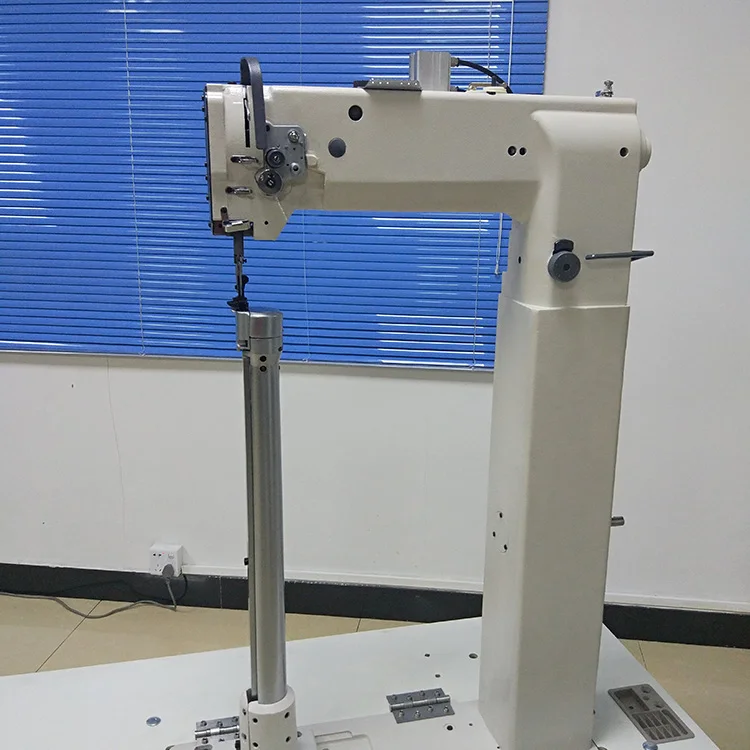

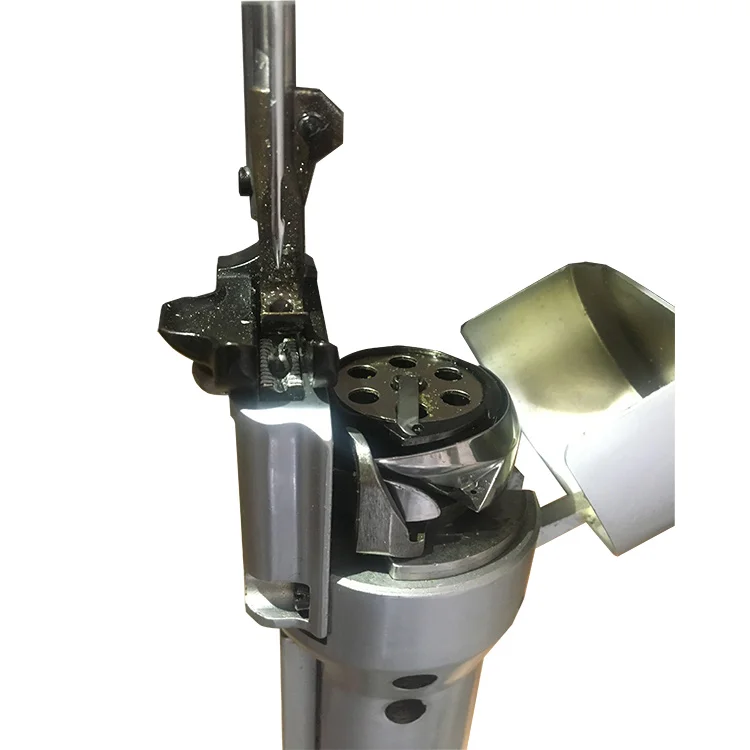

Using standard kettle canister, the production line is even and beautiful, and the working extra thick material is stable.

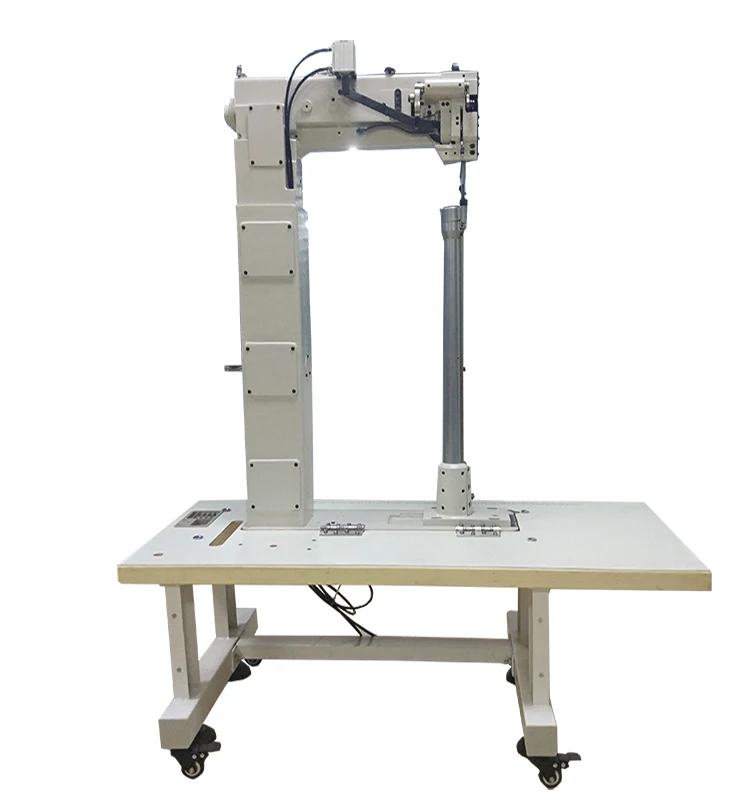

                                                   Right and left kettle canister for optional.







                       Right and left kettle canister for optional.








8703B post bed 8

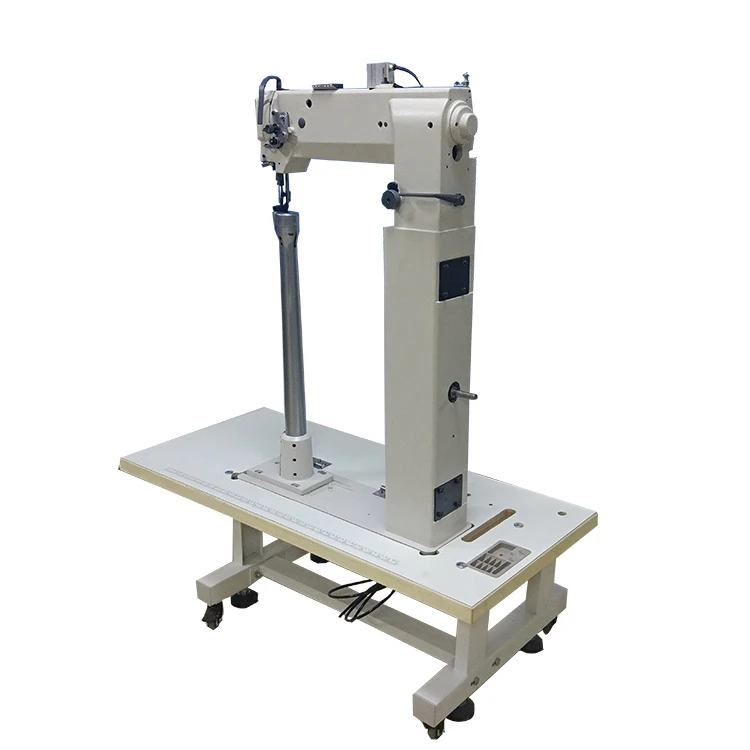

It is suitable for making heavy materials such as luggage suitcase. It is easy to operate and can achieve the perfect effect.





8703B post bed 12

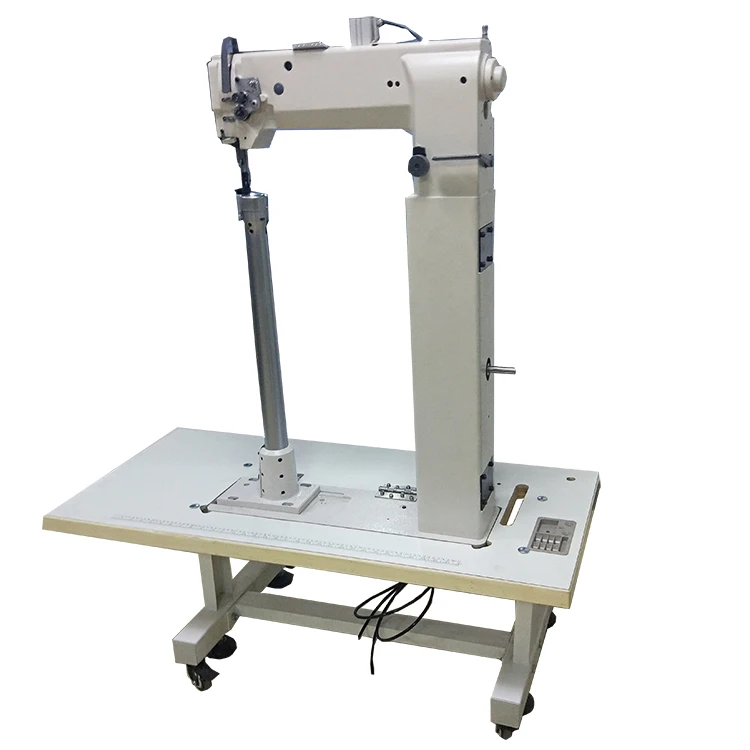

Precision accessories stable performance, easy operation.









Recommended Products








































Application display


This series of machine is specially made for thick material and PC luggage suitcase, golf bag etc.





 Luggage suitcase








Company Information


-1_02

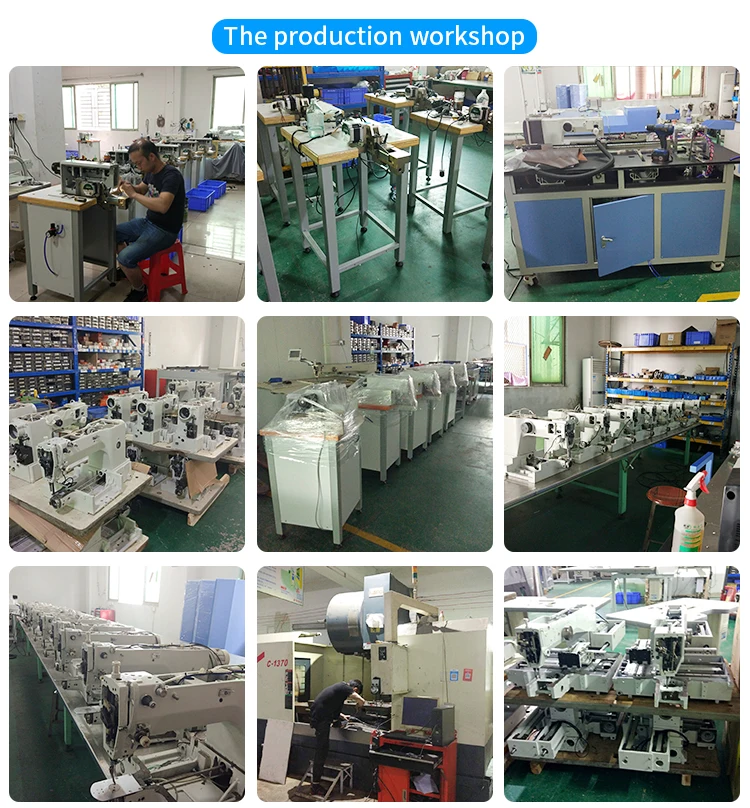

1_07 Production line





-








FAQ




-1_03




Q1. Are you a factory?
  Re. Yes.  we are both a trading company an
d a factory, and we only focus on excellence sewing machine.


Q2.How about your machine quality?


  Re. I cannot answer to you from our side. But our customer said to us our machine quality is good and high, use it about two years no change voice and vibration. After you use it, you will more understand our quality.


Q3. How about your price?


  Re. Our price not expensive, but also not very cheap, in general, quality is better than price


Q4. How long could your sewing machine be used?
  Re. Generally, more than 6 years.


Q5. What is the shipping port?
  Re. We ship the goods via Guangzhou port or as you like


Q6. How about payment ?


  Re. At beginning cooperation, 100% TT in advance, or LC at sight for big amount order , after we have good cooperation, we will try to accept DP OR DA payment


Q7. Can you do OEM or ODM for us?


  Re. Yes, of course, and we also can do all kinds of the sewing machine by customized.


Q8. Can you supply spare parts?


  Re. Yes, of course we can.


Q9.  What guarantee you can supply ?


Re: Limited spare parts one-year guarantee, not including quick-wear parts, like needle, hook, needle plate.
