Factory Directly Self Propelled Electric Order Picker with CE

Category: Other Material Handling Equipment >>>
Supplier: Jinan,Plk,Machinery,Co.,Ltd.

Price:$1,200.00 - $1,500.00

Price in USD:Details

Quantity:

Product Overview

Description

Fast Delivery High End Mobile Order Stock Picker with Automatic Battery Charger

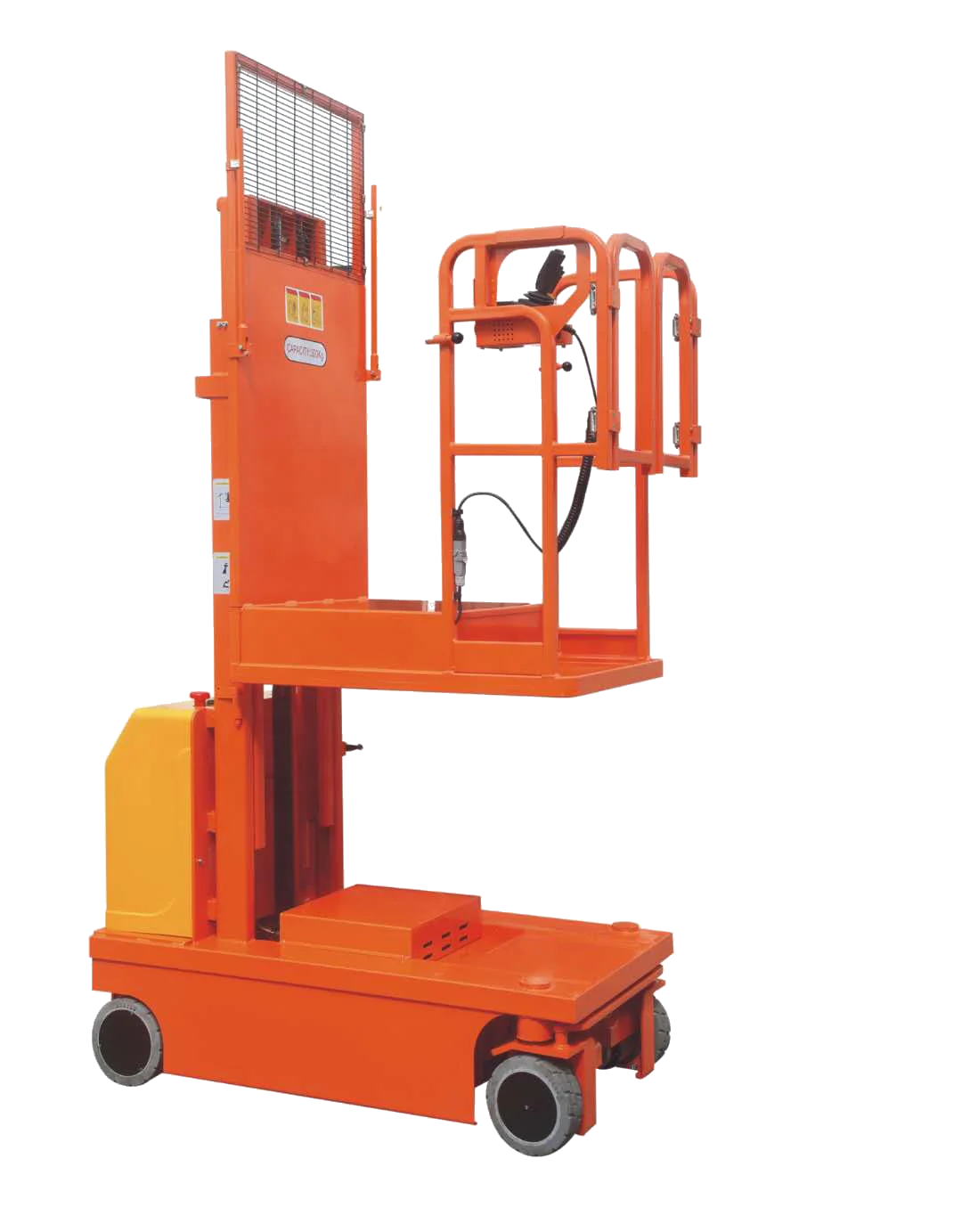

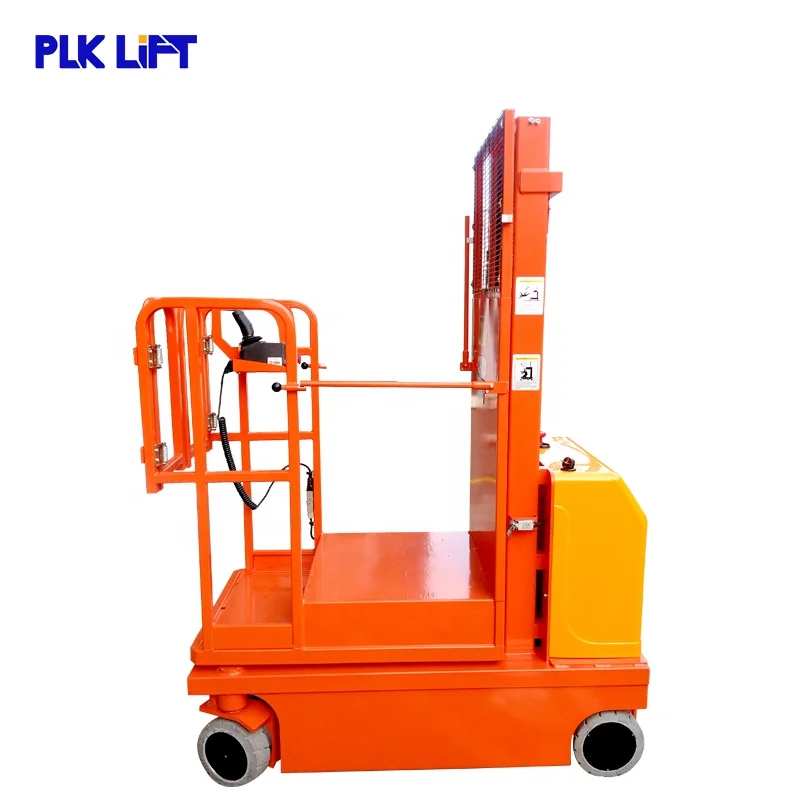

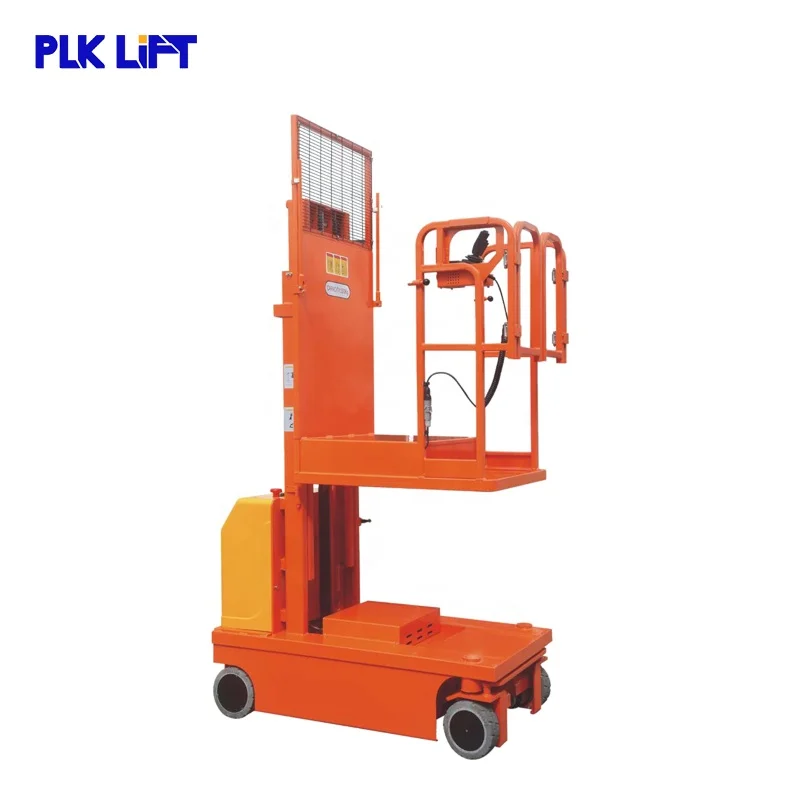

Self propelled order picker is famous for its small compact body size,simple structure and very low failure rate. It moves and lifts all by battery power. Workers can stand on the platform to directly control the lifting and moving of equipment.

Full electric order picker is lighter in weight, easy to implement by single person, flexible and convenient to operate, it is the best choice for stacking and reclaiming warehouses and supermarkets.

Data-Sheet

Model Type		OP3-2.7	OP3-3.3	OP3-4.0	OP3-4.5
Max.Platform Height	mm	2700	3300	4000	4500
Max.Machine Height	mm	4120	5000	5400	6000
Ground Clearance	mm	40
Rated Capacity	kg	300
Platform Size	mm	600*640
Max.Drive Speed (platform Stowed)	km/h	4
Max.Drive Speed (platform Elevated)	km/h	1.6
Min.turning Radius	mm	1500
Max.Climbing Capacity	%	15~20
Driving Wheel Size	mm	230*80
Caster Size	mm	6
Driving Motor	v/kw	2*24/0.4
Lifting Motor	v/kw	24/1.6
Anerold battery	v/Ah	2*12/150
Charger	v/A	24/15
Overall Length	mm	1530		1620
Overall Width	mm	700
Overall Height	mm	1830	2130	1840	2000
Overall Net Weight	kg	430	450	660	680
