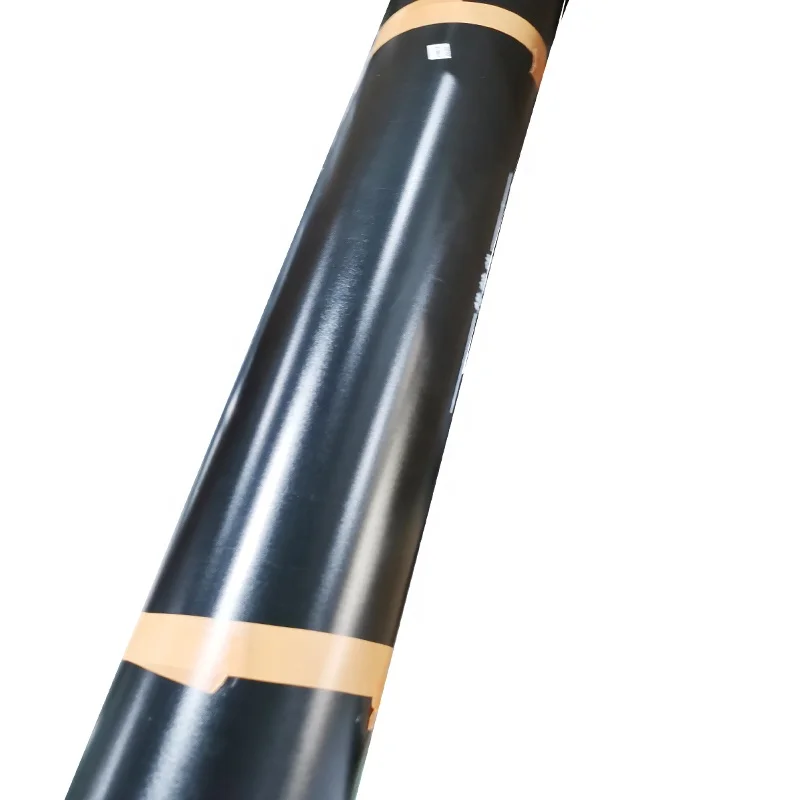

High Temperature High Density 3 Layer Polyethylene Line Pipe Coating Heat Shrink Sleeve for Steel Pipes
- Category: Electronic Accessories & Supplies >>>
- Supplier: CYG Changtong New Material Co. Ltd.
Share on (1600436502305):
Product Overview
Description
Company Profile
Product Description
Click Here to send inquiry!

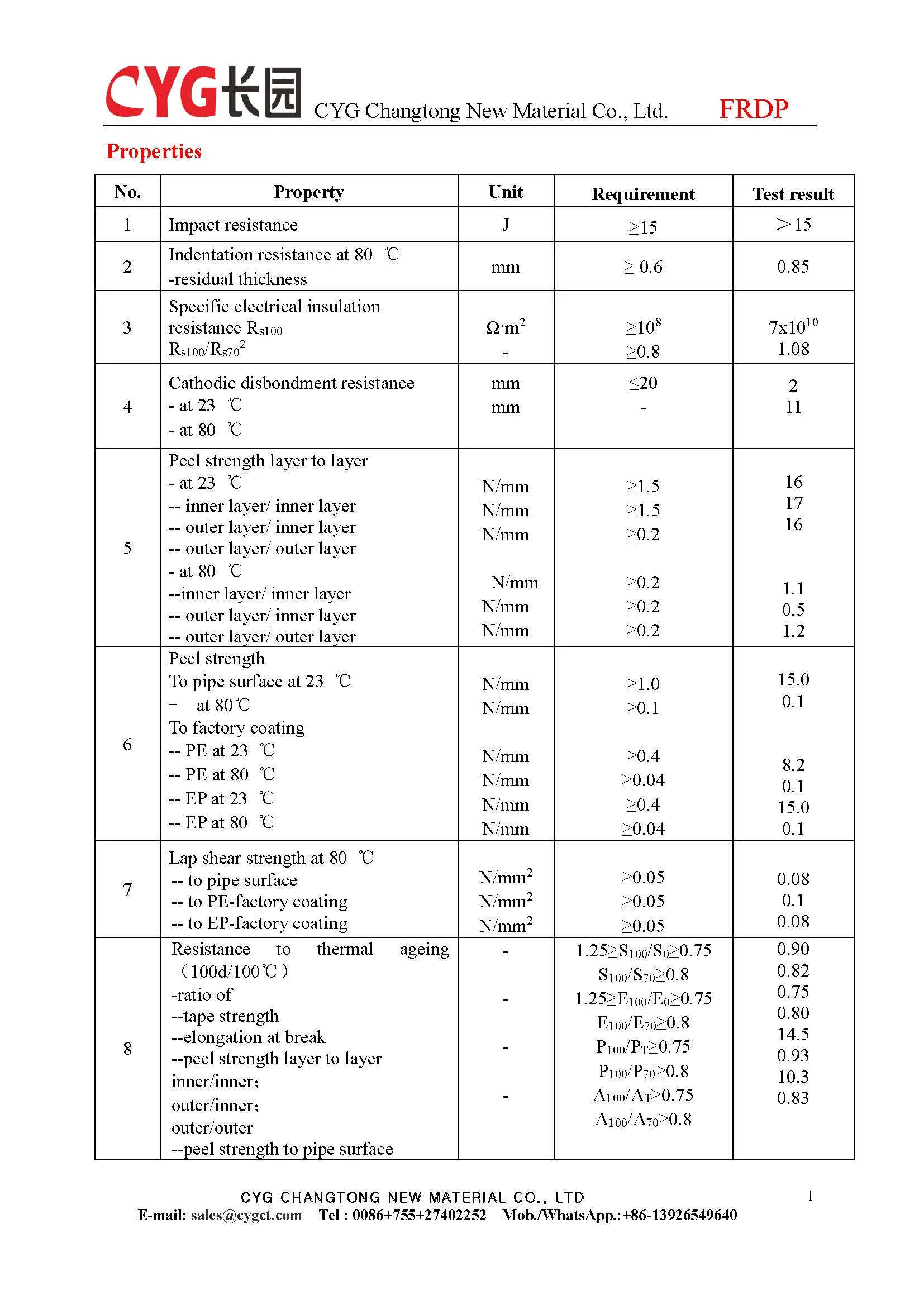

Technical Data
No. | Specification (mm) | No. | Specification (mm) |
FRDP001 | Φ168×500—1.2/1.0 | FRDP 007 | Φ508×500—1.5/1.0 |
FRDP002 | Φ219×500—1.2/1.0 | FRDP 008 | Φ529×500—1.5/1.0 |
FRDP 003 | Φ273×500—1.2/1.0 | FRDP 009 | Φ610×500—1.5/1.0 |
FRDP 004 | Φ325×500—1.2/1.0 | FRDP 010 | Φ711×500—1.5/1.0 |
FRDP 005 | Φ355*500—1.2/1.0 | FRDP 011 | Φ813×500—1.5/1.0 |
FRDP 006 | Φ426×500—1.5/1.0 | FRDP 012 | Φ1220×500—1.5/1.0 |
Click here for OEM specification!

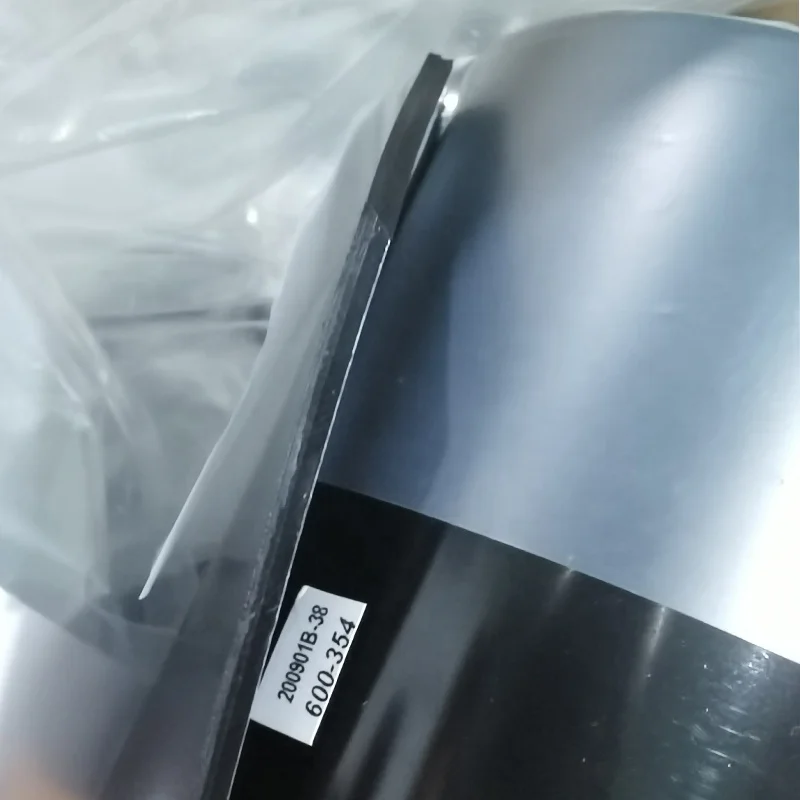

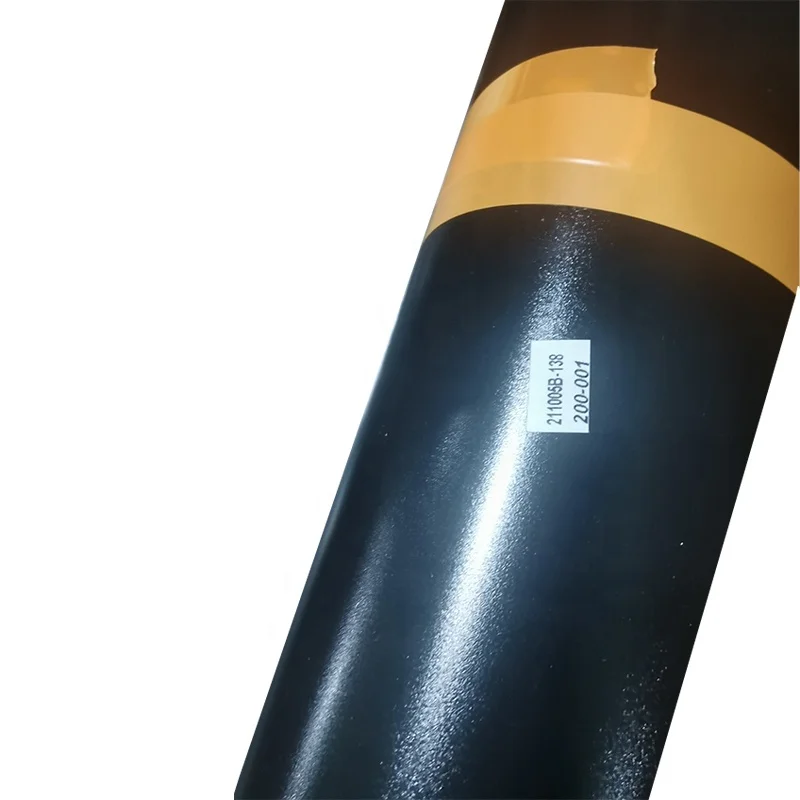

Detailed Images

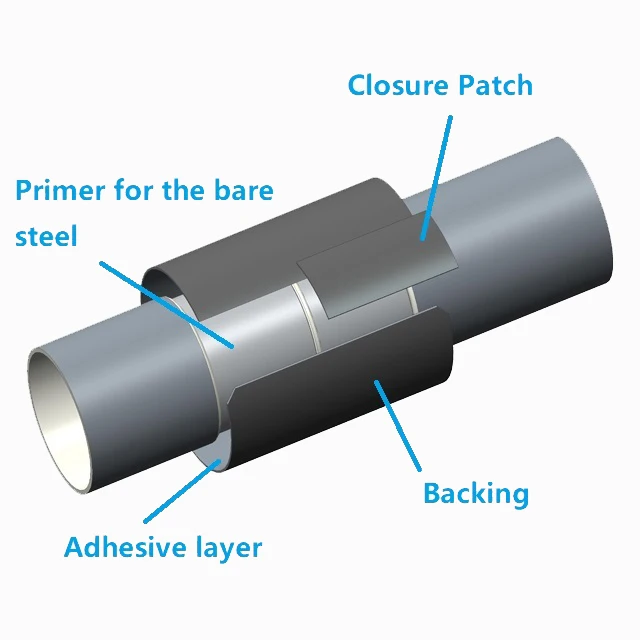

The first layer of solvent free epoxy primer
Second layer of High adhesion strength co-polymer adhesive
Third layer of extruded radiation cross-linked heat shrinkable polyethylene backing

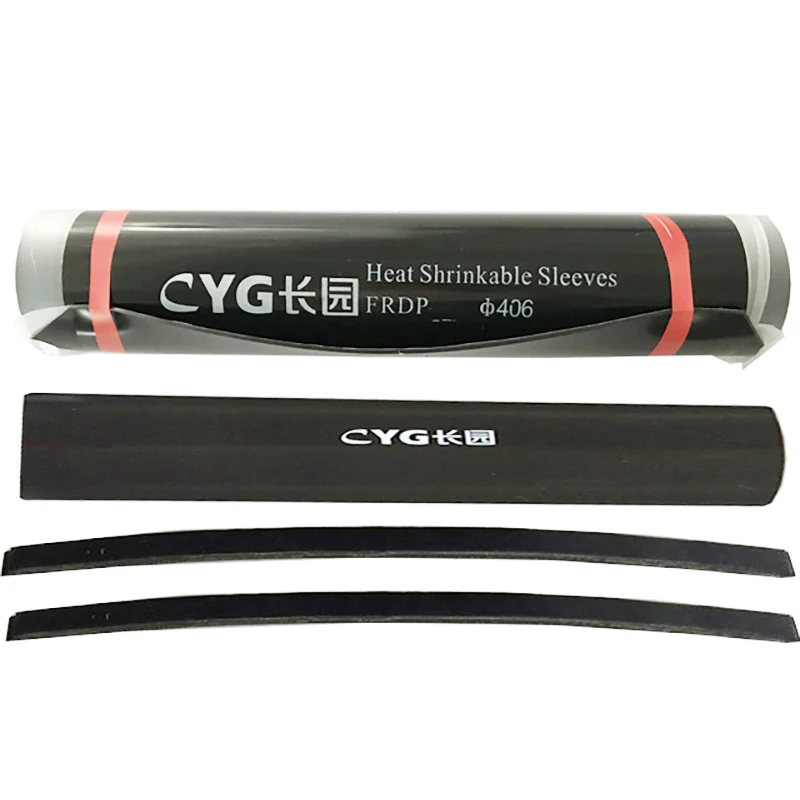

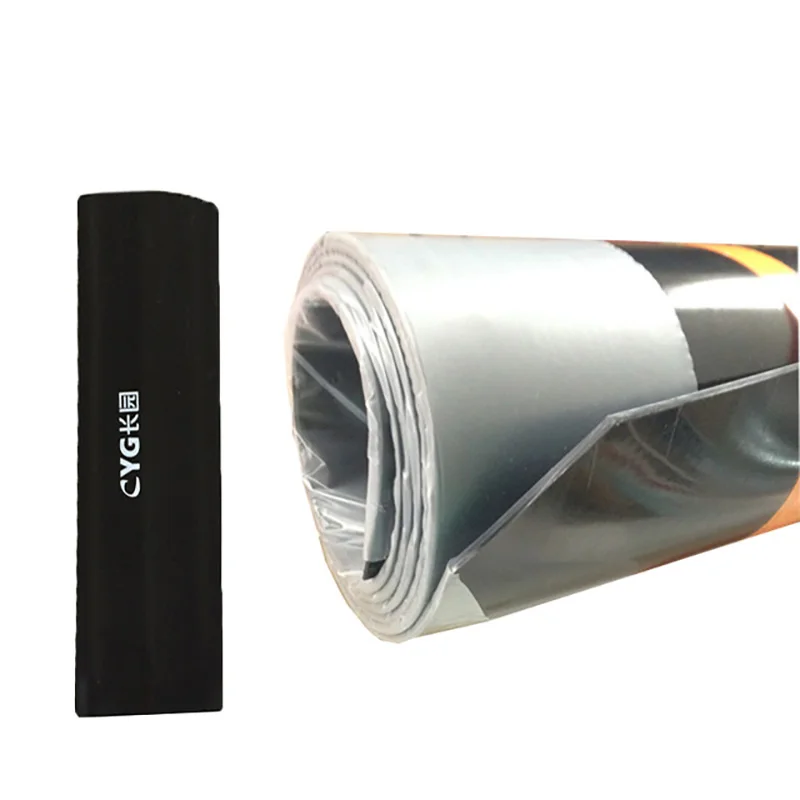

The High adhesion hot melt adhesive and HDPE Backing as well as the closure patch
Two components: Solvent Free Epoxy Primer base + Curing agent
The primer quantity will be depend on the pipe diameter and designed primer thickness requirements.

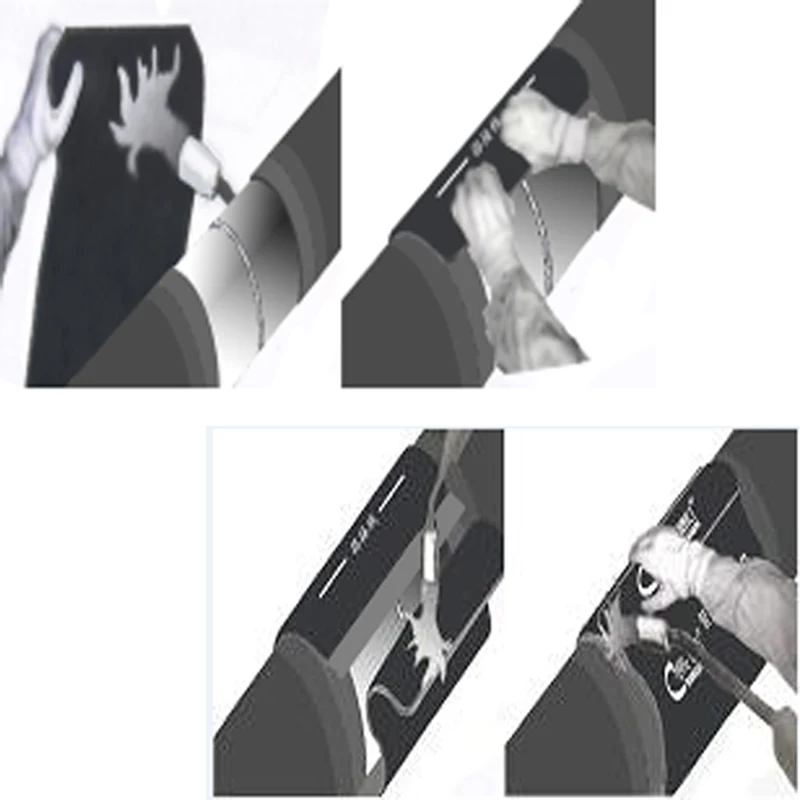

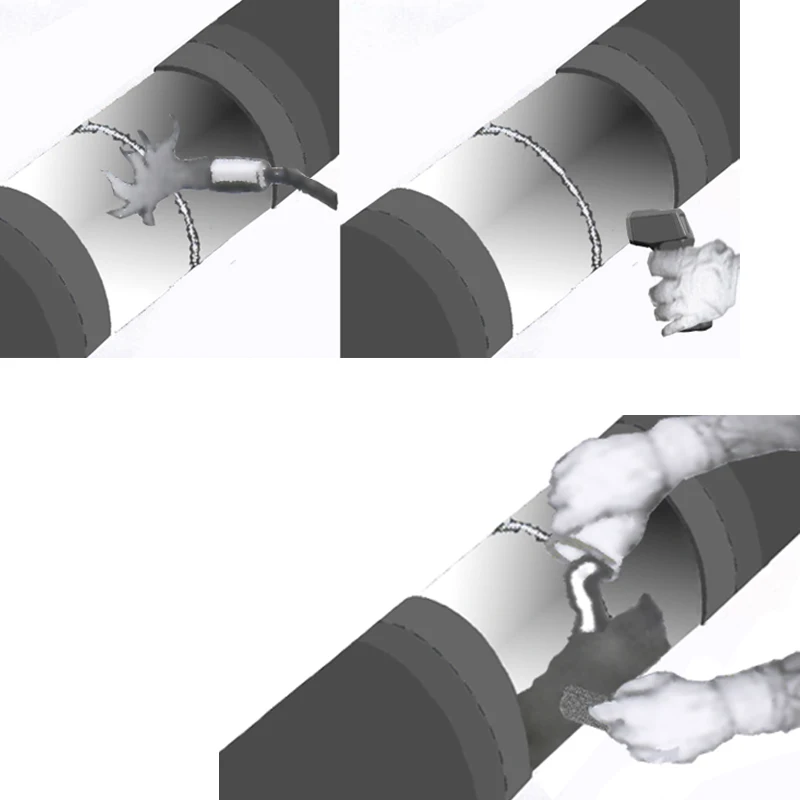

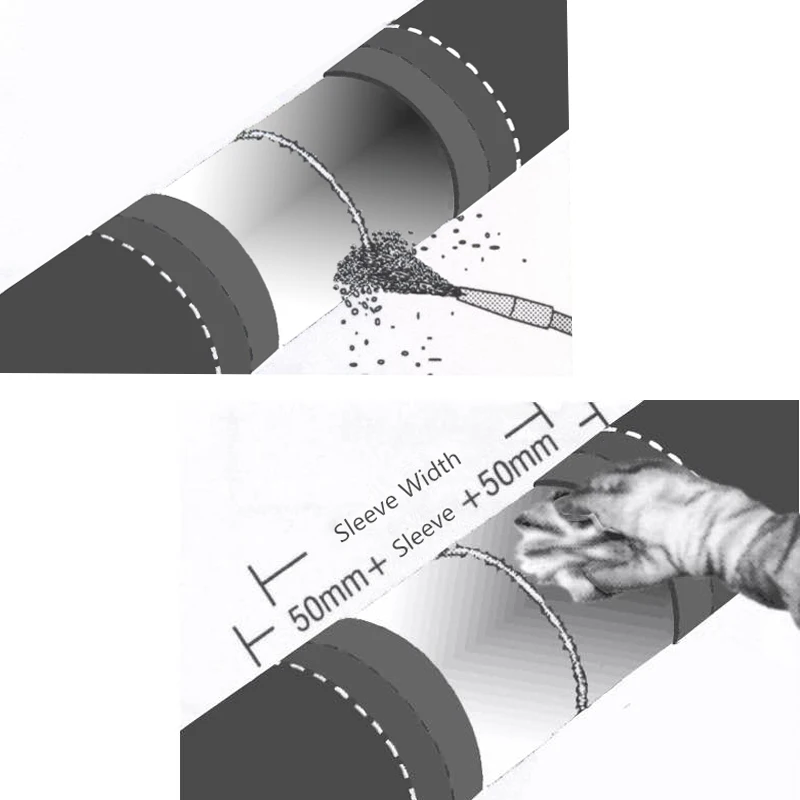

Heat Shrink Sleeve Installation
Related Products
FRY Tubular heat shrink tubes
CYG FRY heat shrink tubing designed for steel pipeline field joint protection.
3LPE heat shrink tapes
3LPE heat shrink tape is designed for wrapping pipe bend, T joints, or wrapping the whole pipe.
visco-elastic tapes
Self sealing heat shrink tape is a kind of excellent waterproof and corrosion prevention wrapping material for all kinds of pipes, flanges, bend, tanks, and other irregular
PE Cold Applied Tape
PE Cold Applied Tape is used to wrap the pipes and don't need to use heat it.
It's easy to install and can be wrapped directly by hand.
Fiberglass PP cold applied tapes
With the reinforced fiberglass, PP cold applied tape is more common to been used as outer tape.
Medium Wall Heat-shrinkable Tubing
Medium wall heat shrinkable tubing with hot-melt adhesive is used for low voltage insulator over lugs and ferrules.
Certificate
Market Performance
Company Introduction
CYG Changtong New material Co., Ltd. is a national high-tech enterprise with more than 20 years experience in the field of
pipeline corrosion protection. CYG is a Well-known Brand of Pipeline Corrosion Protection in China
CYG is the Member of Council in Chinese Society for Corrosion and Protection
CYG owns the qualification certificate of China Anticorrosion construction and Pipeline detection.
It is the Corporate Member of China Association of Petroleum Engineering Construction (CAPEC)
Stable supplier of PetroChina, Sinopec,China Gas Group, CNOOC, Indian Oil, Personas, etc.
High-temperature resistant 80℃heat shrinkable sleeve has been certified by DVGW.
CYG wins the works approval and products certification by China Classification Society (CCS)
pipeline corrosion protection. CYG is a Well-known Brand of Pipeline Corrosion Protection in China
CYG is the Member of Council in Chinese Society for Corrosion and Protection
CYG owns the qualification certificate of China Anticorrosion construction and Pipeline detection.
It is the Corporate Member of China Association of Petroleum Engineering Construction (CAPEC)
Stable supplier of PetroChina, Sinopec,China Gas Group, CNOOC, Indian Oil, Personas, etc.
High-temperature resistant 80℃heat shrinkable sleeve has been certified by DVGW.
CYG wins the works approval and products certification by China Classification Society (CCS)
FAQ
1.CYG pipeline field joint coating systems has many different kind of products, how can We choose the right product
It depends on the the application environment and your performance requirements.
FRDP-PP heat shrinkable sleeve -3LPP HSS is a kind of wraparound heat shrinkable sleeve is designed for 3layers coated
Polypropylene pipe. It is mainly for high temperature requirements as 100℃ and110℃.
The 3LPE shrink sleeve for field joint is mainly used for the Polyethylene coated pipeline weld joint, and the highest design
temperature is 80℃.
It depends on the the application environment and your performance requirements.
FRDP-PP heat shrinkable sleeve -3LPP HSS is a kind of wraparound heat shrinkable sleeve is designed for 3layers coated
Polypropylene pipe. It is mainly for high temperature requirements as 100℃ and110℃.
The 3LPE shrink sleeve for field joint is mainly used for the Polyethylene coated pipeline weld joint, and the highest design
temperature is 80℃.
If your environment is not suitable for heating, then we suggest you to choose cold applied tapes like visco-elastic tapes, PE/PP cold applied tapes.
2.How about the accessories of CYG Heat shrink sleeve for Steel Pipes Field Joint?
The closure patch length and thickness are equal to sleeve axial length and thickness, respectively.
closure patch width: 120 mm for sleeves Φ168~Φ426 while 150 mm for sleeves > Φ426.
CYG field joint applied heat shrink sleeve including both 3LPE heat shrink sleeve and 3LPP heat shrink sleeve. CYG weld joint sleeve ( Heat shrink type ) has a wide range if service temperature. We offer the heat shrink sleeve with design temperature from -50℃ to 120℃ accordingly.
The closure patch length and thickness are equal to sleeve axial length and thickness, respectively.
closure patch width: 120 mm for sleeves Φ168~Φ426 while 150 mm for sleeves > Φ426.
CYG field joint applied heat shrink sleeve including both 3LPE heat shrink sleeve and 3LPP heat shrink sleeve. CYG weld joint sleeve ( Heat shrink type ) has a wide range if service temperature. We offer the heat shrink sleeve with design temperature from -50℃ to 120℃ accordingly.
For more information about pipeline corrosion prevention materials, pls. feel free to contact us.
