Golden motor smart pie 5 controller magic pie with Built in, Programmable FOC controller bike generator with CE
- Category: >>>
- Supplier: Golden Motor Technology Co. Ltd.
Share on (1600436512803):
Product Overview
Description
Read Before Ordering:
When you make the order, please make remarks:
1. Front wheel or Rear wheel you want.
2. The wheel size you need. All the wheel size price is the same.
3. Thumb throttle or Twist Throttle you want.
4. 24V or 36V or 48V for your throttle.
1. Front wheel or Rear wheel you want.
2. The wheel size you need. All the wheel size price is the same.
3. Thumb throttle or Twist Throttle you want.
4. 24V or 36V or 48V for your throttle.
Products Description

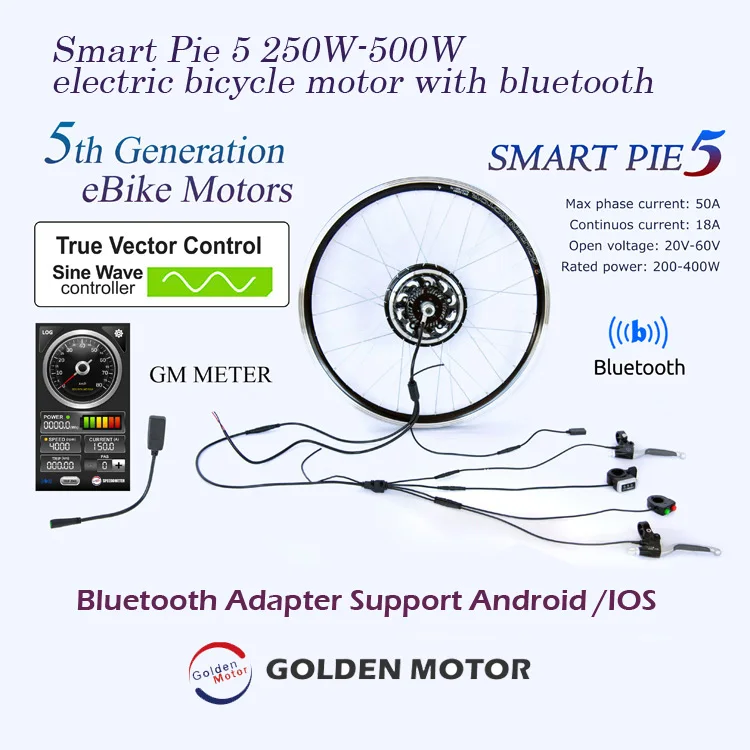

Product Name | Smart Pie 5 Electric bicycle hub motor kit, Brushless E bike Motor kits | ||||||

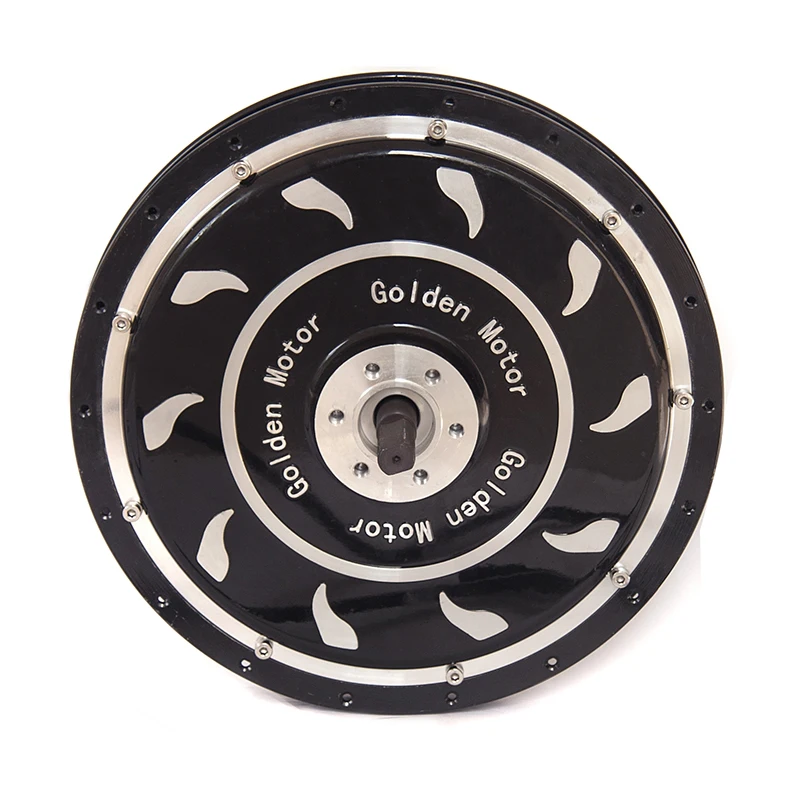

Motor Type | Brushless And Gear Less | ||||||
Input Voltage | Open Voltage (20-60V) | ||||||
Rated Power | 200-400W | ||||||
Motor Speed | 370RPM | ||||||
Top Speed of Bike | 45KMH With 26'' RIM | ||||||

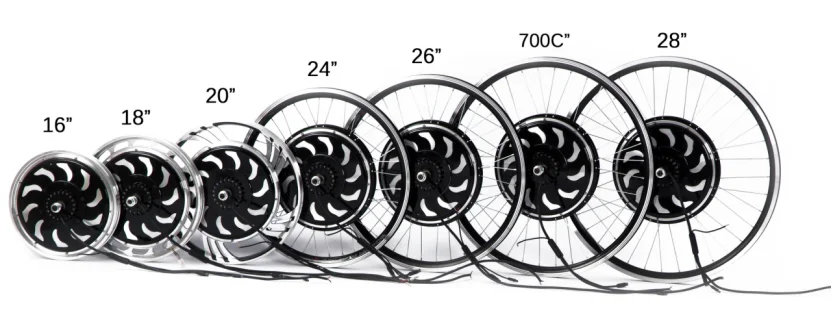

Size Available | 12''/16''/18''/20''/24''/26''/27.5''/28"/700c | ||||||
Warranty | 1 Year | ||||||
Life Time | > 5 Years | ||||||
Accessories | All-in-one integrated Cable with Waterproof Thumb or Twist Throttle with Battery gauge, Brake levers, Cruise control button. | ||||||
Key features:
1. Built-in Sine Wave controller Vector Control
2. Bluetooth wireless connection!!
3. Upgraded GM Speedometer display on Cell Phone/iPad available for Android/IOS!(FREE software)
4. Upgraded Sine Wave controller with true vector control. Highest Reliability!
5. Parameter Programable
6. Higher Torque&Higher Efficiency
7. Lower noisy
8. True temperature sensor inside and Lower overheating
9. Regenerative braking
10. Supports both 5/6/7-speed thread
2. Bluetooth wireless connection!!
3. Upgraded GM Speedometer display on Cell Phone/iPad available for Android/IOS!(FREE software)
4. Upgraded Sine Wave controller with true vector control. Highest Reliability!
5. Parameter Programable
6. Higher Torque&Higher Efficiency
7. Lower noisy
8. True temperature sensor inside and Lower overheating
9. Regenerative braking
10. Supports both 5/6/7-speed thread
Details Images
What make SmartPie and MagicPie No.1 E-bike conversion kits?
1. Brushless gear less motor: no gear means reliable, quiet, high efficiency, long working life, maintenance free.
2. Built in controller: no messy exposed wirings, less connection problems, easy to install, neat looking products.
3. Sine wave controller with true vector control: smooth control, more responsive, higher reliability, higher efficiency, higher torque, lower noise, no vibration at low speed.
4. Bluetooth programmable controller: control parameters programming via Bluetooth wireless connection, customizable for different EV applications.
5. Strong climbing torque: achieved by using strong rare earth magnets, innovative motor design, and top quality MOSFETS used.
6. Open voltages 24/36/48V: user adjustable power and speed, self upgradable from 24V to 48V to meet local regulations.
7. Built-in cooling fan: removing 60% heat, better performance for motor and controller, higher climbing capability.
8. Regenerative braking function: when braking, the motor becomes generator to charge battery.
2. Built in controller: no messy exposed wirings, less connection problems, easy to install, neat looking products.
3. Sine wave controller with true vector control: smooth control, more responsive, higher reliability, higher efficiency, higher torque, lower noise, no vibration at low speed.
4. Bluetooth programmable controller: control parameters programming via Bluetooth wireless connection, customizable for different EV applications.
5. Strong climbing torque: achieved by using strong rare earth magnets, innovative motor design, and top quality MOSFETS used.
6. Open voltages 24/36/48V: user adjustable power and speed, self upgradable from 24V to 48V to meet local regulations.
7. Built-in cooling fan: removing 60% heat, better performance for motor and controller, higher climbing capability.
8. Regenerative braking function: when braking, the motor becomes generator to charge battery.
The Reasons Why you choose SmartPie and MagicPie over other kits?
Packing&Shipping
Company Introduction
FAQ
Q: How do i choose Magic Pie / Magic Pie Edge / Smart Pie ? (What is the difference between them ?)
A: 1. The power is different.
Magic pie power range is 500W/750W/1000W with Different Battery 24V/36V/48V
Magic Pie Edge power range is 350W/500W/750W with different battery 24V/36V/48V
Smart Pie power range is 250W/350W/450W with different battery 24V/36V/48V
2. The size is different.
3. The price is different.
Q: What is the advantage of Front Motor Vs Rear Motor ?
A: Front motor is easier to build. Rear motor is safer when driving.
Q: Which wheel size should i Choose ?
A: It is based on your bike's wheel size. Our motor is to replace your front or rear wheel.
If you are making business, we suggest you should buy 26'' , which is most popular based on our experience.
Q: What the fork size of your motor ?
A: Front motor fork size is 100mm. Rear Motor fork size is 135mm.
Q: What the speed i can get with your motor ?
A: With 48V Battery, 26'' motor can reach 45KMH. Different wheel size will make the speed different.
Q: What is the driving time / Range ?
A: It will be based on the battery capacity you will use. For example, with our 48V 10AH battery, the range should be about
30-40KM. And driving time is about 40-50 minutes.
Q: Can i use different battery with 1 of your motor ?
A: Yes, you can use 24V, 36V, or 48V battery with 1 motor. And all kind of batteries are no problem.
Q: Can i use both LCD display and Bluetooth with your motor ?
A: Yes, both LDC display and bluetooth are working with our Magic pie, edge, smart pie motors. All the controllers are the same.
Q: Can you ship the good to my country ?
A: Yes, we can ship the Samples by Express(DHL, FedEX and so on) to your door. For big orders, we ship by sea to your sea port.
Q: What is the delivery time ?
A: For samples orders, it will take 1-2 days to ship your order. For bulk order, it will take 2-3 weeks to ship it.
Q: What is the shipping time ?
A: Delivery by Express will take 3-5 working days to reach your door. Delivery by sea will take 15-35 days to reach your port.
Q: What is the payment method ?
A: We accept Paypal, TT(Bank Transfer), Western Union, L/C...
Q: How can i make the order ?
A: You can make the order online through alibaba. You can also contact our sales to order it. Our sales will offer you the invoice and after-sale service.
Q: How can i become your distributor ?
A: You need to make an initial order of 10000 USD to become our official distributor. And we will make a distributor agreement with you.
Q: Do you offer warranty ?
A: Yes, we will offer 12 months warranty for all our products.
A: 1. The power is different.
Magic pie power range is 500W/750W/1000W with Different Battery 24V/36V/48V
Magic Pie Edge power range is 350W/500W/750W with different battery 24V/36V/48V
Smart Pie power range is 250W/350W/450W with different battery 24V/36V/48V
2. The size is different.
3. The price is different.
Q: What is the advantage of Front Motor Vs Rear Motor ?
A: Front motor is easier to build. Rear motor is safer when driving.
Q: Which wheel size should i Choose ?
A: It is based on your bike's wheel size. Our motor is to replace your front or rear wheel.
If you are making business, we suggest you should buy 26'' , which is most popular based on our experience.
Q: What the fork size of your motor ?
A: Front motor fork size is 100mm. Rear Motor fork size is 135mm.
Q: What the speed i can get with your motor ?
A: With 48V Battery, 26'' motor can reach 45KMH. Different wheel size will make the speed different.
Q: What is the driving time / Range ?
A: It will be based on the battery capacity you will use. For example, with our 48V 10AH battery, the range should be about
30-40KM. And driving time is about 40-50 minutes.
Q: Can i use different battery with 1 of your motor ?
A: Yes, you can use 24V, 36V, or 48V battery with 1 motor. And all kind of batteries are no problem.
Q: Can i use both LCD display and Bluetooth with your motor ?
A: Yes, both LDC display and bluetooth are working with our Magic pie, edge, smart pie motors. All the controllers are the same.
Q: Can you ship the good to my country ?
A: Yes, we can ship the Samples by Express(DHL, FedEX and so on) to your door. For big orders, we ship by sea to your sea port.
Q: What is the delivery time ?
A: For samples orders, it will take 1-2 days to ship your order. For bulk order, it will take 2-3 weeks to ship it.
Q: What is the shipping time ?
A: Delivery by Express will take 3-5 working days to reach your door. Delivery by sea will take 15-35 days to reach your port.
Q: What is the payment method ?
A: We accept Paypal, TT(Bank Transfer), Western Union, L/C...
Q: How can i make the order ?
A: You can make the order online through alibaba. You can also contact our sales to order it. Our sales will offer you the invoice and after-sale service.
Q: How can i become your distributor ?
A: You need to make an initial order of 10000 USD to become our official distributor. And we will make a distributor agreement with you.
Q: Do you offer warranty ?
A: Yes, we will offer 12 months warranty for all our products.
