Product Overview

Description



Sanitary gaskets for Quick-Clamp Tube Fittings
Below lists is the sanitary gaskets that we have existing tool. Welcome to choose close size from them. If you need your size, we can OEM for you.
A sanitary gasket for use between two pipes, each having a ferrule face defining a channel thereon. The sanitary gasket comprises a spacing assembly and a gasket assembly. The spacing assembly, having a spacing member including a body having an inner edge and an outer edge. The gasket assembly having a spacing assembly interfacing edge associated with the inner edge of the spacing assembly. The gasket assembly is of a softer material than the spacing assembly, such that, upon clamping, the spacing assembly controls the spacing between two pipes, and, in turn, the compression of the gasket assembly.

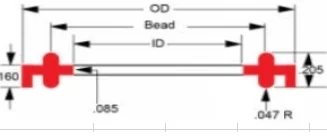

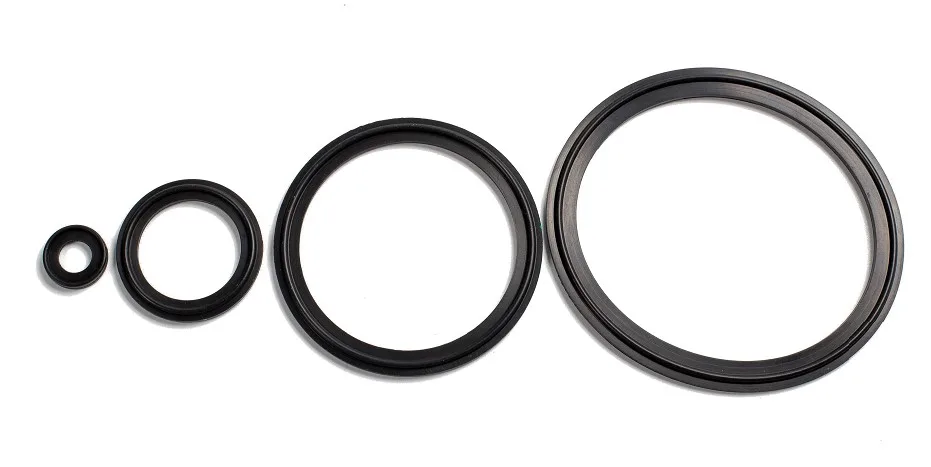

Sanitary Gaskets for Quick-Clamp Tube Fittings
For tube size
ID
OD
Height
Available material
3/4''
0.62''
0.86''
0.178''




NBR BLACK
EPDM BLACK
FKM BLACK
SILICONE BLACK
PTFE WHITE
1/2''
0.38''
0.86''
0.178''
1''
0.9''
1.984''
0.178''
1-1/2''
1.4''
1.984''
0.178''
2''
1.9''
2.515''
0.178''
2-1/2''
2.4''
3.05''
0.178''
3''
2.9''
3.579''
0.178''
4''
3.869''
4.682''
0.178''
6''
5.817''
6.507'
0.178''

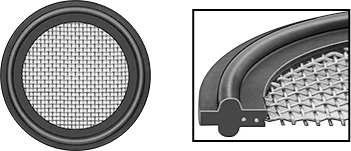

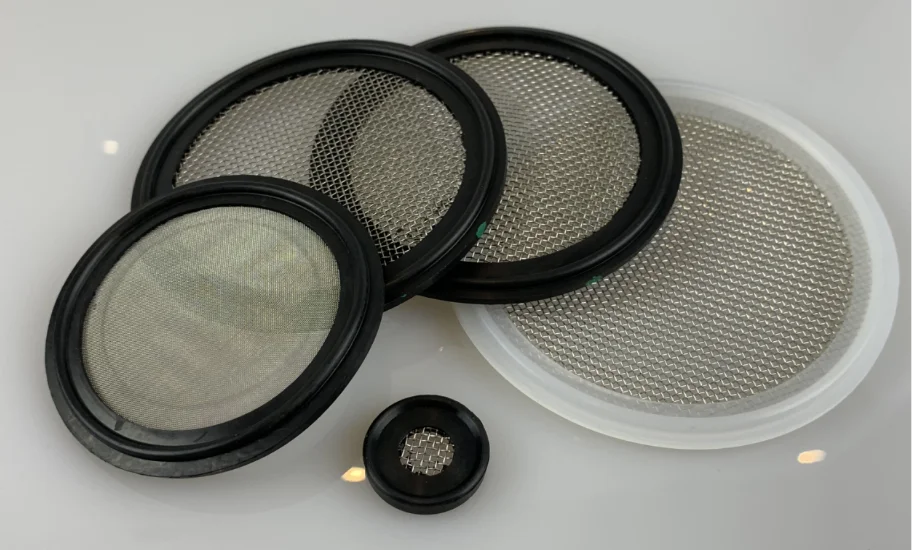

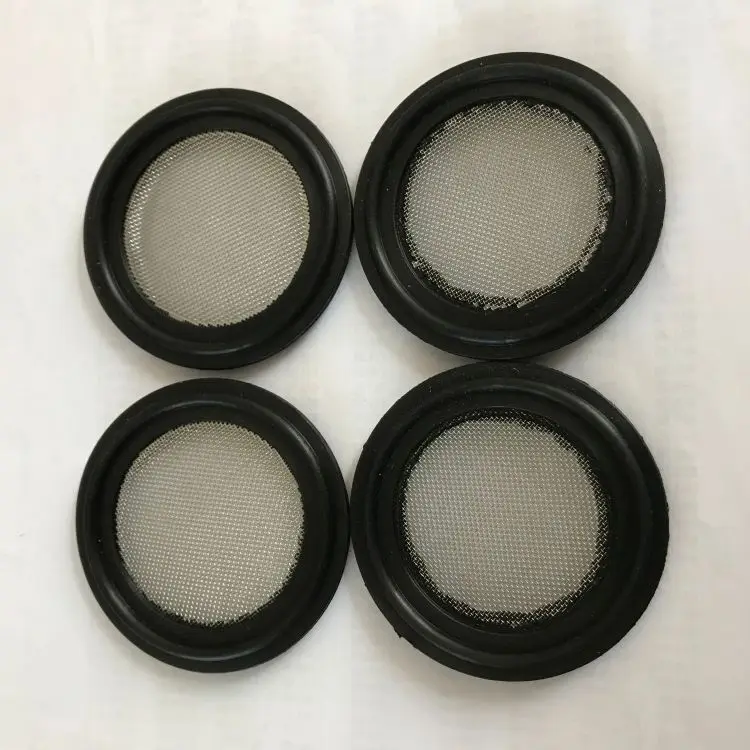

Sanitary Gaskets for Quick-Clamp Tube Fittings
For tube size
ID
OD
Height
Mesh
Available material
1/2''
0.38''
0.86''
0.178''
SS316 20 mesh/100mesh


NBR BLACK
EPDM BLACK
FKM BLACK
SILICONE CLEAR
1''
0.9''
1.984''
0.203''
SS316 20 mesh/100mesh
 EPDM BLACK
1-1/2''
1.4''
1.984''
0.203''
SS316 20 mesh/100mesh
 FKM BLACK
2''
1.9''
2.515''
0.203''
SS316 20 mesh/100mesh
 SILICONE CLEAR
2-1/2''
2.4''
3.05''
0.203''
SS316 20 mesh/100mesh

3''
2.9''
3.579''
0.203''
SS316 20 mesh

4''
3.869''
4.682''
0.203''
SS316 20 mesh

6''
5.817''
6.507'
0.203''
SS316 20 mesh
