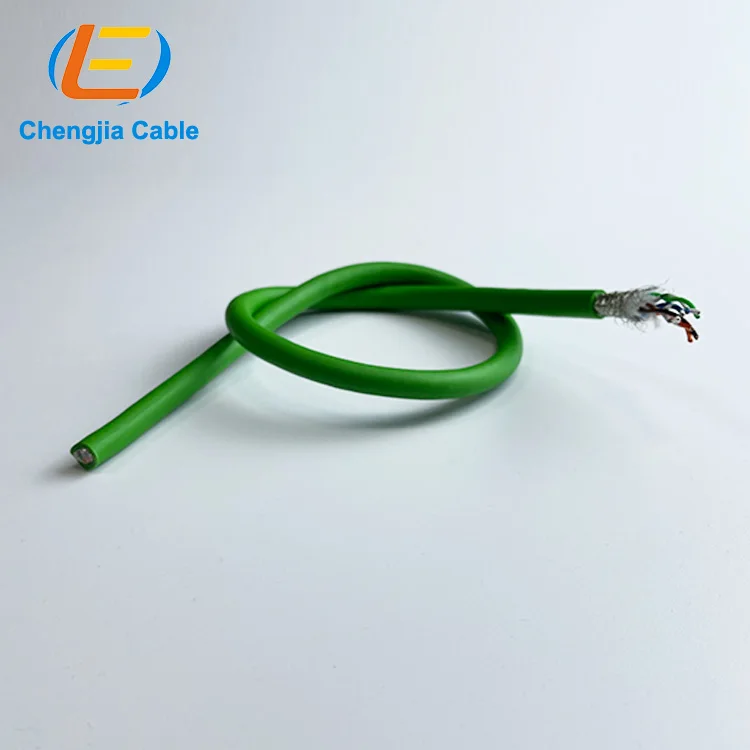

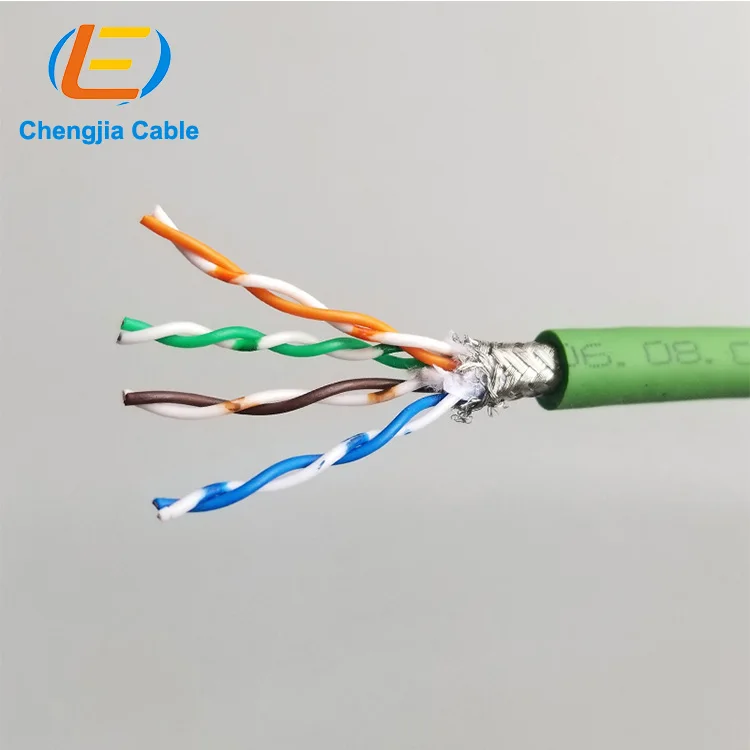

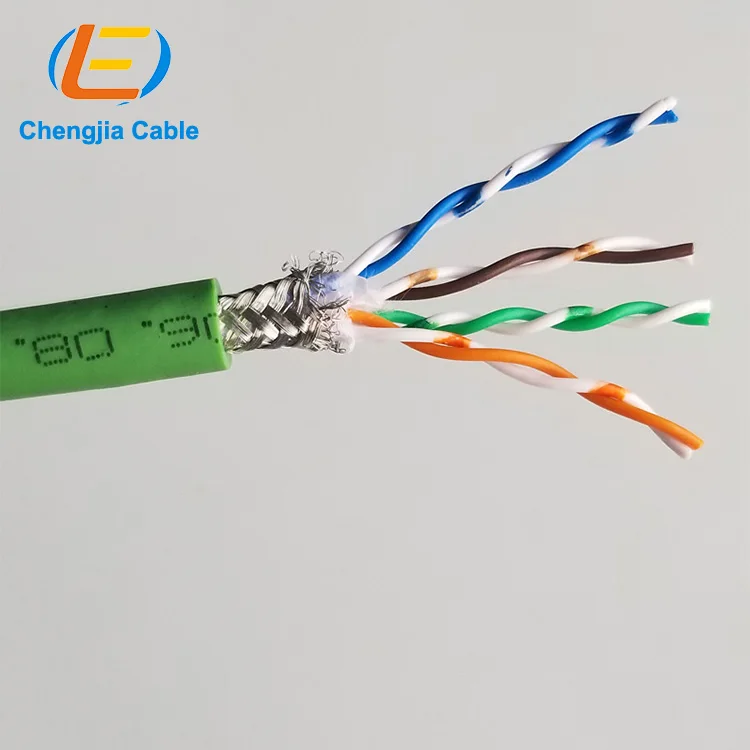

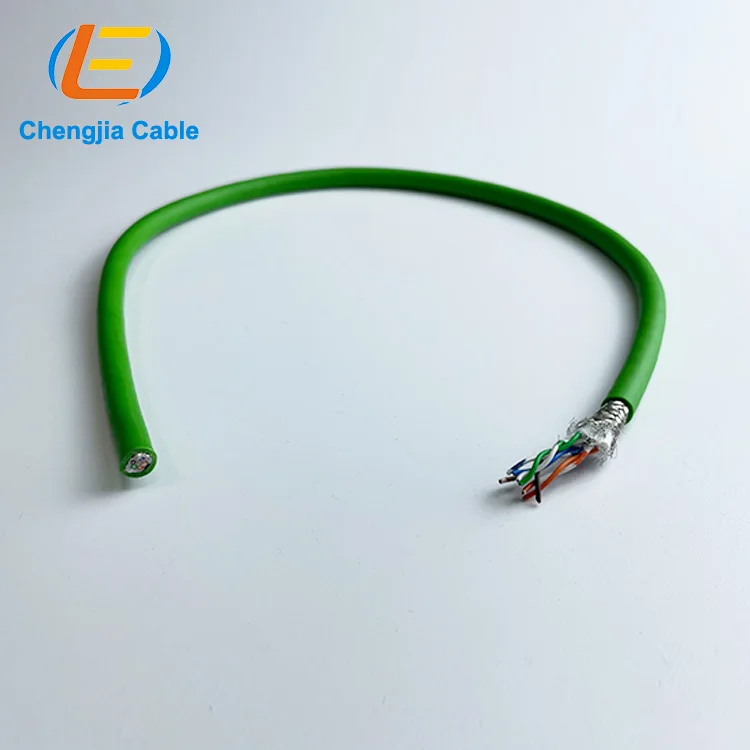

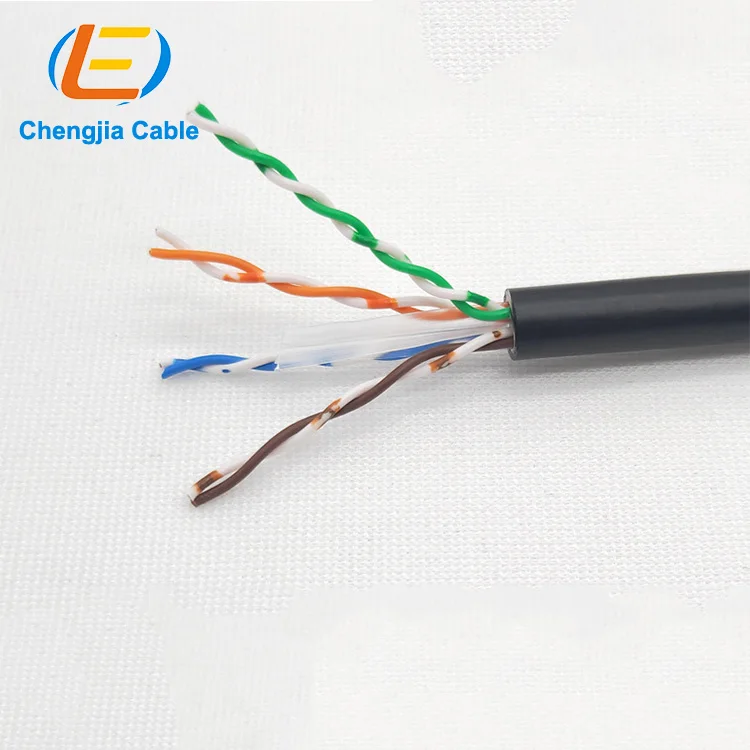

Rj45 8Pin X Coded Male Female Waterproof Rj45 15M Cat 10 Ethernet Atex Certified Cable
- Category: >>>
- Supplier: Guangzhou Chengjia Wire&Cable Co. Ltd.
Share on (1600436533056):
Product Overview
Description
Black Cable Link Chain Industrial Camera Network Wire PoCL Drag Chain Camera Link Power Cable
Products Description

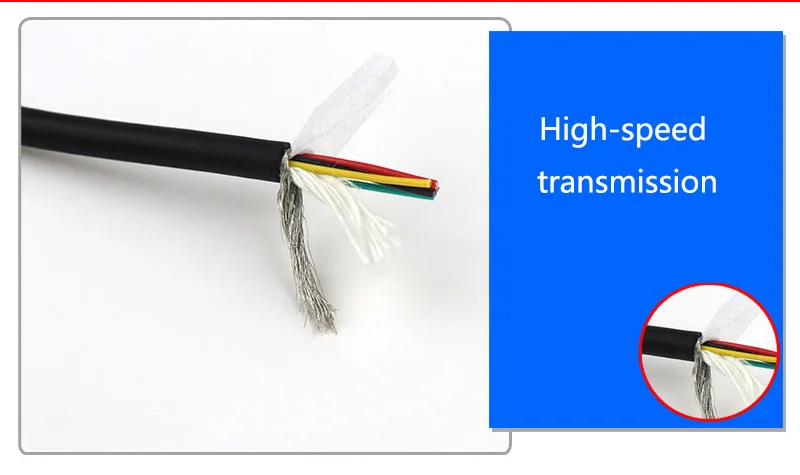

It is used in the data transmission of Camera-Link digital camera system and is highly flexible. The highly flexible bus cable uses a special structural design, modified outer covering material, has a high degree of wear resistance and medium resistance, can withstand long-term acceleration, deceleration, tensile and compressive stress, and millions of cycles of bending .
Product Feature
Technical Parameter

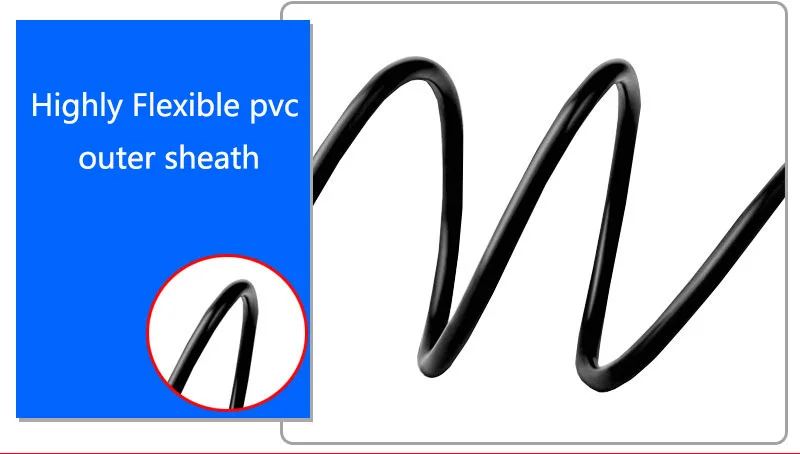

Outer sheath | Special PVC outer sheath | ||||||
Standard | Bare copper conductor, thin copper wire, in line with DINVDE0295 and IEC 60228 standards | ||||||
Temperature range: | Mobile installation -5°C to +70°c Fixed installation -15°C to +80° c | ||||||
Nominal voltage | 30 V | ||||||
Test voltage | 500V | ||||||
Insulation resistance: | Minimum 20 MOhm x km | ||||||
Minimum bending radius: | Mobile installation 14×cable diameter Fixed installation 7x cable diameter | ||||||
Application: | Meet the requirements of EU RoHS and Reach regulations | ||||||

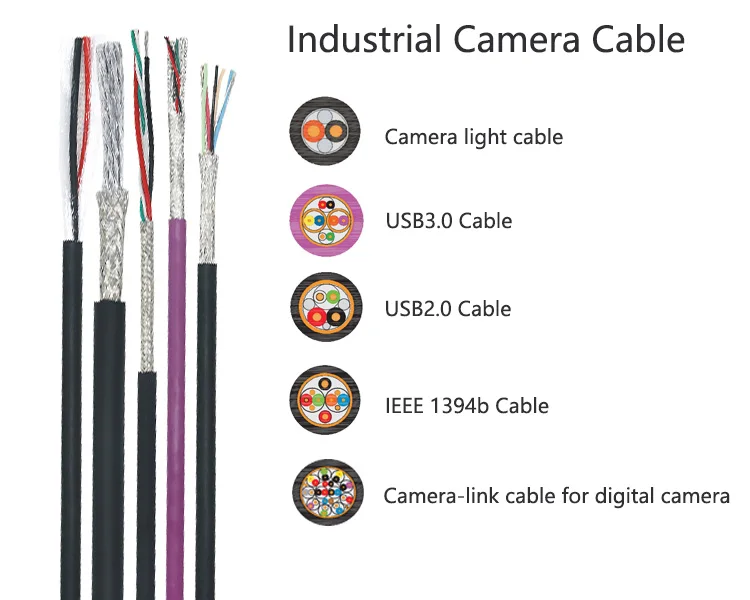

Camera Light Cable
No. | Product Code | Cores Number and cross-sectional area (NO.Xm㎡) | Approximate outer diameter （mm) | Outer sheath color | 20℃ Conductor DC resistance Ω/km |
1 | HE501.02.0020 | 2x0.20 | 3.0 | BLACK | 95 |
2 | HE501.02.0020 | 2x0.20 | 3.5 | BLACK | 95 |
Camera-link Cable for Digital Camera
No. | Product Code | Cores Number and cross-sectional area (NO.Xm㎡) | Approximate outer diameter （mm) | Outer sheath color | Resistance | 20℃ Conductor DC resistance Ω/km |
1 | BUS-HY06.26.0008 | 11x(2x0.08)+4x0.08 | 9.1 | BLACK | 100 | 239 |
2 | BUS-HY06.26.0008 | 11x(2x0.08)+4x0.08 | 9.5 | BLACK | 100 | 239 |
USB3.0 Cable
No. | Product Code | Cores Number and cross-sectional area (NO.Xm㎡) | Approximate outer diameter （mm) | Outer sheath color | Resistance | 20℃ Conductor DC resistance Ω/km |
1 | BUS-HY06.08.0008 | 2X(2X0.8)+2X2X0.8 | 6.5 | Purple | 90 | 239 |
2 | BUS-FY1006.08.0008 | 2X(2X0.8)+2X2X0.8 | 6.8 | Purple | 90 | 239 |
USB2.0 Cable
No. | Product Code | Cores Number and cross-sectional area (NO.Xm㎡) | Approximate outer diameter （mm) | Outer sheath color | Resistance | 20℃ Conductor DC resistance Ω/km |
1 | BUS-HY506.04.2826 | 2X0.08+2X0.14 | 3.7 | BLACK | 90 | 239/150 |
2 | BUS-FY1006.04.2826 | 2X0.08+2X0.14 | 3.7 | BLACK | 90 | 239/150 |
IEEE139b Cable
No. | Product Code | Cores Number and cross-sectional area (NO.Xm㎡) | Approximate outer diameter （mm) | Outer sheath color | Resistance | 20℃ Conductor DC resistance Ω/km |
1 | BUS-HY06.06.2622 | 2x(2x0.14)+2x0.38 | 7.0 | BLACK | 110 | 150/55.4 |
2 | BUS-HY506.06.2622 | 2x(2x0.14)+2x0.38 | 8.5 | BLACK | 110 | 150/55.4 |
Company Profile
Chengjia Wire and Cable Co., Ltd., established in 2009, specializes in the development and manufacturing of high-end special wire and cable. Use the best raw material & Provide the best service, so as to guarantee the cables’stable performance under longtime extremely harsh working conditions.
Chengjia offers our customers the highest quality products, which complys with UL ,CE,TUV,3C Certifications and our factory successfully obtained ISO 9001:2000.
Chengjia offers our customers the highest quality products, which complys with UL ,CE,TUV,3C Certifications and our factory successfully obtained ISO 9001:2000.
