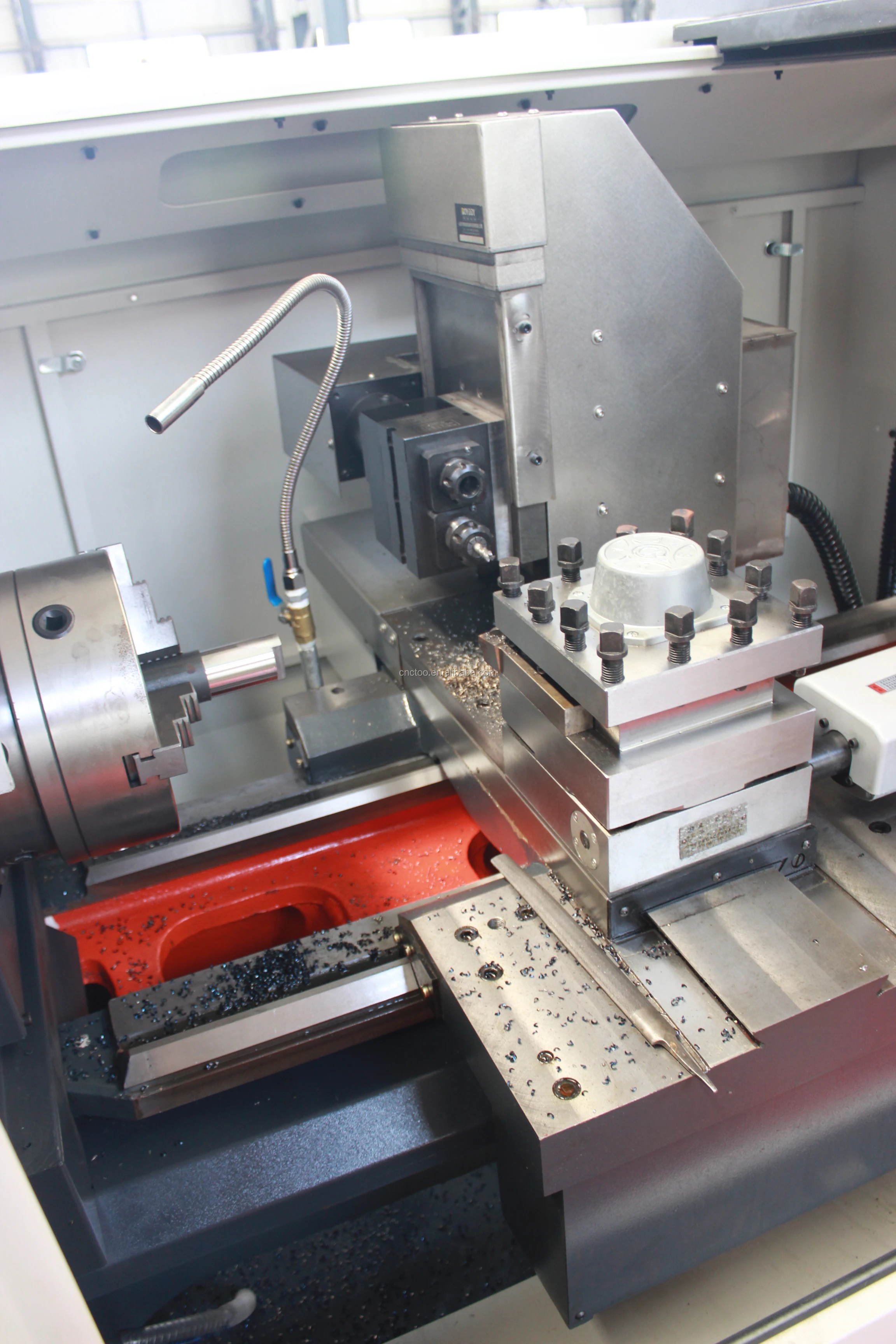

small cnc lathe with bar feeder CK6130 automatic turning machine
- Category: >>>
- Supplier: Zaozhuang City Tengdong Machine Tool Co. Ltd.
Share on (1600436590363):
Product Overview
Description
Product Description
Specification
Specifications | CK6130 |
Max. Swing over bed | 300mm |
Max. Swing over worktable | 100mm |
Spindle speed range | 280-3000r/min |
Spindle bore diameter | 32mm |
Spindle taper | MT5 |
Max. Workpiece length | 300mm |
distance of travel X/Z | 250mm / 125mm |
Tailstock sleeve travel | 60mm |
Tailstock sleeve taper | MT3 |
Tool specifications | 16*16mm |
Fast moving speed | X:4m/min Z:8m/min |
Circular precision | 0.005mm/100mm |
Cylindrical precision | 0.01mm/100mm |
Motor power | 2.2kw |
Minimum setting unit | 0.001mm |
Repeat positioning precision | X:0.012mm Z:0.016mm |
N.W /G.W | 920/1020kg |
Overall dimension | 1470*880*1440mm |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Tengdong Machine Tool Co., Ltd. is a set of lathes, milling machines, drilling machines, planers, presses and other machine tool
equipment consisting mainly of modern production group production enterprises.
Company under the three production bases, an import and export foreign trade companies
equipment consisting mainly of modern production group production enterprises.
Company under the three production bases, an import and export foreign trade companies
