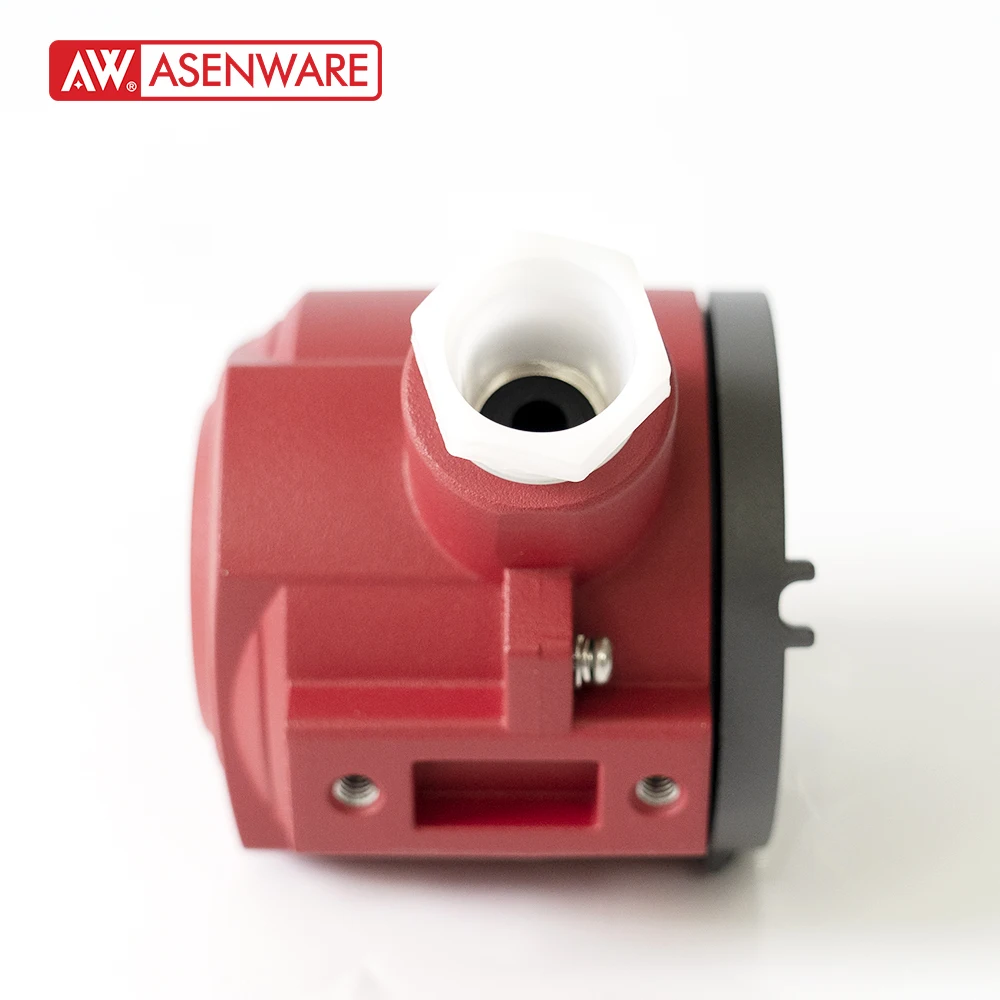

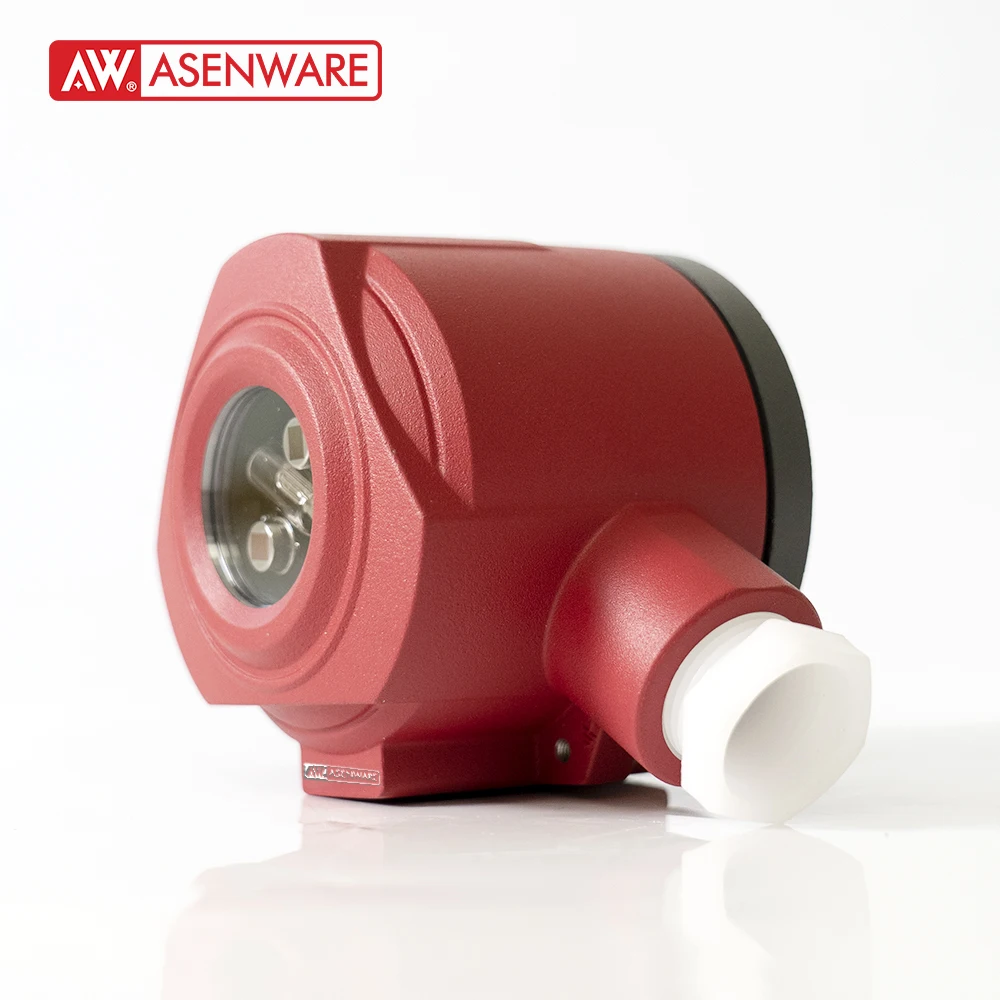

Asenware manufacture price Extended detection range Explosion Proof UVIR2 combined sensor
- Category: >>>
- Supplier: Zhongshan Guta Fire Equipment Technology Co. Ltd.
Share on (1600436592245):
Product Overview
Description

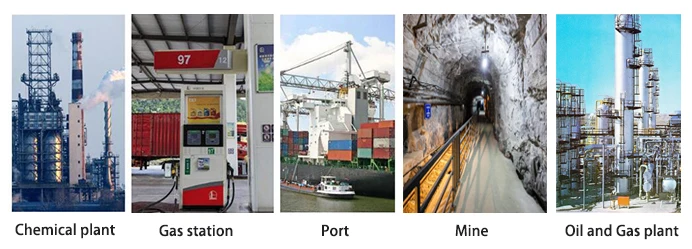

☂ Application
✍ Technical Specification
item | value |

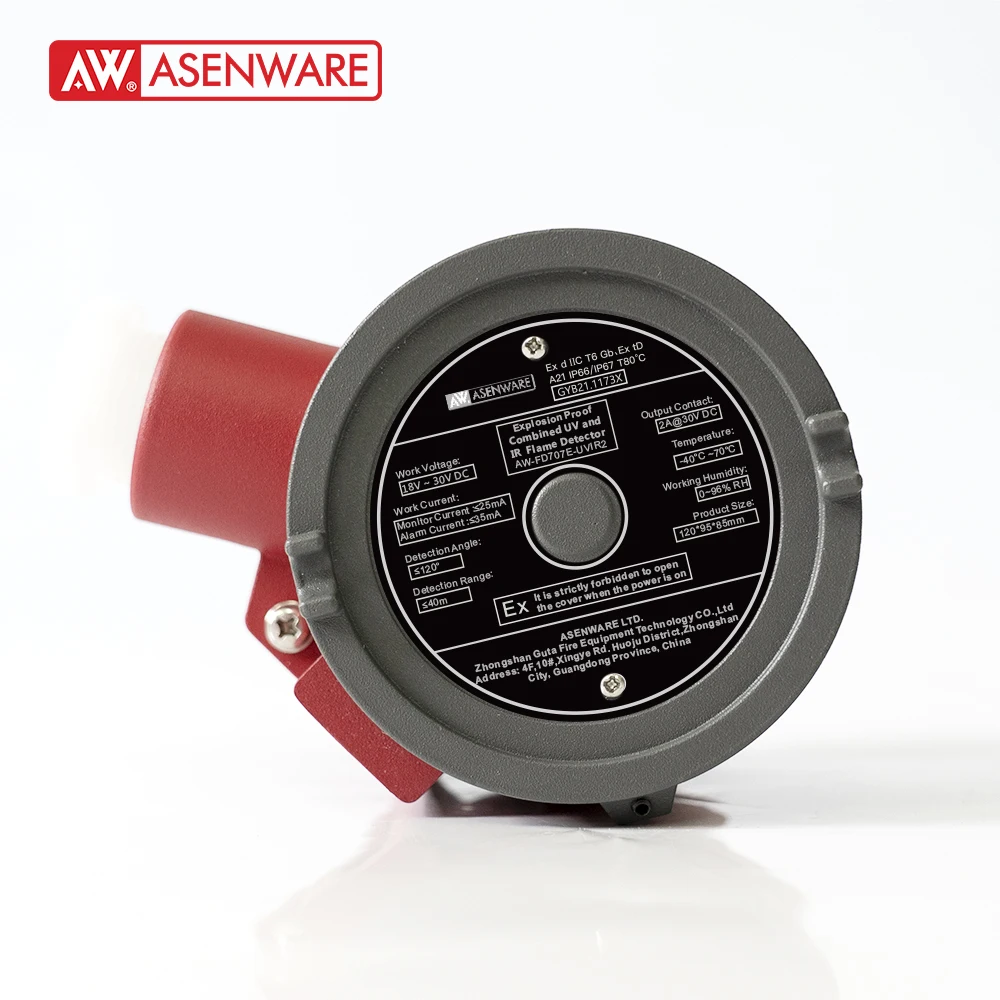

Model | AW-FD707EX |
Brand Name | Asenware |
Main Voltage | 24VDC(18~30VDC) |
Operating current | Monitor: 25mA Alarm: 35mA |
Warranty | 1 year |
Maximum Detection Angle and Range | 120°40m |
Relay Out | Fault, Fire Alarm |
Spectrum Range | UV 185-260nm IR 4.3-5.0μm |
Ex-Atex Protection Level | Exd II C T6 Gb/tD A21 IP66 T80°C |
Protection class | IP66 IP67 |
Environmental | Temperature range: -40 to 70°C (-40~158°F) Humidity: 0 to 96% RH, non-condensing |
Materials and colors | Cast Aluminum, The coating is an insulating layer, corrosion-resistant, Red |
Size | 120mm* 95mm* 85mm |
Weight | about 0.7kg |

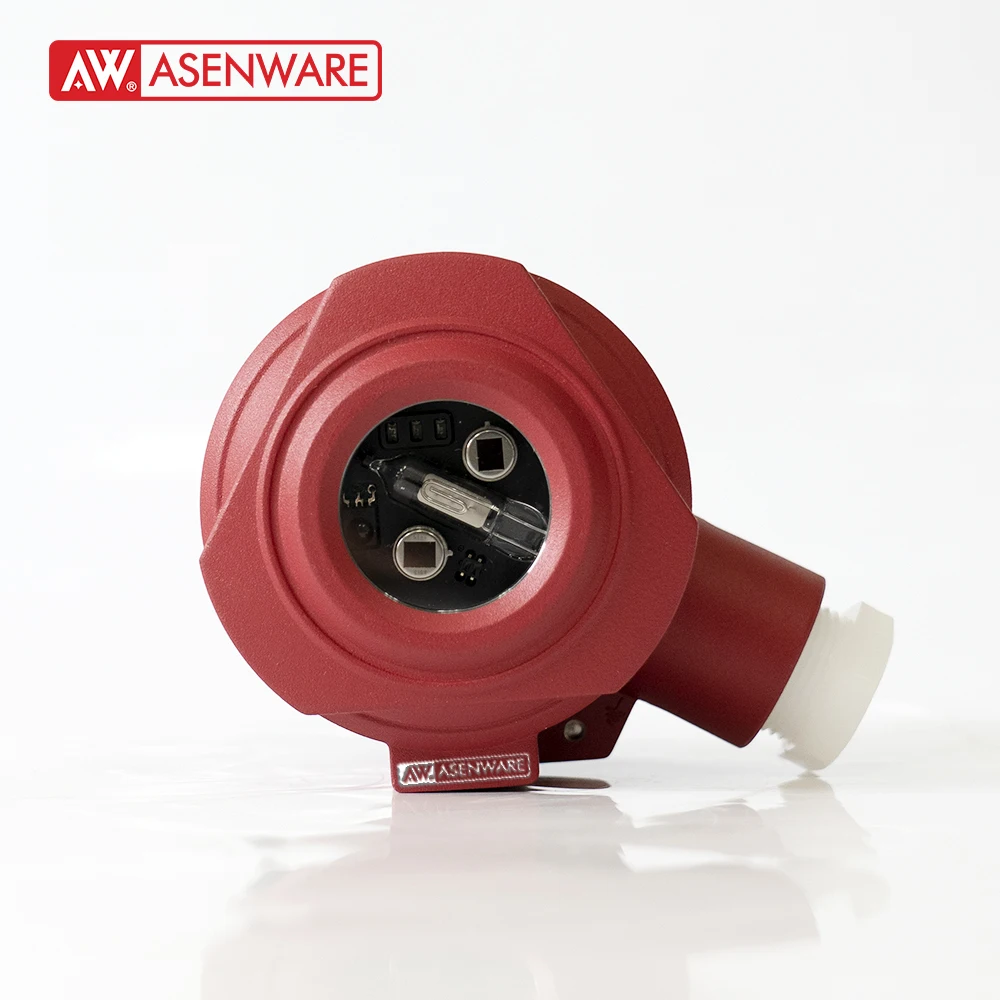

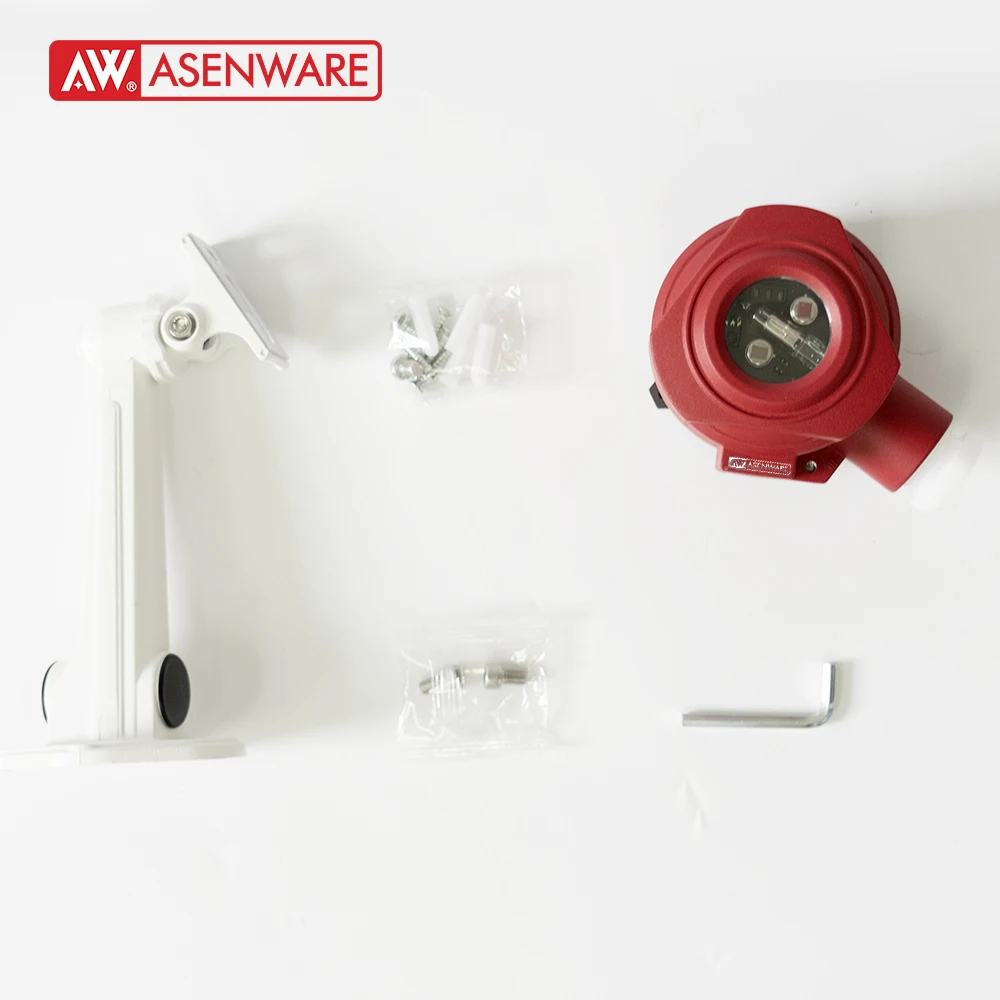

The detector AW-FD707EX combines the latest ultraviolet and dual infrared detection technologies to provide fast, accurate and reliable fire detection, and the patented signal processing algorithm can eliminate false alarm to against wrong light sources, which means it applies to most environment places (Refinery, Loading Rack and Aerosol Fill etc). The UVIR2 flame detector uses a new narrow-band current infrared pyroelectric sensor and the R2868 "sunlight blind" ultraviolet photoelectric sensor from Hamamatsu Photonics Co., Ltd., with a built-in 32-bit microprocessor and patented composite signal processing algorithm.
KF715/UVIR2 flame detectors are smaller in size, lighter in weight, and easier to install.
KF715/UVIR2 flame detectors are smaller in size, lighter in weight, and easier to install.
✲Certifications

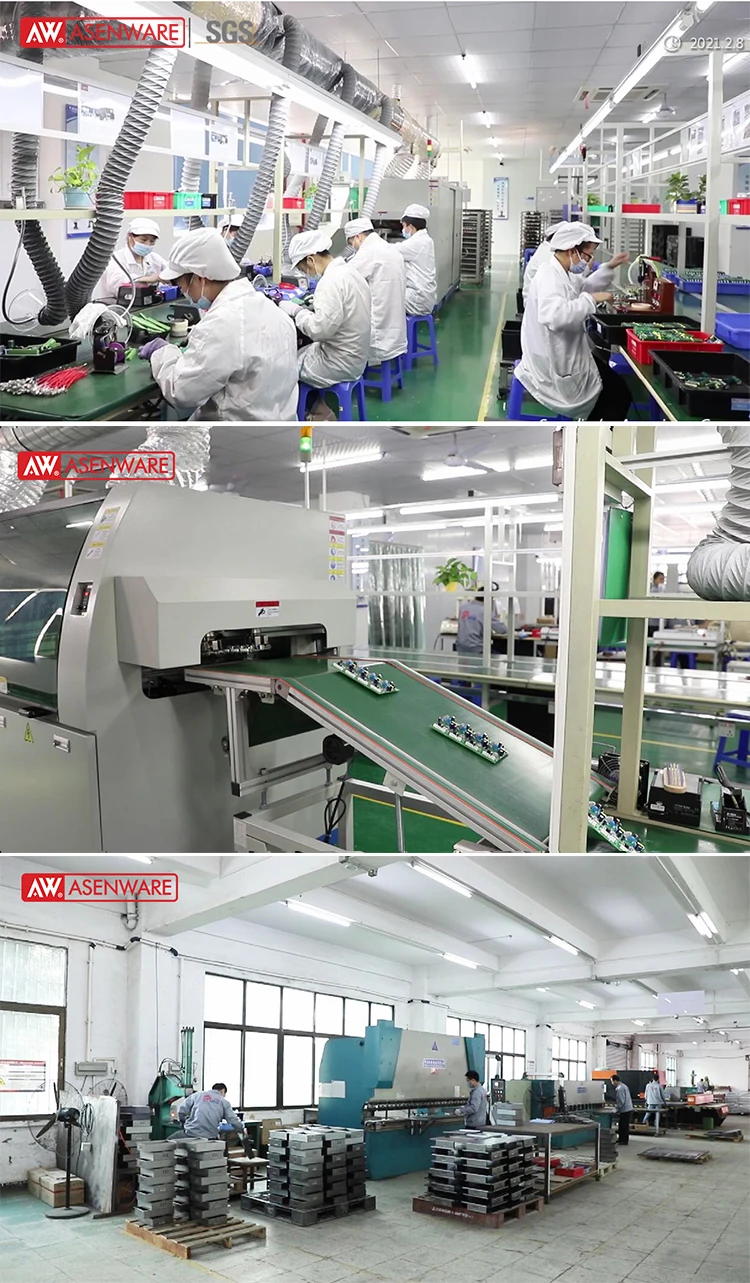

♜ Company Information
*Asenware(guta fire) was found since 2005 .Now we have 16-year history and reputation.
*From 1 desk 1 man to 6000 m’ factory and over 200 employees. We are developing very fast
.*Have a full R&D team as a reliable backing. We never stop upgrading and creating new products.
*Free after-sale and provide technical support until your problems are solved.
*All products can be customized/OEM.
*lnternational certificates including LPCB, TUV and CE.
*Exported to over 100 countries and finished more than 3500 projects.
*From 1 desk 1 man to 6000 m’ factory and over 200 employees. We are developing very fast
.*Have a full R&D team as a reliable backing. We never stop upgrading and creating new products.
*Free after-sale and provide technical support until your problems are solved.
*All products can be customized/OEM.
*lnternational certificates including LPCB, TUV and CE.
*Exported to over 100 countries and finished more than 3500 projects.

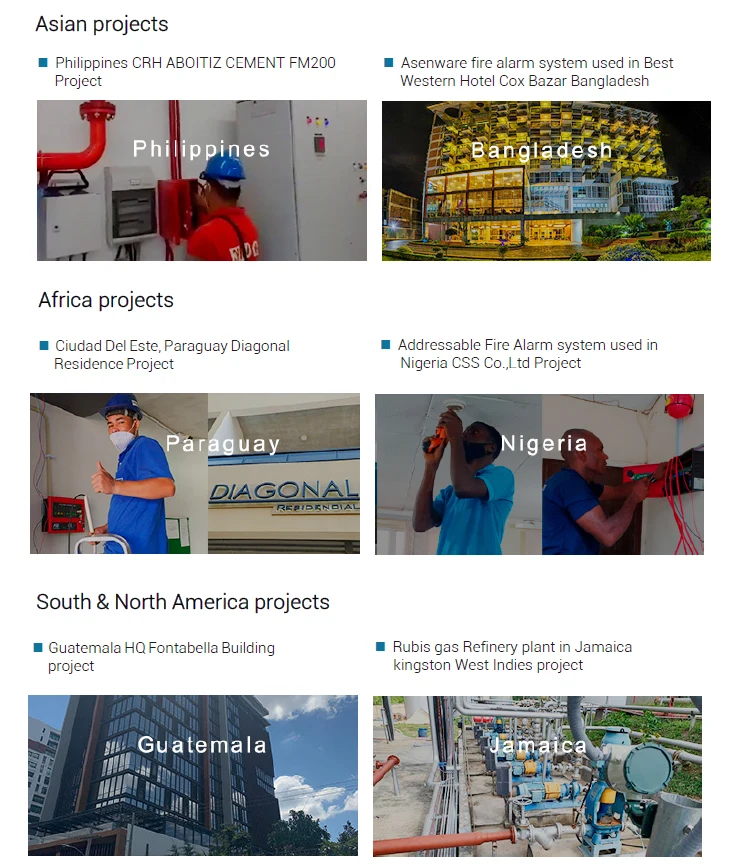

✈ Projetct
✪ Exhibition
ிFAQ
1.What’s the payment term?
We support:
USD: TT、LC、Alibaba Trade Assurance by visa,master card.
RMB: Bank/Alipay/Wechat pay
USD: TT、LC、Alibaba Trade Assurance by visa,master card.
RMB: Bank/Alipay/Wechat pay
2. Do you accept sample order?
Yes, we welcome sample order for testing. Pls fell free to contact us no matter how many products you want.
3.Can I add my logo on the products?
Yes, OEM and ODM service approved.
4.What’s your warranty?
2 years for fire alarm and suppression system
1 year for fighting systems like fire pump, fire valve, and fire hose and cabinet. Last year, we visited our Philippines customer and their project already installed 5 years but still working well
6.Can I have a visit to your factory before the order?
Sure, welcome to our factory. Please just contact us when you come.
7. What delivery ways we can use?
Carton box-fire alarm product
Wooden box-fire fighting product
Customized packing
Wooden box-fire fighting product
Customized packing
8.What is the trade term?
Our trade terms are avaible for EXW, FOB, CIF, CNF, DDP.
10.How do you support me if I meet problems with your products?
We provide free technical support by online chat, video call and engineer meeting for our clients until your problems are solved. By the way all our sales are trained well before working so you can try to ask them first.
