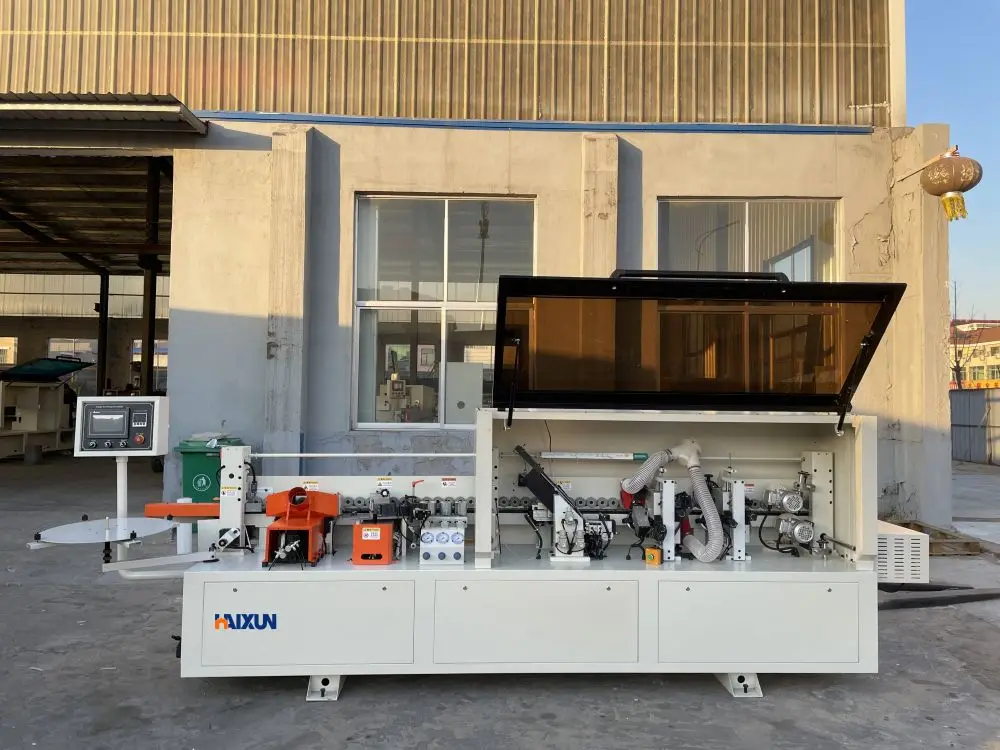

Cabinet door melamine laser mdf pre milling curve pvc board wood pur auto automatic edgebander edge banding machine with trimmer
- Category: >>>
- Supplier: Qingdao Haixun Intelligent Equipment Co. Ltd.
Share on (1600436597385):
Product Overview
Description
Products Description
Product Parameter
Type | Edge banding machine |
Model | HX-505J-s |
Guarantee | Mechanical warranty 1 year |
Brand | Hai Xun |
Voltage | 380V/220/ support customization |
Dimensions (length * width * height) | 4200*850*1650mm |
Feeding speed | 20m / min |
Edge thickness | 0.4-3mm |
Panel thickness | 10-60 mm |
Panel length | ≥120mm |
Panel width | ≥80mm |
Work pressure | 0.6Mps |
Minimum panel size | 300 (length) x60 (width) mm 150 (length) x150 (width) mm |
Power | 9kw |
Weight | 1000kg |
Detailed Images

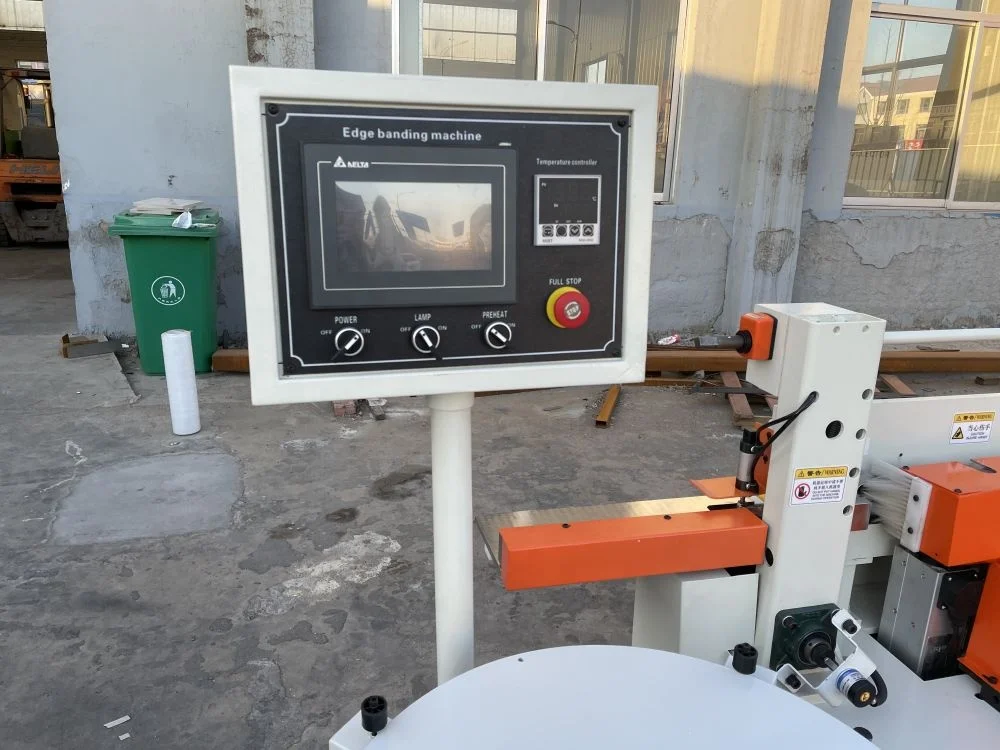

PLC Screen
High quality touch screen with long lift spam. Visible operating screen, easy for operating.

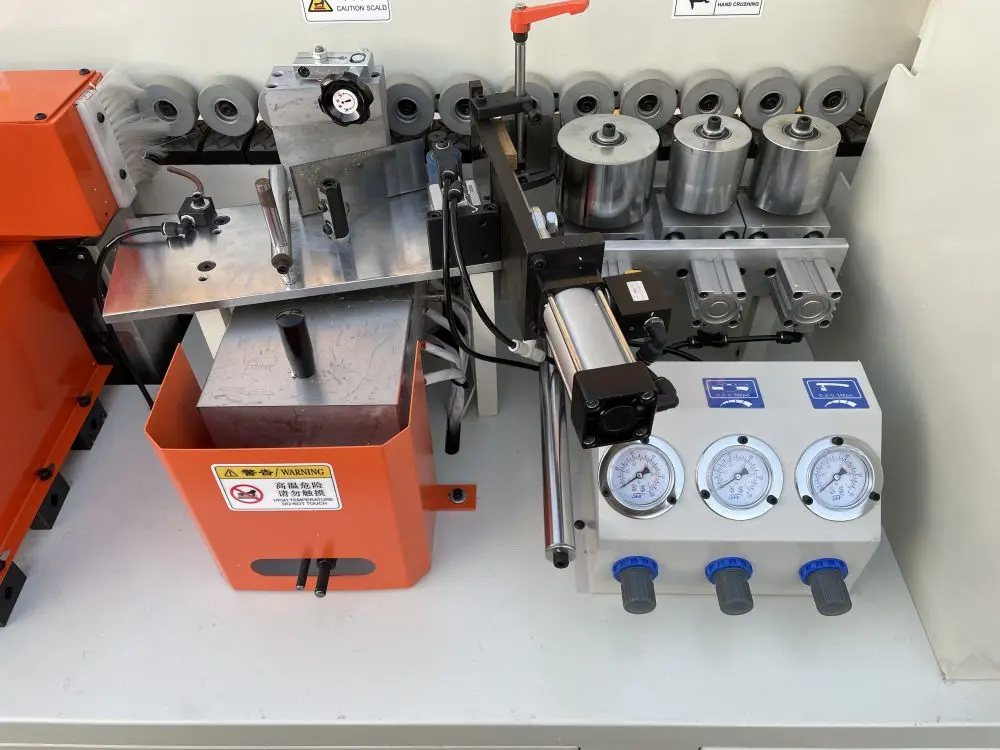

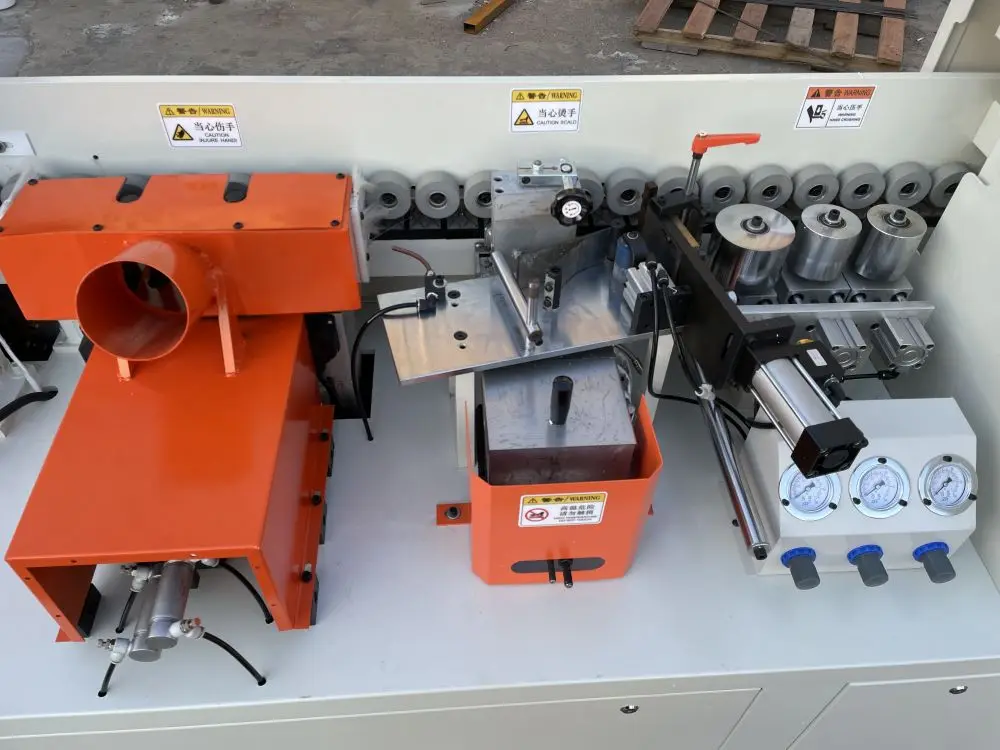

Gluing
Hot melt adhesive is added through the glue pot, and the spiral structure is adopted to feed the adhesive, so that the sheet material and the sealing material can be coated evenly.

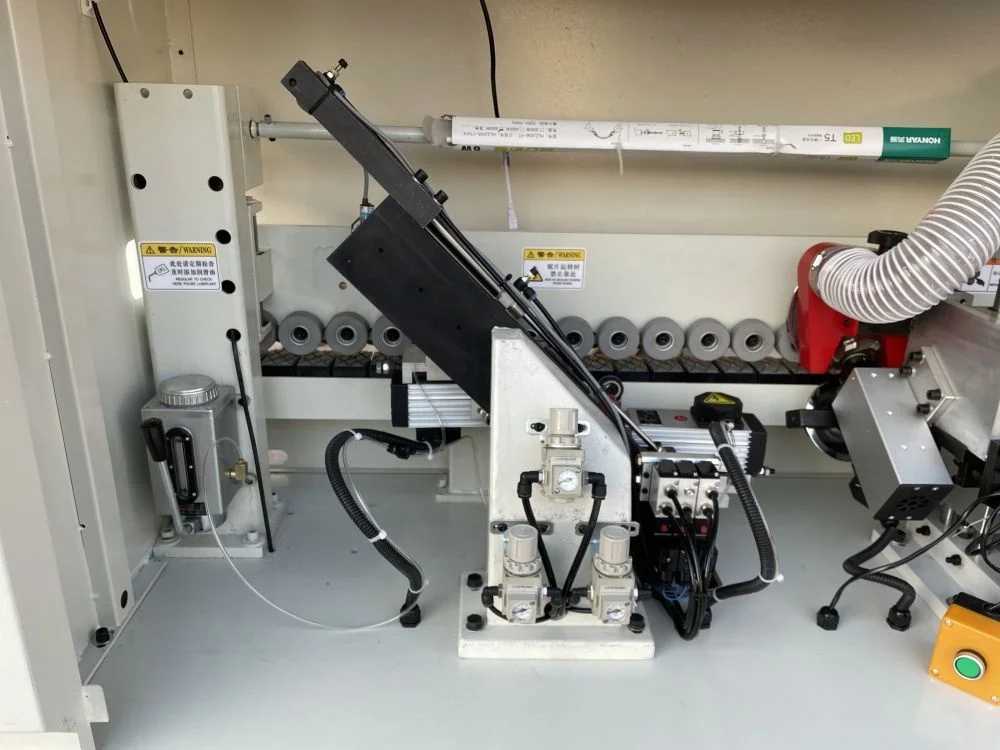

End Cutting
End trimming mechanism through a precise guide track movement, adopt automatic tracking and high frequency motor fast cutting structure to ensure the cutting surface smoothly

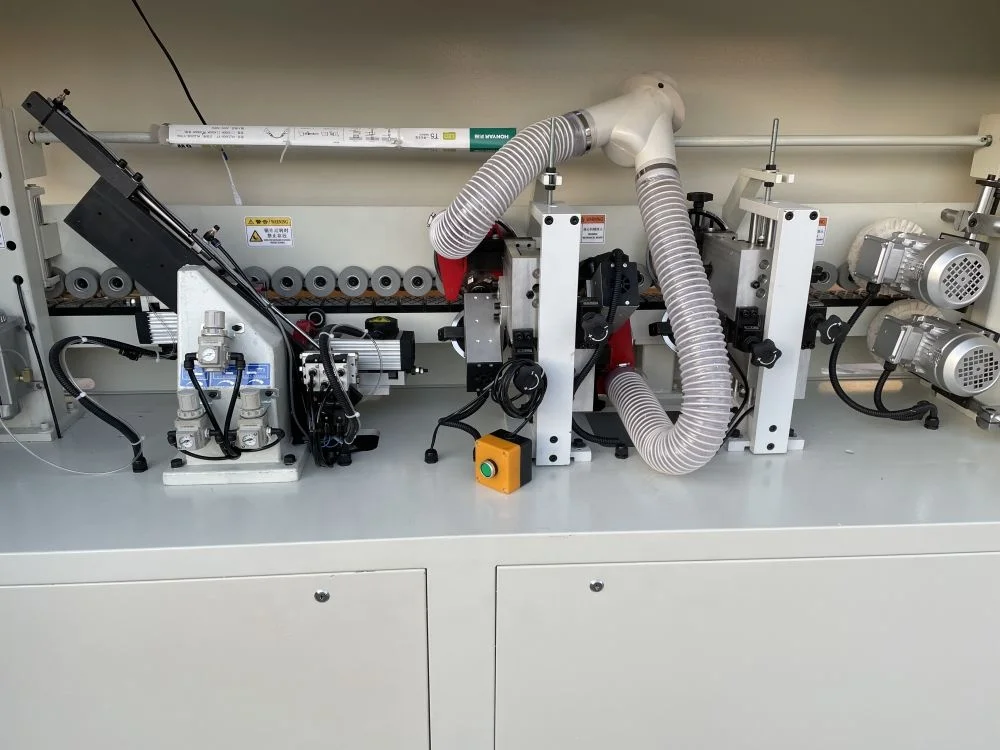

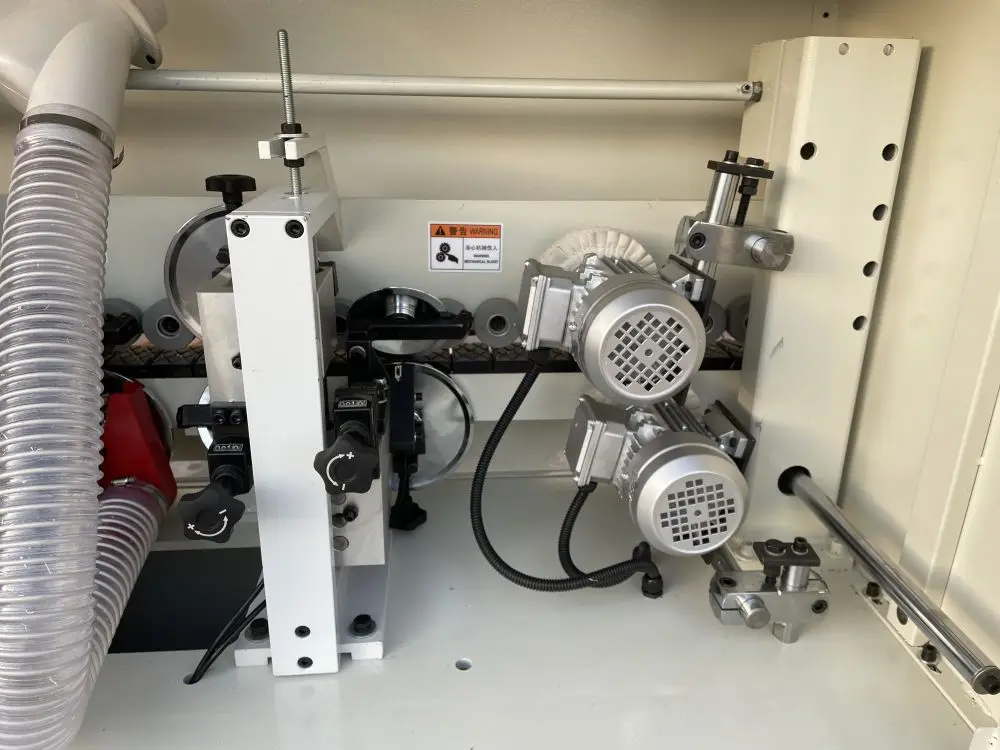

Rough & Fine Trimming
Fine trimming mechanism used for repairing the excess edge materials, adopt automatic tracking and high frequency motor fast cutting structure to ensure the trimming plates soothly

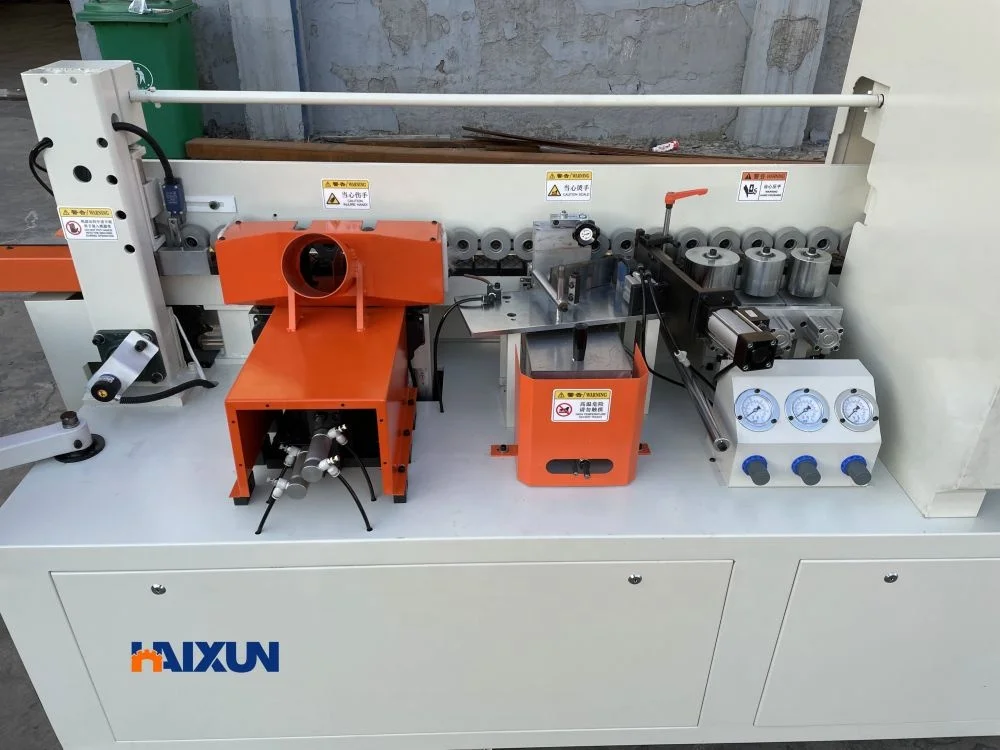

Pre-milling
It is composed of two milling tools, which are mainly used to mill the plate with irregular edge.
Scraping and Buffing
Cut off the rotary wave knife marks left on the edge banding belt trimmed on both sides of the plate.
Product Applications
Full-Auto Edge Banding Machine is mainly used for straight edge banding of solid wood, chipboard, laminated wood board, medium density fiberboard, etc. It can make the side of the workplace more smooth, durable and beautiful.
Company Profile
1.QINGDAO HAIXUN have been committed to the research and manufacture of edge banding machines. A technology-knowledge-intensive enterprise specializing in the manufacture of woodworking machinery and equipment integrating development, manufacturing, sales and service.
2.The main products include: semi-automatic edge banding machines, automatic edge banding machines, manual edge banding machines, panel saws, CNC machining centers, woodworking drills, mechanical accessories, etc. Our products are widely used in custom furniture, solid wood furniture, solid wood carving, etc. We can provide you with high-quality products at competitive prices.
3.Our products have obtained CE certificates. Our main products are as follows: semi-automatic edge banding machine, automatic edge banding machine, manual edge banding machine, panel saw, CNC machining center, woodworking drill row, mechanical accessories, etc.

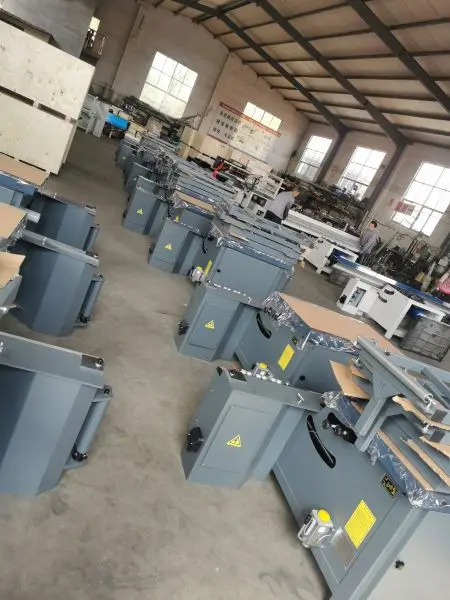

Factory show & Customer photos

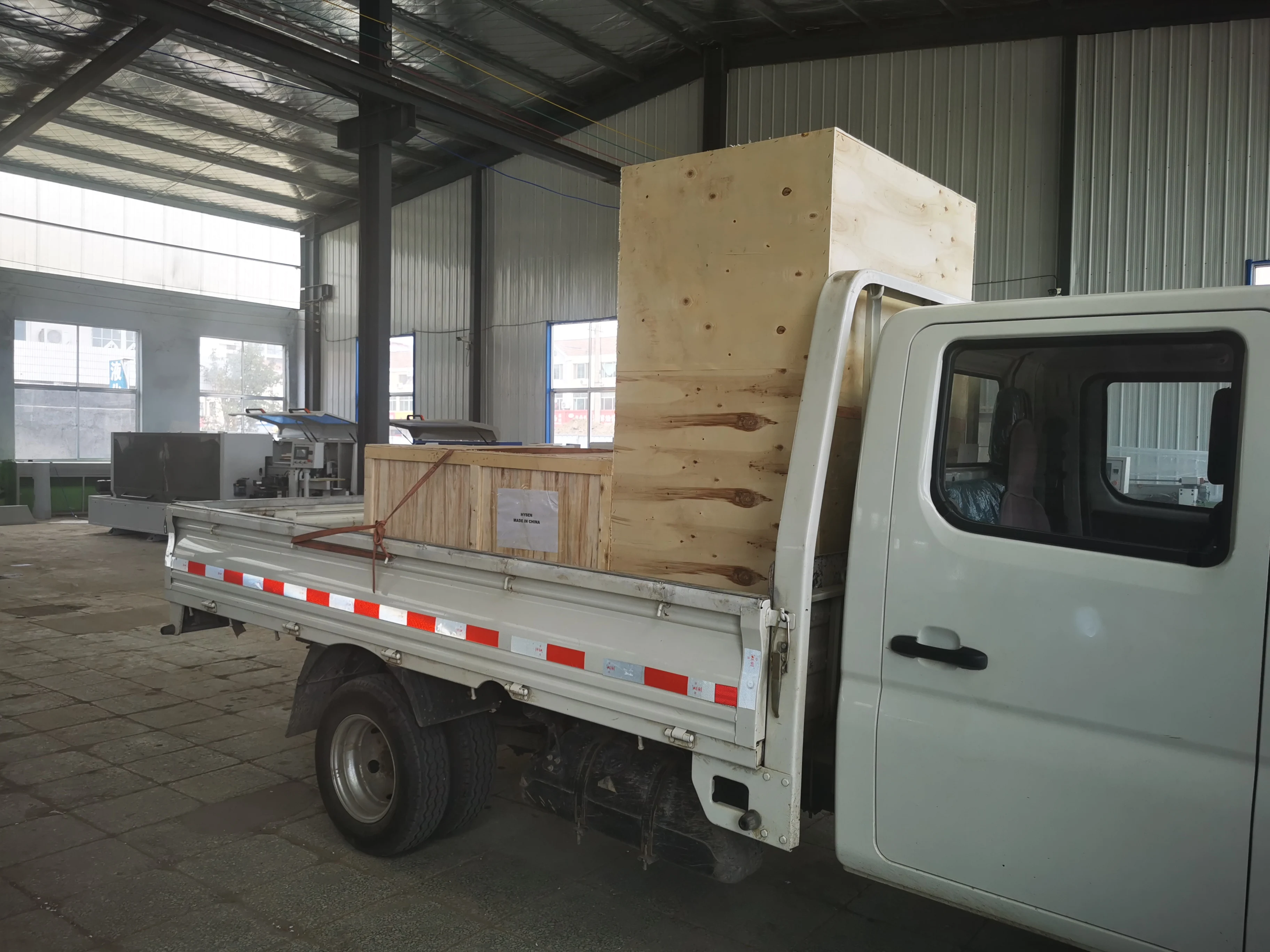

Packing & Delivery
