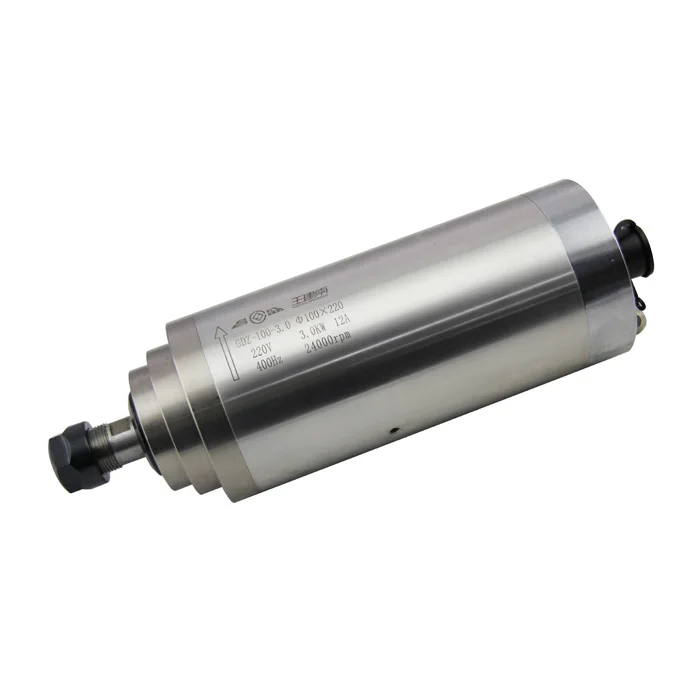

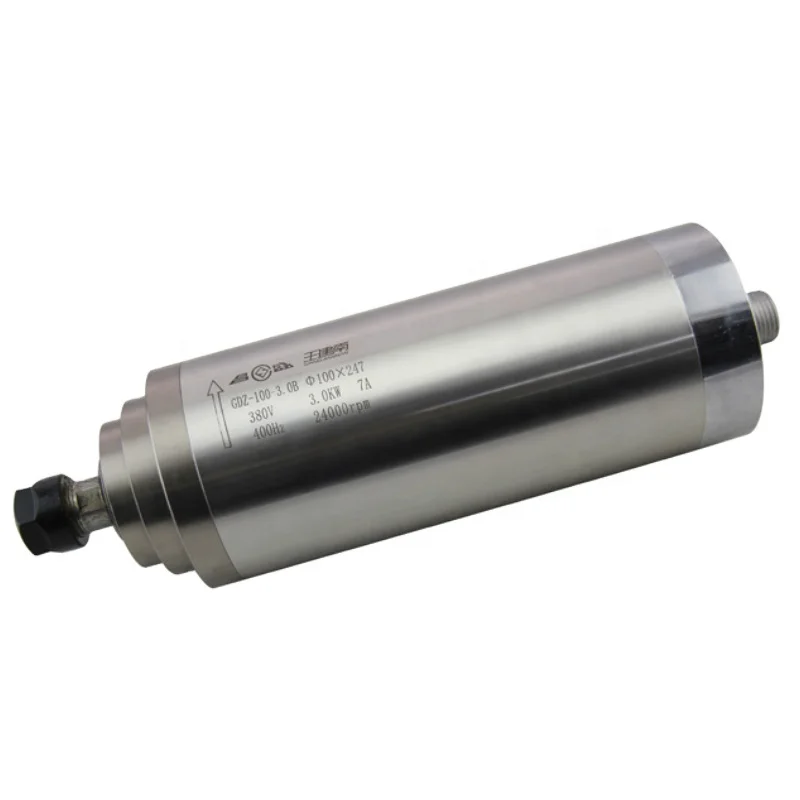

3kw Water Cooled Electric Spindle 24000rpm 3 bearing Er20 100mm Diameter
- Category: >>>
- Supplier: Foshan Hongli Weiye Electromechanical Hardware Co. Ltd.
Share on (1600436634141):
Product Overview
Description
Product Overview
Model No：GDZ100-3 (3 bearing)
Spindle size：100*220mm
Voltage：220V/380V
Current：12A/7A
Frequency：400HZ
Speed：24000rpm/min

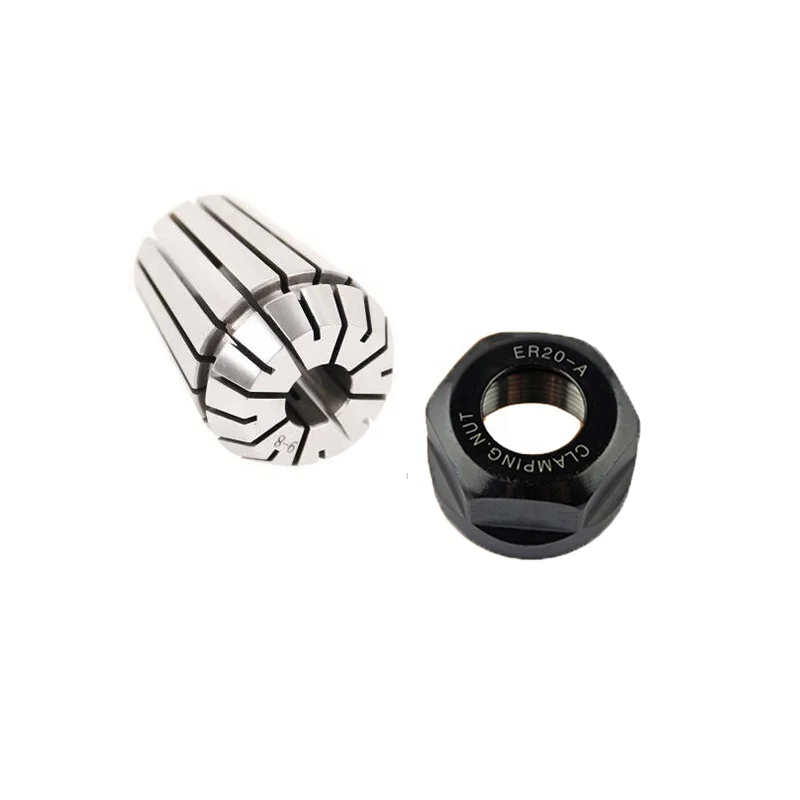

Collect ut：ER20 - Φ1-13mm
Voltage：220V/380V
Current：12A/7A
Frequency：400HZ
Speed：24000rpm/min
Collect ut：ER20 - Φ1-13mm
Bearing quantity : 3
We have another type with 4 bearing welcome to contact
PRODUCT SPECIFICATIONS
Model Number | GDZ100-3 | Power | 2.2kw | ||||||
Operating Speed | 24000rpm/min | Cooling | Water cooled | ||||||
Collet nut | ER20(1-13mm） | Voltage | 220V/380V | ||||||
Frequency | 400HZ | Current | 12A/7A | ||||||
Lub | Grease | Bearing | 7005CP4*2 7003CP4*1 | ||||||
Packaging & Shipping
FAQ
Q1：Could you accept OEM and customize?
A1：YES,we can customize for you according to sample or drawing.
Q2：Dose your factory have any certificate?
A2：yes.we have ISO 9001:2008,SGS and CE. If you want other,we can do for you.
Q3：Is you company factory or Trade Company?
A3：We have our own factory ;our type is factory + trade.
Q4：What's the delivery time?
A4：It usually takes about 3 working days,but the exact delivery time might be different for different order or at different time.
Q5：How does your factory do regarding quality control?
A5：Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
Q6：What's your warranty terms?
A6：We offer different warranty terms for different products. Please contact with us for details.
Q4：What's the delivery time?
A4：It usually takes about 3 working days,but the exact delivery time might be different for different order or at different time.
Q5：How does your factory do regarding quality control?
A5：Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
Q6：What's your warranty terms?
A6：We offer different warranty terms for different products. Please contact with us for details.
