Dry Suction Type Manual Sand Blasting Machine Cabinet With Turntable Cart optional

Product Overview

Description

Dry Suction Type Manual Sand Blasting Machine Cabinet With Turntable Cart optional

Product Features:
1, sandblasting efficiency, impact strength, impact point deep.
2, air source stability, reduce the consumption of compressed air.
3, the pressure tank part of the new development of the exhaust valve device, eliminating the current domestic general press easily out of the fault, in particular, to reduce the exhaust valve damage.

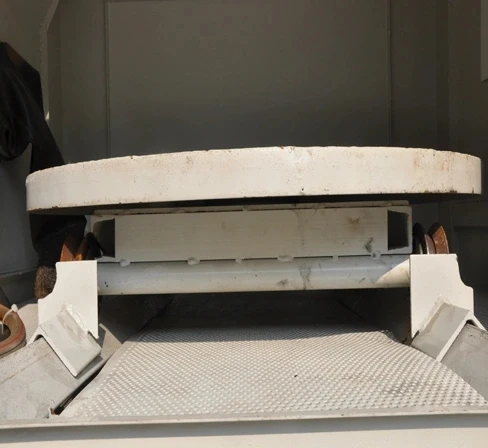

4, Turntable can be designed according to customer request
5, sand blasting pressure regulator can be adjusted according to the requirements of sand blasting pressure
6, the machine configuration dust removal system, the process of sandblasting dust generated by the centralized processing

Scope of application:
Applicable to a large number of small and medium sandblasting processing and high hardness of the workpiece blasting processing;
Such as: degreasing casting parts, heat treatment parts, engine parts, golf Head, valves, stone lettering drilling and wood furniture deep wood processing.

Dust removal method: an independent dust box, swing bag dust



Suction Type Sand Blasting Machine

specifications

Model	Working Cahmber Size (L"W"H)	Turntable Diameter	Loading Weight	Door Size (W*H)	Outside Machine Size
FYJX-9080	900*800*800mm	600mm	100kgs	500*560mm	1250*950*1580mm
FYJX -1010	1000*1000*800mm	700mm	150kgs	650*780mm	1420*1050*1900mm
FYJX -1212	1200*1200*800mm	800mm	200kgs	750*780mm	1620*1250*2000mm
