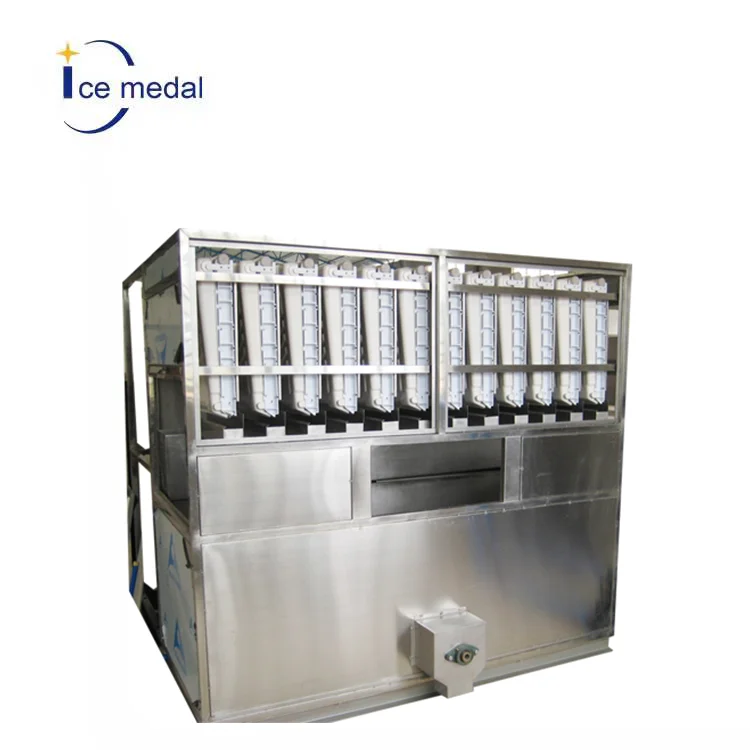

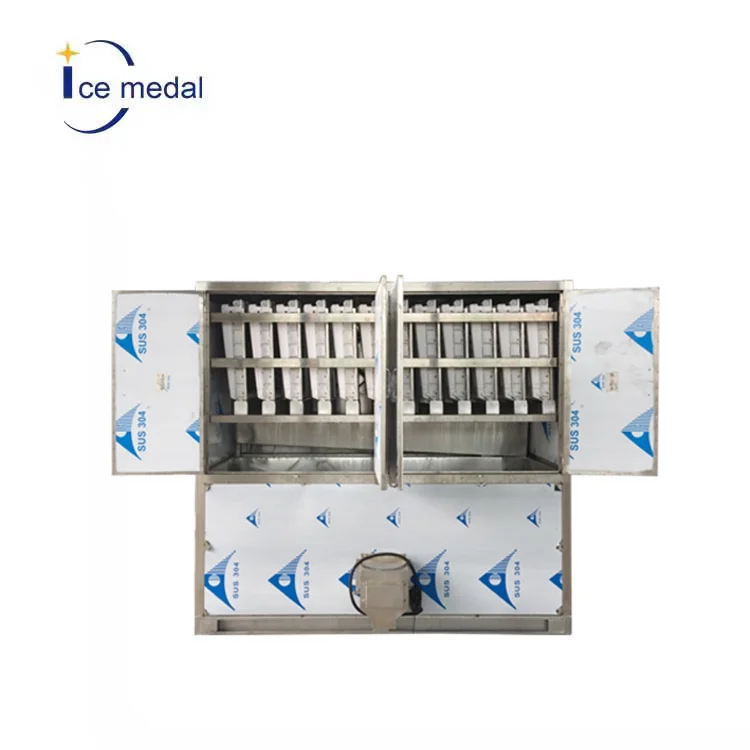

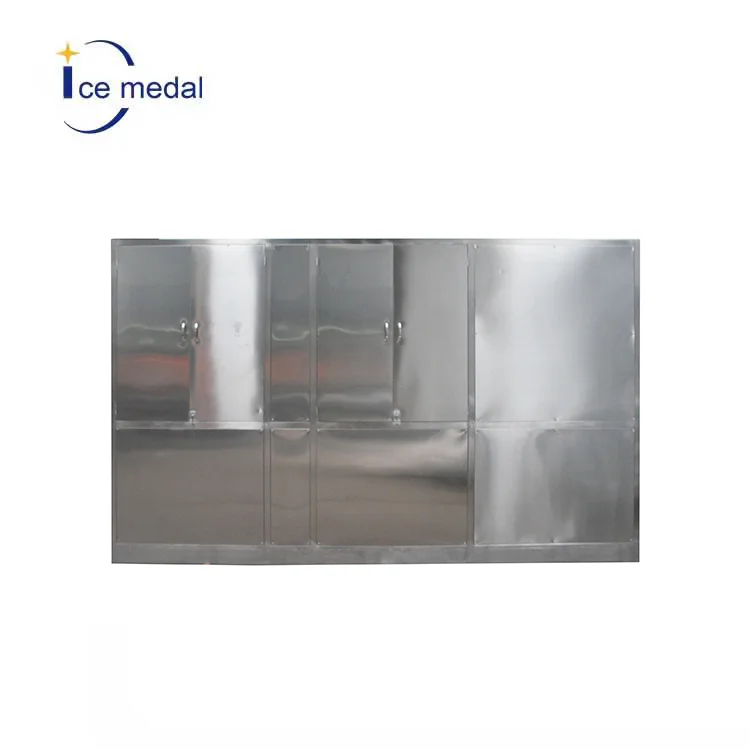

Automatic 1 tons edible cube ice machine for ice maker
- Category: >>>
- Supplier: Hunan Icemedal Refrigeration Equipment Co. Ltd.
Share on (1600436637711):
Product Overview
Description
Product Description
Specification
3 tons per day large capacity cube ice machine for hotels & restaurants paremeters | ||||||||||||||
Model Parameters | CV 1000 | CV 2000 | CV 3000 | CV 5000 | CV 10000 | CV 20000 | ||||||||
Daily output (T/24 h) | 1 | 2 | 3 | 5 | 10 | 20 | ||||||||
Compressor Power | 4.34 kw | 7.88 kw | 10.58 kw | 21 kw | 42 kw | 73.5 kw | ||||||||
Fan Power of Cooling Tower | 0.18 kw | 0.37 kw | 0.56 kw | 0.75 kw | 1.5 kw | 2.2 kw | ||||||||
Cooling Pump Power | 1.1 kw | 1.5 kw | 1.5 kw | 2.2 kw | 4 kw | 5.5 kw | ||||||||
Unit Size | L (mm) | 1800 | 1630 | 1980 | 2890 | 5730 | 7100 | |||||||
W (mm) | 1000 | 1600 | 1630 | 1780 | 1780 | 2250 | ||||||||
H (mm) | 1700 | 1706 | 1860 | 1860 | 2130 | 2300 | ||||||||
Unit N.W. (kg) | 800 | 1000 | 1200 | 1600 | 3000 | 5000 | ||||||||

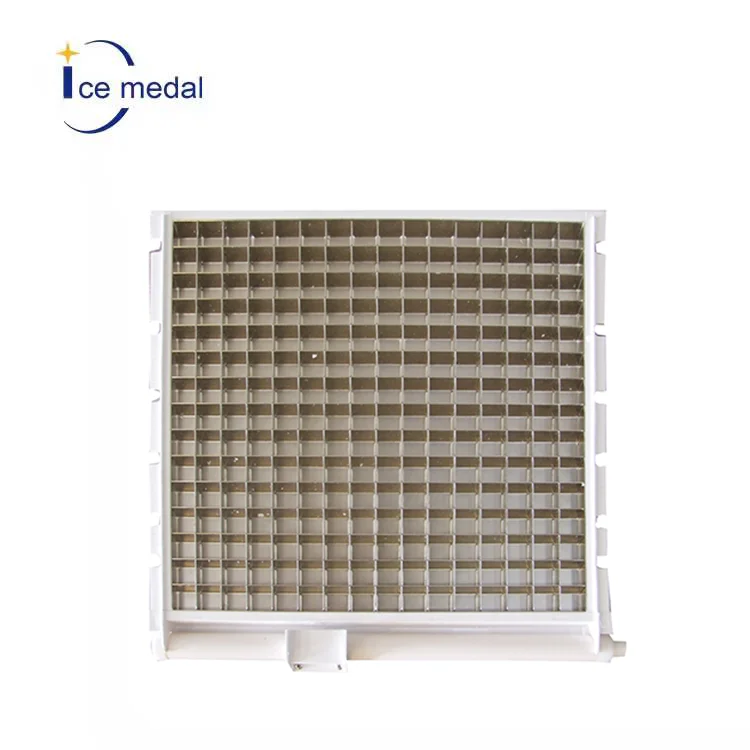

1. Size of cube ice: 22*22*22 mm ; 29*29*22 mm ; 38*38*22 mm.
2. Compressor brand: Bizter / Frascold; refrigerant: R22/ R404A; Cooling Method: Water Cooling / Air Cooling.
3. Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately).
4. Operating Conditions: T(water supply):20 ℃, T(ambient):32 ℃, T(condensing): 40 ℃, T(evaporating):-10 ℃.
5. Note: The actual ice production varies due to the influence of the water supply temperature and ambient temperature.
6. The final interpretation of the above mentioned parameter is in Icemedal, there will be further notice, if there any technical change.
2. Compressor brand: Bizter / Frascold; refrigerant: R22/ R404A; Cooling Method: Water Cooling / Air Cooling.
3. Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately).
4. Operating Conditions: T(water supply):20 ℃, T(ambient):32 ℃, T(condensing): 40 ℃, T(evaporating):-10 ℃.
5. Note: The actual ice production varies due to the influence of the water supply temperature and ambient temperature.
6. The final interpretation of the above mentioned parameter is in Icemedal, there will be further notice, if there any technical change.
