Product Overview
Description
Product Description

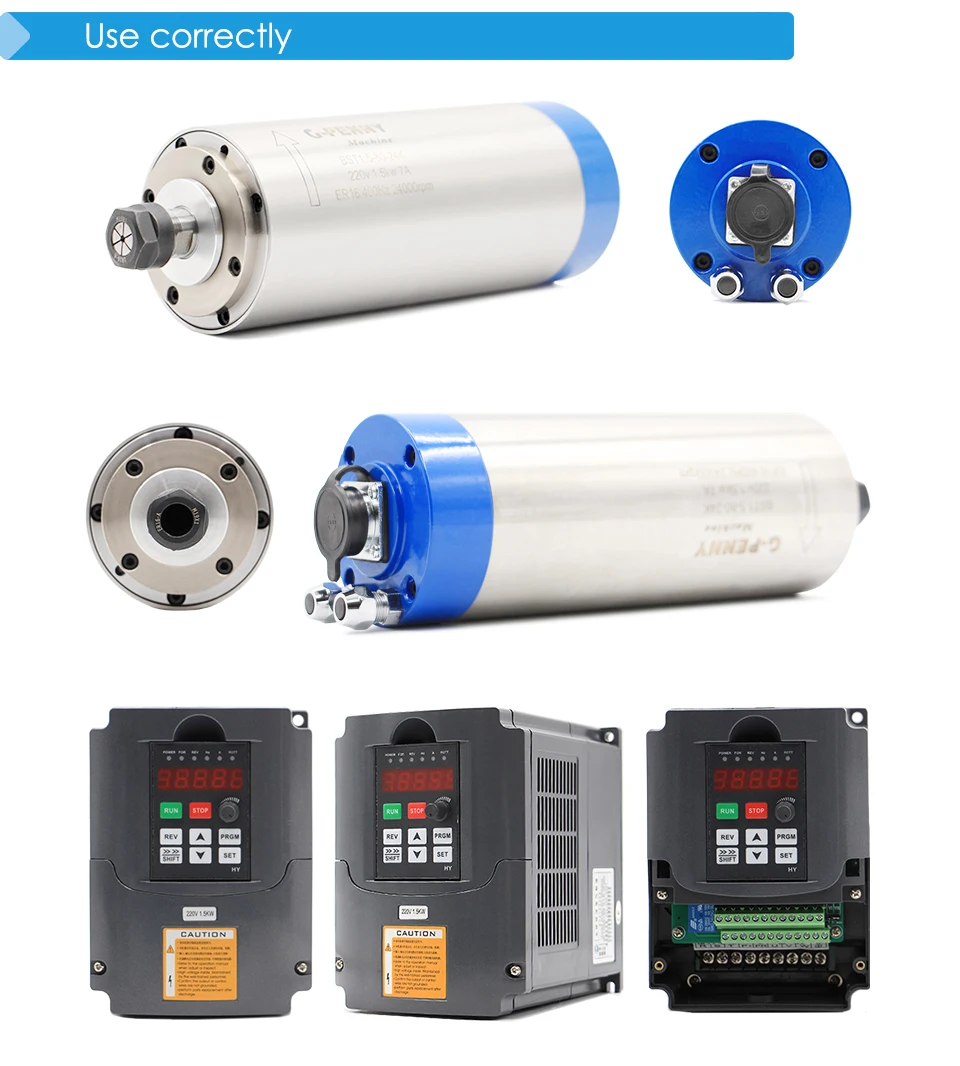

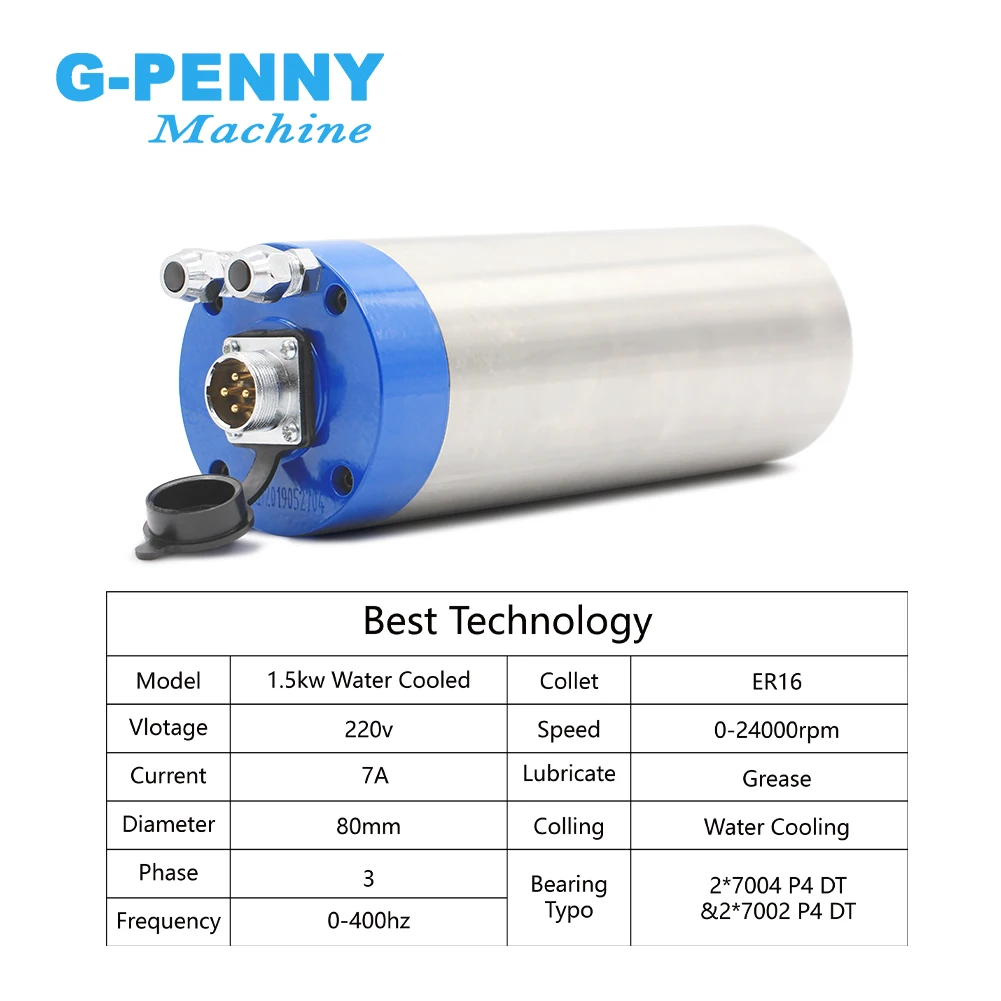

1 pcs & 1.5kw ER16 water cooled spindle 4 bearings 80x220mm
1 pcs & 1.5kw inverter/VFD
1 pcs & 1.5kw inverter/VFD

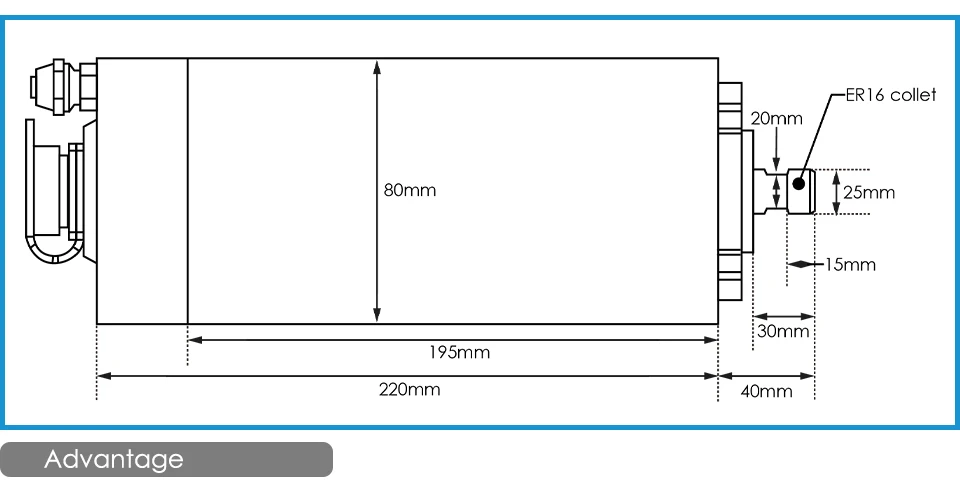

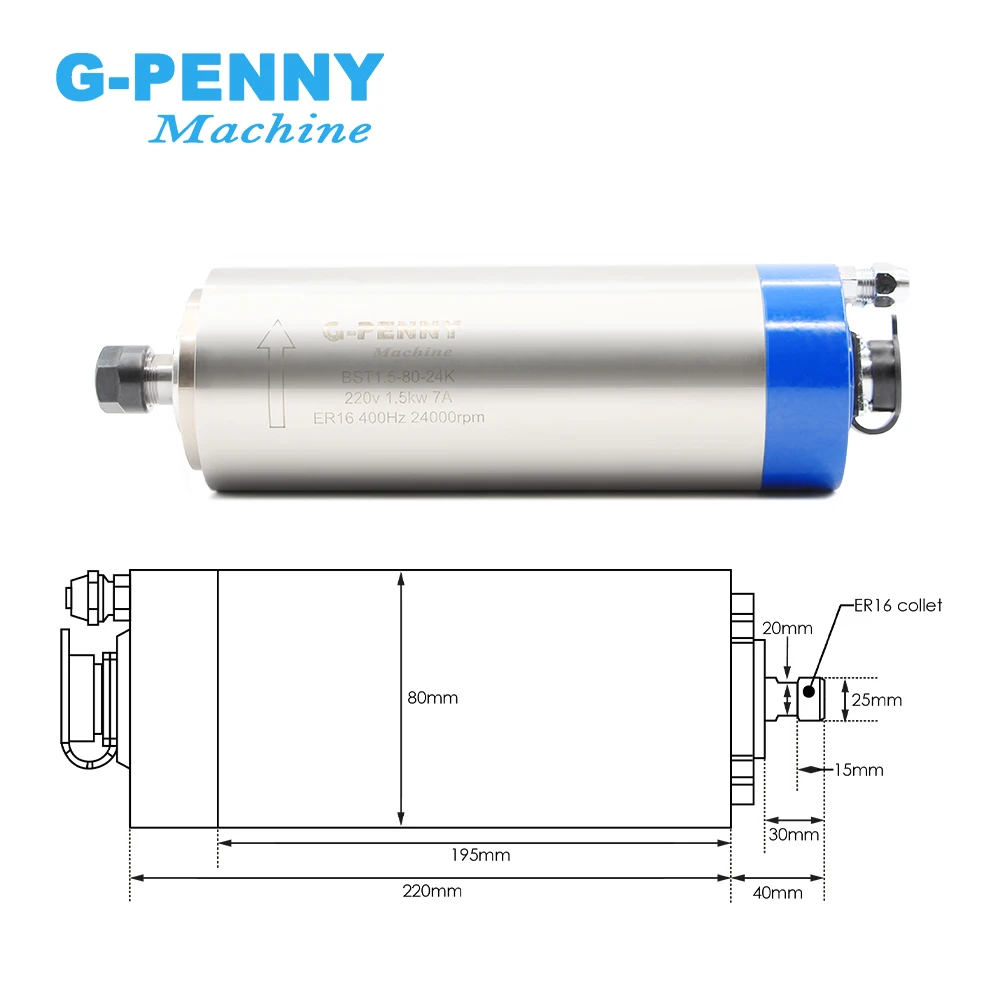

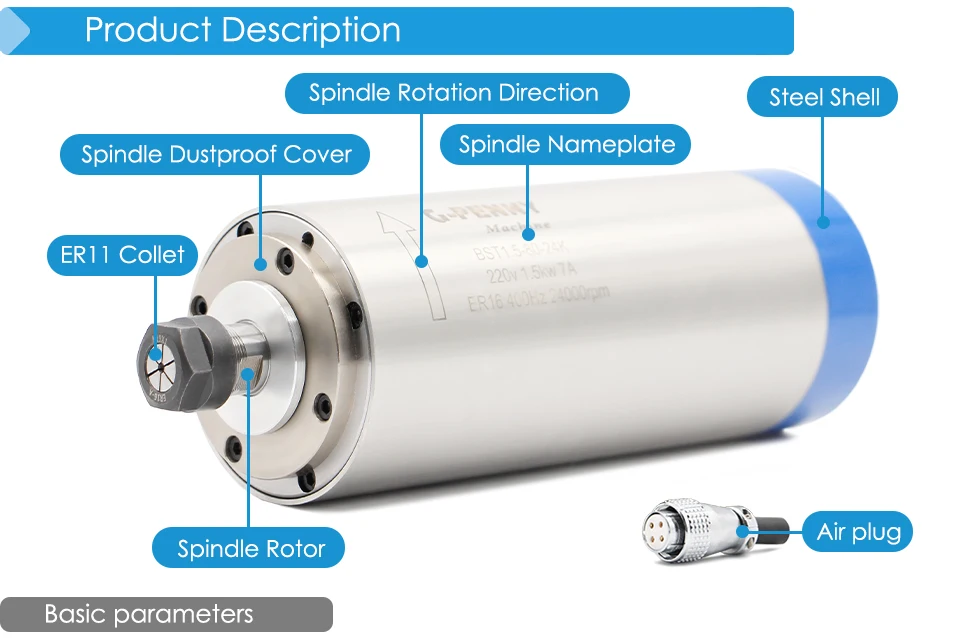

* Size: 80x220mm (Middle body diameter:80mm;Length:220mm)
* Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
* Cooling: Water cooling

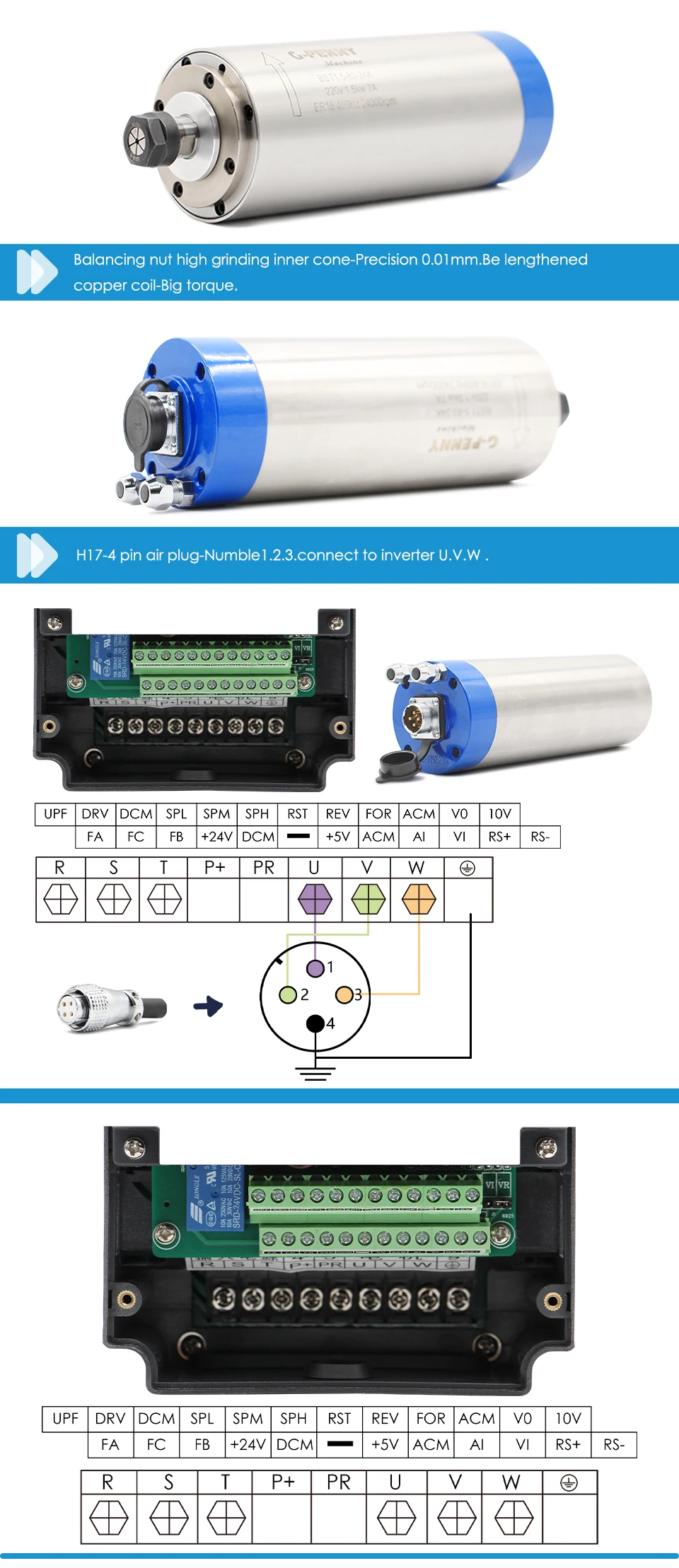

* Power Interface: Optional H20-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected
to inverter (U, V, W), 4 connected inverter ground. (Pay attention! our spindle "4" connecting to GND,promised personal
safety!!)
* Power: 1.5kw (1HP=725w)
* Voltage: 220vAC (If you need 110v/380v spindle ,please leave message to us,thank you)
* Current: 7A
* Frequency: 0-400Hz
* Speed: 0-24000rpm
* Runout Off: 0.01mm
* Diameter(mm): 80mm
* Bearing Type: 2×7004C P4 DT &2×7002C P4 DT
* 4pcs fully sealed angular contact bearings
* Collet: ER16
* Clip Knifediameter: 1mm,2mm,3mm,3.175mm,4mm,5mm,6mm,6.35mm,7mm,8mm,9mm,10mm.
* Water Cooling ER16 collet chunk
* Grease Lubrication
* Main Application: Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,duotone board(ABS)and etc nonmetal, also can engrave on gold, silver,copper, aluminium,Pb etc soft metal surface working.
* Speed Ways: Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
* Cooling: Water cooling
* Power Interface: Optional H20-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected
to inverter (U, V, W), 4 connected inverter ground. (Pay attention! our spindle "4" connecting to GND,promised personal
safety!!)
* Power: 1.5kw (1HP=725w)
* Voltage: 220vAC (If you need 110v/380v spindle ,please leave message to us,thank you)
* Current: 7A
* Frequency: 0-400Hz
* Speed: 0-24000rpm
* Runout Off: 0.01mm
* Diameter(mm): 80mm
* Bearing Type: 2×7004C P4 DT &2×7002C P4 DT
* 4pcs fully sealed angular contact bearings
* Collet: ER16
* Clip Knifediameter: 1mm,2mm,3mm,3.175mm,4mm,5mm,6mm,6.35mm,7mm,8mm,9mm,10mm.
* Water Cooling ER16 collet chunk
* Grease Lubrication
* Main Application: Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,duotone board(ABS)and etc nonmetal, also can engrave on gold, silver,copper, aluminium,Pb etc soft metal surface working.
(Please pay more attention, this is wood working spindle, only can used for wood working and aluminum working,please don't use it for steel. If you need steel working,please check the metal spindle,thank you!)
Size | Power | Voltage | Current | Frequency |
80*220mm | 1.5KW | 220V | 7A | 0-400Hz |
Speed | Bearing Type | Collet | Cooling Type | Lubrication |
0-24000rpm | 2×7004C P4 DT &2×7002C P4 DT | ER16 | Water cooled | Grease |

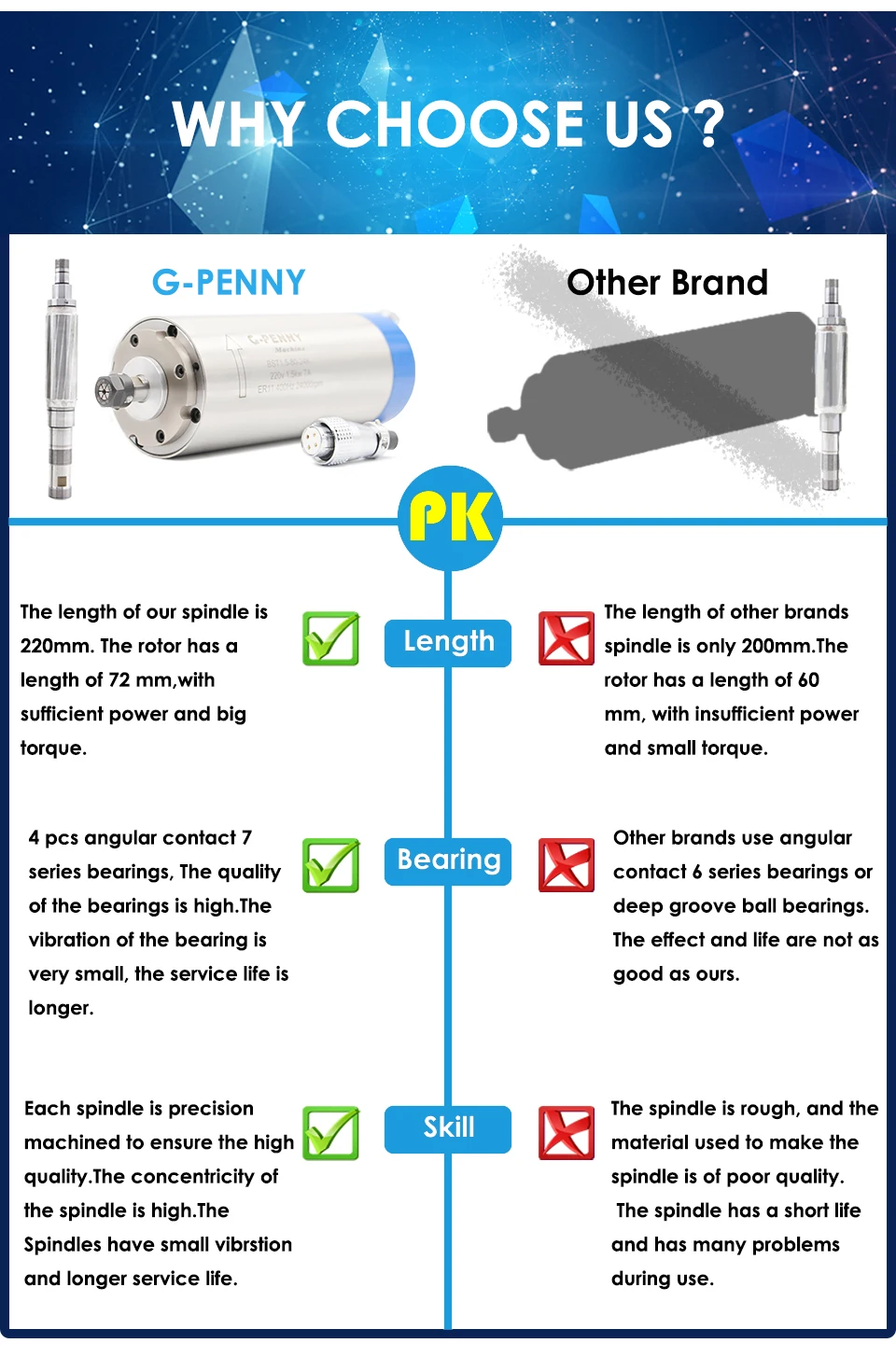

* P4 angular contact bearings ,2×7004C P4 DT & 2×7002C P4 DT,increase spindle life.
* Longer length make the torque bigger,more powerful.
* Carefull assembly make the spindle more precisional.
* Precision 0.01mm.Coaxial degree less than 0.0025mm
* Shipment within 4 days,promise the delivery time.
* We are the spindle manufacturer,we offer only best quality and best price to you.
* Longer length make the torque bigger,more powerful.
* Carefull assembly make the spindle more precisional.
* Precision 0.01mm.Coaxial degree less than 0.0025mm
* Shipment within 4 days,promise the delivery time.
* We are the spindle manufacturer,we offer only best quality and best price to you.

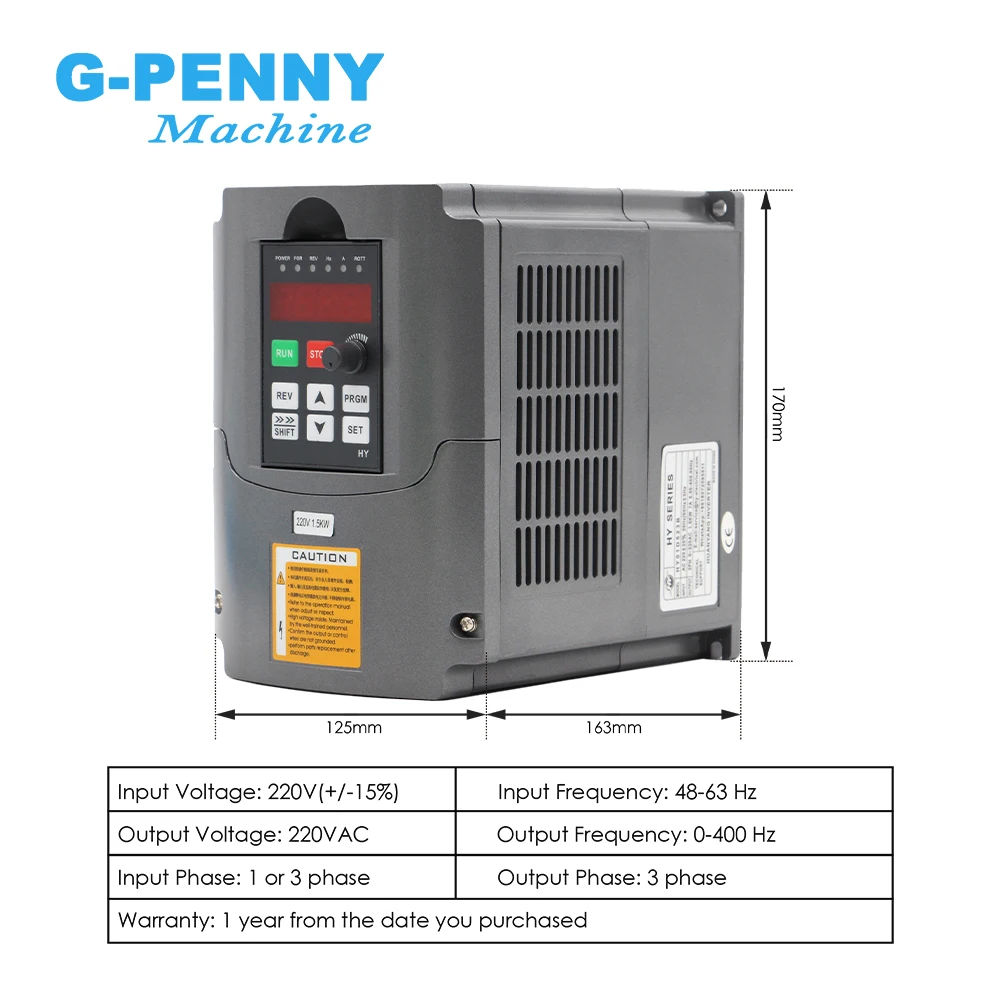

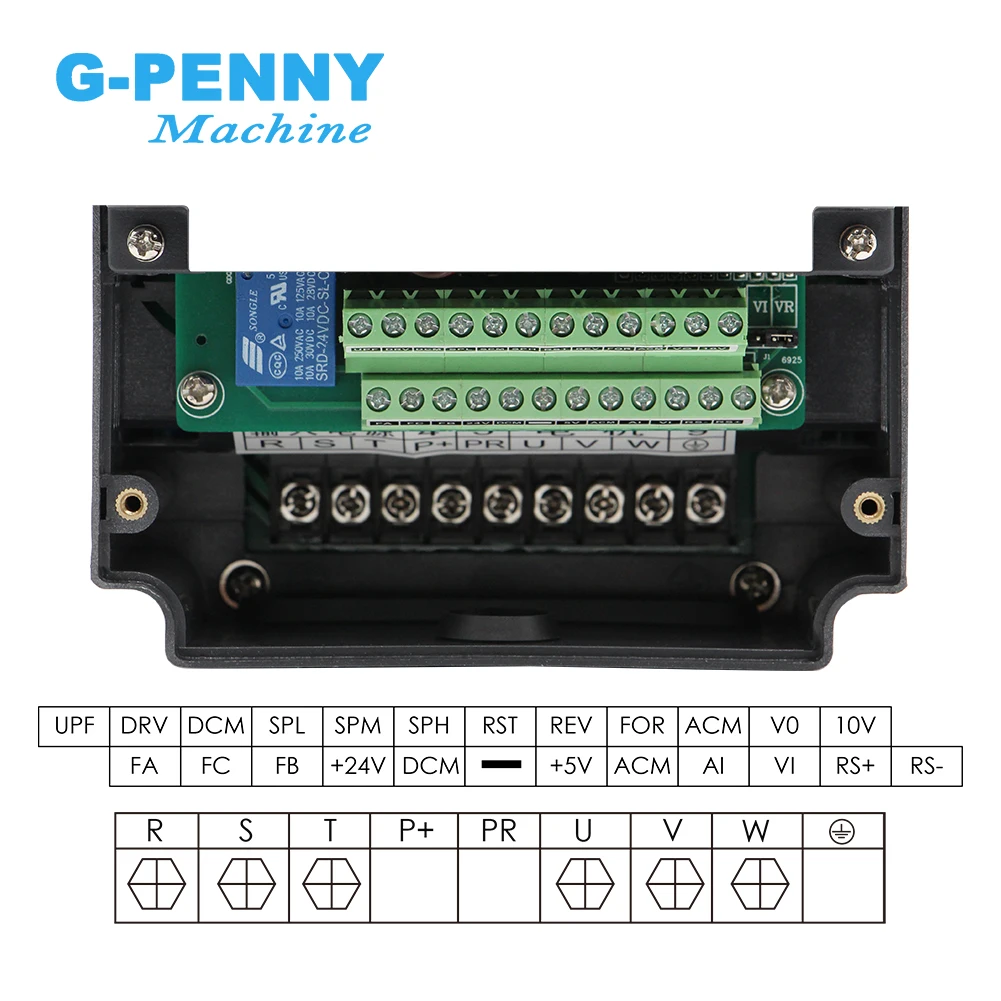

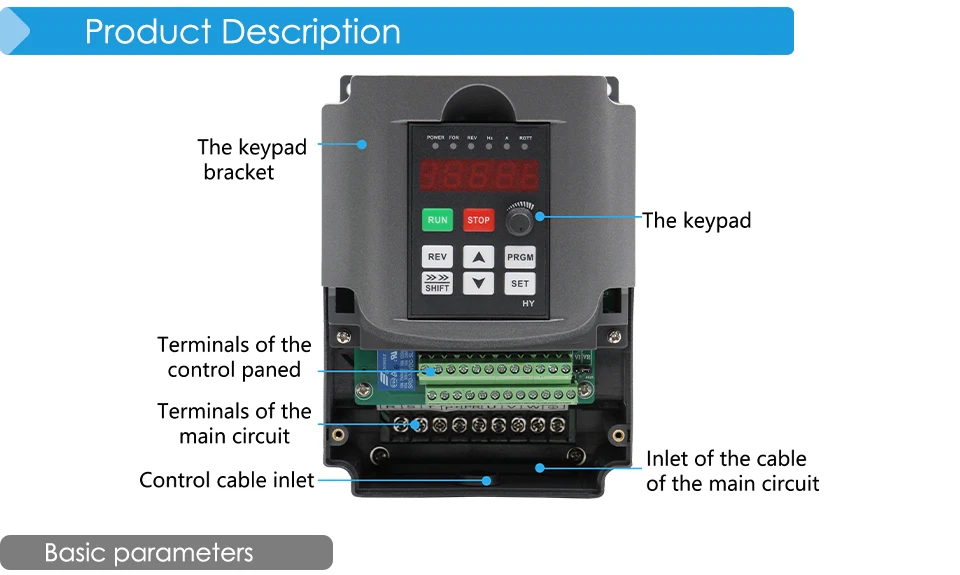

* Inverter Type: Huanyang 220v 1.5kw
* Input Voltage: 220V(+/-15%)
* Output Voltage: 220vAC
* Input Frequency: 48-63 Hz
* Output Frequency: 0-400 Hz
* Input Phase: 1 or 3 phase
* Output Phase: 3 phase
* Warranty: 1 year from the date you purchased
* Input Voltage: 220V(+/-15%)
* Output Voltage: 220vAC
* Input Frequency: 48-63 Hz
* Output Frequency: 0-400 Hz
* Input Phase: 1 or 3 phase
* Output Phase: 3 phase
* Warranty: 1 year from the date you purchased

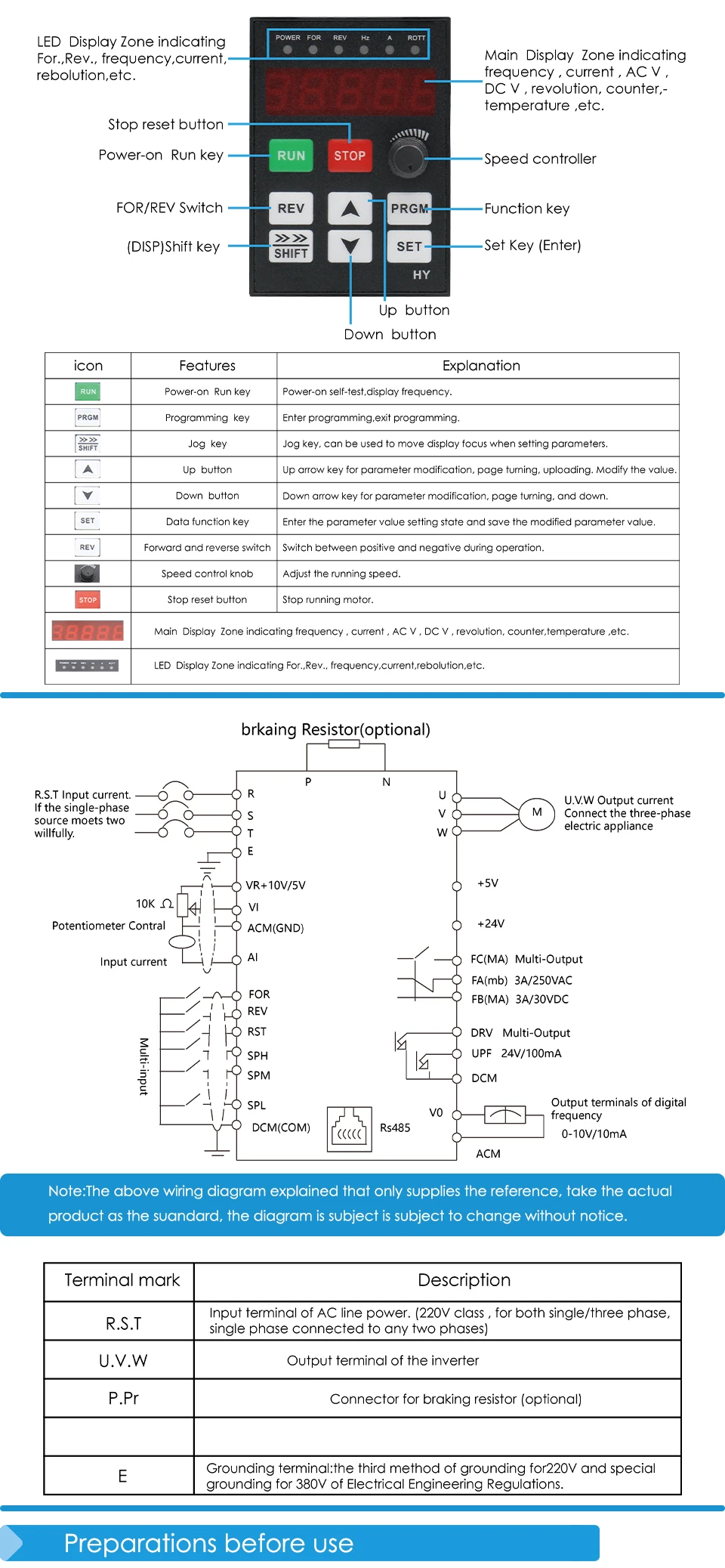

DO NOT set up the inverter by yourself if you don't know how to, or it will make both the spindle and inverter burn easily.
Please contact us, we have manuals, videos and pictures to help you.
Please contact us, we have manuals, videos and pictures to help you.

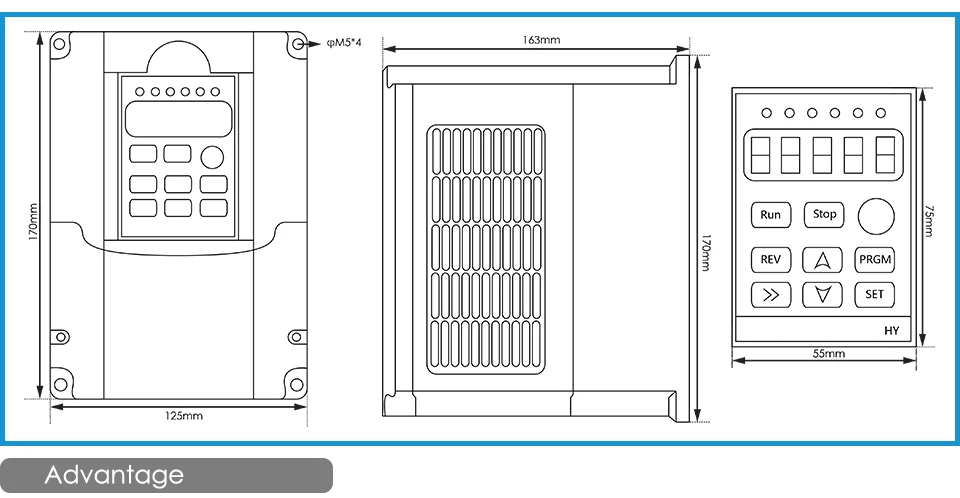

* Control mode is SPWM,it is very easy to use and convenient
* Protection functions are very strong,
* Fin over-heat protection,
* Overload protection,
* Fuse protection,
* Restart after instant stop,stall protection.
* Powful function
* HuangYang origianl inverter, more stable.
* Protection functions are very strong,
* Fin over-heat protection,
* Overload protection,
* Fuse protection,
* Restart after instant stop,stall protection.
* Powful function
* HuangYang origianl inverter, more stable.
Features
* PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;
* Easy PLC function can realize 16 legs of speed and inverter control function;
* RS485 communication port, adopting standard international MODBUS main circuit control;
* With extremely strong anti-jamming capability
* Low output ratting torque0.5HZ-150%, low speed running ability;
* Carrier adjustable by 16KHZ, completely soundless working environment;
* Broad voltage working area, normal running in 304V-456V;
* Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;
* Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing
brakes;
* With perfect error protection and short circuit starting protection capability;
* Dead-time compensation and auto torque slip compensation function, can realize 180% high torque output at low frequency 0.25Hz;
* Unique EMC design,can minimize inverter's pollution to power;
* Overall reinforcement layer to suit all kinds of harsh enviroment;
* Easy PLC function can realize 16 legs of speed and inverter control function;
* RS485 communication port, adopting standard international MODBUS main circuit control;
* With extremely strong anti-jamming capability
* Low output ratting torque0.5HZ-150%, low speed running ability;
* Carrier adjustable by 16KHZ, completely soundless working environment;
* Broad voltage working area, normal running in 304V-456V;
* Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;
* Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing
brakes;
* With perfect error protection and short circuit starting protection capability;
* Dead-time compensation and auto torque slip compensation function, can realize 180% high torque output at low frequency 0.25Hz;
* Unique EMC design,can minimize inverter's pollution to power;
* Overall reinforcement layer to suit all kinds of harsh enviroment;
* Spindle working environment temperature is usually -10 ~ 40 .
* Before installing the first electric spindle axis head turned by hand, should feel flexible, non-blocking phenomenon.
* Before installing the first electric spindle axis head turned by hand, should feel flexible, non-blocking phenomenon.
* Spindle in the preservation and transportation, high-speed grease inside the bearing state will change, customers should be running at low speed for 30 minutes. 3000 rpm and then follow the poor increase, run 20 minutes each. Spindle and the inverter should be working together. The inverter's specifications and parameter settings need match spindles parameter.(Because of high-speed grease inside the bearing state will change,when you get the spindle, maybe the noise sounds not normal.Please run it 30 minutes or even more, the noise will be normal.)
* Connect the inverter spindle, three-phase inverter power cord should be soldered in the plug 1 (U), 2 (V), 3 (W) feet, 4 feet for the ground. After the power is turned on, to observe whether the spindle rotation axis indicates the direction consistent. If inconsistency should be immediately shut down, replace the inverter and spindle connected two wires of three-phase power supply.
* During normal operation, air-cooled spindle often encounter the phenomenon of heat, always check whether the air-cooled spindle housing and duct clogging dust.If clogging dust, to promptly clean up. If you do not clean up, it is easily to make the spindle burned.
* Every day before using the spindle must be running at low speed for 15-20 minutes. Clamping the cutters to spindle, collet nuts, collets, cutters must be clean enough. Shank inserted into the collet must be greater than 15mm.
* Connect the inverter spindle, three-phase inverter power cord should be soldered in the plug 1 (U), 2 (V), 3 (W) feet, 4 feet for the ground. After the power is turned on, to observe whether the spindle rotation axis indicates the direction consistent. If inconsistency should be immediately shut down, replace the inverter and spindle connected two wires of three-phase power supply.
* During normal operation, air-cooled spindle often encounter the phenomenon of heat, always check whether the air-cooled spindle housing and duct clogging dust.If clogging dust, to promptly clean up. If you do not clean up, it is easily to make the spindle burned.
* Every day before using the spindle must be running at low speed for 15-20 minutes. Clamping the cutters to spindle, collet nuts, collets, cutters must be clean enough. Shank inserted into the collet must be greater than 15mm.

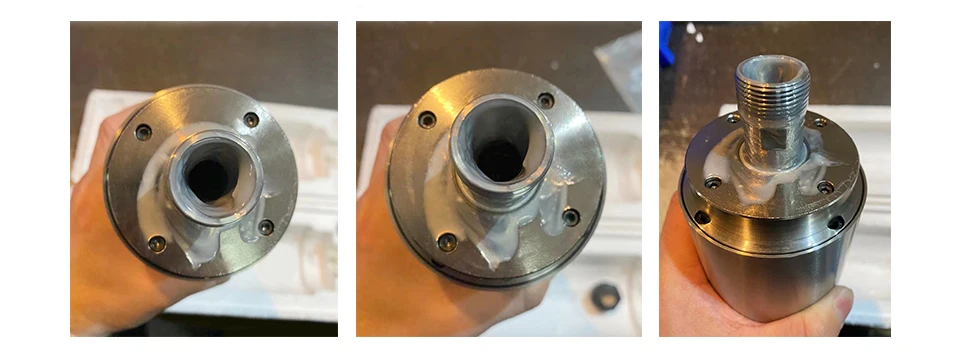

If the spindle will not be used for a long time, please keep the spindle oil sealed to prevent rust from being unused for a long time.
Before shipping , we did the oil seal to avoid the rust during the long shipment. When you get the spindle, please clearing the oil seal before using. Thank you.
Before shipping , we did the oil seal to avoid the rust during the long shipment. When you get the spindle, please clearing the oil seal before using. Thank you.

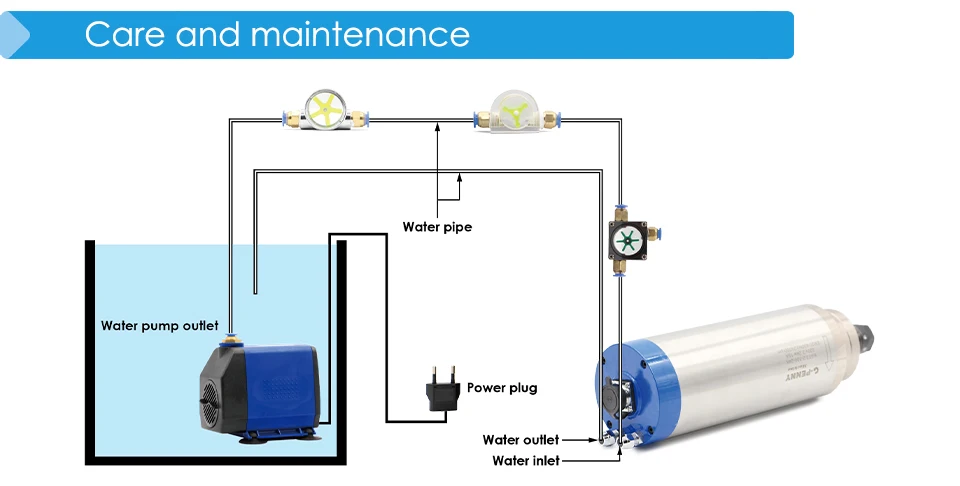

* Water cooled spindle MUST be used with water pump. Otherwise the spindle will soon broken.
* AC spindle motor MUST use with inverter. The power of inverter need equal or bigger than the spindle power. Before using,please set up the inverter parameters suitable for spindle. Otherwise the spindle and inverter will broken at once.
* When you use the spindle,the noise is not same as always,please STOP the spindle at once. You may need to replace the spindle bearings.
* AC spindle motor MUST use with inverter. The power of inverter need equal or bigger than the spindle power. Before using,please set up the inverter parameters suitable for spindle. Otherwise the spindle and inverter will broken at once.
* When you use the spindle,the noise is not same as always,please STOP the spindle at once. You may need to replace the spindle bearings.

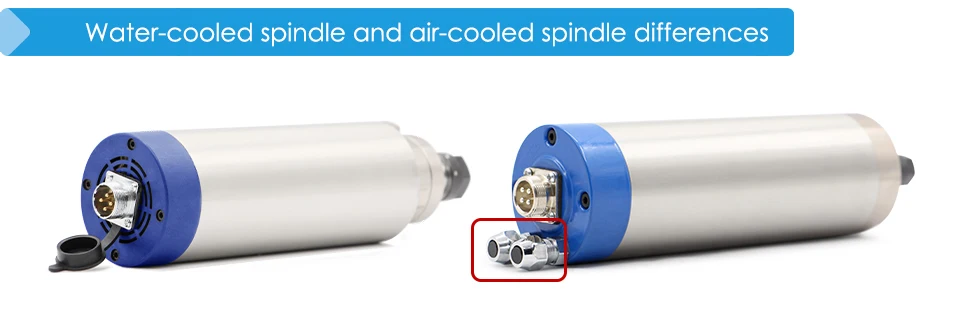

1. Cooling in different ways: water-cooled spindle motor is the use of the water cycle to cool the heat generated after the high-speed rotating spindle, spindle motor with fan-cooled approach to cooling.
2. Noise: Water-cooled spindle motor is basically no noise, but the air-cooled spindle motor is very loud.
3. Life aspects: Water-cooled spindle motor pay attention to maintenance, frequently changes the water or the use of industrial water coolers, air-cooled spindle fan mainly by the wind blowing the heat transferred to the heat sink, so as to achieve the cooling effect.
4.If you need use for metal ,hard wood,granite,stone,you can choose metal spindle.Metal spindle much better than wood spindle.
2. Noise: Water-cooled spindle motor is basically no noise, but the air-cooled spindle motor is very loud.
3. Life aspects: Water-cooled spindle motor pay attention to maintenance, frequently changes the water or the use of industrial water coolers, air-cooled spindle fan mainly by the wind blowing the heat transferred to the heat sink, so as to achieve the cooling effect.
4.If you need use for metal ,hard wood,granite,stone,you can choose metal spindle.Metal spindle much better than wood spindle.
* We will 100% guarantee security to the hands of the guests.
* Spindle from the production - assembly - test, and finally the perfect packaging .
* Spindle from the production - assembly - test, and finally the perfect packaging .
