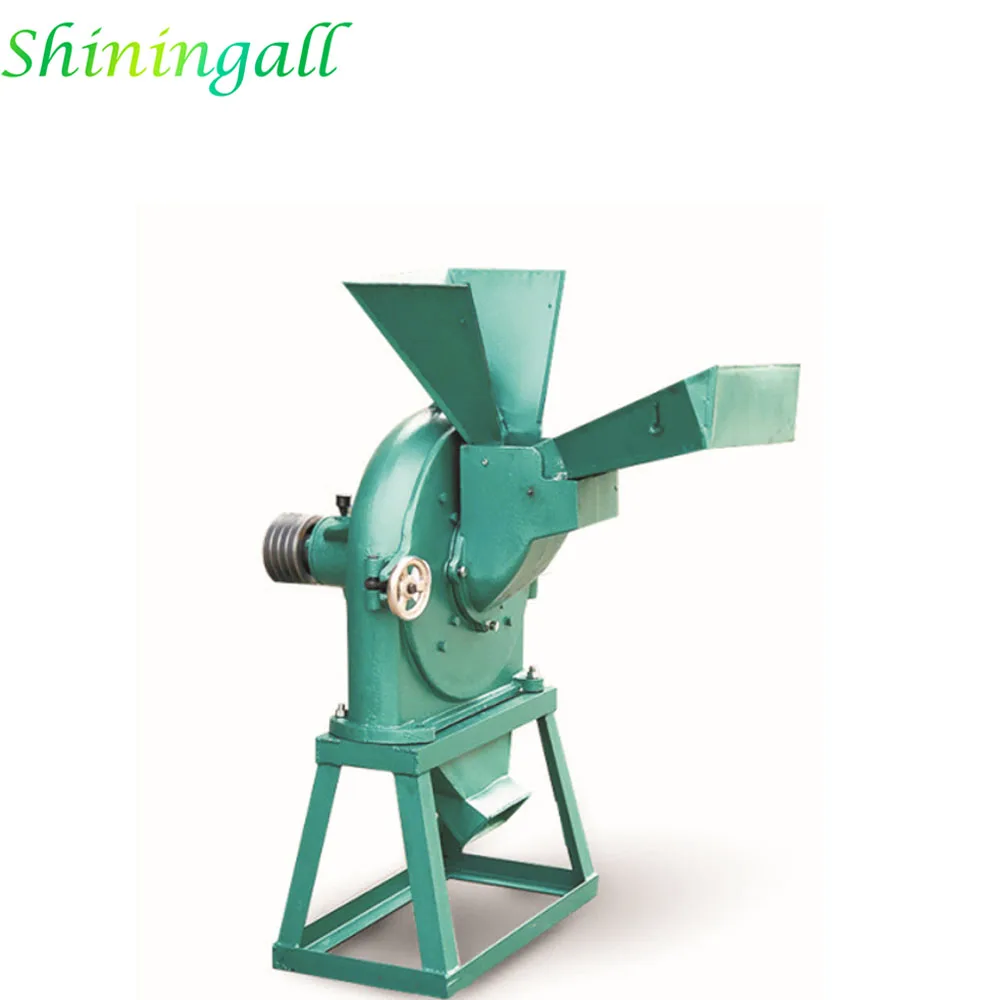

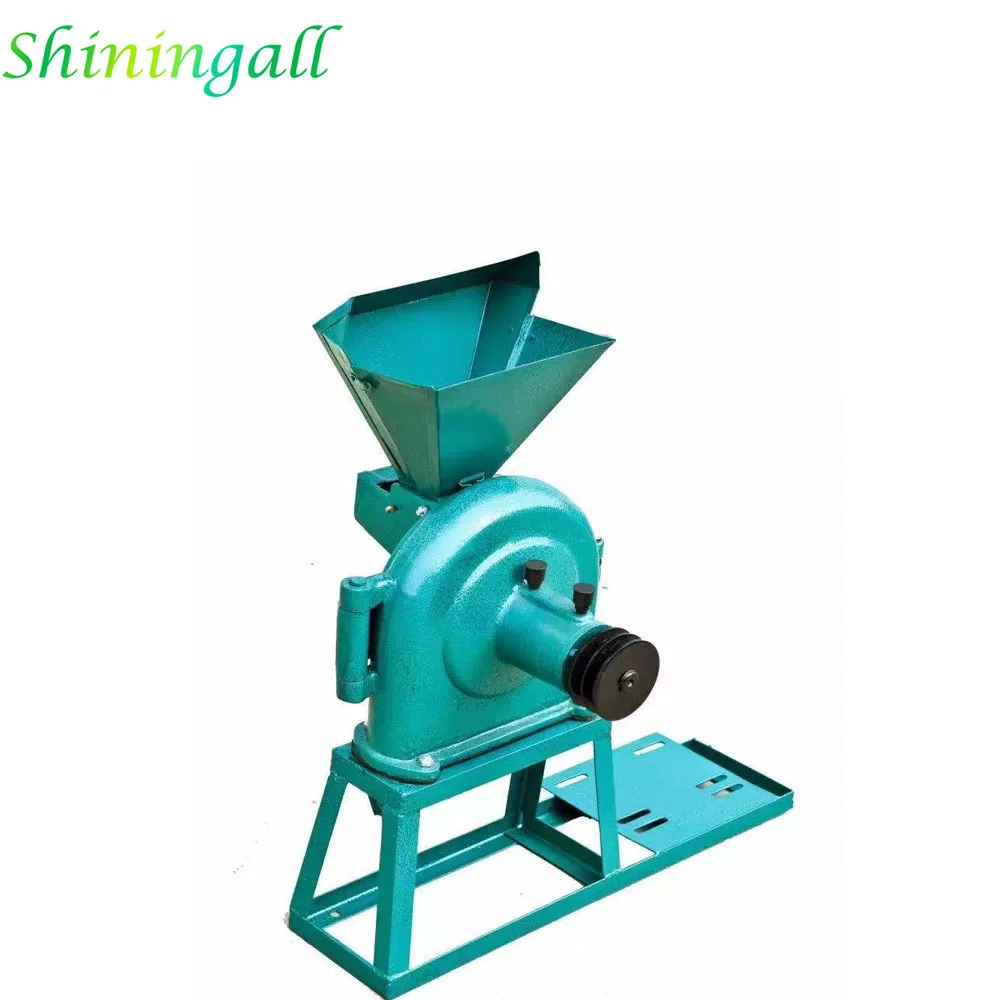

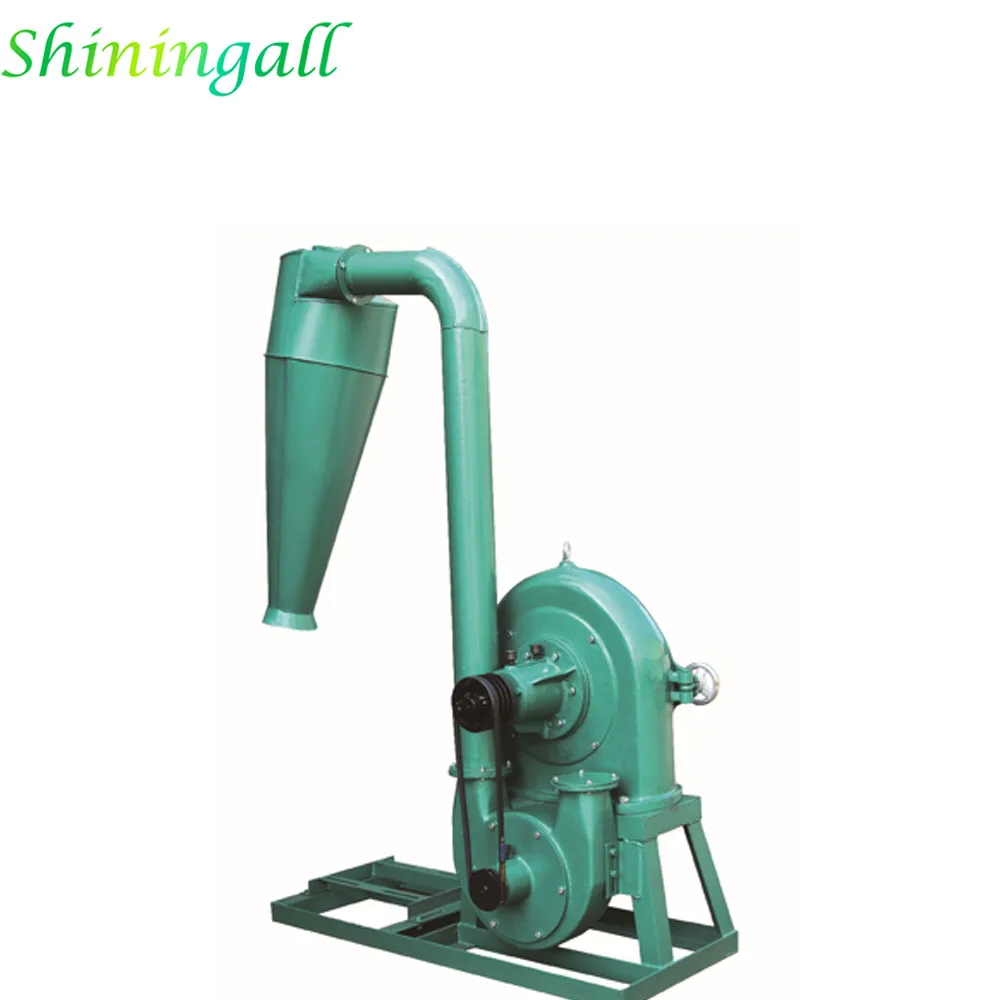

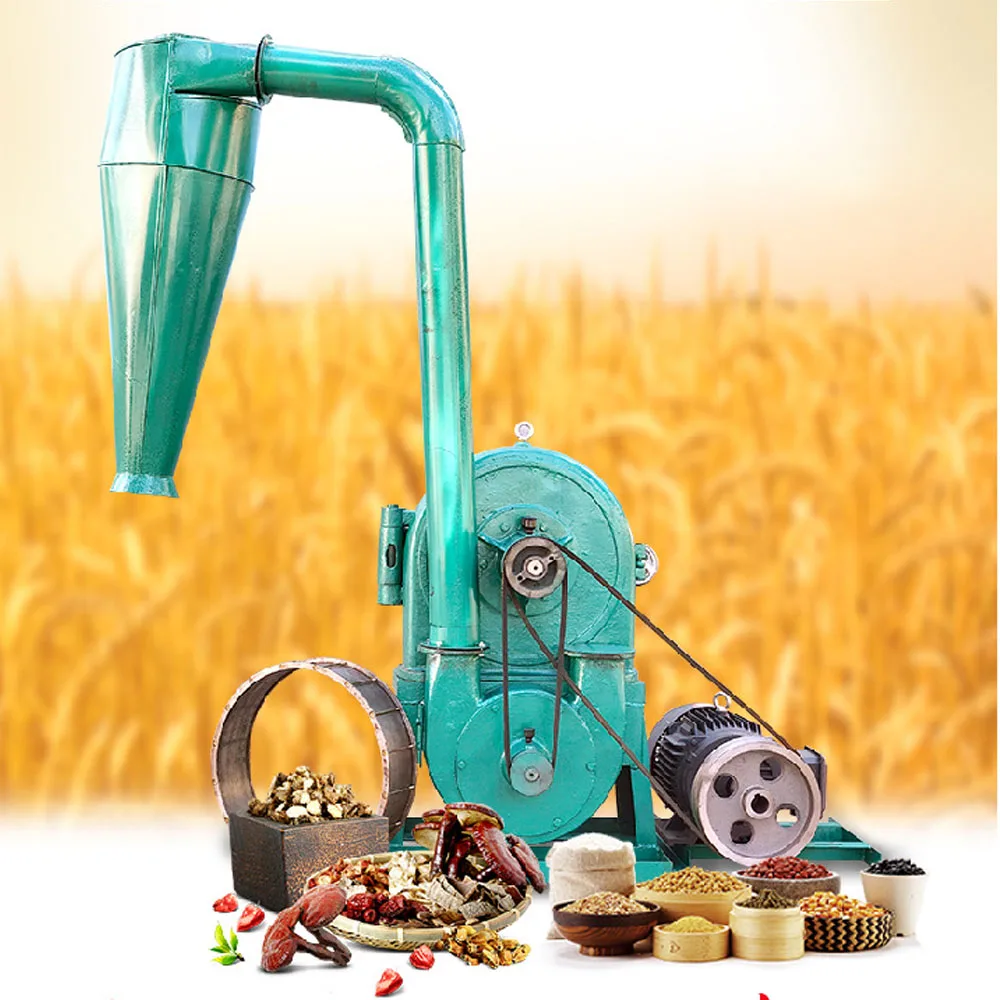

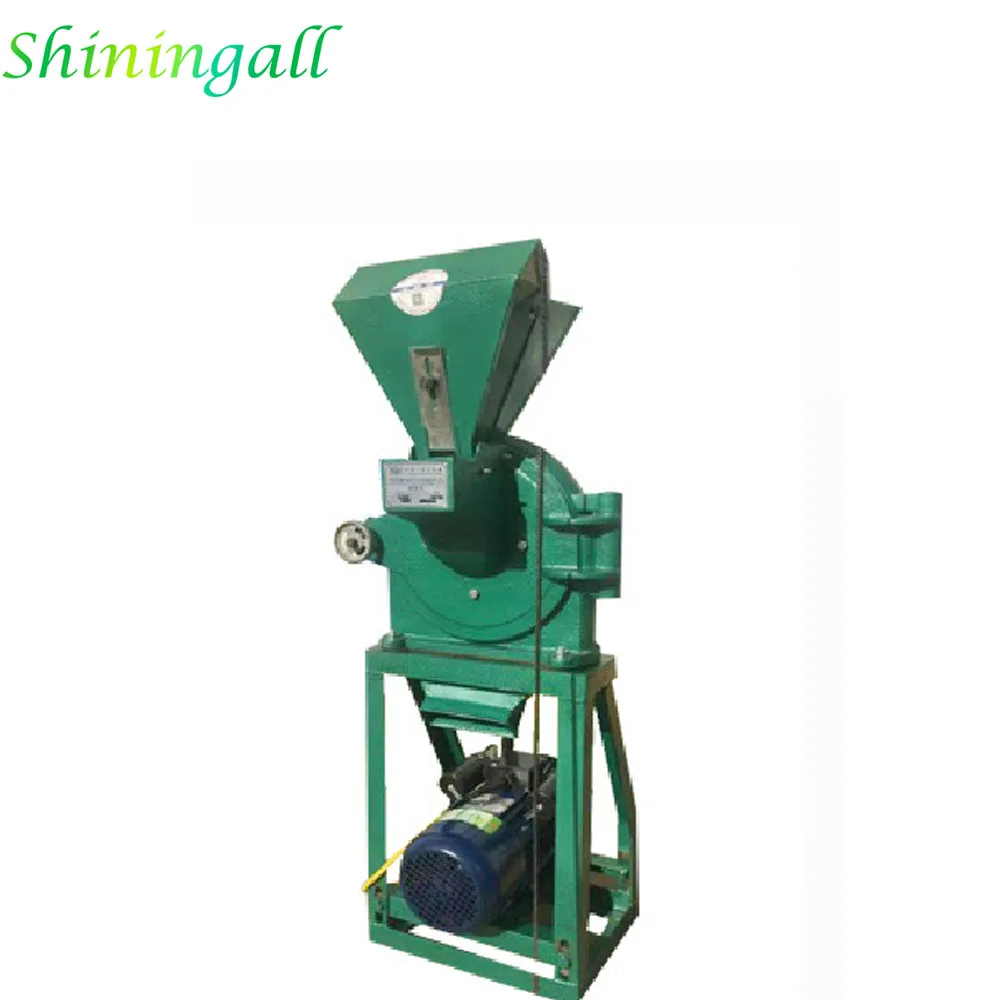

shiningall 9fc 45 maize corn grinding mill machine maize corn meal flour milling machine
- Category: >>>
- Supplier: Zhuhai Shining Technology Co. Ltd.
Share on (1600436663143):
Product Overview
Description
Products Description

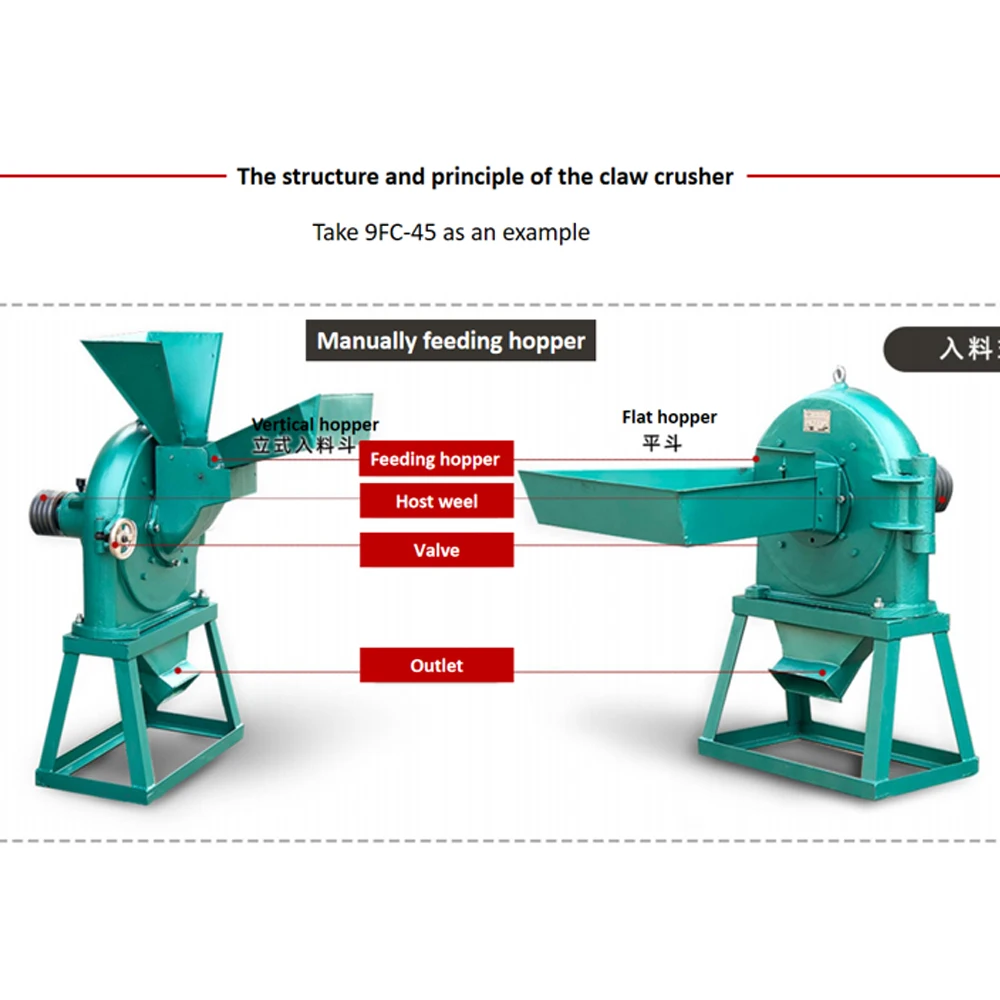

Multifunctional flour mill
Metal base, good stability
Grinding evenly and finely

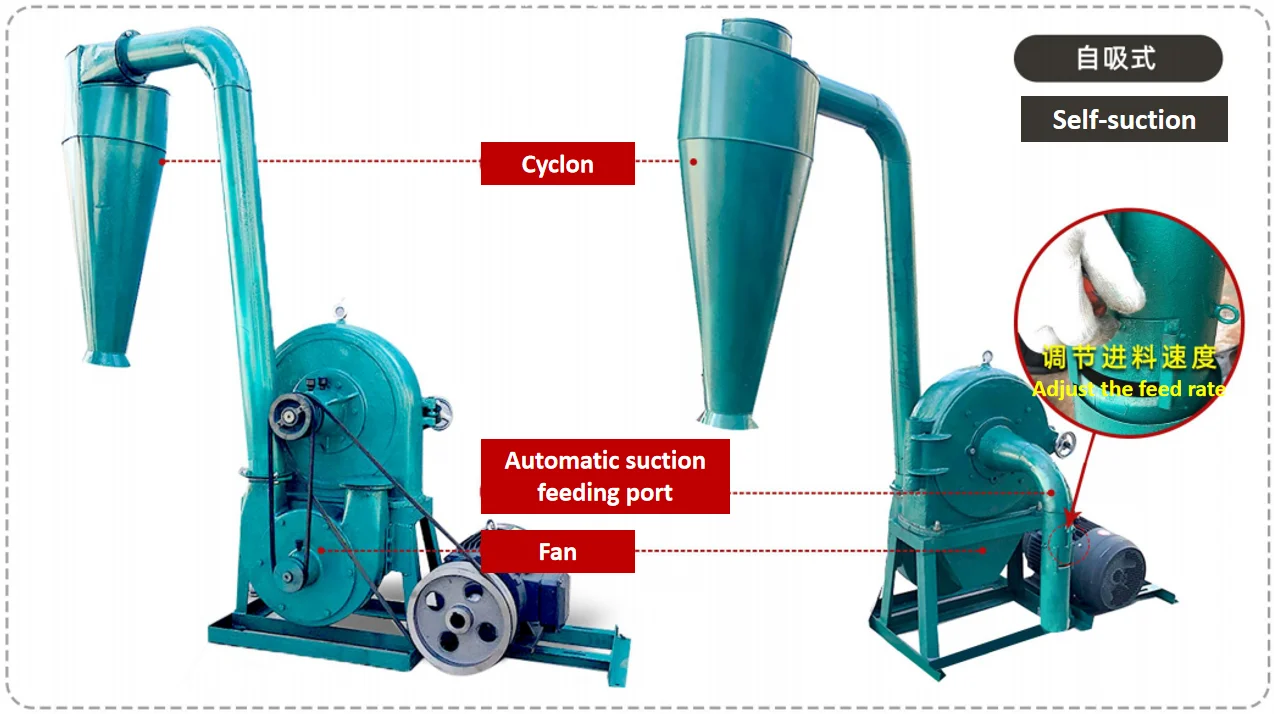

Automatic material suction
saves time and effort
saves time and effort
Multi-object grinding,
strong power
strong power
Factory direct sales
support customization
support customization
Stable performance

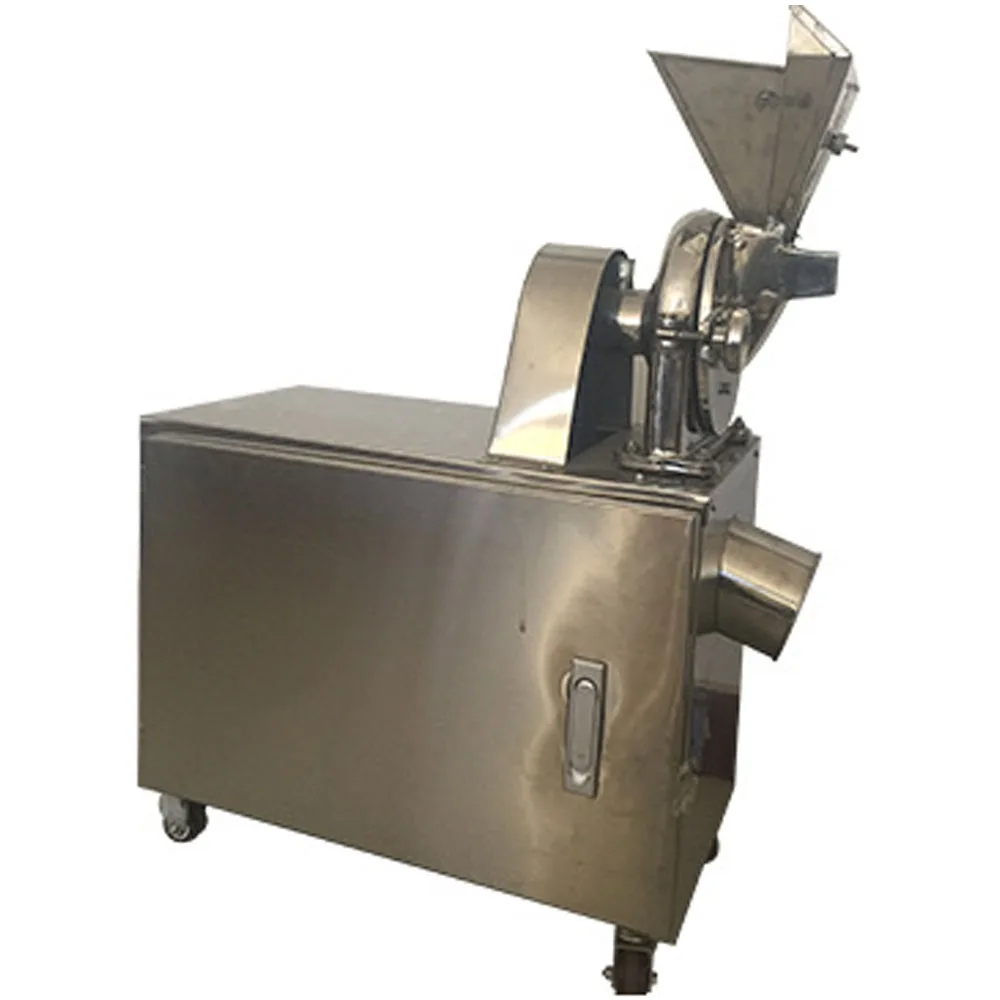

The host can be made of cast steel, 304 or 316 stainless steel, and there are different body materials for your choice.
The host can be made of cast steel, 304 or 316 stainless steel, and there are different body materials for your choice.
Longer life
Excellent productivity
Uniform particles
Excellent productivity
Uniform particles
Running smoothly
Wide range of applications
Wide range of applications
Parameters of different models of this series of products
Model | 9FC-70 | 9FC-60 | 9FC-45D | 9FC-37 | 9FC-26 | 9FC-15 |
capacity（corn) | 3000KG/H | 2000KG/H | 950KG/H | 450KG/H | 230KG/H | 55KG/H |
Motor power | 30/37KW | 22/30KW | 11/15KW | 7.5/11KW | 3/4KW | 1.1KW |
Net weight | About 475KG | About 396KG | About 300KG | About 226KG | 82KG | 17KG |
Dimension | 1640*630*1500 | 1500*600*1260 | 1350*850*1020 | 1100x400x1270 | 800x370x840 | 580x260x260 |
Flour mesh | 20~100 | 20~100 | 20~100 | 20~100 | 20~100 | 20~100 |
Feed size | <7cm | <6cm | <5cm | <5cm | <3cm | <3cm |
Main shaft speed R/Min | 3000 | 3000 | 3300 | 3600 | 5800 | 9000 |
Disc outer diameter | 600mm | 500mm | 450mm | 370mm | 255mm | 150mm |

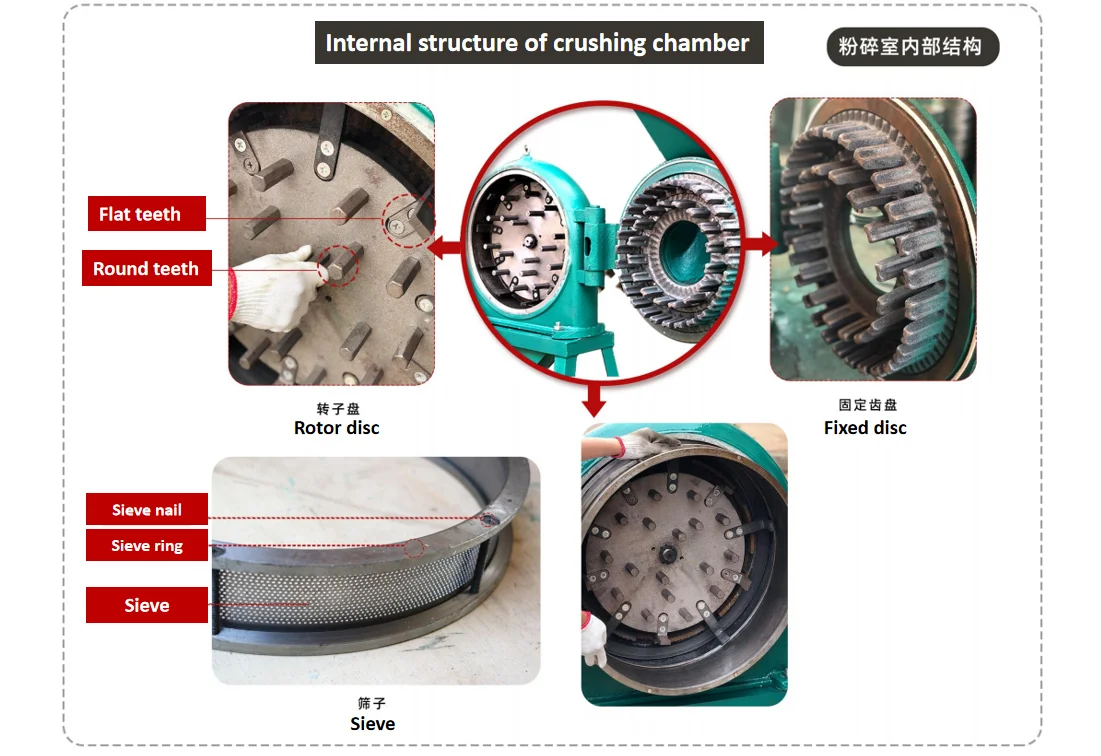

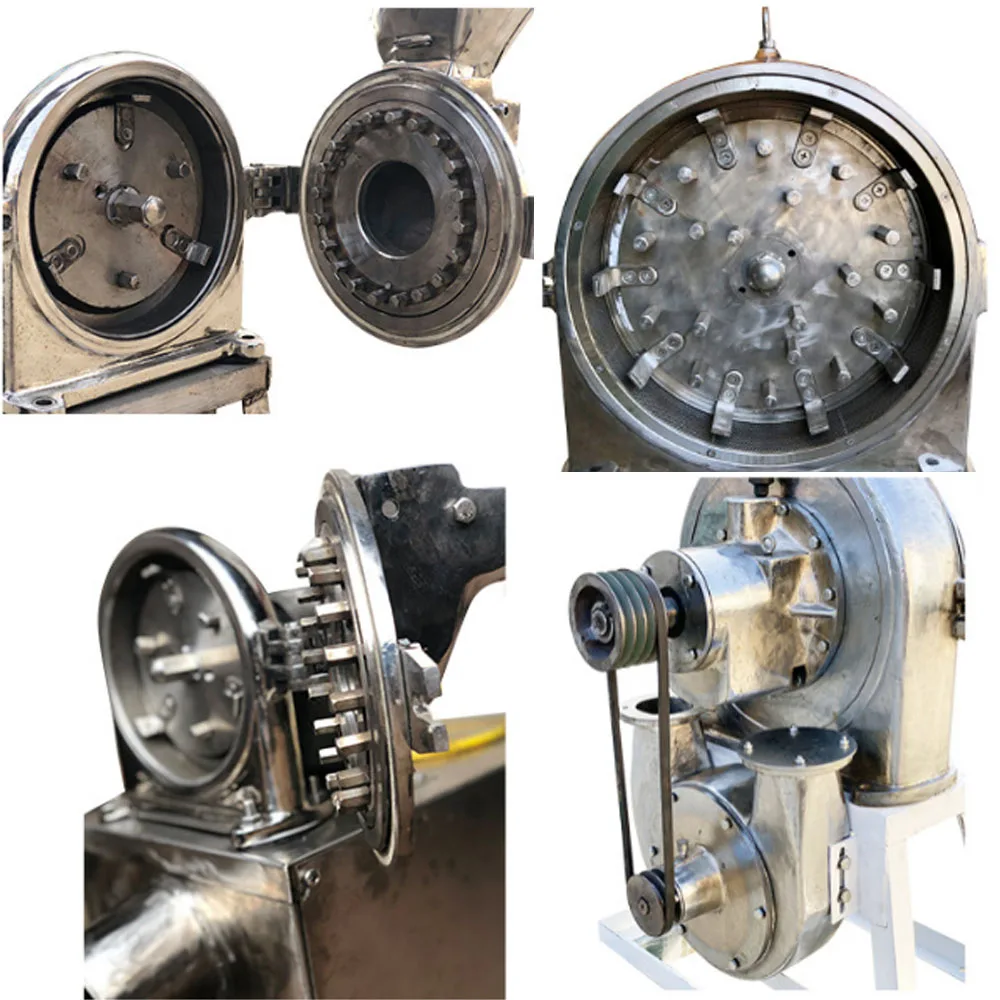

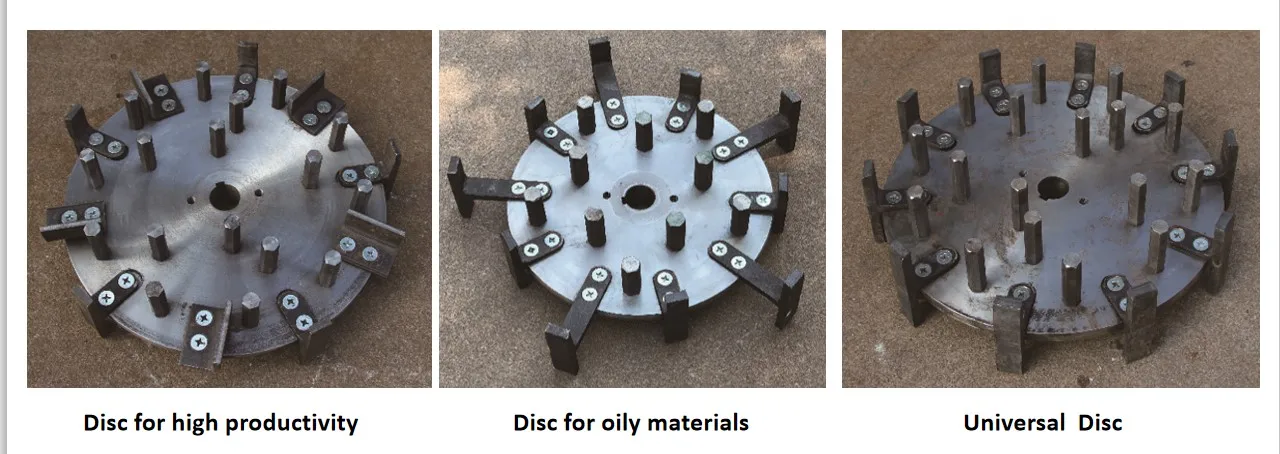

Number of flat teeth | 5 long+5 short | 5long+5short | 5 | 4 | 4 | 3 |
Number of round teeth | 17 | 10 | 12 | 8 | 4 | 3 |
Number of V-belts | 6 | 6 | 4 | 3 | 3 | 1 |
Screen size | 2100*146mm | 1800*146mm | 1580*130mm | 1350*74mm | 900*74mm | 175*43mm |
Please click the pictures below for details of other models
9FC-70 | 9FC-23 | 9FC-19 | 9FC-15 |
You may also need the following products.Click it as you like.
Flour Mill Machine
Model: 6FW-40
√.Capacity:200~250KG/H
√.Flour mesh:40~120
√.Advantage: Super fine flour,low consumption.
√.Capacity:200~250KG/H
√.Flour mesh:40~120
√.Advantage: Super fine flour,low consumption.
Corn Mill Machine
Model: 6FW-PD1
√.Capacity:300~350KG/H
√.Products:corn bran,corn grits, corn flour
√.Products:corn bran,corn grits, corn flour
Dal Mill Machine
Model: 6FW-S18
√.Capacity:400-500KG/H√.Peeling rate:98%
√.Advantage: low consumption.
Contact Us
WhatsApp/Wechat : +86 13622 9696 70 |
Email: info@shiningall.com |
Sales Manager: Ruddy Wei |

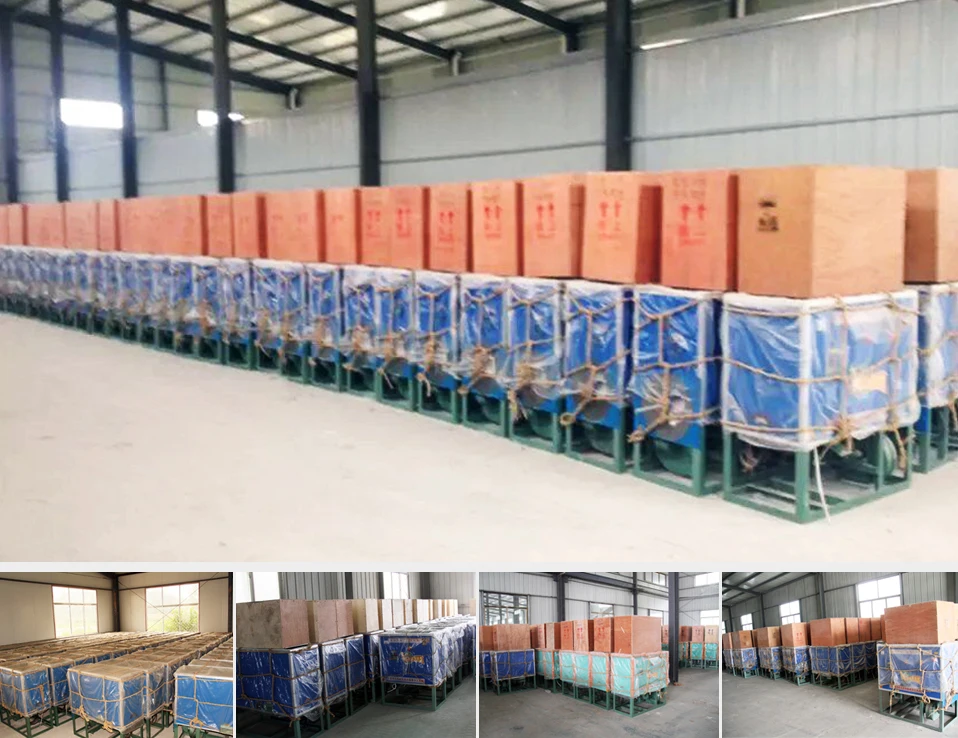

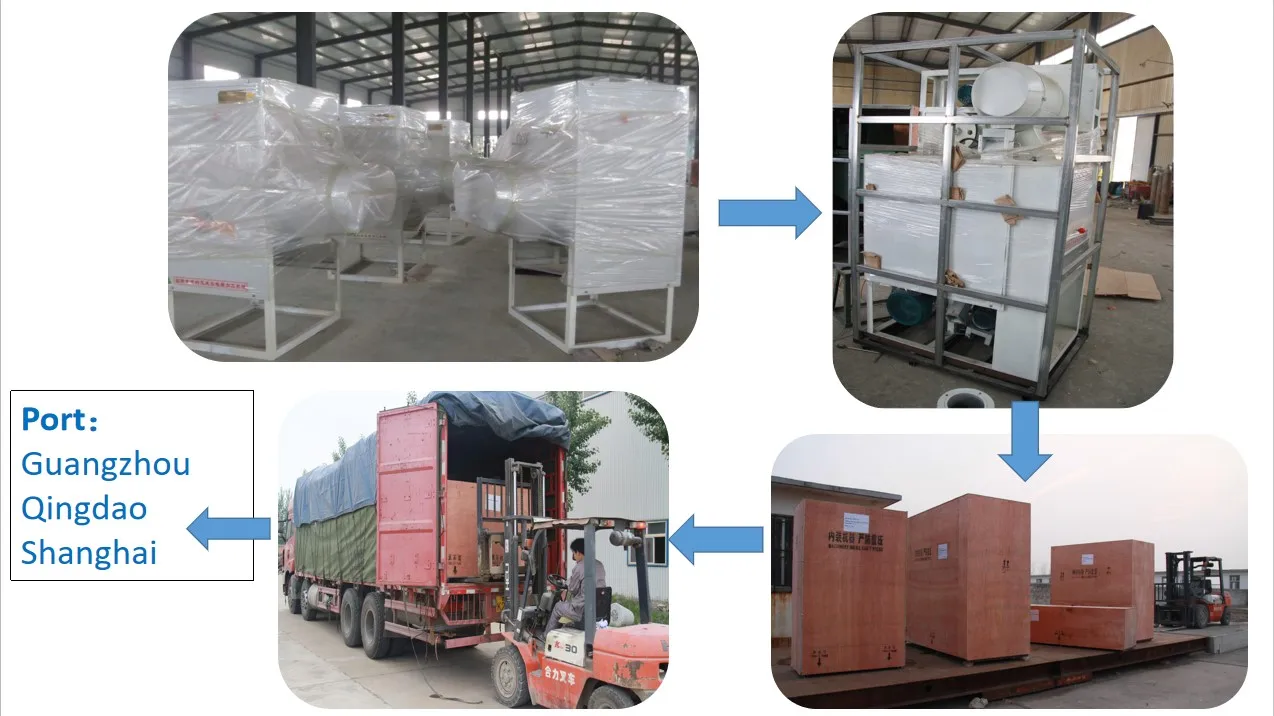

Product packaging

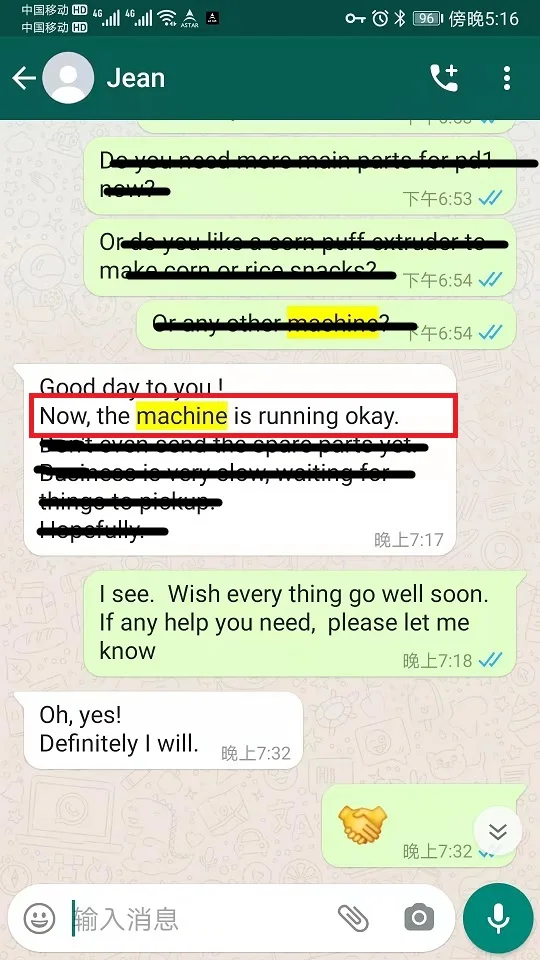

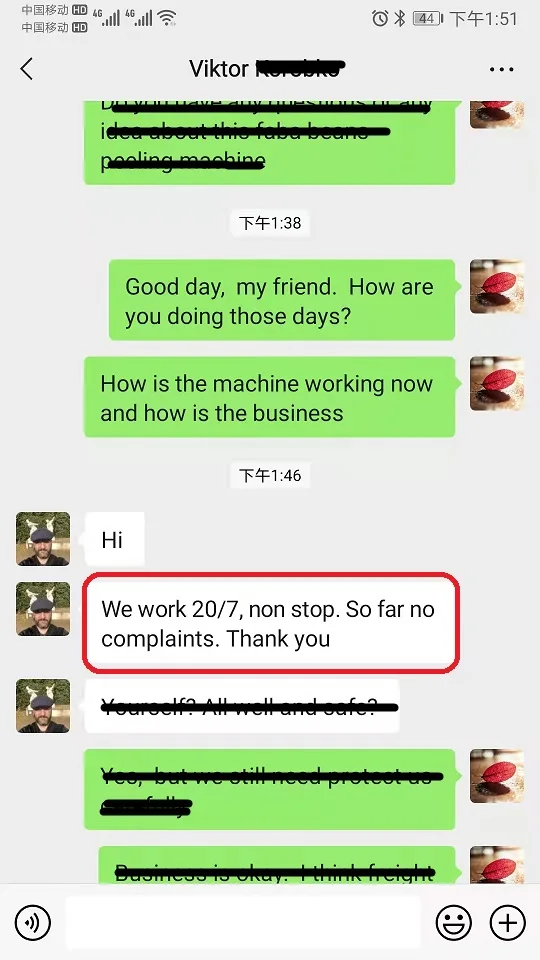

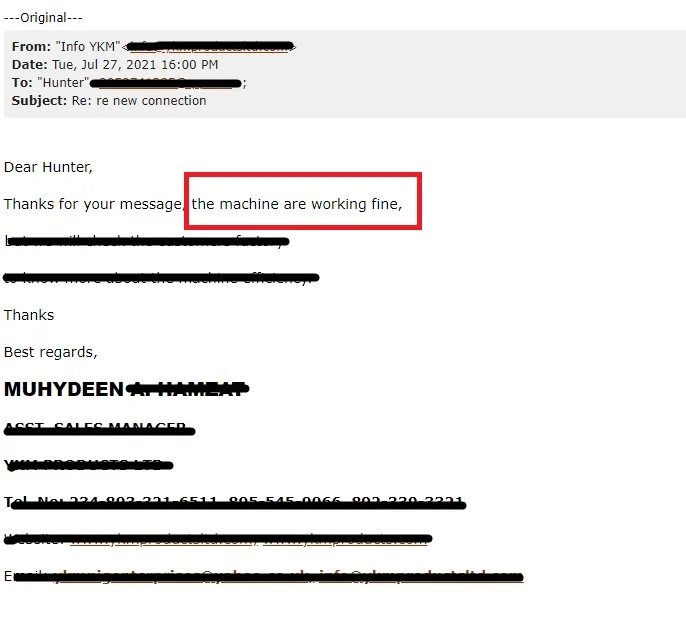

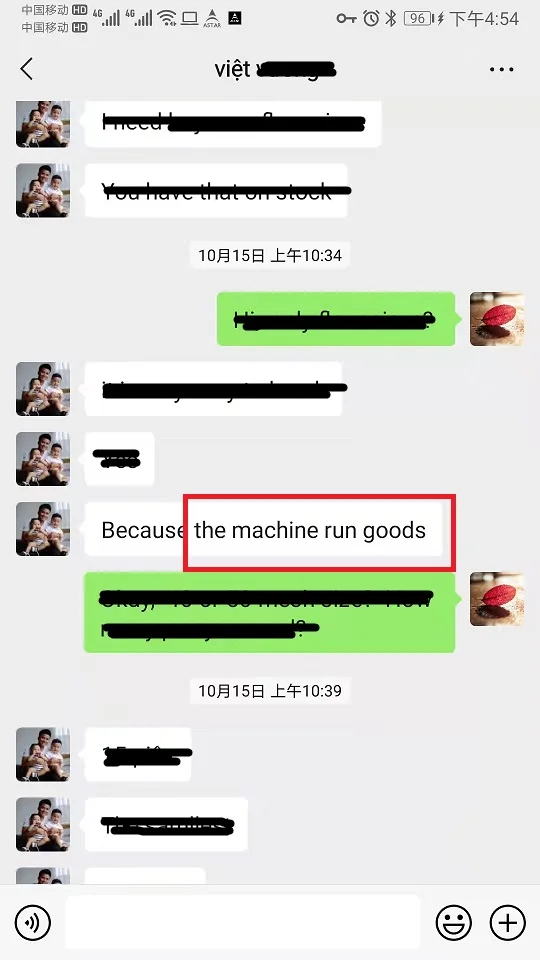

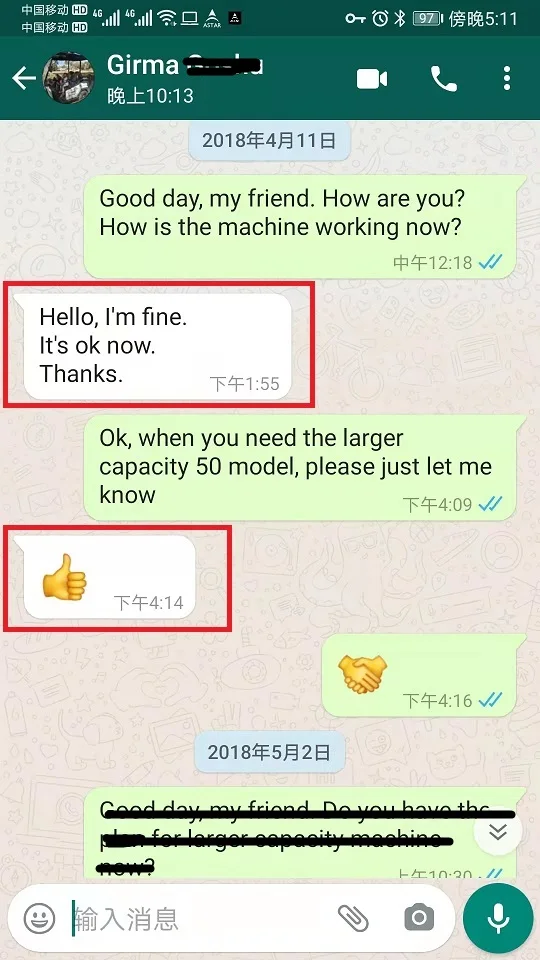

Customer Praise

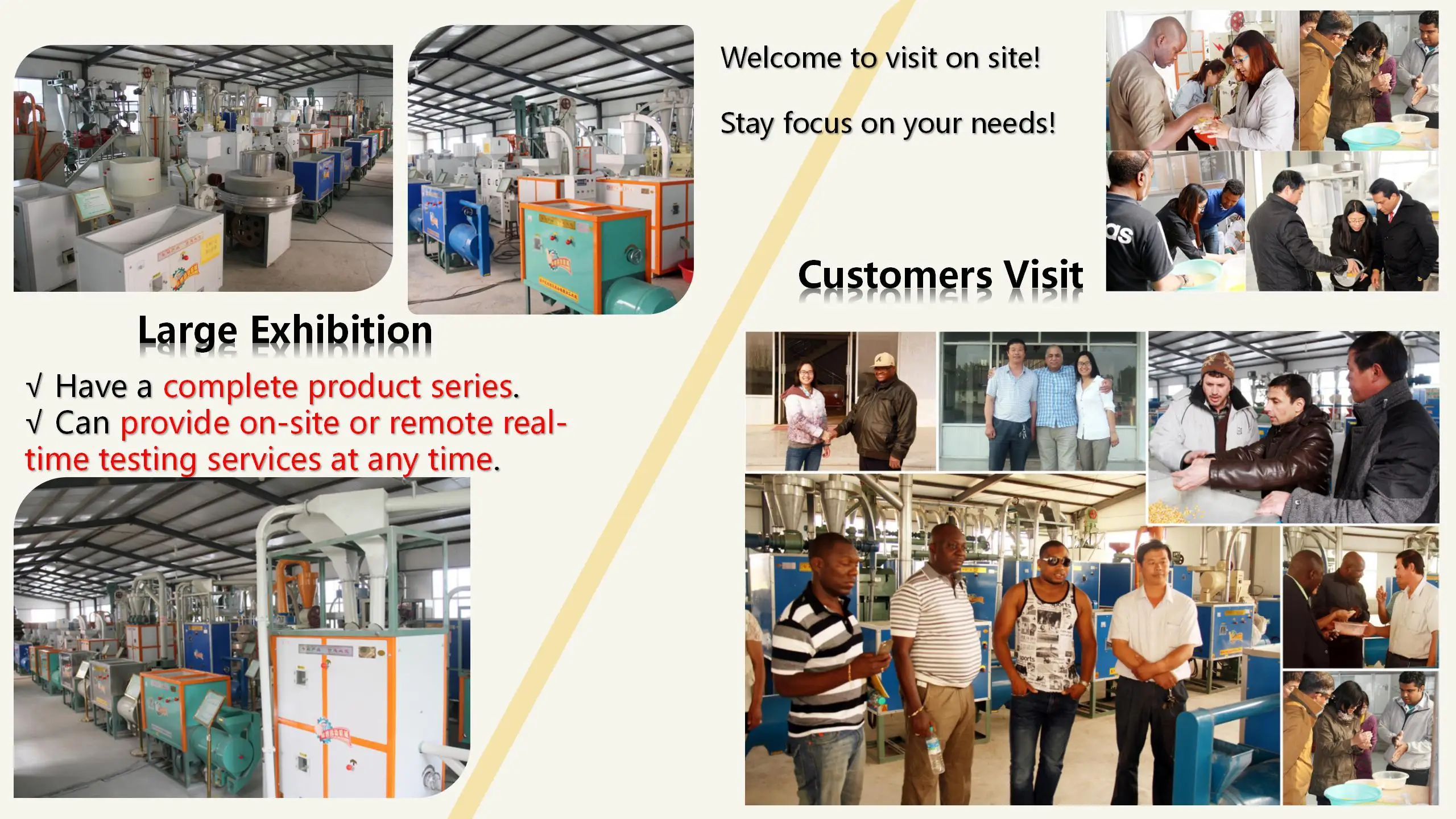

Company Profile
We began to engage in the grain processing industry, producing such as FLour Milling Machine, Mini Dal Mill and Maize Milling Machine as early as the early 1980s.
We was formally established in 2001 and currently has 30 years of development.
At present, our company has become a leading force in the grain processing industry.
We was formally established in 2001 and currently has 30 years of development.
At present, our company has become a leading force in the grain processing industry.
We not only design, produce and install ourselves, but also have rich operating experience.
If you want to do a business, we can share our experience with you.
If you want to do a business, we can share our experience with you.
Certifications
♥ Industry-leading R&D capabilities;
♥ Excellent unique design and performance;
♥ Comply with ISO 9001 and CE standards;
♥ Constantly focus on research and innovation.
♥ Excellent unique design and performance;
♥ Comply with ISO 9001 and CE standards;
♥ Constantly focus on research and innovation.
Worry-free service
