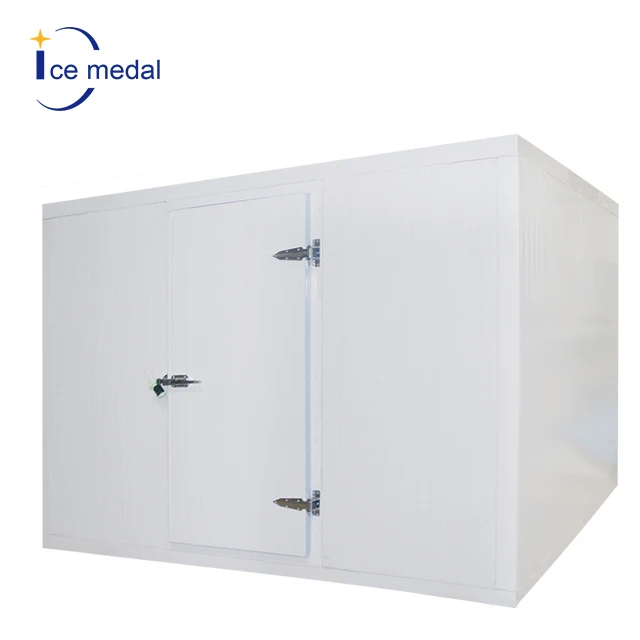

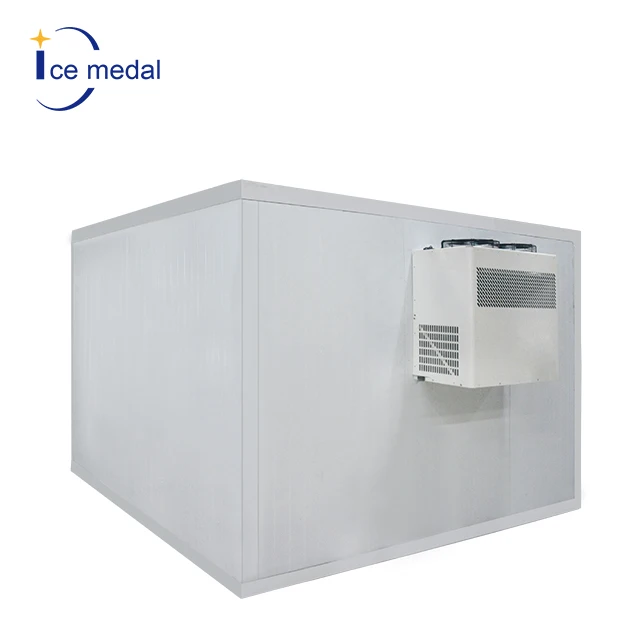

Icemedal Hot Sale Factory Chambre Froide Cold Storage Deep Freezer Cool Room For Fruits And Meat

Share on (1600436671660):


Price:8.000,00 US$ - 9.600,00 US$

Quantity:


Product Overview

Description



Icemedal Hot Sale Factory Chambre Cold Room Panel Cold Storage Price


Product Description


The cold storage room has a wide range of application such as fruit, vegetable, fish, meat preservation. It proves to be food preservation solution with its fast-freezing time and great thermal installation performance. it is worth mentioning that it highly complies with refrigerant and energy regulations. With market-leading expertise, we offer our customers high-tech cold storage room solutions that can be used anywhere and can save you on installation and maintenance costs.

In addition, our machines can be updated in the future to further extend your investment life. With extensive experience and expertise in refrigeration solutions, Icemedal(A cold storage manufacturer) has become a qualified and trusted cold room manufacturer.




Specification


Dimension
Length (m) *Width (m)*Height (m). customized
Fireproof
polyurethane insulation panel,44kg/m3, Fire Prevention B1 Engineering Grade
Thickness of panel
50mm, 75mm,100mm, 120mm,150mm,200mm optional
Steel cover of cold room
stainless steel plates, color steel plates and embossed aluminum plates
Panel Connection
cam lock type, use hexagonal key to assemble and disassemble
Type of door
hinged door, sliding door, swing door
Function
Frozen Food Storage

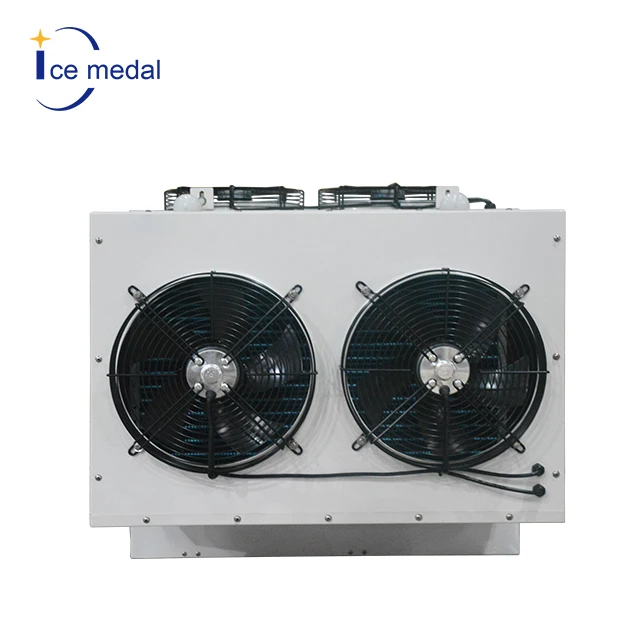

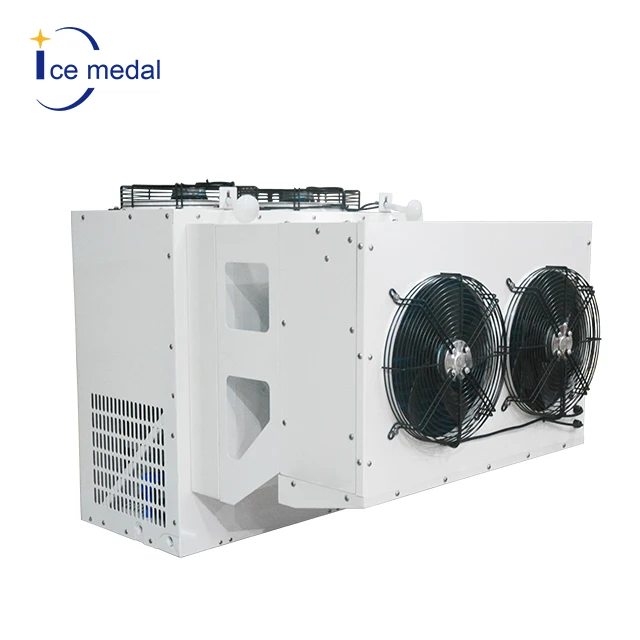

Refrigeration Units
Bitzer, Copeland, Maneurope (Danfoss), Kide, etc.
Refrigeration type
air cooled / water cooled, R134a, R404a, R507a or R22
Fittings of cold room
all necessary fittings are included, optional
Voltage of cold room
220V/50HZ, 220V/60HZ, 380V/50HZ optional
Other accessories
world-famous brands, like Danfoss, Castle, Every Control, Siemens, LG
Functions of cold room
fresh-keeping, freezing, quick-freezing, fire-proof, explosion-proof, air-conditioning are all available


Intergrated modular assembly, factory pre-equipped refrigeration parts and electrical components, etc.
*Compacted structure, easy to install and maintain.
*Widely used in Restaurants, shops, shopping malls, cold storage and other place.
*Whole unit needs to install in a shell for accessories protection.

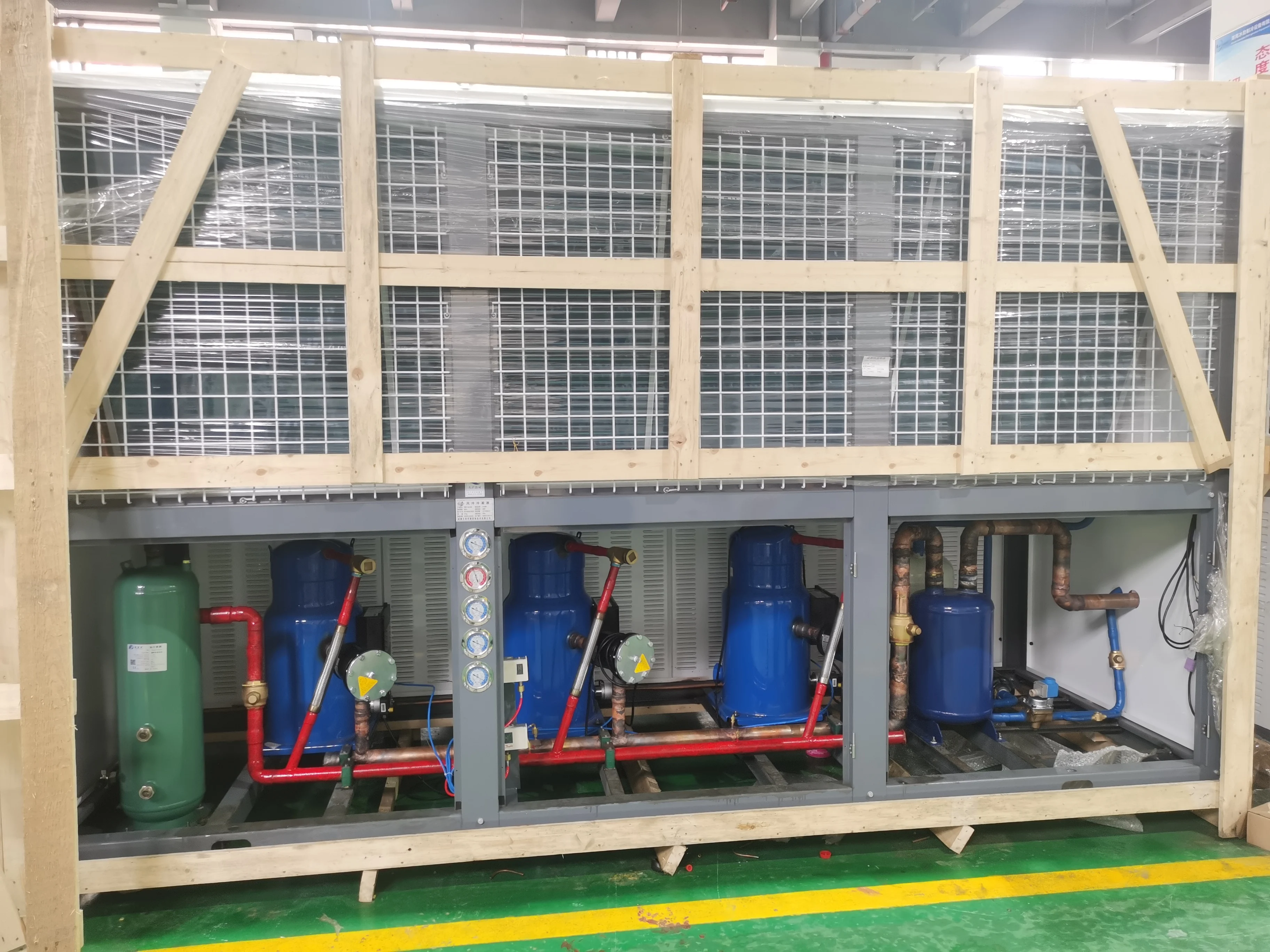

Configuration:
*Compressor, Condenser, Axial fan with external rotor, liquid receiver, HP/LP controller, HP/LP gauge, dry filter, solenoid
valve,sight glass, check valve, junction box, etc.
*All unit based on evaporating temperature -25℃, condensing unit temperature 40℃.
*Compressor and accessories brand depends on customers inquiry.
*Compressor refrigerant: R404a.
*2hp to 44hp for low temperature;
*2hp to 50hp for high temperature.
*Bitzer semi-hermetic two stage compressor


Application







Cold Room Storage Application
Cold room storage facitily to store temperature/humidity sensitive commodities,widely used for fruits & vegetables, meats, fisheries, seeds, flowers, foods, medicines, electronics, biological preservation, refrigeration, freezing, fast-frozen, etc.

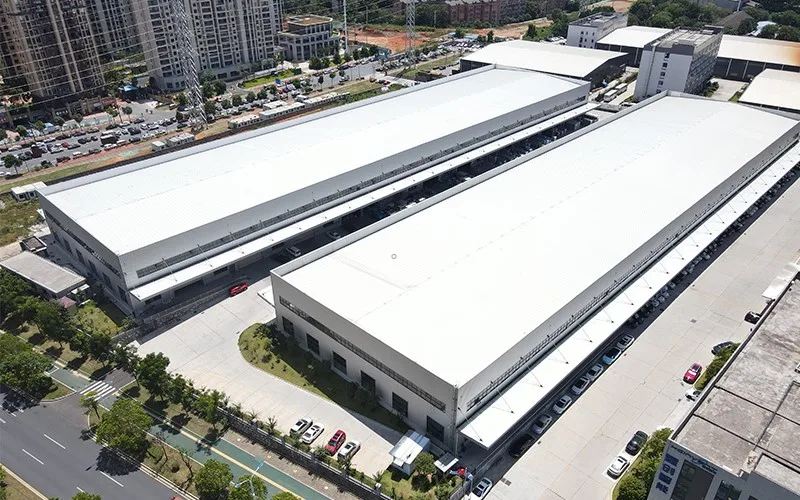

Company Profile


ABOUT US
Hunan Icemedal Refrigeration Equipment Co., Ltd. is a research and development, production, sales and service in one of the professional refrigeration equipment manufacturing enterprises. The products mainly include fresh cold room, storage cold room,food processing and sorting workshop, quick freezer storage room, Ice Flake machine, ice cube machine, ice tube machine, ice block
machine. Adhering to the “Integrity, win-win, enjoy life” concept, has been committed to building modular boutique factory for customers, to provide customers with solutions for profit replication, so as to achieve our "Win-win" business value.



Package

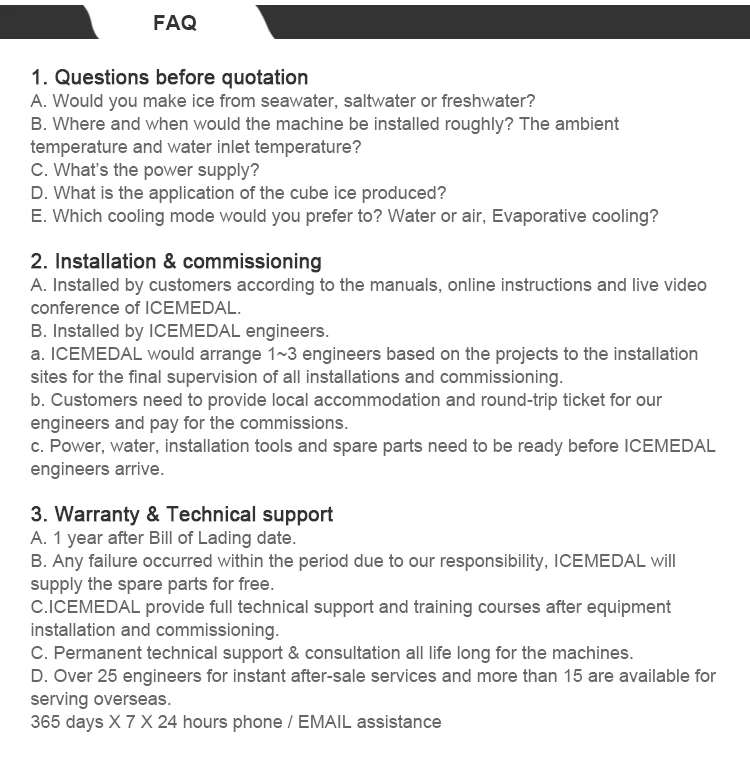

FAQ
