12mm Push Button Waterproof Button ON OFF Momentary Circular Switch
12mm Push Button Waterproof Button ON- OFF Momentary Circular Switch
12mm Push Button Waterproof Button ON- OFF Momentary Circular Switch
12mm Push Button Waterproof Button ON- OFF Momentary Circular Switch
12mm Push Button Waterproof Button ON- OFF Momentary Circular Switch
12mm Push Button Waterproof Button ON- OFF Momentary Circular Switch
12mm Push Button Waterproof Button ON- OFF Momentary Circular Switch

12mm Push Button Waterproof Button ON OFF Momentary Circular Switch

Share on (1600436763428):


Price:$0.21 - $0.28

Quantity:


Product Overview

Description

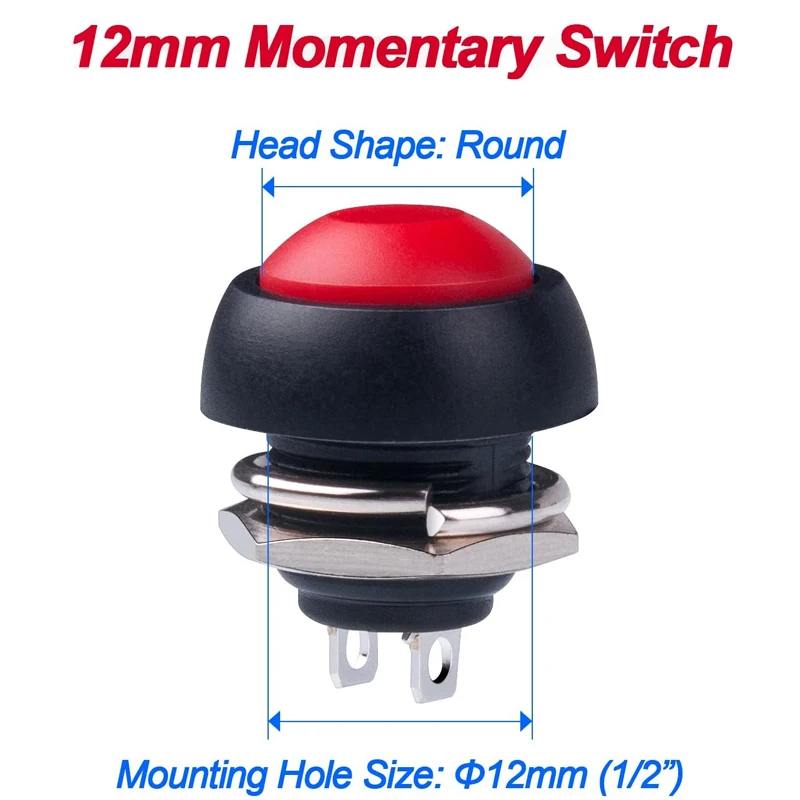

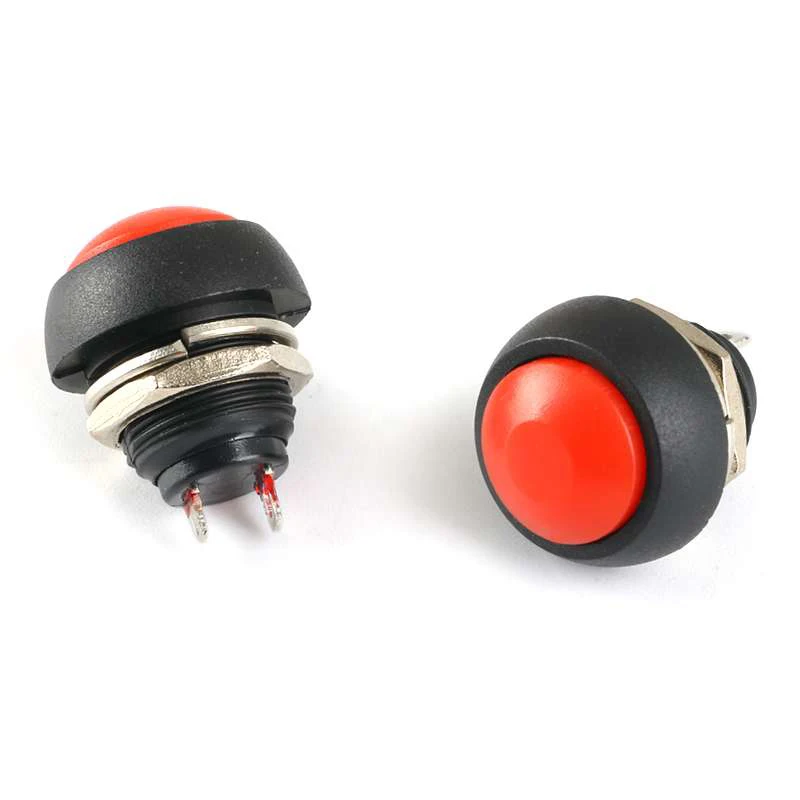

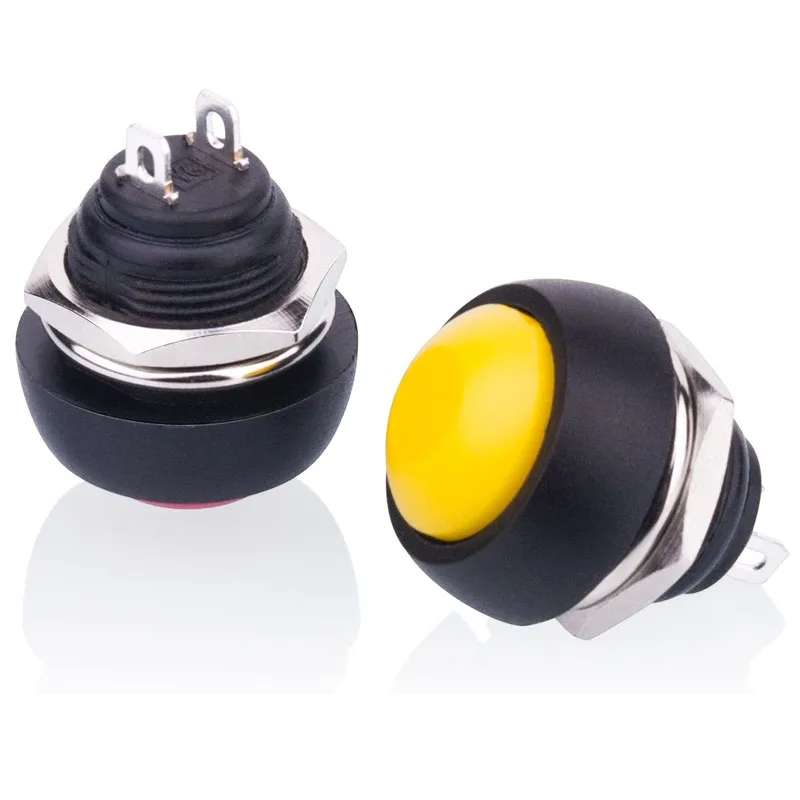

12mm Push Button Waterproof Button ON- OFF Momentary Circular Switch





Specificaton:













































Product nameMomentary Push Button Switch

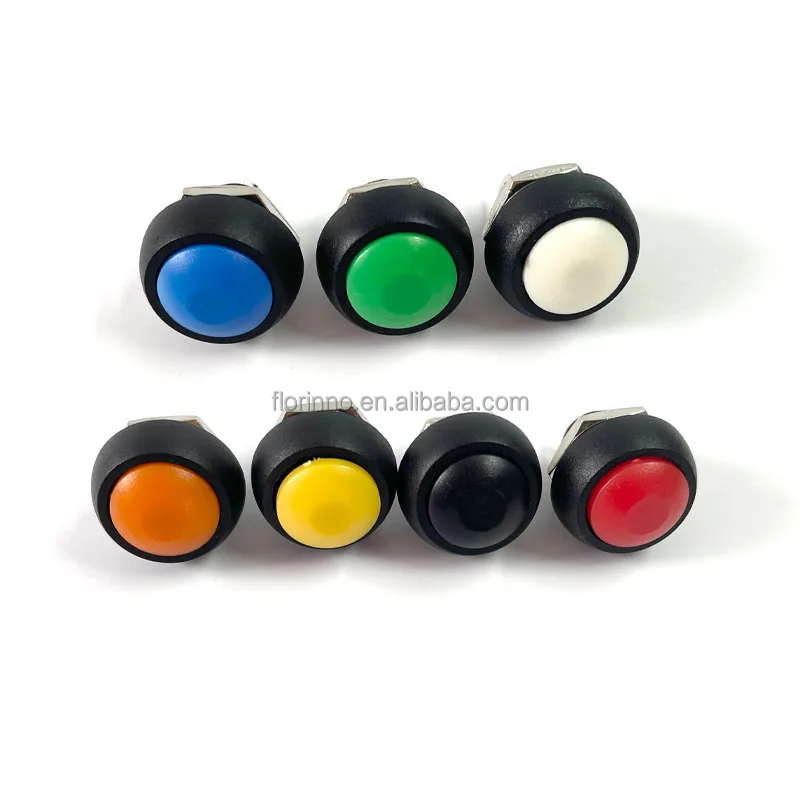

Head ColorRed, Yellow, Blue, Black, Green,White

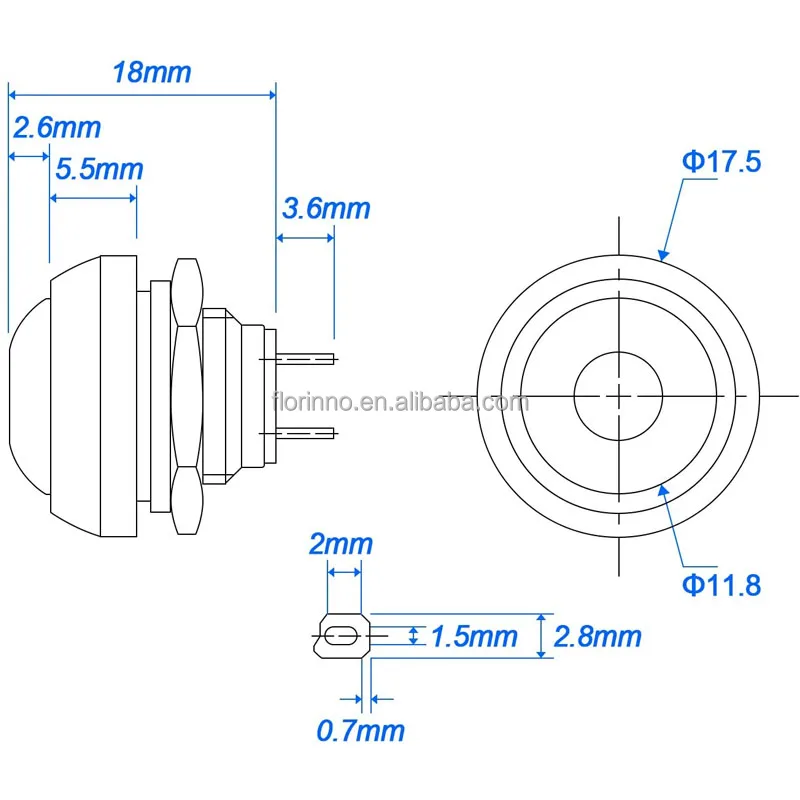

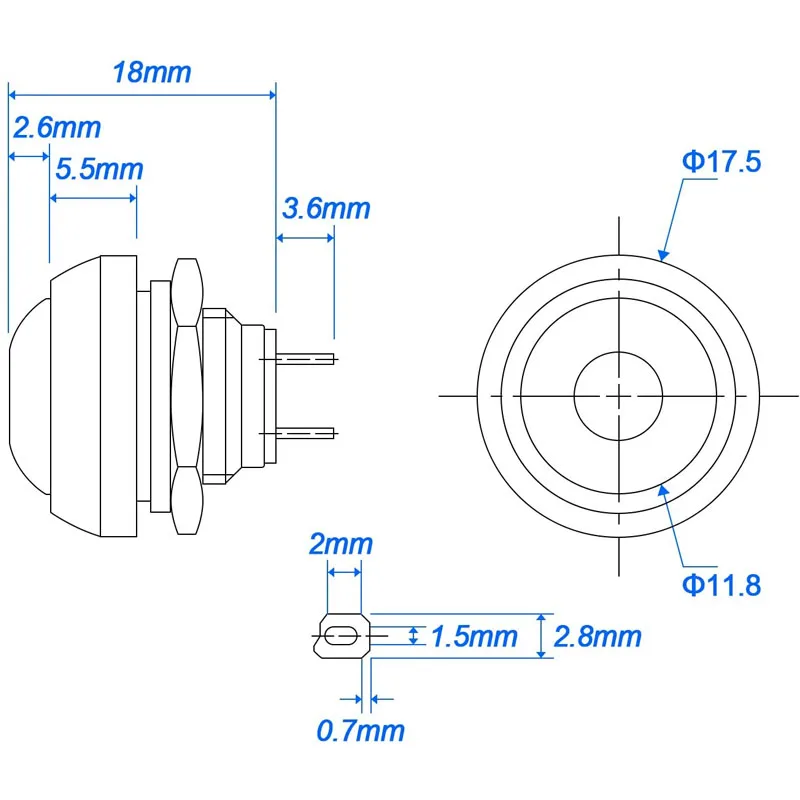

Mounting holeApprox. 12mm
Rated current and voltage3A/125V AC; 1A/250V AC
Dielectric Intensity1500VAC/1min
Life>10000 Cycles
Work typePush to ON(OFF-ON)
Environmental Temperature-25 ~ +85 ℃
Contact Resistance<50mΩ
Insulation Resistance>100mΩ

         Description:



  • push button switch.

  • Momentary Type: Push and Hold - ON, Release – OFF.

  • Easy to use : Screw clamp type terminals, don't need to solder.

  • Contact resistance: 50MΩ.

  • Used widely: For Horn Button Switch, PC Power Switch, Kill Switch or any circuit.


12mm waterproof button-1.jpg12mm waterproof button-2.jpg12mm waterproof button-3.jpg12mm waterproof button-4.jpg12mm waterproof button-5.jpg12mm waterproof button-6.jpg
