Factory Cutting Diamond Engraving Tool For Cnc Jade Machine

Model NO.

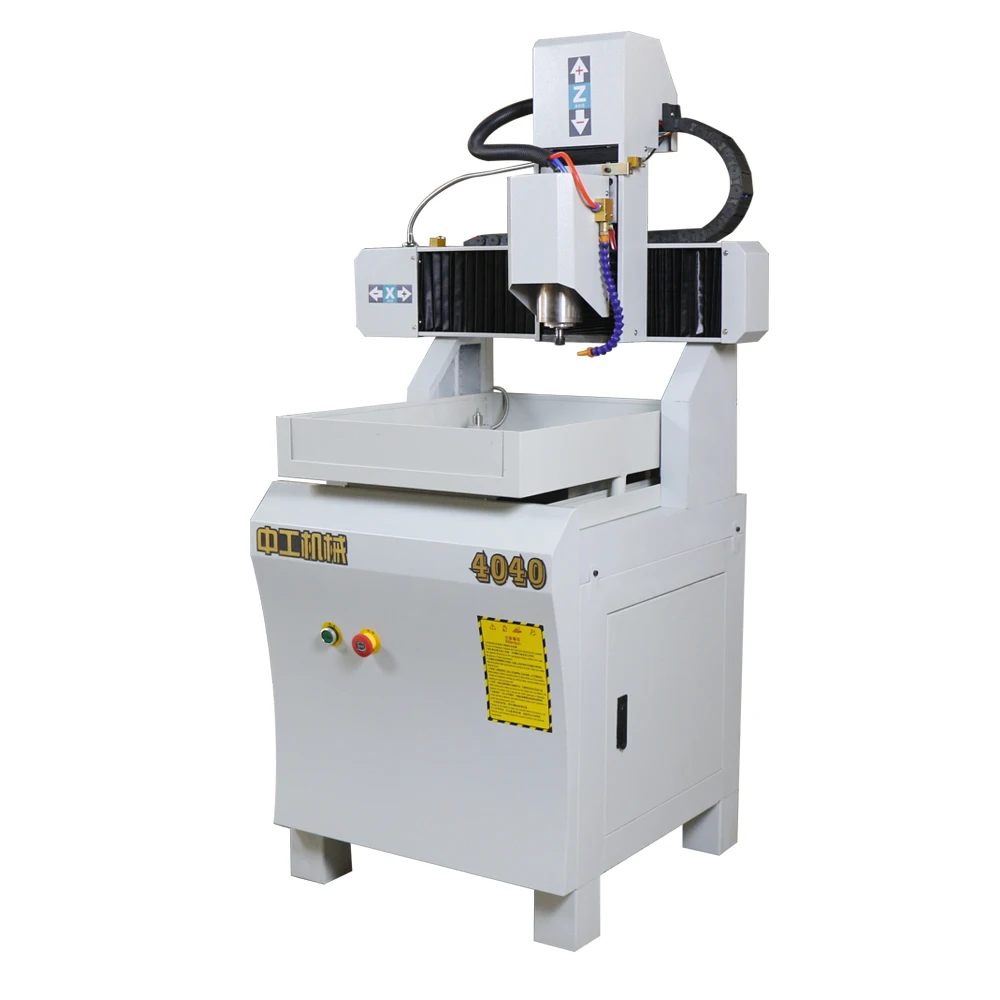

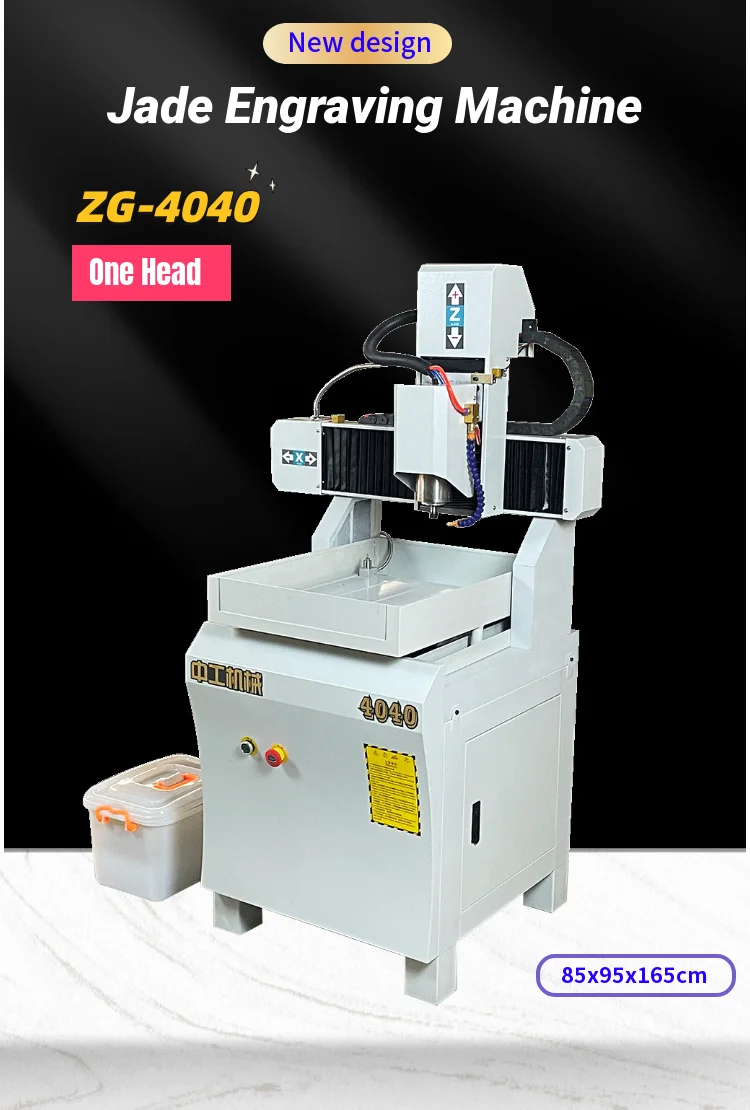

ZG-4040 One Head

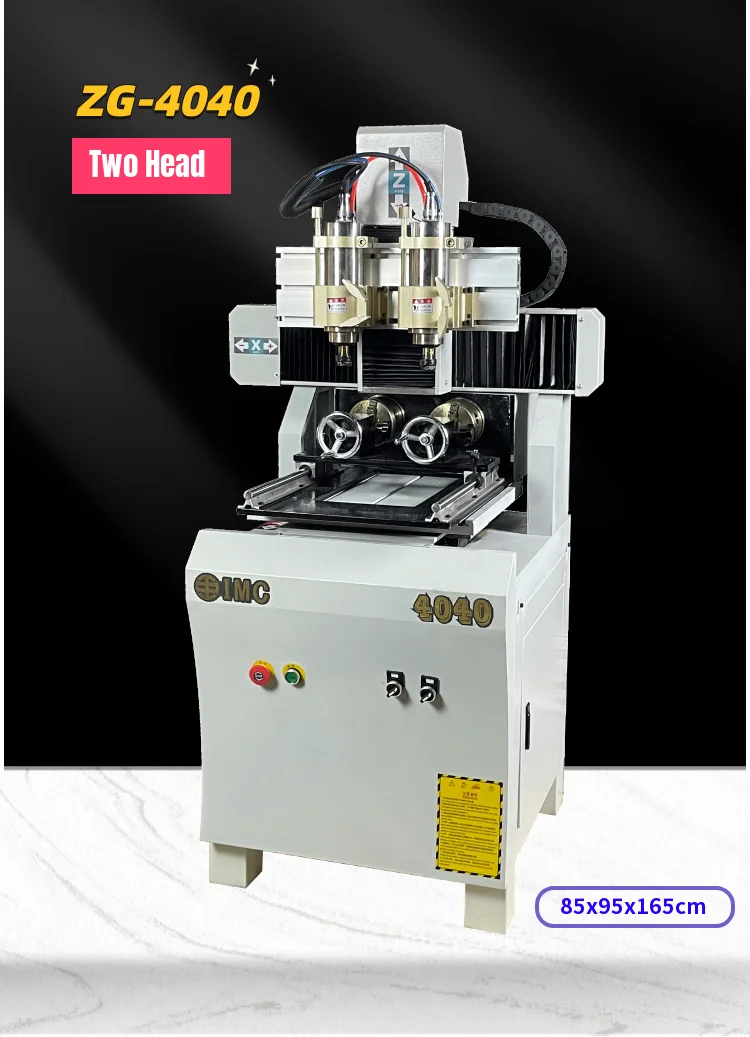

ZG-4040 Two Head

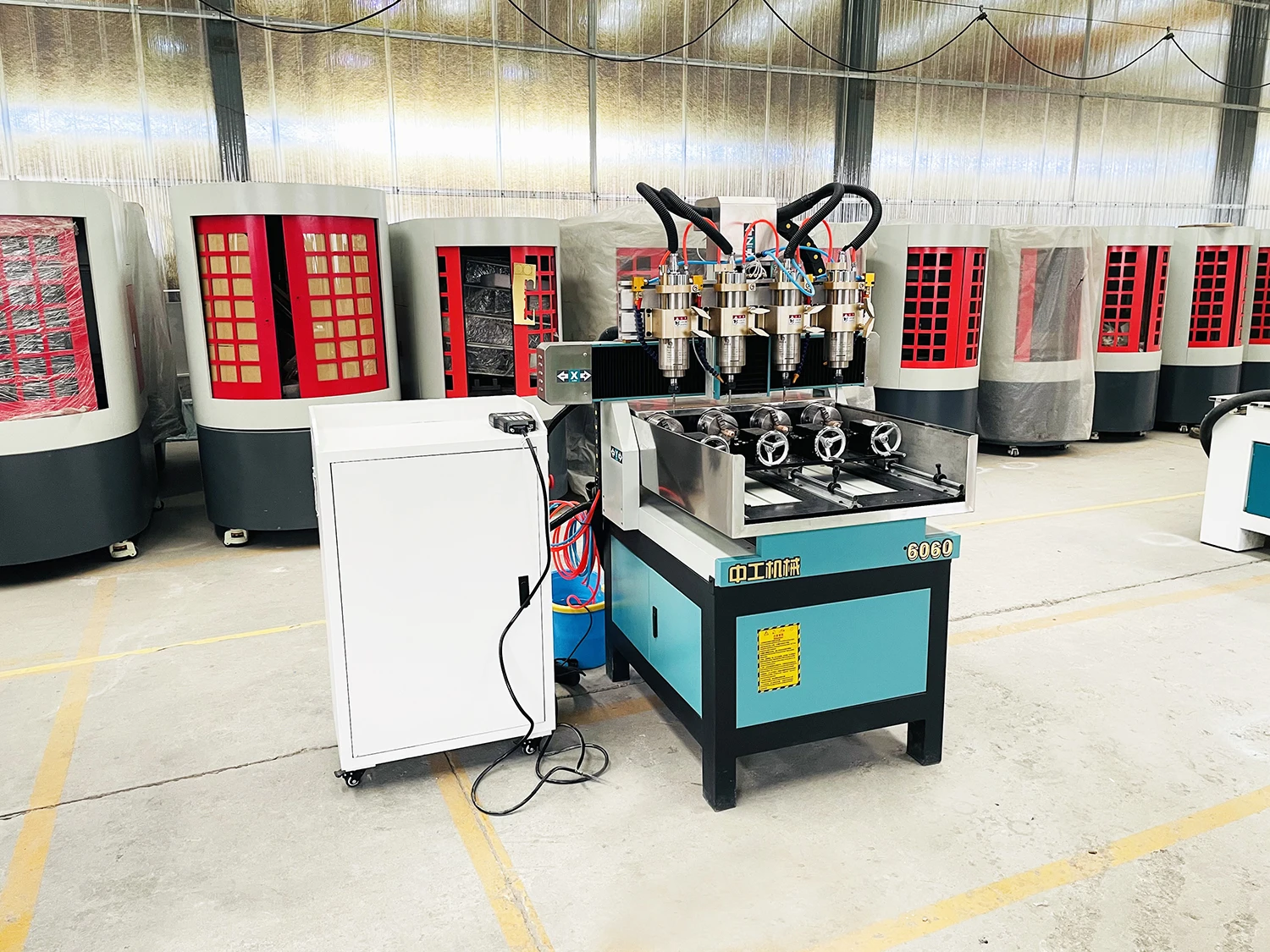

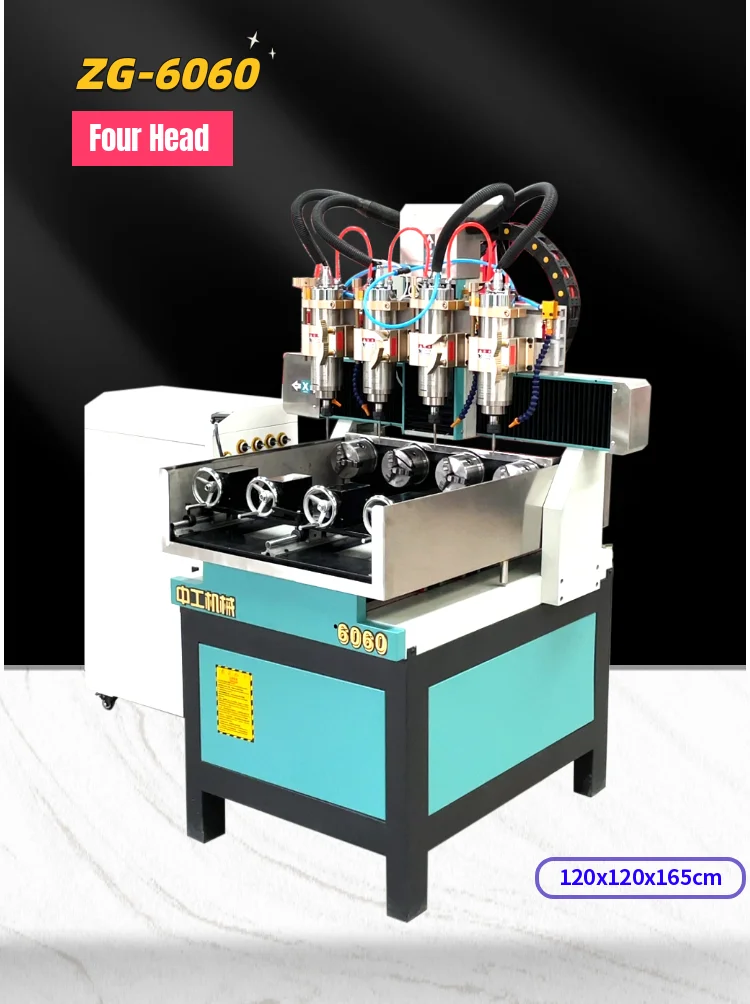

ZG-6060 Four Head

Machine Table Area

400mm*400mm*180mm

600mm*600mm*180mm

X Y Z Traveling Area

400mm*400mm*150mm

600mm*600mm*150mm

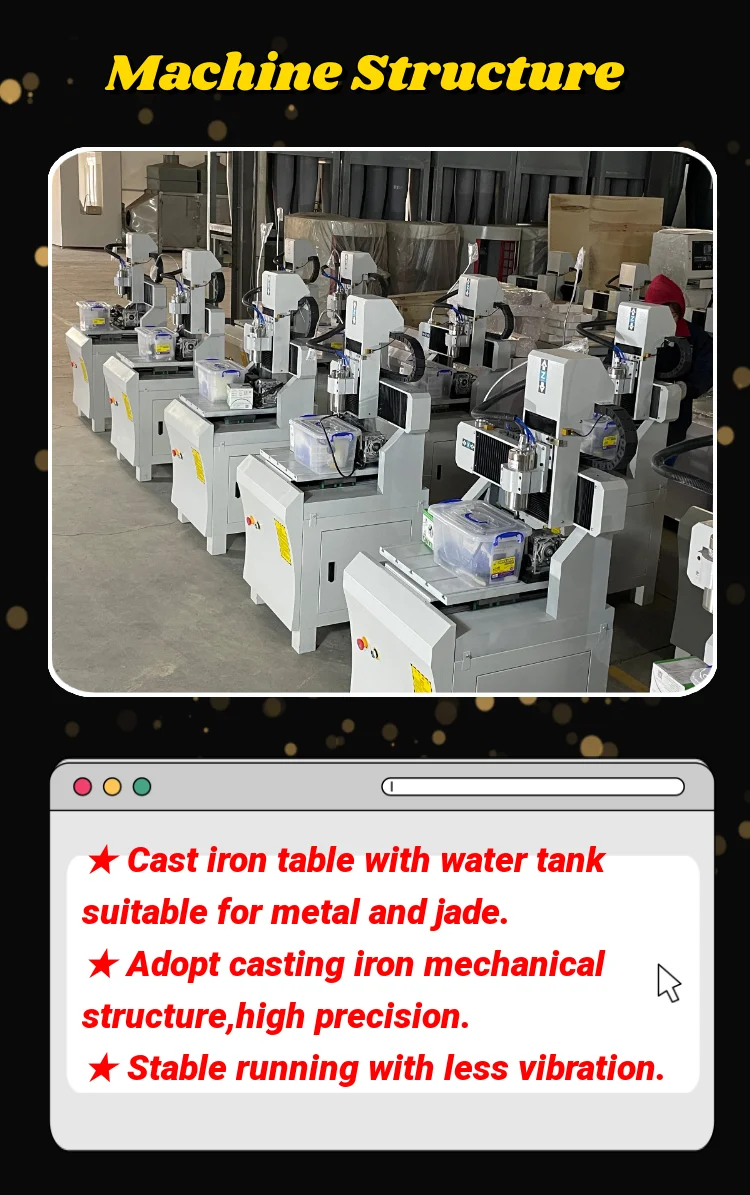

Table Structure

Wholly Iron Cast

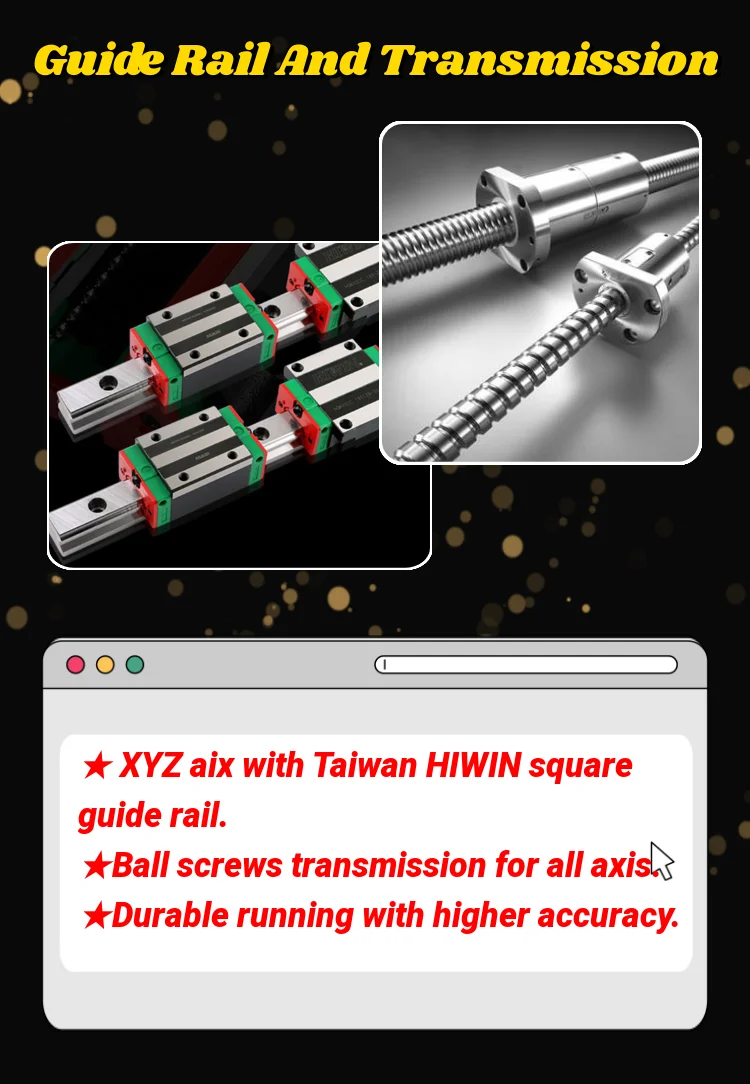

X Y Z Transmission

Taiwan TBI Ball Screws

X Y Z Guide Rail

HIWIN Square Rail

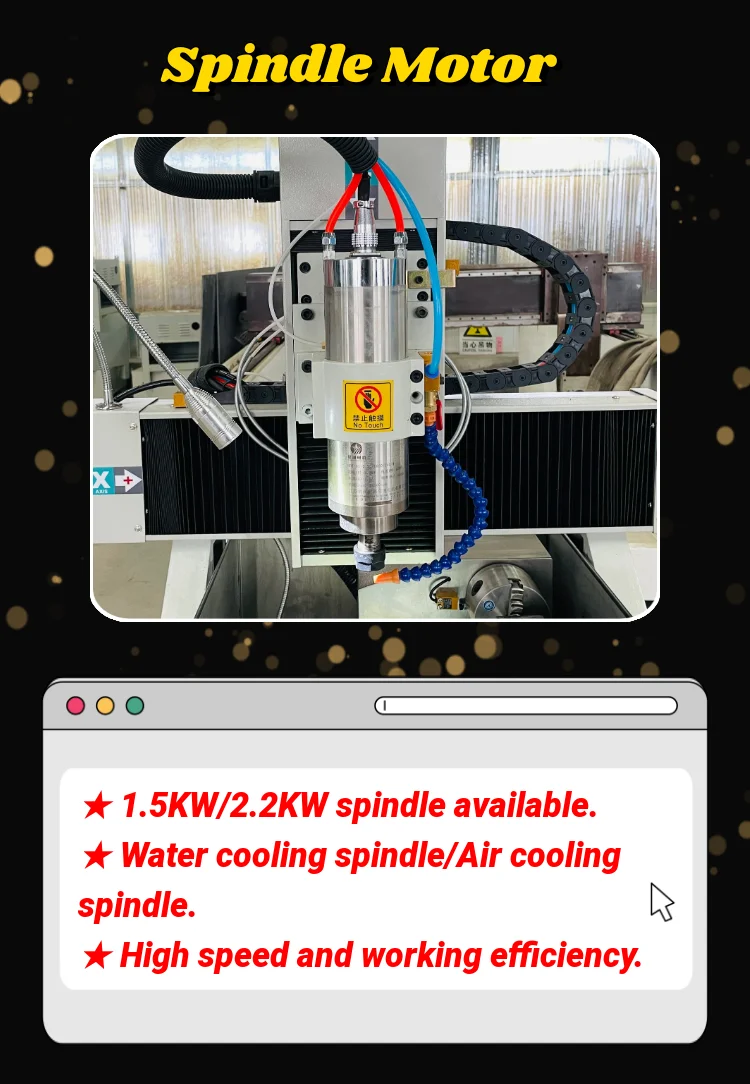

Spindle Power

1.5KW/2.2KW

1.5KW/2.2KW×2

1.5KW/2.2KW×4

Max. Spindle Speed

24000r/mm

Max. Traveling Speed

6000mm/min

Max. Working Speed

5000mm/min

Processing Accuracy

±0.025mm

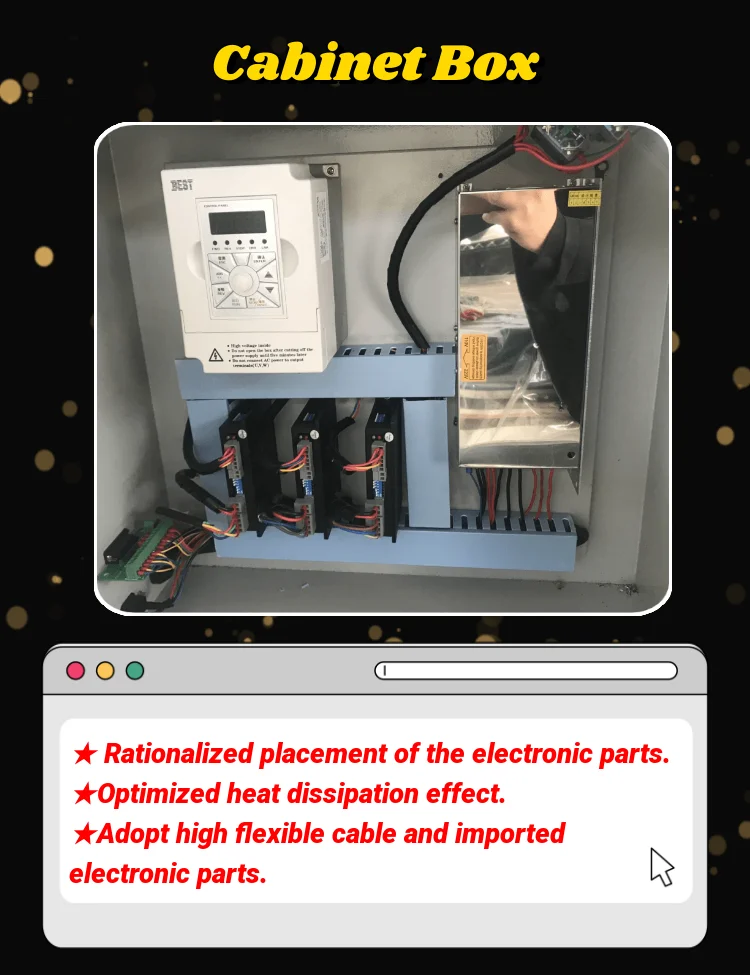

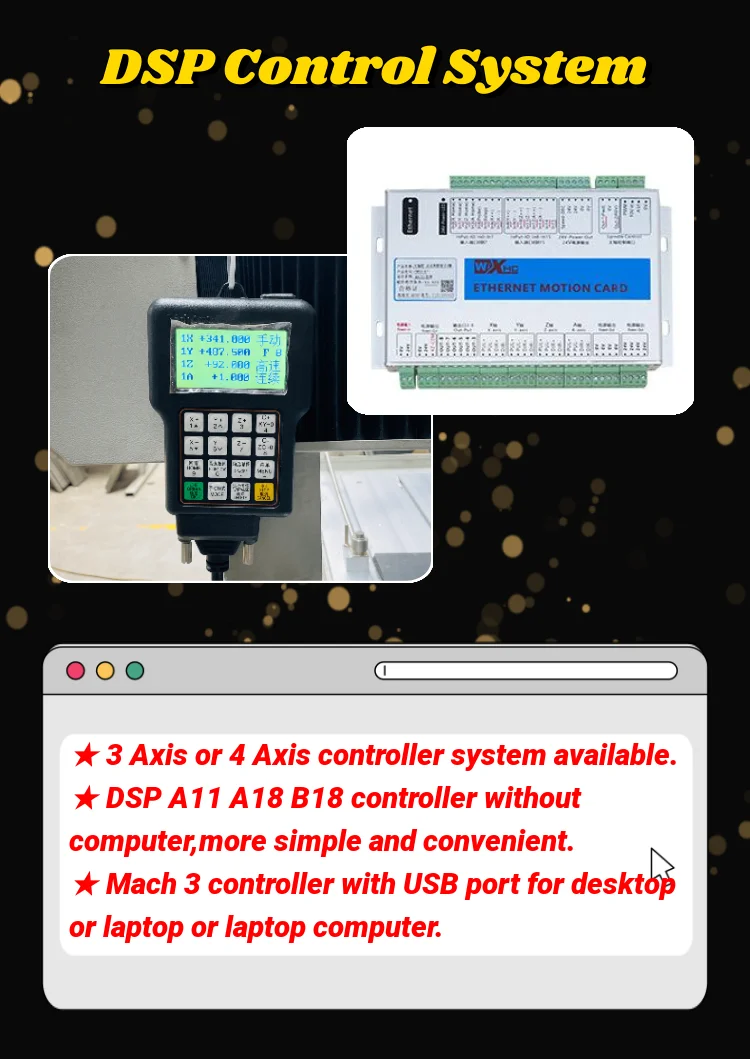

Driving System

Stepper Motor/Servo Drivers

Command Language

HPGL, G Code

Working Voltage

AC220V /50Hz

Net Weight/Gross Weight

220KGS / 260KGS

350KGS / 390KGS

500KGS / 550KGS

Package Dimension

1000mm*100mm*1750 mm

1300mm*130mm*1750 mm
