Electronic Load Cell Scale High Precision Parallel Beam Weighing Sensor Scale for 20kg 60kg 80kg 100kg 200kg

Product Overview

Description

Electronic Load Cell Scale High Precision Parallel Beam Weighing Sensor Scale for 20kg 60kg 80kg 100kg 200kg

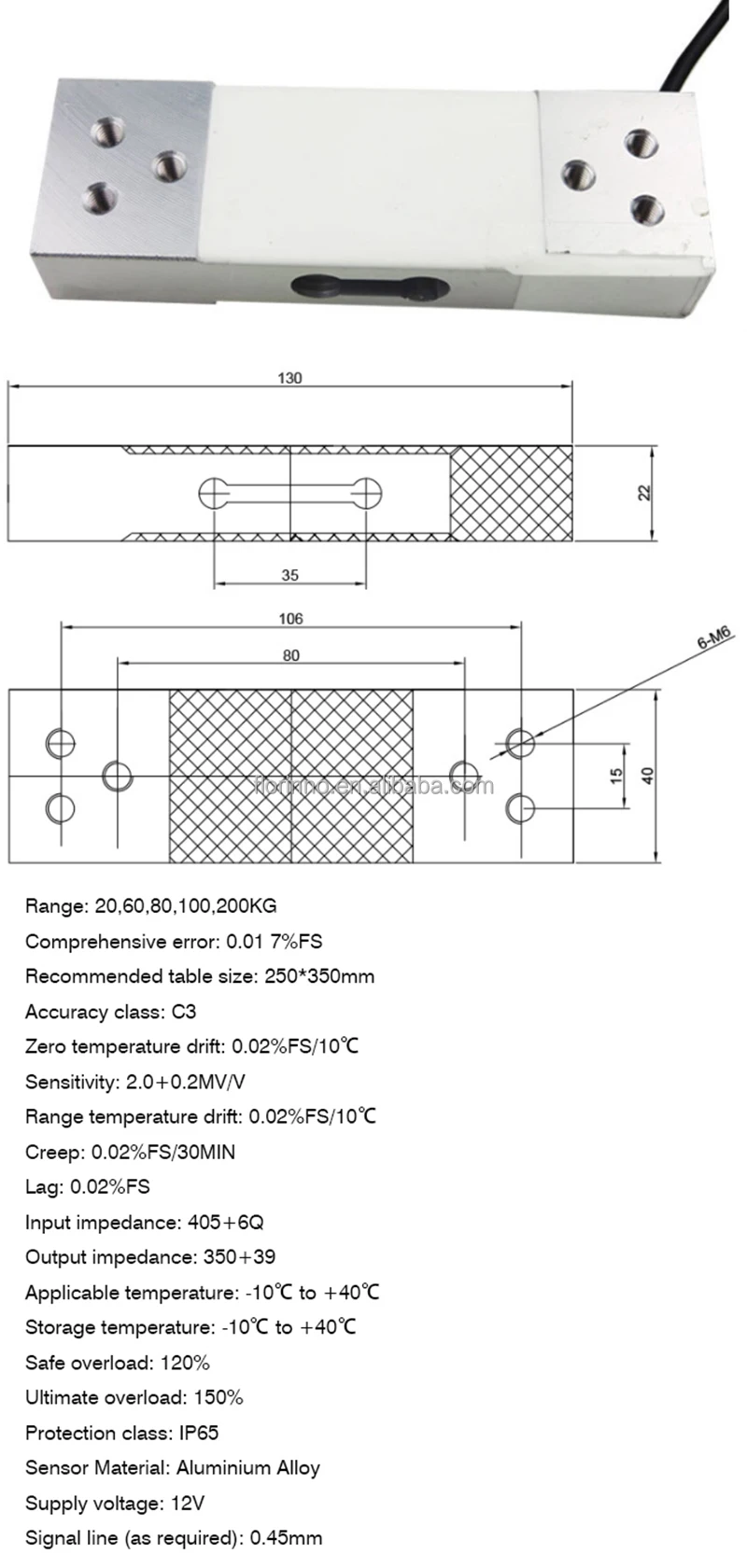

Specificaton:

Product name	electronic load cell for 20kg 60kg 80kg 100kg 200kg
Material	aluminum alloy
Comprehensive error	0.01 7%FS
Recommended table size:	250*350mm
Accuracy class	0.020%, 0.010%
Sensitivity	2.0±0.2mv/v
Output impedance	405±6



Load Cell

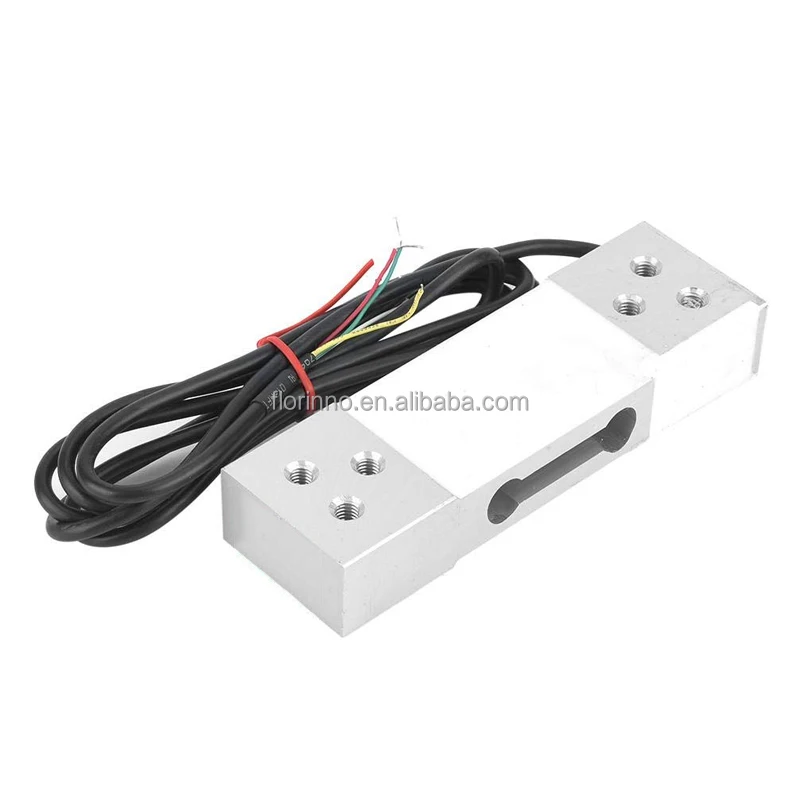

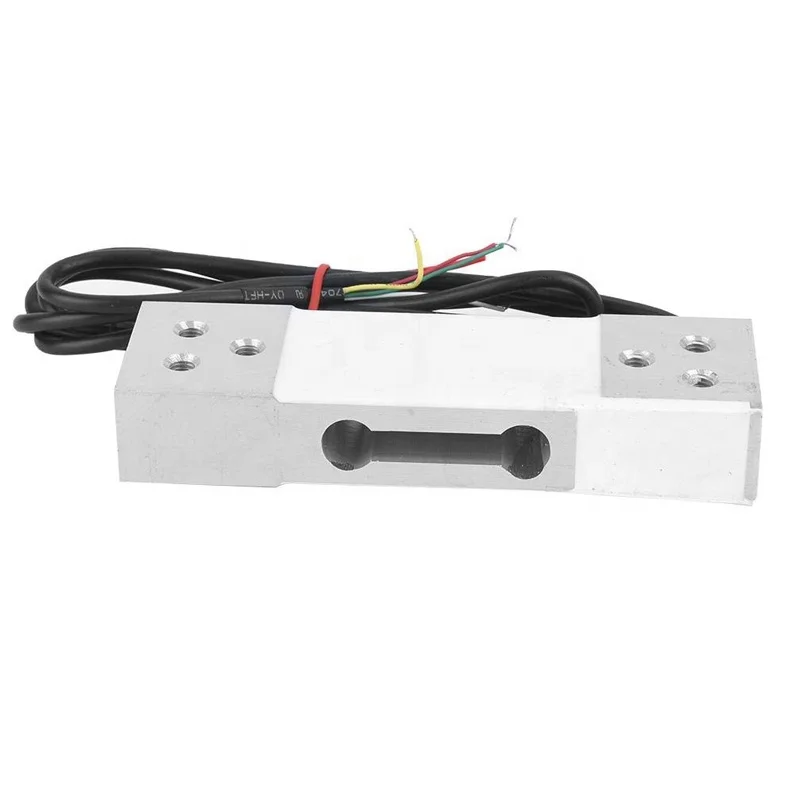

Four leads, easy to use.

5-10V drive voltage applied, the force is directly output as a voltage change signal.

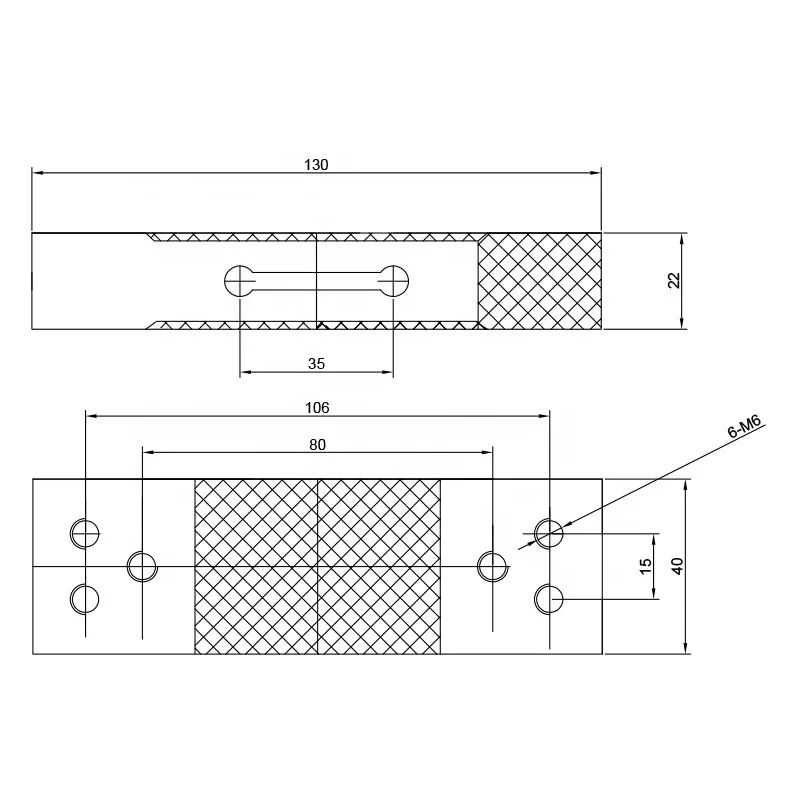

Dimensions: 13cm * 4.5cm * 4cm

Sensor through the screw hole at one end fixed and the other end to keep floating state, applying gravity following the direction indicated by label.

Particular attention must not directly push the white plastic cover part, so as not to damage the sensor.
