SYOUICHI CLS20 Slant Bed Desktop CNC Lathe Torno Fresador CNC Automatic Mini Torno CNC
- Category: >>>
- Supplier: Anhui Shangyi Precision Machinery Technology Co. Ltd.
Share on (1600436864670):
Product Overview
Description
PRODUCT DETAILS
2.NSK spindle bearings and X/Z axis
bearings
3.X/Z THK ball screws & THK linear
guideways

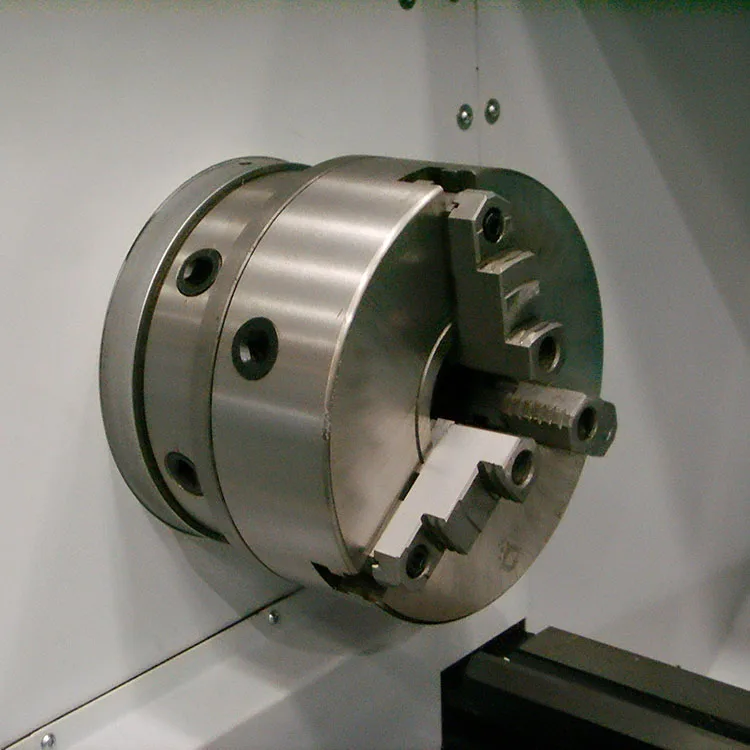

4.TAIWAN Non through-hole hydraulic chuck 5.Hydraulic tailstock
6.Heat exchanger
7.Chip conveyor
8.Automatic lubrication system
9.Standand toolkit
Max.Swing diameter over bed | 560MM | ||||||
Max turning diameter(Shaft/Disk) | 320MM | ||||||
Max turning length | 1000MM | ||||||
Guideway tyoe | Liner guideway | ||||||
Chuck size | 10 inch | ||||||
Spindle speed range | 45-2500rpm | ||||||
Spindle bore | 92MM | ||||||
Max bar capacity(Equipped with through-hole hydraulic chuck) | 92MM | ||||||
Spindle motor power | 11KW | ||||||
Max Cross travel of X axis | 270MM | ||||||
Max Cross travel of Z axis | 1000MM | ||||||
Prapid traverse of X/Z axis | 20/24m/min | ||||||

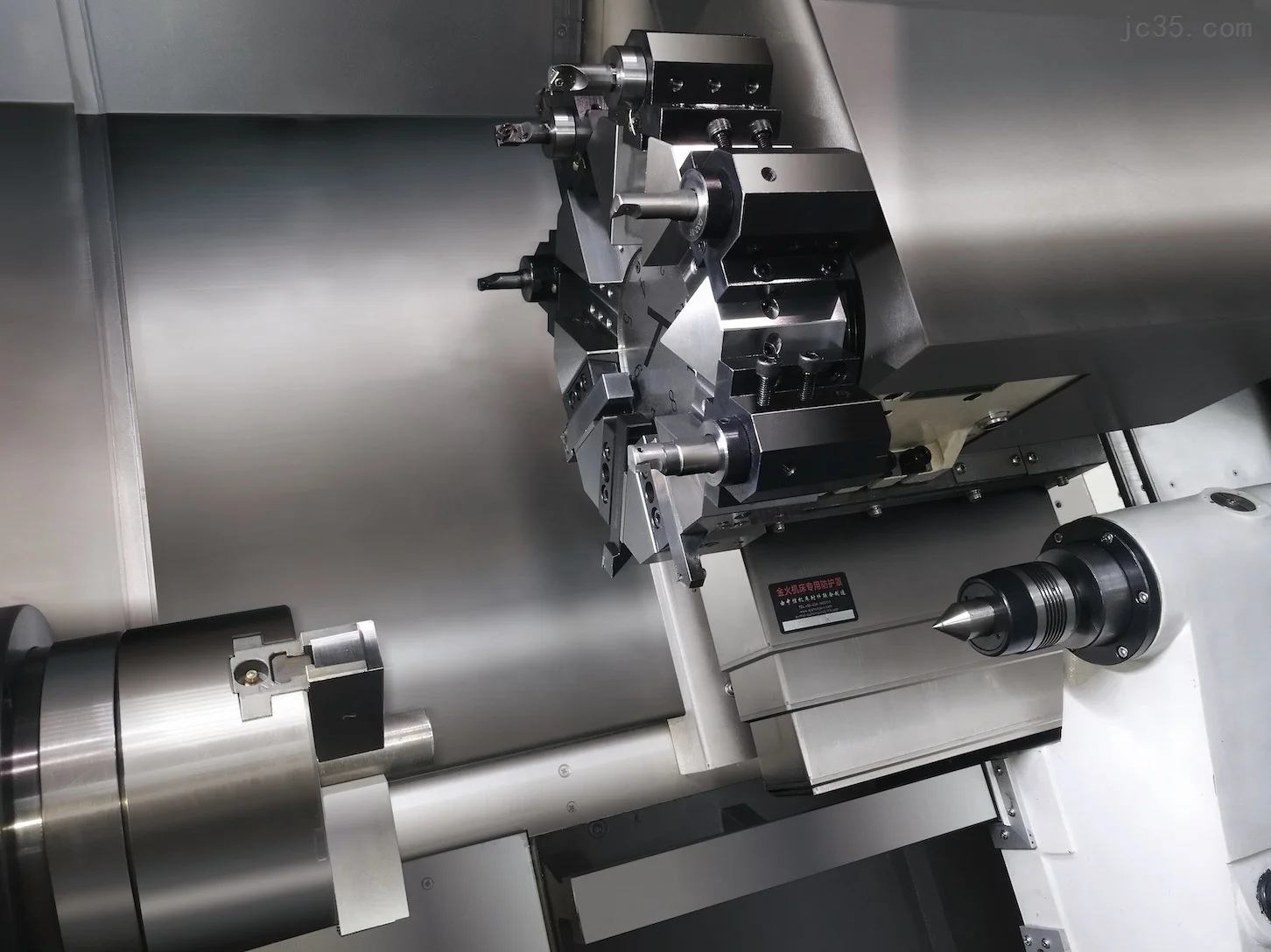

Tool type and tool number | Hydraulic 8-position turret | ||||||
Tool shank size | 25✖25 | ||||||
Diameter of tailstock quill | 75MM | ||||||
Tailstock quill stroke | 150MM | ||||||
X/Z axis positioning accuracy | 0.011/0.011 | ||||||
X/Z axis repeatability accuracy | 0.004/0.004 | ||||||
Machine dimensions(LxWxH) | 2840X1700X2100 | ||||||
Machine weight | 2800KG | ||||||
Warranty period | one year | ||||||
STANDARD CONFIGURATIONS
Hydraulic 8-position tuurret
NSK spindle bearings and X/Z axis bearings
X/Z THK ball screws & THK linear guideways
TAIWAN Non through-hole hydraulic chuck
Hydraulic tailstock
Heat ecchanger
Chip conveyor
Automatic lubrication system
Standand toolkit
X/Z THK ball screws & THK linear guideways
TAIWAN Non through-hole hydraulic chuck
Hydraulic tailstock
Heat ecchanger
Chip conveyor
Automatic lubrication system
Standand toolkit
OPTIONAL
SIEMENS 828Dsl or GSK 988T controller
Electric servo turret
High-flow water pump
MWTRAL and RENISHAW tool presetter
Air conditioner
TAIWAN through-hole hydraulic chuck and cylinder
Bar feeder and parts catcher
Automatic door
Door inter-lock
Electric servo turret
High-flow water pump
MWTRAL and RENISHAW tool presetter
Air conditioner
TAIWAN through-hole hydraulic chuck and cylinder
Bar feeder and parts catcher
Automatic door
Door inter-lock
Specification
Company Profile
Anhui ShangYi precision machinery technology Co. , Ltd. was established in 2020, is Anhui tsugami Precision Machine Tool Manufacturing Co., Ltd. (established in 1985) subsidiary, specializing in foreign trade import and export business. The company specializes in the export of machinery and their accessories. After years of efforts, the company has been SGS professional certification, and with many large-scale domestic and foreign supply factories to establish a cooperative relationship to ensure timely and stable supply of goods. Has been superb technology, reasonable prices, excellent quality and rapid after-sales service and technical support, by customers around the world, products are exported to Europe, Asia, Africa and the Middle East and other countries and regions. The company will recruit talent, enhance product competitiveness, accelerate enterprise development, for new and old customers to provide better products and services
Packing & Delivery
FAQ
Q. What are your normal lead times?
A.Our company typical lead times range from 3-4weeks after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, O/A etc.
Q.What kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q. why should you buy from us not from other suppliers?
A.We serve every customer attentively, customer satisfaction is our biggest power.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the MOQ is 1 set.
A.Our company typical lead times range from 3-4weeks after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, O/A etc.
Q.What kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q. why should you buy from us not from other suppliers?
A.We serve every customer attentively, customer satisfaction is our biggest power.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the MOQ is 1 set.
